Model Electrolux MFF351BCWD RANGE – Common Parts & Diagrams

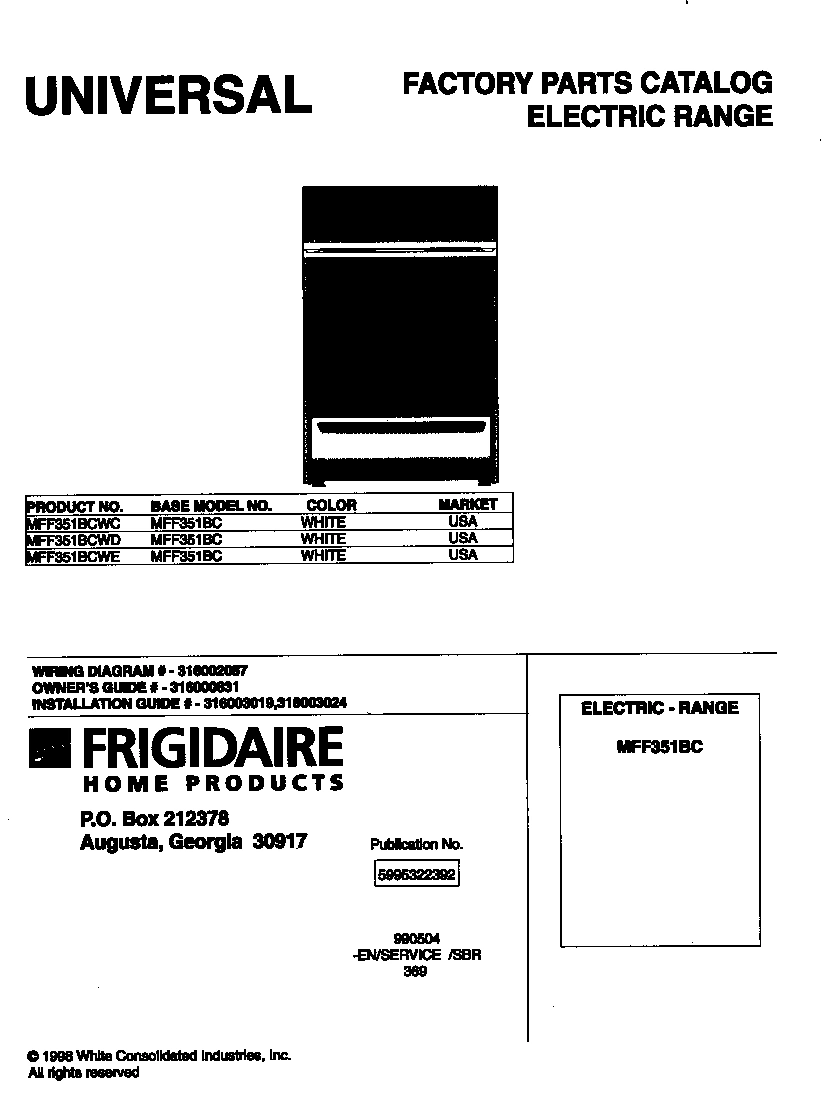

01 - COVER

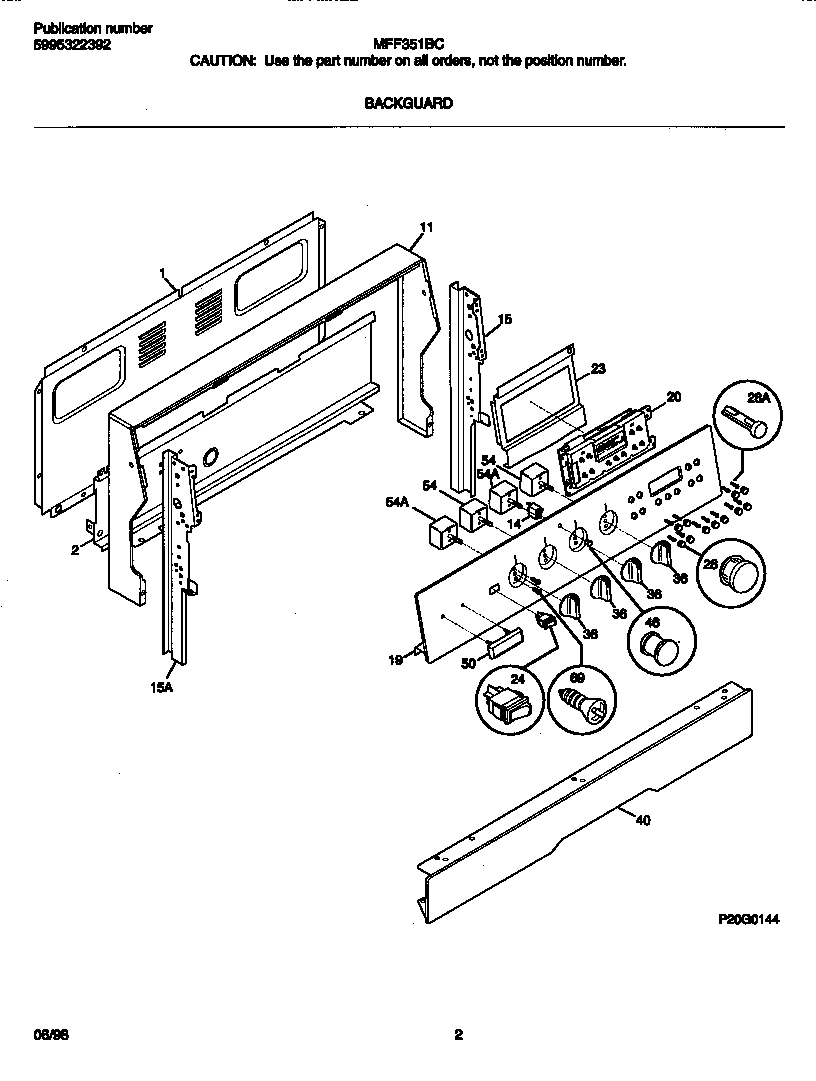

02 - BACKGUARD

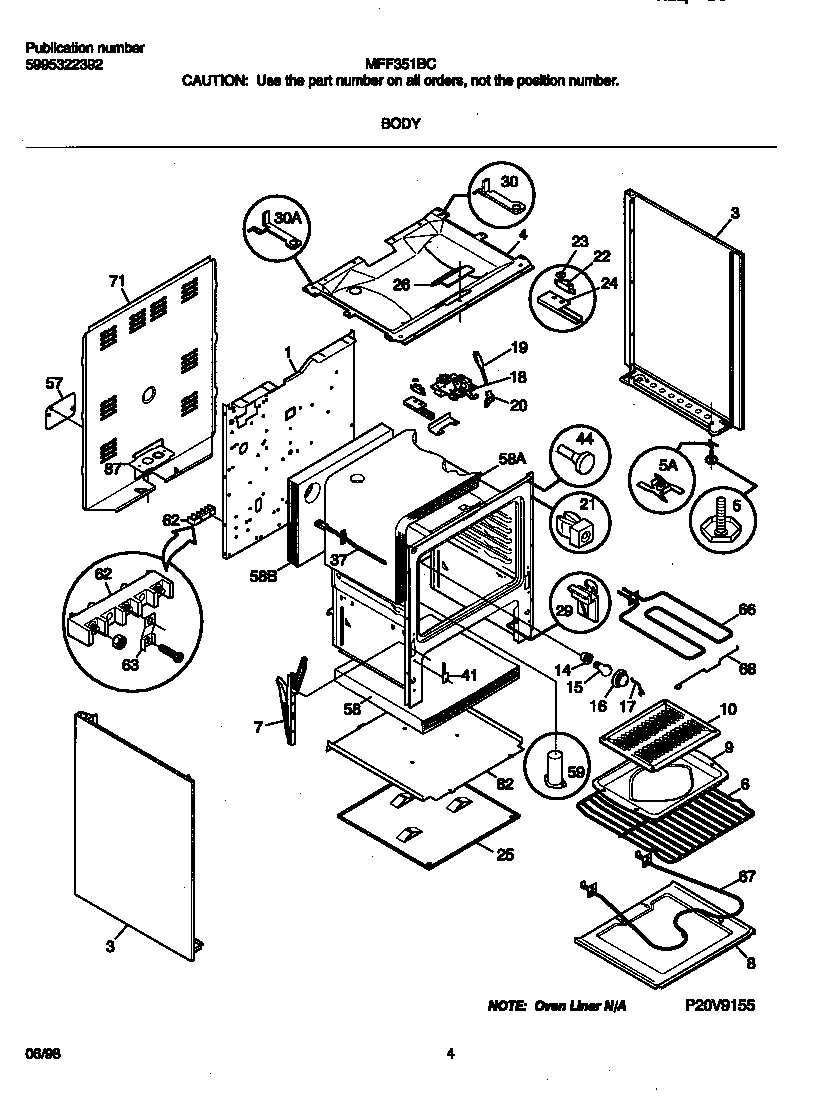

03 - BODY

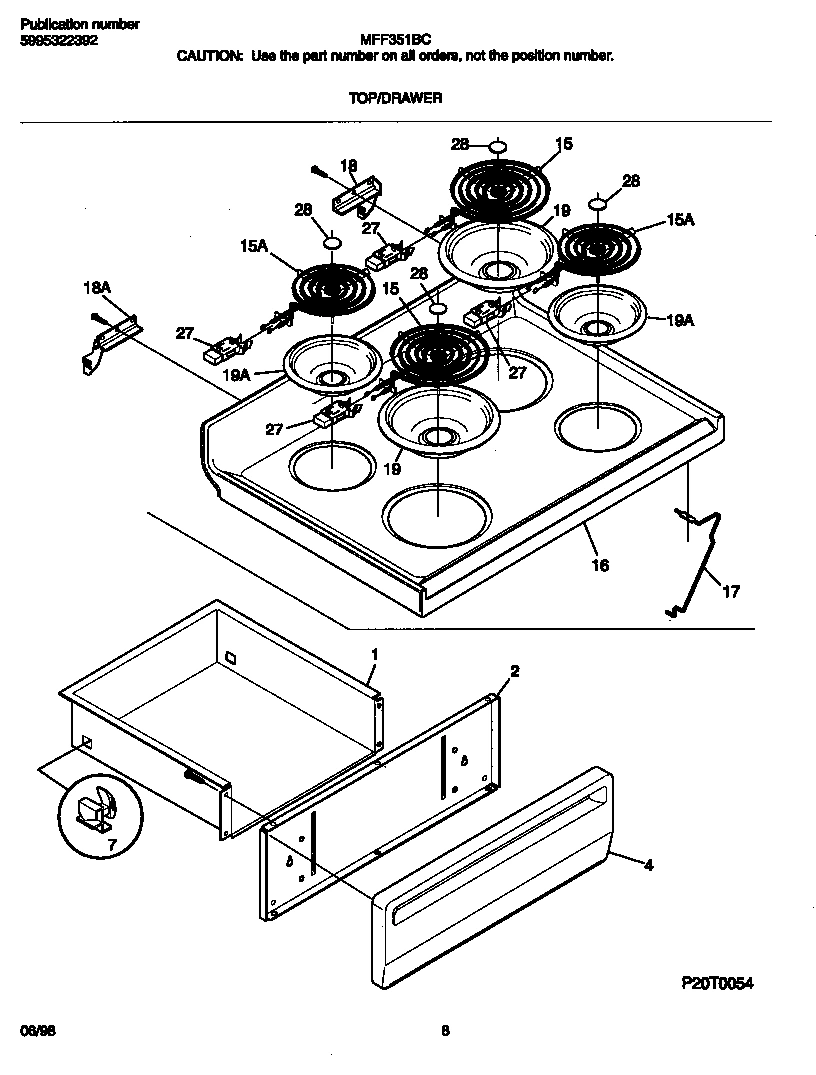

04 - TOP/DRAWER

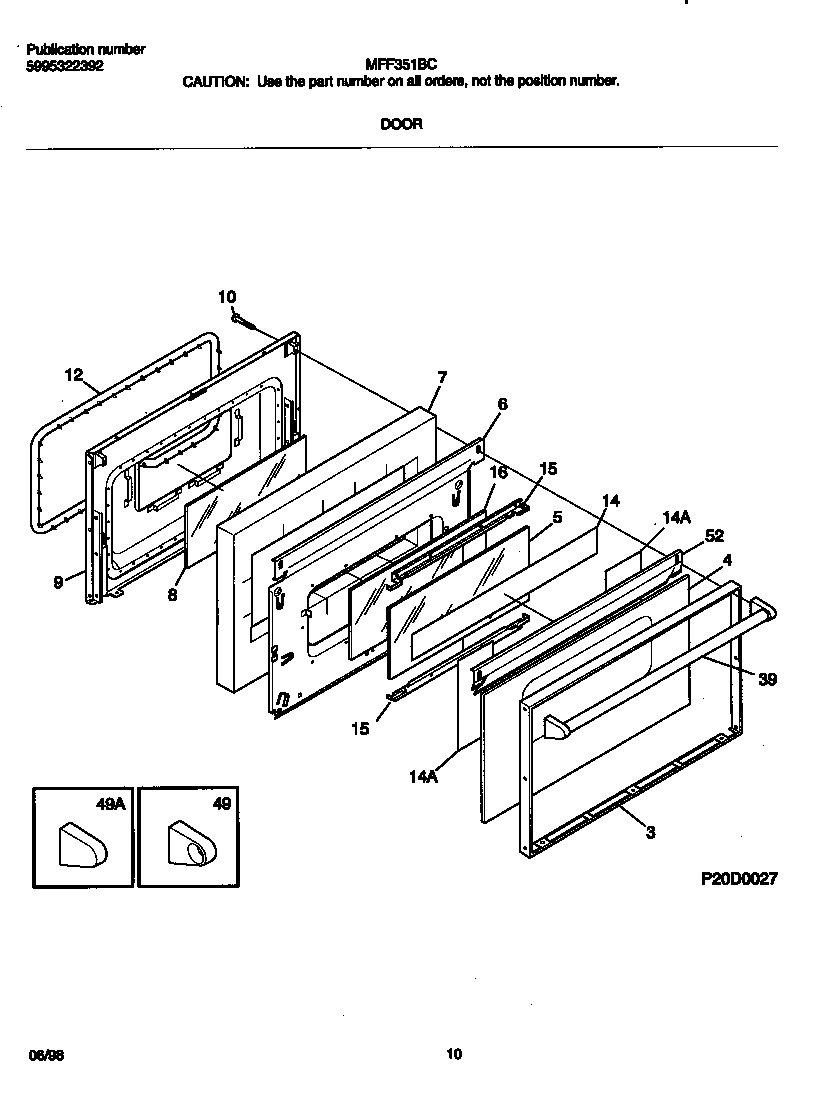

05 - DOOR
06 - WIRING DIAGRAM
Common parts from model Electrolux MFF351BCWD RANGE
*63089
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*63100
WCI 316001725 WCI 316001725 Contact Us For Availability
*63105
WCI 316089600 WCI 316089600 Contact Us For Availability
*63107
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*63109
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*63112
WCI 316065306 WCI 316065306 Contact Us For Availability
*63114
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*63115
SCREW-SWITCH/HANDLE,8-32 X 5/32 WCI 5303292005 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
28
SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC, BLACK WCI 316080600 Contact Us For Availability
28A
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
36
WCI 316015203 WCI 316015203 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
58A
Insulation, 2`` ,oven back WCI 316054200 Contact Us For Availability
58B
WCI 316047708 WCI 316047708 Contact Us For Availability
59
WCI 316073600 WCI 316073600 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
× ![]()
