Model Maytag MER8772WB1 ELECTRIC RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

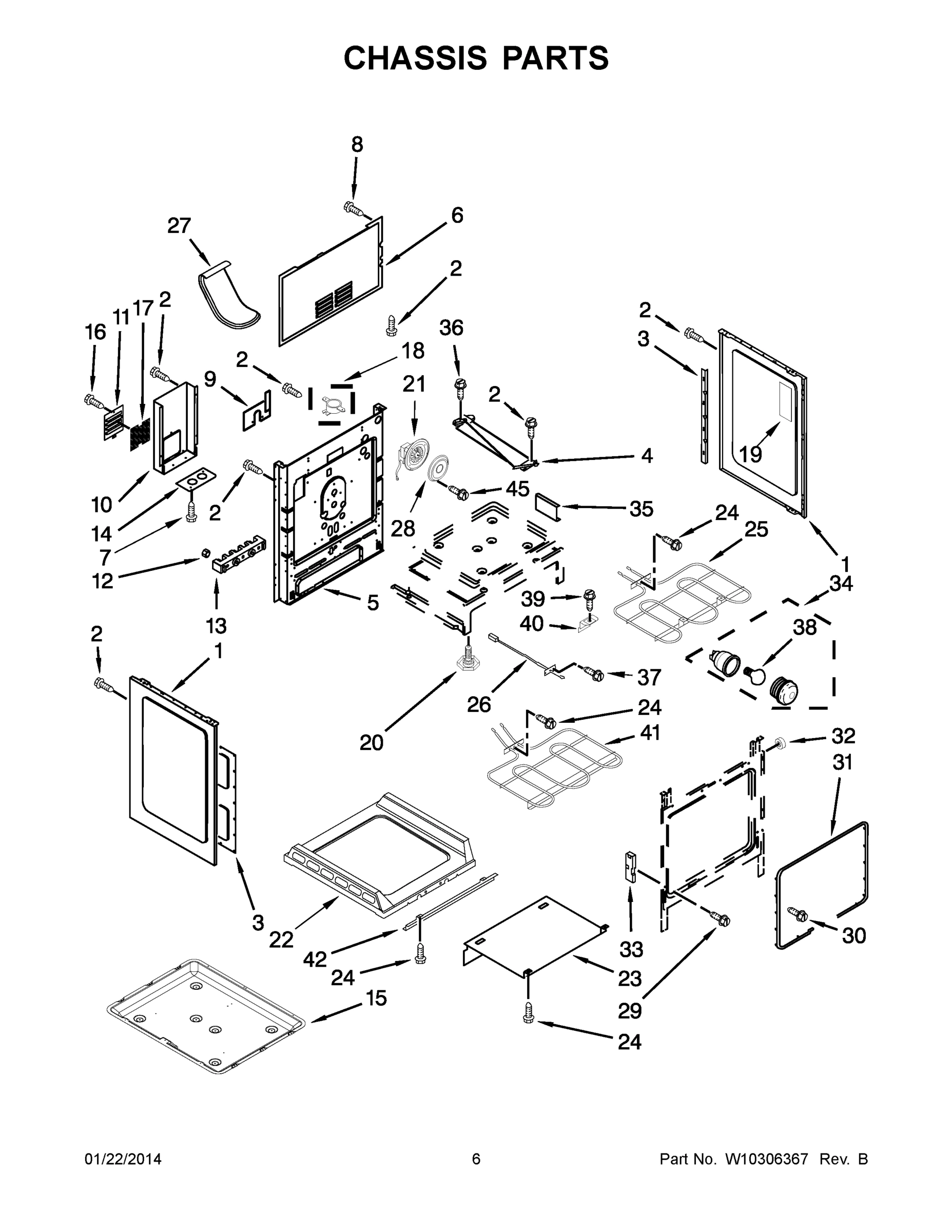

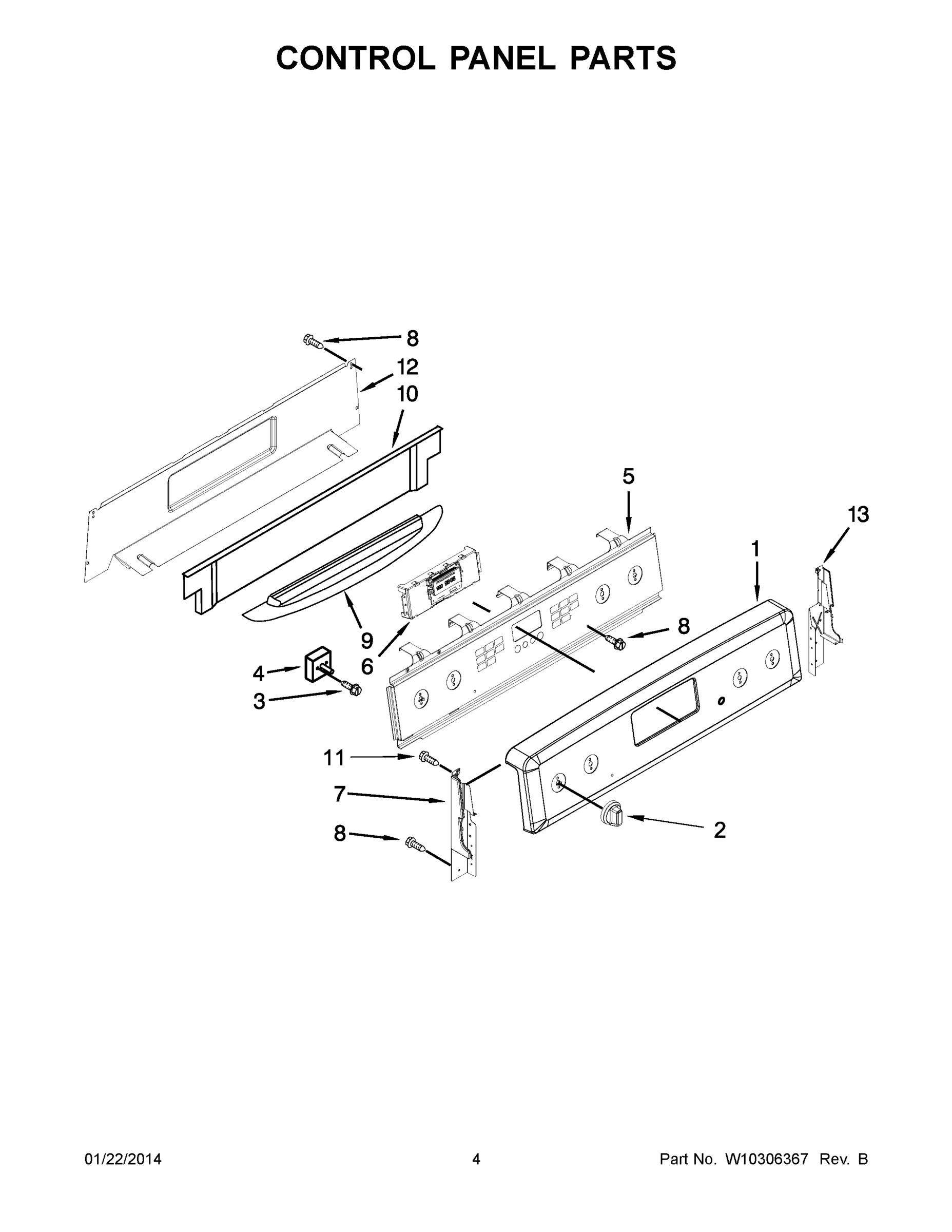

03 - CONTROL PANEL PARTS
04 - CHASSIS PARTS

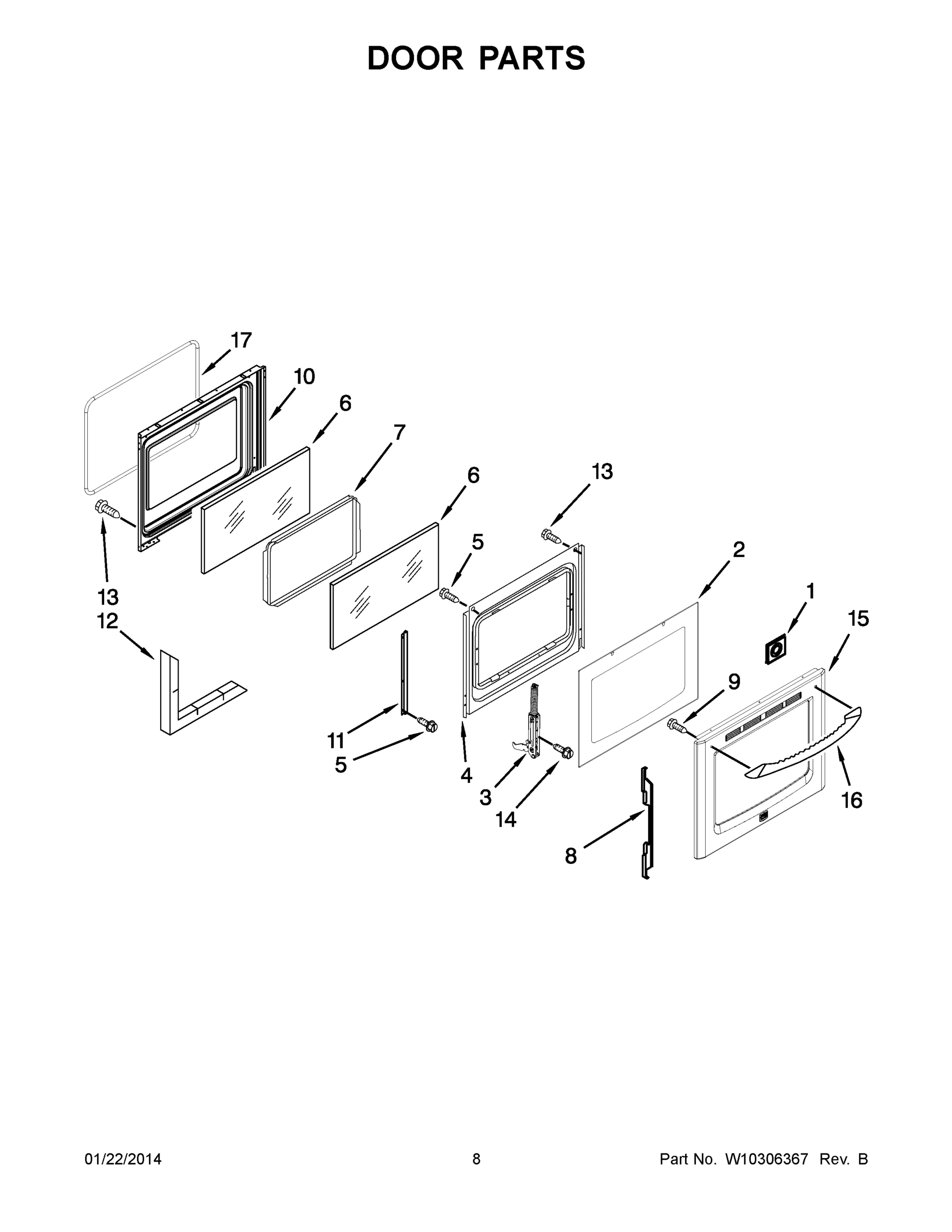

05 - DOOR PARTS

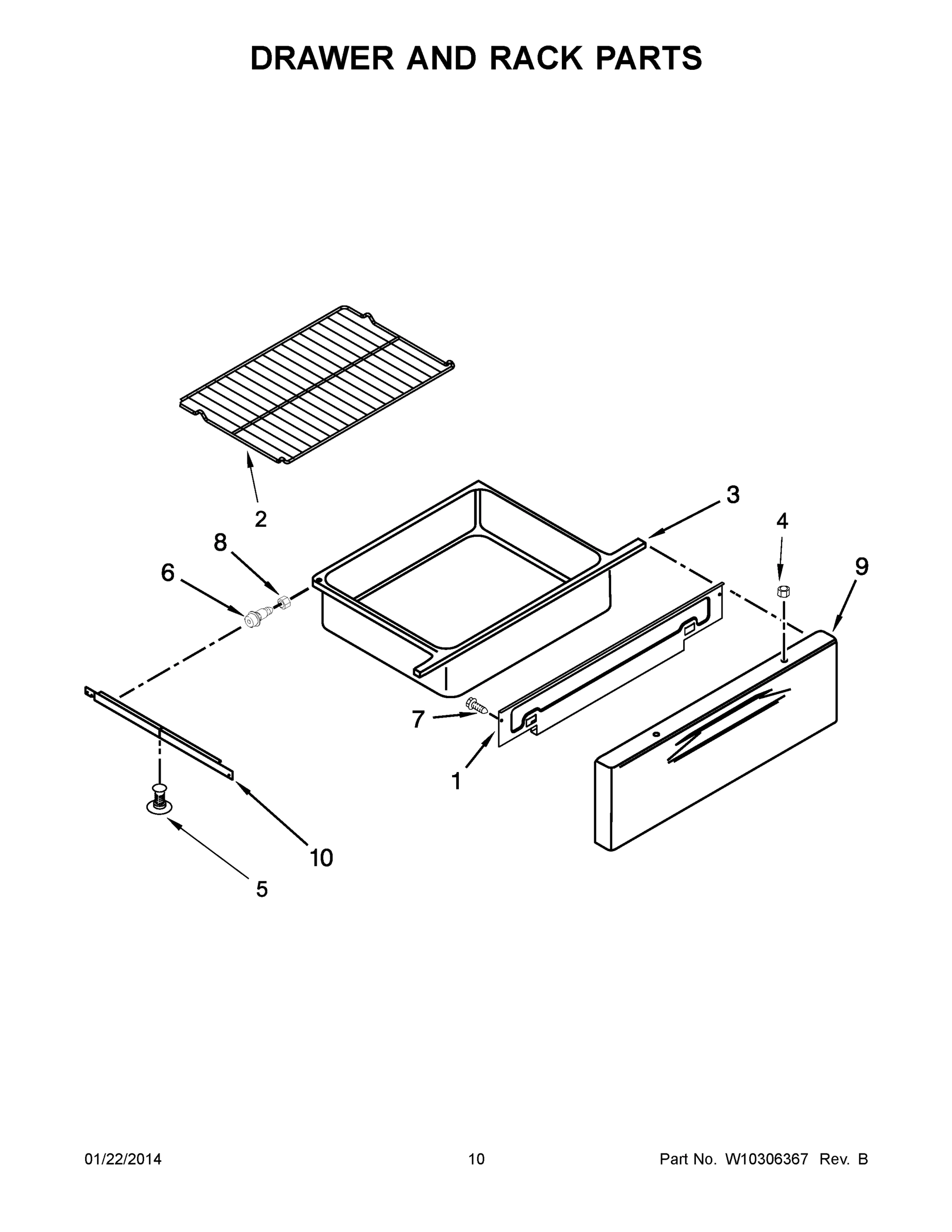

06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag MER8772WB1 ELECTRIC RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
MAY W10239459 MAY W10239459 Contact Us For Availability
1
MAY W10239462 MAY W10239462 Contact Us For Availability
1
MAY W10258095 MAY W10258095 Contact Us For Availability
1
MAY W10097270 MAY W10097270 Contact Us For Availability
1
MAY W10097280 MAY W10097280 Contact Us For Availability
1
MAY W10097310 MAY W10097310 Contact Us For Availability
1
MAY 2618F172-58 MAY 2618F172-58 Contact Us For Availability
1
MAY 2618F172-69 MAY 2618F172-69 Contact Us For Availability
1
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
1
PLATE, DRAWER PANEL MOUNTING MAY 3605P337-51 Contact Us For Availability
2
MAY W10225470 MAY W10225470 Contact Us For Availability
2
MAY W10225471 MAY W10225471 Contact Us For Availability
2
MAY W10211371 MAY W10211371 Contact Us For Availability
2
KNOB (BLACK) MAY W10211372 Contact Us For Availability
2
KNOB (CONTROL) MAY W10291145 Contact Us For Availability
2
MAY 3196560 MAY 3196560 Contact Us For Availability
2
GLASS, OUTER DOOR MAY W10181725 Contact Us For Availability
2
MAY W10268578 MAY W10268578 Contact Us For Availability
3
Spacer, Snap-In MAY 8010P149-60 Contact Us For Availability
3
MAY 3400882 MAY 3400882 Contact Us For Availability
3
Hinge, Door MAY 7106P124-60 Contact Us For Availability
3
MAY 3405F037-80 MAY 3405F037-80 Contact Us For Availability
4
ELEMENT (3200W) (LEFT FRONT) MAY W10251108 Contact Us For Availability
4
MAY 3148951 MAY 3148951 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT) MAY W10149355 Contact Us For Availability
4
SWITCH, INFINITE TRIPLE (RIGHT FRONT) MAY W10169580 Contact Us For Availability
4
Retainer, Insulation MAY 3601F380-51 Contact Us For Availability
4
LATCH, DOOR LOCK MAY W10275451 Contact Us For Availability
4
MAY 7103P190-60 MAY 7103P190-60 Contact Us For Availability
5
ELEMENT, WARM ZONE (120V) (CENTER REAR) MAY 9762851 Contact Us For Availability
5
OVERLAY, ACTIVE MAY W10207496 Contact Us For Availability
5
BACK, MAIN MAY W10205618 Contact Us For Availability
5
Drawer, Stop MAY 8038P037-60 Contact Us For Availability
6
MAY 7803P087-60 MAY 7803P087-60 Contact Us For Availability
6
MAY W10157248 MAY W10157248 Contact Us For Availability
6
COVER, WIRE MAY W10243046 Contact Us For Availability
6
Glass, Inner MAY 7902P436-60 Contact Us For Availability
6
MAY 7118P032-60 MAY 7118P032-60 Contact Us For Availability
7
MAY 3196165 MAY 3196165 Contact Us For Availability
7
ENDCAP (WHITE (LEFT HAND)) MAY W10163967 Contact Us For Availability
7
ENDCAP (BLACK (LEFT HAND)) MAY W10163969 Contact Us For Availability
7
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
8
MAY W10170717 MAY W10170717 Contact Us For Availability
8
MAY 3801P918-51 MAY 3801P918-51 Contact Us For Availability
9
ELEMENT (3000/2200/1100W) (RIGHT FRONT) MAY W10162041 Contact Us For Availability
9
MAY 3604F382-09 MAY 3604F382-09 Contact Us For Availability
9
MAY 3604F382-81 MAY 3604F382-81 Contact Us For Availability
9
INSULATION, POWER CORD MAY 7003P145-60 Contact Us For Availability
9
MAY W10241367 MAY W10241367 Contact Us For Availability
9
MAY W10181695 MAY W10181695 Contact Us For Availability
9
MAY W10181696 MAY W10181696 Contact Us For Availability
9
PANEL, DRAWER (STAINLESS) MAY W10181698 Contact Us For Availability
10
MAY 8273994 MAY 8273994 Contact Us For Availability
10
Shield, Vent Ext MAY 3604F381-19 Contact Us For Availability
10
COVER, TERMINAL BLOCK MAY W10243045 Contact Us For Availability
10
MAY 2402W297-19 MAY 2402W297-19 Contact Us For Availability
10
RAIL, DRAWER MAY 3406P034-51 Contact Us For Availability
11
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
11
MAY 3196557 MAY 3196557 Contact Us For Availability
11
COVER, ACCESS PLATE MAY 4005P704-51 Contact Us For Availability
11
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
12
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
12
COVER, CONSOLE-UPPER MAY W10243038 Contact Us For Availability
12
INSULATION, OVEN DOOR MAY 7002P246-60 Contact Us For Availability
13
MAY 3196178 MAY 3196178 Contact Us For Availability
13
ENDCAP (WHITE (RIGHT HAND)) MAY W10163968 Contact Us For Availability
13
ENDCAP (BLACK (RIGHT HAND)) MAY W10163970 Contact Us For Availability
14
MAY 3605P146-51 MAY 3605P146-51 Contact Us For Availability
14
Screw MAY 7101P282-60 Contact Us For Availability
15
PAN, BAKE BURNER MAY 3401F084-45 Contact Us For Availability
15
GLASS, DOOR (STAINLESS) MAY W10097300 Contact Us For Availability
15
MAY W10172590 MAY W10172590 Contact Us For Availability
15
MAY W10214541 MAY W10214541 Contact Us For Availability
16
MAY 3196160 MAY 3196160 Contact Us For Availability
16
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
16
MAY W10171747 MAY W10171747 Contact Us For Availability
16
MAY W10171748 MAY W10171748 Contact Us For Availability
17
MAY W10260573 MAY W10260573 Contact Us For Availability
17
GASKET, WINDOW MAY W10290904 Contact Us For Availability
18
SWITCH, LIMITER MAY 7403P857-60 Contact Us For Availability
19
RETAINER, INSULATION MAY 3804F300-51 Contact Us For Availability
20
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
21
FAN, ASSEMBLY MAY 7427P099-60 Contact Us For Availability
22
MAY W10211367 MAY W10211367 Contact Us For Availability
23
MAY 3604F371-51 MAY 3604F371-51 Contact Us For Availability
24
Screw MAY 3196173 Contact Us For Availability
25
MAY 7406P493-60 MAY 7406P493-60 Contact Us For Availability
26
MAY W10181986 MAY W10181986 Contact Us For Availability
27
MAY 8026P081-60 MAY 8026P081-60 Contact Us For Availability
28
COVER, FAN MAY 3605F305-19 Contact Us For Availability
31
MAY W10162385 MAY W10162385 Contact Us For Availability
32
Spacer, Side Panel MAY 8010P148-60 Contact Us For Availability
33
Hinge, Receiver MAY 7106P125-60 Contact Us For Availability
34
SOCKET, LIGHT MAY 3196701 Contact Us For Availability
35
BRACKET, OVEN SUPPORT MAY 3801P798-51 Contact Us For Availability
38
MAY 311255 MAY 311255 Contact Us For Availability
39
Screw MAY 7101P618-60 Contact Us For Availability
40
BRACKET, OVEN SUPPORT MAY 3801P822-45 Contact Us For Availability
41
MAY 7406P451-60 MAY 7406P451-60 Contact Us For Availability
42
Support, Oven Bottom MAY 3807P680-45 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW MAY 3196154 Contact Us For Availability
NI
MAY 3804F316-51 MAY 3804F316-51 Contact Us For Availability
NI
MAY 4820F014-59 MAY 4820F014-59 Contact Us For Availability
NI
MAY 7002P361-60 MAY 7002P361-60 Contact Us For Availability
NI
MAY 7002P362-60 MAY 7002P362-60 Contact Us For Availability
NI
INSULATION, SIDE PANEL MAY W10182346 Contact Us For Availability
NI
MAY W10243056 MAY W10243056 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, GLASS CLEANER MAY 3191048 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTE MAY 7401P157-60 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (COOKTOP MAY W10237593 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (MAIN) MAY W10237596 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (CERAN) MAY W10237597 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, WIRE (COOKTOP MAY W10237616 Contact Us For Availability
× ![]()
