Model Whirlpool MER8772WB0 ELECTRIC RANGE – Common Parts & Diagrams

1

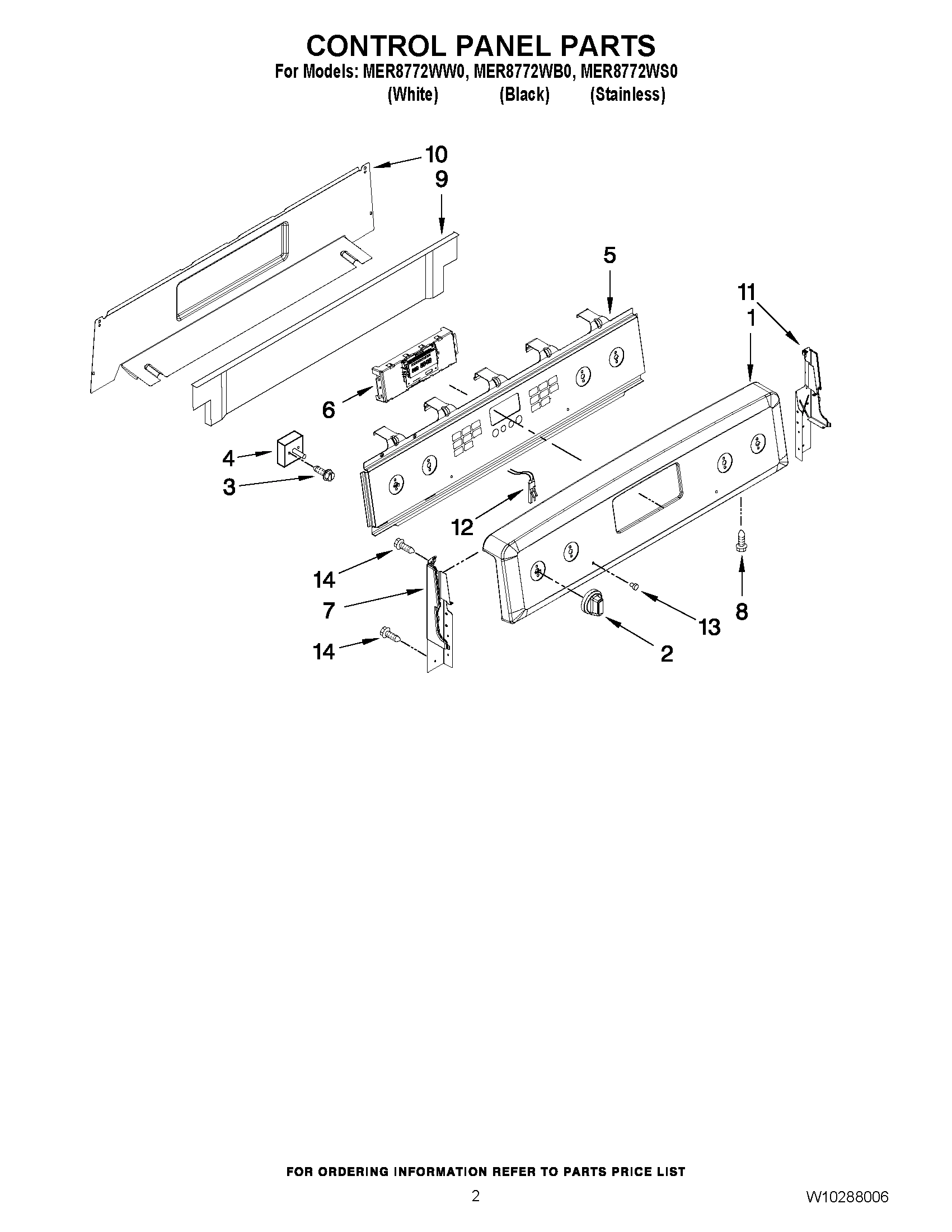

PANEL, BACKGUARD (STAINLESS)
PANEL, BACKGUARD (STAINLESS) WPL W10097310 Contact Us For Availability
View on Model
1
PANEL, BACKGUARD (BLACK)
PANEL, BACKGUARD (BLACK) WPL W10097280 Contact Us For Availability
View on Model
1
PANEL, BACKGUARD (WHITE)
PANEL, BACKGUARD (WHITE) WPL W10097270 Contact Us For Availability
View on Model
1
Spacer, Handle
Spacer, Handle WPL 3823F01745 Contact Us For Availability
View on Model
1
PLATE, PANEL MTG.
PLATE, PANEL MTG. WPL 3605P33751 Contact Us For Availability
View on Model
2
KNOB, CONTROL (STAINLESS)
KNOB, CONTROL (STAINLESS) WPL W10291145 Contact Us For Availability
View on Model
2

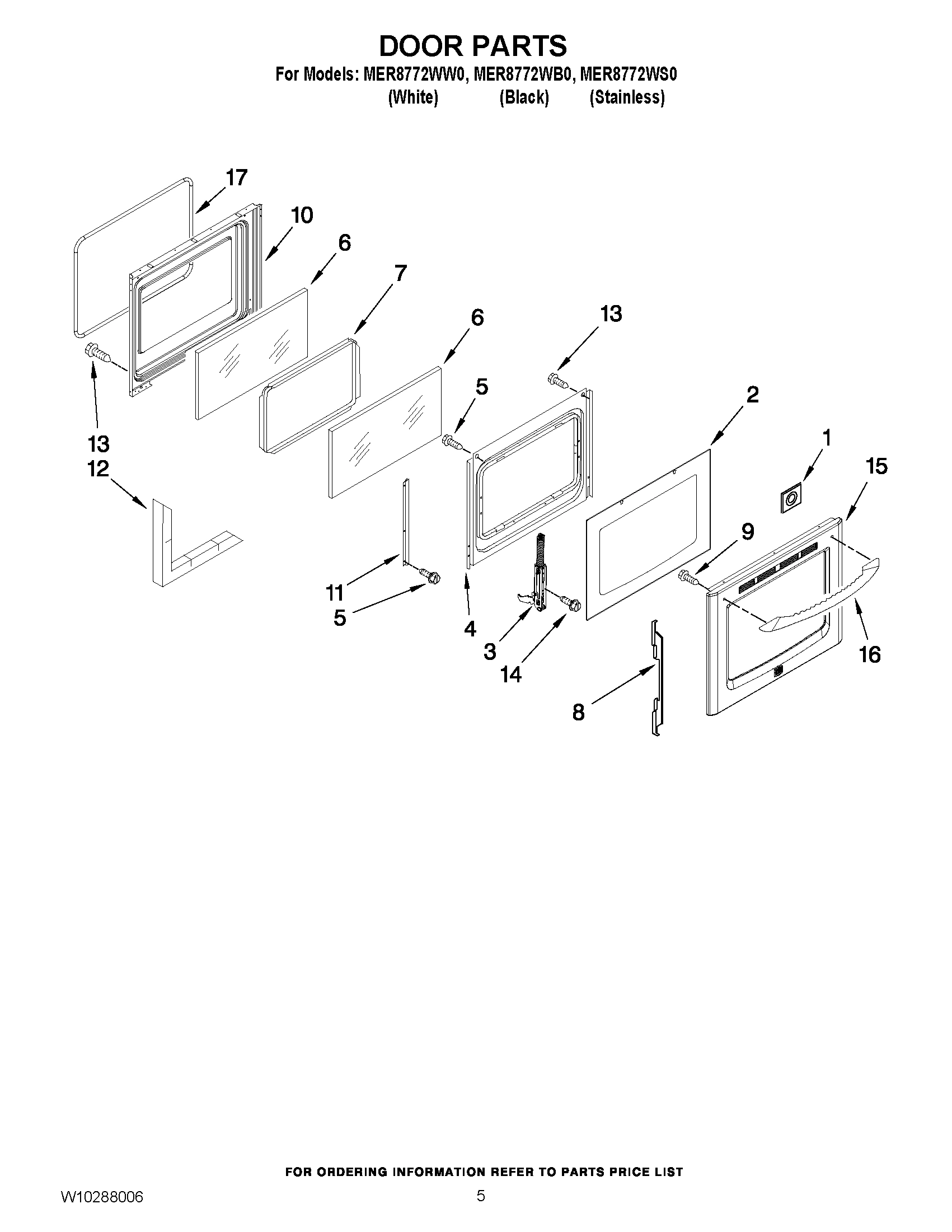

DOOR, GLASS OVEN
DOOR, GLASS OVEN WPL W10181725 Contact Us For Availability
View on Model
3
Hinge, Door
Hinge, Door WPL 7106P12460 Contact Us For Availability
View on Model
3

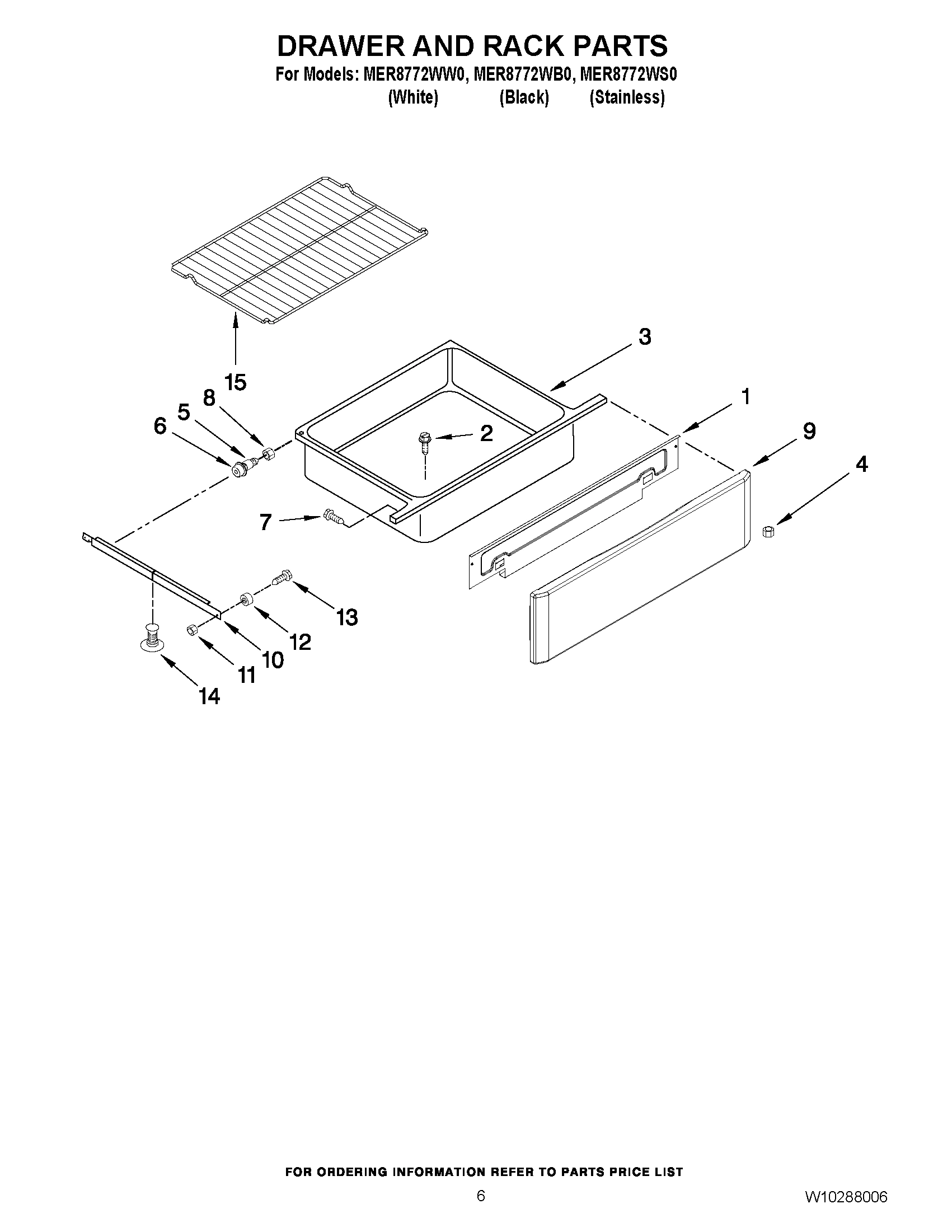

DRAWER, STORAGE
DRAWER, STORAGE WPL 3405F03780 Contact Us For Availability
View on Model
4
Baffle, Retainer
Baffle, Retainer WPL 3601F38051 Contact Us For Availability
View on Model
5
ACTIVE OVERLAY (WHITE)
ACTIVE OVERLAY (WHITE) WPL W10207496 Contact Us For Availability
View on Model
5
Spacer, Rubber
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
View on Model
6
CONTROL
CONTROL WPL W10157248 Contact Us For Availability
View on Model
6
Glass, Inner
Glass, Inner WPL 7902P43660 Contact Us For Availability
View on Model
7
END CAP, LEFT (WHITE)
END CAP, LEFT (WHITE) WPL W10163967 Contact Us For Availability
View on Model
7
END CAP, LEFT (BLACK)
END CAP, LEFT (BLACK) WPL W10163969 Contact Us For Availability
View on Model
8
BRACKET, GLASS
BRACKET, GLASS WPL 3801P91851 Contact Us For Availability
View on Model
8
NUT
NUT WPL 7103P08260 Contact Us For Availability
View on Model
9
SCREW, MOUNTING
SCREW, MOUNTING WPL W10241367 Contact Us For Availability
View on Model
9
Shield, Vent
Shield, Vent WPL 3604F38119 Contact Us For Availability
View on Model
9
PANEL, DRAWER (WHITE)
PANEL, DRAWER (WHITE) WPL W10181695 Contact Us For Availability
View on Model
9
PANEL, DRAWER (BLACK)
PANEL, DRAWER (BLACK) WPL W10181696 Contact Us For Availability
View on Model
9
PANEL, DRAWER (STAINLESS STEEL)
PANEL, DRAWER (STAINLESS STEEL) WPL W10181698 Contact Us For Availability
View on Model
10
COVER, REAR WIRE
COVER, REAR WIRE WPL W10243038 Contact Us For Availability
View on Model
10
Lining, Door
Lining, Door WPL 2402W29719 Contact Us For Availability
View on Model
10
Runner, Drawer
Runner, Drawer WPL 3406P03451 Contact Us For Availability
View on Model
11
END CAP, RIGHT (WHITE)
END CAP, RIGHT (WHITE) WPL W10163968 Contact Us For Availability
View on Model
11
END CAP, RIGHT (BLACK)
END CAP, RIGHT (BLACK) WPL W10163970 Contact Us For Availability
View on Model
11
Bracket, Glass
Bracket, Glass WPL 3801F88651 Contact Us For Availability
View on Model
11
Nut, Lock
Nut, Lock WPL 7103P19060 Contact Us For Availability
View on Model
12
ROLLER, DRAWER
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
View on Model
12
Insulation, Door
Insulation, Door WPL 7002P24660 Contact Us For Availability
View on Model
13
Shaft, Roller
Shaft, Roller WPL 7118P03260 Contact Us For Availability
View on Model
14
SCREW,(10-24X5/16)
SCREW,(10-24X5/16) WPL 7101P28260 Contact Us For Availability
View on Model
14
Stop, Drawer
Stop, Drawer WPL 8038P03760 Contact Us For Availability
View on Model
15
GLASS, DOOR (STAINLESS STEEL)
GLASS, DOOR (STAINLESS STEEL) WPL W10097300 Contact Us For Availability
View on Model
15
GLASS, DOOR (WHITE)
GLASS, DOOR (WHITE) WPL W10172590 Contact Us For Availability
View on Model
15
GLASS, DOOR (BLACK)
GLASS, DOOR (BLACK) WPL W10214541 Contact Us For Availability
View on Model
17
GASKET, DOOR
GASKET, DOOR WPL W10211405 Contact Us For Availability
View on Model
35

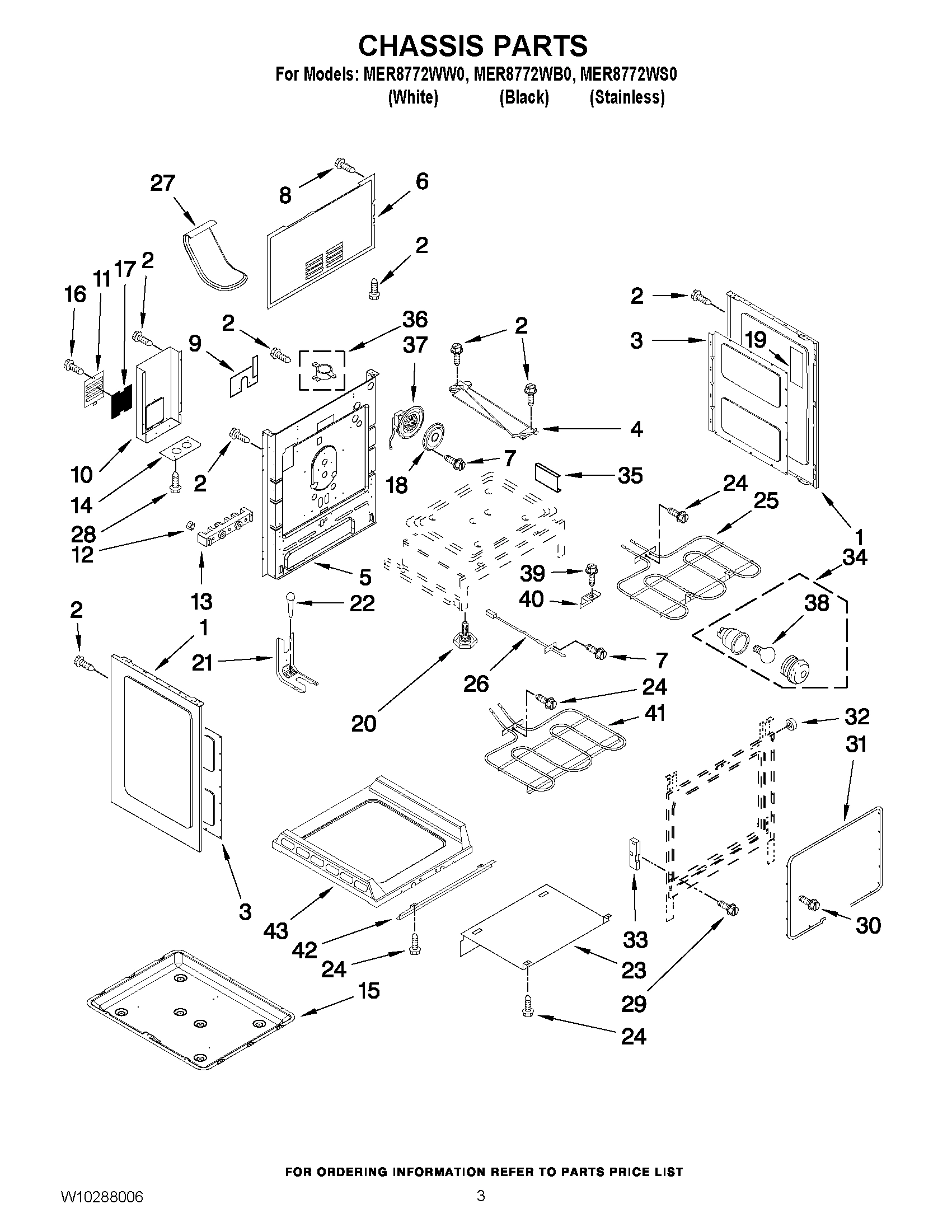

Bracket, Oven
Bracket, Oven WPL 3801P79851 Contact Us For Availability
View on Model
36
Switch, Thermal
Switch, Thermal WPL 7403P85760 Contact Us For Availability
View on Model
37
ASSEMBLY, FAN CONVECTION
ASSEMBLY, FAN CONVECTION WPL 7427P09960 Contact Us For Availability
View on Model
39
Screw, Shoulder
Screw, Shoulder WPL 7101P61860 Contact Us For Availability
View on Model
40
Support, Ov BTM
Support, Ov BTM WPL 3801P82245 Contact Us For Availability
View on Model
41
Element, Bake
Element, Bake WPL 7406P45160 Contact Us For Availability
View on Model
42
Support, Oven
Support, Oven WPL 3807P68045 Contact Us For Availability
View on Model
NI
FOIL, ALUMINUM OVEN (18`` X 25 )
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT.) (WHITE UNCUT)
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
View on Model
NI
Retainer, Insulation
Retainer, Insulation WPL 3804F31651 Contact Us For Availability
View on Model
NI
STRAP, INSULATION
STRAP, INSULATION WPL 4820F01459 Contact Us For Availability
View on Model
NI
INSULATION, BOTTOM
INSULATION, BOTTOM WPL 7002P36160 Contact Us For Availability
View on Model
NI
Insulation, Wrap
Insulation, Wrap WPL 7002P36260 Contact Us For Availability
View on Model
NI
Insulation, Side
Insulation, Side WPL W10182346 Contact Us For Availability
View on Model
NI
INSULATION, BACK
INSULATION, BACK WPL W10243056 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
View on Model
NI
BLOCK, WIRE ADAPTER (3)
BLOCK, WIRE ADAPTER (3) WPL 7401P15760 Contact Us For Availability
View on Model
NI
HARNESS, WIRE (MAIN)
HARNESS, WIRE (MAIN) WPL W10237596 Contact Us For Availability
View on Model
