Model Whirlpool MER6775BAB17 ELECTRIC RANGE – Common Parts & Diagrams

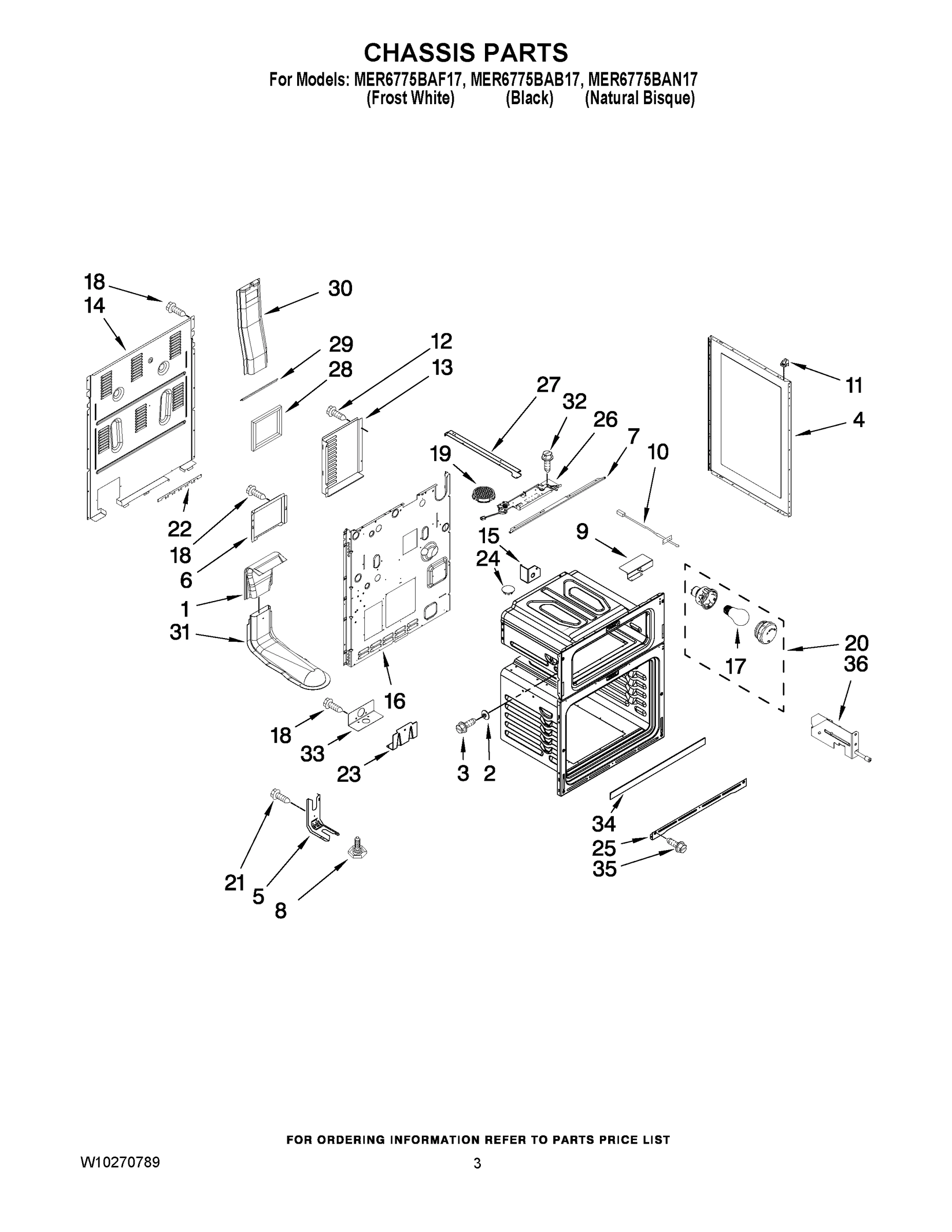

03 - CHASSIS PARTS

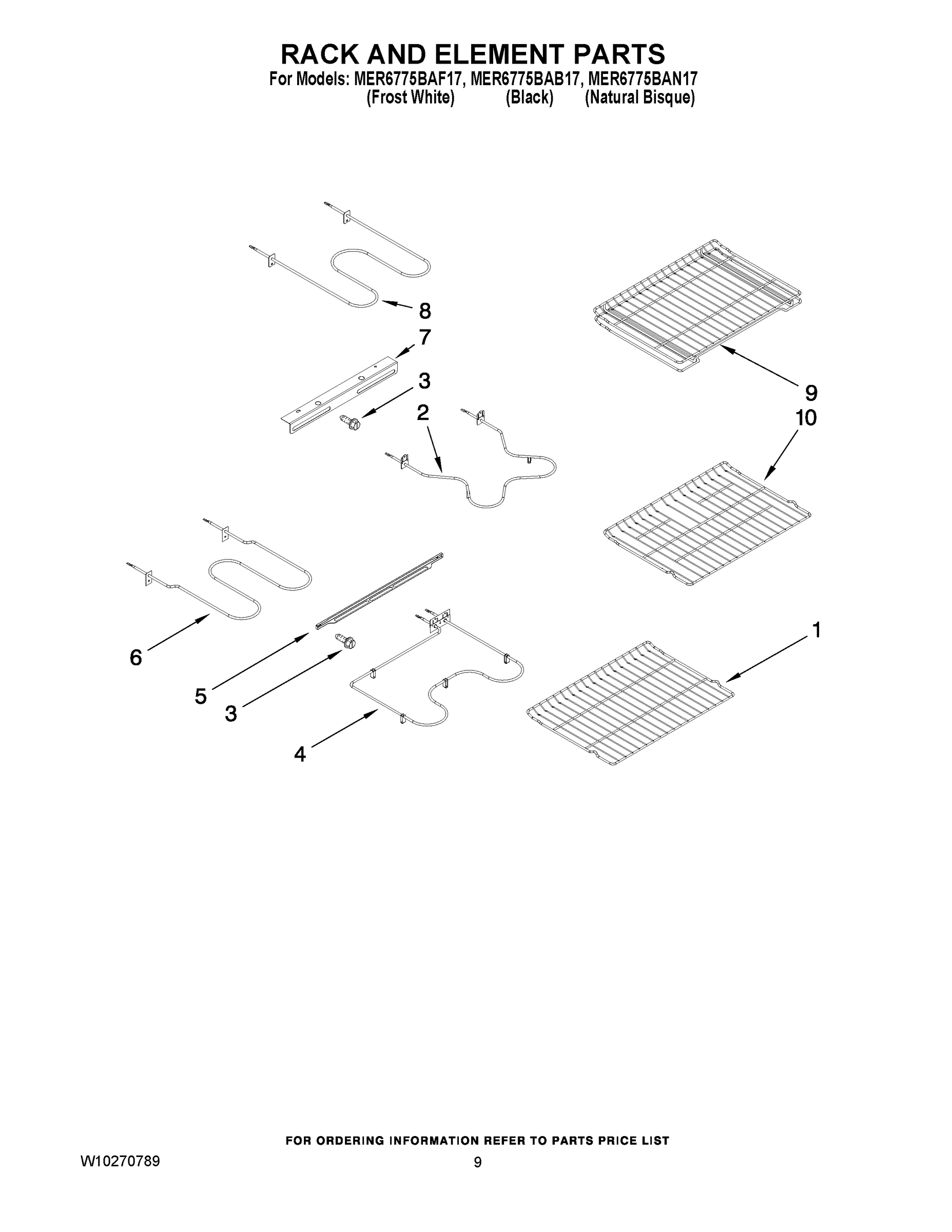

06 - RACK AND ELEMENT PARTS

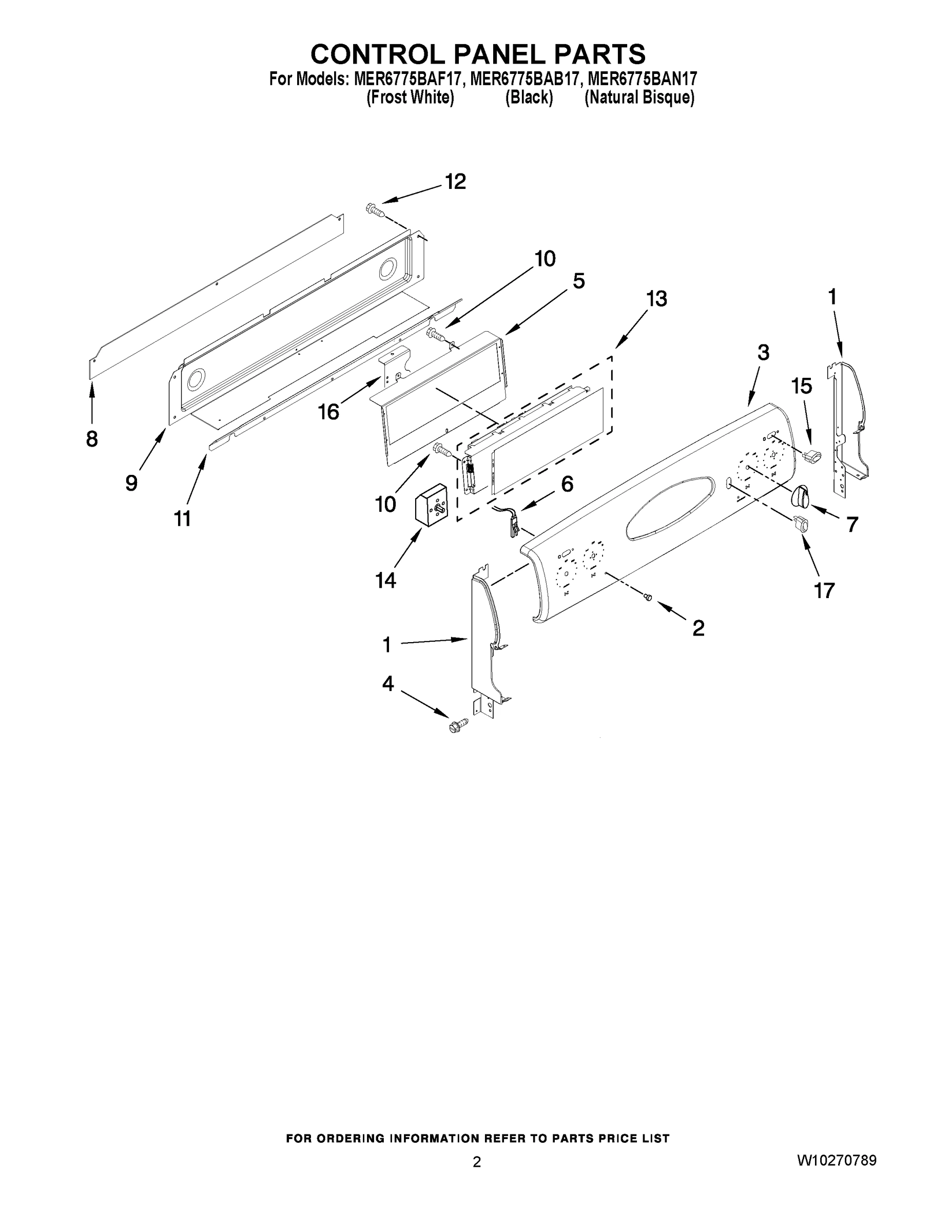

02 - CONTROL PANEL PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)

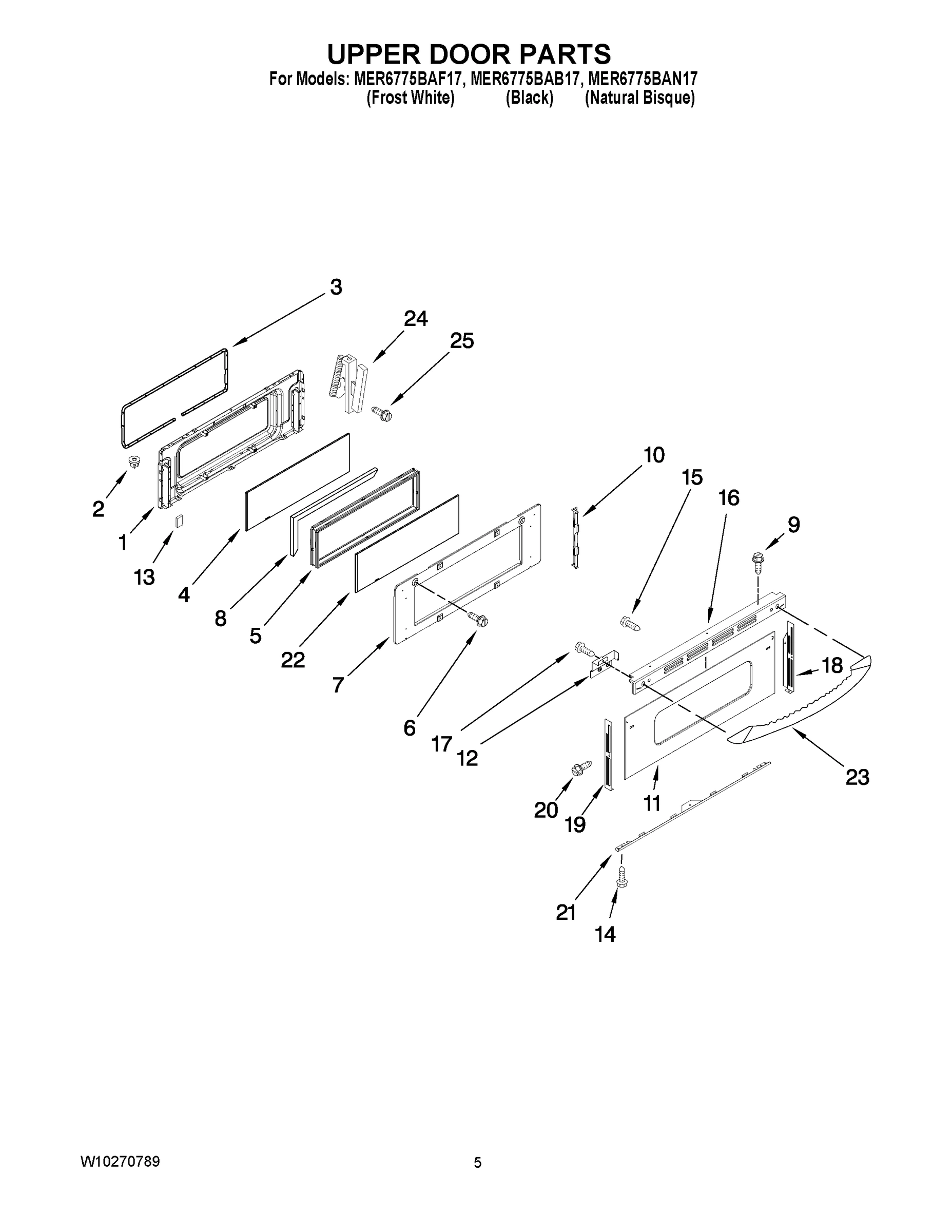

04 - UPPER DOOR PARTS

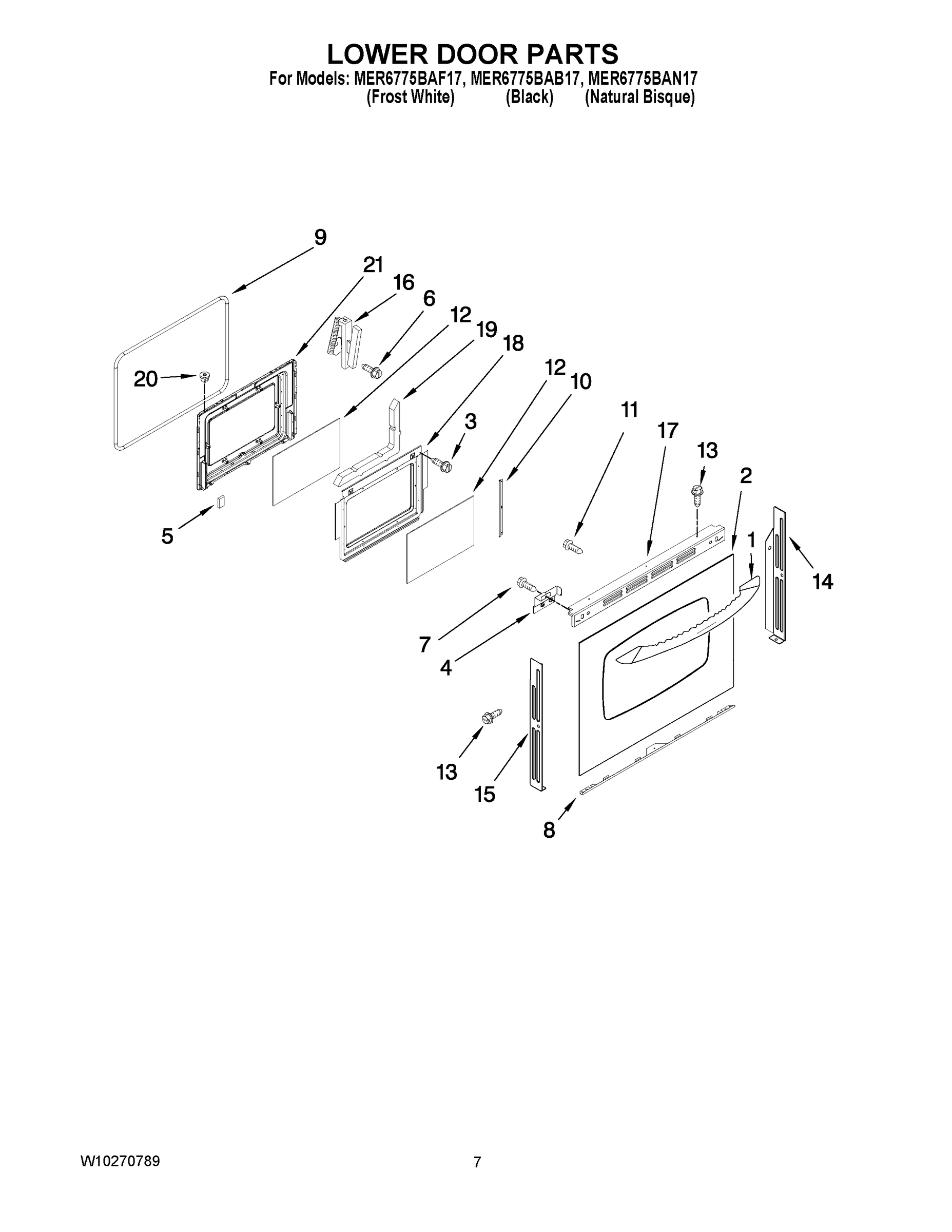

05 - LOWER DOOR PARTS

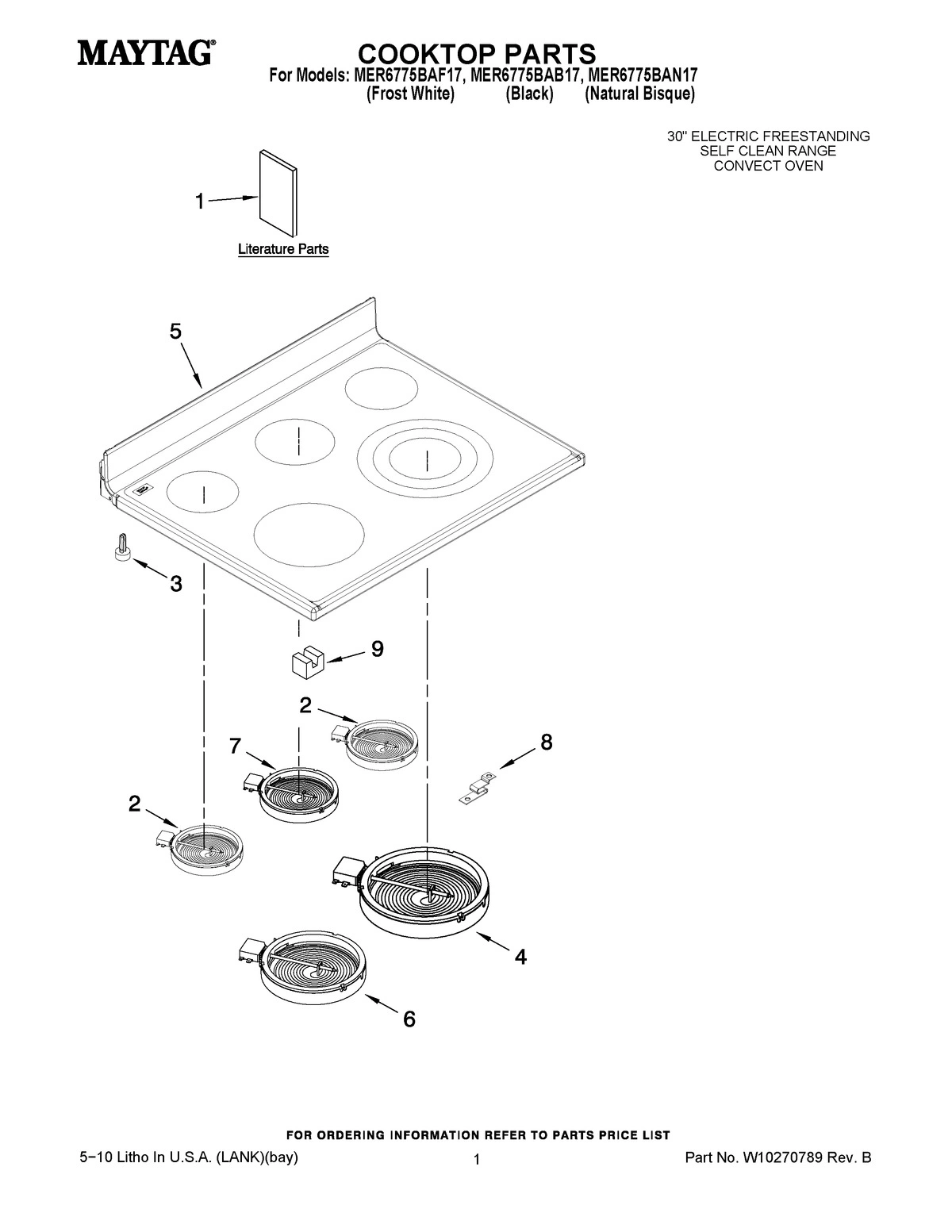

01 - COOKTOP PARTS
Common parts from model Whirlpool MER6775BAB17 ELECTRIC RANGE
1
RACK, OVEN (2) WPL 7801P17360 Contact Us For Availability
1
Support, Backguard (Right) WPL 3807F73370 Contact Us For Availability
1
Support, Backguard (Left) WPL 3807F73470 Contact Us For Availability
1
LINING, DOOR WPL 2402W24819 Contact Us For Availability
1
Handle, Door (Black) WPL 7701P51660 Contact Us For Availability
1
Handle, Door (White) WPL 7701P51760 Contact Us For Availability
1
Handle, Door (Bisque) WPL 7701P51860 Contact Us For Availability
1
Installation Instructions WPL 8101P63060 Contact Us For Availability
1
Owners Manual WPL 8113P70960 Contact Us For Availability
1
DIAGRAM, WIRING WPL 8119P44060 Contact Us For Availability
1
TIPS, BROCHURE SAFE COOKING WPL 9762761 Contact Us For Availability
2
Element, Bake (Upper) WPL 7406P42760 Contact Us For Availability
2
Lens, Indicator WPL 7730P01160 Contact Us For Availability
2
GLASS, DOOR (INCL. FOIL TAPE) (WHITE) WPL 7902P73660 Contact Us For Availability
2
GLASS, DOOR (INCL. FOIL TAPE) (BISQUE) WPL 7902P73760 Contact Us For Availability
2
GLASS, DOOR (INCL. FOIL TAPE) (BLACK) WPL 7902P79760 Contact Us For Availability
3
Screw WPL 7101P38860 Contact Us For Availability
3
PANEL, CONTROL (BLACK) WPL 2602D34609 Contact Us For Availability
3
PANEL, CONTROL (WHITE) WPL 2602D34681 Contact Us For Availability
3
PANEL, CONTROL BISQUE WPL 2602D34688 Contact Us For Availability
3
Gasket, Door WPL 7201P09160 Contact Us For Availability
3
Glide, Main Top WPL 8016P02260 Contact Us For Availability
4
Glass, Inner (2) WPL 7902P52160 Contact Us For Availability
4
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
4
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
5
Support, Broil Element WPL 3807F49445 Contact Us For Availability
5
Bracket, Control WPL 3801F84451 Contact Us For Availability
5
Frame, Glass WPL 7907P03460 Contact Us For Availability
5
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
5
COOKTOP (BLACK) WPL 5706X61609 Contact Us For Availability
5
COOKTOP (WHITE) WPL 5706X61681 Contact Us For Availability
5
COOKTOP (BISQUE) WPL 5706X61688 Contact Us For Availability
6
ELEMENT (LF) WPL W10187837 Contact Us For Availability
6
Light, Indicator WPL 7407P13660 Contact Us For Availability
6
Screw (10ABx1/4P) WPL 7101P20860 Contact Us For Availability
7
Support, Broil Element (Upper) WPL 3807F74945 Contact Us For Availability
7
KNOBS (BLACK (4)) WPL 7737P23260 Contact Us For Availability
7
KNOBS (BISQUE (4)) WPL 7737P23360 Contact Us For Availability
7
KNOBS (WHITE (4)) WPL 7737P23460 Contact Us For Availability
7
Baffle, Door WPL 3601F35445 Contact Us For Availability
7
SCREW, HANDLE WPL 7101P68160 Contact Us For Availability
7
ELEMENT (CTR) WPL 7406P49760 Contact Us For Availability
8
Element, Broil (Upper) WPL 7406P47460 Contact Us For Availability
8
Shield, Sight WPL 3604F38751 Contact Us For Availability
8
Insulation, Door WPL 7002P48860 Contact Us For Availability
8
Support, Glass (Black) WPL 3807F70870 Contact Us For Availability
8
Support, Glass (White) WPL 3807F70871 Contact Us For Availability
8
Support, Glass (Bisque) WPL 3807F70878 Contact Us For Availability
8
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
9
RACK, TELESCOPING WPL W10251904 Contact Us For Availability
9
Cover, Rear Wire WPL 4005F80351 Contact Us For Availability
9
Block, Element Support WPL 8255P41260 Contact Us For Availability
10
Screw WPL 7101P50060 Contact Us For Availability
10
Retainer, Glass WPL 3804F17945 Contact Us For Availability
10
Bracket, Glass WPL 3801F88651 Contact Us For Availability
11
Spacer, Top (Left) WPL 8010P08760 Contact Us For Availability
11
Spacer, Top (Right) WPL 8010P08860 Contact Us For Availability
11
SCREW WPL 7101P37660 Contact Us For Availability
11
Shield, Wire WPL 3604F40551 Contact Us For Availability
11
GLASS, DOOR (INCL. FOIL TAPE) (WHITE) WPL 7902P73360 Contact Us For Availability
11
GLASS, DOOR (INCL. FOIL TAPE) (BISQUE) WPL 7902P73460 Contact Us For Availability
11
GLASS, DOOR (INCL. FOIL TAPE) (BLACK) WPL 7902P79960 Contact Us For Availability
12
Screw WPL 7101P43460 Contact Us For Availability
12
Glass, Inner (2) WPL 7902P43660 Contact Us For Availability
13
Cover, Bottom Wire WPL 4005F59251 Contact Us For Availability
13
Screw WPL 7101P63360 Contact Us For Availability
13
CONTROL ASSY (INCL. MEMBRANE) (BLACK) WPL W10334474 Contact Us For Availability
13
CONTROL ASSY (INCL. MEMBRANE) (WHITE) WPL W10334477 Contact Us For Availability
13
CONTROL ASSY (INCL. MEMBRANE) (BISQUE) WPL W10334490 Contact Us For Availability
14
COVER, UPPER WIRE WPL W10167412 Contact Us For Availability
14
SWITCH, INFINITE (LR,RR (2)) WPL 7403P87760 Contact Us For Availability
14
Switch, Infinite (RF WPL 7450P01160 Contact Us For Availability
14
SWITCH, INFINITE (LF) WPL 7450P09560 Contact Us For Availability
14
Trim, Door (Rt) (Black) WPL 3608F11670 Contact Us For Availability
14
Trim, Door (Rt) (White) WPL 3608F11671 Contact Us For Availability
14
Trim, Door (Rt) (Bisque) WPL 3608F11678 Contact Us For Availability
15
Bracket (Right) WPL 3801F70551 Contact Us For Availability
15
Bracket (Left) WPL 3801F70651 Contact Us For Availability
15
SWITCH, ROCKER (WHITE) WPL 7403P92660 Contact Us For Availability
15
SWITCH, ROCKER (BISQUE) WPL 7403P98460 Contact Us For Availability
15
Switch, Rocker WPL 7403P98560 Contact Us For Availability
15
Trim, Door (Lt) (Black) WPL 3608F11770 Contact Us For Availability
15
Trim, Door (Lt) (White) WPL 3608F11771 Contact Us For Availability
15
Trim, Door (Lt) (Bisque) WPL 3608F11778 Contact Us For Availability
16
Back, Main WPL 4002F33251 Contact Us For Availability
16
BRACKET, VENT EXT. WPL 3801F93051 Contact Us For Availability
16
Hinge, Door (2) WPL 7106P14160 Contact Us For Availability
17
BULB-OVEN WPL 7407P10360 Contact Us For Availability
17
Switch, Rocker (Black) WPL 7403P75660 Contact Us For Availability
17
Switch, Rocker (White) WPL 7403P75760 Contact Us For Availability
17
Switch, Rocker (Bisque) WPL 7403P75860 Contact Us For Availability
17
Trim, Door Top (Black) WPL 3608F14170 Contact Us For Availability
17
TRIM, DOOR TOP (WHITE) WPL 3608F14171 Contact Us For Availability
17
Trim, Door Top (Bisque) WPL 3608F14178 Contact Us For Availability
18
Trim, Door (Rt) (Black) WPL 3608F11870 Contact Us For Availability
18
Trim, Door (Rt) (White) WPL 3608F11871 Contact Us For Availability
18
Trim, Door (Rt) (Bisque) WPL 3608F11878 Contact Us For Availability
18
Baffle, Door WPL 3601F37351 Contact Us For Availability
19
Screen, Smoke WPL 8034P00860 Contact Us For Availability
19
Trim, Door (Lt) (Black) WPL 3608F11970 Contact Us For Availability
19
Trim, Door (Lt) (White) WPL 3608F11971 Contact Us For Availability
19
Trim, Door (Lt) (Bisque) WPL 3608F11978 Contact Us For Availability
19
Insulation, Door WPL 7002P24660 Contact Us For Availability
20
Oven Light Assy WPL 7407P18160 Contact Us For Availability
20
Nut, Snap (White) WPL 7103P03960 Contact Us For Availability
20
Nut, Snap (Black) WPL 7103P14160 Contact Us For Availability
21
Screw WPL 7101P48560 Contact Us For Availability
21
Lining, Door WPL 2402W31219 Contact Us For Availability
22
Sheild, Cord WPL 8036P01260 Contact Us For Availability
22
Glass, Door WPL 7902P52060 Contact Us For Availability
23
SUPPORT, OVEN REAR WPL 3807F58751 Contact Us For Availability
24
Plug, Hole WPL 7718P03060 Contact Us For Availability
24
Hinge, Door (2) WPL 7106P14860 Contact Us For Availability
25
TRIM, KICKPLATE (BLACK) WPL 3608F09170 Contact Us For Availability
25
TRIM, KICKPLATE (WHITE) WPL 3608F09171 Contact Us For Availability
25
Screw (4) WPL 7101P28260 Contact Us For Availability
26
Latch, Door Lock WPL 8002P07760 Contact Us For Availability
27
BOTTOM, BURNER BOX (RIGHT) WPL W10283688 Contact Us For Availability
27
BOTTOM, BURNER BOX (LEFT) WPL W10283722 Contact Us For Availability
28
Gasket, Vent WPL 7201P08960 Contact Us For Availability
29
Sheild, Door Lock WPL 3604F33551 Contact Us For Availability
30
Vent, Oven WPL 4022W01745 Contact Us For Availability
31
Vent, Box (Lower) WPL 4006W12945 Contact Us For Availability
31
Vent, Box (Upper) WPL 4006W13945 Contact Us For Availability
32
Screw WPL 7101P37560 Contact Us For Availability
34
Seal, Frame WPL 7212P06660 Contact Us For Availability
36
SWTCH-LITE WPL 7450P10860 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
Insulation, Back (Lower Oven) WPL 7002P23360 Contact Us For Availability
NI
Insulation, Back (Upper Oven) WPL 7002P43460 Contact Us For Availability
NI
INSULATION, WRAP (LOWER OVEN) WPL 7002P47560 Contact Us For Availability
NI
INSULATION, WRAP (UPPER OVEN) WPL W10215032 Contact Us For Availability
NI
Harness, Sensor WPL 5171P46260 Contact Us For Availability
NI
Harness, Side Mount Lock WPL 5171P46760 Contact Us For Availability
NI
HARNESS, UPPER LIGHT WPL 5171P71560 Contact Us For Availability
NI
HARNESS, INF.SW. (RIGHT) WPL 5171P85960 Contact Us For Availability
NI
HARNESS, INF.SW. (LEFT) WPL 5171P92060 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P92560 Contact Us For Availability
NI
Harness, Door Position WPL 5175P36560 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
NI
HARNESS, MAIN TOP WPL W10196184 Contact Us For Availability
× ![]()
