Model Maytag MER6755AAB24 ELECTRIC RANGE – Common Parts & Diagrams

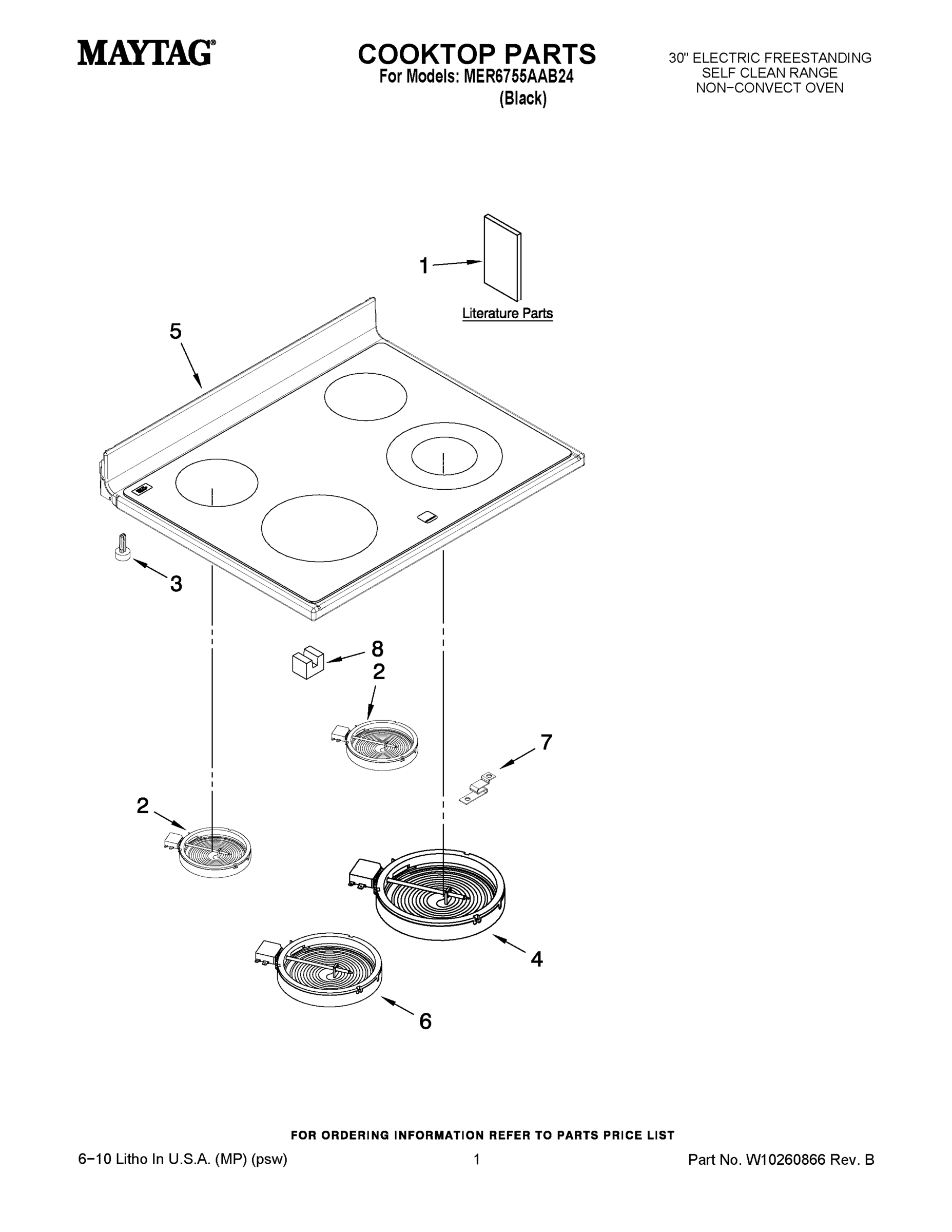

01 - COOKTOP PARTS

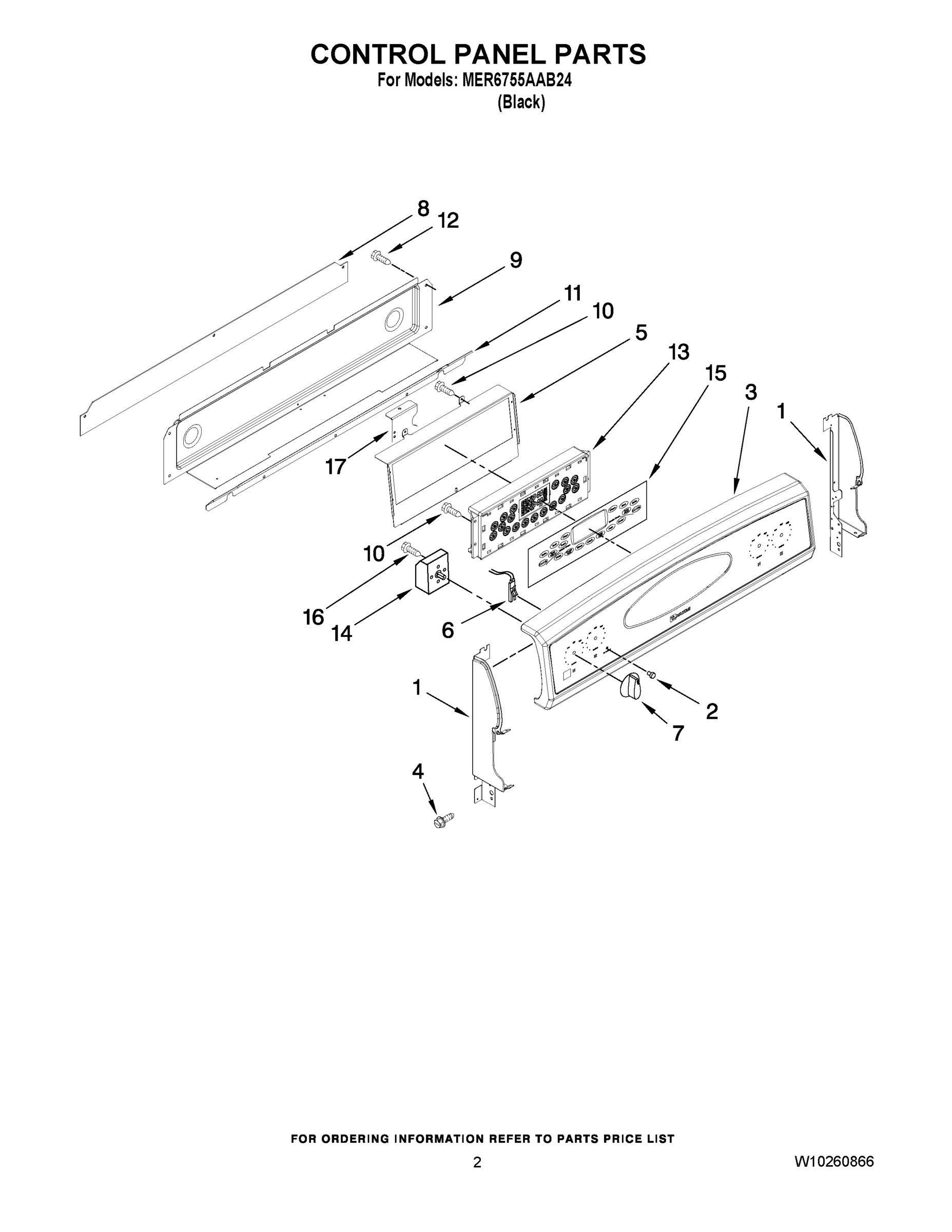

02 - CONTROL PANEL PARTS

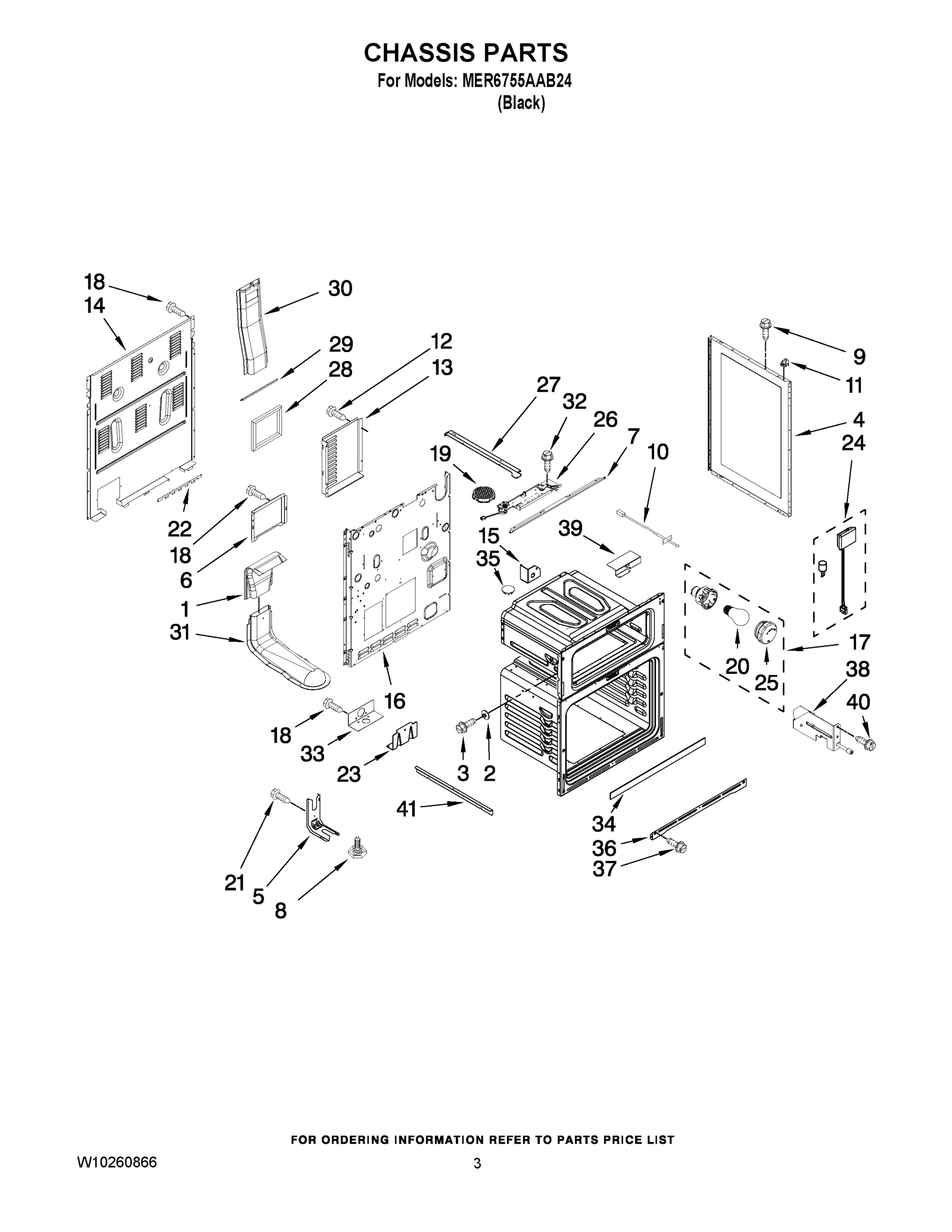

03 - CHASSIS PARTS

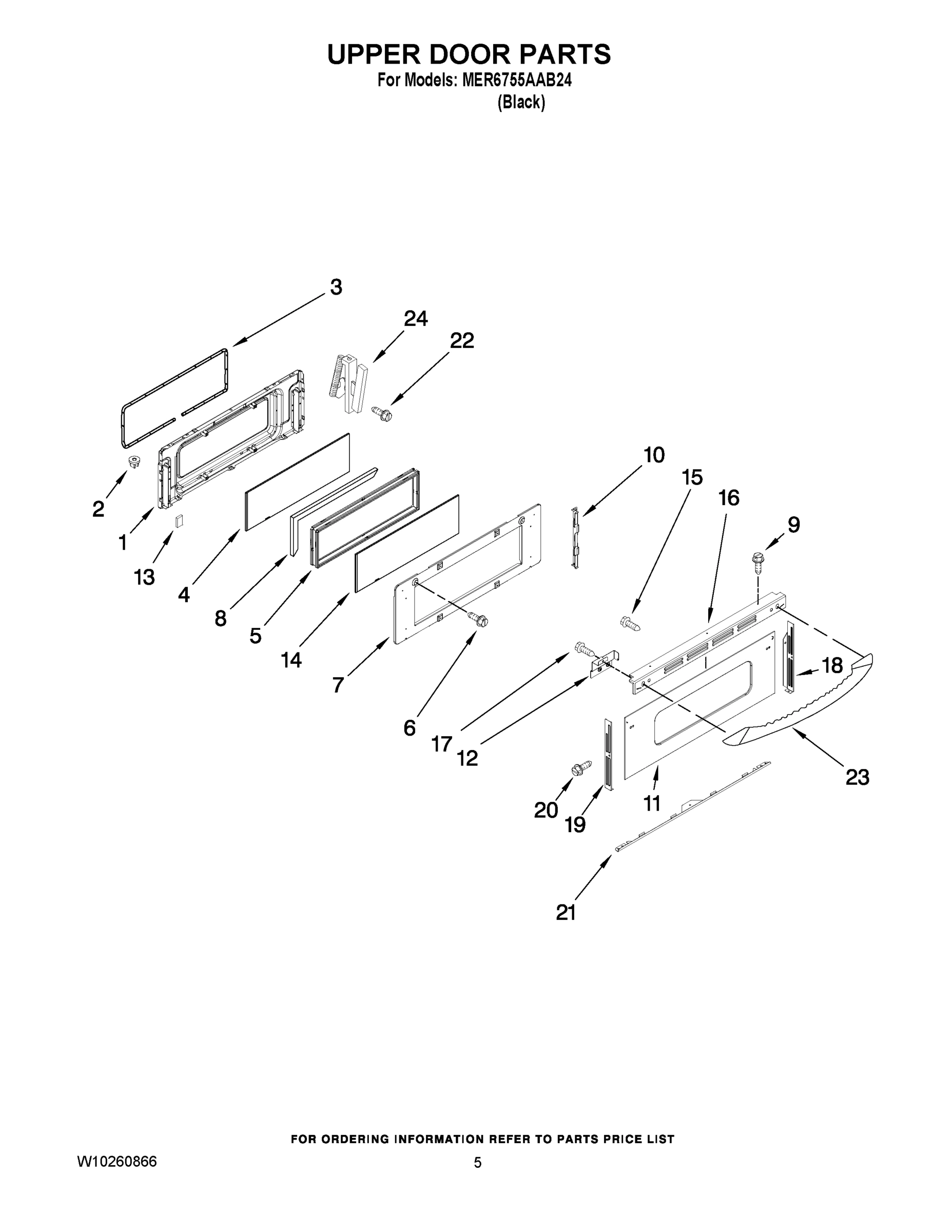

04 - UPPER DOOR PARTS

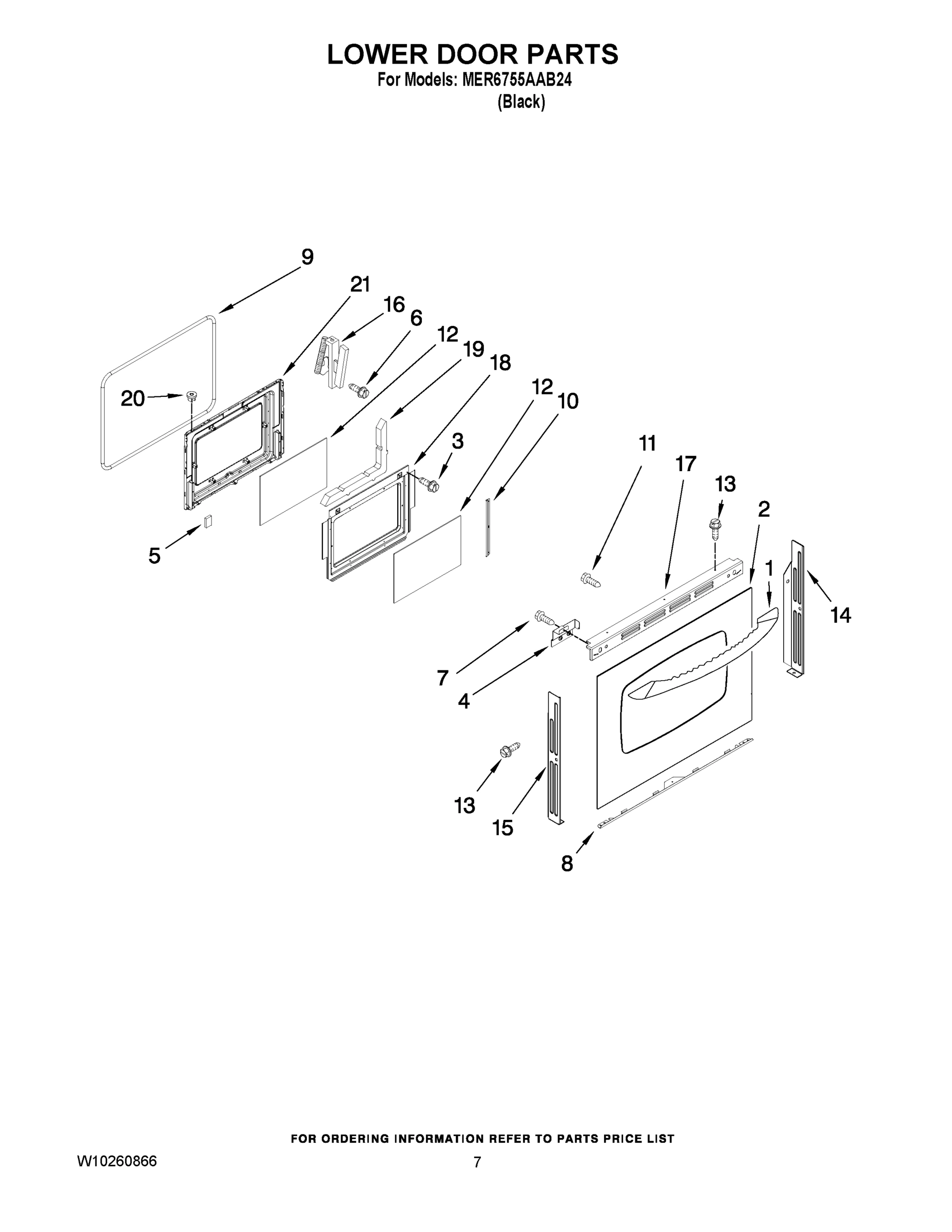

05 - LOWER DOOR PARTS

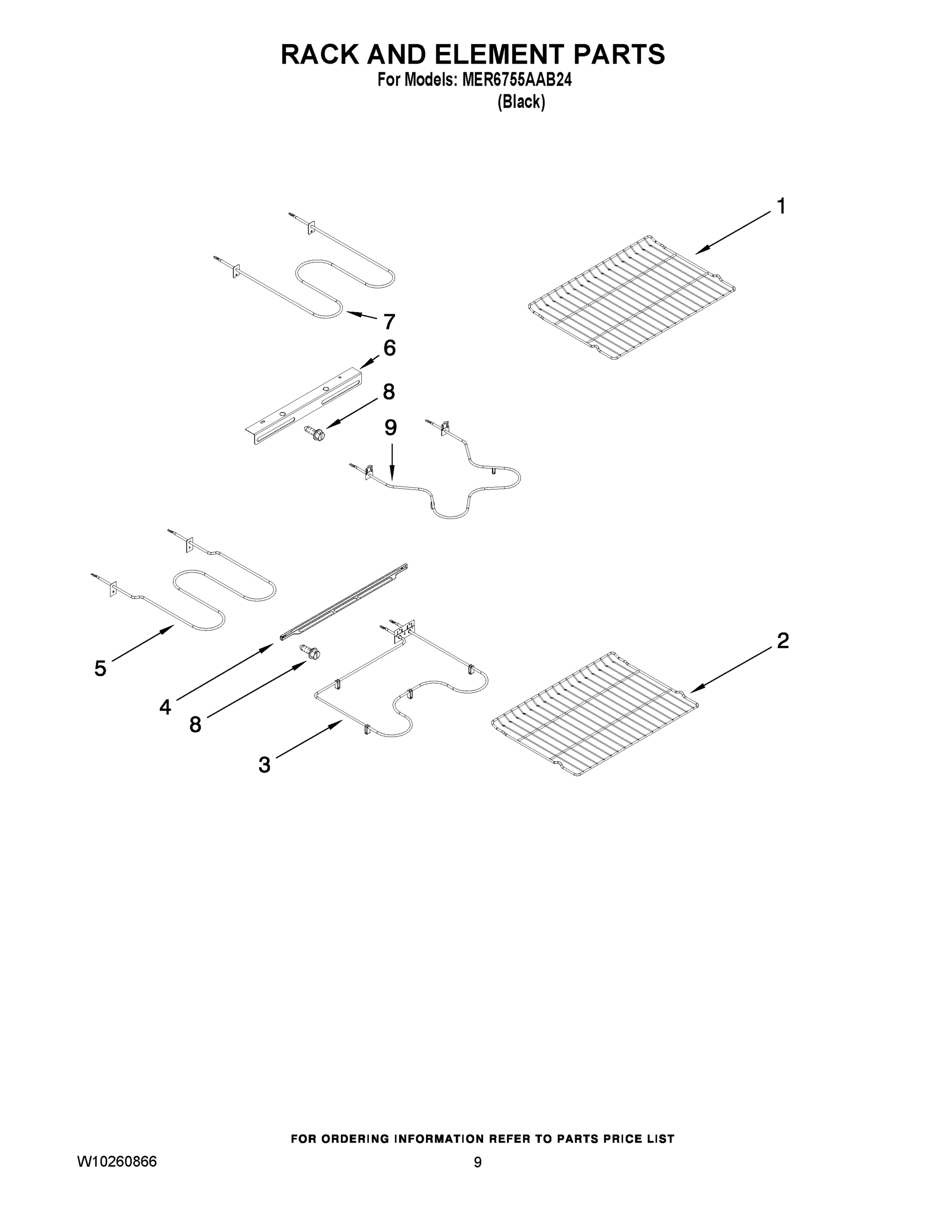

06 - RACK AND ELEMENT PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MER6755AAB24 ELECTRIC RANGE
1
Support, Backguard (Black Right) MAY 3807F733-70 Contact Us For Availability
1
Support, Backguard (Black Left) MAY 3807F734-70 Contact Us For Availability
1
MAY 8026P082-60 MAY 8026P082-60 Contact Us For Availability
1
MAY 2402W248-19 MAY 2402W248-19 Contact Us For Availability
1
MAY 7701P516-60 MAY 7701P516-60 Contact Us For Availability
1
RACK, UPPER MAY W10273816 Contact Us For Availability
2
Element (RR,LR) MAY 8273994 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
MAY 7902P797-60 MAY 7902P797-60 Contact Us For Availability
2
RACK, LWR OVEN MAY 7801P173-60 Contact Us For Availability
3
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
3
Panel, Control (Black) MAY 2602D353-09 Contact Us For Availability
3
MAY 7101P618-60 MAY 7101P618-60 Contact Us For Availability
3
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
3
MAY 7201P091-60 MAY 7201P091-60 Contact Us For Availability
3
MAY W10310271 MAY W10310271 Contact Us For Availability
4
MAY W10204679 MAY W10204679 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY 2618F194-70 Contact Us For Availability
4
GLASS, INNER MAY 7902P521-60 Contact Us For Availability
4
MAY 3801F831-45 MAY 3801F831-45 Contact Us For Availability
4
MAY 3801F832-45 MAY 3801F832-45 Contact Us For Availability
4
MAY 3807F494-45 MAY 3807F494-45 Contact Us For Availability
5
MAY 5706X501-09 MAY 5706X501-09 Contact Us For Availability
5
MAY 3801F844-51 MAY 3801F844-51 Contact Us For Availability
5
MAY 3801F656-51 MAY 3801F656-51 Contact Us For Availability
5
MAY 7907P034-60 MAY 7907P034-60 Contact Us For Availability
5
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
5
MAY W10310249 MAY W10310249 Contact Us For Availability
6
MAY W10187838 MAY W10187838 Contact Us For Availability
6
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
6
MAY 4005F747-51 MAY 4005F747-51 Contact Us For Availability
6
Screw (10ABx1/4P) MAY 7101P208-60 Contact Us For Availability
6
MAY 3807F749-45 MAY 3807F749-45 Contact Us For Availability
7
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
7
KNOB (BLACK) MAY 7737P232-60 Contact Us For Availability
7
MAY 3801F924-80 MAY 3801F924-80 Contact Us For Availability
7
MAY 3601F354-45 MAY 3601F354-45 Contact Us For Availability
7
MAY 7406P474-60 MAY 7406P474-60 Contact Us For Availability
8
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
8
MAY 3604F387-51 MAY 3604F387-51 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
8
MAY 7002P488-60 MAY 7002P488-60 Contact Us For Availability
8
MAY 3807F708-70 MAY 3807F708-70 Contact Us For Availability
9
MAY 4005F803-51 MAY 4005F803-51 Contact Us For Availability
9
SCREW MAY 7101P313-60 Contact Us For Availability
9
MAY W10162384 MAY W10162384 Contact Us For Availability
9
MAY W10314702 MAY W10314702 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
MAY 7430P042-60 MAY 7430P042-60 Contact Us For Availability
10
MAY 7430P044-60 MAY 7430P044-60 Contact Us For Availability
10
MAY 3804F179-45 MAY 3804F179-45 Contact Us For Availability
10
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
11
MAY 3604F405-51 MAY 3604F405-51 Contact Us For Availability
11
MAY 8010P087-60 MAY 8010P087-60 Contact Us For Availability
11
MAY 8010P088-60 MAY 8010P088-60 Contact Us For Availability
11
MAY 7902P799-60 MAY 7902P799-60 Contact Us For Availability
12
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
12
Glass, Inner MAY 7902P436-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
13
MAY W10166967 MAY W10166967 Contact Us For Availability
13
MAY 4005F592-51 MAY 4005F592-51 Contact Us For Availability
14
MAY 7403P373-60 MAY 7403P373-60 Contact Us For Availability
14
MAY W10167412 MAY W10167412 Contact Us For Availability
14
MAY 7902P520-60 MAY 7902P520-60 Contact Us For Availability
14
MAY 3608F116-70 MAY 3608F116-70 Contact Us For Availability
15
Overlay (Black) MAY 7728P500-60 Contact Us For Availability
15
MAY 3801F705-51 MAY 3801F705-51 Contact Us For Availability
15
MAY 3801F706-51 MAY 3801F706-51 Contact Us For Availability
15
MAY 3608F117-70 MAY 3608F117-70 Contact Us For Availability
16
SCREW MAY 7101P280-60 Contact Us For Availability
16
MAY 4002F332-51 MAY 4002F332-51 Contact Us For Availability
16
HINGE, DOOR MAY 7106P141-60 Contact Us For Availability
17
BRACKET, VENT EXT. MAY 3801F930-51 Contact Us For Availability
17
MAY 3608F141-70 MAY 3608F141-70 Contact Us For Availability
18
MAY 3608F118-70 MAY 3608F118-70 Contact Us For Availability
18
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
19
MAY 8034P008-60 MAY 8034P008-60 Contact Us For Availability
19
MAY 3608F119-70 MAY 3608F119-70 Contact Us For Availability
19
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
20
MAY 7407P114-60 MAY 7407P114-60 Contact Us For Availability
20
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
21
Screw MAY 7101P485-60 Contact Us For Availability
21
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
22
MAY 8036P012-60 MAY 8036P012-60 Contact Us For Availability
22
Screw MAY 7101P282-60 Contact Us For Availability
23
MAY 3807F580-51 MAY 3807F580-51 Contact Us For Availability
24
Light Assy. (Lower/Upper) MAY 7407P181-60 Contact Us For Availability
24
HINGE, DOOR MAY 7106P148-60 Contact Us For Availability
25
MAY 209429 MAY 209429 Contact Us For Availability
26
MAY 8002P077-60 MAY 8002P077-60 Contact Us For Availability
27
BOTTOM, BURNER BOX (RIGHT) MAY W10283688 Contact Us For Availability
27
BOTTOM, BURNER BOX (LEFT) MAY W10283722 Contact Us For Availability
28
MAY 7201P089-60 MAY 7201P089-60 Contact Us For Availability
29
MAY 3604F335-51 MAY 3604F335-51 Contact Us For Availability
30
MAY 4022W017-45 MAY 4022W017-45 Contact Us For Availability
31
MAY 4006W129-45 MAY 4006W129-45 Contact Us For Availability
31
MAY 4006W139-45 MAY 4006W139-45 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
MAY W10190166 MAY W10190166 Contact Us For Availability
34
MAY 7212P066-60 MAY 7212P066-60 Contact Us For Availability
35
MAY 7718P030-60 MAY 7718P030-60 Contact Us For Availability
36
MAY 3608F091-70 MAY 3608F091-70 Contact Us For Availability
38
MAY 7450P108-60 MAY 7450P108-60 Contact Us For Availability
39
MAY 3604F440-51 MAY 3604F440-51 Contact Us For Availability
41
SPACER, SIDE PANEL MAY 3823F015-51 Contact Us For Availability
NI
MAY 7002P233-60 MAY 7002P233-60 Contact Us For Availability
NI
MAY 7002P434-60 MAY 7002P434-60 Contact Us For Availability
NI
MAY W10215032 MAY W10215032 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4159193 MAY 4159193 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P462-60 MAY 5171P462-60 Contact Us For Availability
NI
MAY 5171P467-60 MAY 5171P467-60 Contact Us For Availability
NI
MAY 5171P909-60 MAY 5171P909-60 Contact Us For Availability
NI
Harness, Inf.Sw. (Left) MAY 5171P910-60 Contact Us For Availability
NI
Harness, Inf.Sw. (Right) MAY 5171P911-60 Contact Us For Availability
NI
MAY 5175P365-60 MAY 5175P365-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 7401P157-60 MAY 7401P157-60 Contact Us For Availability
NI
Clip, Wire MAY 8019P013-60 Contact Us For Availability
NI
MAY 8019P026-60 MAY 8019P026-60 Contact Us For Availability
NI
MAY W10196182 MAY W10196182 Contact Us For Availability
× ![]()
