Model Maytag MDG27PCAAL GAS DRYER – Common Parts & Diagrams
01 - FRONT
02 - REAR

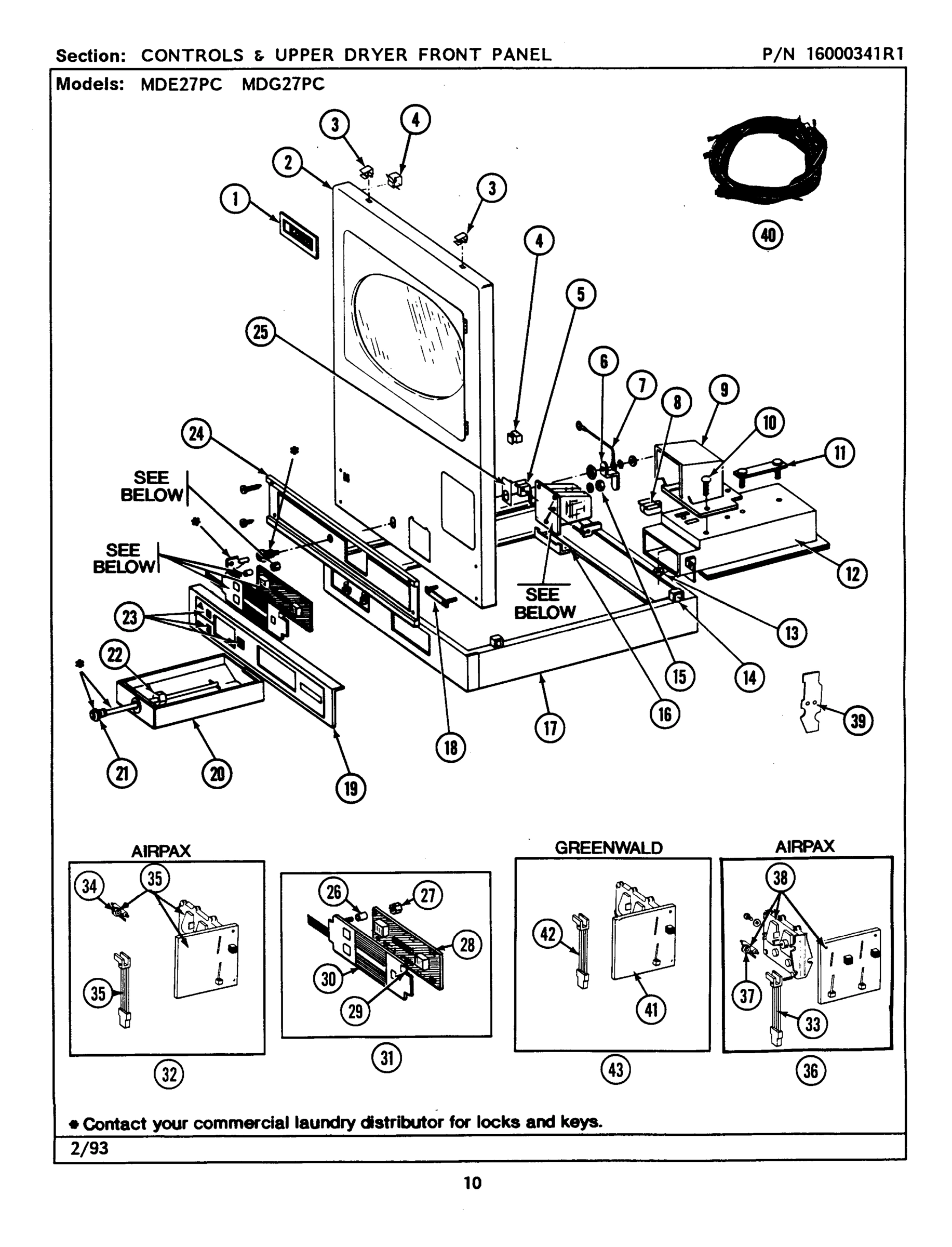

03 - CONTROLS & UPPER DRYER FRONT PANEL

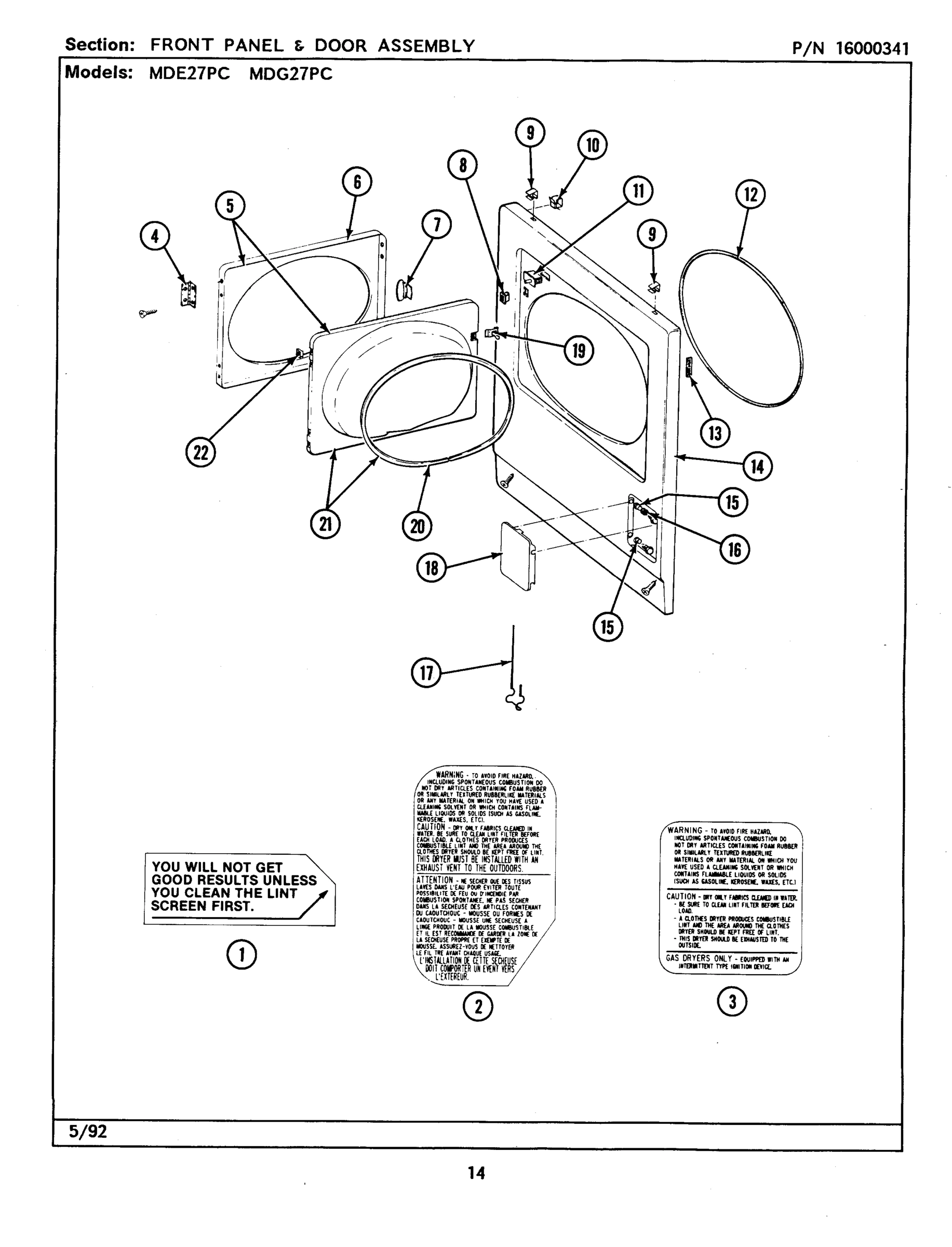

04 - FRONT PANEL & DOOR ASSEMBLY

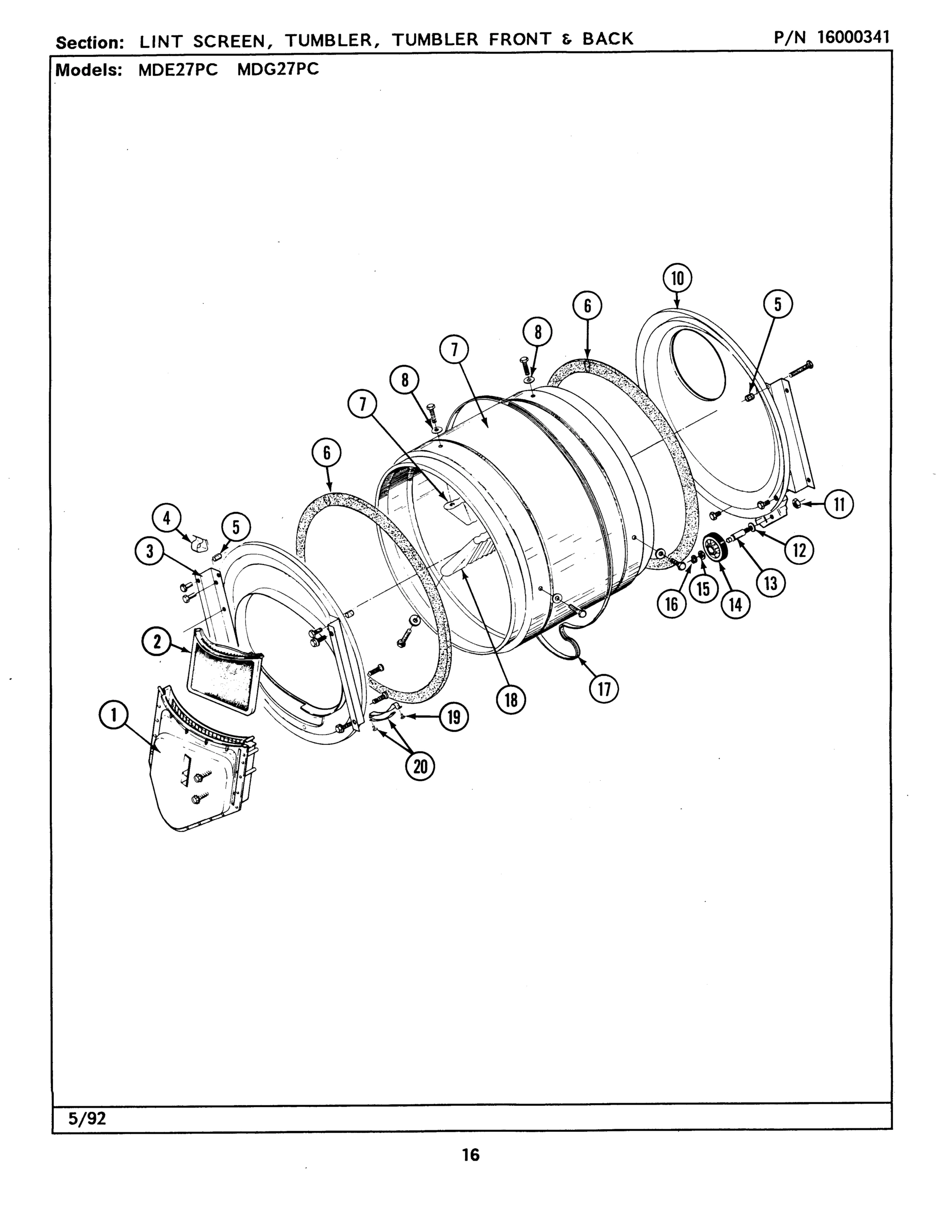

05 - LINT SCREEN, TUMBLER (FRONT & BACK)

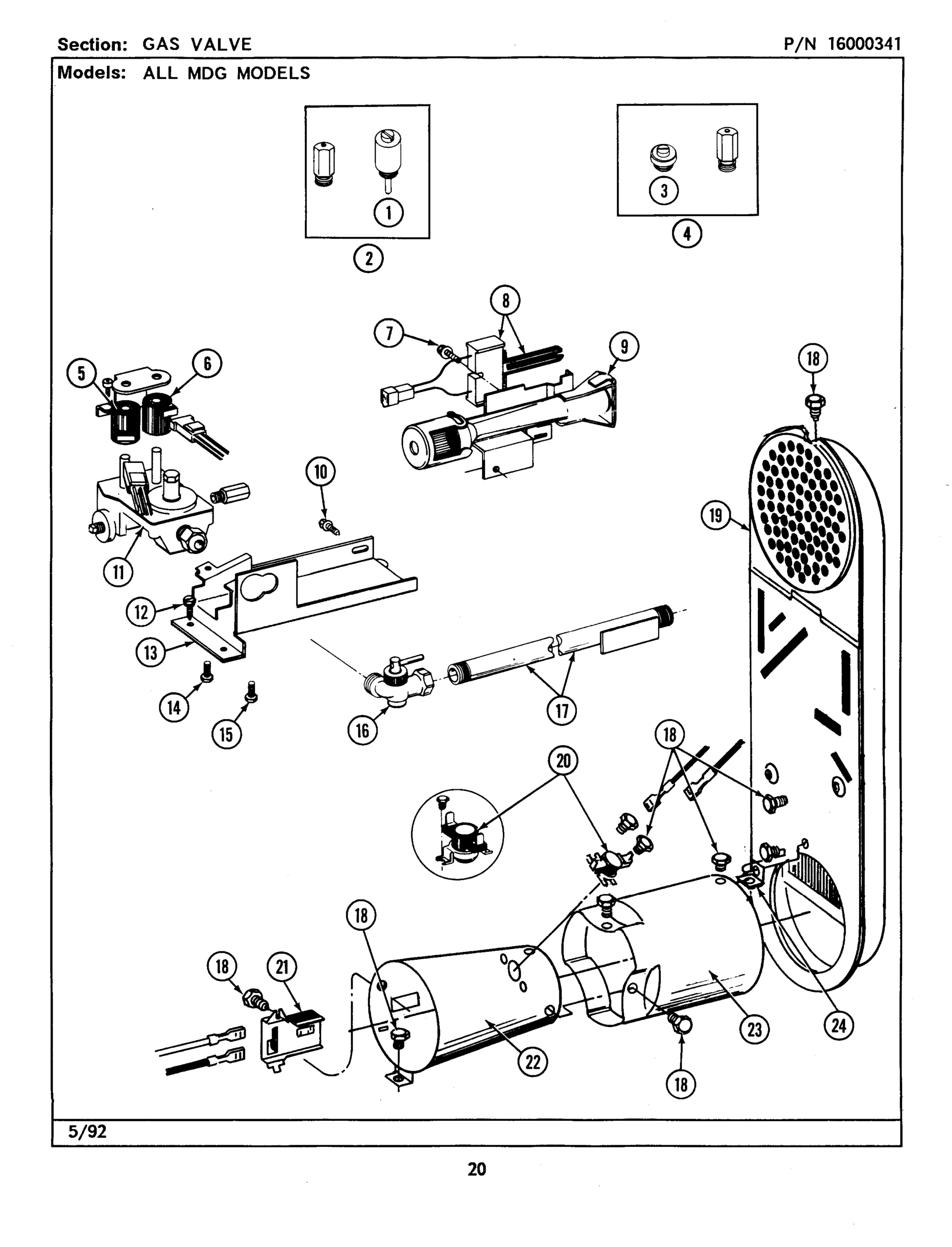

06 - GAS VALVE

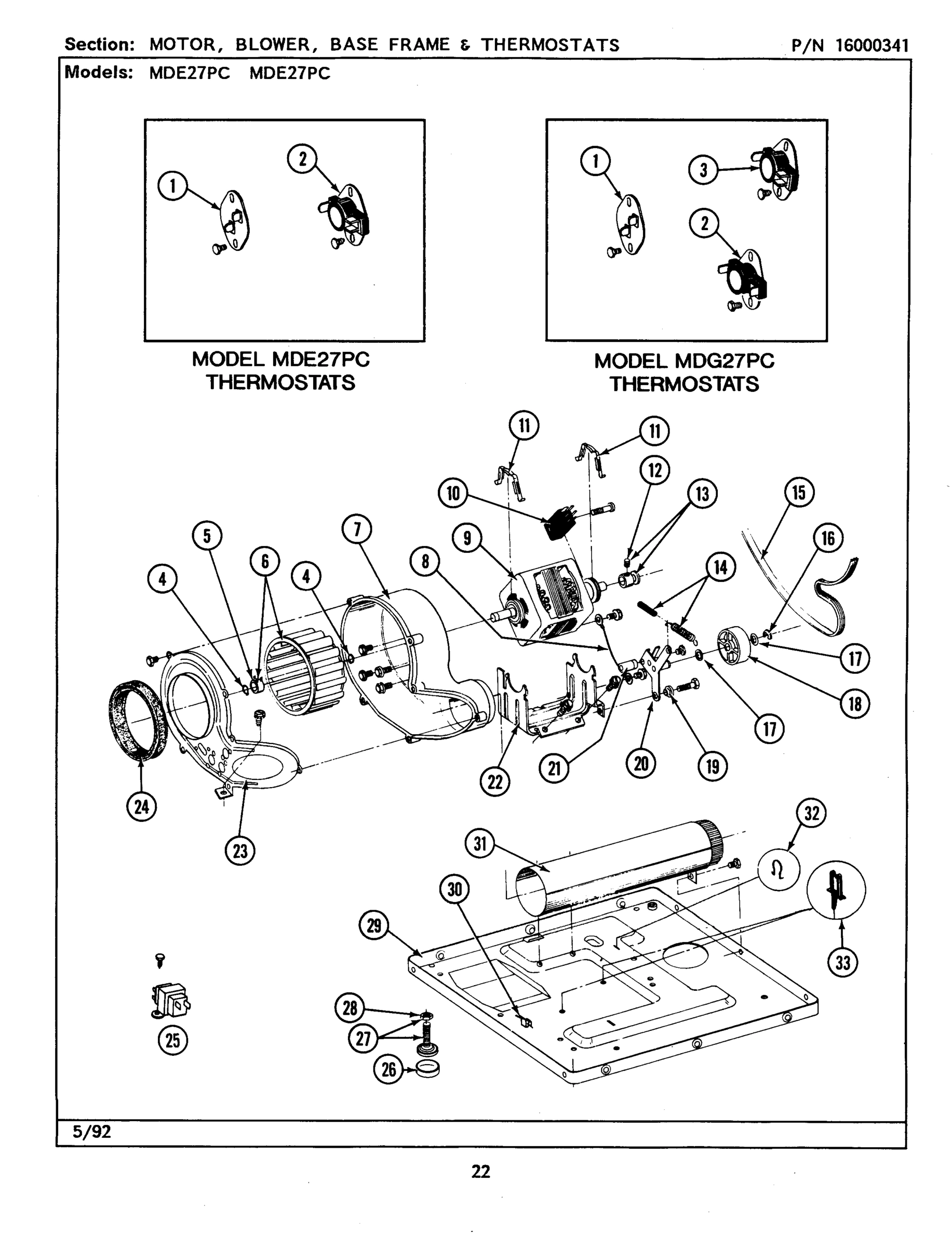

07 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
Common parts from model Maytag MDG27PCAAL GAS DRYER
001
MAY 306056 MAY 306056 Contact Us For Availability
001
DECAL, INSTRUCTION MAY Y313340 Contact Us For Availability
001
MAY Y307112 MAY Y307112 Contact Us For Availability
001
SCREW MAY Y314110 Contact Us For Availability
001
MAY 306184 MAY 306184 Contact Us For Availability
002
MAY 314941 MAY 314941 Contact Us For Availability
002
SCREEN, LINT MAY 307108 Contact Us For Availability
002
MAY Y308378 MAY Y308378 Contact Us For Availability
003
MAY 307109 MAY 307109 Contact Us For Availability
004
MAY 307099 MAY 307099 Contact Us For Availability
004
MAY Y308377 MAY Y308377 Contact Us For Availability
005
SHIELD, ACCESS SWITCH MAY 314979 Contact Us For Availability
005
MAY 912012 MAY 912012 Contact Us For Availability
005
MAY Y306232 MAY Y306232 Contact Us For Availability
006
PART NOT USED MAY 400008 Contact Us For Availability
006
PART NOT USED MAY Y312209 Contact Us For Availability
006
DOOR PANEL, OUTER HALF (WHITE) MAY 314967 Contact Us For Availability
007
PART NOT USED MAY Y312904 Contact Us For Availability
007
WIRE, GROUND MAY Y306712 Contact Us For Availability
007
(ALMOND) MAY 314974 Contact Us For Availability
007
MAY 314803 MAY 314803 Contact Us For Availability
007
MAY 304971 MAY 304971 Contact Us For Availability
007
MAY Y312893 MAY Y312893 Contact Us For Availability
008
WASHER, BAFFLE TO TUMBLER MAY 314158 Contact Us For Availability
008
MAY 314635 MAY 314635 Contact Us For Availability
008
MAY 901220 MAY 901220 Contact Us For Availability
008
MAY 910343 MAY 910343 Contact Us For Availability
009
MAY 212982 MAY 212982 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
MAY 314802 MAY 314802 Contact Us For Availability
009
MAY 304974 MAY 304974 Contact Us For Availability
009
MAY Y308457 MAY Y308457 Contact Us For Availability
010
TOP COVER ASSY. (WHITE) MAY 307104 Contact Us For Availability
010
BOLT MAY 314654 Contact Us For Availability
010
MAY Y307114 MAY Y307114 Contact Us For Availability
010
MAY Y308544 MAY Y308544 Contact Us For Availability
010
No.3-3358-8 & 3-3358-9 MAY 306207 Contact Us For Availability
010
SWITCH, MOTOR START PROD. No.3-3358-2, 3-3358 MAY Y303877 Contact Us For Availability
010
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- MAY Y303879 Contact Us For Availability
011
MAY 312538 MAY 312538 Contact Us For Availability
012
MAY 314937 MAY 314937 Contact Us For Availability
012
MAY Y313561 MAY Y313561 Contact Us For Availability
012
MAY 910387 MAY 910387 Contact Us For Availability
012
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
013
FASTENER, TWIN MAY Y313907 Contact Us For Availability
013
MAY 314566 MAY 314566 Contact Us For Availability
013
MAY Y305185 MAY Y305185 Contact Us For Availability
014
FASTENER, COUPLING COLLAR MAY 310933 Contact Us For Availability
014
MAY 212949 MAY 212949 Contact Us For Availability
014
PANEL, FRONT LOWER (WHITE) MAY Y308464 Contact Us For Availability
014
MAY Y303373 MAY Y303373 Contact Us For Availability
014
MAY 314082 MAY 314082 Contact Us For Availability
014
MAY Y303945 MAY Y303945 Contact Us For Availability
015
HEX NUT MAY Y052655 Contact Us For Availability
016
BRACKET, COIN MECHANISM MAY 314631 Contact Us For Availability
016
SLEEVE, RUBBER MAY 312369 Contact Us For Availability
016
MAY Y303349 MAY Y303349 Contact Us For Availability
017
LATCH, ACCESS DOOR MAY Y314025 Contact Us For Availability
017
MAY Y303383 MAY Y303383 Contact Us For Availability
017
MAY Y312527 MAY Y312527 Contact Us For Availability
018
MAY 306233 MAY 306233 Contact Us For Availability
018
MAY Y310759 MAY Y310759 Contact Us For Availability
019
MAY 314936 MAY 314936 Contact Us For Availability
019
BRACKET, STRIKE MAY 314944 Contact Us For Availability
019
MAY 307119 MAY 307119 Contact Us For Availability
019
MAY Y308504 MAY Y308504 Contact Us For Availability
019
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
020
SCREW & FASTENER ASSY. MAY 204439 Contact Us For Availability
020
ACCESS COVER, BACK MAY Y312951 Contact Us For Availability
020
COIN TRAY (WHITE) MAY 306219 Contact Us For Availability
020
SEAL, DOOR MAY 314935 Contact Us For Availability
021
DOOR, INNER W/GASKET MAY 308069 Contact Us For Availability
022
SUPPORT, MOTOR MAY NLA Contact Us For Availability
022
GROUND CLAMP MAY 301548 Contact Us For Availability
022
NUT, COIN BOX MAY 214104 Contact Us For Availability
022
CLIP MAY Y313910 Contact Us For Availability
022
MAY Y303368 MAY Y303368 Contact Us For Availability
022
MAY Y308548 MAY Y308548 Contact Us For Availability
023
MAY Y310632 MAY Y310632 Contact Us For Availability
023
MAY 314618 MAY 314618 Contact Us For Availability
023
MAY Y303841 MAY Y303841 Contact Us For Availability
023
COVER, BLOWER MAY Y313770 Contact Us For Availability
024
MAY 314664 MAY 314664 Contact Us For Availability
024
MAY 314666 MAY 314666 Contact Us For Availability
024
MAY Y312890 MAY Y312890 Contact Us For Availability
025
TRANSFORMER, LOWER DRYER BASE MAY 306062 Contact Us For Availability
025
MAY Y313559 MAY Y313559 Contact Us For Availability
025
BRACKET, ACCESS SWITCH MAY 314634 Contact Us For Availability
025
SHIELD, TRANSFORMER MAY 315218 Contact Us For Availability
026
MAY 314939 MAY 314939 Contact Us For Availability
026
SPACER, CIRCUIT BOARD MAY 912075 Contact Us For Availability
027
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
029
CLIP, SPEED (CONTROL SWITCH) MAY 912086 Contact Us For Availability
029
BASE ASSY., UPPER DRYER MAY 306261 Contact Us For Availability
029
BASE ASSY. (LOWER DRYER) MAY Y303361 Contact Us For Availability
030
MAY Y310376 MAY Y310376 Contact Us For Availability
030
MAY 306443 MAY 306443 Contact Us For Availability
030
MAY 910186 MAY 910186 Contact Us For Availability
031
DUCT, EXHAUST MAY Y303442 Contact Us For Availability
032
COIN REJECTOR ASSY. MAY Y307749 Contact Us For Availability
032
MAY 410490 MAY 410490 Contact Us For Availability
033
MAY Y313262 MAY Y313262 Contact Us For Availability
035
REJECTOR ASSY. (.25) MAY Y307390 Contact Us For Availability
037
MAY 314713 MAY 314713 Contact Us For Availability
039
COIN SLOT COVER (ACCESS) MAY 314710 Contact Us For Availability
040
MAY 306238 MAY 306238 Contact Us For Availability
040
MAY 306239 MAY 306239 Contact Us For Availability
040
MAY 308375 MAY 308375 Contact Us For Availability
040
TAPERED BEAM CONTACT (USAGE VARIES BETWEEN MAY 314652 Contact Us For Availability
041
REJECTOR ASSY. (.25) MAY 308121 Contact Us For Availability
042
SWITCH, OPTIC MAY Y306224 Contact Us For Availability
043
MAY Y308122 MAY Y308122 Contact Us For Availability
× ![]()
