Model Maytag MDG27MNAAW GAS DRYER – Common Parts & Diagrams

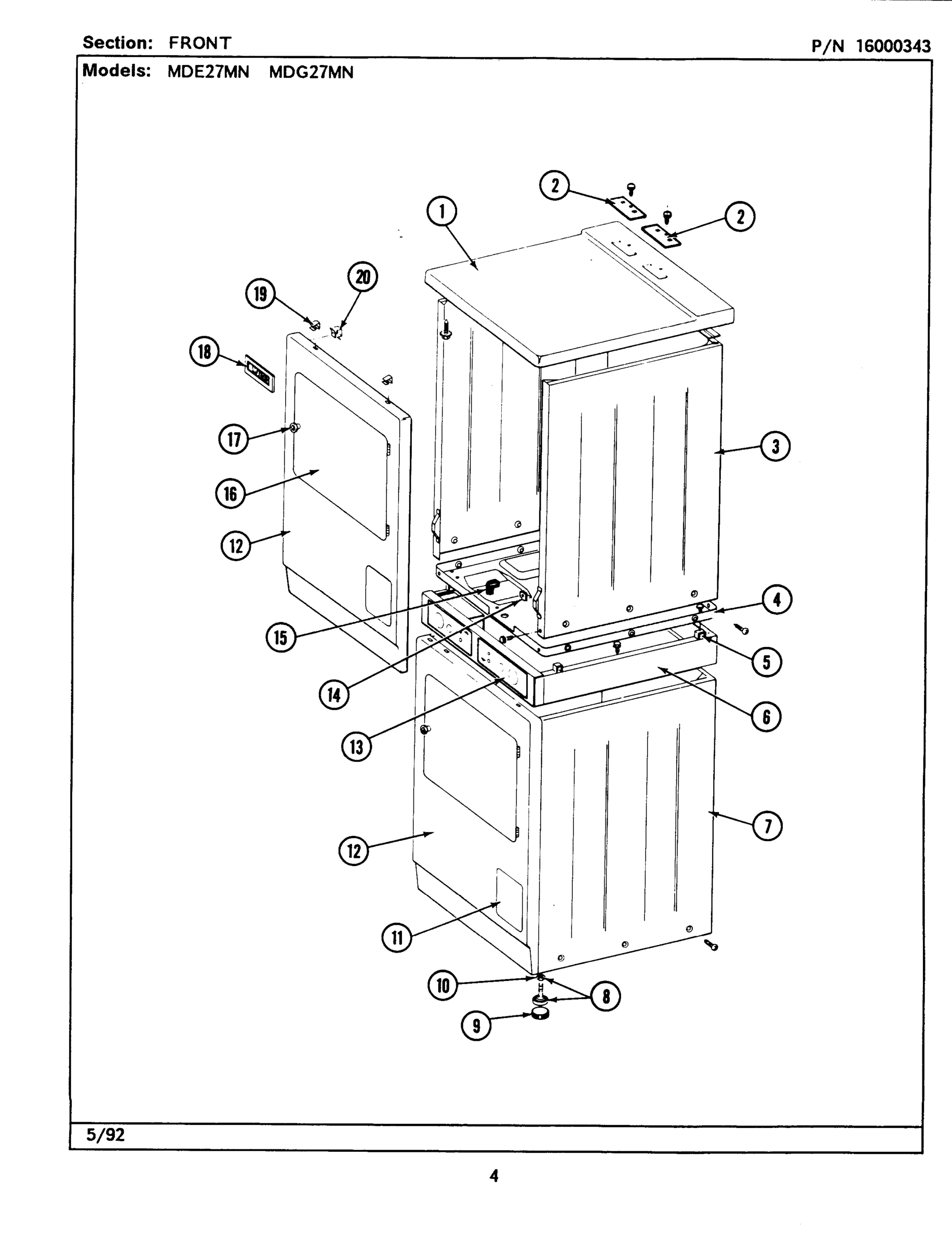

01 - FRONT

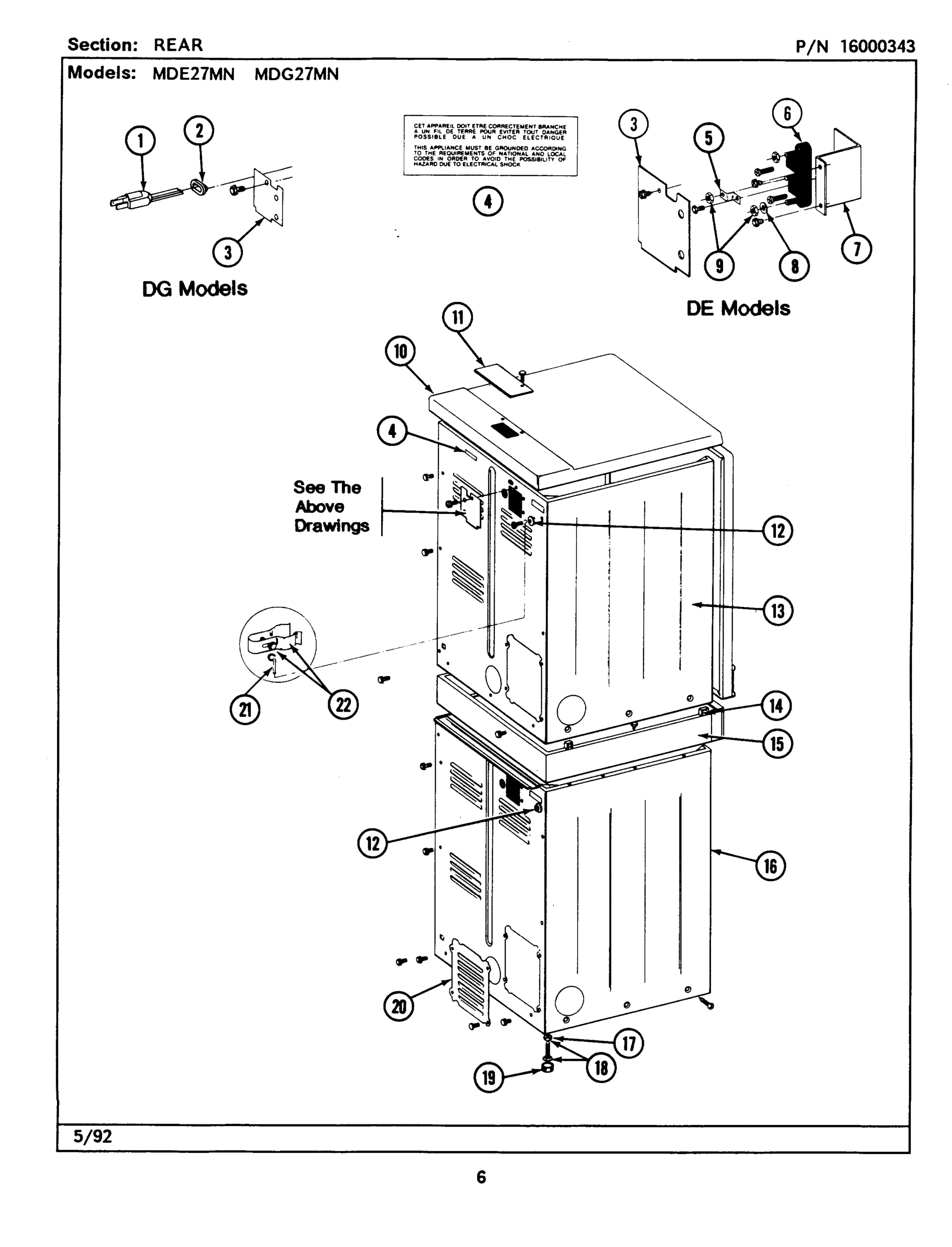

02 - REAR
03 - SUPPORT ASSY., TIMER, TIMER DIAL & KNOB
04 - FRONT PANEL & DOOR
05 - TUMBLER
06 - GAS VALVE
07 - MOTOR, BLOWER & BASE FRAME
08 - THERMOSTATS
Common parts from model Maytag MDG27MNAAW GAS DRYER
001
PART NOT USED MAY Y303225 Contact Us For Availability
001
SEAL MAY 314937 Contact Us For Availability
001
MAY 308366 MAY 308366 Contact Us For Availability
001
MAY 308370 MAY 308370 Contact Us For Availability
001
(LOWER) MAY 308515 Contact Us For Availability
001
(LOWER) MAY Y307387 Contact Us For Availability
001
MAY Y307112 MAY Y307112 Contact Us For Availability
001
SCREW MAY Y314110 Contact Us For Availability
002
LINT SCREEN MAY 307108 Contact Us For Availability
003
MAY 314725 MAY 314725 Contact Us For Availability
003
FASTENER MAY Y313907 Contact Us For Availability
003
TUMBLER FRONT W/SEAL MAY 307109 Contact Us For Availability
003
PLUG, BLOCKING REGULATOR (LPG) MAY 306184 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMPERATURE MAY 306966 Contact Us For Availability
004
MAY 314664 MAY 314664 Contact Us For Availability
004
SCREW & FASTENER ASSY. MAY 212949 Contact Us For Availability
004
MAY Y306195 MAY Y306195 Contact Us For Availability
004
MAY Y308378 MAY Y308378 Contact Us For Availability
004
BLOWER HOUSING MAY Y312893 Contact Us For Availability
005
PART NOT USED MAY 306967 Contact Us For Availability
005
KNOB MAY 205663 Contact Us For Availability
005
SPRING, FASTENER MAY 212982 Contact Us For Availability
005
GROUND WIRE MAY 901220 Contact Us For Availability
005
SCREW MAY 910343 Contact Us For Availability
006
PART NOT USED MAY 400008 Contact Us For Availability
006
PART NOT USED MAY Y313561 Contact Us For Availability
006
MAY Y308377 MAY Y308377 Contact Us For Availability
006
PART NOT USED MAY 315122 Contact Us For Availability
007
MAY 910186 MAY 910186 Contact Us For Availability
007
MAY 314803 MAY 314803 Contact Us For Availability
007
No.3-3358-8 & 3-3358-9 MAY 306207 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358-2, 3-3358 MAY Y303877 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- MAY Y303879 Contact Us For Availability
008
MAY 314158 MAY 314158 Contact Us For Availability
008
SEAL, DOOR MAY 314935 Contact Us For Availability
009
GROUND WIRE MAY 205810 Contact Us For Availability
009
INNER DOOR W/GASKET MAY Y308070 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
TUMBLER LESS BAFFLES MAY 314802 Contact Us For Availability
009
SCREW, IGNITER MAY 304971 Contact Us For Availability
009
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
010
MAY Y307296 MAY Y307296 Contact Us For Availability
010
MAY 307099 MAY 307099 Contact Us For Availability
010
TUMBLER BACK W/SEAL MAY Y307114 Contact Us For Availability
010
MAY Y308544 MAY Y308544 Contact Us For Availability
010
MOTOR PULLEY W/SET SCREW MAY Y305185 Contact Us For Availability
011
MAY 308062 MAY 308062 Contact Us For Availability
011
NUT MAY 312538 Contact Us For Availability
011
BURNER ASSY. MAY 304974 Contact Us For Availability
011
MAY Y308457 MAY Y308457 Contact Us For Availability
011
IDLER SPRING ASSY. W/PLUG MAY Y303945 Contact Us For Availability
012
SWITCH, CYCLE MAY 307253 Contact Us For Availability
013
HEX NUT MAY Y312706 Contact Us For Availability
014
MAY Y201110 MAY Y201110 Contact Us For Availability
014
MAY 314936 MAY 314936 Contact Us For Availability
014
MAY 314944 MAY 314944 Contact Us For Availability
014
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
014
MAY 314566 MAY 314566 Contact Us For Availability
014
WASHER, IDLER PULLEY MAY Y312527 Contact Us For Availability
015
LIGHT, INDICATOR MAY 204075 Contact Us For Availability
015
CLIP MAY Y313910 Contact Us For Availability
015
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
016
SCREW, BURNER ASSY. MAY Y310632 Contact Us For Availability
016
MAY Y312894 MAY Y312894 Contact Us For Availability
017
MAY Y303349 MAY Y303349 Contact Us For Availability
018
MAY Y312702 MAY Y312702 Contact Us For Availability
018
LATCH, ACCESS DOOR MAY Y314025 Contact Us For Availability
018
MAY Y310759 MAY Y310759 Contact Us For Availability
018
MAY Y303383 MAY Y303383 Contact Us For Availability
019
MOTOR SUPPORT MAY NLA Contact Us For Availability
019
RUBBER SLEEVE MAY 312369 Contact Us For Availability
020
ACCESS COVER MAY Y312951 Contact Us For Availability
020
INSTRUCTION DECAL MAY Y313340 Contact Us For Availability
020
DUCT, INLET ASSY. MAY 307119 Contact Us For Availability
020
MAY Y308504 MAY Y308504 Contact Us For Availability
020
COVER, BLOWER MAY 314778 Contact Us For Availability
021
GROUND CLAMP MAY 301548 Contact Us For Availability
021
SCREW MAY 313122 Contact Us For Availability
021
INSTRUCTION DECAL MAY 314941 Contact Us For Availability
023
ADJUSTABLE LEG & NUT MAY Y302699 Contact Us For Availability
023
MAY Y303368 MAY Y303368 Contact Us For Availability
023
MAY Y308548 MAY Y308548 Contact Us For Availability
024
MAY Y303841 MAY Y303841 Contact Us For Availability
025
MAY Y312890 MAY Y312890 Contact Us For Availability
025
BASE ASSY. (UPPER & LOWER) MAY Y307482 Contact Us For Availability
026
FASTENER CLIP ON BASE MAY Y310376 Contact Us For Availability
027
EXHAUST DUCT PIPE MAY Y303442 Contact Us For Availability
028
HARNESS SPRING MAY 410490 Contact Us For Availability
029
WIRE RETAINER MAY Y313262 Contact Us For Availability
030
PART NOT USED MAY 307928 Contact Us For Availability
× ![]()
