Model Maytag MDG27CTABW GAS DRYER – Common Parts & Diagrams
01 - FRONT
02 - REAR

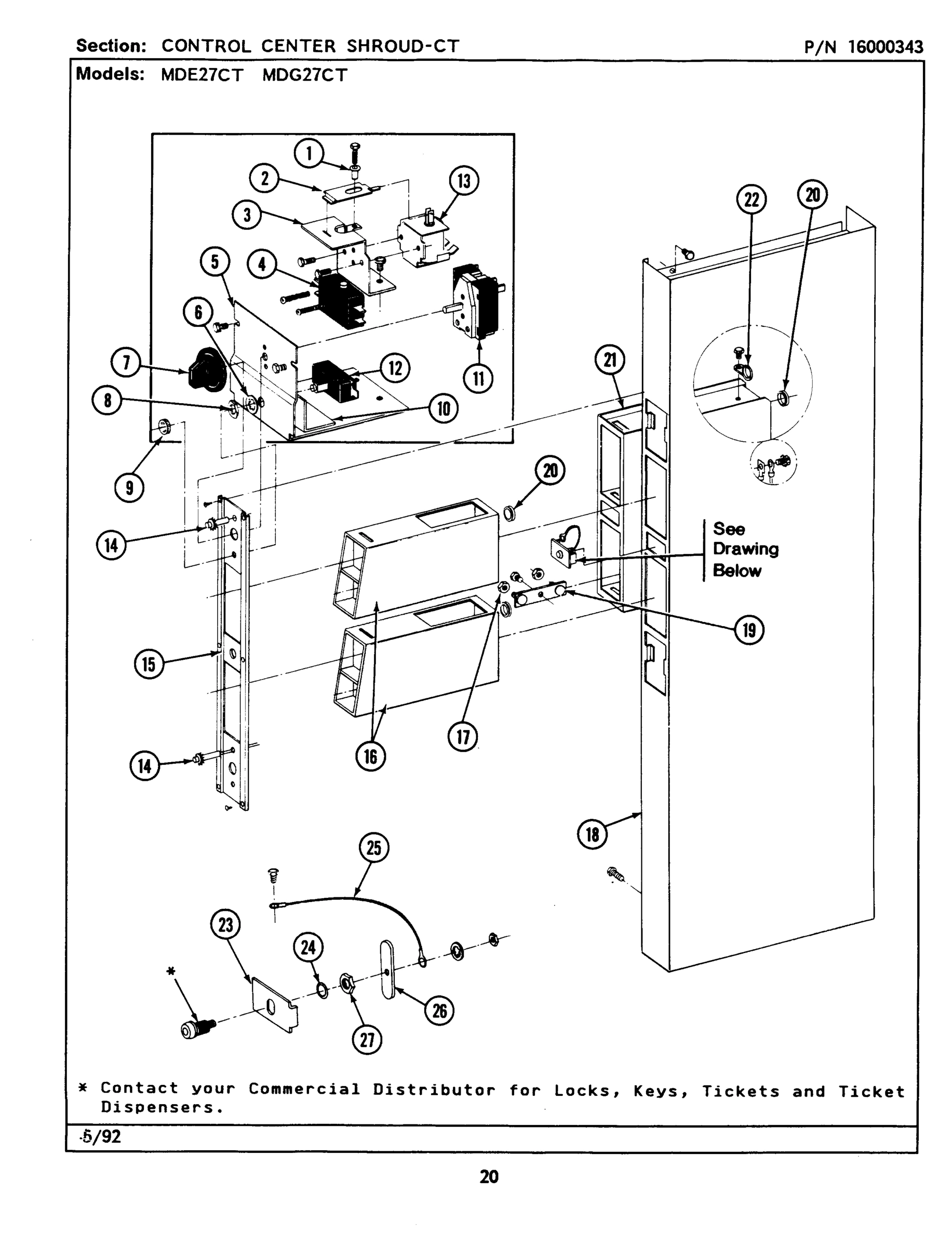

03 - CONTROL CENTER SHROUD

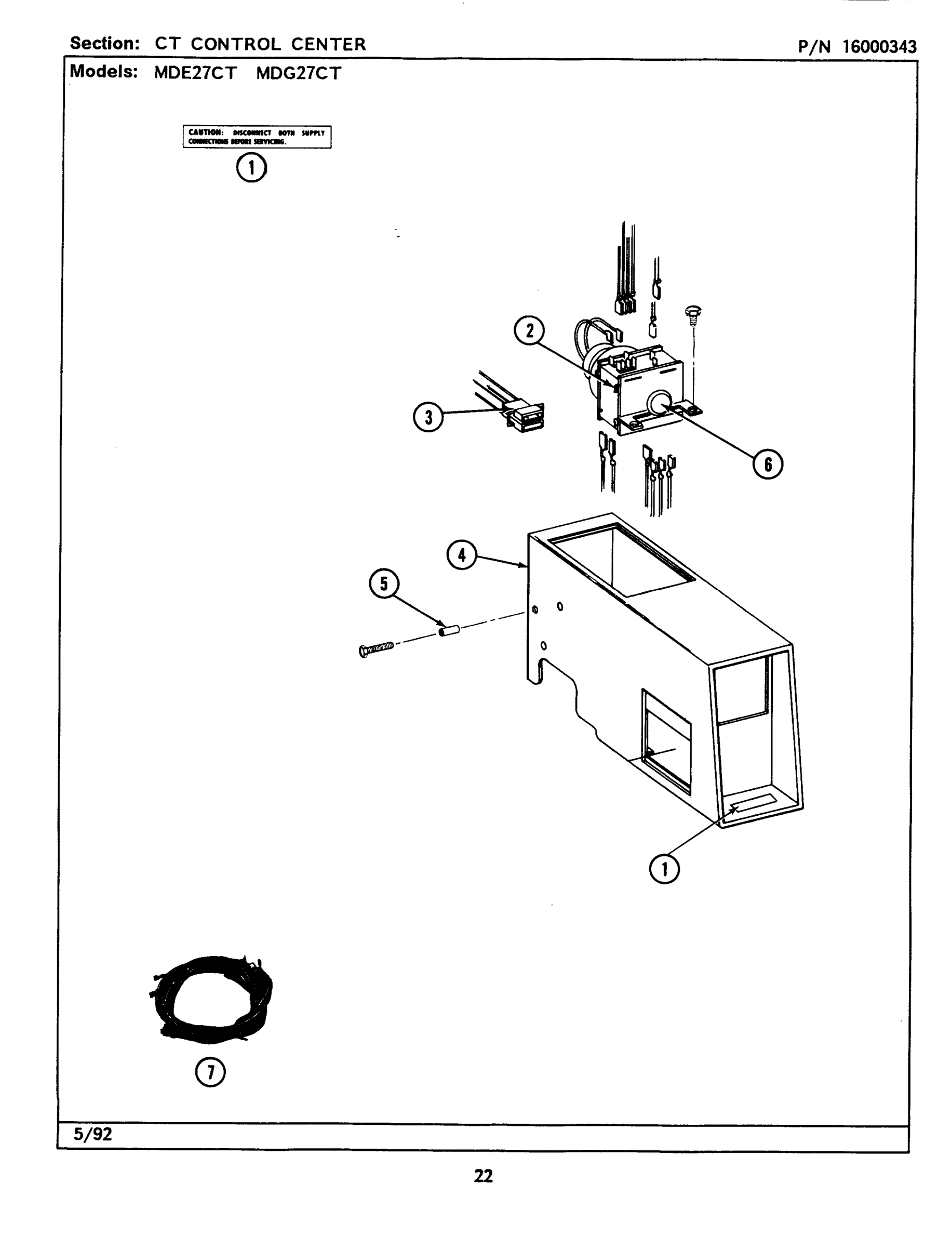

04 - CONTROL CENTER

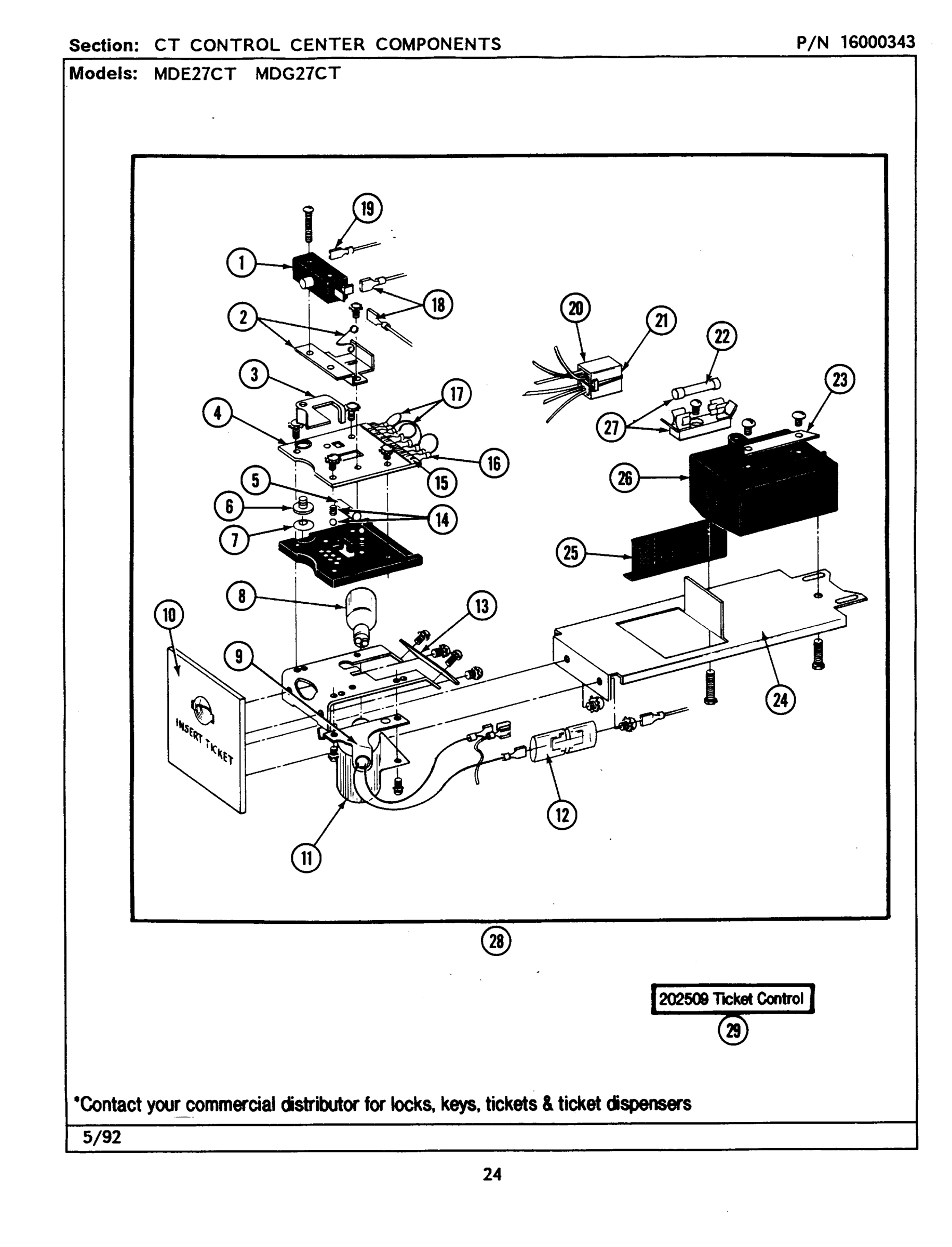

05 - CONTROL CENTER COMPONENTS

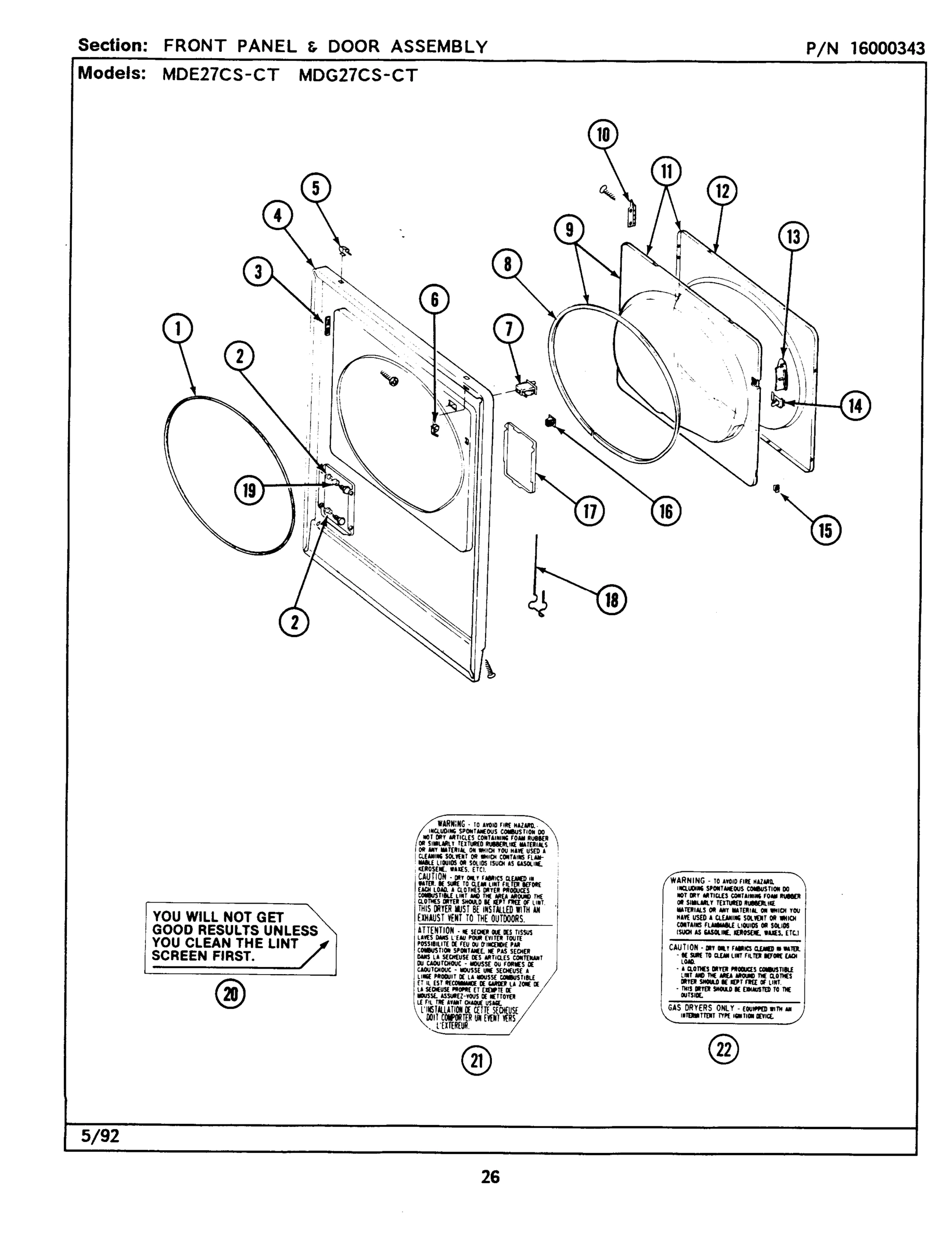

06 - FRONT PANEL & DOOR ASSEMBLY

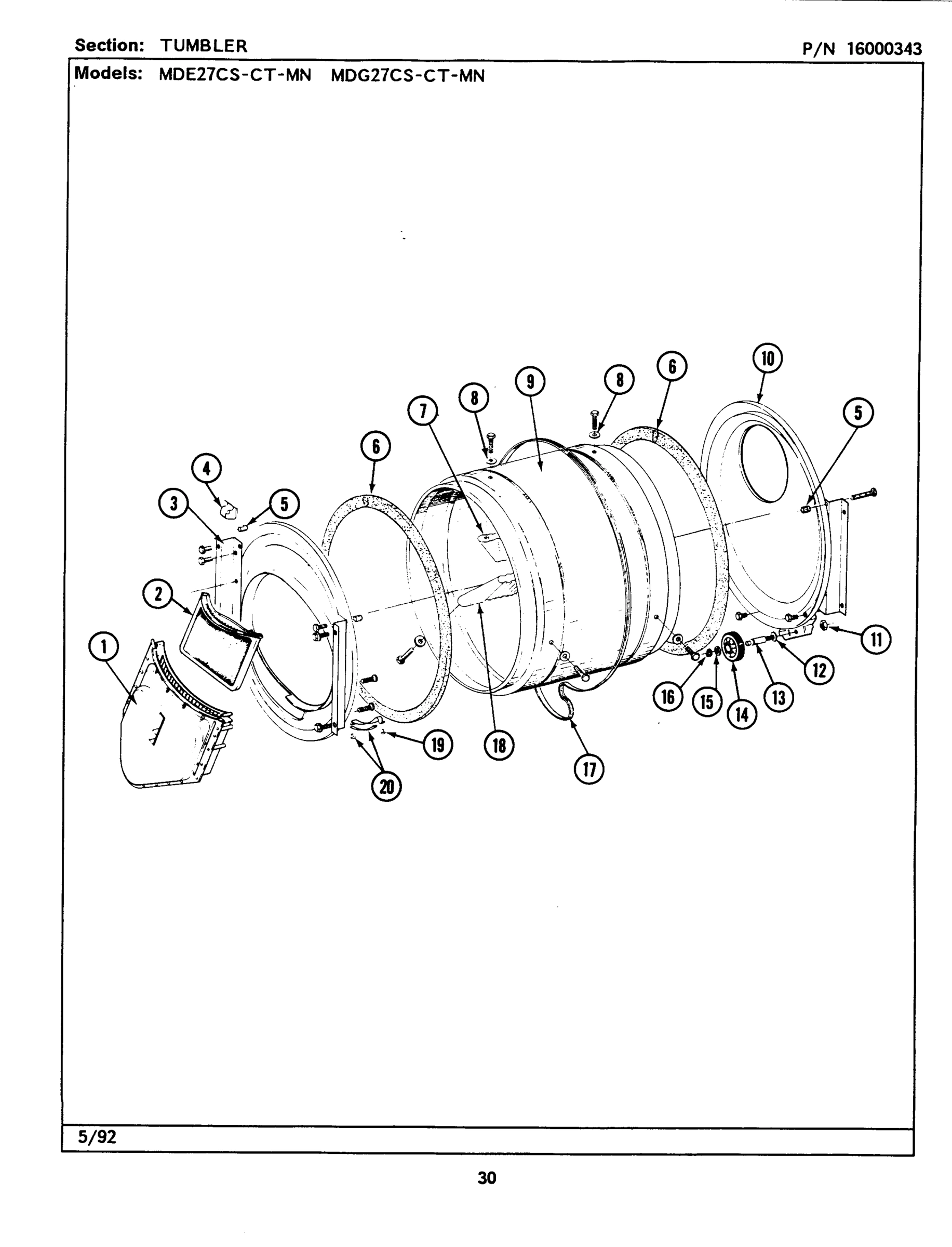

07 - TUMBLER

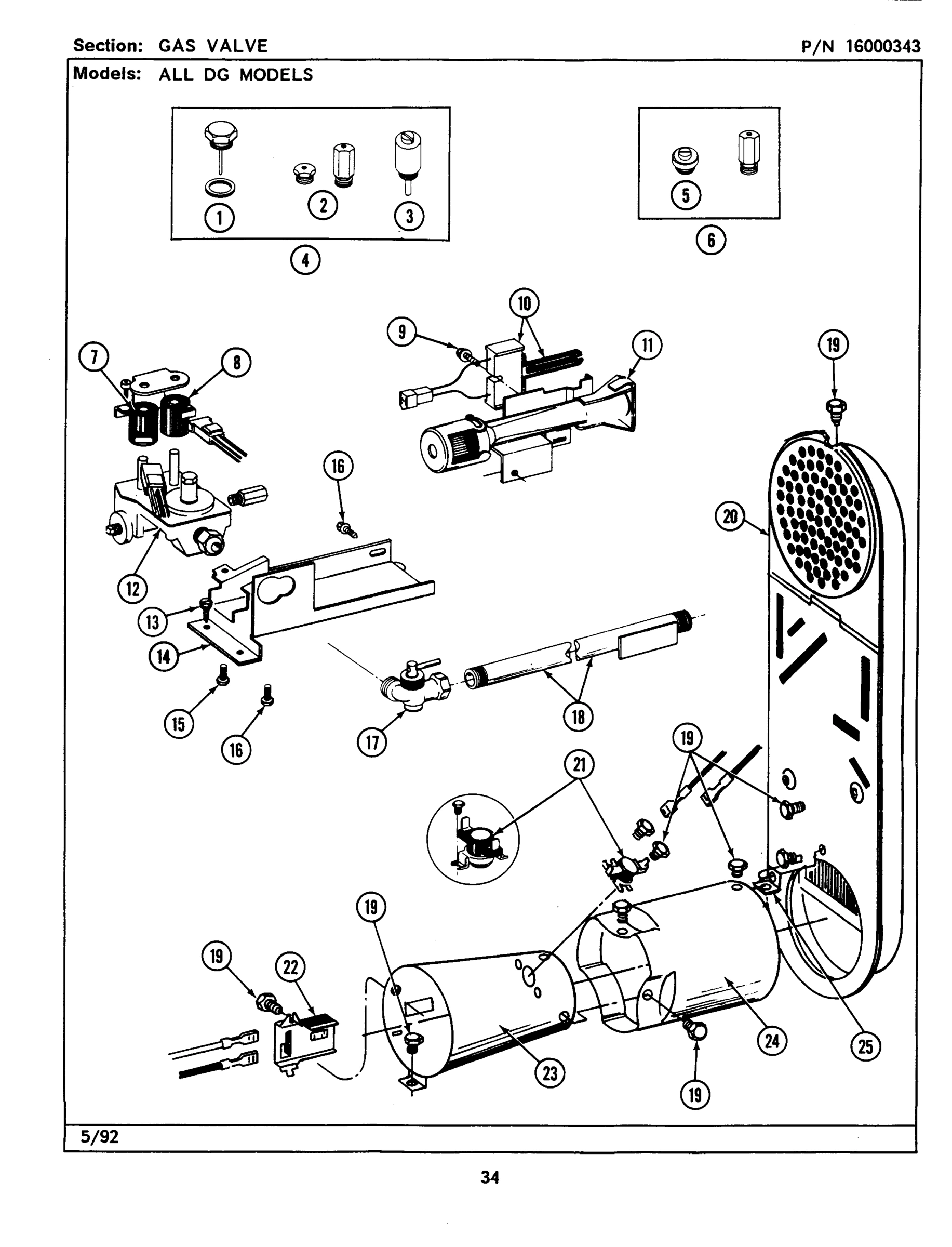

08 - GAS VALVE

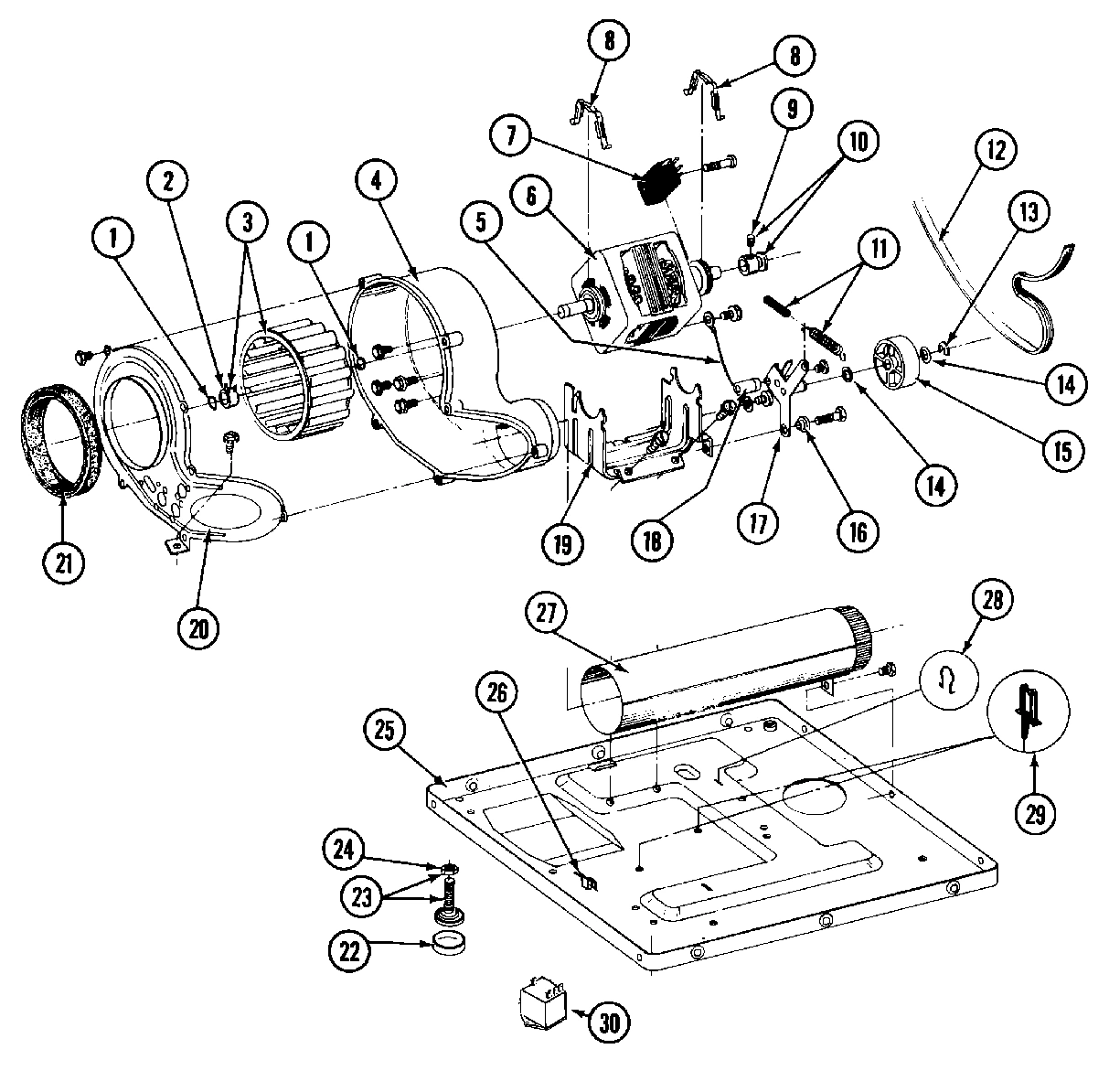

09 - MOTOR, BLOWER & BASE FRAME

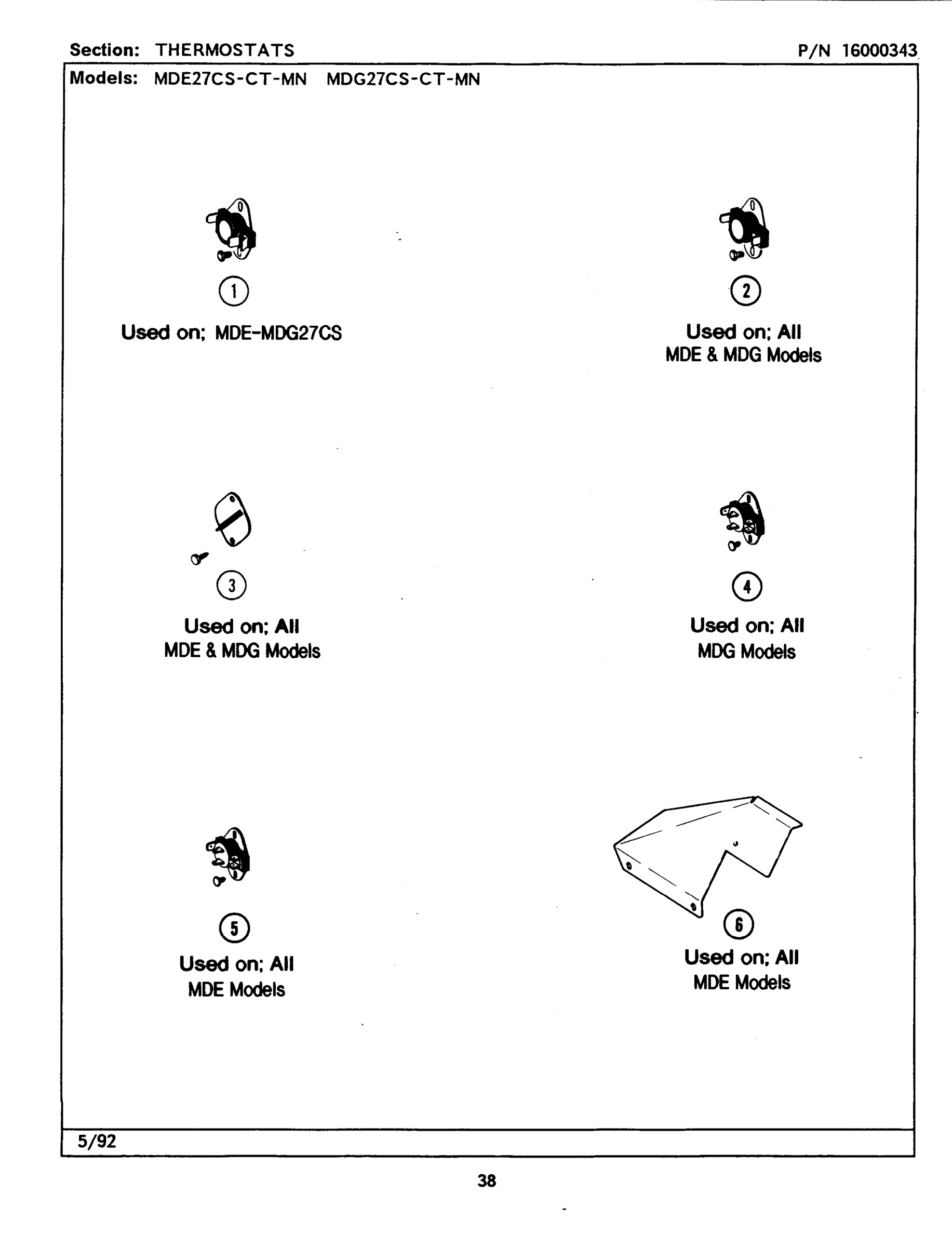

10 - THERMOSTATS
Common parts from model Maytag MDG27CTABW GAS DRYER
001
PART NOT USED MAY Y303225 Contact Us For Availability
001
SEAL MAY 314937 Contact Us For Availability
001
MAY Y313439 MAY Y313439 Contact Us For Availability
001
SWITCH MAY 204882 Contact Us For Availability
001
MAY Y307112 MAY Y307112 Contact Us For Availability
001
SCREW MAY Y314110 Contact Us For Availability
002
MAY 212276 MAY 212276 Contact Us For Availability
002
No.303799 & 307141 (45 MINS.) MAY 305867 Contact Us For Availability
002
No.303799 & 307141 (37 1/2 MINS) MAY 305868 Contact Us For Availability
002
TIMER W/KNOB MAY Y303801 Contact Us For Availability
002
MAY 204881 MAY 204881 Contact Us For Availability
002
LINT SCREEN MAY 307108 Contact Us For Availability
003
MAY 214218 MAY 214218 Contact Us For Availability
003
FASTENER MAY Y313907 Contact Us For Availability
003
TUMBLER FRONT W/SEAL MAY 307109 Contact Us For Availability
003
PLUG, BLOCKING REGULATOR (LPG) MAY 306184 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMPERATURE MAY 306966 Contact Us For Availability
004
SCREW & FASTENER ASSY. MAY 212949 Contact Us For Availability
004
SCREW MAY 212950 Contact Us For Availability
004
SWITCH MAY Y303787 Contact Us For Availability
004
MAY 212452 MAY 212452 Contact Us For Availability
004
(ALMOND) MAY 307998L Contact Us For Availability
004
MAY Y306195 MAY Y306195 Contact Us For Availability
004
MAY Y308378 MAY Y308378 Contact Us For Availability
004
BLOWER HOUSING MAY Y312893 Contact Us For Availability
005
PART NOT USED MAY 306967 Contact Us For Availability
005
SWITCH & RELAY BRACKET MAY Y314261 Contact Us For Availability
005
MAY Y310842 MAY Y310842 Contact Us For Availability
005
ROLLER, CAM MAY 214275 Contact Us For Availability
005
SPRING, FASTENER MAY 212982 Contact Us For Availability
005
GROUND WIRE MAY 901220 Contact Us For Availability
005
SCREW MAY 910343 Contact Us For Availability
006
MAY 213089 MAY 213089 Contact Us For Availability
006
MAY Y312300 MAY Y312300 Contact Us For Availability
006
MAY 214220 MAY 214220 Contact Us For Availability
006
PART NOT USED MAY Y313561 Contact Us For Availability
006
MAY Y308377 MAY Y308377 Contact Us For Availability
006
PART NOT USED MAY 315122 Contact Us For Availability
007
PART NOT USED MAY 400008 Contact Us For Availability
007
KNOB MAY 205663 Contact Us For Availability
007
MAY 314803 MAY 314803 Contact Us For Availability
007
No.3-3358-8 & 3-3358-9 MAY 306207 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358-2, 3-3358 MAY Y303877 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- MAY Y303879 Contact Us For Availability
008
MAY 314158 MAY 314158 Contact Us For Availability
008
HEX NUT MAY Y312706 Contact Us For Availability
008
SEAL, DOOR MAY 314935 Contact Us For Availability
009
MAY Y312702 MAY Y312702 Contact Us For Availability
009
INNER DOOR W/GASKET MAY 308069 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
TUMBLER LESS BAFFLES MAY 314802 Contact Us For Availability
009
SCREW, IGNITER MAY 304971 Contact Us For Availability
009
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
010
SCREW MAY 212519 Contact Us For Availability
010
MAY 307099 MAY 307099 Contact Us For Availability
010
TUMBLER BACK W/SEAL MAY Y307114 Contact Us For Availability
010
MAY Y308544 MAY Y308544 Contact Us For Availability
010
MOTOR PULLEY W/SET SCREW MAY Y305185 Contact Us For Availability
011
SWITCH, CYCLE SELECTOR MAY 307253 Contact Us For Availability
011
MAY 212533 MAY 212533 Contact Us For Availability
011
NUT MAY 312538 Contact Us For Availability
011
BURNER ASSY. MAY 304974 Contact Us For Availability
011
MAY Y308457 MAY Y308457 Contact Us For Availability
011
IDLER SPRING ASSY. W/PLUG MAY Y303945 Contact Us For Availability
012
SCREW & FASTENER ASSY. MAY 204439 Contact Us For Availability
012
MAY Y201110 MAY Y201110 Contact Us For Availability
012
PANEL, DOOR-OUTER (WHITE) MAY 314967 Contact Us For Availability
013
WPL WP6-3129480 No Longer Available
013
SCREW MAY 212951 Contact Us For Availability
013
SOLENOID MAY 305393 Contact Us For Availability
013
(ALMOND) MAY 314974 Contact Us For Availability
014
INDICATOR LIGHT MAY 303963 Contact Us For Availability
014
MAY 203140 MAY 203140 Contact Us For Availability
014
MAY 314936 MAY 314936 Contact Us For Availability
014
STRIKE BRACKET MAY 314944 Contact Us For Availability
014
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
014
MAY 314566 MAY 314566 Contact Us For Availability
014
WASHER, IDLER PULLEY MAY Y312527 Contact Us For Availability
015
MAY 314939 MAY 314939 Contact Us For Availability
015
MAY 307125 MAY 307125 Contact Us For Availability
015
MAY 315037 MAY 315037 Contact Us For Availability
015
MAY Y313424 MAY Y313424 Contact Us For Availability
015
CLIP MAY Y313910 Contact Us For Availability
015
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
016
SCREW (HEX HD No.10 X 3/8``) MAY 911050 Contact Us For Availability
016
SCREW, BURNER ASSY. MAY Y310632 Contact Us For Availability
016
MAY Y311550 MAY Y311550 Contact Us For Availability
016
MAY Y312894 MAY Y312894 Contact Us For Availability
017
MAY 310933 MAY 310933 Contact Us For Availability
017
MAY Y303349 MAY Y303349 Contact Us For Availability
018
LATCH, ACCESS DOOR MAY Y314025 Contact Us For Availability
018
MAY Y310759 MAY Y310759 Contact Us For Availability
018
MAY Y303383 MAY Y303383 Contact Us For Availability
019
MOTOR SUPPORT MAY NLA Contact Us For Availability
019
MAY 211737 MAY 211737 Contact Us For Availability
019
RUBBER SLEEVE MAY 312369 Contact Us For Availability
020
GROMMET MAY Y313671 Contact Us For Availability
020
INSTRUCTION DECAL MAY Y313340 Contact Us For Availability
020
DUCT, INLET ASSY. MAY 307119 Contact Us For Availability
020
COVER, BLOWER MAY 314778 Contact Us For Availability
021
MAY Y313559 MAY Y313559 Contact Us For Availability
021
ACCESS COVER MAY Y312951 Contact Us For Availability
021
VAULT ASSY. MAY 305534 Contact Us For Availability
021
PIN RECEPTACLE MAY 213074 Contact Us For Availability
021
INSTRUCTION DECAL MAY 314941 Contact Us For Availability
022
CABLE STRAP MAY 910768 Contact Us For Availability
022
MAY 202713 MAY 202713 Contact Us For Availability
023
ADJUSTABLE LEG & NUT MAY Y302699 Contact Us For Availability
023
MAY 311155 MAY 311155 Contact Us For Availability
023
COVER, CIRCUIT BOARD TERMINALS MAY 311612 Contact Us For Availability
023
SCREW MAY 311613 Contact Us For Availability
023
MAY Y303368 MAY Y303368 Contact Us For Availability
024
GROUND CLAMP MAY 301548 Contact Us For Availability
024
SCREW MAY 313122 Contact Us For Availability
024
MAY Y303841 MAY Y303841 Contact Us For Availability
025
GROUND WIRE MAY Y303981 Contact Us For Availability
025
MAY Y312890 MAY Y312890 Contact Us For Availability
025
BASE ASSY. (UPPER & LOWER) MAY Y303361 Contact Us For Availability
026
LATCH MAY Y313427 Contact Us For Availability
026
MAY 202477 MAY 202477 Contact Us For Availability
026
FASTENER CLIP ON BASE MAY Y310376 Contact Us For Availability
027
EXHAUST DUCT PIPE MAY Y303442 Contact Us For Availability
028
HARNESS SPRING MAY 410490 Contact Us For Availability
029
TICKET CONTROL ASSY. MAY 202509 Contact Us For Availability
029
WIRE RETAINER MAY Y313262 Contact Us For Availability
030
PART NOT USED MAY 307928 Contact Us For Availability
× ![]()
