Model Whirlpool MDG27CTABL GAS DRYER – Common Parts & Diagrams

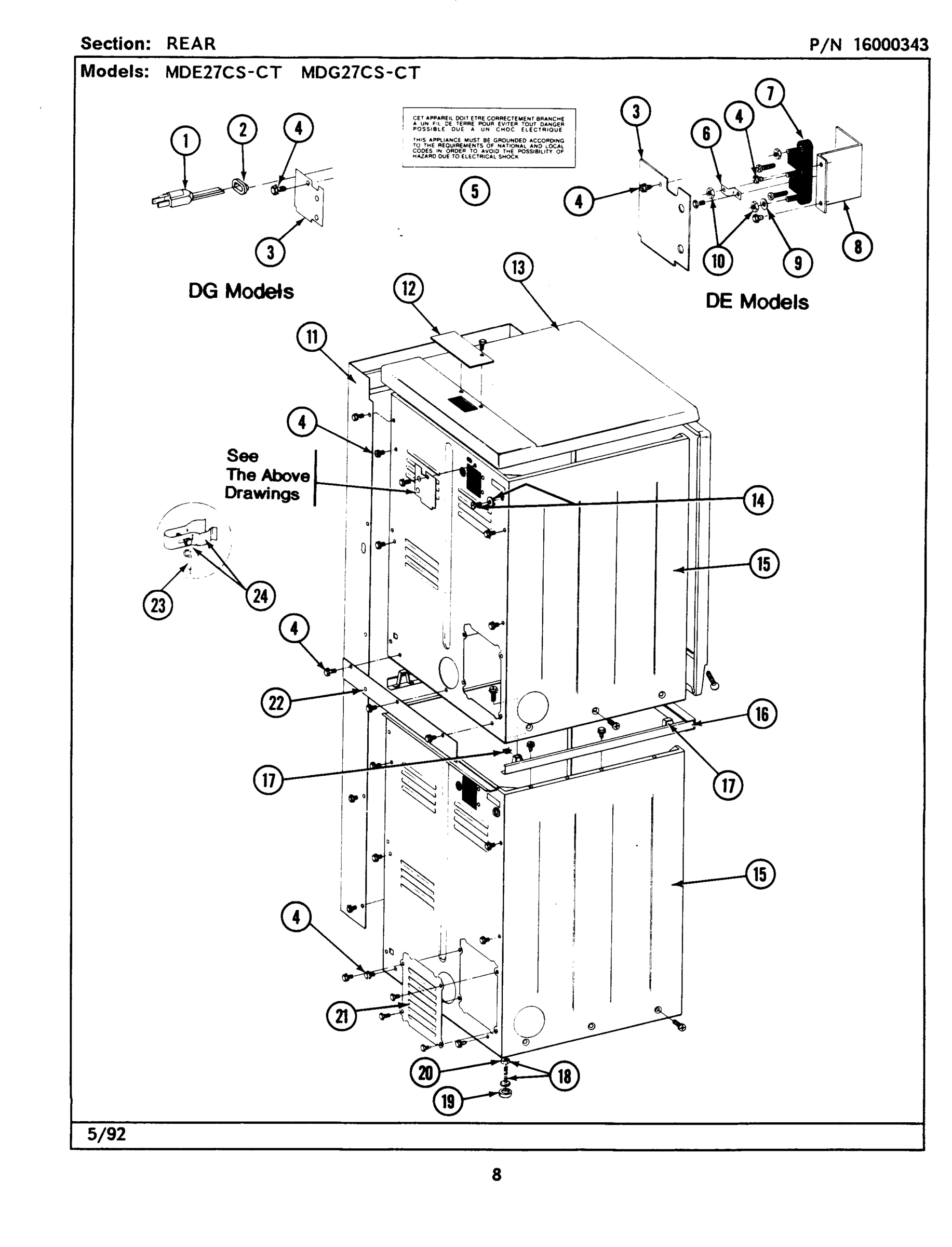

02 - REAR

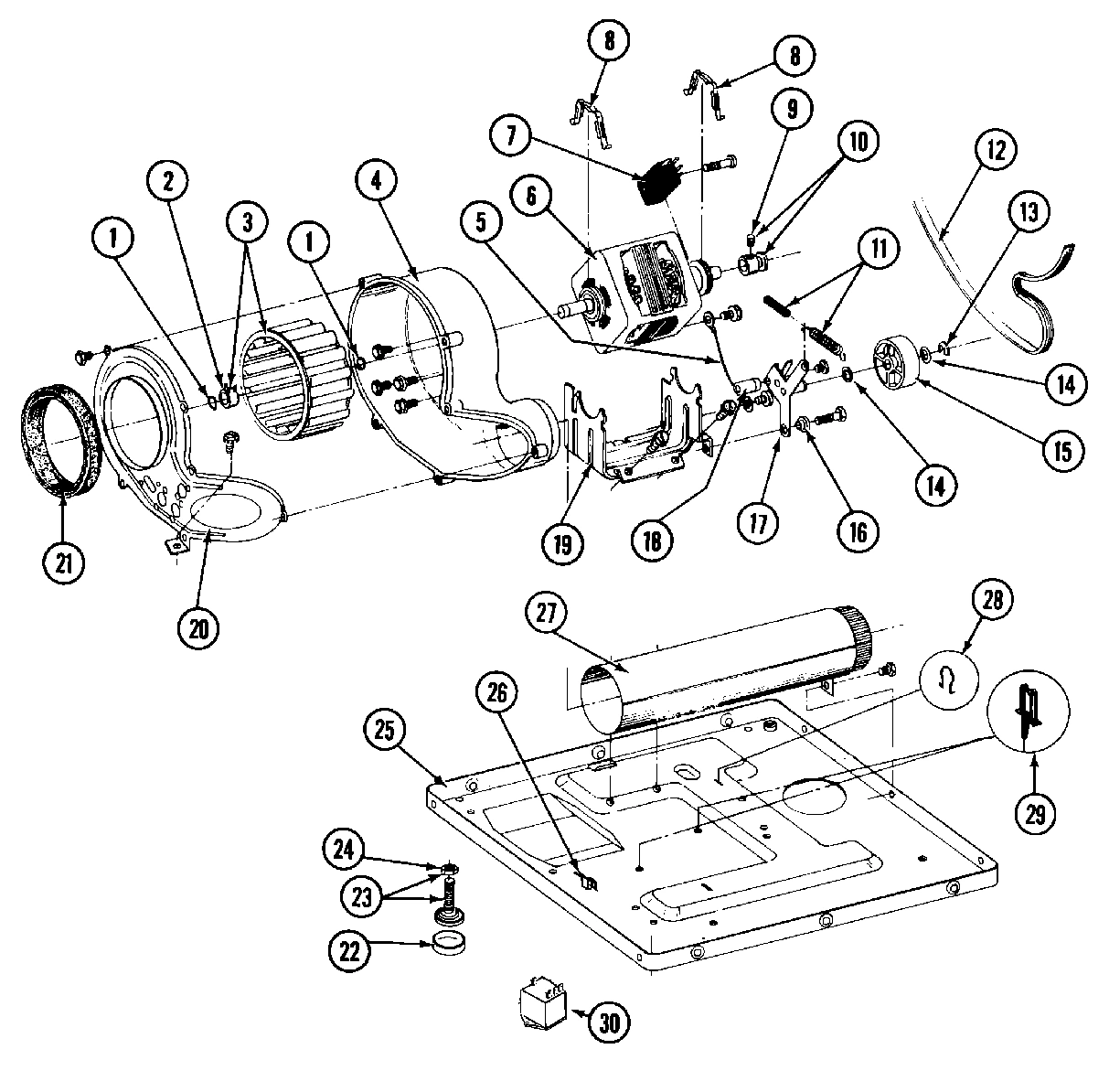

09 - MOTOR, BLOWER & BASE FRAME

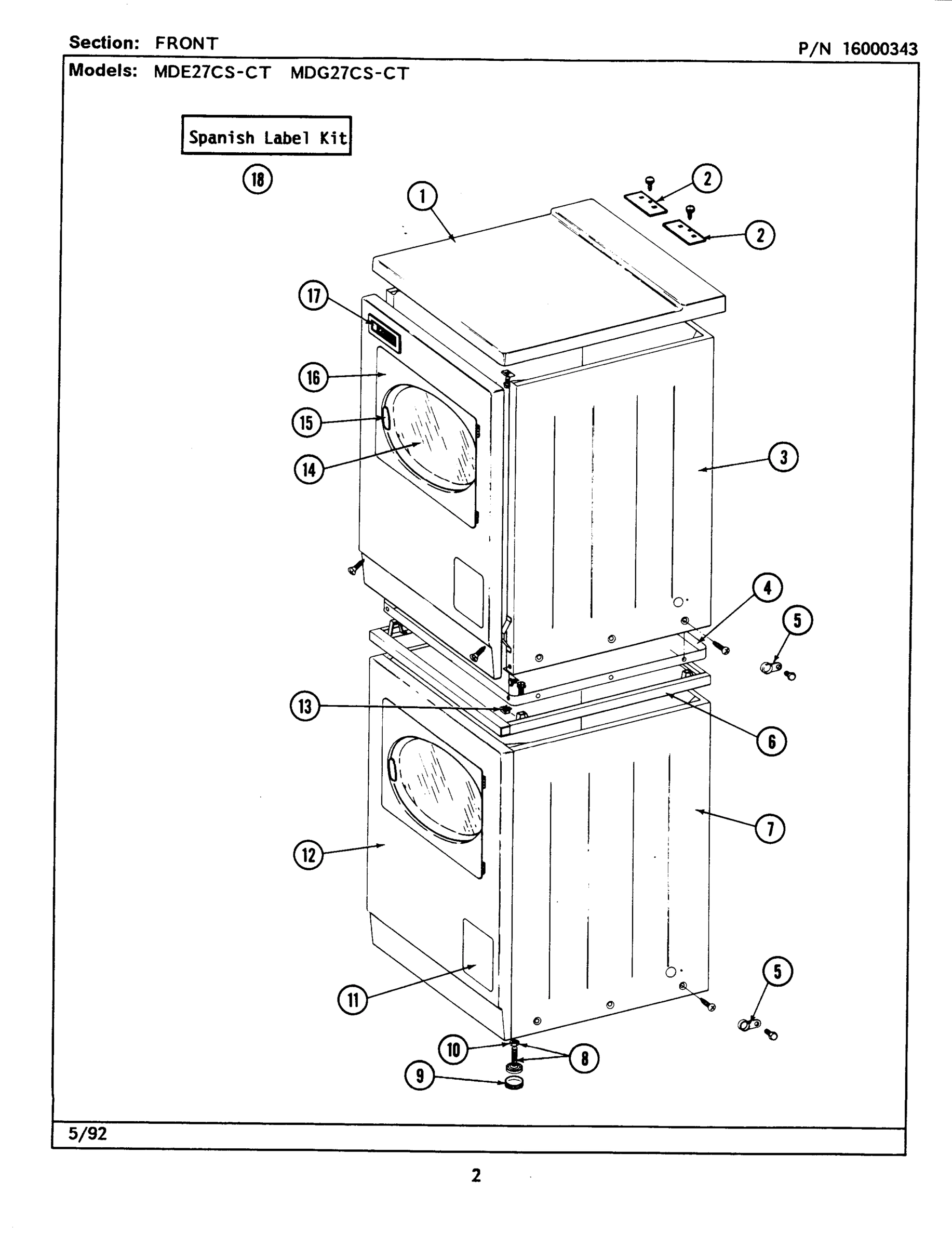

01 - FRONT

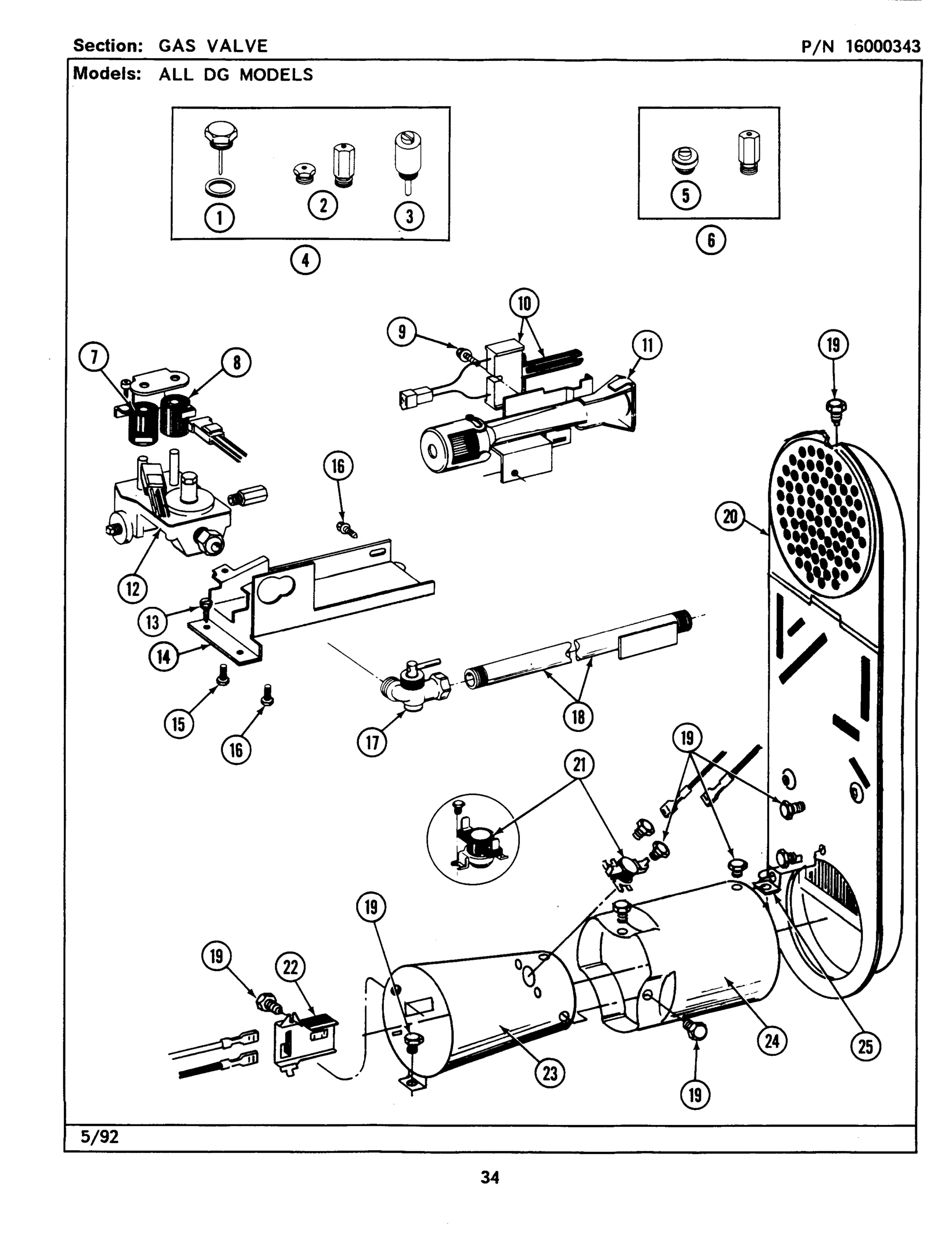

08 - GAS VALVE

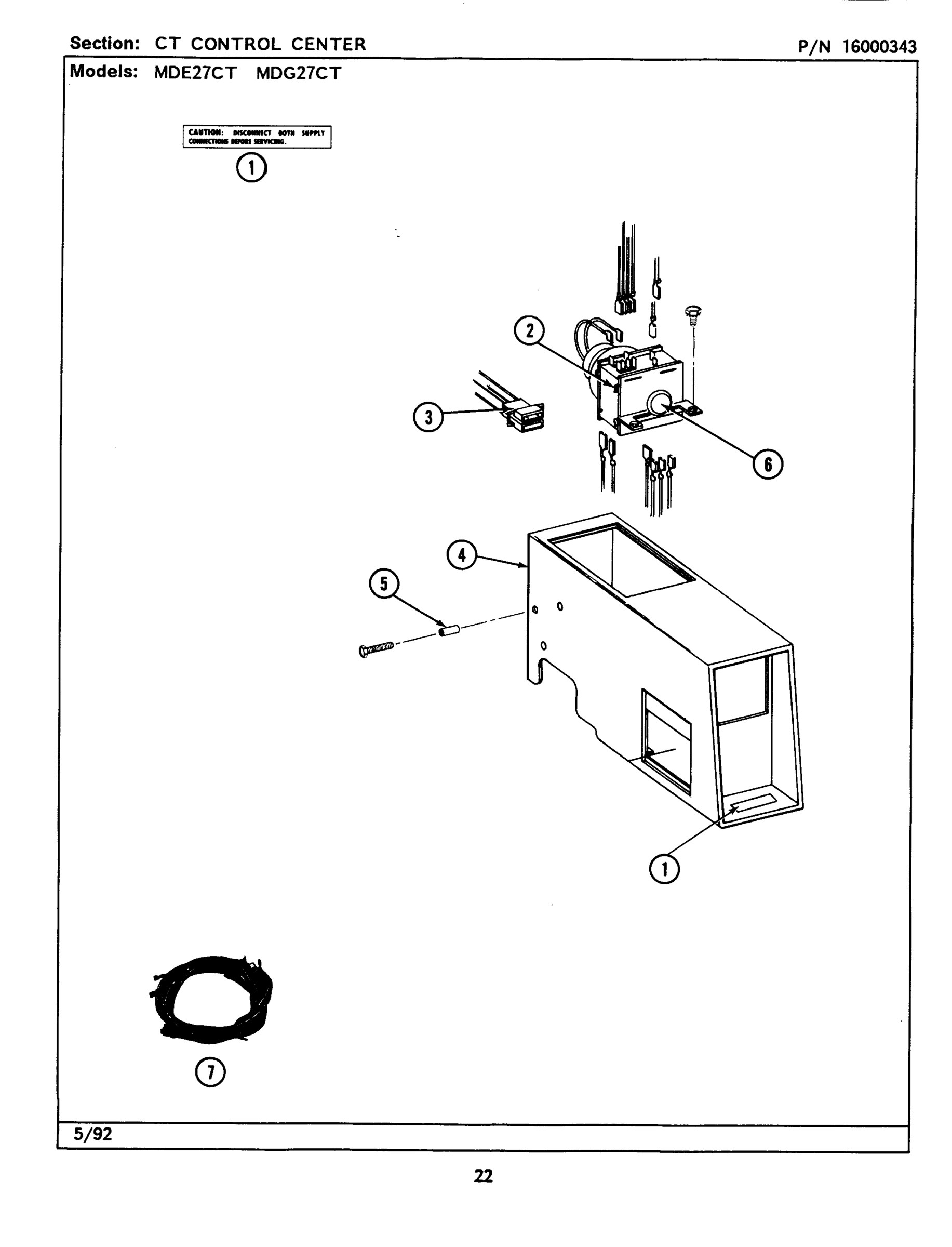

04 - CONTROL CENTER

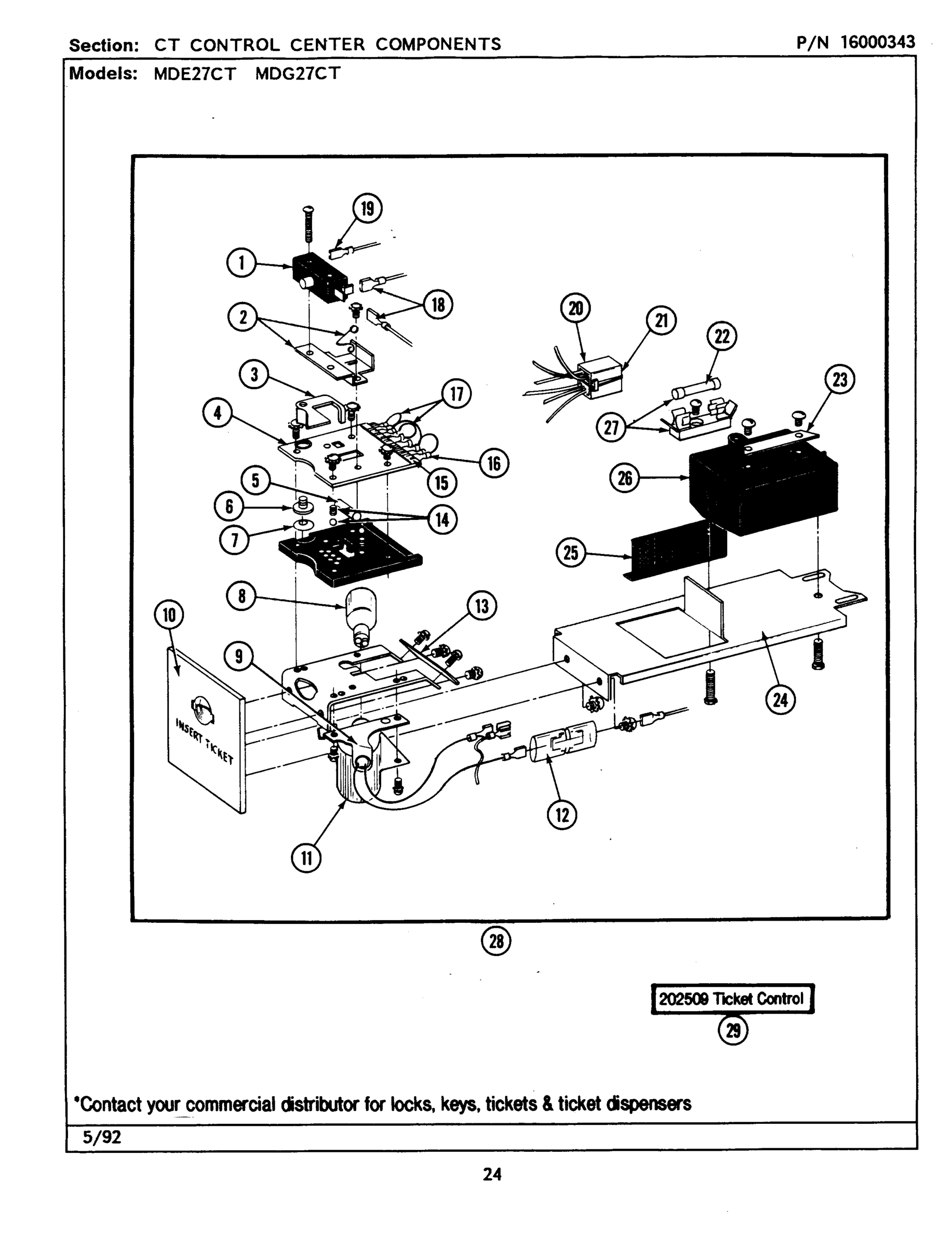

05 - CONTROL CENTER COMPONENTS

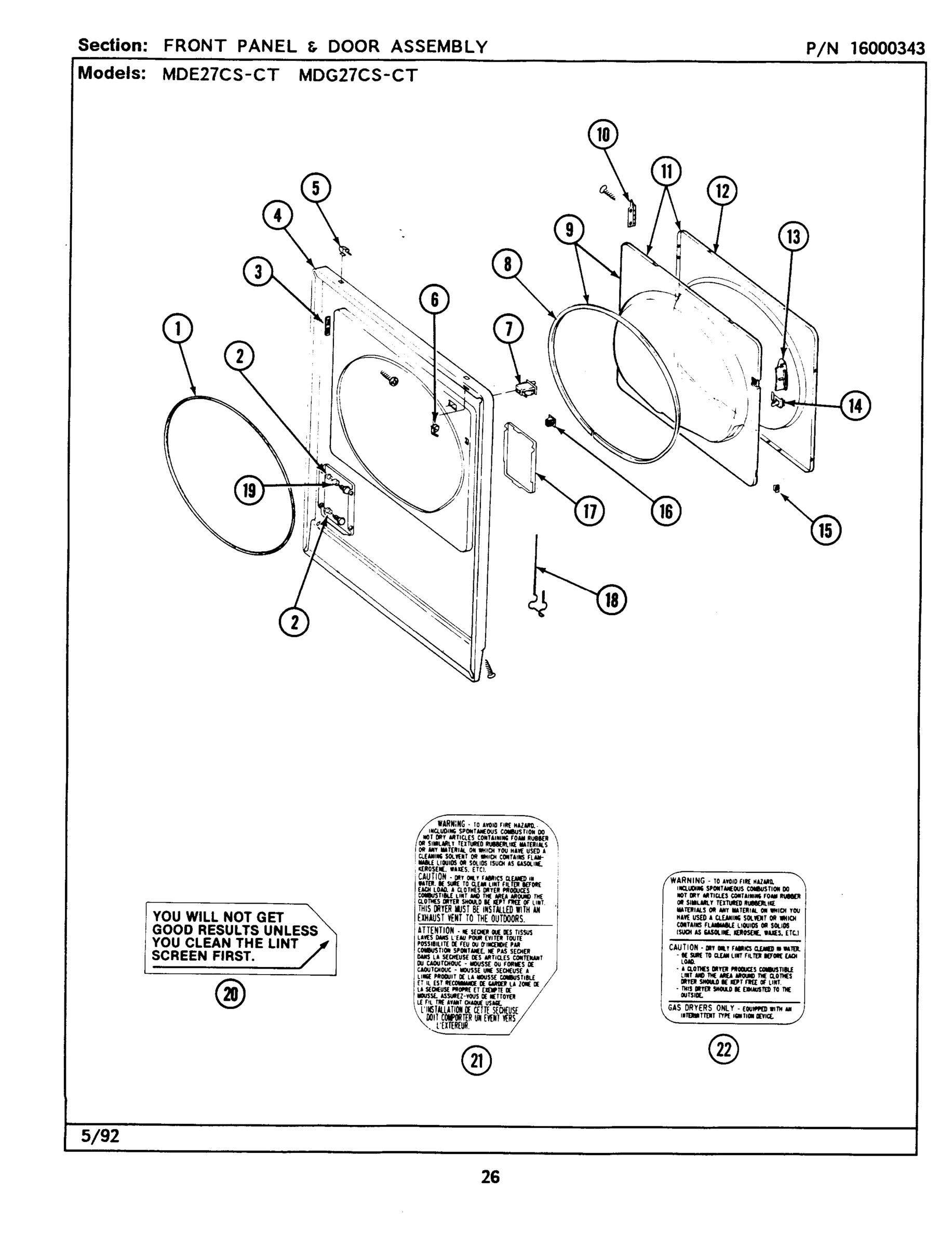

06 - FRONT PANEL & DOOR ASSEMBLY

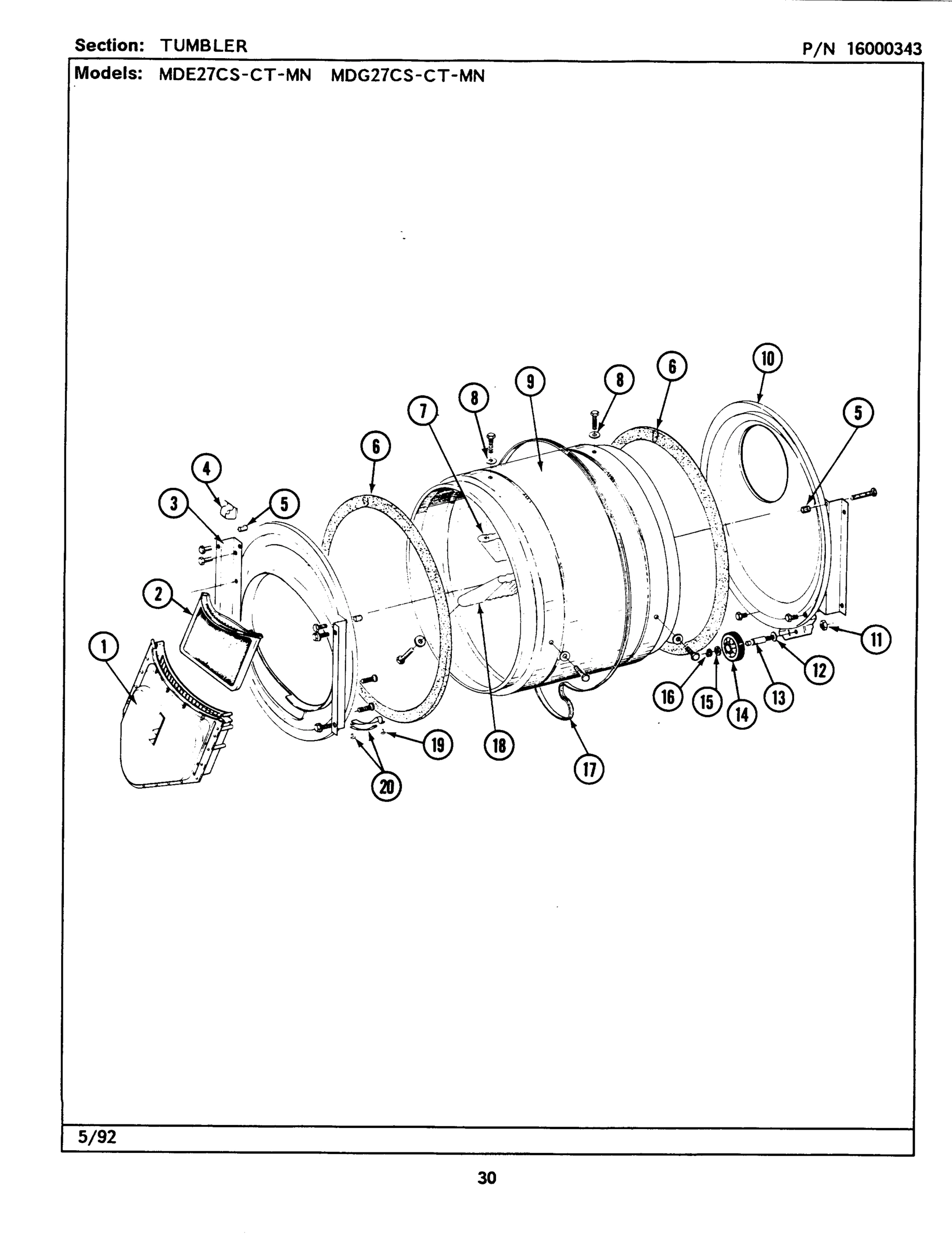

07 - TUMBLER

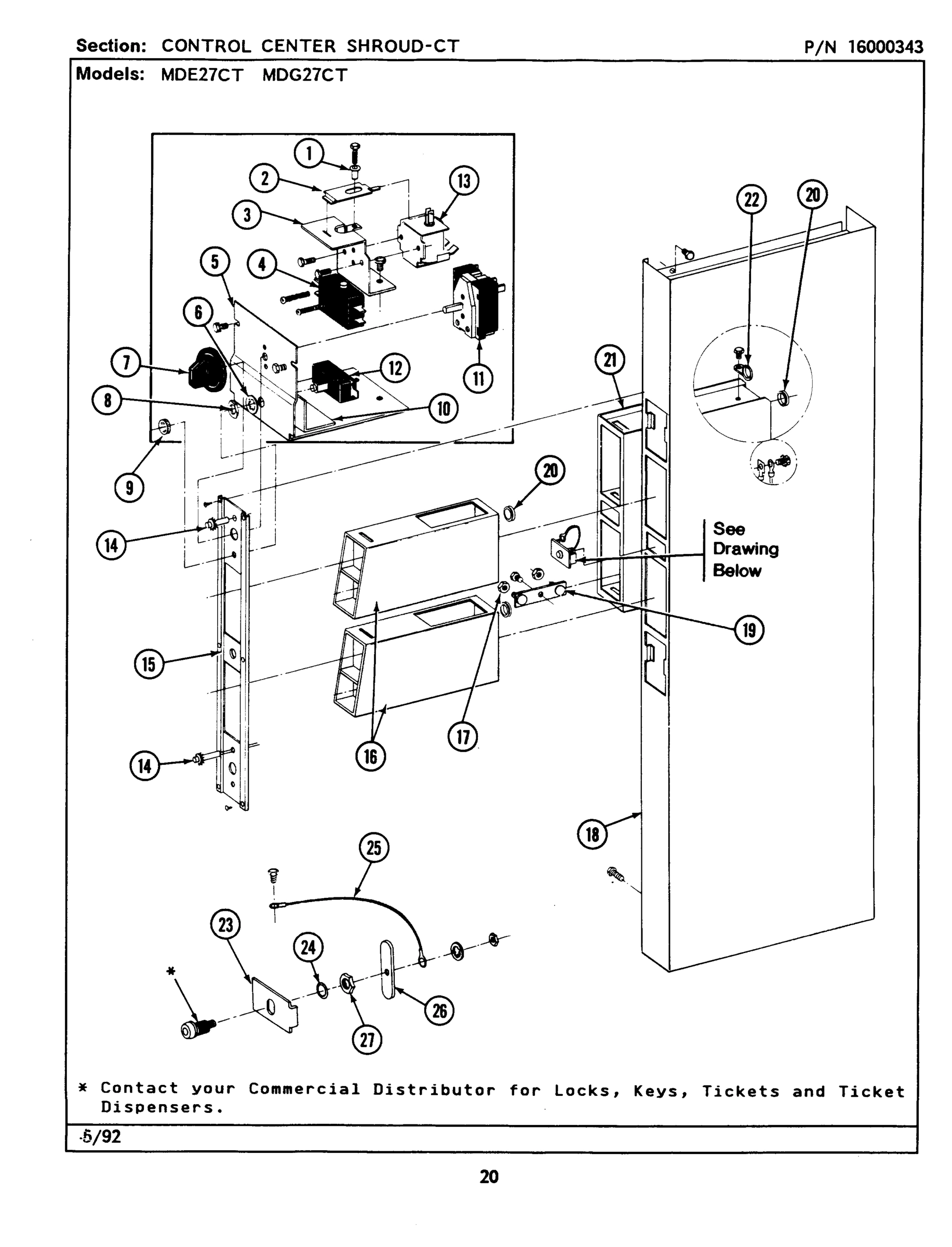

03 - CONTROL CENTER SHROUD

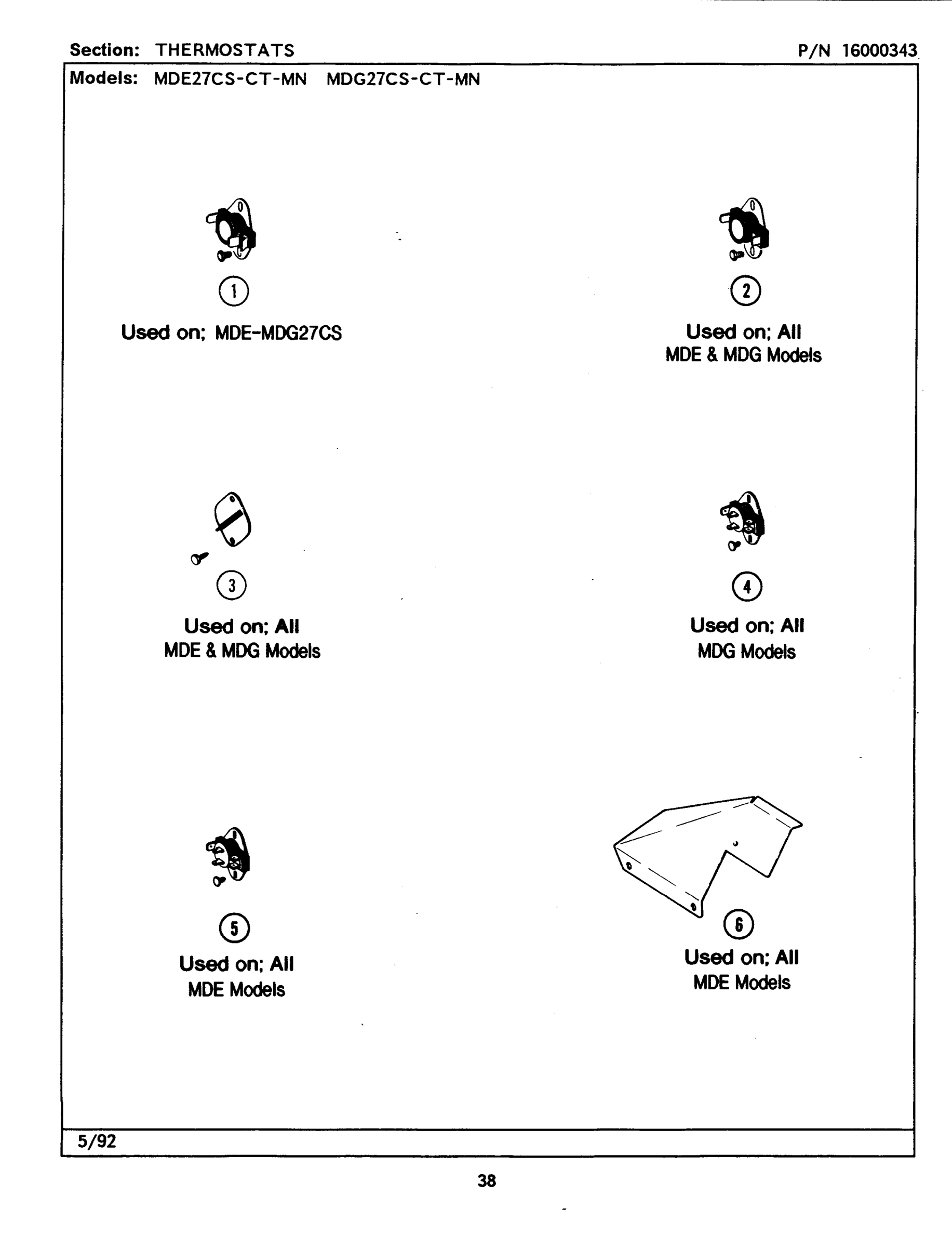

10 - THERMOSTATS
Common parts from model Whirlpool MDG27CTABL GAS DRYER
001
TOP COVER ASSY. (WHITE) WPL 307104 Contact Us For Availability
001
INSTRUCTION LABEL WPL Y313439 Contact Us For Availability
001
SWITCH WPL 204882 Contact Us For Availability
001
SEAL WPL 314937 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
PART NOT USED WPL Y303225 Contact Us For Availability
002
No.303799 & 307141 (45 MINS.) WPL 305867 Contact Us For Availability
002
No.303799 & 307141 (37 1/2 MINS) WPL 305868 Contact Us For Availability
002
TIMER W/KNOB WPL Y303801 Contact Us For Availability
002
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
002
LINT SCREEN WPL 307108 Contact Us For Availability
003
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
003
PLUG, BLOCKING REGULATOR (LPG) WPL 306184 Contact Us For Availability
003
SWITCH LEVER WPL 214218 Contact Us For Availability
003
FASTENER WPL Y313907 Contact Us For Availability
003
SCREW WPL 212949 Contact Us For Availability
003
TUMBLER FRONT W/SEAL WPL 307109 Contact Us For Availability
004
BLOWER HOUSING WPL Y312893 Contact Us For Availability
004
BASE ASSY. WPL Y303361 Contact Us For Availability
004
FASTENER CLIP WPL Y310376 Contact Us For Availability
004
SCREW WPL 314663 Contact Us For Availability
004
(ALMOND) WPL 307998L Contact Us For Availability
004
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
004
CIRCUIT BOARD WPL 212452 Contact Us For Availability
004
SCREW WPL 212950 Contact Us For Availability
004
SWITCH WPL Y303787 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMPERATURE WPL 306966 Contact Us For Availability
005
GROUND WIRE WPL 901220 Contact Us For Availability
005
SCREW WPL Y310842 Contact Us For Availability
005
ROLLER, CAM WPL 214275 Contact Us For Availability
005
SWITCH & RELAY BRACKET WPL Y314261 Contact Us For Availability
005
PART NOT USED WPL 306967 Contact Us For Availability
006
PART NOT USED WPL Y312184 Contact Us For Availability
006
PART NOT USED WPL Y313561 Contact Us For Availability
006
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
006
KNOB, TIMER WPL 213089 Contact Us For Availability
006
GROOV-PIN WPL Y312300 Contact Us For Availability
006
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
006
PART NOT USED WPL 315122 Contact Us For Availability
007
PART NOT USED WPL 400008 Contact Us For Availability
007
CABINET, LOWER (WHITE) WPL 307125 Contact Us For Availability
007
No.3-3358-8 & 3-3358-9 WPL 306207 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358-2, 3-3358 WPL Y303877 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- WPL Y303879 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
KNOB WPL 205663 Contact Us For Availability
008
PART NOT USED WPL Y312904 Contact Us For Availability
008
LAMP WPL 202479 Contact Us For Availability
008
SEAL, DOOR WPL 314935 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
HEX NUT WPL Y312706 Contact Us For Availability
009
SET SCREW, MOTOR PULLEY WPL Y053241 Contact Us For Availability
009
INNER DOOR W/GASKET WPL 308069 Contact Us For Availability
009
SCREW, IGNITER WPL 304971 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER LESS BAFFLES WPL 314802 Contact Us For Availability
009
KNURLED NUT WPL Y312702 Contact Us For Availability
010
MOTOR PULLEY W/SET SCREW WPL Y305185 Contact Us For Availability
010
HINGE WPL 307099 Contact Us For Availability
010
SCREW WPL Y314062 Contact Us For Availability
010
TUMBLER BACK W/SEAL WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
011
IDLER SPRING ASSY. W/PLUG WPL Y303945 Contact Us For Availability
011
SHIELD, HEAT LAMP WPL 212533 Contact Us For Availability
011
SWITCH, CYCLE SELECTOR WPL 307253 Contact Us For Availability
012
SCREW & FASTENER ASSY. WPL 204439 Contact Us For Availability
012
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
012
PANEL, DOOR-OUTER (WHITE) WPL 314967 Contact Us For Availability
013
FASTENER WPL 310933 Contact Us For Availability
013
HANDLE (WHITE) WPL 314939 Contact Us For Availability
013
(ALMOND) WPL 314974 Contact Us For Availability
013
SCREW WPL 212951 Contact Us For Availability
013
SOLENOID WPL 305393 Contact Us For Availability
014
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
014
CONTACT BALL KIT WPL 203140 Contact Us For Availability
014
INDICATOR LIGHT WPL 303963 Contact Us For Availability
015
CLIP WPL Y313910 Contact Us For Availability
015
VAULT PANEL WPL 315037 Contact Us For Availability
016
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
017
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
018
LATCH, ACCESS DOOR WPL Y314025 Contact Us For Availability
019
RUBBER SLEEVE WPL 312369 Contact Us For Availability
020
COVER, BLOWER WPL 314778 Contact Us For Availability
020
DUCT, INLET ASSY. WPL 307119 Contact Us For Availability
020
INSTRUCTION DECAL WPL Y313340 Contact Us For Availability
020
GROMMET WPL Y313671 Contact Us For Availability
021
ACCESS COVER WPL Y312951 Contact Us For Availability
021
SCREW, GROUND WIRE WPL Y310632 Contact Us For Availability
021
PIN RECEPTACLE WPL 213074 Contact Us For Availability
021
INSTRUCTION DECAL WPL 314941 Contact Us For Availability
021
VAULT ASSY. WPL 305534 Contact Us For Availability
022
CABLE STRAP WPL 910768 Contact Us For Availability
023
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
023
COVER, CIRCUIT BOARD TERMINALS WPL 311612 Contact Us For Availability
023
SCREW WPL 311613 Contact Us For Availability
024
SPRING WASHER WPL NLA Contact Us For Availability
024
GROUND CLAMP WPL 301548 Contact Us For Availability
024
SCREW WPL 313122 Contact Us For Availability
024
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
025
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
025
GROUND WIRE WPL Y303981 Contact Us For Availability
026
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
027
EXHAUST DUCT PIPE WPL Y303442 Contact Us For Availability
028
HARNESS SPRING WPL 410490 Contact Us For Availability
029
WIRE RETAINER WPL Y313262 Contact Us For Availability
029
TICKET CONTROL ASSY. WPL 202509 Contact Us For Availability
030
PART NOT USED WPL 307928 Contact Us For Availability
× ![]()
