Model Maytag MDG27CSAGL GAS DRYER – Common Parts & Diagrams

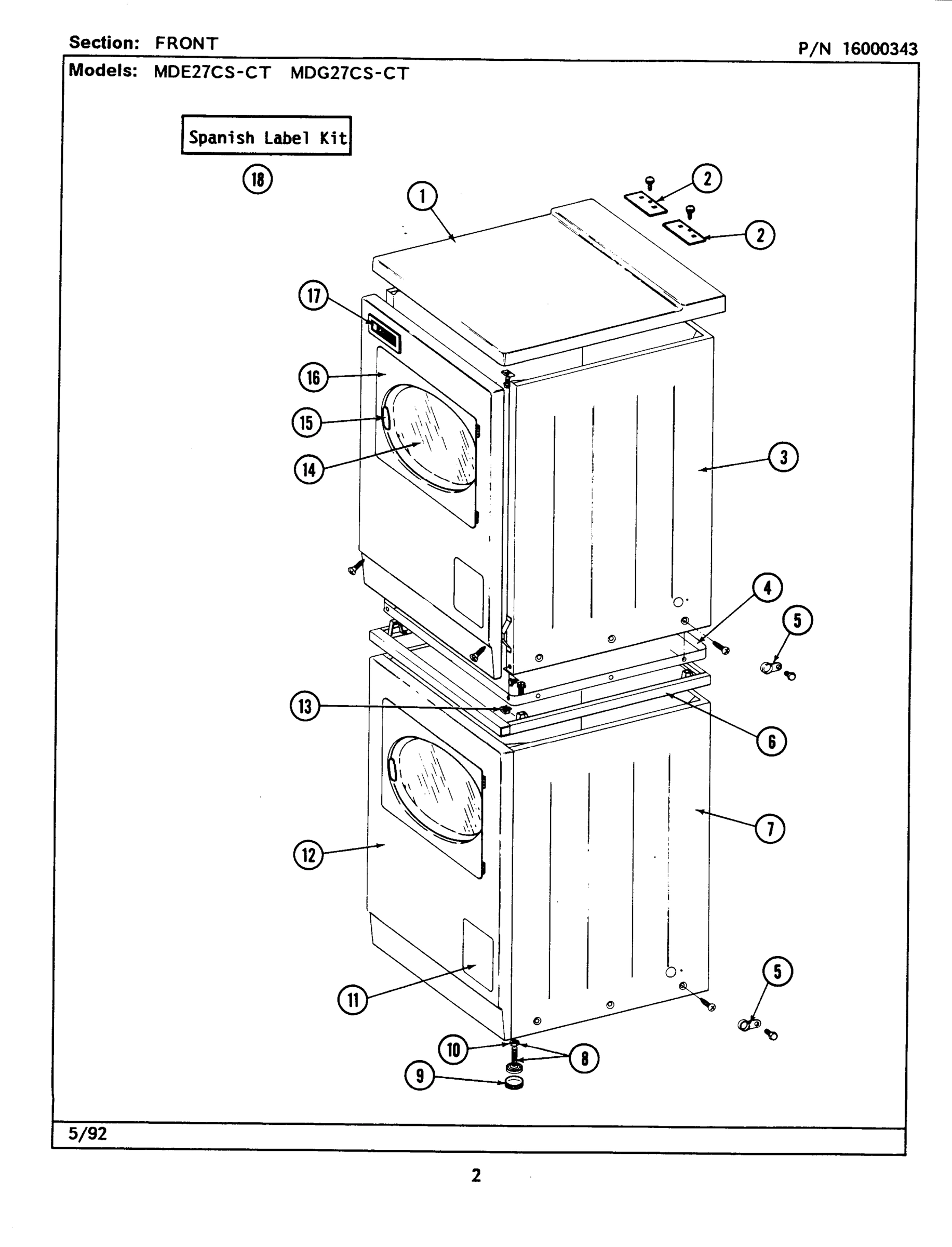

01 - FRONT

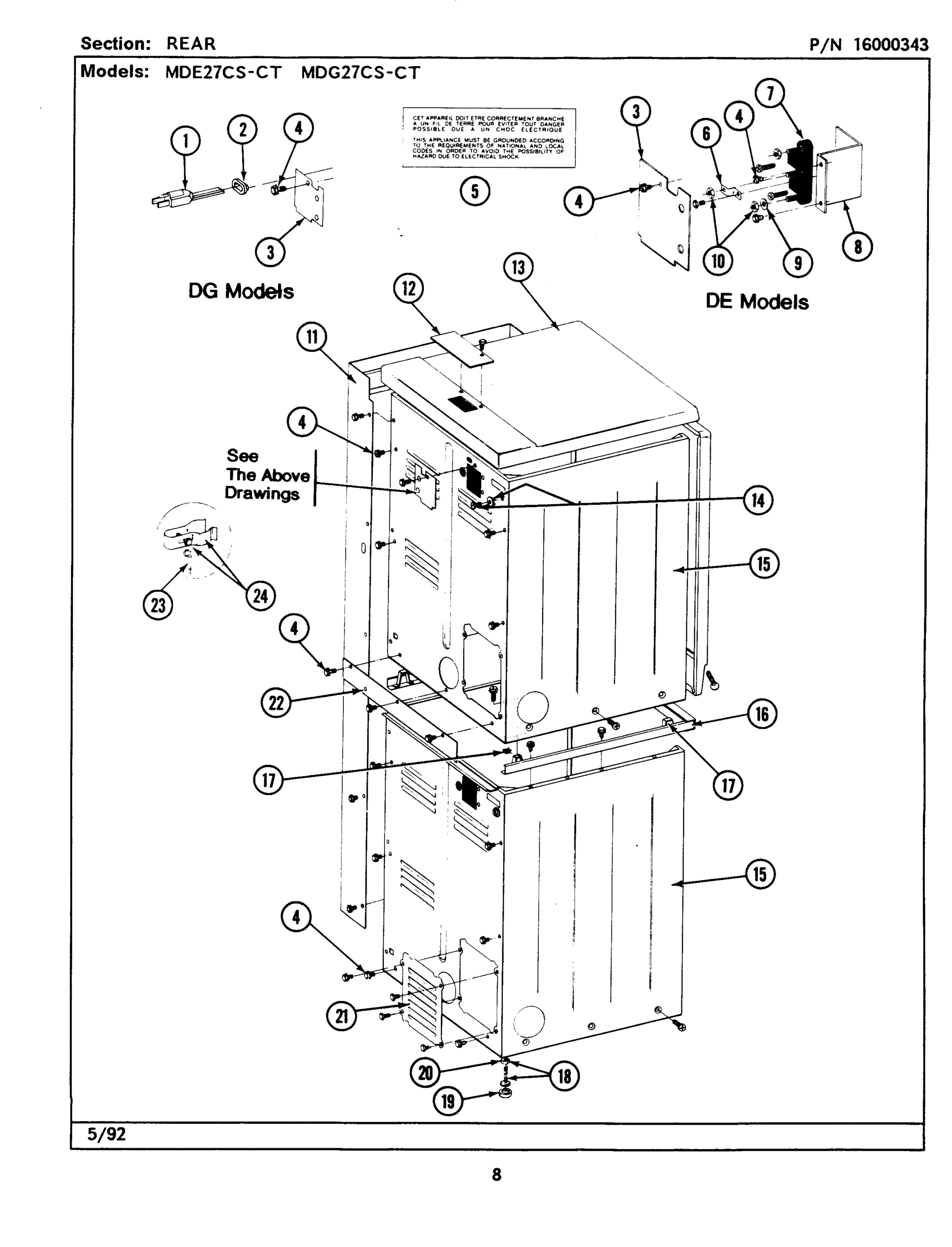

02 - REAR

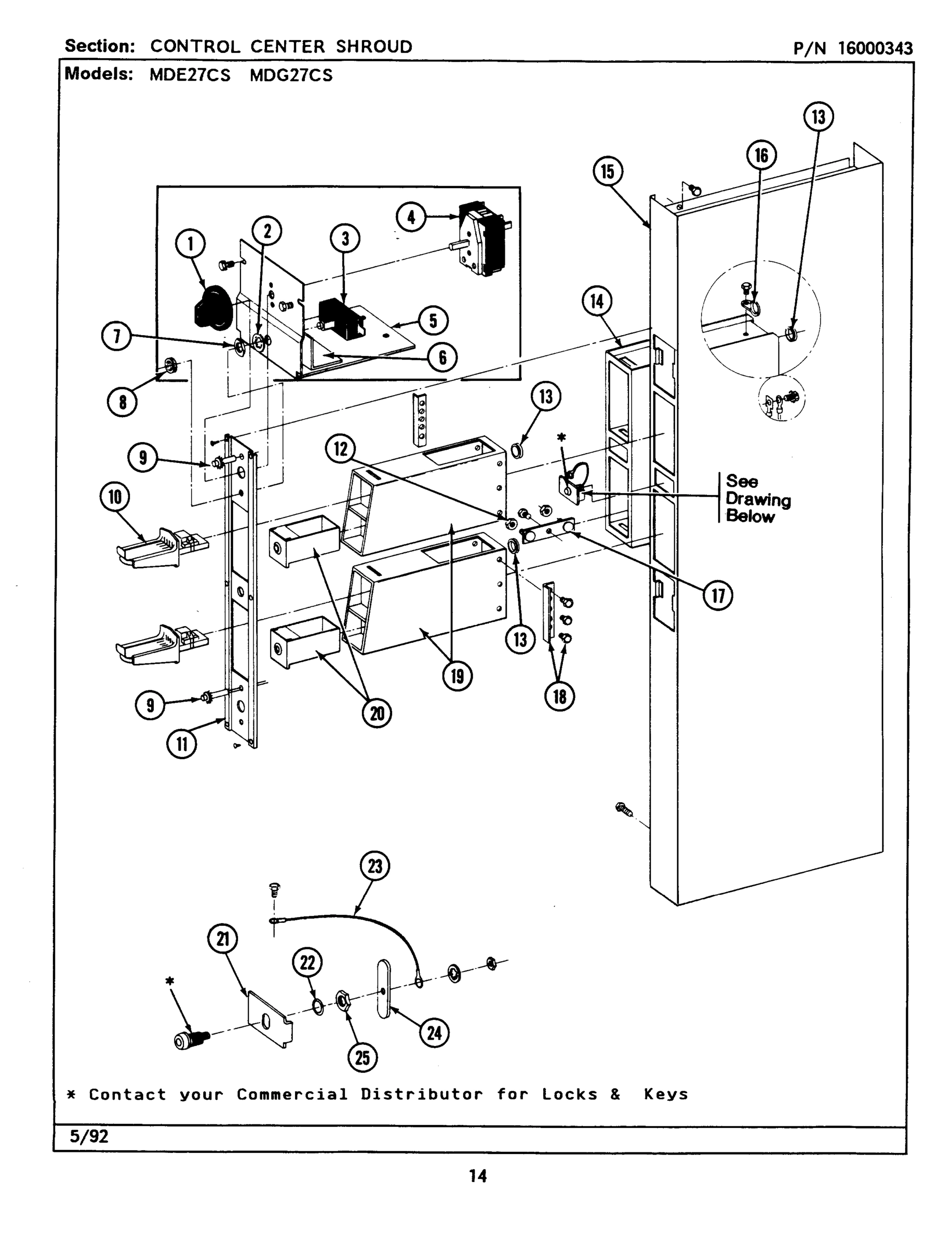

03 - CONTROL CENTER SHROUD

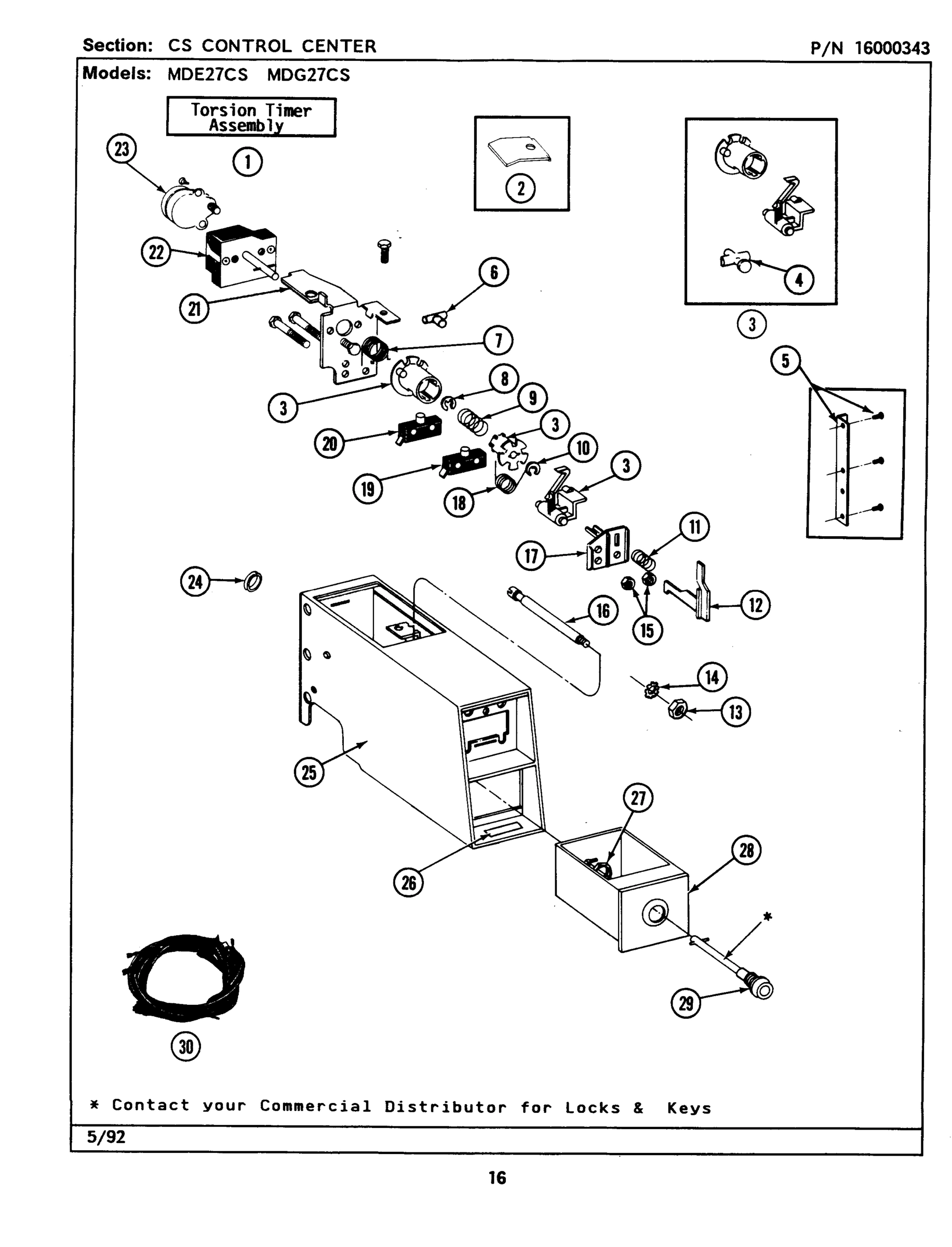

04 - CONTROL CENTER

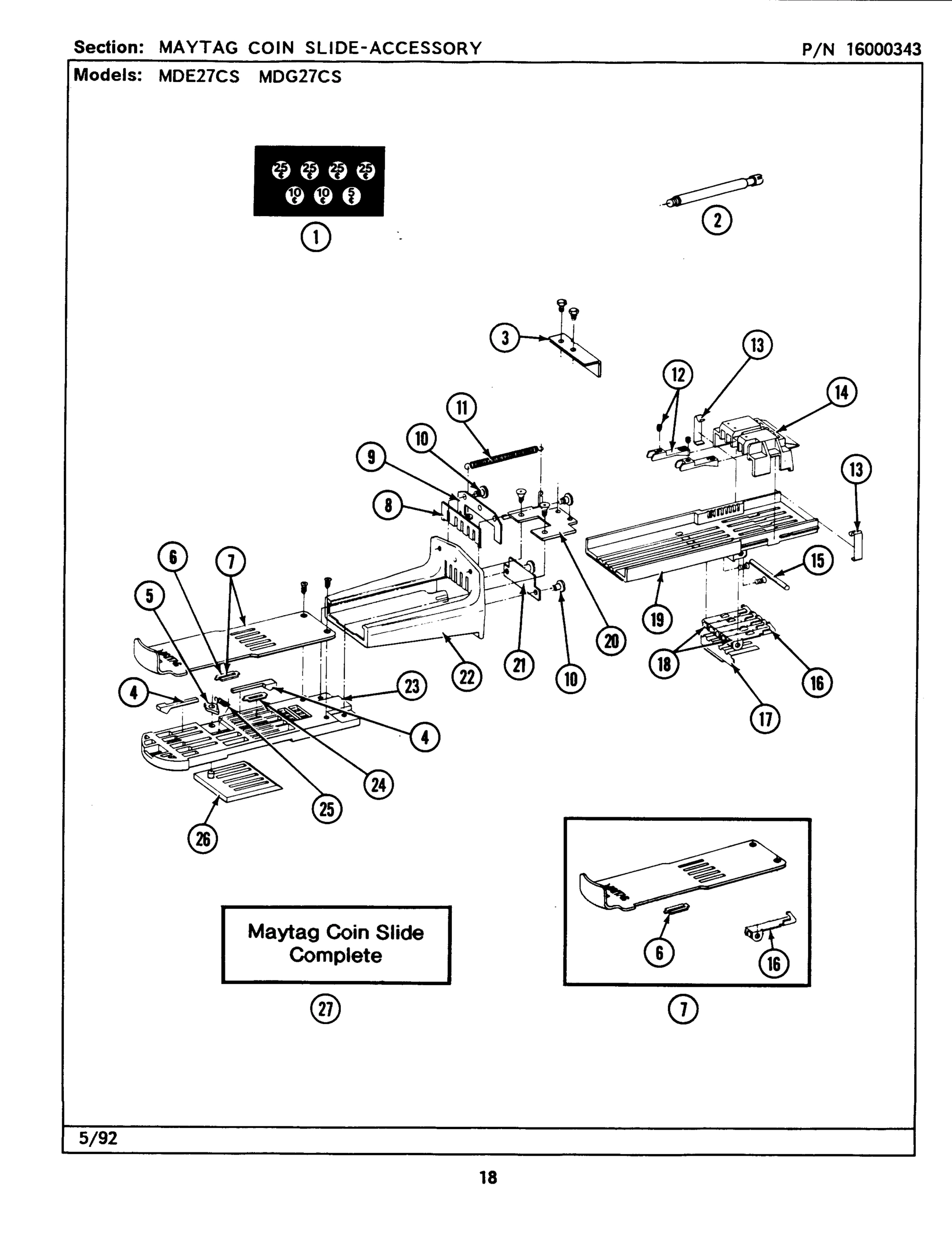

05 - MAYTAG COIN SLIDE-ACCESSORY

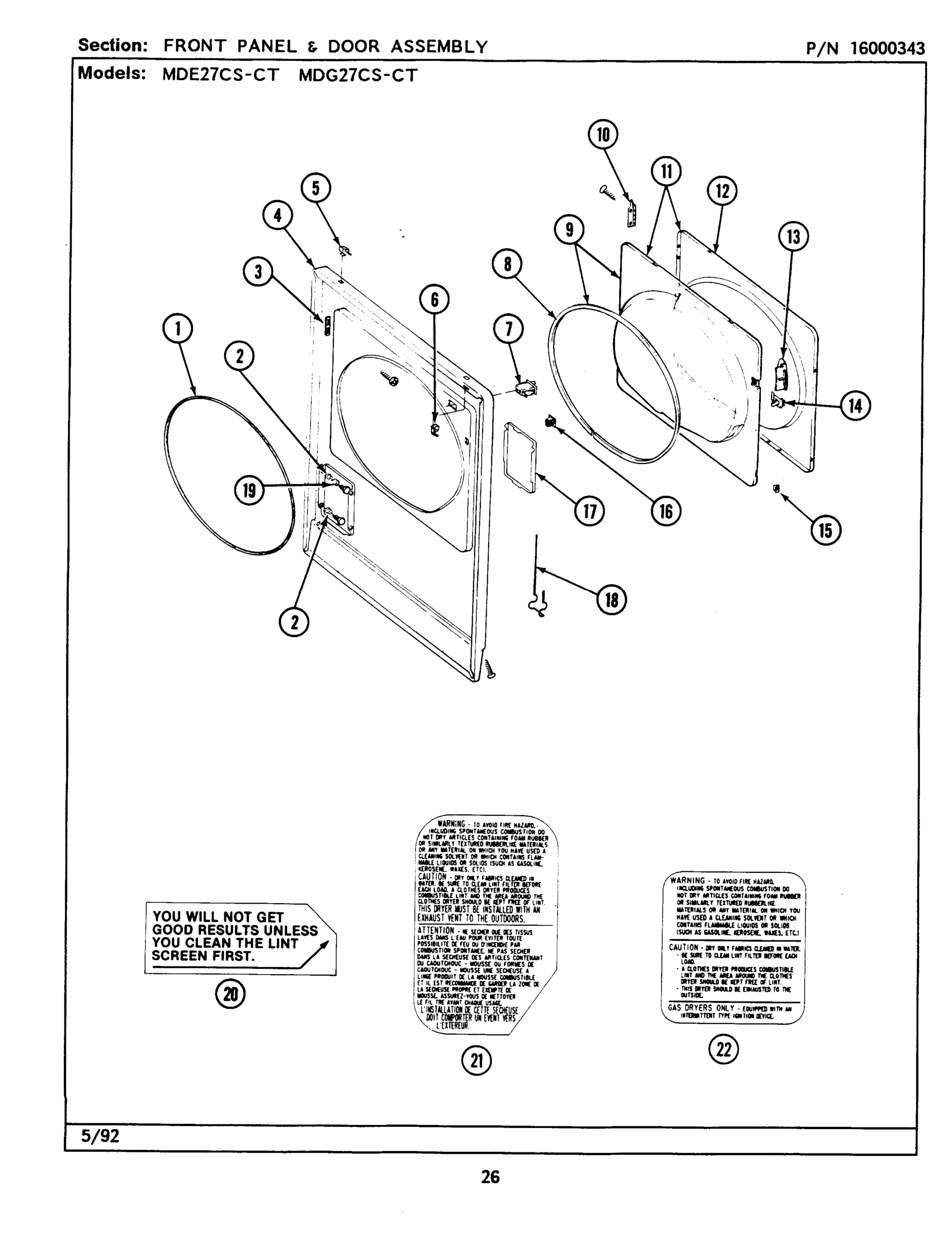

06 - FRONT PANEL & DOOR ASSEMBLY

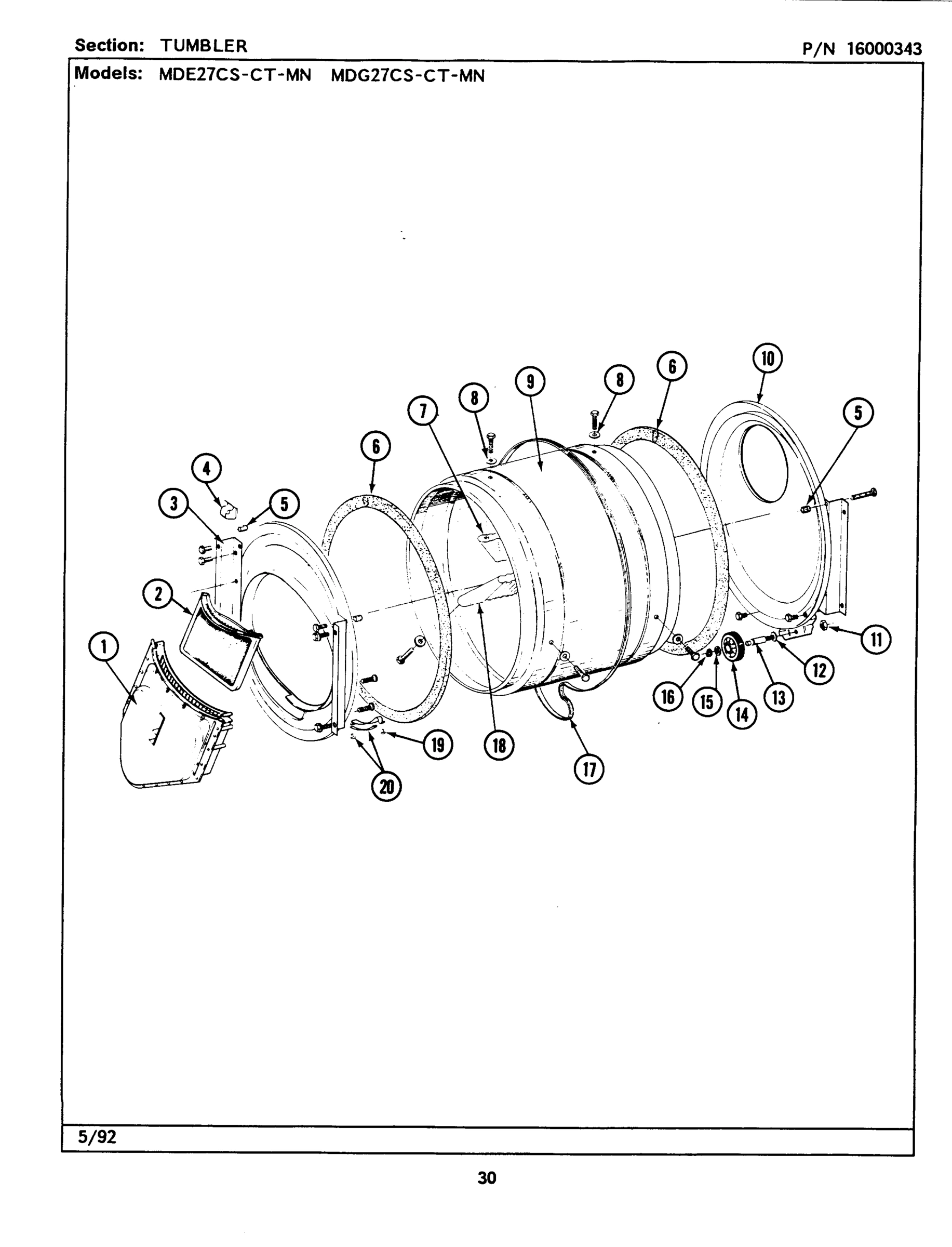

07 - TUMBLER

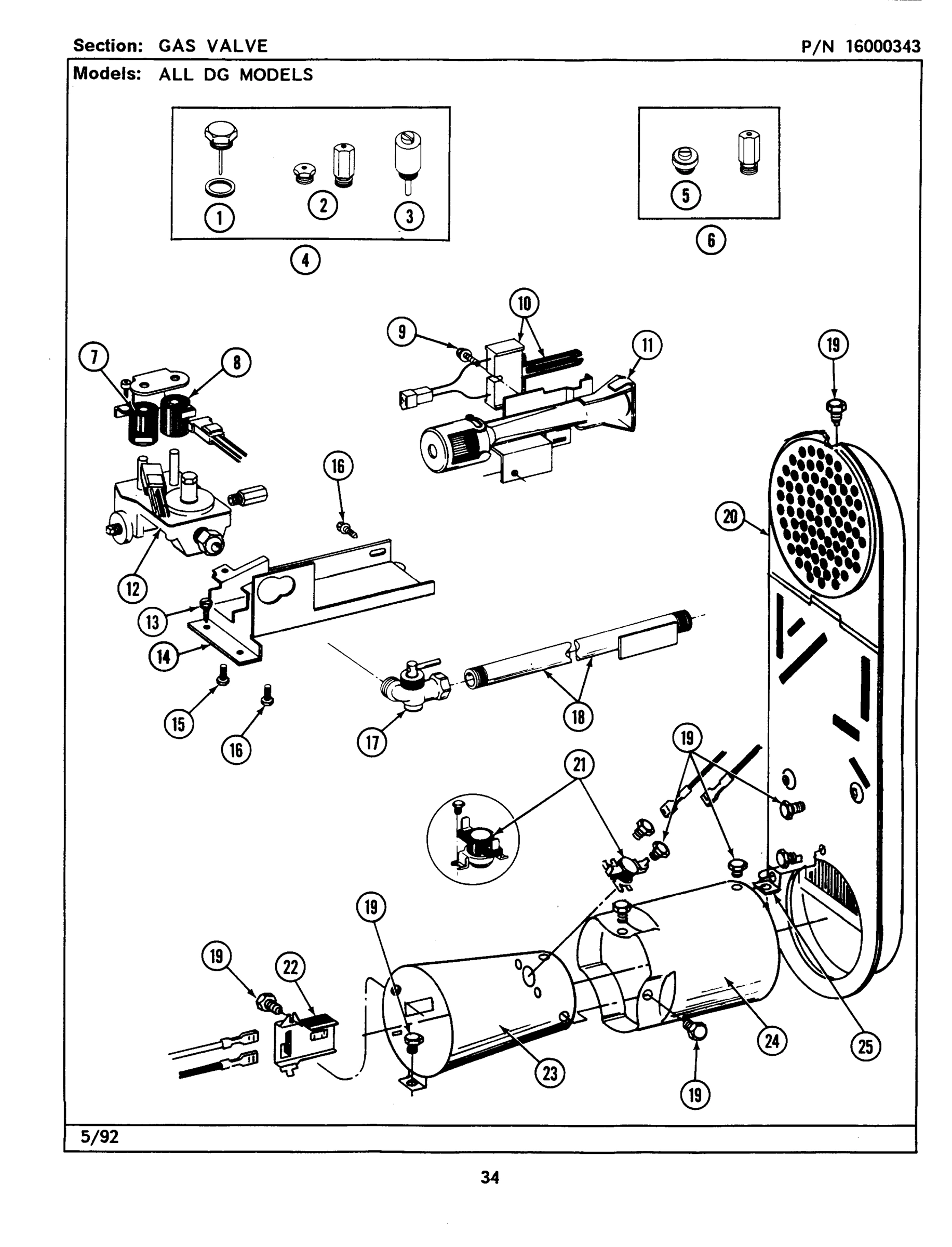

08 - GAS VALVE

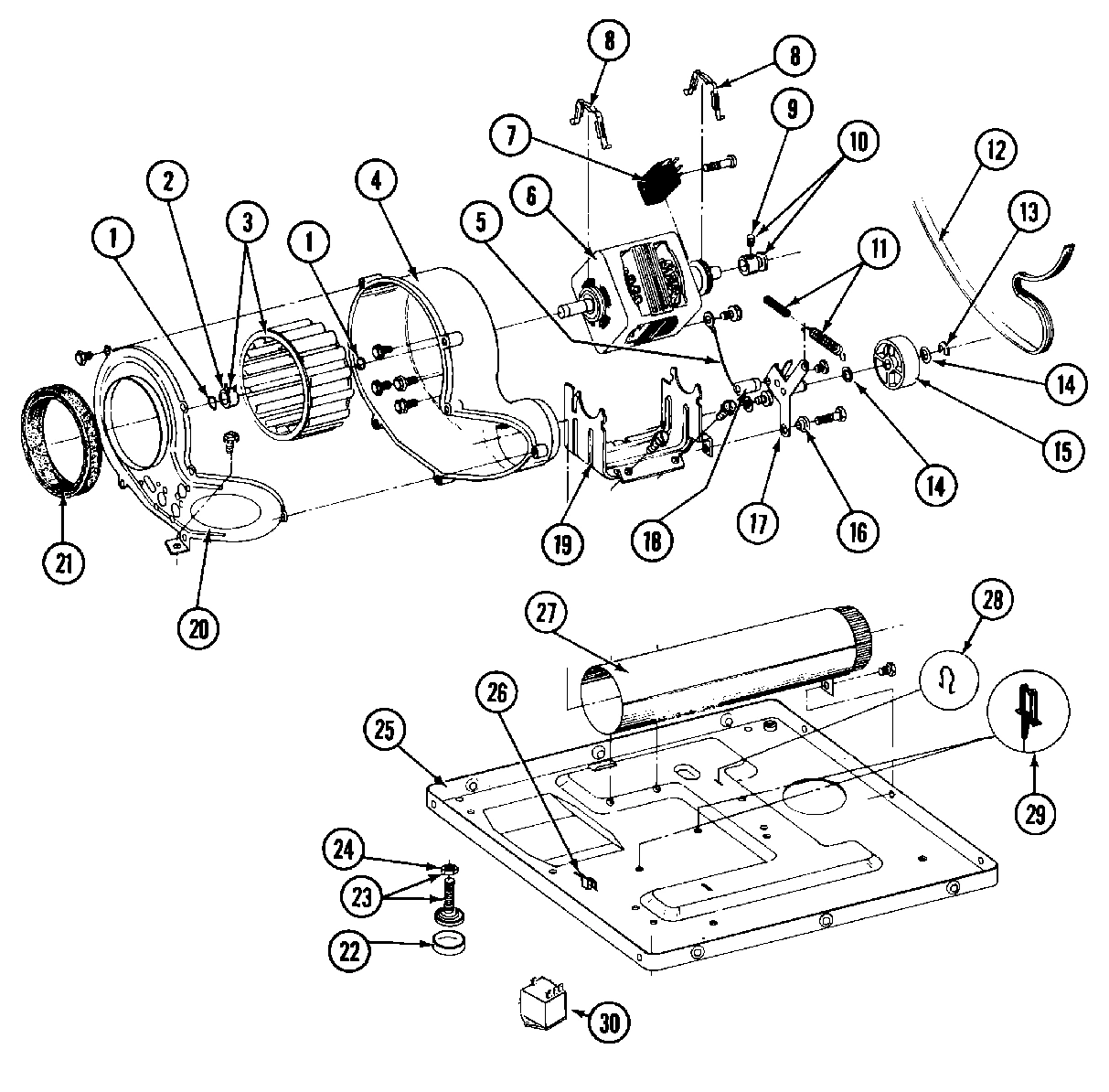

09 - MOTOR, BLOWER & BASE FRAME

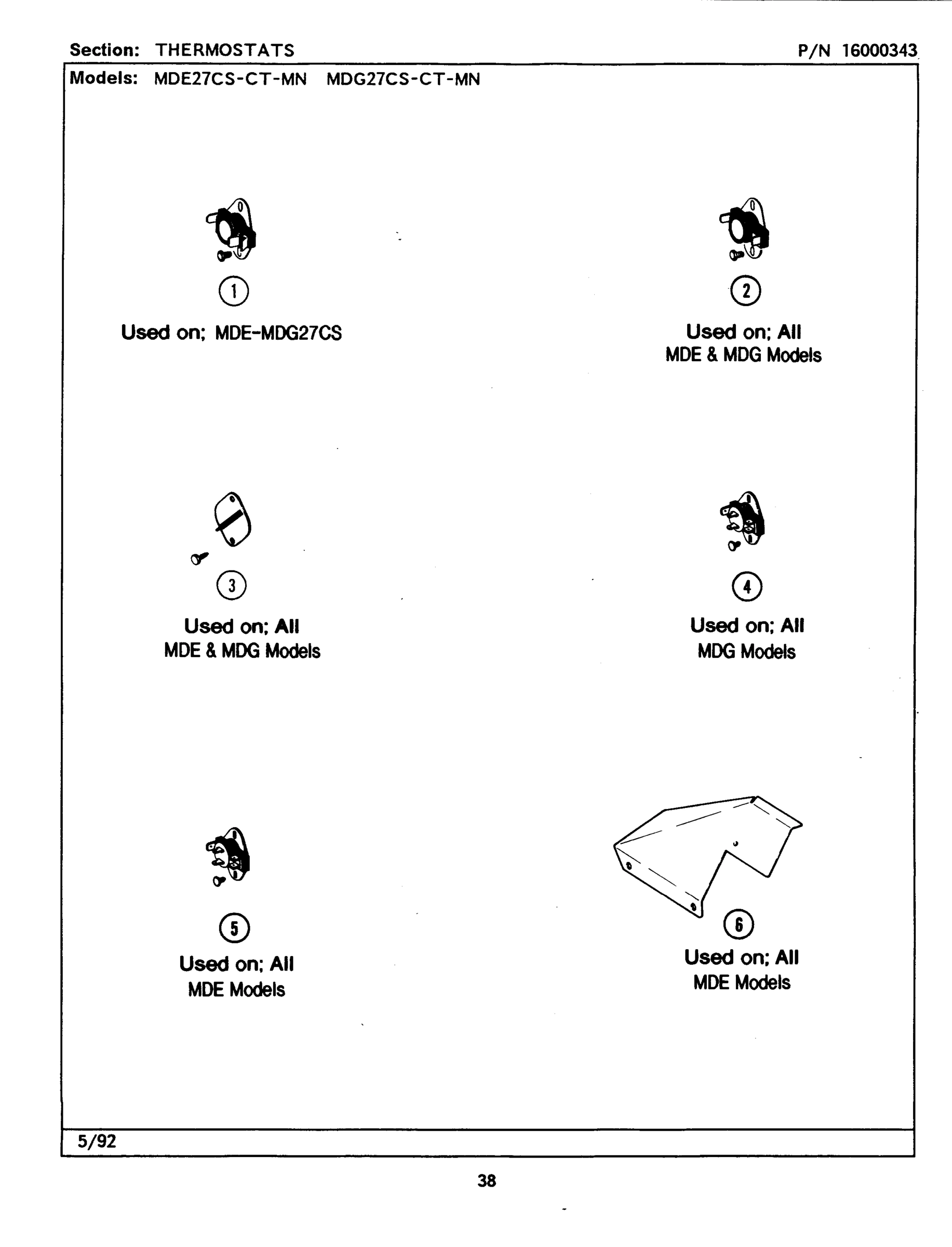

10 - THERMOSTATS
11 - 50HZ GAS VALVE
12 - 50HZ CONVERSION LIST
Common parts from model Maytag MDG27CSAGL GAS DRYER
001
MAY Y303225 MAY Y303225 Contact Us For Availability
001
SEAL MAY 314937 Contact Us For Availability
001
KNOB MAY 205663 Contact Us For Availability
001
TORSION TIMER ASSY. MAY 305797 Contact Us For Availability
001
MAY 214648 MAY 214648 Contact Us For Availability
001
MAY Y307112 MAY Y307112 Contact Us For Availability
001
SCREW MAY Y314110 Contact Us For Availability
001
BLOCKING PLUG MAY 306184 Contact Us For Availability
001
MAY Y304656 MAY Y304656 Contact Us For Availability
002
MAY 215559 MAY 215559 Contact Us For Availability
002
LINT SCREEN MAY 307108 Contact Us For Availability
002
MAY Y308549 MAY Y308549 Contact Us For Availability
003
MAY 306104 MAY 306104 Contact Us For Availability
003
BRACKET MAY 314334 Contact Us For Availability
003
FASTENER MAY Y313907 Contact Us For Availability
003
TUMBLER FRONT W/SEAL MAY 307109 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMPERATURE MAY 306966 Contact Us For Availability
004
SWITCH, CYCLE SELECTOR MAY 307253 Contact Us For Availability
004
ADJUSTMENT RETURN MAY 314547 Contact Us For Availability
004
SCREW & FASTENER ASSY. MAY 212949 Contact Us For Availability
004
(ALM) MAY 307998L Contact Us For Availability
004
BLOWER HOUSING MAY Y312893 Contact Us For Availability
004
MAY 305186 MAY 305186 Contact Us For Availability
005
PART NOT USED MAY 306967 Contact Us For Availability
005
SWITCH & RELAY BRACKET MAY Y314261 Contact Us For Availability
005
SCREW MAY Y014872 Contact Us For Availability
005
MAY 305812 MAY 305812 Contact Us For Availability
005
MAY 214572 MAY 214572 Contact Us For Availability
005
SPRING, FASTENER MAY 212982 Contact Us For Availability
005
MAY 304971 MAY 304971 Contact Us For Availability
005
GROUND WIRE MAY 901220 Contact Us For Availability
005
SCREW MAY 910343 Contact Us For Availability
006
TIME ADJUSTMENT PEG MAY 314335 Contact Us For Availability
006
PART NOT USED MAY 315122 Contact Us For Availability
007
PART NOT USED MAY 400008 Contact Us For Availability
007
WIRE HARNESS-UPPER MAY NLA Contact Us For Availability
007
HEX NUT MAY Y312706 Contact Us For Availability
007
MAY 314803 MAY 314803 Contact Us For Availability
007
MAY 304974 MAY 304974 Contact Us For Availability
007
No.3-3358-8 & 3-3358-9 MAY 306207 Contact Us For Availability
007
PART NOT AVAILABLE No.3-3358-2, 3-3358-4, & MAY Y303877 Contact Us For Availability
007
PART NOT AVAILABLE No.3-3358 & 3-3358-6 MAY Y303879 Contact Us For Availability
008
MAY 314158 MAY 314158 Contact Us For Availability
008
MAY Y310632 MAY Y310632 Contact Us For Availability
008
MAY Y312702 MAY Y312702 Contact Us For Availability
008
MAY Y312270 MAY Y312270 Contact Us For Availability
008
WIRE HARNESS (LOWER) MAY Y307463 Contact Us For Availability
008
GATE MAY 214578 Contact Us For Availability
008
SEAL, DOOR MAY 314935 Contact Us For Availability
009
INNER DOOR W/GASKET MAY 308069 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
TUMBLER LESS BAFFLES MAY 314802 Contact Us For Availability
009
MAY 307927 MAY 307927 Contact Us For Availability
009
GAS CONTROL BRACKET MAY 314566 Contact Us For Availability
009
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
010
MAY 307099 MAY 307099 Contact Us For Availability
010
TUMBLER BACK W/SEAL MAY Y307114 Contact Us For Availability
010
MAY Y308544 MAY Y308544 Contact Us For Availability
010
MAY Y303383 MAY Y303383 Contact Us For Availability
010
MAY 307928 MAY 307928 Contact Us For Availability
011
MAY 315037 MAY 315037 Contact Us For Availability
011
MAY Y313424 MAY Y313424 Contact Us For Availability
011
MAY 214581 MAY 214581 Contact Us For Availability
011
NUT MAY 312538 Contact Us For Availability
011
CONVERS.KIT (NAT TO LP)----S MAY Y306195 Contact Us For Availability
011
MAY Y308457 MAY Y308457 Contact Us For Availability
011
ANGLE SHUT-OFF, GAS VALVE MAY Y303349 Contact Us For Availability
011
IDLER SPRING ASSY. W/PLUG MAY Y303945 Contact Us For Availability
012
SCREW & FASTENER ASSY. MAY 204439 Contact Us For Availability
012
MAY Y313559 MAY Y313559 Contact Us For Availability
012
PANEL, DOOR-OUTER (WHT) MAY 314967 Contact Us For Availability
013
MAY 214589 MAY 214589 Contact Us For Availability
013
(ALM) MAY 314974 Contact Us For Availability
013
MAY 314082 MAY 314082 Contact Us For Availability
014
VAULT ASSY. MAY 305534 Contact Us For Availability
014
MAY 910387 MAY 910387 Contact Us For Availability
014
MAY 314936 MAY 314936 Contact Us For Availability
014
STRIKE BRACKET MAY 314944 Contact Us For Availability
014
SCREW MAY Y313561 Contact Us For Availability
014
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
014
WASHER, IDLER PULLEY MAY Y312527 Contact Us For Availability
015
HANDLE, DOOR (WHT) MAY 314939 Contact Us For Availability
015
HEX NUT MAY Y052634 Contact Us For Availability
015
CLIP MAY Y313910 Contact Us For Availability
016
CABLE STRAP MAY 910768 Contact Us For Availability
016
MAY Y312894 MAY Y312894 Contact Us For Availability
017
MAY 212276 MAY 212276 Contact Us For Availability
017
SWITCH & SLIDER BRACKET MAY 314339 Contact Us For Availability
017
SPRING MAY 214596 Contact Us For Availability
018
MAY 314332 MAY 314332 Contact Us For Availability
018
LOWER GAGE ARM ASSY. MAY 205343 Contact Us For Availability
018
LATCH, ACCESS DOOR MAY Y314025 Contact Us For Availability
018
MAY Y310759 MAY Y310759 Contact Us For Availability
019
BYPASS SWITCH, MOTOR MAY 305798 Contact Us For Availability
019
BASE INSERT MAY 214594 Contact Us For Availability
019
RUBBER SLEEVE MAY 312369 Contact Us For Availability
020
BYPASS SWITCH, HEATER MAY Y305799 Contact Us For Availability
020
MAY 214597 MAY 214597 Contact Us For Availability
020
INSTRUCTION DECAL MAY Y313340 Contact Us For Availability
020
DUCT, INLET ASSY. MAY 307119 Contact Us For Availability
020
MAY Y308504 MAY Y308504 Contact Us For Availability
020
COVER, BLOWER MAY 314847 Contact Us For Availability
021
ACCESS COVER MAY Y312951 Contact Us For Availability
021
PLATE, LATCH MAY 313428 Contact Us For Availability
021
TIMER MOUNTING BRACKET MAY 314333 Contact Us For Availability
021
SCREW (HEX HD No.6-32 X 1 5/8``) MAY 315277 Contact Us For Availability
021
SCREW (HEX HD MACHINE) MAY 910708 Contact Us For Availability
021
INSTRUCTION DECAL MAY 314941 Contact Us For Availability
022
WIRE HARNESS, TIMER MAY 305800 Contact Us For Availability
022
HOUSING MAY 214584 Contact Us For Availability
023
GROUND WIRE MAY Y303981 Contact Us For Availability
023
TIMER MOTOR (305796 TIMER) MAY 305870 Contact Us For Availability
023
ADJUSTABLE LEG & NUT MAY Y302699 Contact Us For Availability
024
GROUND CLAMP MAY 301548 Contact Us For Availability
024
SCREW MAY 313122 Contact Us For Availability
024
GROMMET MAY Y313671 Contact Us For Availability
024
LATCH MAY Y313427 Contact Us For Availability
024
CONE, EXTENSION (COMB.) MAY Y303841 Contact Us For Availability
025
OUTER CASE (WHT) MAY Y307081 Contact Us For Availability
025
SPRING MAY 214582 Contact Us For Availability
025
MAY Y312890 MAY Y312890 Contact Us For Availability
025
BASE ASSY. (UPPER & LOWER) MAY Y303361 Contact Us For Availability
026
MAY Y313439 MAY Y313439 Contact Us For Availability
026
FASTENER CLIP (BASE) MAY Y310376 Contact Us For Availability
027
EXHAUST DUCT PIPE MAY Y303442 Contact Us For Availability
028
MAY 205423 MAY 205423 Contact Us For Availability
028
MAY 205423L MAY 205423L Contact Us For Availability
028
HARNESS SPRING MAY 410490 Contact Us For Availability
029
WIRE RETAINER MAY Y313262 Contact Us For Availability
× ![]()
