Model Maytag MDG26CTAAG GAS DRYER – Common Parts & Diagrams

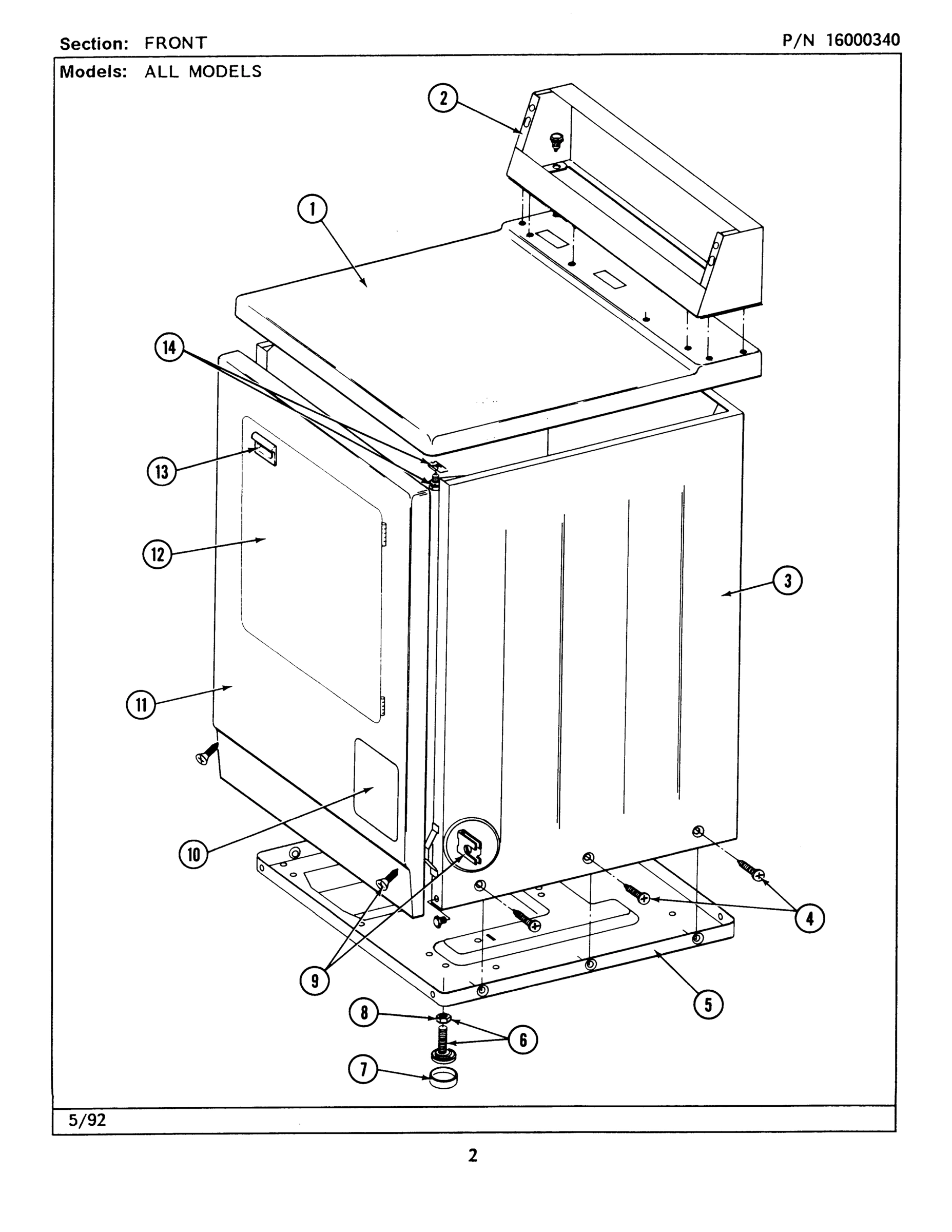

01 - FRONT

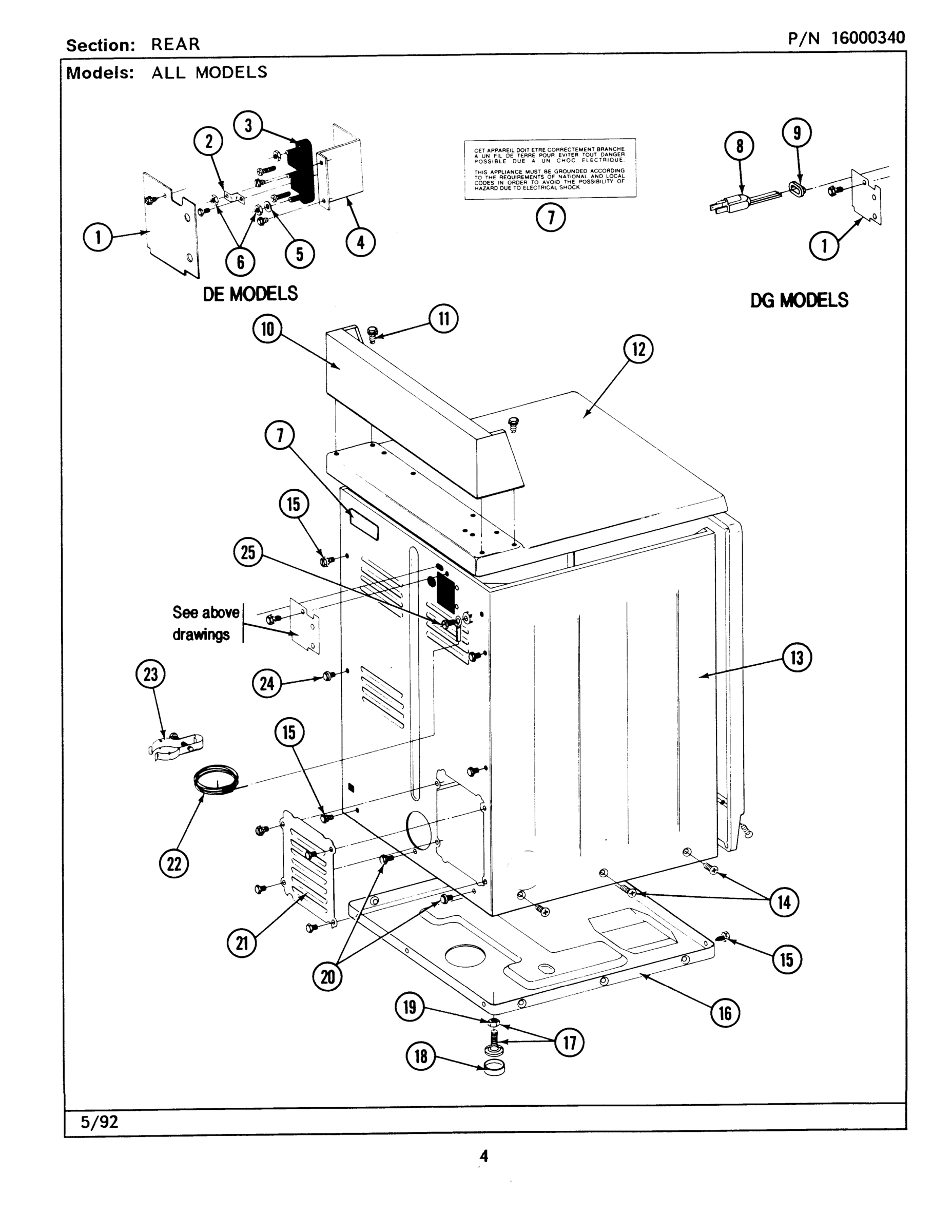

02 - REAR
03 - CT CONTROL PANEL
04 - CT CONTROL CENTER

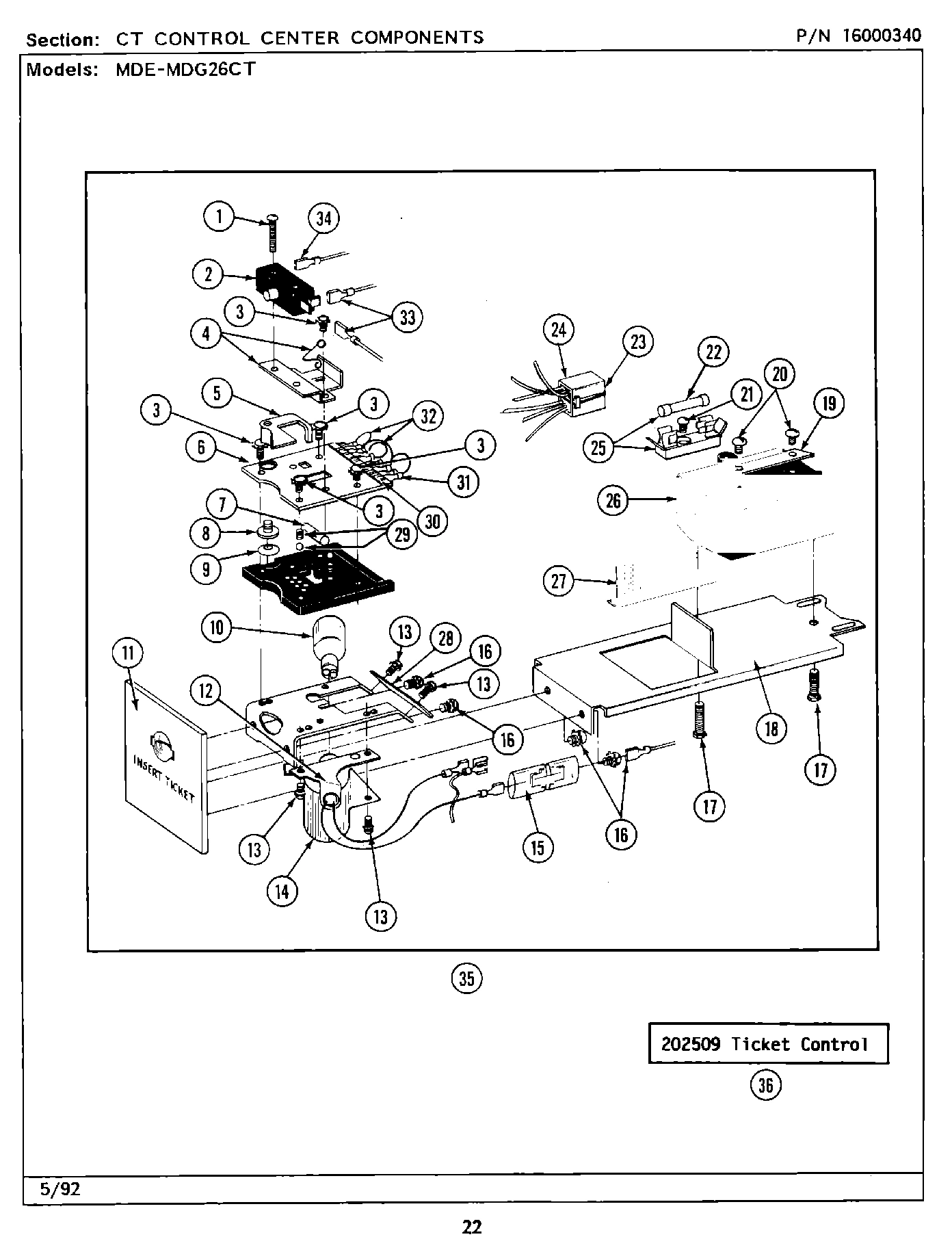

05 - CT CONTROL CENTER COMPONENTS

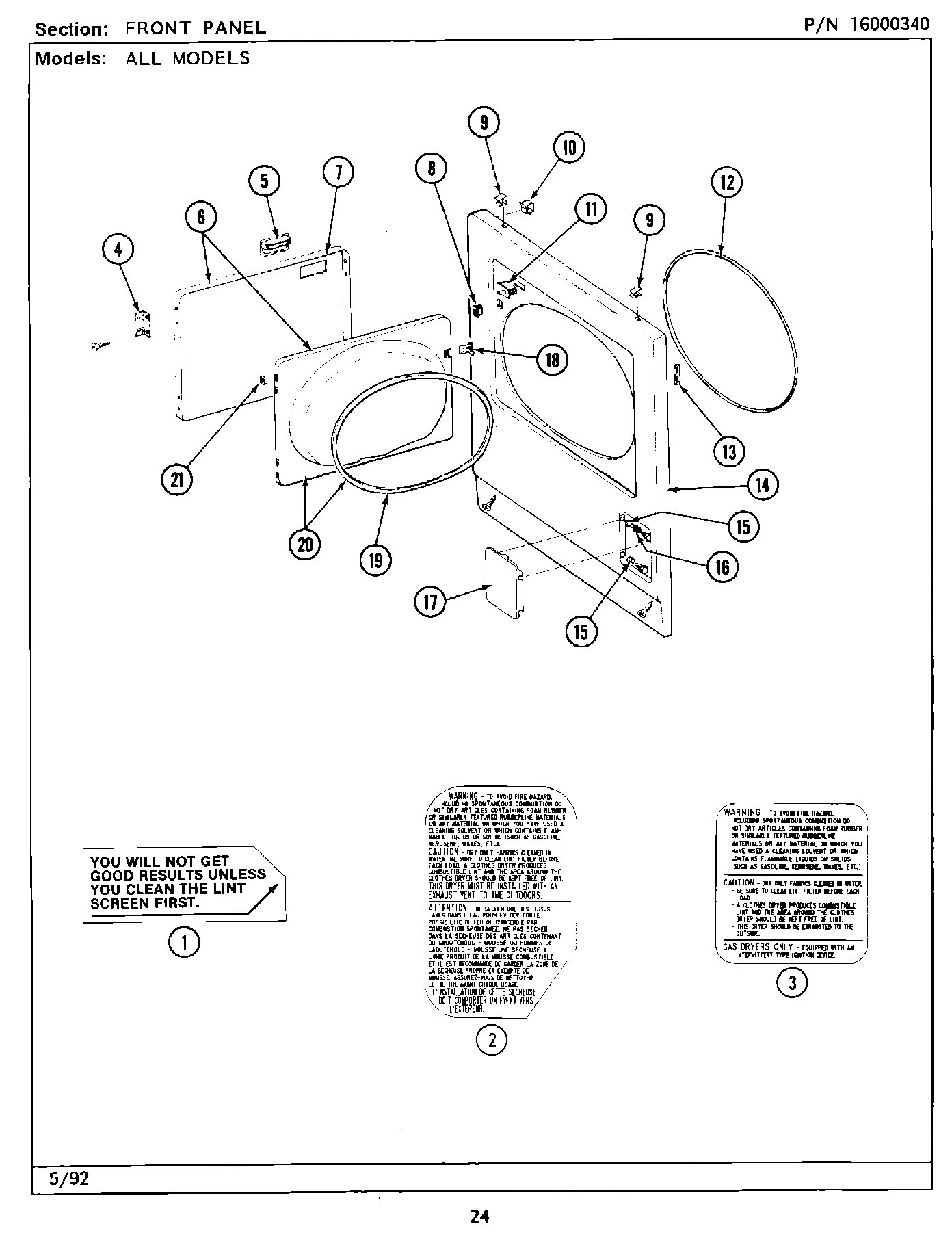

06 - FRONT PANEL

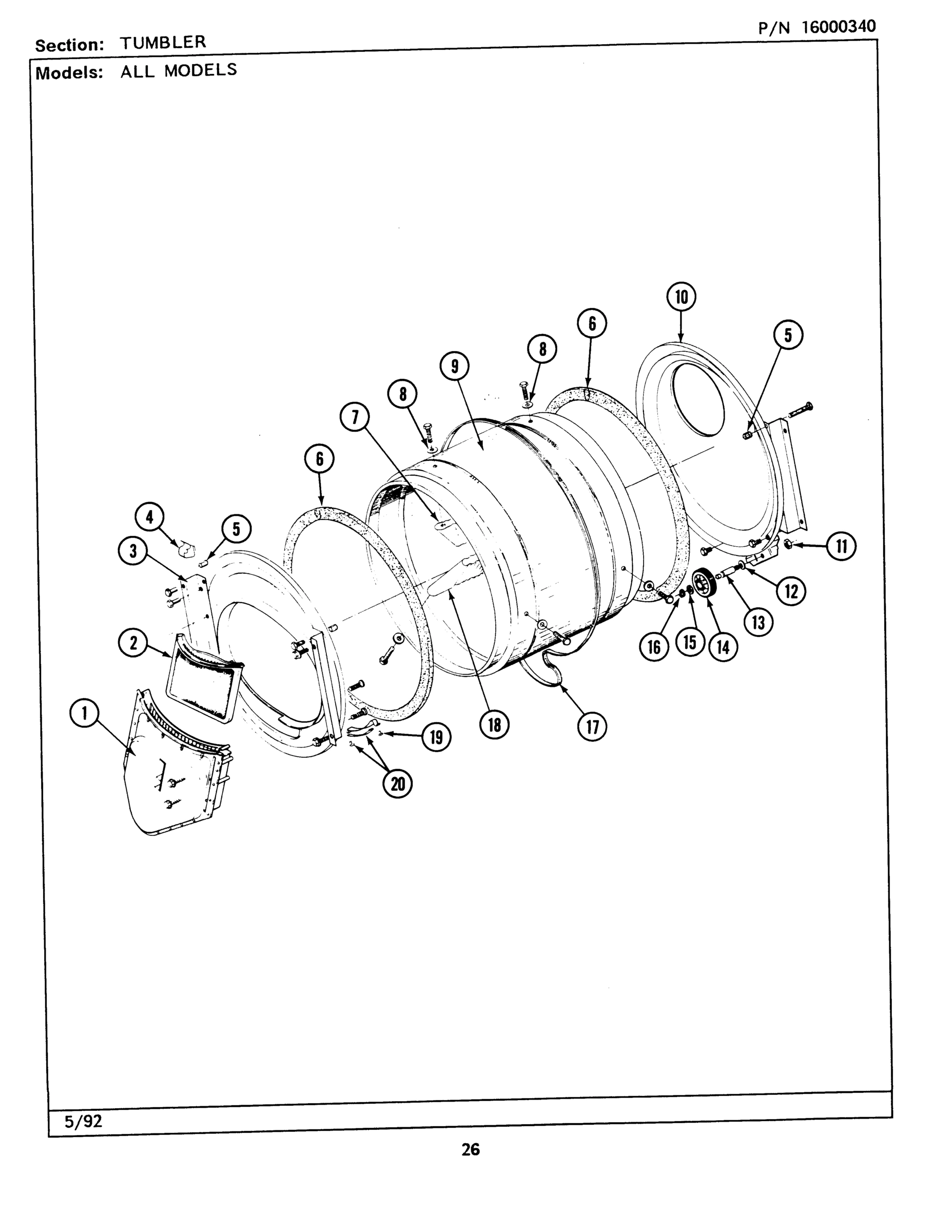

07 - TUMBLER

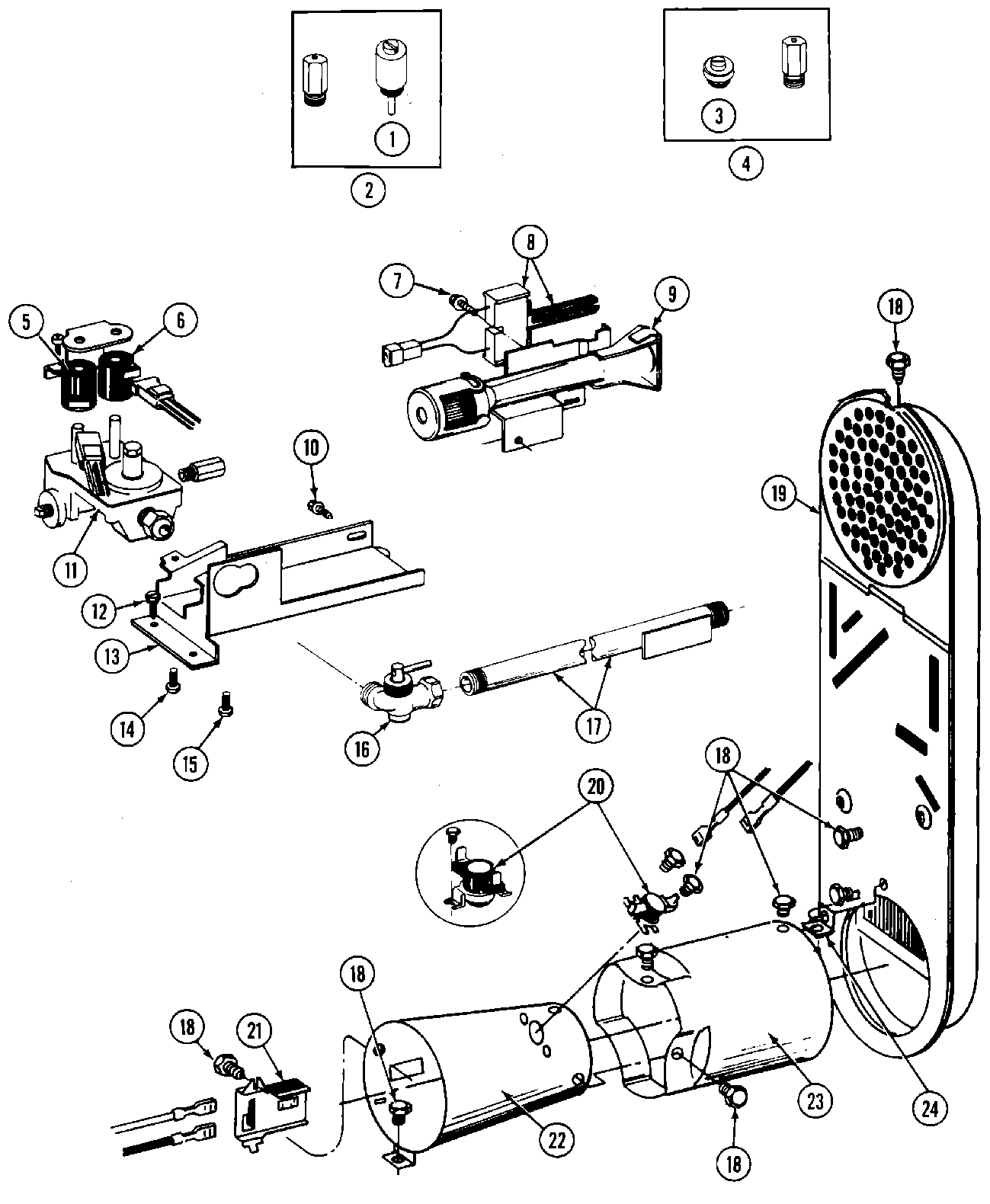

08 - GAS VALVE

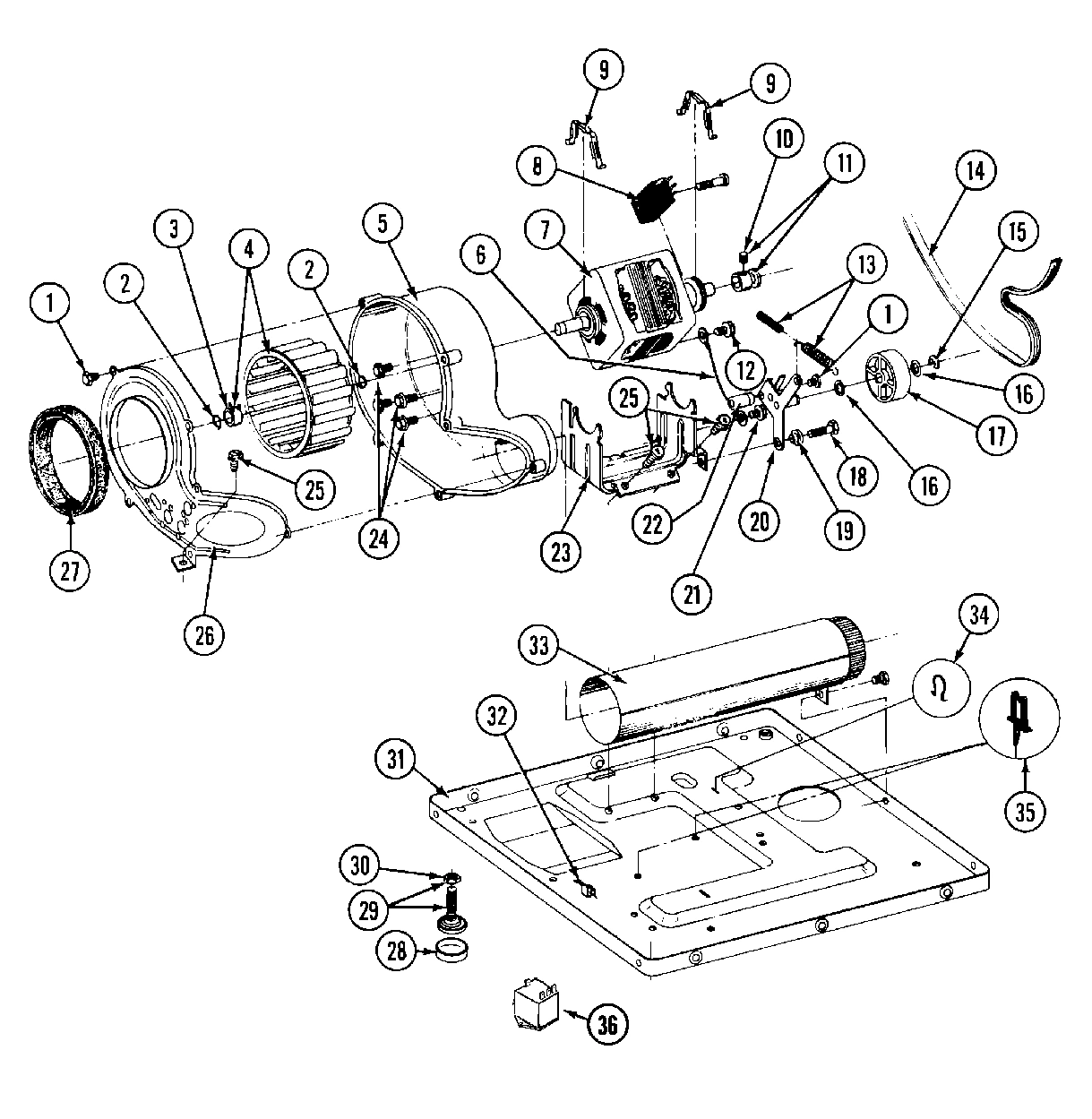

09 - MOTOR DRIVE, BLOWER & BASE FRAME

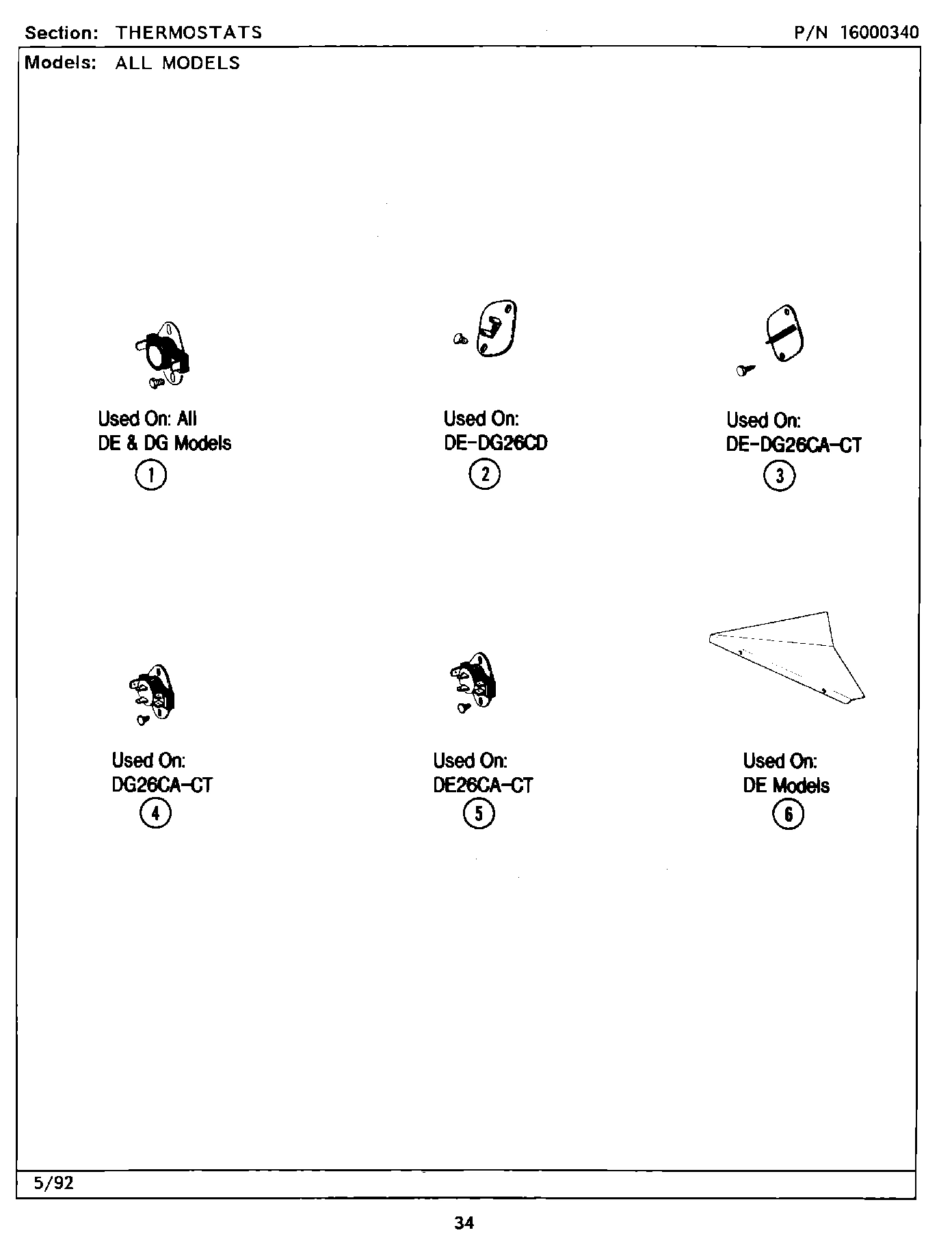

10 - THERMOSTATS
Common parts from model Maytag MDG26CTAAG GAS DRYER
001
SCREW, RELAY SWITCH (BRKT) MAY 212950 Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. MAY Y313340 Contact Us For Availability
001
MAY Y307112 MAY Y307112 Contact Us For Availability
001
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
001
PLUG, BLOCKING (LP REGULATOR) MAY 306184 Contact Us For Availability
002
THERMISTOR TEMP. CONTROL PART NOT USED. MDE/G MAY 306056 Contact Us For Availability
002
LATCH, ACCESS DOOR MAY 214878 Contact Us For Availability
002
SWITCH, TICKET CONTROL MAY 204882 Contact Us For Availability
002
MAY 314941 MAY 314941 Contact Us For Availability
002
SCREEN, LINT MAY 307108 Contact Us For Availability
002
CONVERSION KIT (NAT TO LP) MAY Y308378 Contact Us For Availability
003
MAY 400008 MAY 400008 Contact Us For Availability
003
SCREW MAY NLA Contact Us For Availability
003
PART NOT USED MAY 314942 Contact Us For Availability
003
MAY 307109 MAY 307109 Contact Us For Availability
004
MAY 306966 MAY 306966 Contact Us For Availability
004
MAY 204881 MAY 204881 Contact Us For Availability
004
MAY 307099 MAY 307099 Contact Us For Availability
004
CONVERSION KIT (LP TO NAT.) MAY Y308377 Contact Us For Availability
005
THERMOSTAT, MULTI-TEMP (PART NOT USED-DE ONLY MAY 306967 Contact Us For Availability
005
MAY 212951 MAY 212951 Contact Us For Availability
005
SOLENOID, RELAY ASSEMBLY MAY 305393 Contact Us For Availability
005
MAY 214218 MAY 214218 Contact Us For Availability
005
MAY 314946 MAY 314946 Contact Us For Availability
005
MAY 314972 MAY 314972 Contact Us For Availability
005
MAY Y312893 MAY Y312893 Contact Us For Availability
006
SCREW (PART NOT USED-DE ONLY) MAY Y310632 Contact Us For Availability
006
MAY 212452 MAY 212452 Contact Us For Availability
006
MAY Y307111 MAY Y307111 Contact Us For Availability
006
MAY 901220 MAY 901220 Contact Us For Availability
006
COVER, THERMOSTAT (PART NOT USED-DE ONLY) MAY 315122 Contact Us For Availability
007
MAY 214660 MAY 214660 Contact Us For Availability
007
ROLLER, CAM MAY 214275 Contact Us For Availability
007
MAY 314966 MAY 314966 Contact Us For Availability
007
MAY 314803 MAY 314803 Contact Us For Availability
007
MAY 304971 MAY 304971 Contact Us For Availability
008
MAY 314158 MAY 314158 Contact Us For Availability
008
MAY 214220 MAY 214220 Contact Us For Availability
008
No.3-3358-8 & 3-3358-9 MAY 306207 Contact Us For Availability
008
SWITCH, MOTOR PRODUCTION No.3-3358-2, 3-3358- MAY Y303877 Contact Us For Availability
008
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- MAY Y303879 Contact Us For Availability
009
MAY 910309 MAY 910309 Contact Us For Availability
009
MAY 212982 MAY 212982 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
MAY 314802 MAY 314802 Contact Us For Availability
009
MAY 304974 MAY 304974 Contact Us For Availability
010
MAY Y307114 MAY Y307114 Contact Us For Availability
010
MAY Y308544 MAY Y308544 Contact Us For Availability
010
MAY Y053241 MAY Y053241 Contact Us For Availability
011
MAY 312538 MAY 312538 Contact Us For Availability
011
MAY Y305185 MAY Y305185 Contact Us For Availability
012
MAY 314937 MAY 314937 Contact Us For Availability
012
BACK-UP PLATE (WHT) MAY 314912 Contact Us For Availability
012
MAY 213089 MAY 213089 Contact Us For Availability
012
MAY Y312300 MAY Y312300 Contact Us For Availability
012
MAY 910343 MAY 910343 Contact Us For Availability
013
MAY 305867 MAY 305867 Contact Us For Availability
013
MAY 305868 MAY 305868 Contact Us For Availability
013
MAY Y303801 MAY Y303801 Contact Us For Availability
013
MAY Y313907 MAY Y313907 Contact Us For Availability
013
MAY 314566 MAY 314566 Contact Us For Availability
013
MAY Y303945 MAY Y303945 Contact Us For Availability
014
SCREW & FSTNER ASSY (FT. PNL) MAY 204439 Contact Us For Availability
014
MAY 212276 MAY 212276 Contact Us For Availability
014
HEX NUT, SWITCH MAY Y312706 Contact Us For Availability
014
MAY 212533 MAY 212533 Contact Us For Availability
014
(ALM) MAY 307998L Contact Us For Availability
014
MAY Y303373 MAY Y303373 Contact Us For Availability
014
MAY 314082 MAY 314082 Contact Us For Availability
015
MAY Y313559 MAY Y313559 Contact Us For Availability
015
MAY 212949 MAY 212949 Contact Us For Availability
015
MAY Y201110 MAY Y201110 Contact Us For Availability
016
MAY Y312702 MAY Y312702 Contact Us For Availability
016
MAY 212519 MAY 212519 Contact Us For Availability
016
MAY 312369 MAY 312369 Contact Us For Availability
016
MAY Y303349 MAY Y303349 Contact Us For Availability
016
MAY Y312527 MAY Y312527 Contact Us For Availability
017
MAY Y303383 MAY Y303383 Contact Us For Availability
018
MAY 306938 MAY 306938 Contact Us For Availability
018
MAY 314936 MAY 314936 Contact Us For Availability
018
MAY 314944 MAY 314944 Contact Us For Availability
018
MAY Y310759 MAY Y310759 Contact Us For Availability
019
MAY 311612 MAY 311612 Contact Us For Availability
019
MAY 314935 MAY 314935 Contact Us For Availability
019
MAY 307119 MAY 307119 Contact Us For Availability
019
MAY Y308504 MAY Y308504 Contact Us For Availability
019
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
020
MAY 311613 MAY 311613 Contact Us For Availability
020
MAY 307098 MAY 307098 Contact Us For Availability
021
MAY 205810 MAY 205810 Contact Us For Availability
021
CLIP, DOOR LINER (OUTER PNL) MAY Y313910 Contact Us For Availability
022
MAY 307105 MAY 307105 Contact Us For Availability
022
MAY 202713 MAY 202713 Contact Us For Availability
022
MAY Y303368 MAY Y303368 Contact Us For Availability
022
MAY Y308548 MAY Y308548 Contact Us For Availability
023
MAY 301548 MAY 301548 Contact Us For Availability
023
MAY 215003 MAY 215003 Contact Us For Availability
023
PIN RECEPTACLE, PLUG MAY 213074 Contact Us For Availability
023
MAY Y303841 MAY Y303841 Contact Us For Availability
024
MAY Y314322 MAY Y314322 Contact Us For Availability
024
MAY Y312890 MAY Y312890 Contact Us For Availability
025
MAY Y313561 MAY Y313561 Contact Us For Availability
026
MAY Y303787 MAY Y303787 Contact Us For Availability
026
MAY 202477 MAY 202477 Contact Us For Availability
026
COVER, BLOWER MAY 314778 Contact Us For Availability
029
MAY 203140 MAY 203140 Contact Us For Availability
029
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
031
MAY Y311550 MAY Y311550 Contact Us For Availability
031
MAY Y303361 MAY Y303361 Contact Us For Availability
032
MAY Y310376 MAY Y310376 Contact Us For Availability
033
MAY Y303442 MAY Y303442 Contact Us For Availability
034
MAY 211737 MAY 211737 Contact Us For Availability
034
MAY 410490 MAY 410490 Contact Us For Availability
035
MAY Y313262 MAY Y313262 Contact Us For Availability
036
PART NOT USED MAY 306199 Contact Us For Availability
036
MAY 202509 MAY 202509 Contact Us For Availability
× ![]()
