Model Maytag MDG12PDBBW GAS DRYER – Common Parts & Diagrams

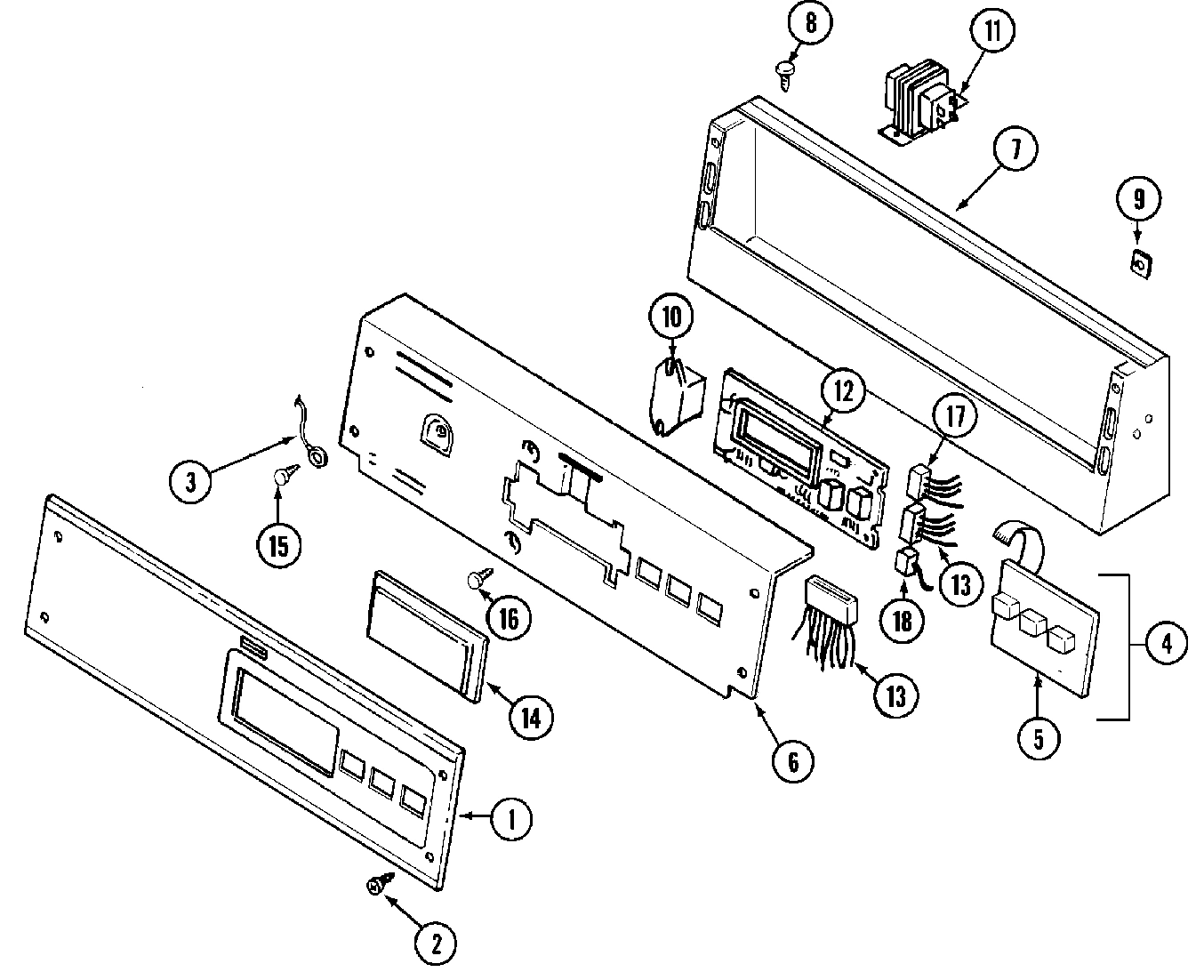

01 - CONTROL PANEL

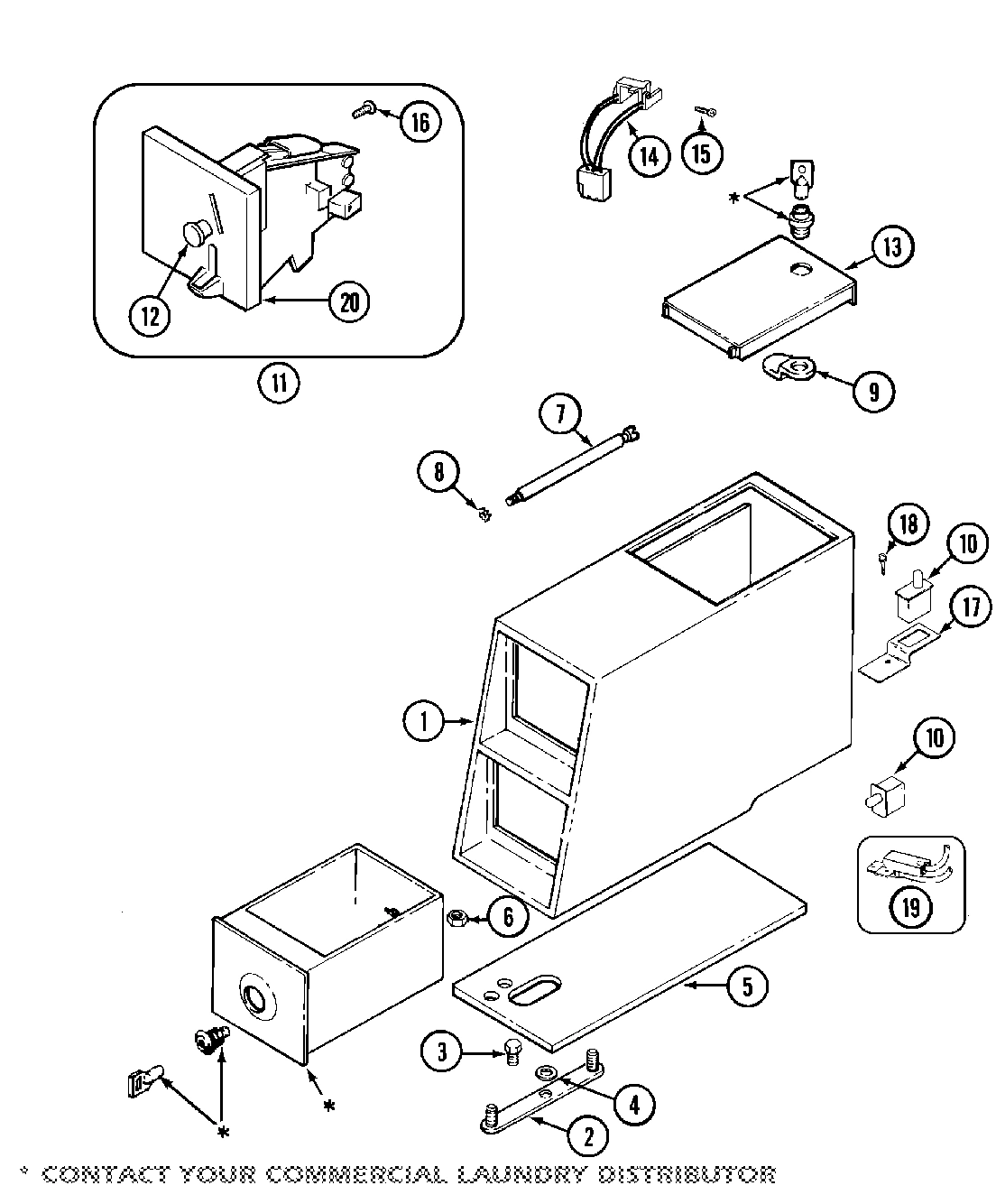

02 - CONTROL CENTER
03 - CABINET-FRONT
04 - DOOR
05 - CABINET-REAR
06 - TUMBLER
07 - GAS VALVE
08 - MOTOR DRIVE
09 - WIRING INFORMATION
Common parts from model Maytag MDG12PDBBW GAS DRYER
001
OUTLET DUCT ASSEMBLY MAY 33001016 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY Y312905 MAY Y312905 Contact Us For Availability
001
CONVERSION KIT (NAT TO LP) MAY Y308378 Contact Us For Availability
001
MAY Y312893 MAY Y312893 Contact Us For Availability
002
SCREW, CONSOLE MAY 212276 Contact Us For Availability
002
MAY 22001178 MAY 22001178 Contact Us For Availability
002
MAY 33001170 MAY 33001170 Contact Us For Availability
002
CONVERSION KIT (LP TO NAT.) MAY Y308377 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY MAY Y303442 Contact Us For Availability
003
MAY 33001740 MAY 33001740 Contact Us For Availability
003
MAY 33001240 MAY 33001240 Contact Us For Availability
003
(ALM) MAY 33001257 Contact Us For Availability
003
MAY 211881 MAY 211881 Contact Us For Availability
003
SCREW, IGNITER MAY 304971 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY MAY 306694 Contact Us For Availability
004
(ALM) MAY 33001254 Contact Us For Availability
005
MAY 33001179 MAY 33001179 Contact Us For Availability
005
MAY 33001131 MAY 33001131 Contact Us For Availability
005
SCREW, ACCESS COVER MAY 216423 Contact Us For Availability
006
SCREW, TOP COVER MAY 214354 Contact Us For Availability
006
PLUG, DOOR (WHT) MAY 33001132 Contact Us For Availability
006
(ALM) MAY 33001168 Contact Us For Availability
006
MAY Y312951 MAY Y312951 Contact Us For Availability
007
MAY 213035 MAY 213035 Contact Us For Availability
007
MAY 33001230 MAY 33001230 Contact Us For Availability
007
SCREW, HOUSING COVER MAY Y313561 Contact Us For Availability
007
MAY Y304578 MAY Y304578 Contact Us For Availability
009
FASTENER, CONSOLE MAY 215075 Contact Us For Availability
010
BASE ASSEMBLY MAY Y303361 Contact Us For Availability
010
MAY 314566 MAY 314566 Contact Us For Availability
011
MAY 33001012 MAY 33001012 Contact Us For Availability
011
MAY 22001960 MAY 22001960 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
011
SCREW, GAS VALVE ASSEMBLY MAY Y313559 Contact Us For Availability
012
WASHER, BAFFLE MAY 314158 Contact Us For Availability
012
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
012
SCREW, GAS VALVE MAY 314568 Contact Us For Availability
013
MAY 22001910 MAY 22001910 Contact Us For Availability
013
(ALM) MAY 22001911 Contact Us For Availability
013
MAY 33001108 MAY 33001108 Contact Us For Availability
013
MAY Y303349 MAY Y303349 Contact Us For Availability
013
COVER, BLOWER HOUSING MAY 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE MAY Y310759 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY MAY Y303383 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
MAY 33001178 MAY 33001178 Contact Us For Availability
015
MAY 33001175 MAY 33001175 Contact Us For Availability
015
(ALM) MAY 33001176 Contact Us For Availability
016
MAY 216068 MAY 216068 Contact Us For Availability
016
FASTENER, INNER DOOR MAY Y313910 Contact Us For Availability
016
INLET DUCT ASSEMBLY MAY Y308504 Contact Us For Availability
017
MAY 22001404 MAY 22001404 Contact Us For Availability
017
SCREW, GROUND MAY 210186 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
018
MAY 33001614 MAY 33001614 Contact Us For Availability
018
(ALM) MAY 33001615 Contact Us For Availability
018
MAY 33001243 MAY 33001243 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) MAY 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (No.303358-2, 30 MAY Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303879 Contact Us For Availability
019
MAY 22001966 MAY 22001966 Contact Us For Availability
019
BRACKET, STRIKE MAY 314944 Contact Us For Availability
019
COMBUSTION CONE ASSEMBLY MAY Y308548 Contact Us For Availability
020
MAY 22002144 MAY 22002144 Contact Us For Availability
020
EXTENSION, CONE (W/SCREWS) MAY Y303841 Contact Us For Availability
020
MAY Y305185 MAY Y305185 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
MAY Y312890 MAY Y312890 Contact Us For Availability
021
SCREW, SET MAY Y053241 Contact Us For Availability
022
MAY 33001693 MAY 33001693 Contact Us For Availability
022
MAY Y303945 MAY Y303945 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
SCREW, OUTLET DUCT MAY Y314110 Contact Us For Availability
028
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
030
MAY 901220 MAY 901220 Contact Us For Availability
032
SCREW, EXHAUST DUCT MAY Y310632 Contact Us For Availability
033
BASE ASSEMBLY MAY Y305084 Contact Us For Availability
038
CLIP, CABLE MAY Y310376 Contact Us For Availability
039
MAY 315471 MAY 315471 Contact Us For Availability
040
MAY 410490 MAY 410490 Contact Us For Availability
× ![]()
