Model Maytag MDG12MNAGW GAS DRYER – Common Parts & Diagrams
01 - CABINET-FRONT
02 - DOOR

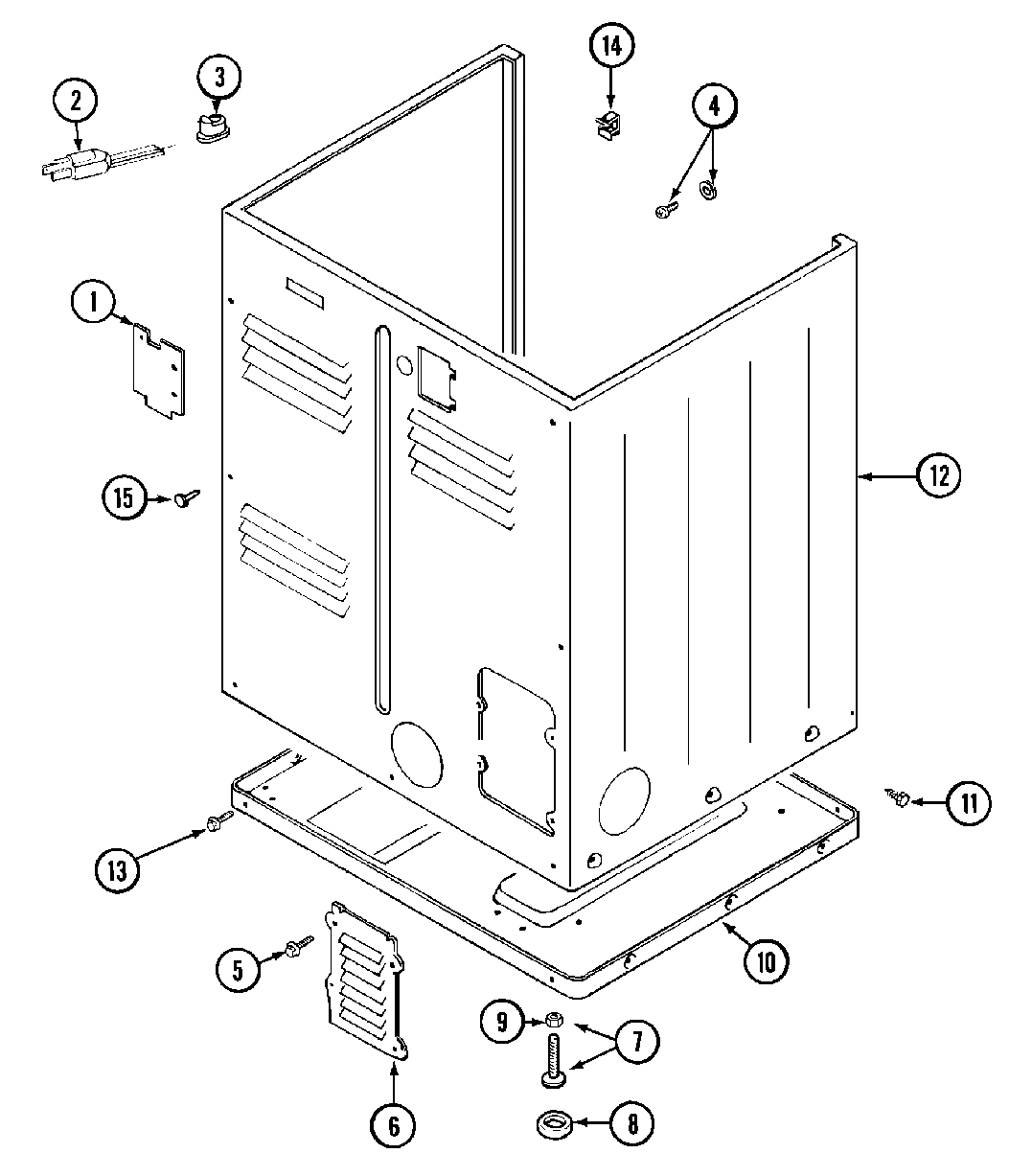

03 - CABINET-REAR
04 - TUMBLER

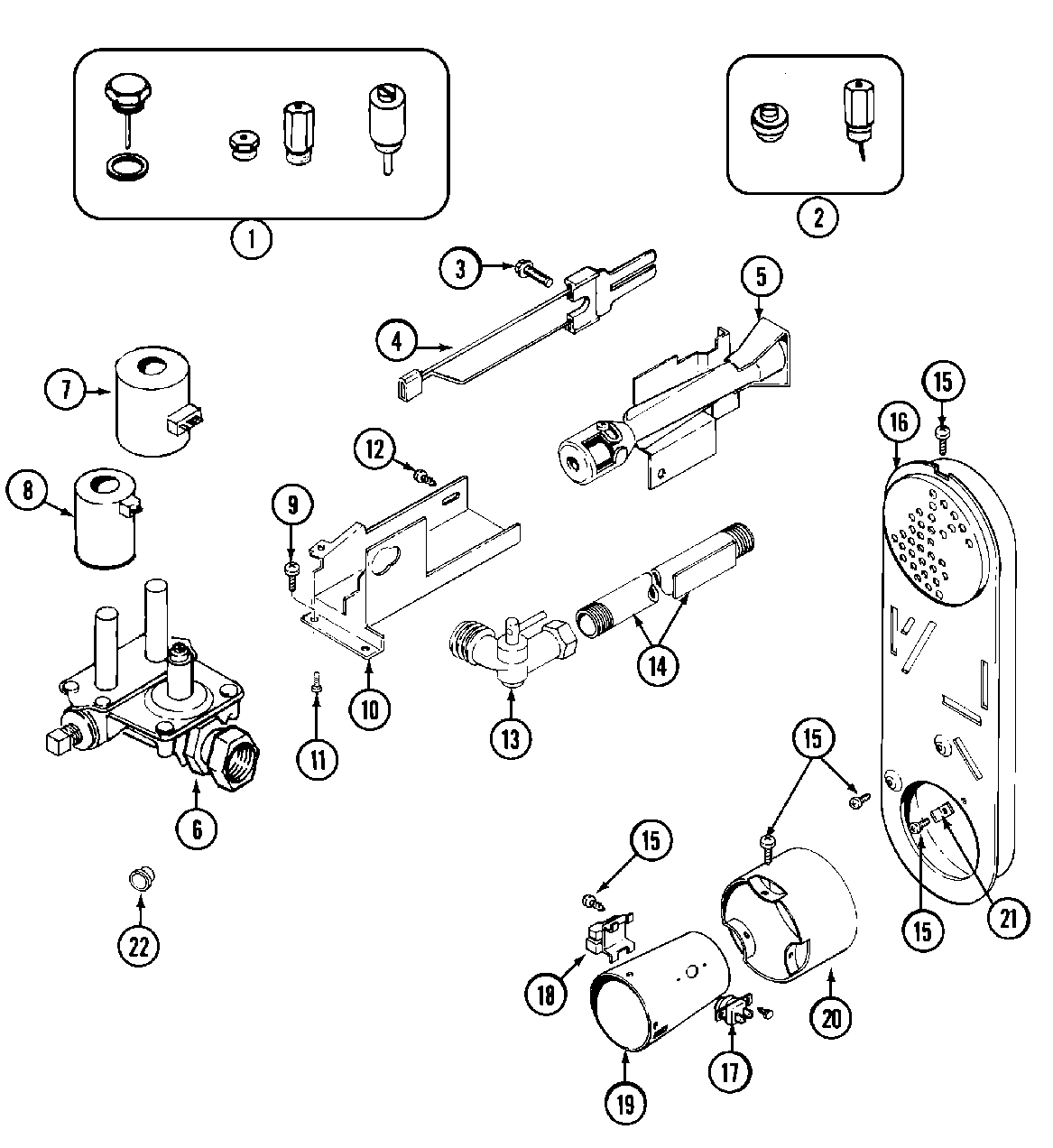

05 - GAS VALVE

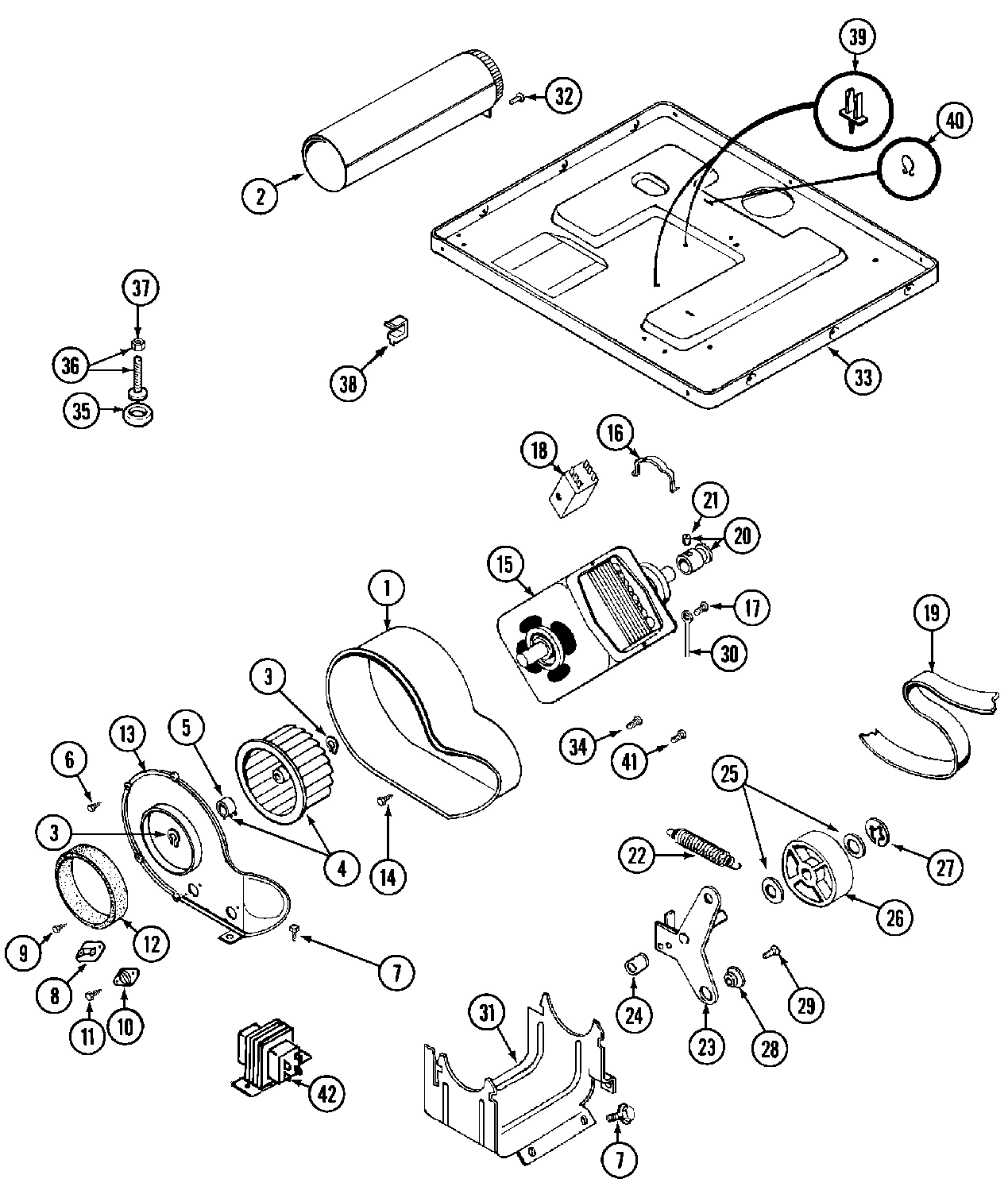

06 - MOTOR DRIVE

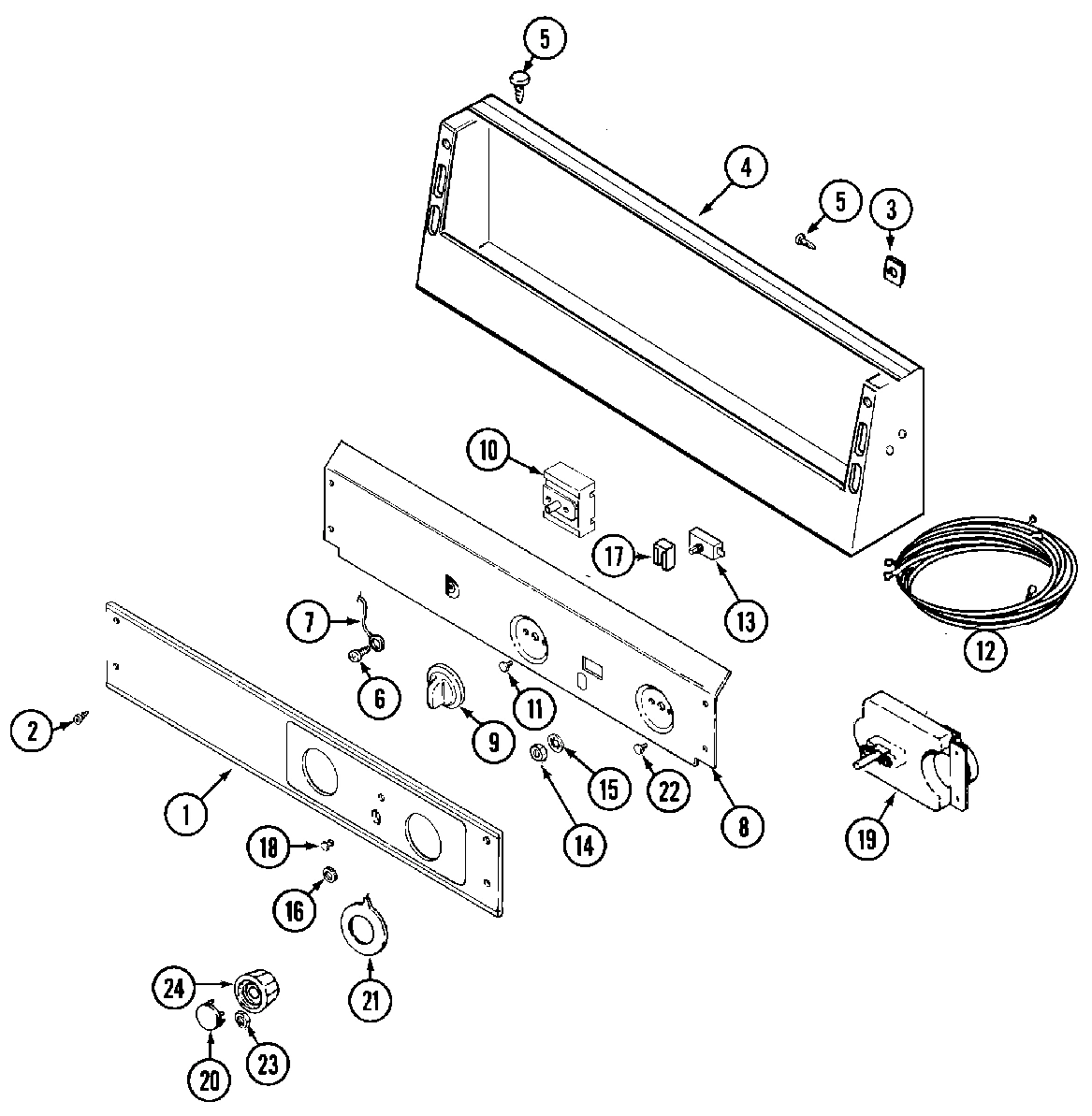

07 - CONTROL PANEL

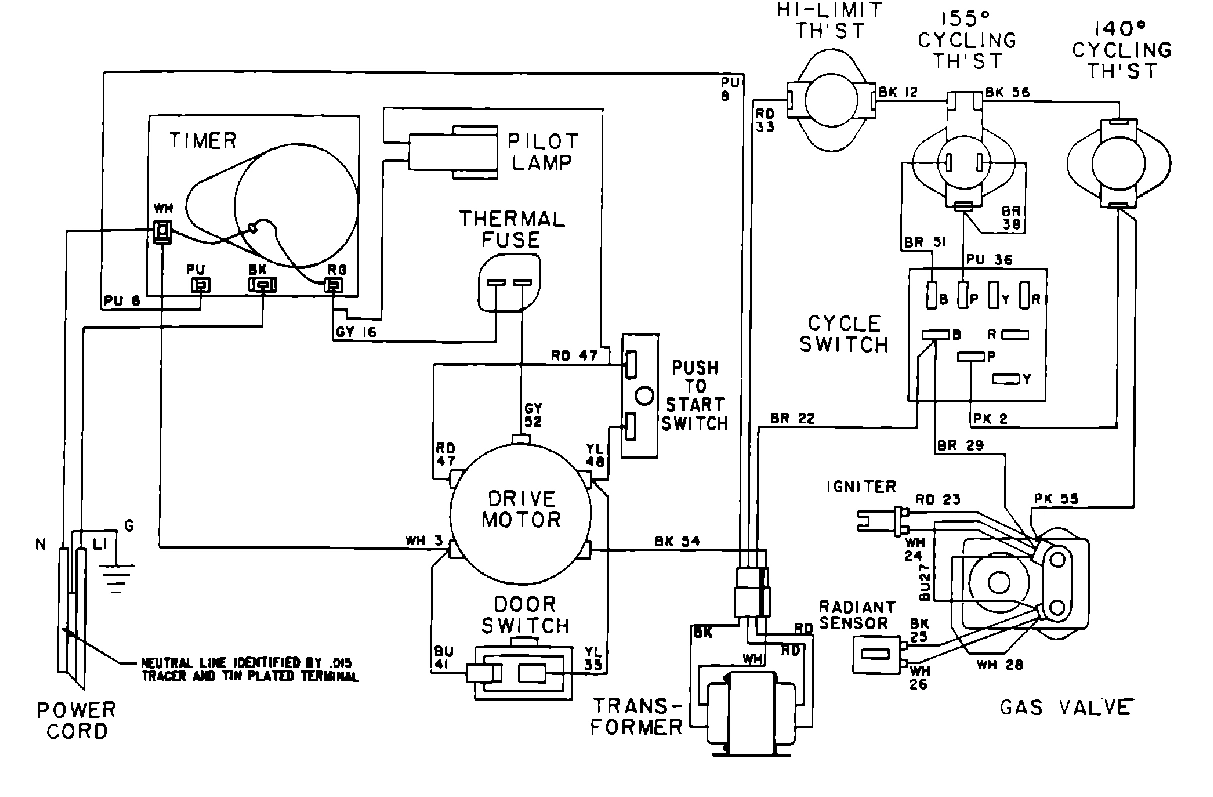

08 - WIRING INFORMATION
Common parts from model Maytag MDG12MNAGW GAS DRYER
001
OUTLET DUCT ASSEMBLY MAY 33001016 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
CONVERSION KIT (NAT TO LP) MAY Y308378 Contact Us For Availability
001
MAY Y312893 MAY Y312893 Contact Us For Availability
001
MAY 33001710 MAY 33001710 Contact Us For Availability
002
MAY 33001170 MAY 33001170 Contact Us For Availability
002
CONVERSION KIT (LP TO NAT.) MAY Y308377 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY MAY Y303442 Contact Us For Availability
003
SCREW, IGNITER MAY 304971 Contact Us For Availability
003
FASTENER, CONTROL PANEL MAY 215003 Contact Us For Availability
004
MAY 33001280 MAY 33001280 Contact Us For Availability
005
MAY 33001179 MAY 33001179 Contact Us For Availability
005
SCREW, CONSOLE MAY 212276 Contact Us For Availability
006
VALVE, GAS MAY 307927 Contact Us For Availability
006
MAY 33001847 MAY 33001847 Contact Us For Availability
007
MAY 33001230 MAY 33001230 Contact Us For Availability
007
SCREW, HOUSING COVER MAY Y313561 Contact Us For Availability
007
MAY 205810 MAY 205810 Contact Us For Availability
008
MAY 306966 MAY 306966 Contact Us For Availability
008
SCREW, FRONT PANEL MAY 22001496 Contact Us For Availability
009
KNOB, SELECTOR MAY 306938 Contact Us For Availability
010
MAY 314566 MAY 314566 Contact Us For Availability
011
MAY 33001012 MAY 33001012 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
011
SCREW, GAS VALVE ASSEMBLY MAY Y313559 Contact Us For Availability
012
MAY Y314137 MAY Y314137 Contact Us For Availability
012
WASHER, BAFFLE MAY 314158 Contact Us For Availability
012
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
012
SCREW, GAS VALVE MAY 314568 Contact Us For Availability
012
MAY 33001522 MAY 33001522 Contact Us For Availability
012
MAY 33001524 MAY 33001524 Contact Us For Availability
013
MAY Y305086 MAY Y305086 Contact Us For Availability
013
MAY 33001108 MAY 33001108 Contact Us For Availability
013
MAY Y303349 MAY Y303349 Contact Us For Availability
013
COVER, BLOWER HOUSING MAY 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE MAY Y310759 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY MAY Y303383 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
014
NUT, SWITCH MAY Y312706 Contact Us For Availability
015
MAY 33001178 MAY 33001178 Contact Us For Availability
015
MOTOR MAY Y304656 Contact Us For Availability
016
INLET DUCT ASSEMBLY MAY Y308504 Contact Us For Availability
016
NUT, KNURLED MAY Y312702 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
017
LIGHT, INDICATOR MAY 204075 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) MAY 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (No.303358-2, 30 MAY Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303879 Contact Us For Availability
019
MAY 305214 MAY 305214 Contact Us For Availability
019
MAY Y308548 MAY Y308548 Contact Us For Availability
019
MAY Y308549 MAY Y308549 Contact Us For Availability
019
TIMER MAY Y305758 Contact Us For Availability
020
EXTENSION, CONE (W/SCREWS) MAY Y303841 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) MAY 305186 Contact Us For Availability
020
MAY Y305185 MAY Y305185 Contact Us For Availability
021
MAY 33001500 MAY 33001500 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
MAY Y312890 MAY Y312890 Contact Us For Availability
021
SCREW, SET MAY Y053241 Contact Us For Availability
022
MAY 33001693 MAY 33001693 Contact Us For Availability
022
MAY Y303945 MAY Y303945 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
SCREW, OUTLET DUCT MAY Y314110 Contact Us For Availability
028
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
030
MAY 901220 MAY 901220 Contact Us For Availability
032
SCREW, EXHAUST DUCT MAY Y310632 Contact Us For Availability
033
BASE ASSEMBLY MAY Y305084 Contact Us For Availability
038
CLIP, CABLE MAY Y310376 Contact Us For Availability
039
MAY 315471 MAY 315471 Contact Us For Availability
040
MAY 410490 MAY 410490 Contact Us For Availability
042
TRANSFORMER MAY 307928 Contact Us For Availability
× ![]()
