Model Maytag MDE13CSACW ELECTRIC DRYER – Common Parts & Diagrams

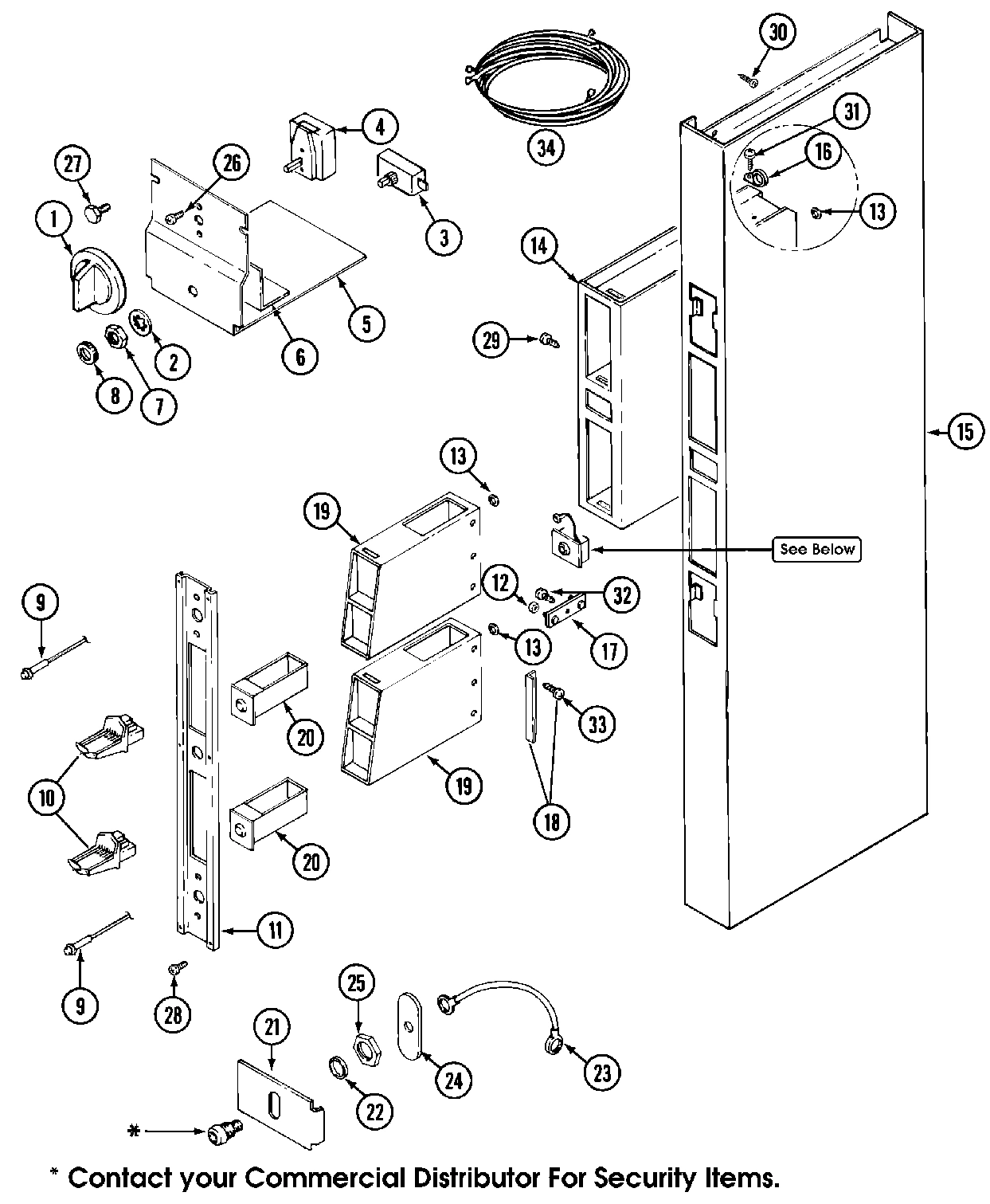

01 - CONTROL CENTER SHROUD

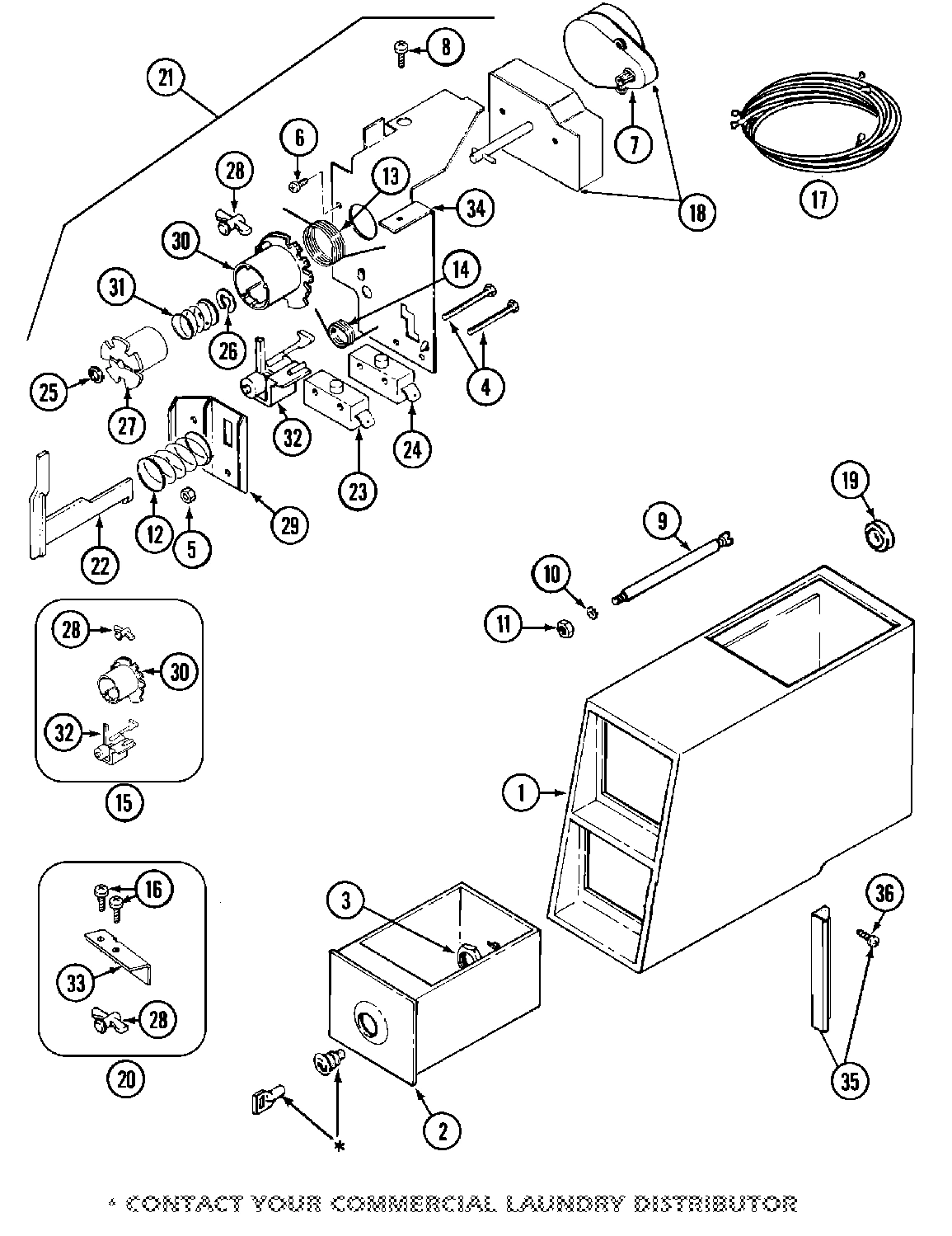

02 - CONTROL CENTER

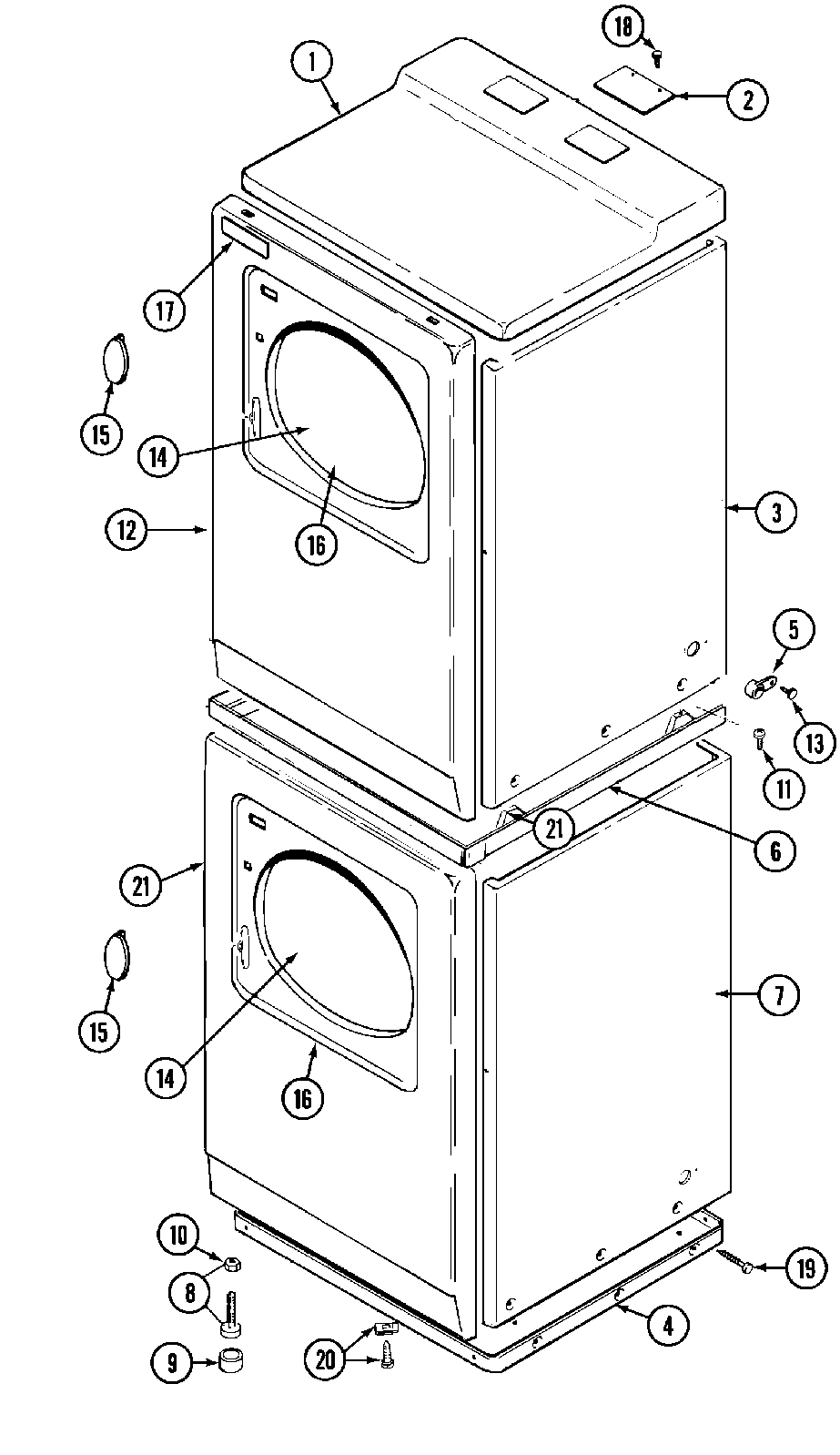

03 - FRONT

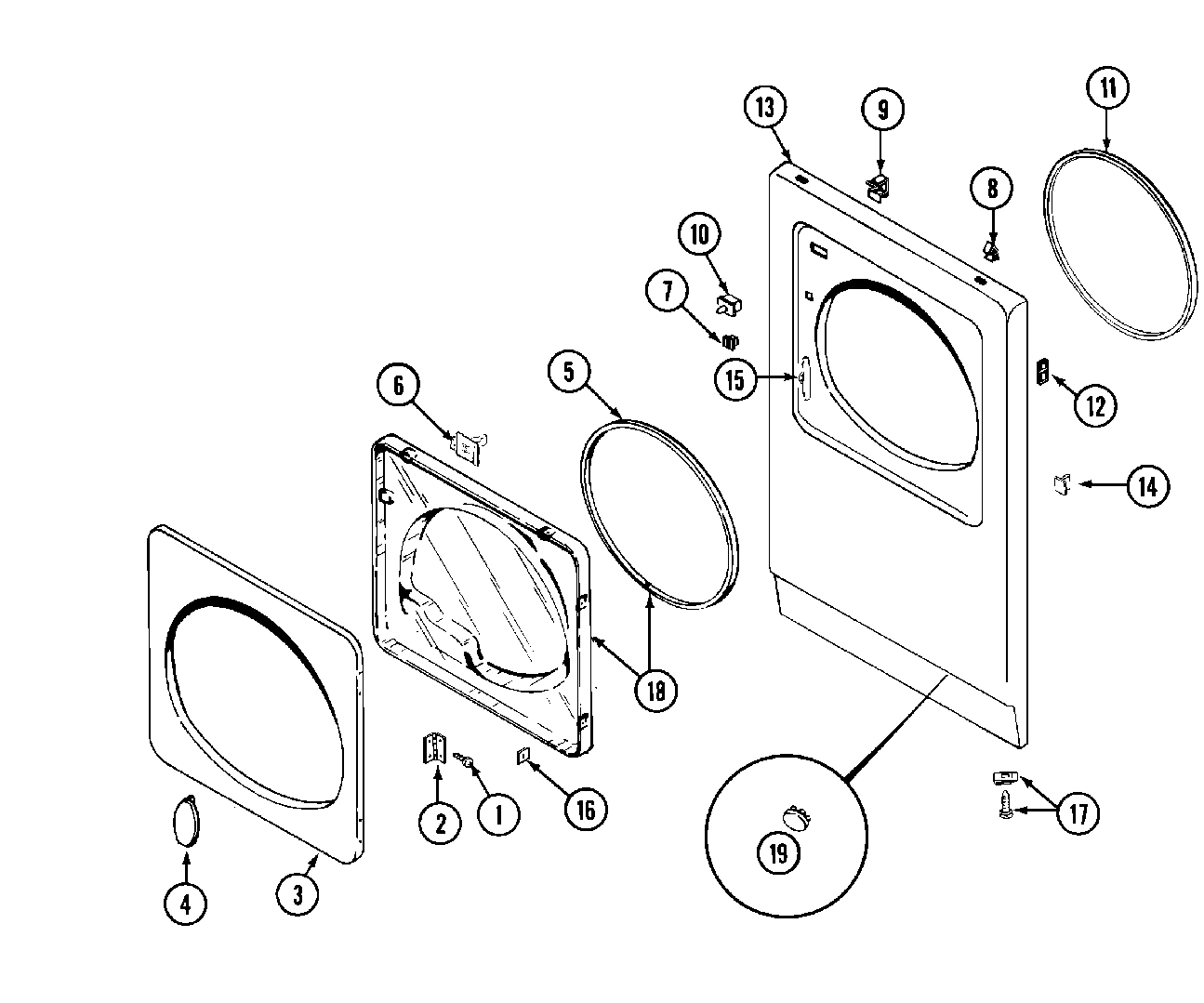

04 - DOOR

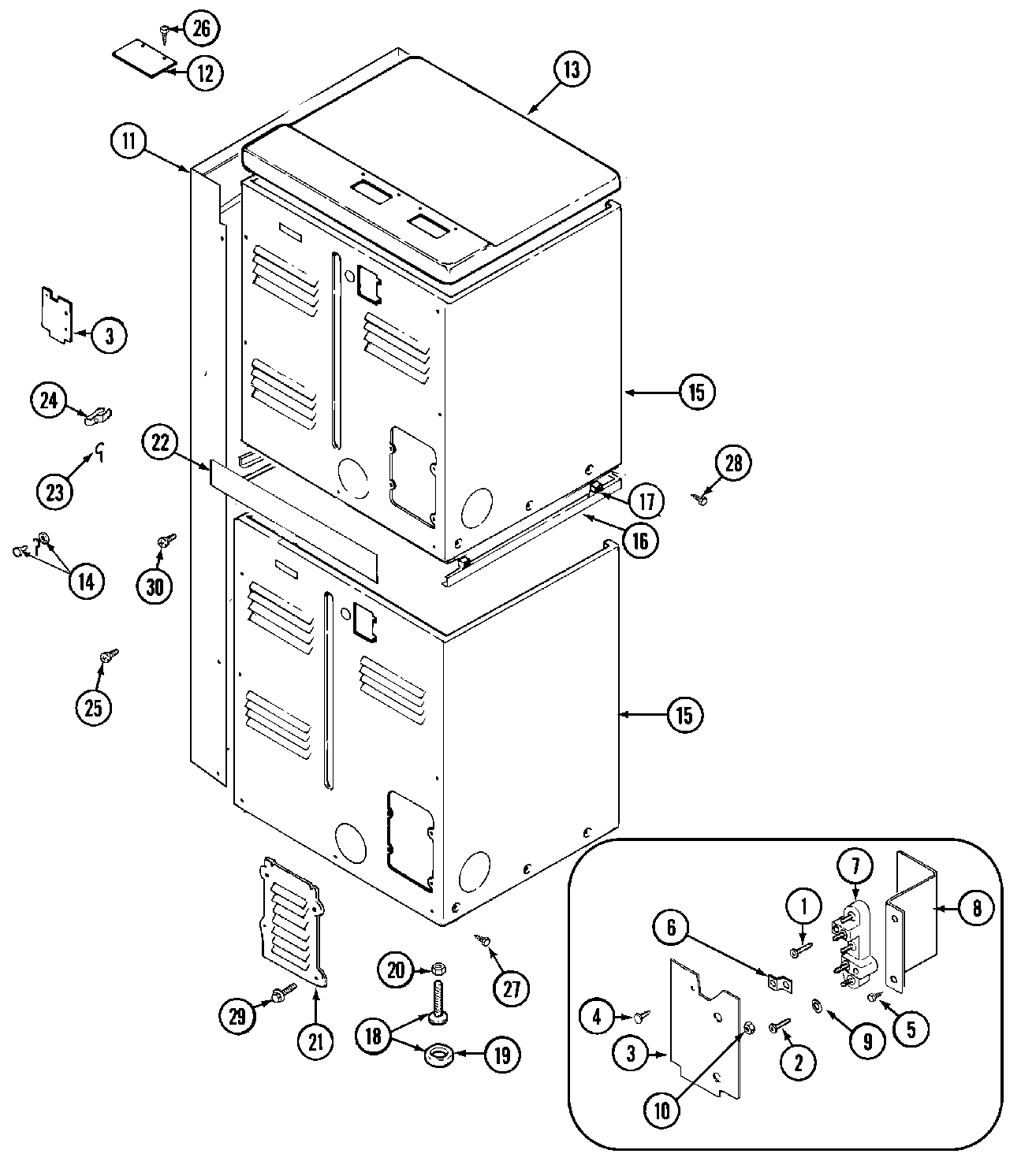

05 - REAR
06 - TUMBLER
07 - HEATER
08 - MOTOR DRIVE

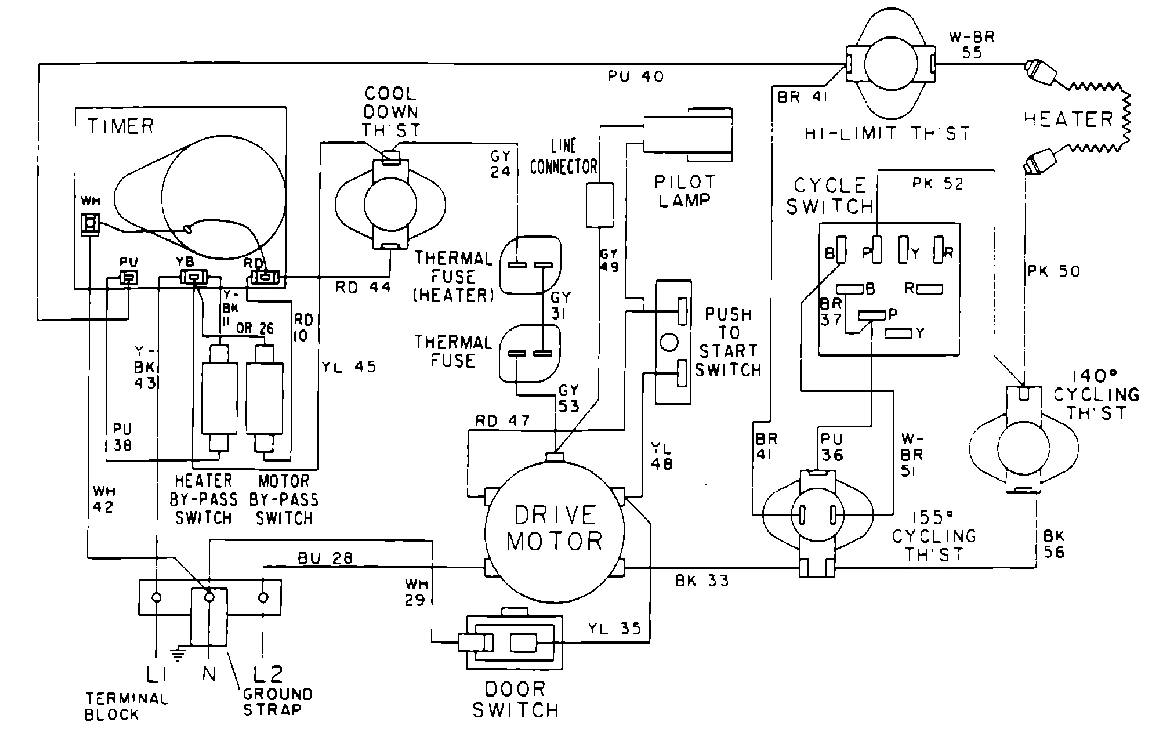

09 - WIRING INFORMATION
Common parts from model Maytag MDE13CSACW ELECTRIC DRYER
001
OUTLET DUCT ASSEMBLY MAY 33001016 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY Y312893 MAY Y312893 Contact Us For Availability
002
MAY 33001230 MAY 33001230 Contact Us For Availability
002
MAY 33001170 MAY 33001170 Contact Us For Availability
002
DUCT, INLET MAY 308503 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY MAY Y303442 Contact Us For Availability
003
ENCLOSURE, HEATER MAY 314995 Contact Us For Availability
003
PANEL, OUTER (WHT) MAY 314967 Contact Us For Availability
003
MAY Y312905 MAY Y312905 Contact Us For Availability
004
(ALM) MAY 314974 Contact Us For Availability
004
MAY 315346 MAY 315346 Contact Us For Availability
005
MAY 33001179 MAY 33001179 Contact Us For Availability
005
STOP, CABLE MAY 910768 Contact Us For Availability
005
MAY 33001192 MAY 33001192 Contact Us For Availability
005
SCREW, TERMINAL BRACKET MAY Y312209 Contact Us For Availability
006
SCREW, SPACER ASSEMBLY MAY 911050 Contact Us For Availability
006
STRAP, GROUNDING MAY Y312184 Contact Us For Availability
007
MAY Y304578 MAY Y304578 Contact Us For Availability
007
SCREW, HOUSING COVER MAY Y313561 Contact Us For Availability
007
MAY 314998 MAY 314998 Contact Us For Availability
008
MAY Y303225 MAY Y303225 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) MAY 306967 Contact Us For Availability
008
FASTENER, SPRING MAY 212982 Contact Us For Availability
008
MAY Y312904 MAY Y312904 Contact Us For Availability
008
MAY Y308613 MAY Y308613 Contact Us For Availability
008
MAY 33001306 MAY 33001306 Contact Us For Availability
009
MAY 215559 MAY 215559 Contact Us For Availability
009
MAY Y311270 MAY Y311270 Contact Us For Availability
009
MAY 314999 MAY 314999 Contact Us For Availability
011
MAY 33001012 MAY 33001012 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
011
SCREW, TOP DRYER MAY 314663 Contact Us For Availability
012
WASHER, BAFFLE MAY 314158 Contact Us For Availability
013
MAY 33001703 MAY 33001703 Contact Us For Availability
013
MAY 33001108 MAY 33001108 Contact Us For Availability
013
MAY 314847 MAY 314847 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE MAY Y310759 Contact Us For Availability
014
MAY Y308590 MAY Y308590 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
MAY 33001178 MAY 33001178 Contact Us For Availability
015
HANDLE, DOOR (WHT) MAY 314939 Contact Us For Availability
015
MAY 33001175 MAY 33001175 Contact Us For Availability
015
(ALM) MAY 33001176 Contact Us For Availability
015
MAY Y304656 MAY Y304656 Contact Us For Availability
016
MAY 33001302 MAY 33001302 Contact Us For Availability
016
FASTENER, INNER DOOR MAY Y313910 Contact Us For Availability
017
WIRE HARNESS, TIMER MAY 305800 Contact Us For Availability
017
MAY 33001711 MAY 33001711 Contact Us For Availability
017
FASTENER, SPACER ASSEMBLY MAY 310933 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
018
MAY 305796 MAY 305796 Contact Us For Availability
018
MAY 305812 MAY 305812 Contact Us For Availability
018
TIMER MAY 305813 Contact Us For Availability
018
MAY 33001203 MAY 33001203 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) MAY 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303879 Contact Us For Availability
019
GROMMET, CASE OPENING MAY Y313671 Contact Us For Availability
019
MAY 33001614 MAY 33001614 Contact Us For Availability
019
(ALM) MAY 33001615 Contact Us For Availability
020
SCREW, FRONT PANEL MAY 22001496 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) MAY 305186 Contact Us For Availability
020
MAY Y305185 MAY Y305185 Contact Us For Availability
021
TORSION TIMER ASSEMBLY MAY 305797 Contact Us For Availability
021
MAY 305831 MAY 305831 Contact Us For Availability
021
MAY Y312951 MAY Y312951 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
MAY Y053241 MAY Y053241 Contact Us For Availability
022
MAY Y303945 MAY Y303945 Contact Us For Availability
023
SWITCH, BY-PASS (MOTOR) MAY 305798 Contact Us For Availability
023
MAY 311155 MAY 311155 Contact Us For Availability
024
SWITCH, BY-PASS (HEATER) MAY Y305799 Contact Us For Availability
024
MAY 301548 MAY 301548 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
CLIP, SPRING RETAINER MAY Y312270 Contact Us For Availability
026
SCREW, TOP COVER PLATE MAY Y313559 Contact Us For Availability
026
SCREW, OUTLET DUCT MAY Y314110 Contact Us For Availability
027
DRIVER, INDEX WHEEL MAY 314330 Contact Us For Availability
028
PEG, TIME ADJUSTMENT MAY 314335 Contact Us For Availability
028
STOP, ADJUSTABLE RETURN MAY 314547 Contact Us For Availability
028
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
029
BRACKET, SWITCH & SLIDER MAY 314339 Contact Us For Availability
029
SCREW, ACCESS COVER MAY 216423 Contact Us For Availability
030
WHEEL, INDEX MAY 314546 Contact Us For Availability
030
GROUND WIRE MAY 901220 Contact Us For Availability
031
SPRING, INDEX WHEEL MAY 211065 Contact Us For Availability
032
MAY 314548 MAY 314548 Contact Us For Availability
033
BRACKET, COIN SLIDE MAY 314334 Contact Us For Availability
033
BASE ASSEMBLY (LWR) MAY 306530 Contact Us For Availability
033
(UPR) MAY Y307482 Contact Us For Availability
034
BRACKET, TIMER MAY 314333 Contact Us For Availability
036
SCREW, METER STOP MAY Y014872 Contact Us For Availability
036
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
038
CLIP, CABLE MAY Y310376 Contact Us For Availability
039
RETAINER, WIRE HARNESS MAY 315471 Contact Us For Availability
040
MAY 410490 MAY 410490 Contact Us For Availability
042
MAY 315122 MAY 315122 Contact Us For Availability
043
SCREW, THERMOSTAT COVER MAY Y310632 Contact Us For Availability
× ![]()
