Model Whirlpool MDE13CSACL ELECTRIC DRYER – Common Parts & Diagrams
06 - TUMBLER

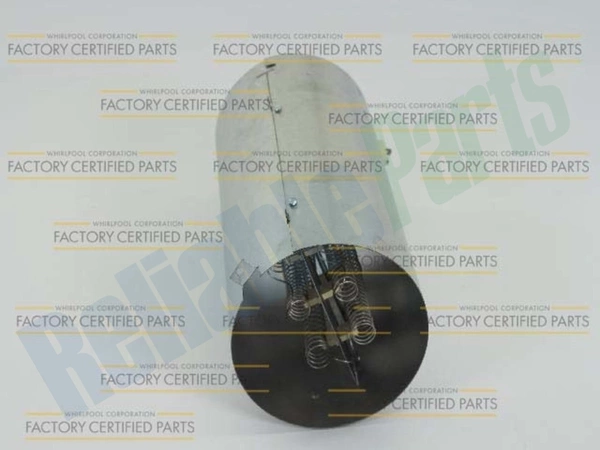

07 - HEATER

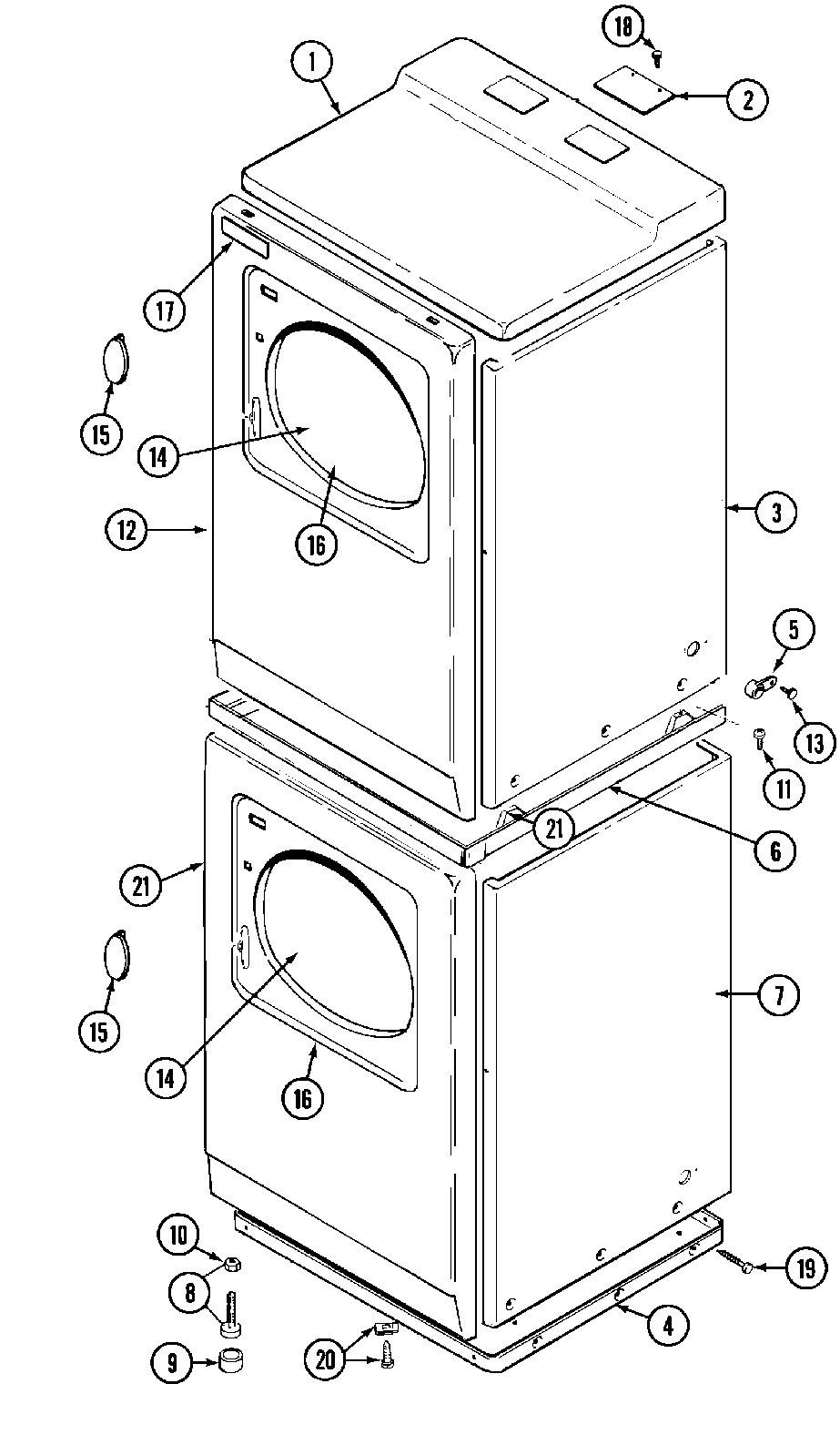

03 - FRONT

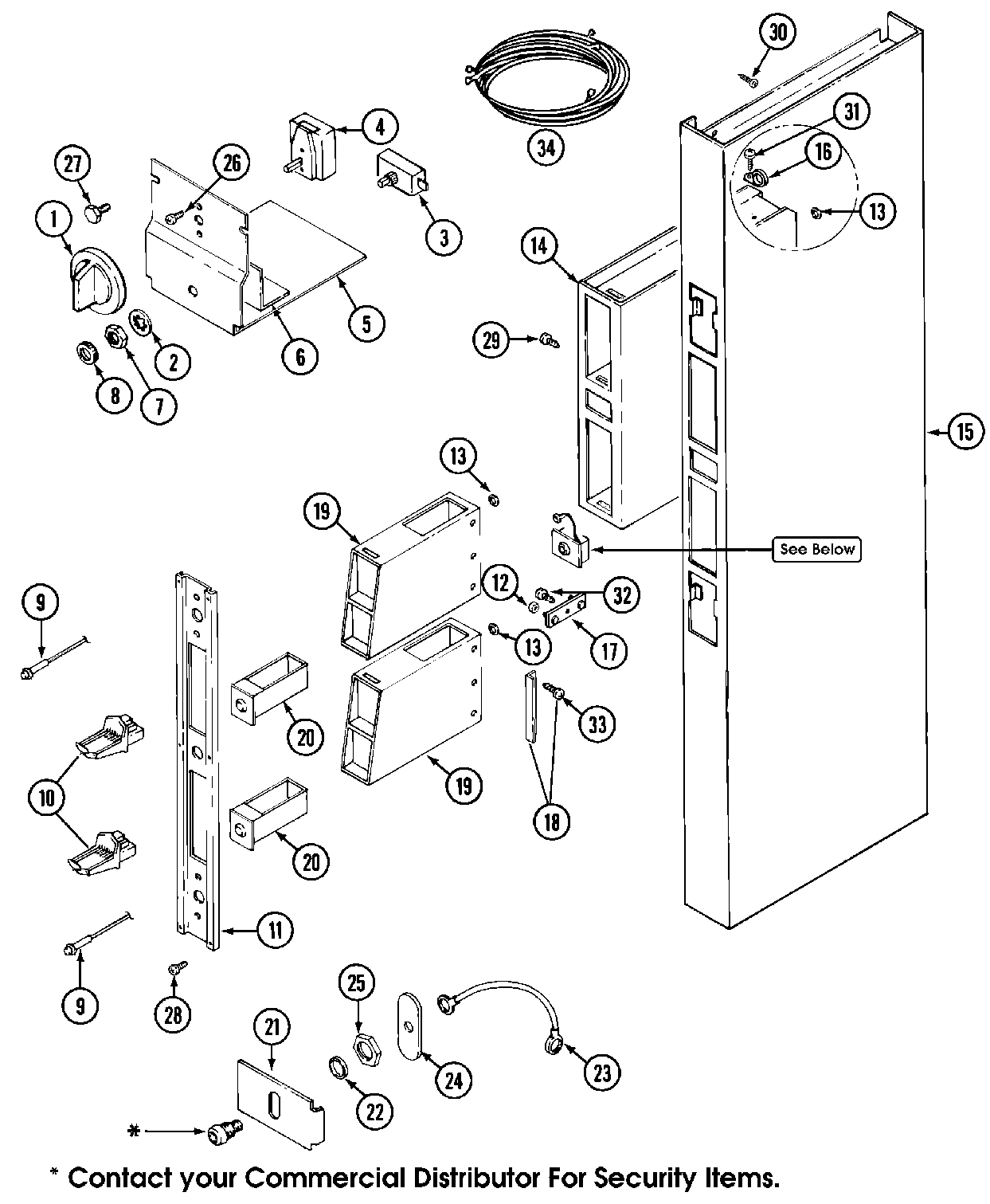

01 - CONTROL CENTER SHROUD

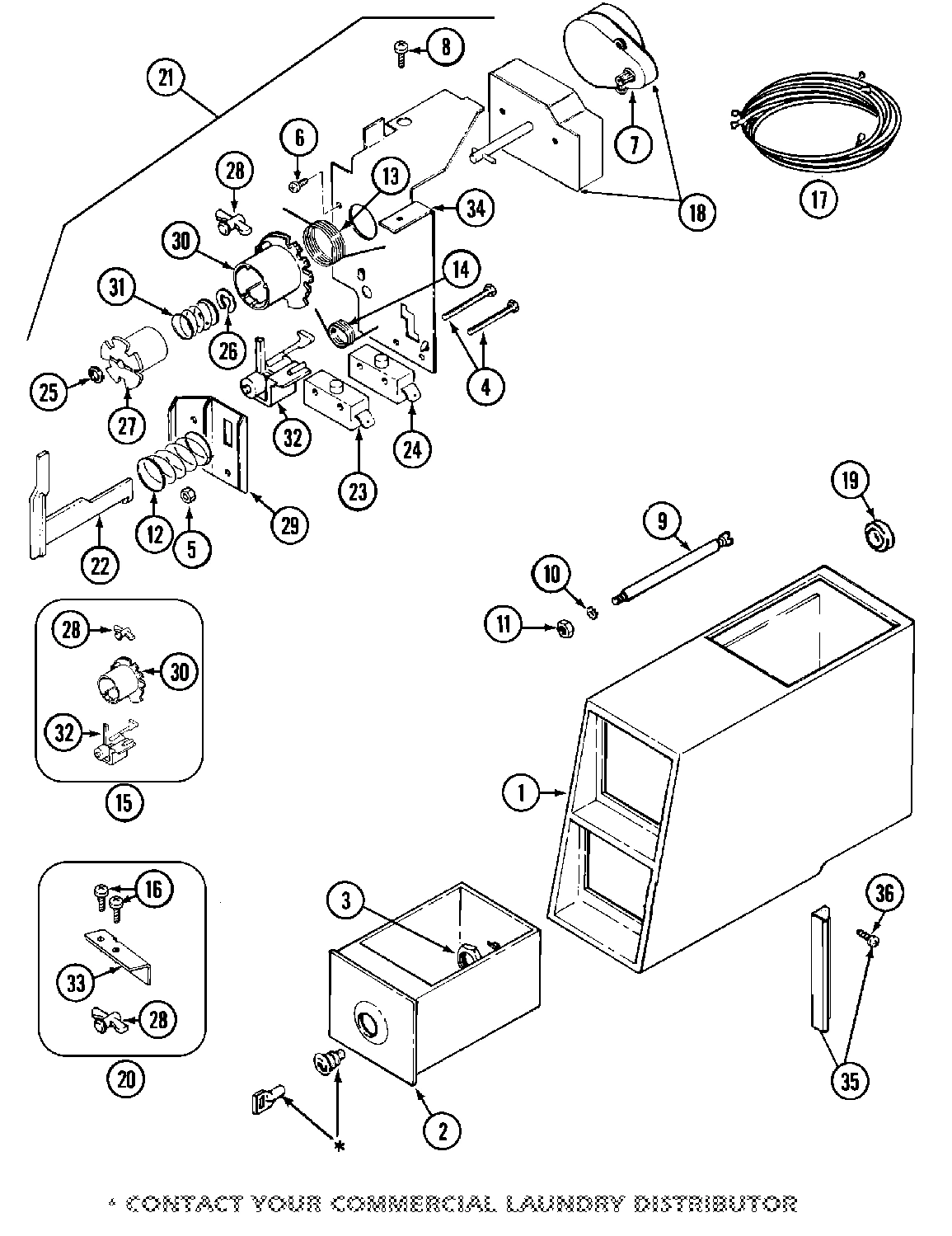

02 - CONTROL CENTER

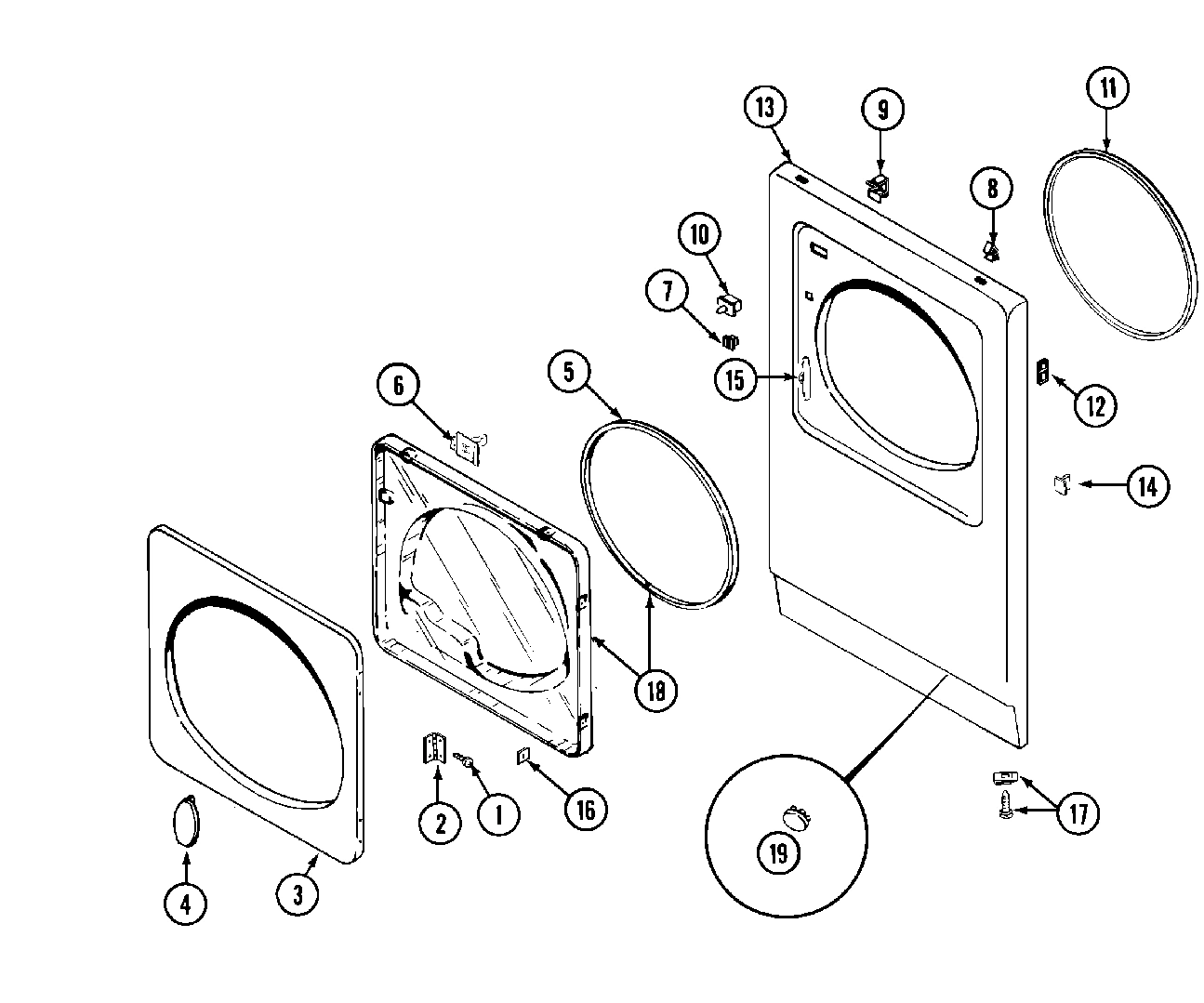

04 - DOOR
08 - MOTOR DRIVE

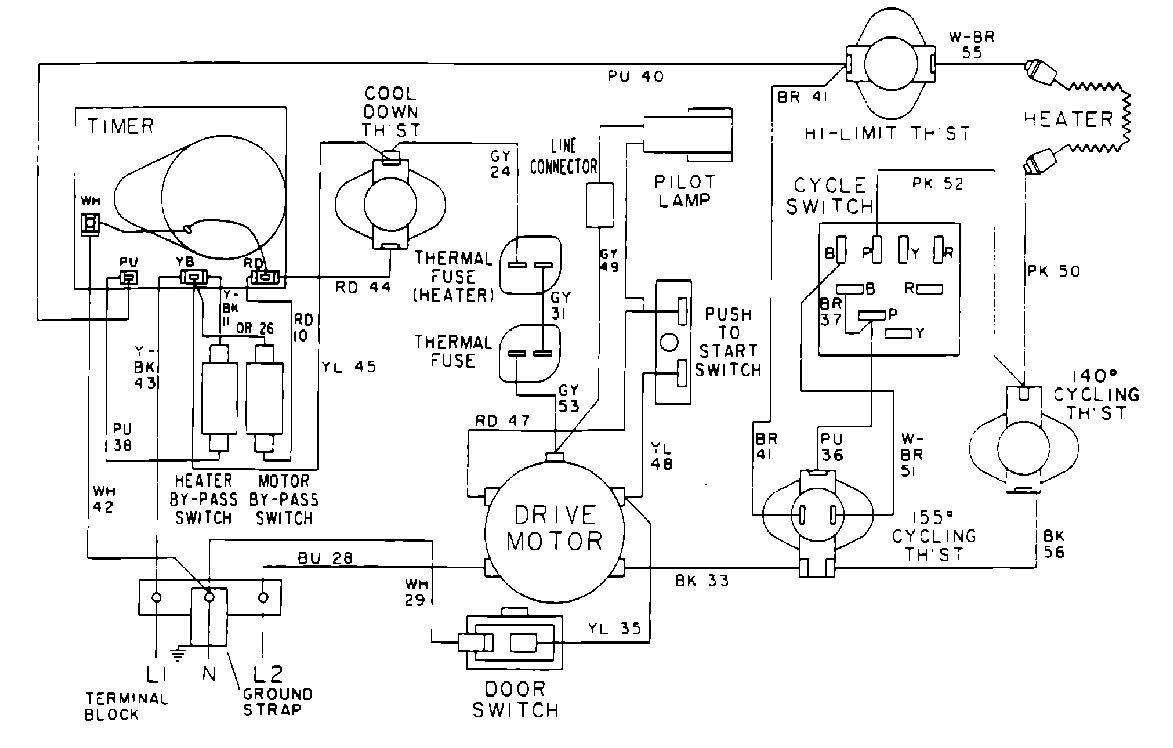

09 - WIRING INFORMATION

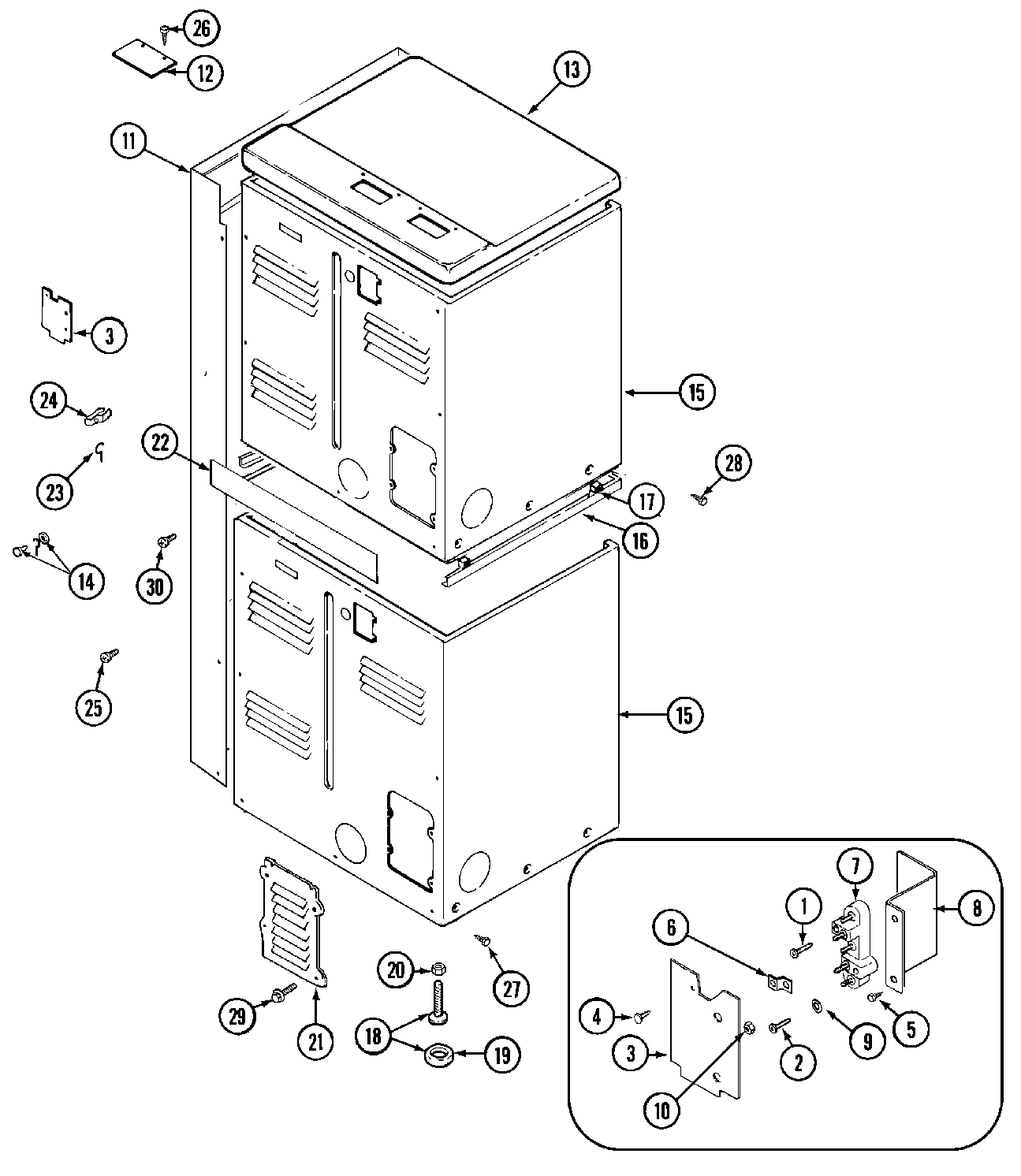

05 - REAR
Common parts from model Whirlpool MDE13CSACL ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
KNOB, SELECTOR SWITCH WPL 205663 Contact Us For Availability
001
CASE, COIN METER (WHT) WPL Y307081 Contact Us For Availability
001
SCREW, DOOR HINGE & PANEL WPL Y314062 Contact Us For Availability
002
DUCT, INLET WPL 308503 Contact Us For Availability
002
BOX, COIN (WHT) WPL 205423 Contact Us For Availability
002
(ALM) WPL 205423L Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
003
ENCLOSURE, HEATER WPL 314995 Contact Us For Availability
003
PANEL, OUTER (WHT) WPL 314967 Contact Us For Availability
003
COVER, TERMINAL WPL Y312905 Contact Us For Availability
004
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
004
HANDLE, DOOR (WHT) WPL 314939 Contact Us For Availability
004
(ALM) WPL 314974 Contact Us For Availability
004
SWITCH, CYCLE SELECTOR WPL 307253 Contact Us For Availability
004
SCREW, BY-PASS SWITCHES WPL 315277 Contact Us For Availability
005
BRACKET, SWITCH & RELAY WPL Y314261 Contact Us For Availability
005
SEAL, DOOR WPL 33001192 Contact Us For Availability
006
STRAP, GROUNDING WPL Y312184 Contact Us For Availability
007
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
007
NUT, SWITCH WPL Y312706 Contact Us For Availability
007
MOTOR, TIMER WPL 305870 Contact Us For Availability
007
MOTOR, TIMER WPL 306527 Contact Us For Availability
008
HEATER SUB-ASSEMBLY (208V) WPL Y308613 Contact Us For Availability
008
KNURLED NUT, START SWITCH WPL Y312702 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) WPL 306967 Contact Us For Availability
008
JUMPER WIRE, THERMOSTAT WPL 33001306 Contact Us For Availability
008
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
008
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
009
SHIELD, RADIANT WPL 314999 Contact Us For Availability
009
LIGHT, INDICATOR WPL 303963 Contact Us For Availability
009
BOLT, LOCKING WPL 215559 Contact Us For Availability
010
LOCKWASHER, LOCKING BOLT WPL 910387 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
SCREW, TOP DRYER WPL 314663 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
WASHER, BAFFLE WPL 314158 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
COVER, TOP (WHT) WPL 33001703 Contact Us For Availability
013
SPRING, TORSION RETURN WPL 314331 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
014
VAULT ASSEMBLY WPL 305534 Contact Us For Availability
014
SPRING, ACTUATOR WPL 314332 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
ACTUATOR KIT WPL 306104 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(ALM) WPL 33001176 Contact Us For Availability
015
MOTOR 240-50 WPL Y304656 Contact Us For Availability
016
STRAP, CABLE WPL 910768 Contact Us For Availability
016
(WHT) WPL 33001302 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
017
NAMEPLATE WPL 33001711 Contact Us For Availability
017
FASTENER, SPACER ASSEMBLY WPL 310933 Contact Us For Availability
017
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
017
WIRE HARNESS, TIMER WPL 305800 Contact Us For Availability
018
PANEL, CLEAR INNER (W/SEAL) WPL 33001203 Contact Us For Availability
018
TIMER WPL 305796 Contact Us For Availability
018
TIMER 240-50 WPL 305812 Contact Us For Availability
018
TIMER WPL 305813 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
019
GROMMET, CASE OPENING WPL Y313671 Contact Us For Availability
019
PLUG, FRONT PANEL (WHT) WPL 33001614 Contact Us For Availability
019
(ALM) WPL 33001615 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL 305186 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
PLATE, LATCH WPL 313428 Contact Us For Availability
021
TORSION TIMER ASSEMBLY WPL 305797 Contact Us For Availability
021
TORSION TIMER ASSEMBLY WPL 305831 Contact Us For Availability
021
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
023
GROUND WIRE, LATCH WPL Y303981 Contact Us For Availability
023
SWITCH, BY-PASS (MOTOR) WPL 305798 Contact Us For Availability
024
SWITCH, BY-PASS (HEATER) WPL Y305799 Contact Us For Availability
024
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
025
RETAINER, SPRING WPL 211790 Contact Us For Availability
026
CLIP, SPRING RETAINER WPL Y312270 Contact Us For Availability
027
DRIVER, INDEX WHEEL WPL 314330 Contact Us For Availability
028
SCREW, SPACER ASSEMBLY WPL NLA Contact Us For Availability
028
PEG, TIME ADJUSTMENT WPL 314335 Contact Us For Availability
029
BRACKET, SWITCH & SLIDER WPL 314339 Contact Us For Availability
030
SCREW, FILLER STRIP WPL Y310632 Contact Us For Availability
030
GROUND WIRE WPL 901220 Contact Us For Availability
030
WHEEL, INDEX WPL 314546 Contact Us For Availability
030
SCREW, FILLER STRIP WPL Y313561 Contact Us For Availability
032
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
033
BASE ASSEMBLY (LWR) WPL 306530 Contact Us For Availability
033
BRACKET, COIN SLIDE WPL 314334 Contact Us For Availability
033
(UPR) WPL Y307482 Contact Us For Availability
034
WIRE HARNESS, MAIN (UPR) WPL 33001515 Contact Us For Availability
034
(LWR) WPL 33001516 Contact Us For Availability
034
WIRE HARNESS, MAIN (LWR) WPL 33001558 Contact Us For Availability
034
(UPR) WPL 33001559 Contact Us For Availability
034
WIRE HARNESS, MAIN (UPR) WPL 33001564 Contact Us For Availability
034
(LWR) WPL 33001565 Contact Us For Availability
034
BRACKET, TIMER WPL 314333 Contact Us For Availability
036
SCREW, METER STOP WPL Y014872 Contact Us For Availability
038
WPL Y310376 WPL Y310376 Contact Us For Availability
039
WPL 315471 WPL 315471 Contact Us For Availability
040
WPL 410490 WPL 410490 Contact Us For Availability
042
WPL 315122 WPL 315122 Contact Us For Availability
× ![]()
