Model Maytag MDB8601AWB41 DISHWASHER – Common Parts & Diagrams

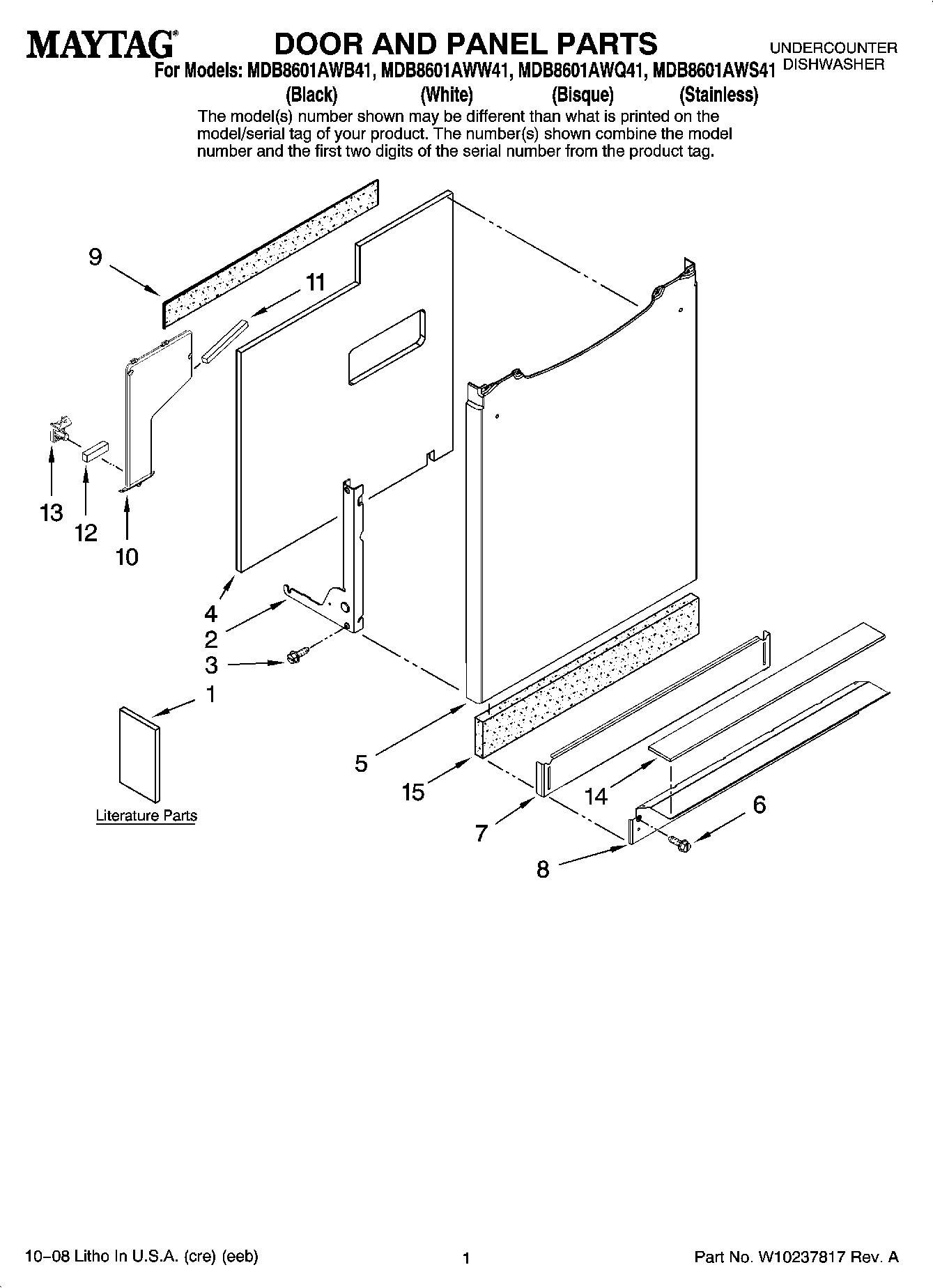

01 - DOOR AND PANEL PARTS

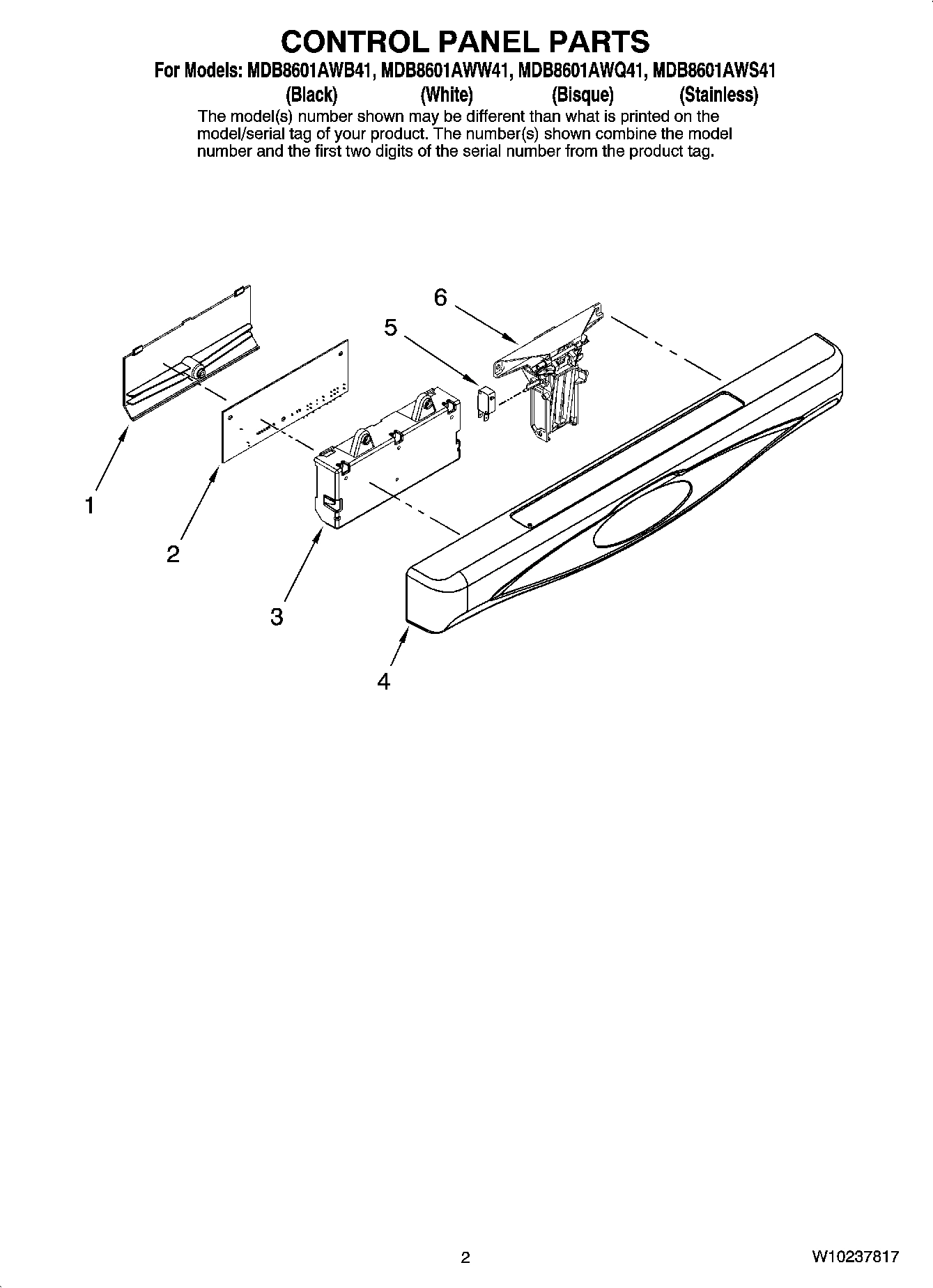

02 - CONTROL PANEL PARTS
03 - DOOR AND LATCH PARTS
04 - LOWER WASHARM PARTS
05 - HEATER PARTS
06 - FILL AND OVERFILL PARTS
07 - TUB AND FRAME PARTS
08 - PUMP AND MOTOR PARTS
09 - UPPER AND LOWER RACK PARTS
10 - UPPER WASH AND RINSE PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB8601AWB41 DISHWASHER
1
MAY 99002852 MAY 99002852 Contact Us For Availability
1
MAY 99002575 MAY 99002575 Contact Us For Availability
1
MAY 99003537 MAY 99003537 Contact Us For Availability
1
MAY W10119337 MAY W10119337 Contact Us For Availability
1
MAY 99002666 MAY 99002666 Contact Us For Availability
1
MAY W10121747 MAY W10121747 Contact Us For Availability
1
MAY W10243290 MAY W10243290 Contact Us For Availability
1
Feed Tube Assembly MAY 99002738 Contact Us For Availability
2
MAY 99002621 MAY 99002621 Contact Us For Availability
2
MAY W10218835 MAY W10218835 Contact Us For Availability
2
MAY W10169387 MAY W10169387 Contact Us For Availability
2
MAY 6-916881 MAY 6-916881 Contact Us For Availability
2
MAY 99002979 MAY 99002979 Contact Us For Availability
3
MAY 99002753 MAY 99002753 Contact Us For Availability
3
Seal, Air/Water Inlet MAY 99002186 Contact Us For Availability
3
MAY 99002576 MAY 99002576 Contact Us For Availability
3
MAY W10167918 MAY W10167918 Contact Us For Availability
3
MAY 99002640 MAY 99002640 Contact Us For Availability
3
Clip, Upper Wash Manifold (Front) MAY 99003072 Contact Us For Availability
4
Panel, Control (White) MAY 99003378 Contact Us For Availability
4
Panel, Control (Black) MAY 99003379 Contact Us For Availability
4
Panel, Control (Bisque) MAY 99003380 Contact Us For Availability
4
MAY 99003243 MAY 99003243 Contact Us For Availability
4
Switch, Float MAY W10130103 Contact Us For Availability
4
Discharge, Housing Assembly MAY 99003145 Contact Us For Availability
4
Station, Docking (with Flapper) MAY 99003143 Contact Us For Availability
5
Dispenser, Rinse Aid MAY 99003317 Contact Us For Availability
5
MAY 99002751 MAY 99002751 Contact Us For Availability
5
MAY 99002636 MAY 99002636 Contact Us For Availability
5
Wash Manifold (Upper) MAY 99003081 Contact Us For Availability
5
Wash Arm, Top (with Retainer) MAY 99002676 Contact Us For Availability
6
Arm, Wash (Upper) MAY 99002739 Contact Us For Availability
6
MAY 99001194 MAY 99001194 Contact Us For Availability
6
MAY 99002673 MAY 99002673 Contact Us For Availability
6
MAY W10130095 MAY W10130095 Contact Us For Availability
6
MAY 99003688 MAY 99003688 Contact Us For Availability
6
Filter/Flowplate Assembly MAY W10142622 Contact Us For Availability
7
MAY 99002645 MAY 99002645 Contact Us For Availability
7
MAY W10173920 MAY W10173920 Contact Us For Availability
7
MAY 99002663 MAY 99002663 Contact Us For Availability
7
MAY W10120550 MAY W10120550 Contact Us For Availability
8
MAY 99002608 MAY 99002608 Contact Us For Availability
8
MAY W10170234 MAY W10170234 Contact Us For Availability
9
MAY 99003687 MAY 99003687 Contact Us For Availability
9
MAY W10120019 MAY W10120019 Contact Us For Availability
9
MAY W10169390 MAY W10169390 Contact Us For Availability
10
MAY 99002598 MAY 99002598 Contact Us For Availability
10
MAY 912615 MAY 912615 Contact Us For Availability
10
MAY 99003697 MAY 99003697 Contact Us For Availability
10
Basket, Silverware MAY 99002697 Contact Us For Availability
11
MAY 99002668 MAY 99002668 Contact Us For Availability
12
Shelf,Cup Upper MAY 99002671 Contact Us For Availability
12
MAY 99003427 MAY 99003427 Contact Us For Availability
13
MAY 99002588 MAY 99002588 Contact Us For Availability
13
Wash Motor Assy. MAY W10200518 Contact Us For Availability
14
MAY W10142297 MAY W10142297 Contact Us For Availability
14
MAY 99003309 MAY 99003309 Contact Us For Availability
15
MAY 99002633 MAY 99002633 Contact Us For Availability
15
MAY 99002857 MAY 99002857 Contact Us For Availability
16
MAY 99002740 MAY 99002740 Contact Us For Availability
16
MAY 99002634 MAY 99002634 Contact Us For Availability
17
MAY 99002692 MAY 99002692 Contact Us For Availability
17
MAY 99003141 MAY 99003141 Contact Us For Availability
18
MAY 99002637 MAY 99002637 Contact Us For Availability
18
MAY W10167912 MAY W10167912 Contact Us For Availability
19
MAY 99002665 MAY 99002665 Contact Us For Availability
19
MAY W10143258 MAY W10143258 Contact Us For Availability
20
Strip,Trim Left MAY W10164706 Contact Us For Availability
20
MAY 99002601 MAY 99002601 Contact Us For Availability
21
MAY 6-916711 MAY 6-916711 Contact Us For Availability
22
MAY W10137495 MAY W10137495 Contact Us For Availability
22
MAY W10137496 MAY W10137496 Contact Us For Availability
23
MAY 99002761 MAY 99002761 Contact Us For Availability
23
MAY 99002762 MAY 99002762 Contact Us For Availability
24
MAY W10164698 MAY W10164698 Contact Us For Availability
25
Strip, Trim Right MAY W10164707 Contact Us For Availability
27
MAY 6-912799 MAY 6-912799 Contact Us For Availability
28
Gap Seal, Toe Kick (Black) MAY W10163633 Contact Us For Availability
28
Gap Seal, Toe Kick (Bisque) MAY W10163634 Contact Us For Availability
28
Gap Seal, Toe Kick (White) MAY W10163635 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4396277 MAY 4396277 Contact Us For Availability
NI
KIT, INSTALLATION (INCLUDES 6 FT. FILL HOSE A MAY 4396897RP Contact Us For Availability
NI
MAY 4396897RW MAY 4396897RW Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 8212486 MAY 8212486 Contact Us For Availability
NI
KIT INSTALLATION (INCLUDES POWER CORD, 6 FT. MAY 8212488RC Contact Us For Availability
× ![]()
