Model Maytag MB2227PEHB REFRIGERATOR – Common Parts & Diagrams

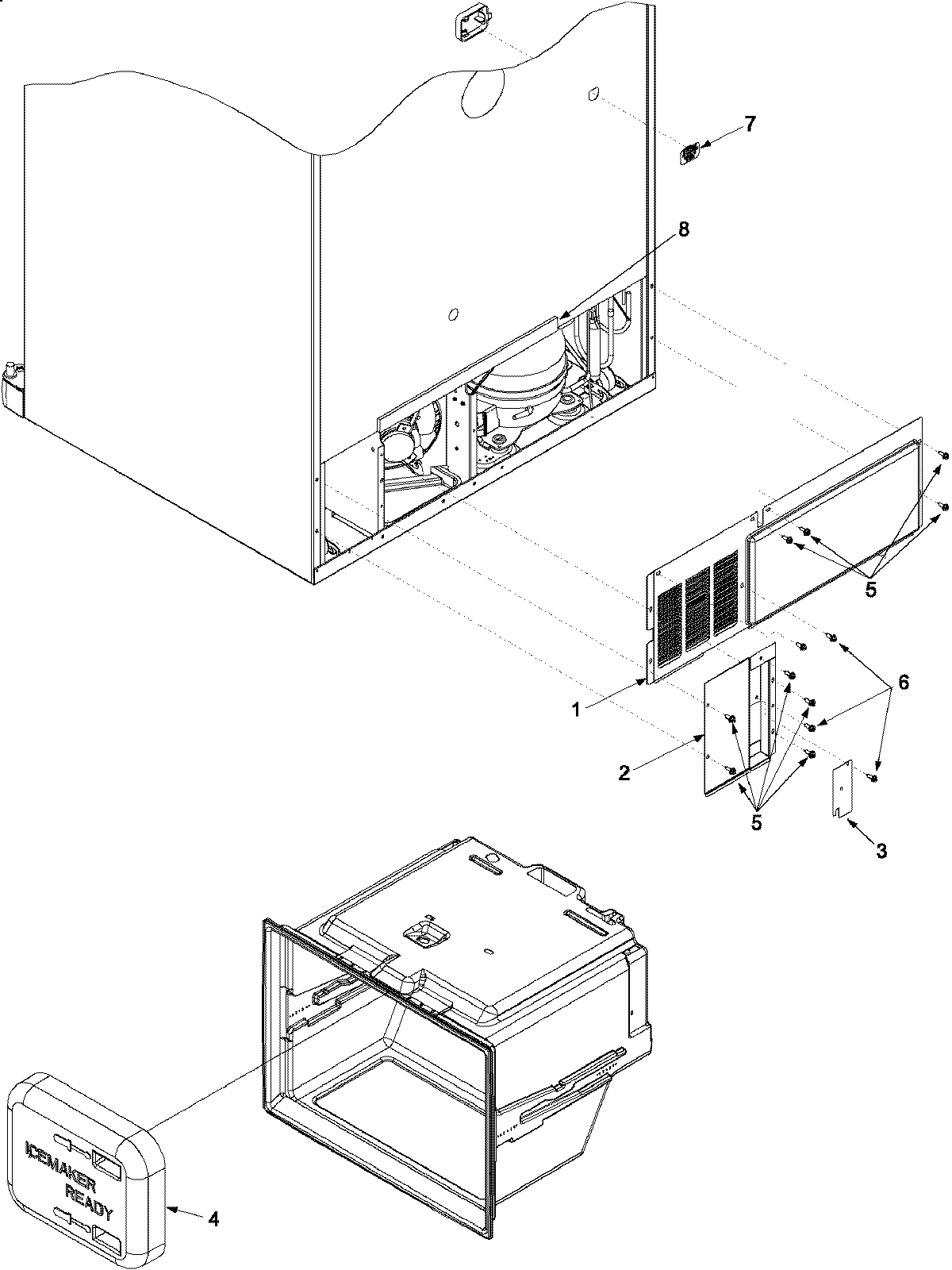

01 - CABINET BACK

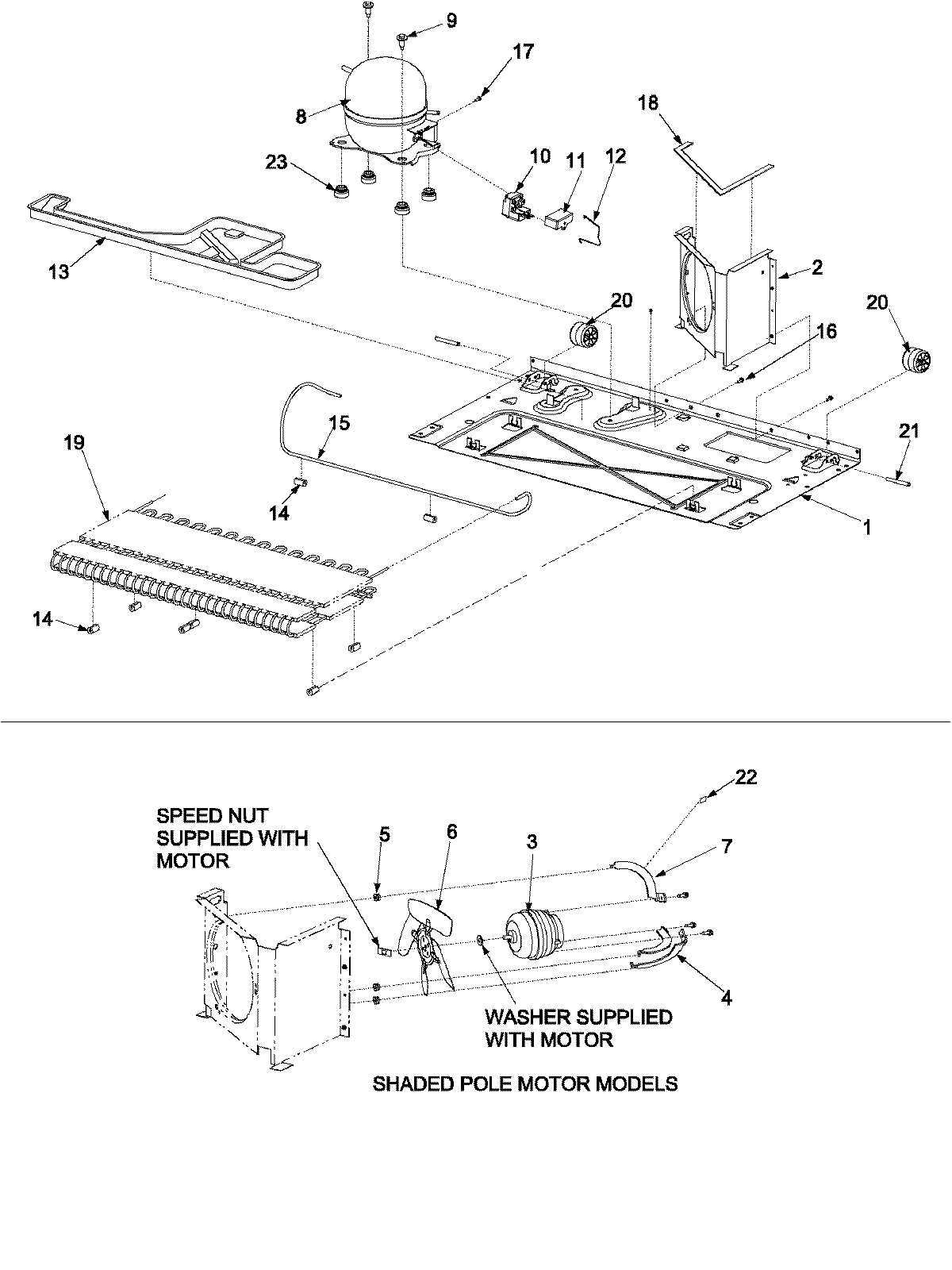

02 - COMPRESSOR
03 - CONTROLS
04 - EVAPORATOR AREA & ROLLERS

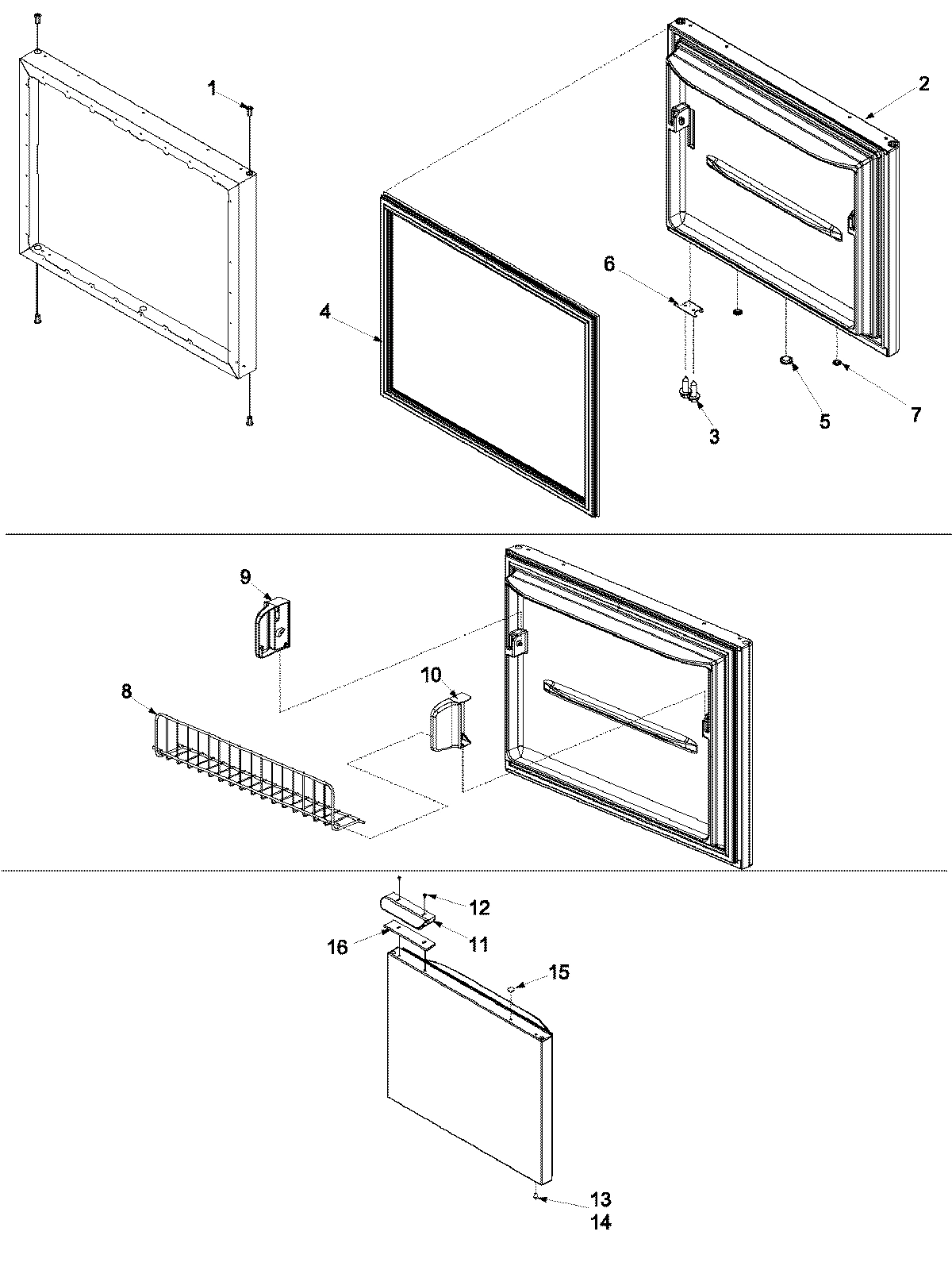

05 - FREEZER DOOR

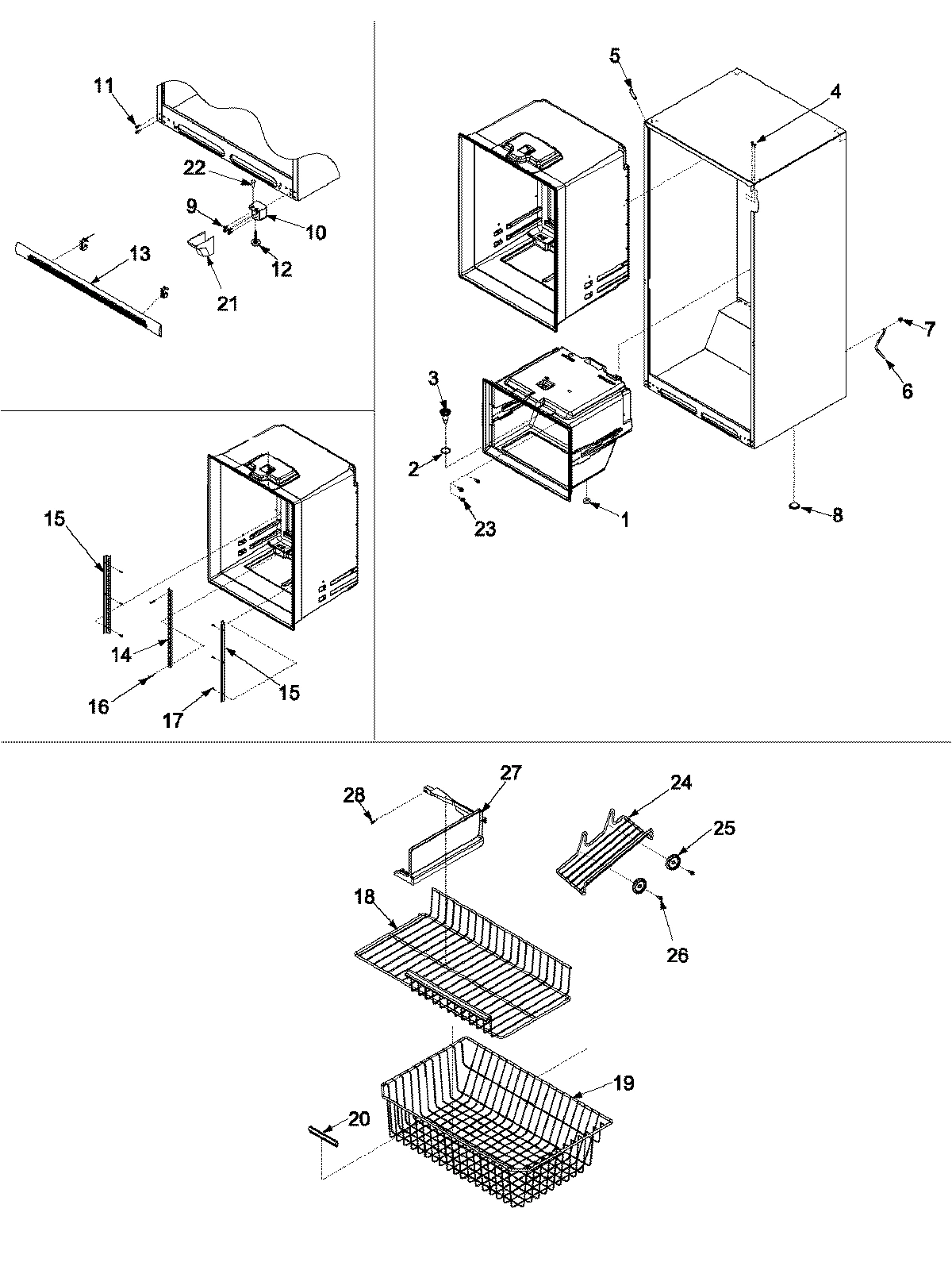

06 - INTERIOR CABINET & FREEZER SHELVING
07 - OPTIONAL ICE MAKER KIT- IC511 P1328006W

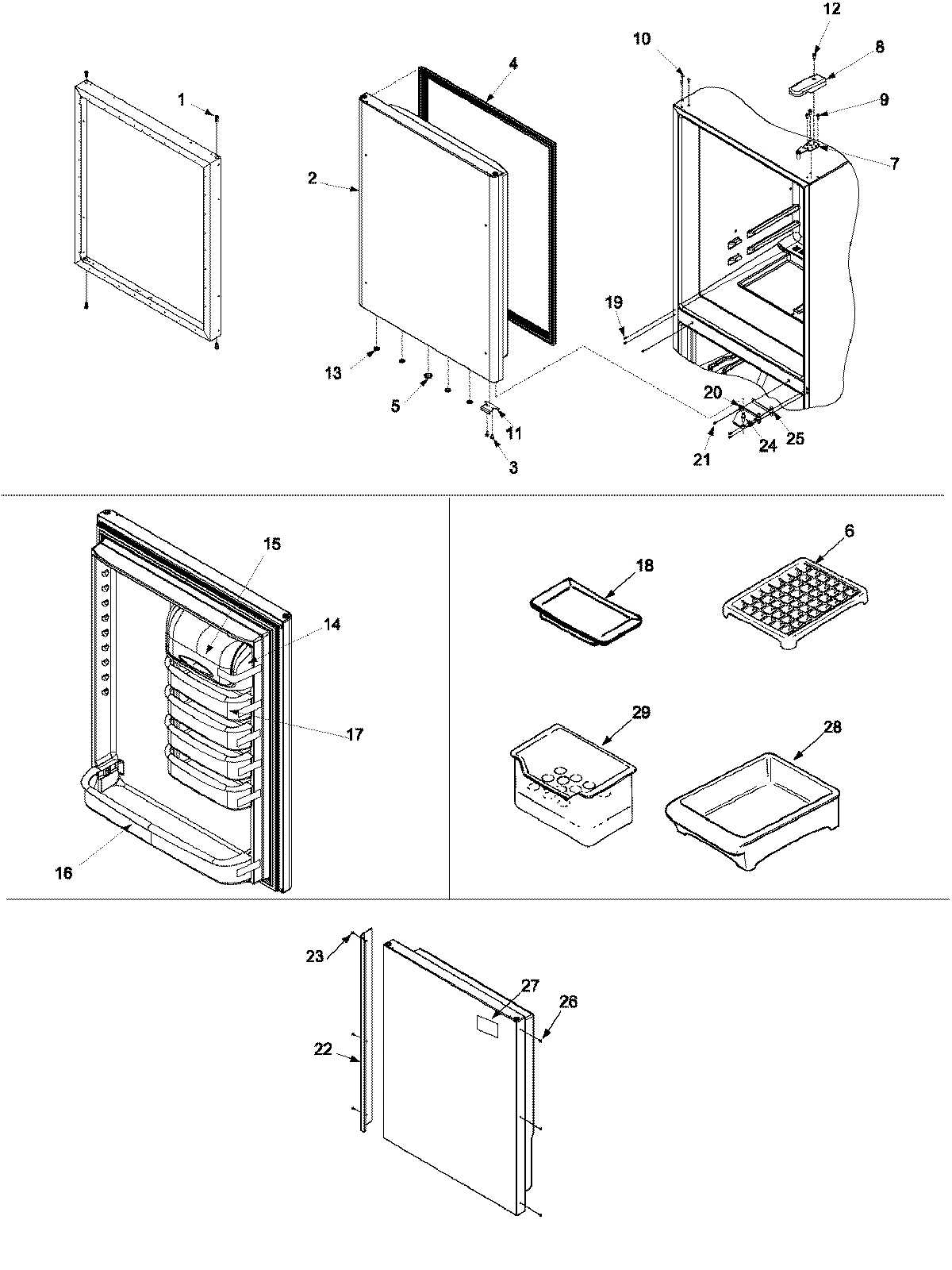

08 - REFRIGERATOR DOOR

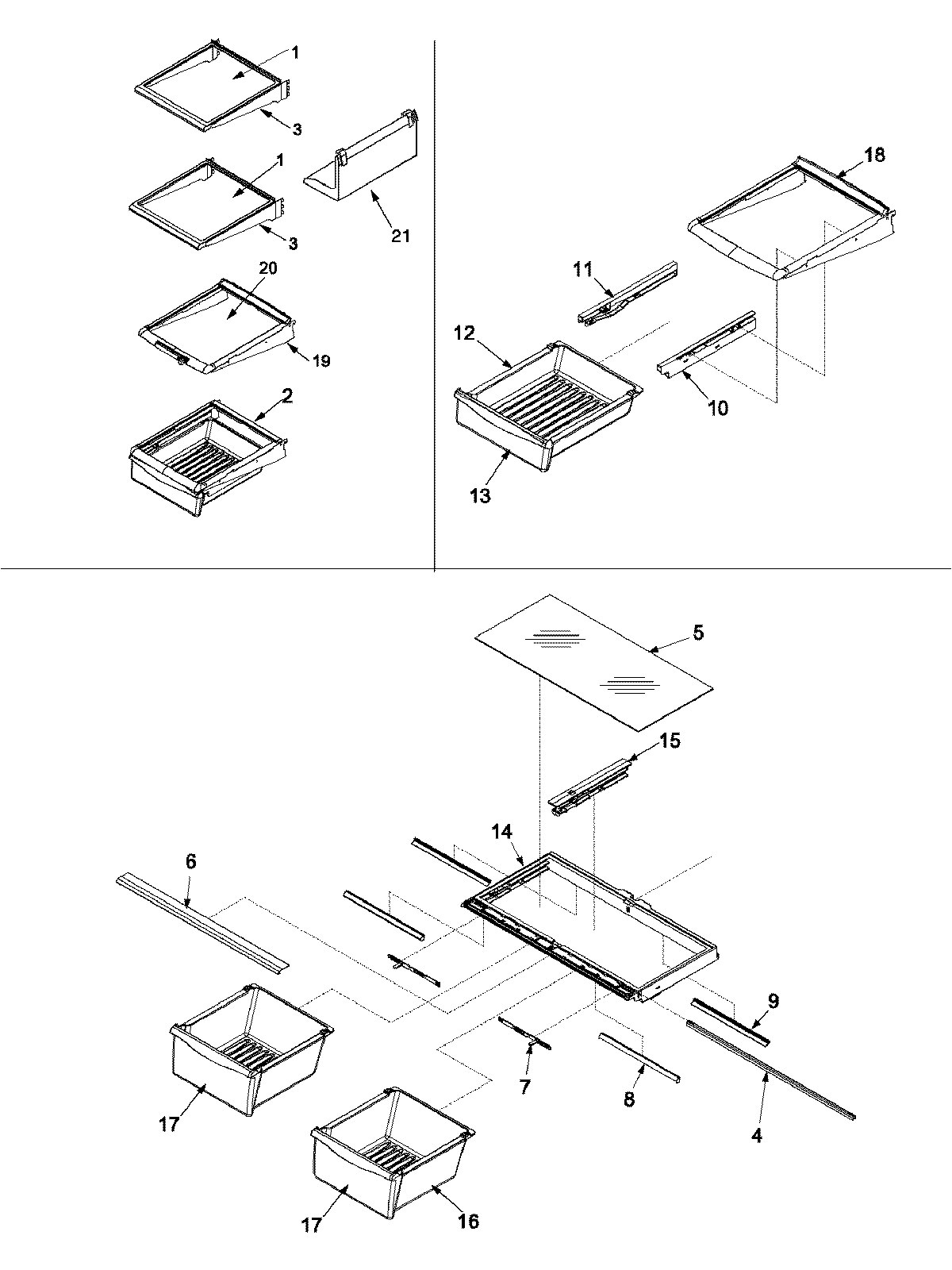

09 - REFRIGERATOR SHELVING
10 - SUPPLEMENTAL INFORMATION

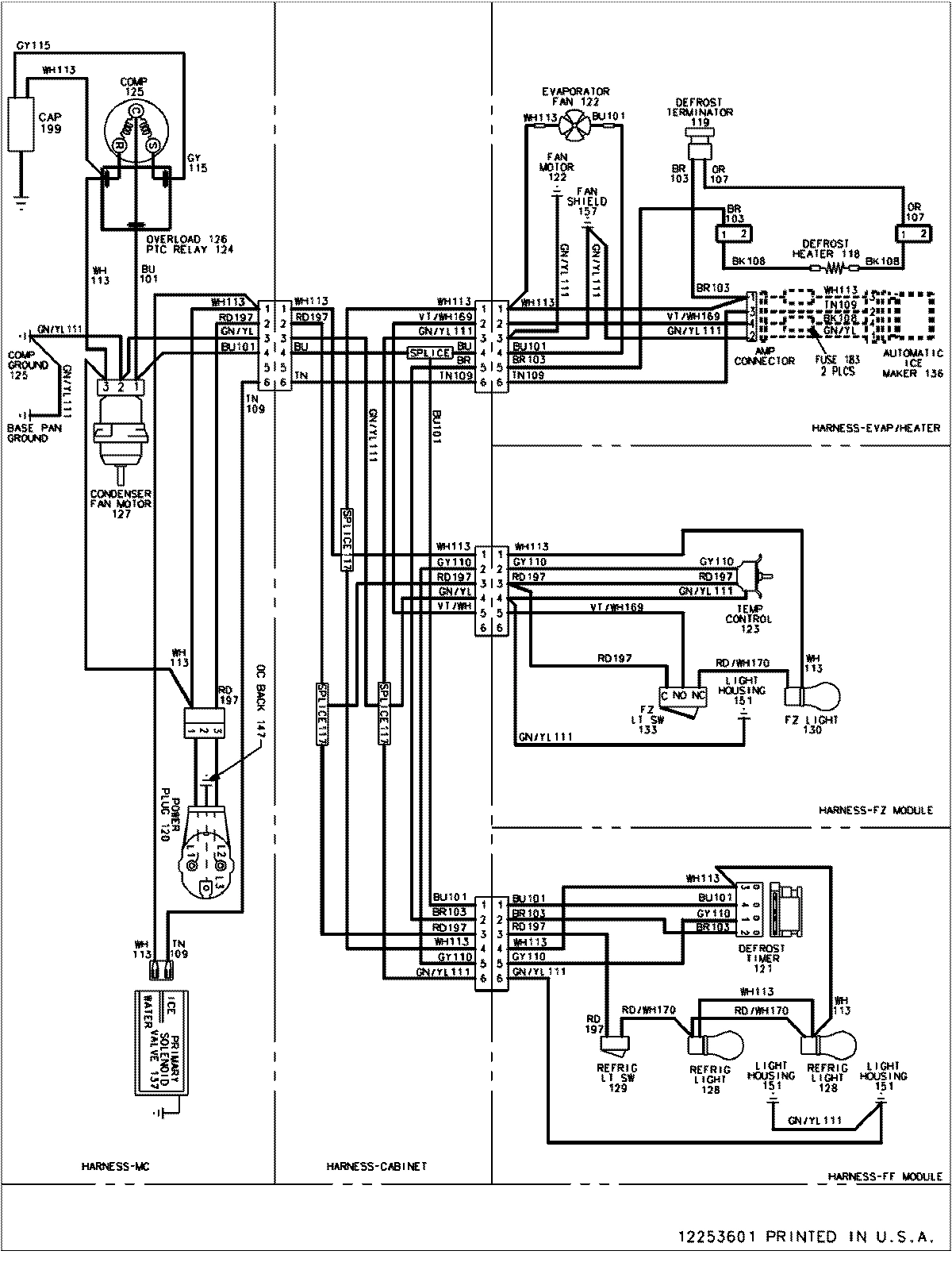

11 - WIRING INFORMATION
Common parts from model Maytag MB2227PEHB REFRIGERATOR
1
MAY C3680310 MAY C3680310 Contact Us For Availability
1
MAY 10961002 MAY 10961002 Contact Us For Availability
1
MAY 67003058 MAY 67003058 Contact Us For Availability
1
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
1
MAY 61002572 MAY 61002572 Contact Us For Availability
1
MAY 67004431 MAY 67004431 Contact Us For Availability
2
MAY 67002083 MAY 67002083 Contact Us For Availability
2
TRAY, DRIP E-CT MAY 67001080 Contact Us For Availability
2
MAY 67002589 MAY 67002589 Contact Us For Availability
2
SEAL, O RING MAY M0500703 Contact Us For Availability
2
MAY 67003167 MAY 67003167 Contact Us For Availability
2
MAY 67002440 MAY 67002440 Contact Us For Availability
2
MAY 16021685 MAY 16021685 Contact Us For Availability
3
COVER, REF LIGHT MAY 67002301 Contact Us For Availability
3
MAY 10623002 MAY 10623002 Contact Us For Availability
3
MAY M0211533 MAY M0211533 Contact Us For Availability
3
MAY D7753903 MAY D7753903 Contact Us For Availability
3
MAY 61005964 MAY 61005964 Contact Us For Availability
3
MAY 67002560 MAY 67002560 Contact Us For Availability
4
MAY 67002438 MAY 67002438 Contact Us For Availability
4
MAY 67001081 MAY 67001081 Contact Us For Availability
4
MAY A4539607 MAY A4539607 Contact Us For Availability
5
PAN, TIMER/LIGHT HOUSING MAY 67002085 Contact Us For Availability
5
MAY 67002529 MAY 67002529 Contact Us For Availability
5
MAY A3080001 MAY A3080001 Contact Us For Availability
5
MAY 12587702B MAY 12587702B Contact Us For Availability
5
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
6
MAY 67001066 MAY 67001066 Contact Us For Availability
6
MAY 67002441 MAY 67002441 Contact Us For Availability
7
ROLLER BRACKET ASSY MAY 67002227 Contact Us For Availability
7
SCREW MAY 95106-1 Contact Us For Availability
8
MAY 67002051 MAY 67002051 Contact Us For Availability
8
SPRING, ANTI KINK MAY A1055105 Contact Us For Availability
8
MAY 67001063 MAY 67001063 Contact Us For Availability
9
MAY M0260242 MAY M0260242 Contact Us For Availability
9
END CAP, FZ DR BSKT MAY 67001026 Contact Us For Availability
9
MAY M0241508 MAY M0241508 Contact Us For Availability
9
MAY 67002250 MAY 67002250 Contact Us For Availability
9
MAY M0238731 MAY M0238731 Contact Us For Availability
10
GROMMET, SCREW MAY M0580205 Contact Us For Availability
10
END CAP, FZ DR BSKT MAY 67001027 Contact Us For Availability
10
HINGE, BOTTOM E-CT (BLK) MAY 67001068 Contact Us For Availability
10
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
10
PLUG, TOP HINGE BUTTON (BLK) MAY M0310731 Contact Us For Availability
11
DRIER MAY B2150504 Contact Us For Availability
11
MAY 10447109 MAY 10447109 Contact Us For Availability
11
MAY M0233847 MAY M0233847 Contact Us For Availability
11
MAY B5705323 MAY B5705323 Contact Us For Availability
11
MAY 61002304 MAY 61002304 Contact Us For Availability
12
MAY 67002189 MAY 67002189 Contact Us For Availability
12
MAY 67002167 MAY 67002167 Contact Us For Availability
12
MAY 10354001 MAY 10354001 Contact Us For Availability
13
MAY M0216705 MAY M0216705 Contact Us For Availability
13
DAM, LEFT RETURN MAY 67001083 Contact Us For Availability
13
MAY 10200801 MAY 10200801 Contact Us For Availability
13
MAY 61002676 MAY 61002676 Contact Us For Availability
14
MAY 67001037 MAY 67001037 Contact Us For Availability
14
DAM, RIGHT RETURN MAY 67001084 Contact Us For Availability
14
MAY 67002108 MAY 67002108 Contact Us For Availability
14
MAY 67002462 MAY 67002462 Contact Us For Availability
14
ICE MAKER ASSY. (220V-50HZ)x MAY D7846305 Contact Us For Availability
15
MAY 67001038 MAY 67001038 Contact Us For Availability
15
MAY 67002558 MAY 67002558 Contact Us For Availability
15
MAY 67002463 MAY 67002463 Contact Us For Availability
15
MAY 67002248 MAY 67002248 Contact Us For Availability
16
MAY 67002439 MAY 67002439 Contact Us For Availability
16
MAY 67002468 MAY 67002468 Contact Us For Availability
16
MAY M0231425 MAY M0231425 Contact Us For Availability
16
MAY B8391802 MAY B8391802 Contact Us For Availability
16
SHIELD, ICE MAKER MAY D7846203 Contact Us For Availability
16
RETAINER, DOOR MAY 67001748 Contact Us For Availability
17
MAY 67001040 MAY 67001040 Contact Us For Availability
17
SHROUD, EVAP FAN MAY 67001086 Contact Us For Availability
17
SCREW, SM MAY M0238642 Contact Us For Availability
17
MAY 67001020 MAY 67001020 Contact Us For Availability
17
MAY 67002442 MAY 67002442 Contact Us For Availability
18
MAY 61005752 MAY 61005752 Contact Us For Availability
18
MAY 67001041 MAY 67001041 Contact Us For Availability
18
MAY 10449509 MAY 10449509 Contact Us For Availability
18
MAY 67001076 MAY 67001076 Contact Us For Availability
18
NUT, SLEEVE MAY M0753001 Contact Us For Availability
18
MAY 29936-2 MAY 29936-2 Contact Us For Availability
19
MAY 67001093 MAY 67001093 Contact Us For Availability
19
MAY 67001042 MAY 67001042 Contact Us For Availability
19
MAY 12217805 MAY 12217805 Contact Us For Availability
19
MAY 67001077 MAY 67001077 Contact Us For Availability
19
MAY 61005403 MAY 61005403 Contact Us For Availability
20
MAY M0211018 MAY M0211018 Contact Us For Availability
20
MAY 12619301 MAY 12619301 Contact Us For Availability
20
MAY 67002361 MAY 67002361 Contact Us For Availability
20
MAY 95108-1 MAY 95108-1 Contact Us For Availability
20
MAY 61004709 MAY 61004709 Contact Us For Availability
21
COVER, LWR HINGE (BLK) MAY 12561901B Contact Us For Availability
21
COVER, FZ LIGHT MAY 67001285 Contact Us For Availability
21
MAY 12217201 MAY 12217201 Contact Us For Availability
21
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
21
MAY M0226233 MAY M0226233 Contact Us For Availability
21
RACK, BOTTLE MAY 10448903 Contact Us For Availability
22
MAY 67001096 MAY 67001096 Contact Us For Availability
22
MODULE, FZ CONTROL MAY 67001286 Contact Us For Availability
22
PLUG, BUTTON (WHT) MAY M0310343 Contact Us For Availability
22
MAY M0114003 MAY M0114003 Contact Us For Availability
22
MAY 67002059 MAY 67002059 Contact Us For Availability
22
MAY 67002645 MAY 67002645 Contact Us For Availability
23
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
23
PANEL, FZ CONTROL MOUNTING MAY 67001045 Contact Us For Availability
23
MAY M0238616 MAY M0238616 Contact Us For Availability
23
MAY 67001693 MAY 67001693 Contact Us For Availability
23
MAY 10244905 MAY 10244905 Contact Us For Availability
24
MAY 67002586 MAY 67002586 Contact Us For Availability
24
MAY M0286708 MAY M0286708 Contact Us For Availability
24
MAY 67002419 MAY 67002419 Contact Us For Availability
24
MAY 10351001 MAY 10351001 Contact Us For Availability
25
MAY 67002553 MAY 67002553 Contact Us For Availability
25
MAY 10450602 MAY 10450602 Contact Us For Availability
25
SHIM, NON METAL (BLK) MAY M0274062 Contact Us For Availability
25
MAY 10972101 MAY 10972101 Contact Us For Availability
26
MAY 67001035 MAY 67001035 Contact Us For Availability
26
MAY M1205302 MAY M1205302 Contact Us For Availability
26
MAY M0230919 MAY M0230919 Contact Us For Availability
27
MAY 67002551 MAY 67002551 Contact Us For Availability
27
MAY 10547002 MAY 10547002 Contact Us For Availability
27
MAY 67001723 MAY 67001723 Contact Us For Availability
27
MAY 61003875 MAY 61003875 Contact Us For Availability
28
MAY 67002525 MAY 67002525 Contact Us For Availability
28
MAY 67001310 MAY 67001310 Contact Us For Availability
28
MAY 61002267 MAY 61002267 Contact Us For Availability
29
MAY 12466101 MAY 12466101 Contact Us For Availability
29
MAY 67215-2 MAY 67215-2 Contact Us For Availability
30
MAY 67002532 MAY 67002532 Contact Us For Availability
30
MAY 67002559 MAY 67002559 Contact Us For Availability
31
MAY 67002554 MAY 67002554 Contact Us For Availability
NI
MAY 15003138 MAY 15003138 Contact Us For Availability
× ![]()
