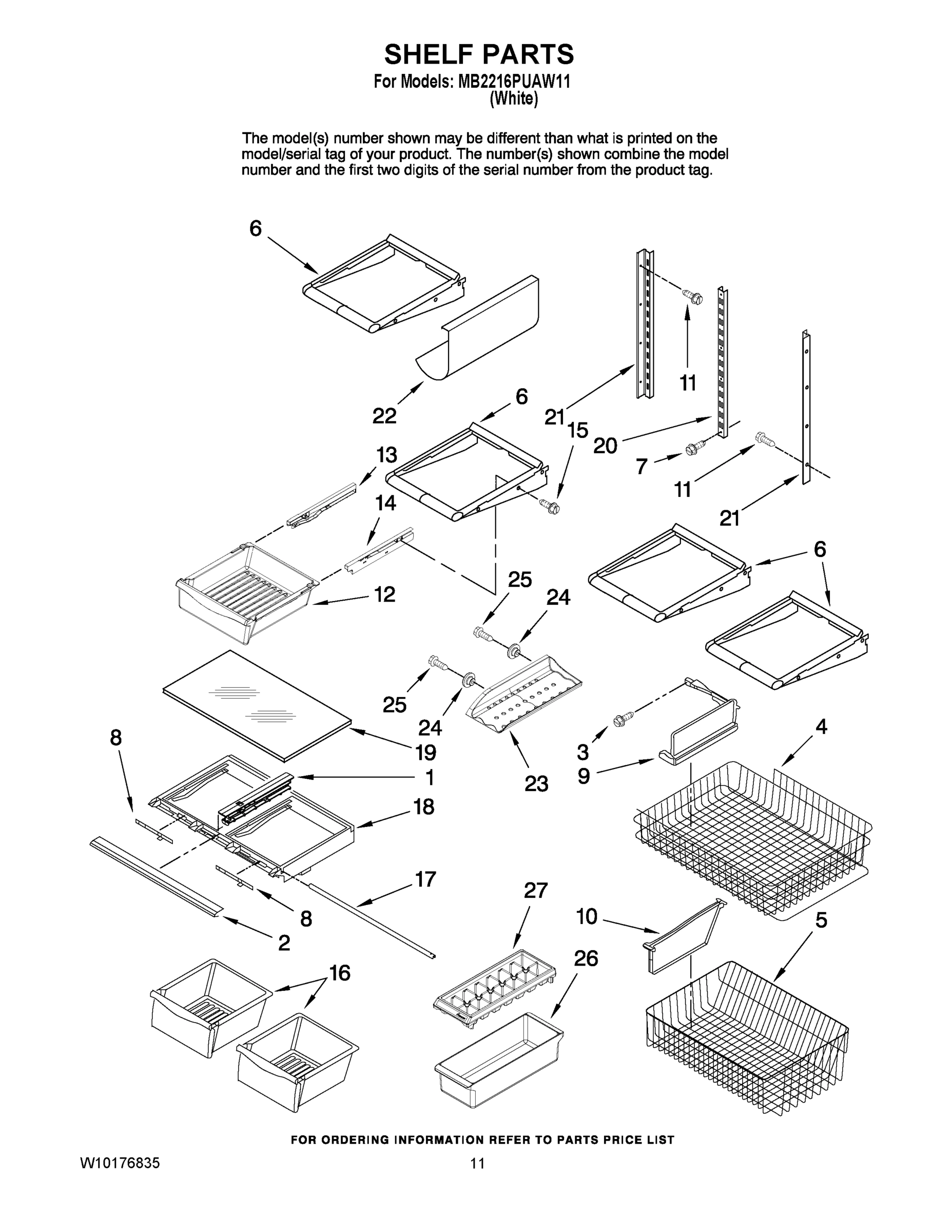

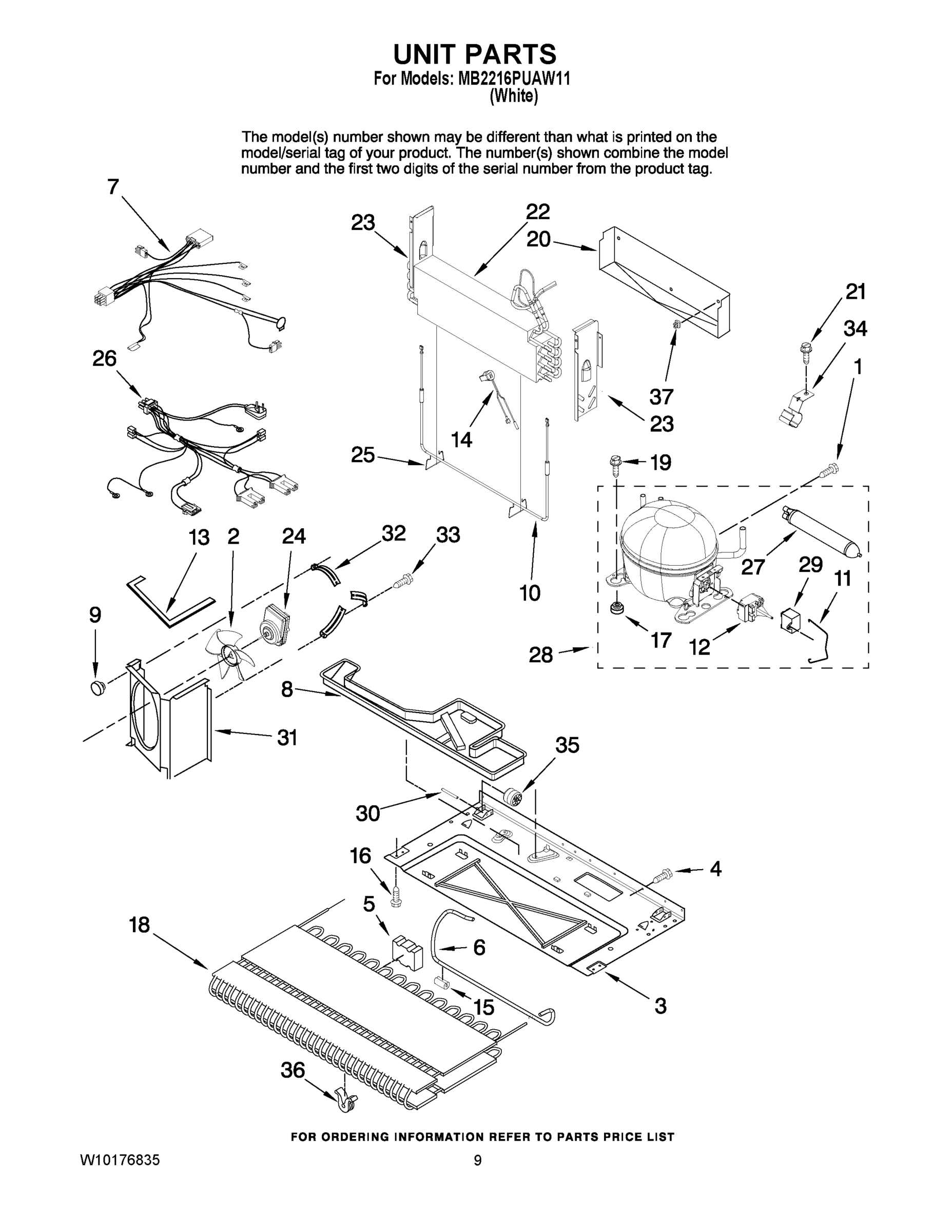

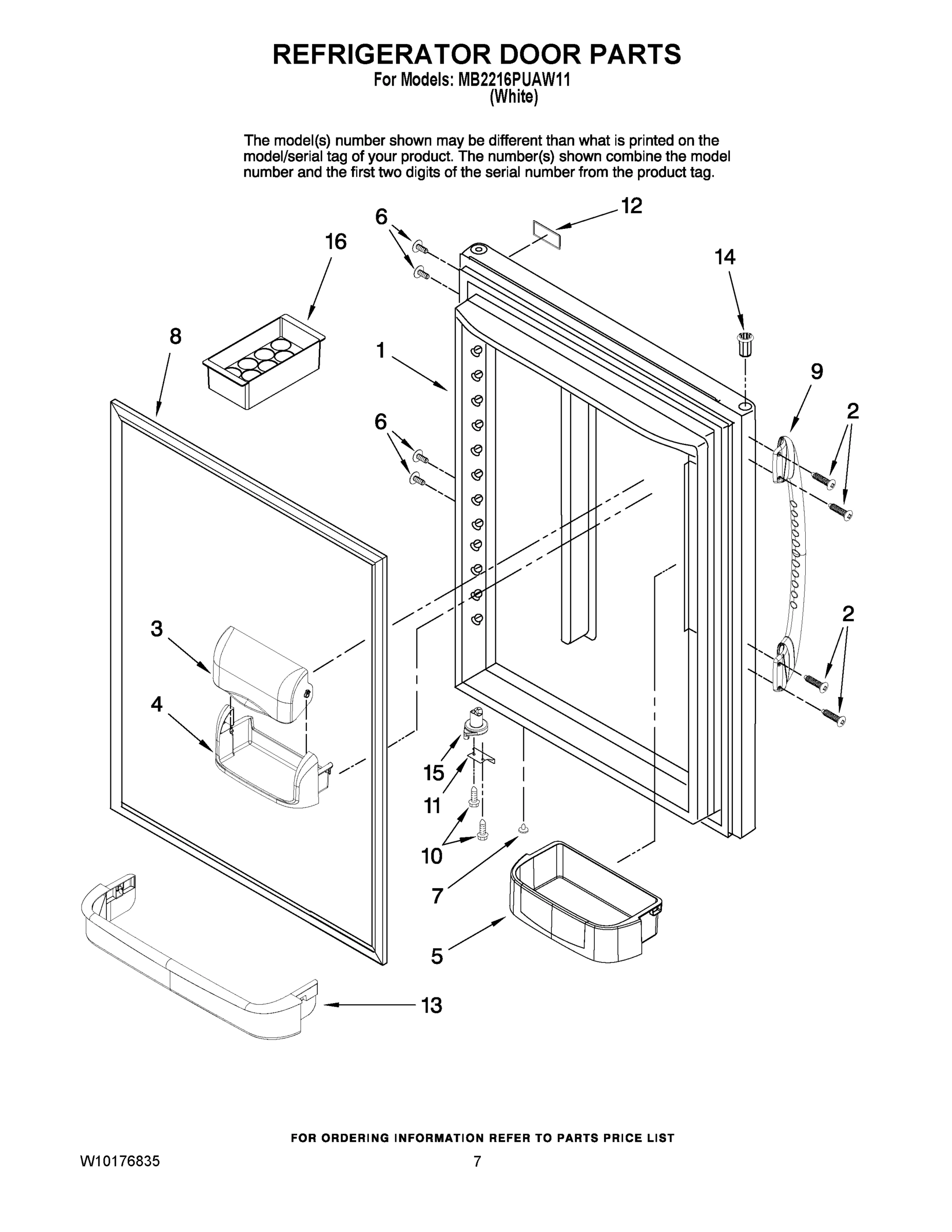

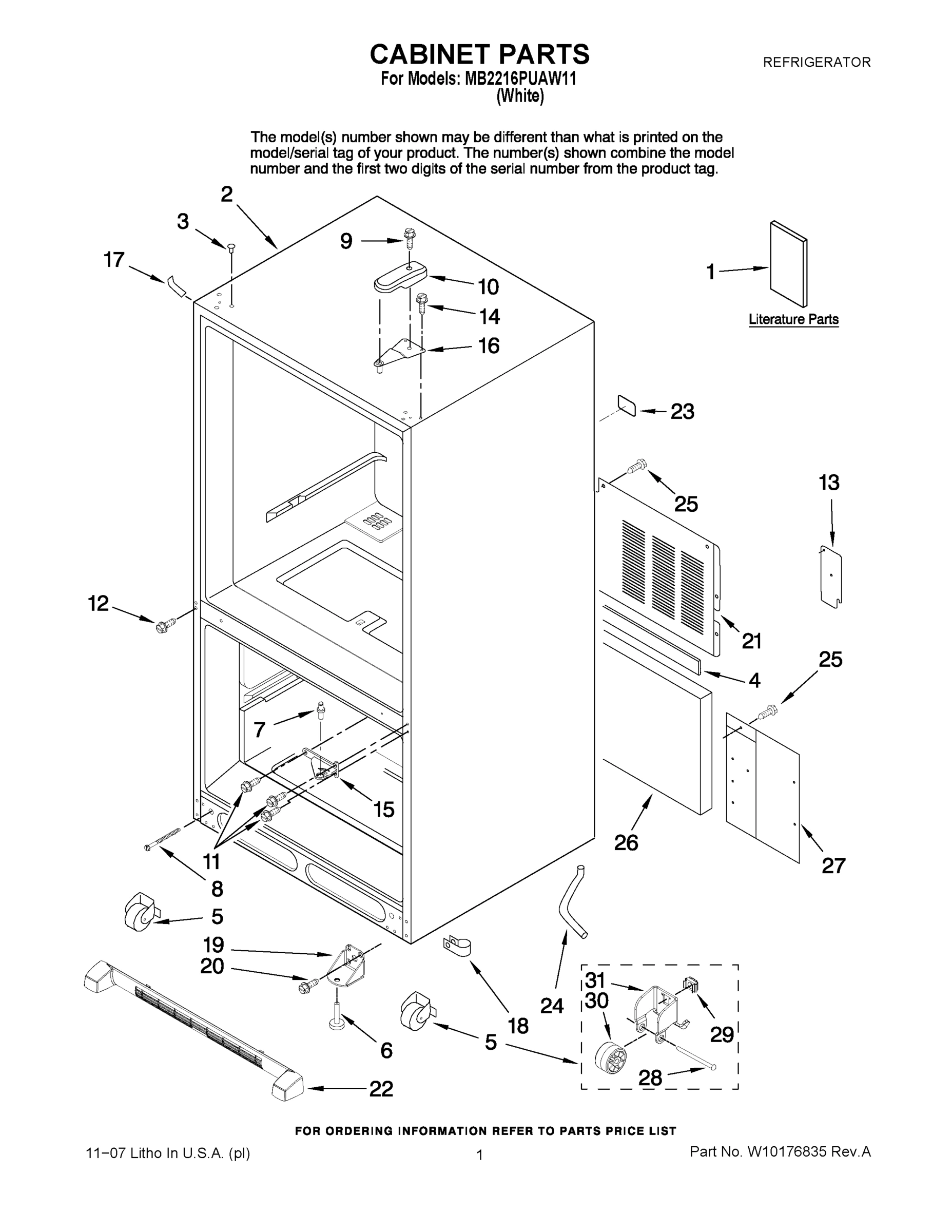

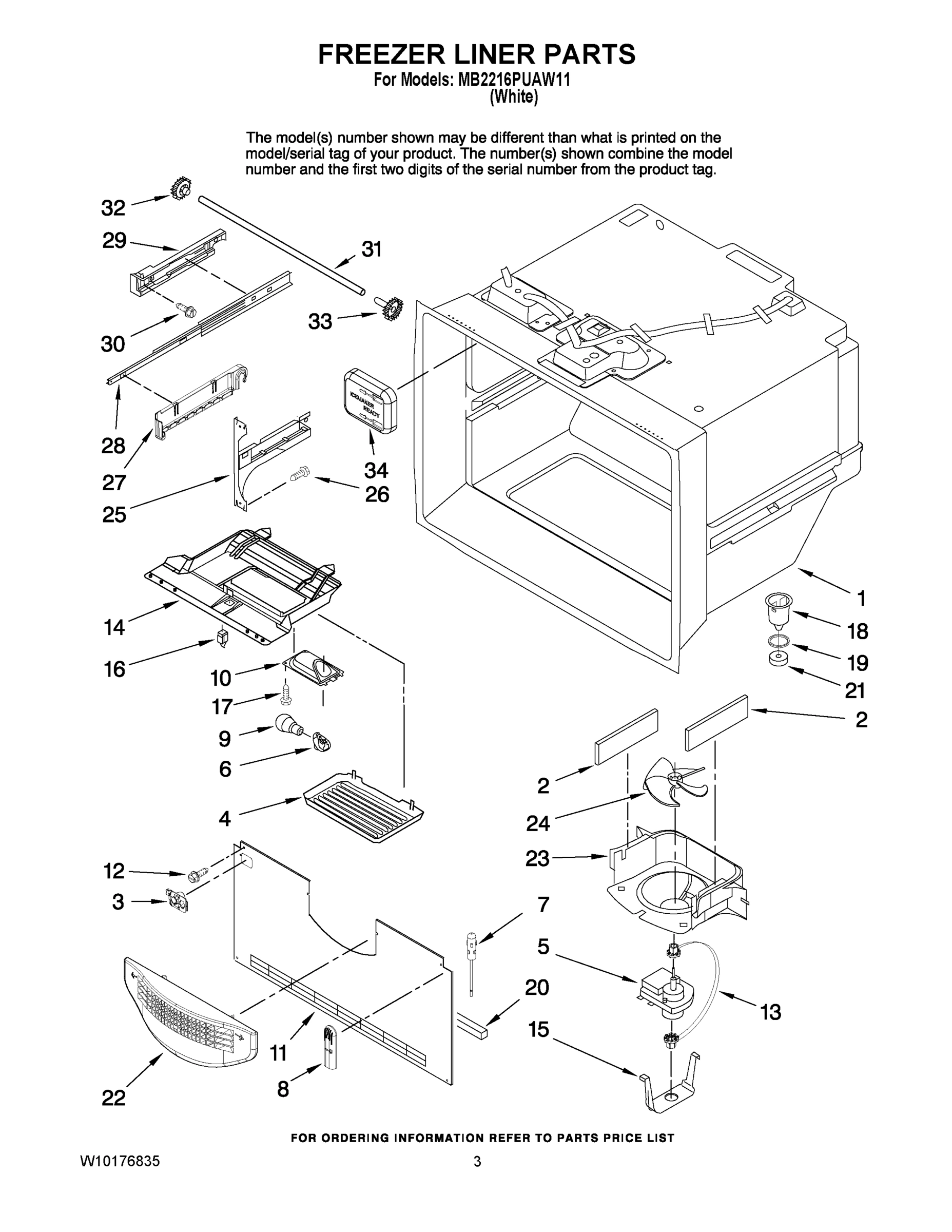

Model Whirlpool MB2216PUAW11 REFRIGERATOR – Common Parts &amp; Diagrams

1

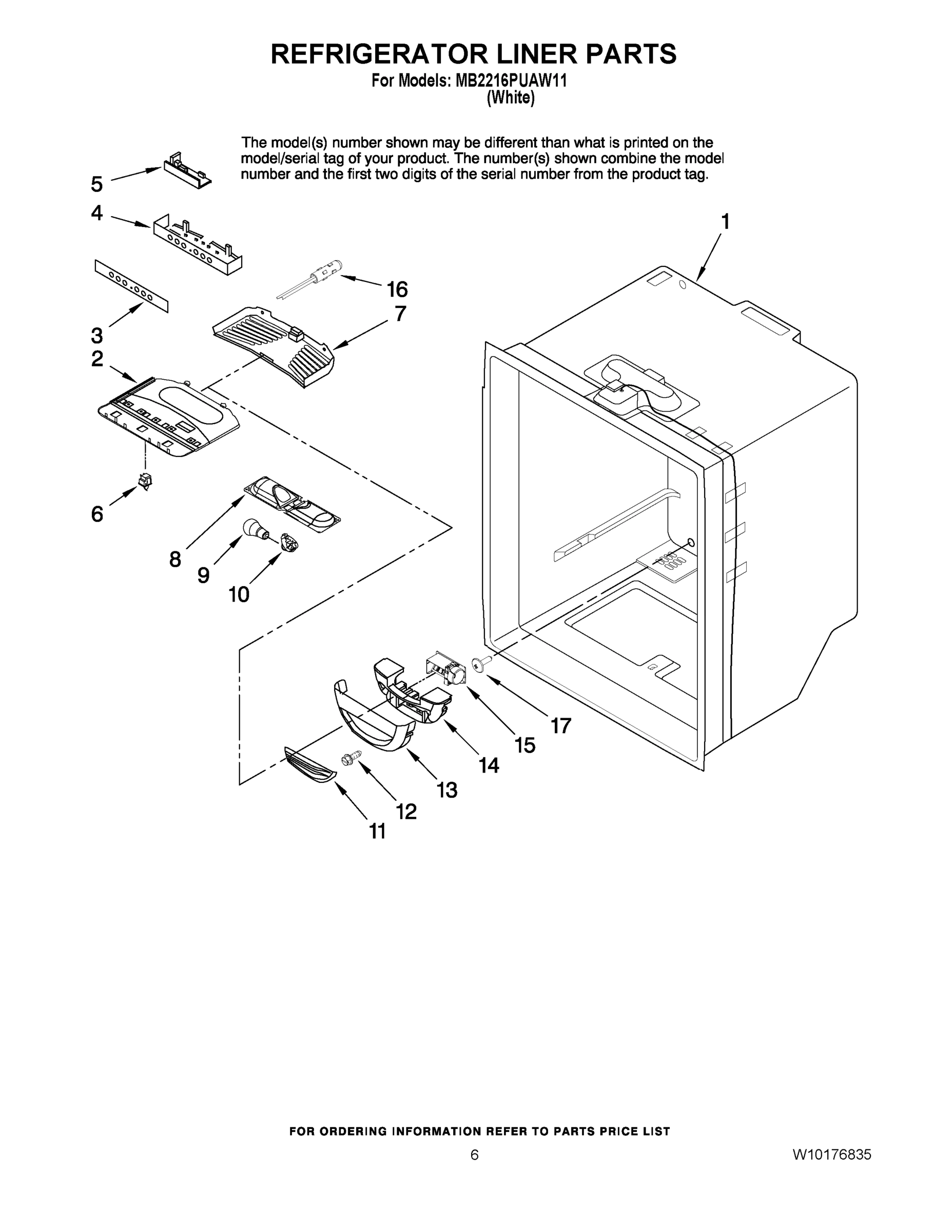

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

1

ENERGY GUIDE WPL W10123817 Contact Us For Availability

1

Use & Care Guide WPL W10137641 Contact Us For Availability

1

Tech Sheet WPL W10165418 Contact Us For Availability

1

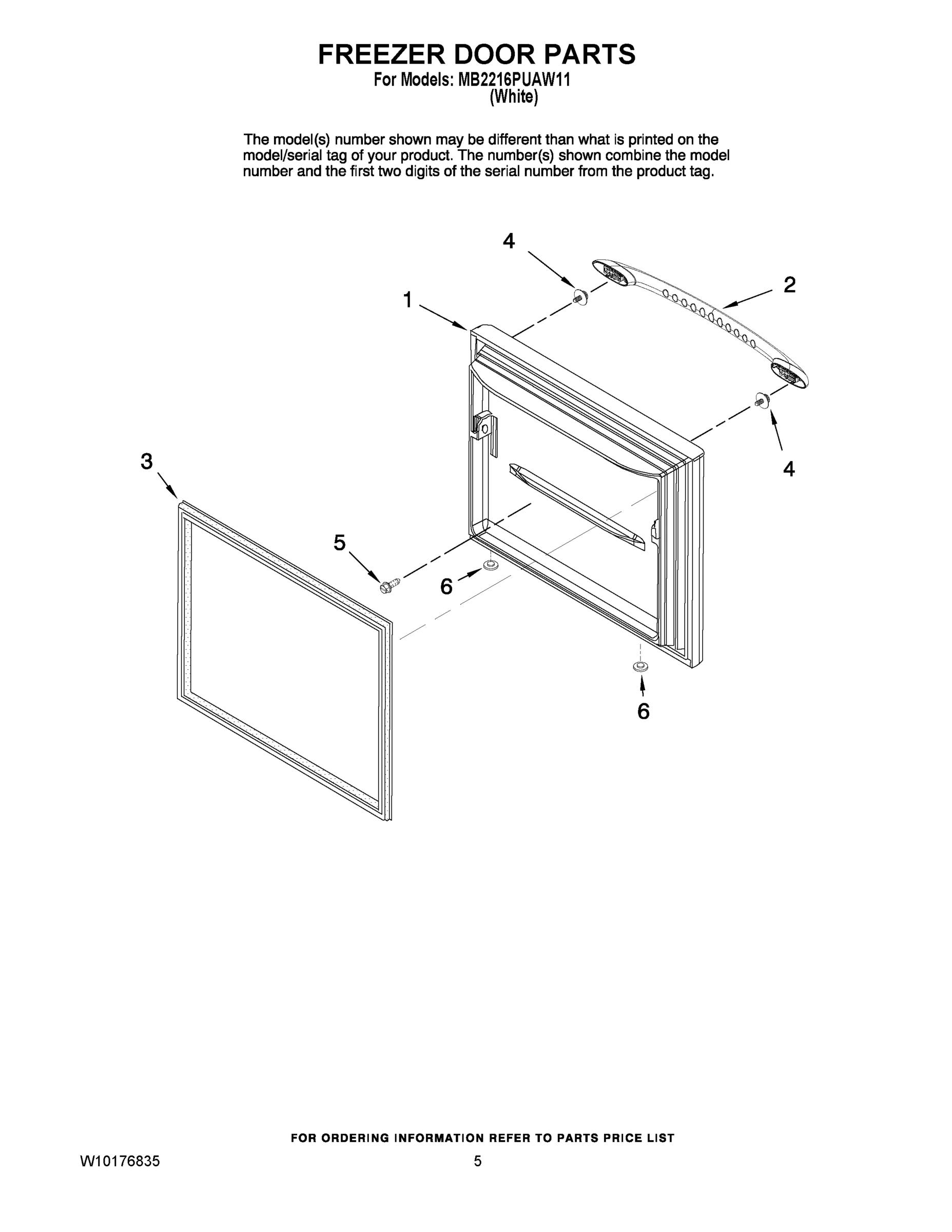

Door, Freezer (White) WPL W10170997 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $29.92

2

WPW10119651 Whirlpool Refrigerator Handle Backorder WPL WPW10119651 $111.15

2

MODULE, LIGHT WPL Y67003896 Contact Us For Availability

3

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $92.68

3

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $12.14

3

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $3.84

3

Overlay WPL 67004058 Contact Us For Availability

3

Basepan WPL 67005744 Contact Us For Availability

4

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.75

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $42.75

4

Gasket WPL B5759649 Contact Us For Availability

5

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.96

5

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $59.16

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $132.37

5

Block, Condenser WPL 67005491 Contact Us For Availability

5

Roller Assy. (2) WPL 67006118 Contact Us For Availability

6

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.35

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.36

6

Tube, Discharge WPL W10167036 Contact Us For Availability

6

Plug, Button (2) (White) WPL 10712401 Contact Us For Availability

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $41.95

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.84

7

Harness, Evap. Heater WPL W10119856 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $50.05

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $5.04

8

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.84

8

Drain Pan WPL 67004713 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.00

9

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.84

9

Grommet (3) WPL 61004743 Contact Us For Availability

10

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $11.17

10

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.75

10

WP67001794 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67001794 $85.48

11

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $3.84

11

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.60

11

Clip, Capacitor WPL W10136415 Contact Us For Availability

12

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.02

12

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.60

12

WPW10197426 Whirlpool Refrigerator Start Devi Backorder WPL WPW10197426 $66.16

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $31.54

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $43.72

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.93

PLATE, COVER WPL 12479901 Contact Us For Availability

14

W11750607 Whirlpool Insulation Backorder WPL W11750607 $21.15

14

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $35.21

14

Module, Light WPL 67003906 Contact Us For Availability

CLIP, EVAP MOTOR WPL 13058002 No Longer Available

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $11.17

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $29.07

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $75.12

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $27.89

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $16.36

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $18.70

SCREW WPL 67006573 Contact Us For Availability

17

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.64

17

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $4.90

17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.84

18

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.58

18

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $32.00

18

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $152.63

19

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.48

19

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.90

19

Bracket, Foot (2) WPL 67007174 Contact Us For Availability

20

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.60

20

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $10.49

20

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $76.69

21

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $30.29

21

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.84

21

Cover, Unit WPL 67006101 Contact Us For Availability

22

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $214.88

22

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $31.88

22

WPW10534161 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534161 $55.08

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $39.43

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

LABEL, FILL TUBE WPL 67005064 Contact Us For Availability

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

24

Motor, Fan WPL 67004432 Contact Us For Availability

24

TUBE, DRAIN WPL 67001066 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.60

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.09

WPW10330991 Whirlpool Refrigerator Bracket Backorder WPL WPW10330991 $60.65

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $64.88

26

13060302 Whirlpool Refrigerator Wire Harness Backorder WPL 13060302 $138.71

26

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.24

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $40.58

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $40.58

COVER, WATER VALVE WPL 67001097 Contact Us For Availability

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $82.44

28

Compressor (Includes items 11,12,17,27,29) WPL W10130129 Contact Us For Availability

28

RIVET WPL M1205302 Contact Us For Availability

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $30.91

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

Adapter, Slide (Left) WPL W10128118 Contact Us For Availability

Adapter, Slide (Right) WPL W10128119 Contact Us For Availability

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.84

30

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $4.03

30

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.85

31

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $34.54

31

W11715937 Whirlpool Shaft Backorder WPL W11715937 $43.81

31

Shroud WPL W10158508 Contact Us For Availability

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $33.99

33

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.20

33

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.60

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.77

34

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.84

35

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $11.17

36

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.84

37

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.41

285006 Whirlpool Spray In Stock WPL 285006 $46.08

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

4396418 Whirlpool Ice Maker Backorder WPL 4396418 $240.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.84

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $37.34

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $39.24

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $41.04

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $54.11

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $45.28

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $66.85

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $25.50

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.93

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL WPL 31462 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 799833 Contact Us For Availability
