Model Maytag MAT11MNEGW WASHER – Common Parts & Diagrams

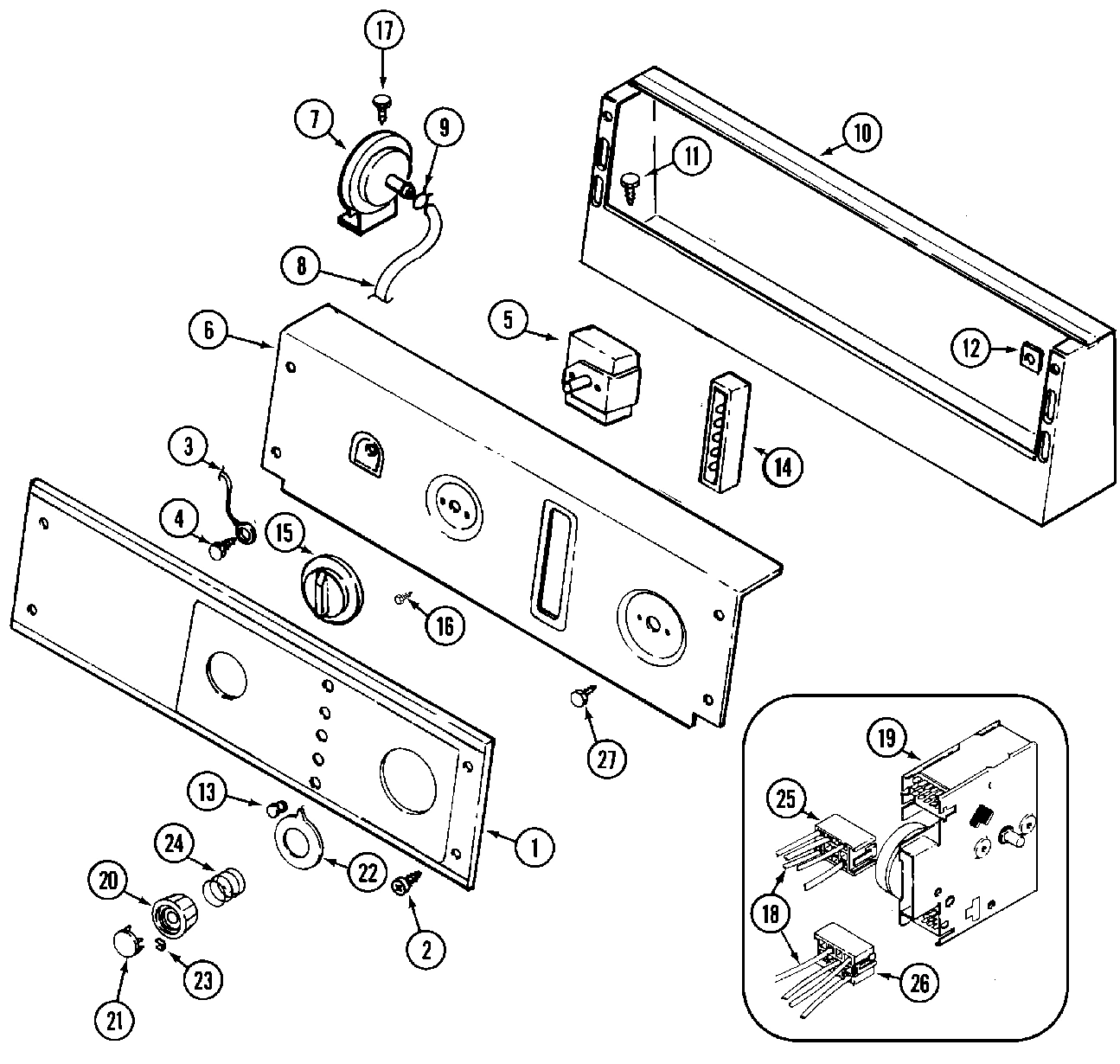

01 - CONTROL PANEL

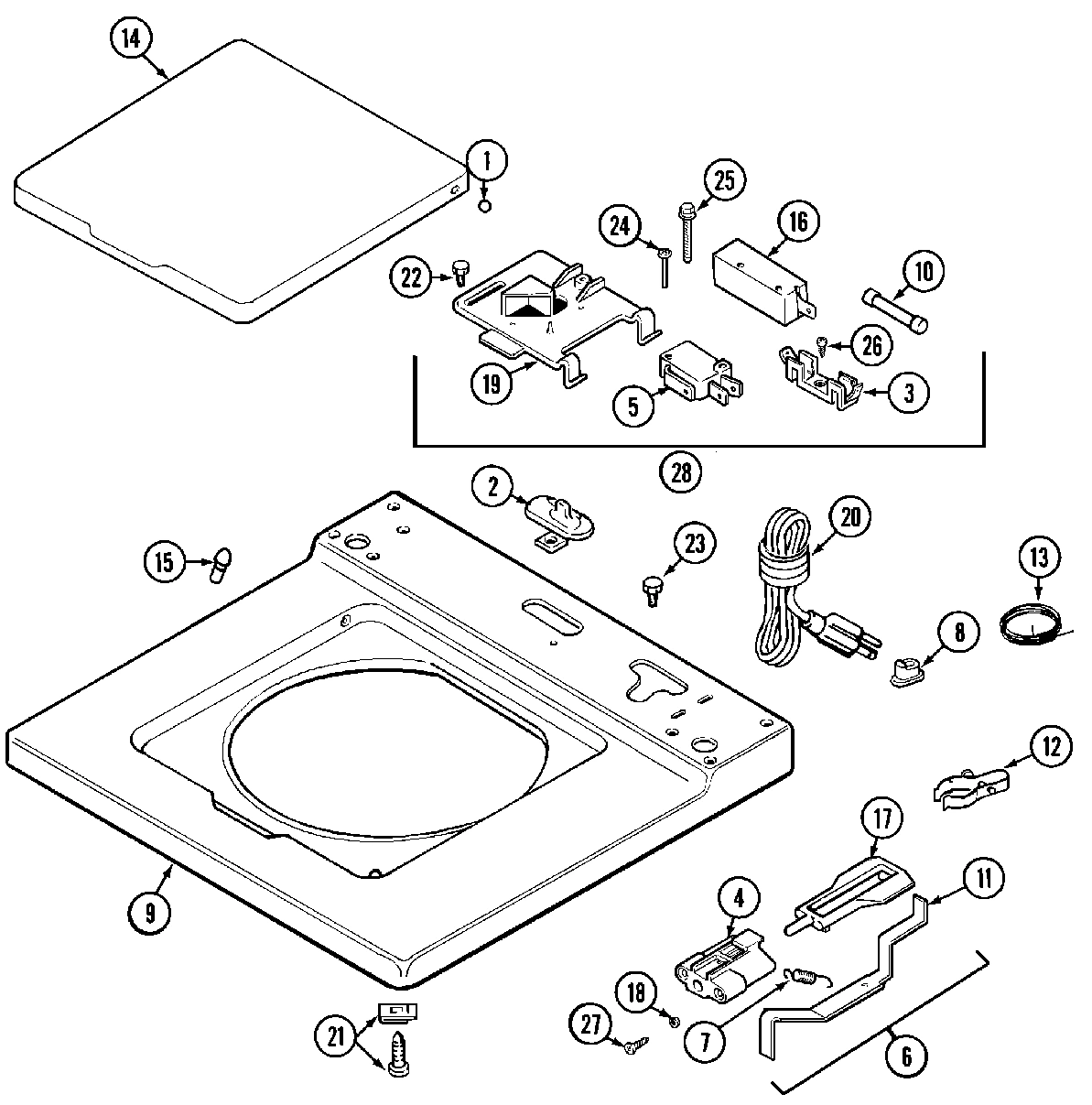

02 - TOP

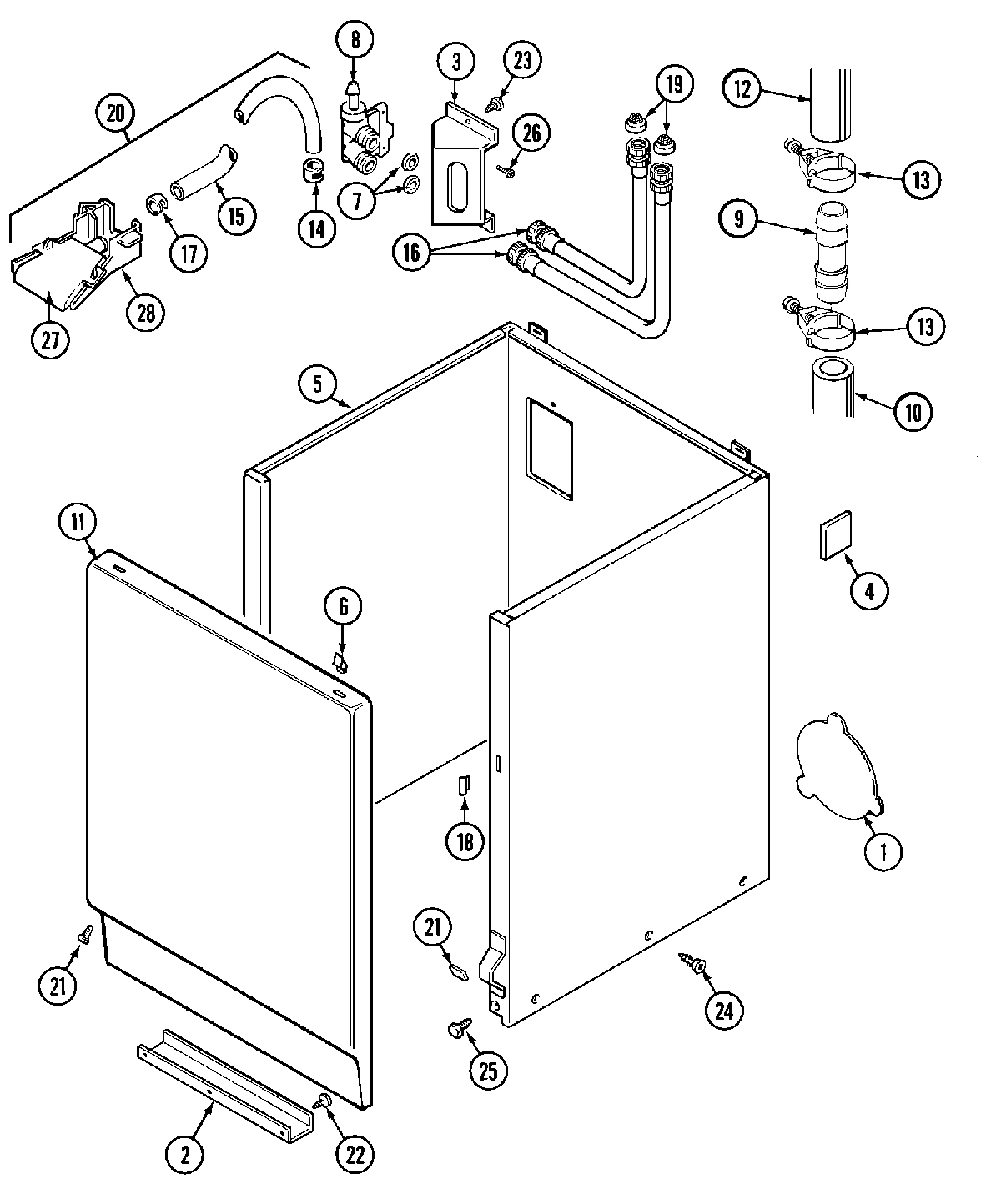

03 - CABINET

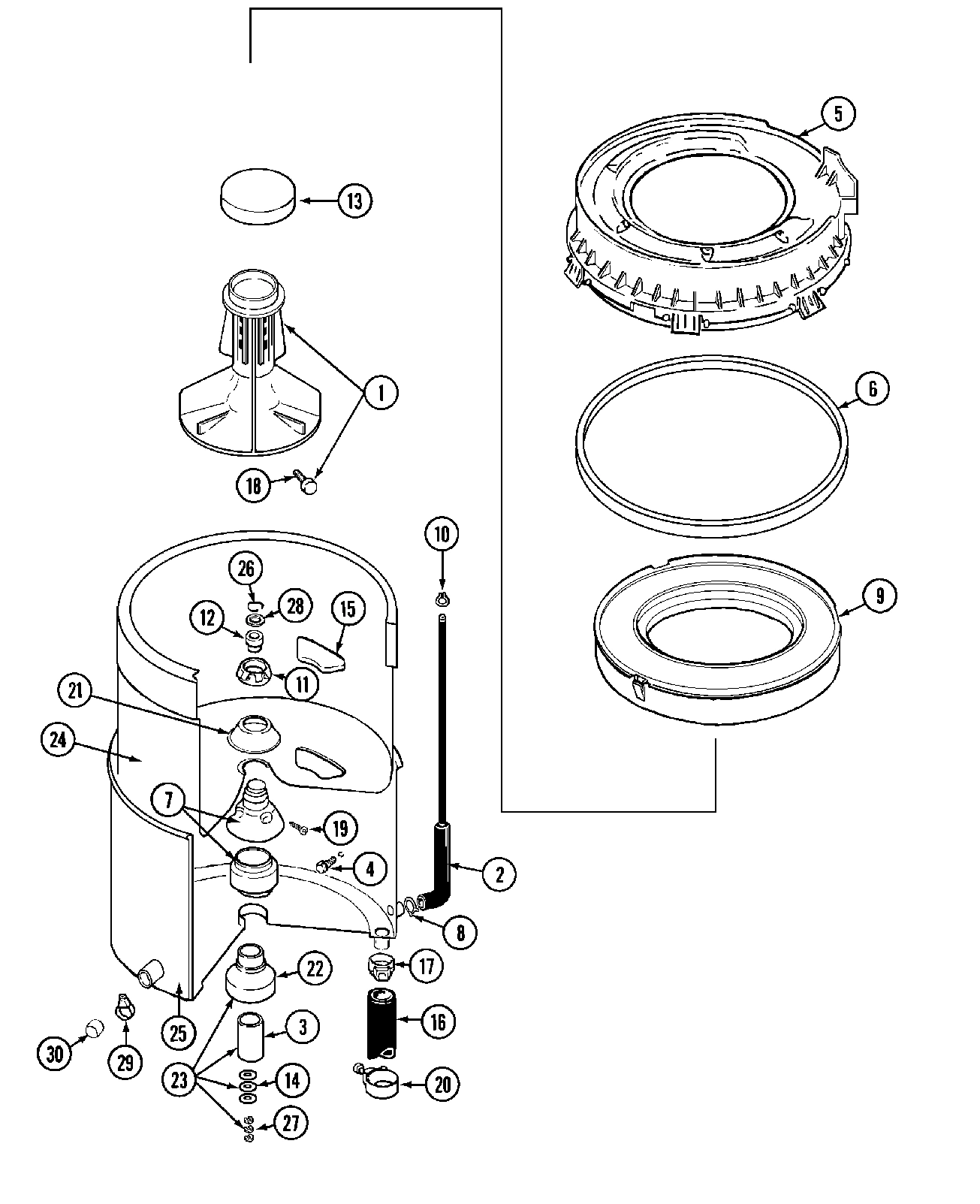

04 - TUB

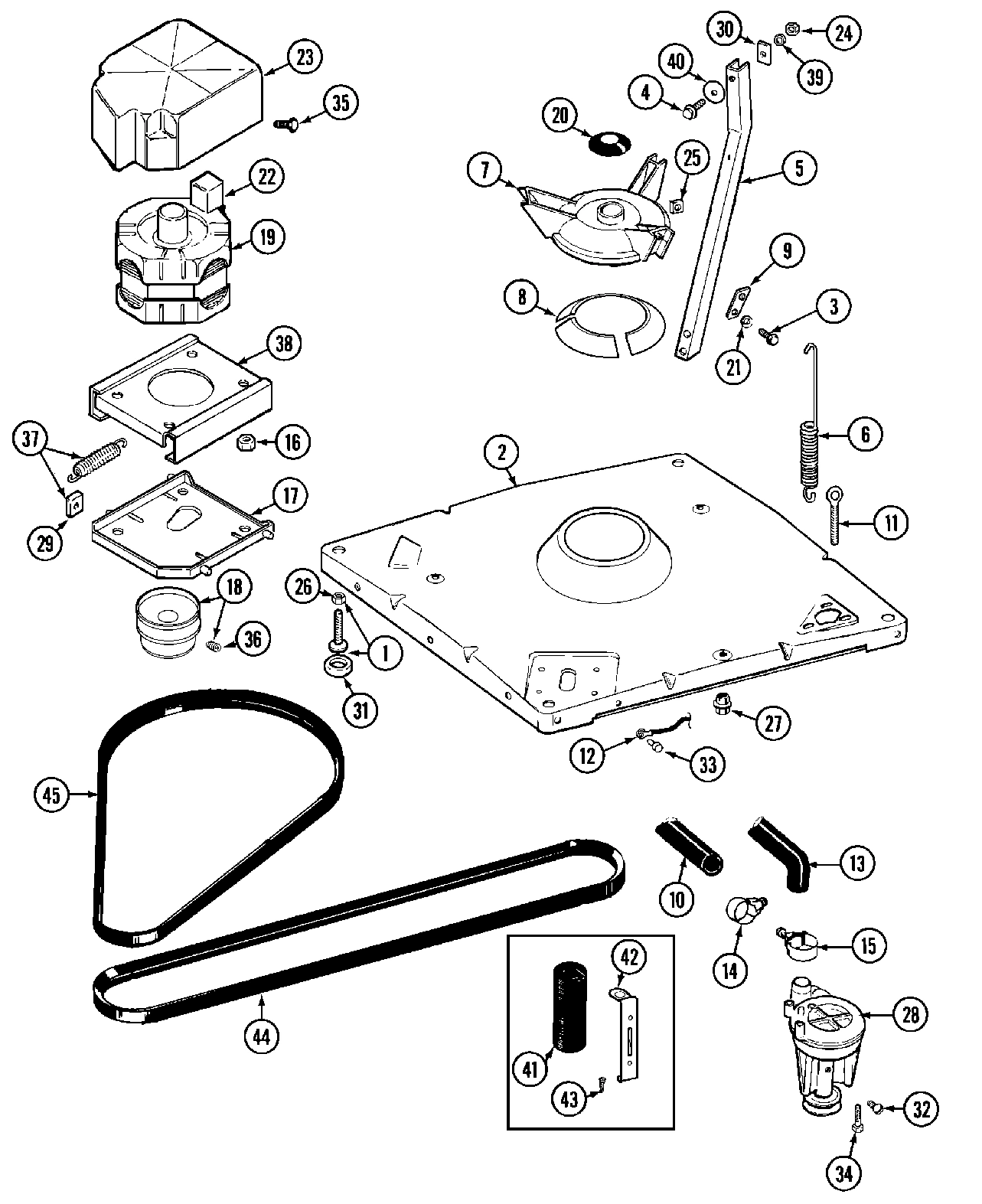

05 - BASE

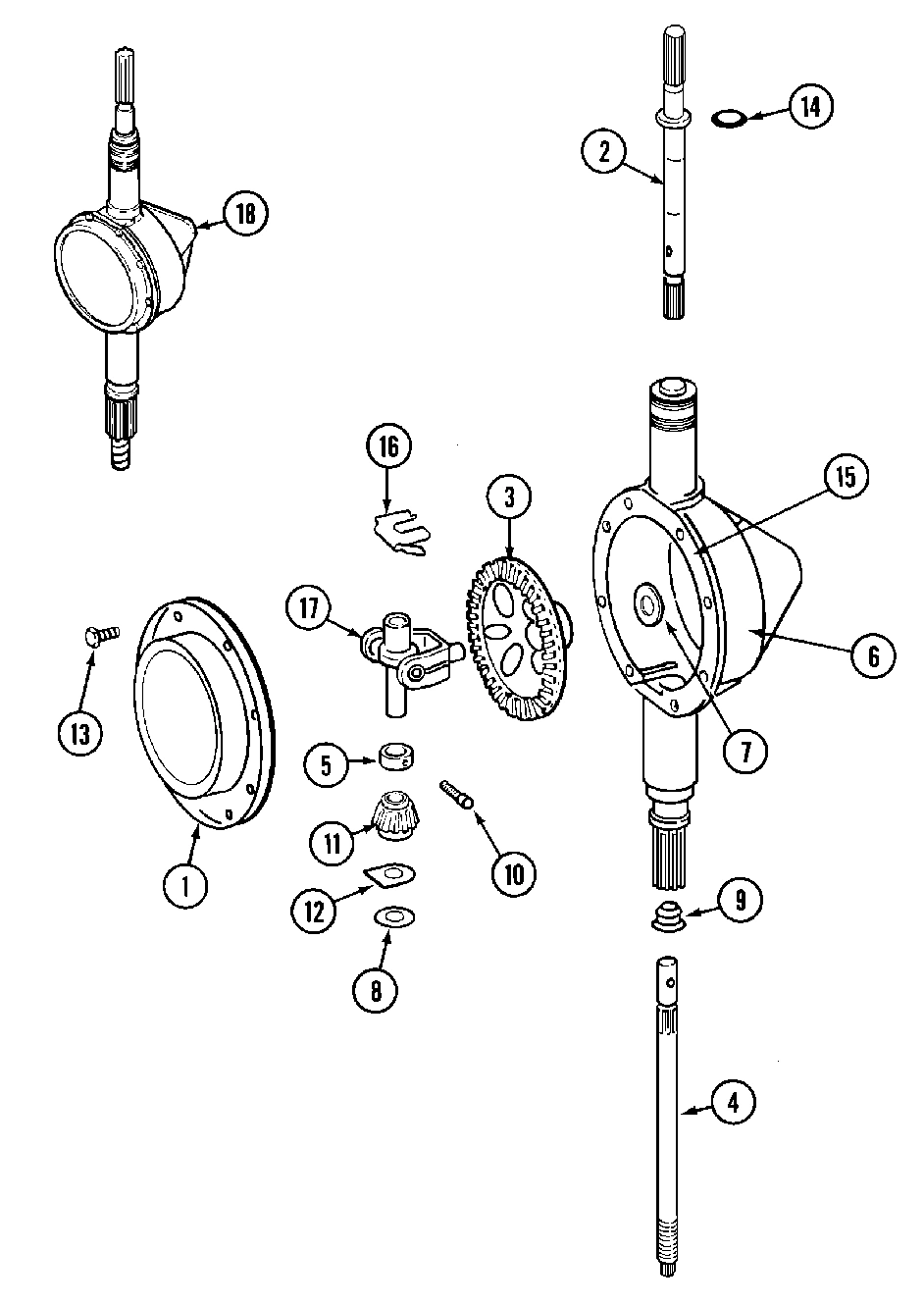

06 - TRANSMISSION

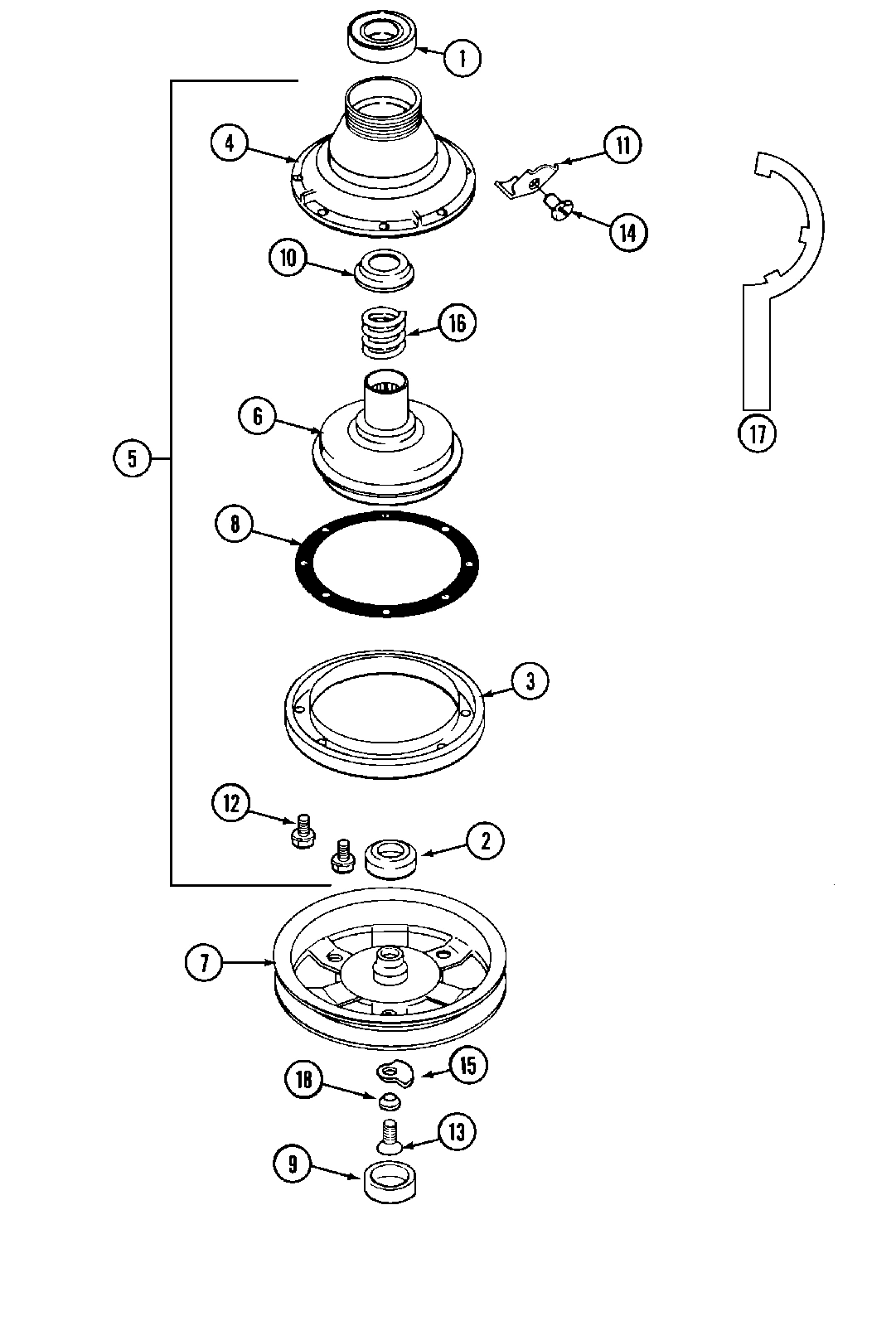

07 - CLUTCH, BRAKE & BELTS

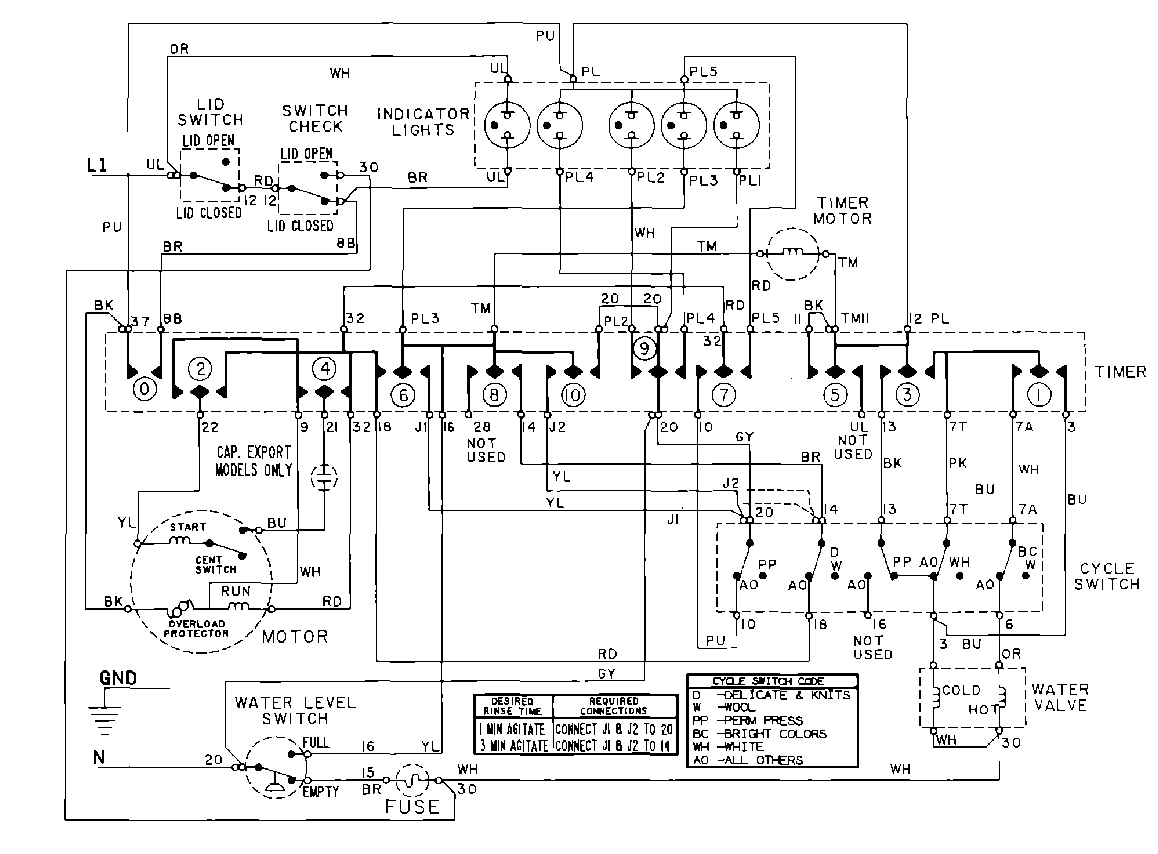

08 - WIRING INFORMATION
Common parts from model Maytag MAT11MNEGW WASHER
001
MAY 207228 MAY 207228 Contact Us For Availability
001
MAY 212985 MAY 212985 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
001
MAY 206628 MAY 206628 Contact Us For Availability
001
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
002
MAY 200835 MAY 200835 Contact Us For Availability
002
MAY 213846 MAY 213846 Contact Us For Availability
002
TUBE, WATER LEVEL SWITCH MAY 212942 Contact Us For Availability
002
MAY 22001172 MAY 22001172 Contact Us For Availability
002
MAY 207153 MAY 207153 Contact Us For Availability
003
MAY 207167 MAY 207167 Contact Us For Availability
003
MAY 211130 MAY 211130 Contact Us For Availability
003
MAY 214812 MAY 214812 Contact Us For Availability
003
MAY 206713 MAY 206713 Contact Us For Availability
003
MAY 211043 MAY 211043 Contact Us For Availability
004
MAY 215058 MAY 215058 Contact Us For Availability
004
SHAFT, CENTER MAY 215410 Contact Us For Availability
004
MAY 211045 MAY 211045 Contact Us For Availability
005
MAY 213053 MAY 213053 Contact Us For Availability
005
MAY 215415 MAY 215415 Contact Us For Availability
005
PACKAGE, BRAKE MAY 201190 Contact Us For Availability
006
MAY 22001300 MAY 22001300 Contact Us For Availability
006
UNBALANCE LEVER ASSEMBLY MAY 22001311 Contact Us For Availability
006
MAY 212982 MAY 212982 Contact Us For Availability
006
MAY Y22001201 MAY Y22001201 Contact Us For Availability
006
MAY 206624 MAY 206624 Contact Us For Availability
006
MAY 201126 MAY 201126 Contact Us For Availability
007
MAY 203725 MAY 203725 Contact Us For Availability
007
WASHER, INLET HOSE MAY Y013783 Contact Us For Availability
007
MAY 204012 MAY 204012 Contact Us For Availability
007
MAY 215394 MAY 215394 Contact Us For Availability
007
MAY 211059 MAY 211059 Contact Us For Availability
008
MAY 22001275 MAY 22001275 Contact Us For Availability
008
MAY 22001196 MAY 22001196 Contact Us For Availability
008
MAY 22001276 MAY 22001276 Contact Us For Availability
008
MAY 211042 MAY 211042 Contact Us For Availability
009
MAY 22001142 MAY 22001142 Contact Us For Availability
009
MAY 213073 MAY 213073 Contact Us For Availability
009
MAY 206602 MAY 206602 Contact Us For Availability
010
HOSE, INTERNAL DRAIN MAY 214768 Contact Us For Availability
010
MAY 211039 MAY 211039 Contact Us For Availability
011
MAY 216078 MAY 216078 Contact Us For Availability
012
HOSE, INTERNAL DRAIN MAY 215057 Contact Us For Availability
012
MAY 901220 MAY 901220 Contact Us For Availability
013
MAY 216251 MAY 216251 Contact Us For Availability
013
MAY 215417 MAY 215417 Contact Us For Availability
014
MAY 210690 MAY 210690 Contact Us For Availability
014
CLAMP, HOSE MAY 200461 Contact Us For Availability
014
BOLT, RETAINING CLIP MAY 213326 Contact Us For Availability
015
PLUG, TUB MAY 215980 Contact Us For Availability
015
MAY 22001190 MAY 22001190 Contact Us For Availability
015
SILASTIC, ADHESIVE SEALANT MAY Y058700 Contact Us For Availability
016
INLET HOSE ASSEMBLY MAY 205828 Contact Us For Availability
016
INLET HOSE ASSEMBLY MAY 208100 Contact Us For Availability
016
MAY 211041 MAY 211041 Contact Us For Availability
017
PLUNGER, LID SWITCH MAY 216255 Contact Us For Availability
017
MAY 216170 MAY 216170 Contact Us For Availability
017
PLATE, MOTOR MOUNT (LWR) MAY 22001301 Contact Us For Availability
017
MAY 206685 MAY 206685 Contact Us For Availability
017
TOOL, BRAKE PACKAGE ASSEMBLY MAY Y038315 Contact Us For Availability
018
MAY 214376 MAY 214376 Contact Us For Availability
018
SCREW & WASHER ASSEMBLY MAY 206478 Contact Us For Availability
018
MAY 200816 MAY 200816 Contact Us For Availability
018
MAY Y202496 MAY Y202496 Contact Us For Availability
018
TRANSMISSION (COMPLETE) MAY 206707 Contact Us For Availability
019
MAY 22001082 MAY 22001082 Contact Us For Availability
019
MAY 200961 MAY 200961 Contact Us For Availability
019
SET SCREW, MOUNTING STEM MAY 211618 Contact Us For Availability
019
MAY 202157 MAY 202157 Contact Us For Availability
020
MAY 205056 MAY 205056 Contact Us For Availability
020
MAY 208569 MAY 208569 Contact Us For Availability
020
MAY 22001351 MAY 22001351 Contact Us For Availability
020
DEFLECTOR, WATER MAY 211028 Contact Us For Availability
021
SCREW & FASTENER ASSEMBLY MAY 204439 Contact Us For Availability
021
WASHER, CLAMPING NUT MAY 211210 Contact Us For Availability
021
SCREW & FASTENER ASSEMBLY MAY 204445 Contact Us For Availability
021
WASHER, LOCK MAY 911852 Contact Us For Availability
022
SWITCH, MOTOR EXTERNAL START (PROD. No. 20742 MAY 205131 Contact Us For Availability
022
SWITCH, MOTOR EXTERNAL START (PROD. No. 20166 MAY 205132 Contact Us For Availability
022
PROD. No. 201664-15 & 205463-3 MAY 206505 Contact Us For Availability
023
SCREW, VALVE BRACKET MAY 212276 Contact Us For Availability
023
MAY 215098 MAY 215098 Contact Us For Availability
024
MAY 211065 MAY 211065 Contact Us For Availability
024
TUB, INNER MAY 22001139 Contact Us For Availability
024
MAY 22001352 MAY 22001352 Contact Us For Availability
024
NUT, BRACE (TUB) MAY Y052734 Contact Us For Availability
025
SCREW, LID SWITCH MAY 213501 Contact Us For Availability
025
TUB, OUTER MAY 22001114 Contact Us For Availability
025
NUT, BRACE (DAMPER) MAY Y052785 Contact Us For Availability
026
MAY Y015667 MAY Y015667 Contact Us For Availability
026
SCREW, FUSE BLOCK MAY Y311711 Contact Us For Availability
026
SCREW, WATER VALVE MAY Y313561 Contact Us For Availability
027
MAY 22001187 MAY 22001187 Contact Us For Availability
027
SCREW, PLUNGER BRACKET MAY 910182 Contact Us For Availability
028
LID SWITCH ASSEMBLY MAY 207176 Contact Us For Availability
028
MAY 202203 MAY 202203 Contact Us For Availability
029
MAY Y204998 MAY Y204998 Contact Us For Availability
030
CAP, BLEACH SPOUT MAY 214725 Contact Us For Availability
030
MAY 212979 MAY 212979 Contact Us For Availability
032
MAY Y015408 MAY Y015408 Contact Us For Availability
033
SCREW, GROUND WIRE MAY 210186 Contact Us For Availability
036
SET SCREW, MOTOR PULLEY MAY 22001353 Contact Us For Availability
036
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
038
PLATE, MOTOR MOUNT (UPPER) MAY 214956 Contact Us For Availability
039
MAY Y054867 MAY Y054867 Contact Us For Availability
040
MAY 211100 MAY 211100 Contact Us For Availability
041
MAY 201101 MAY 201101 Contact Us For Availability
042
MAY 211149 MAY 211149 Contact Us For Availability
× ![]()
