Model Maytag MAH14PDCBQ WASHER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - CONTROL CENTER (PD)

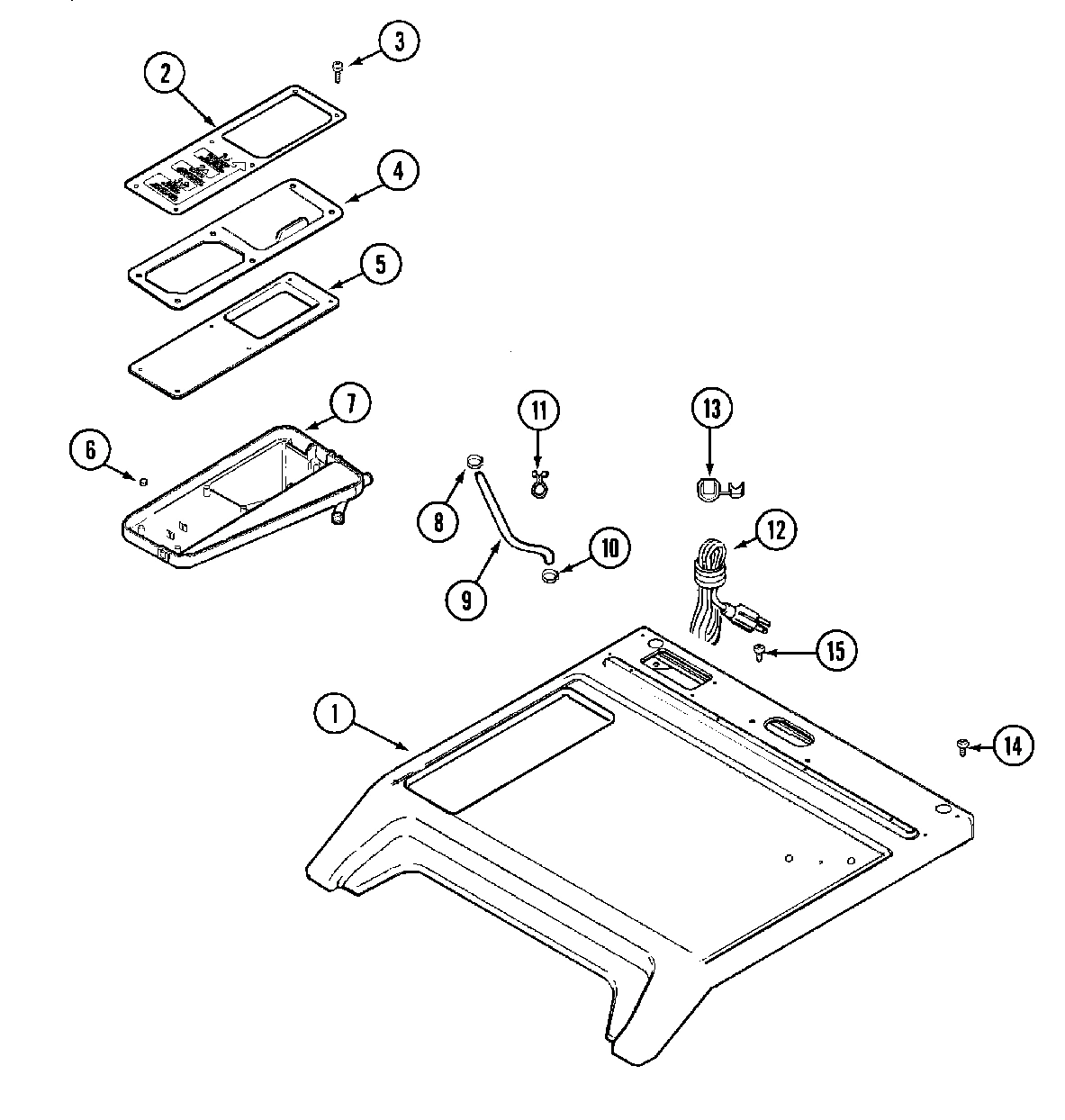

03 - TOP

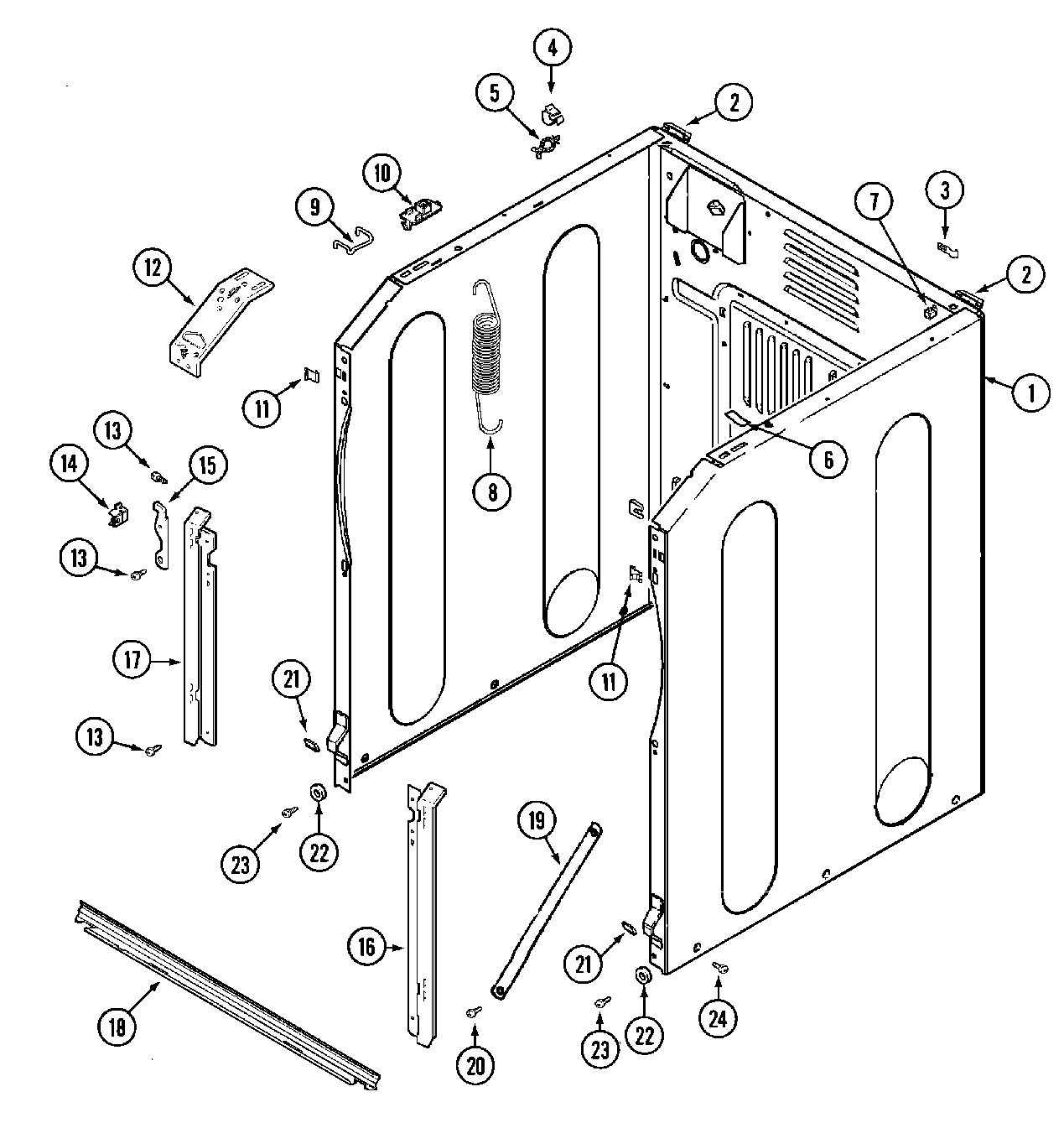

04 - CABINET-FRONT

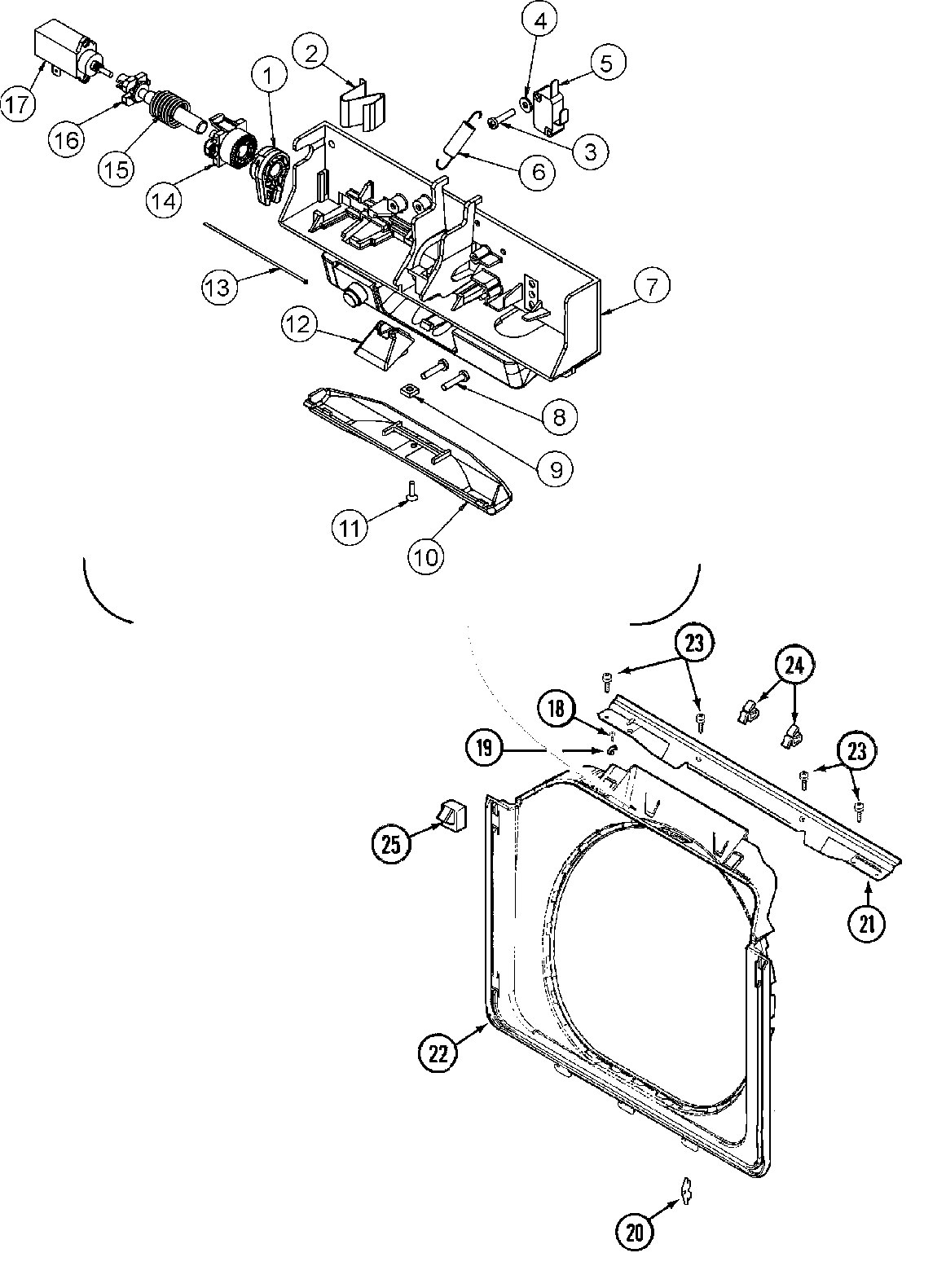

05 - DOOR SHROUD & DOOR LATCH ASSEMBLY

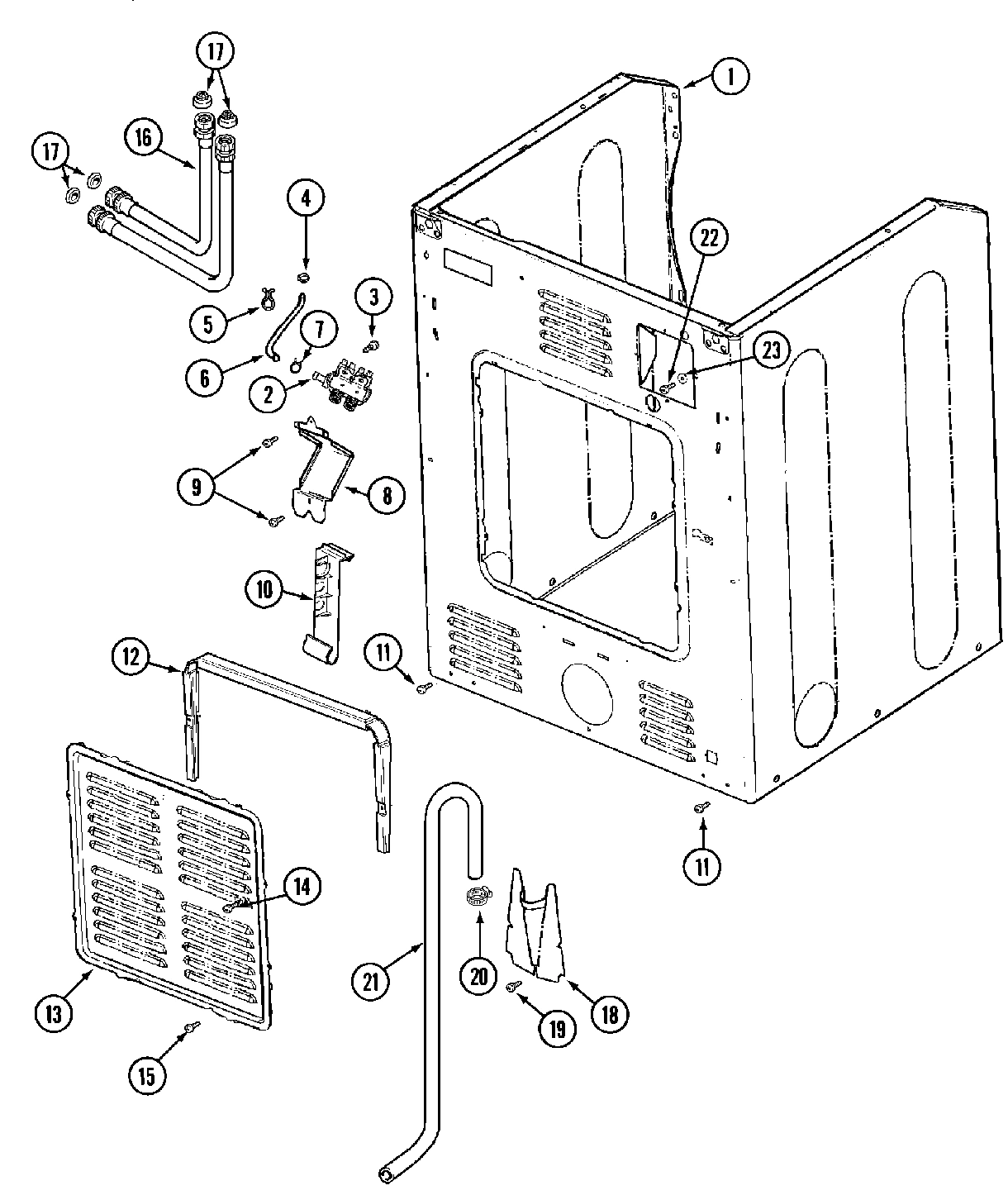

06 - CABINET-REAR

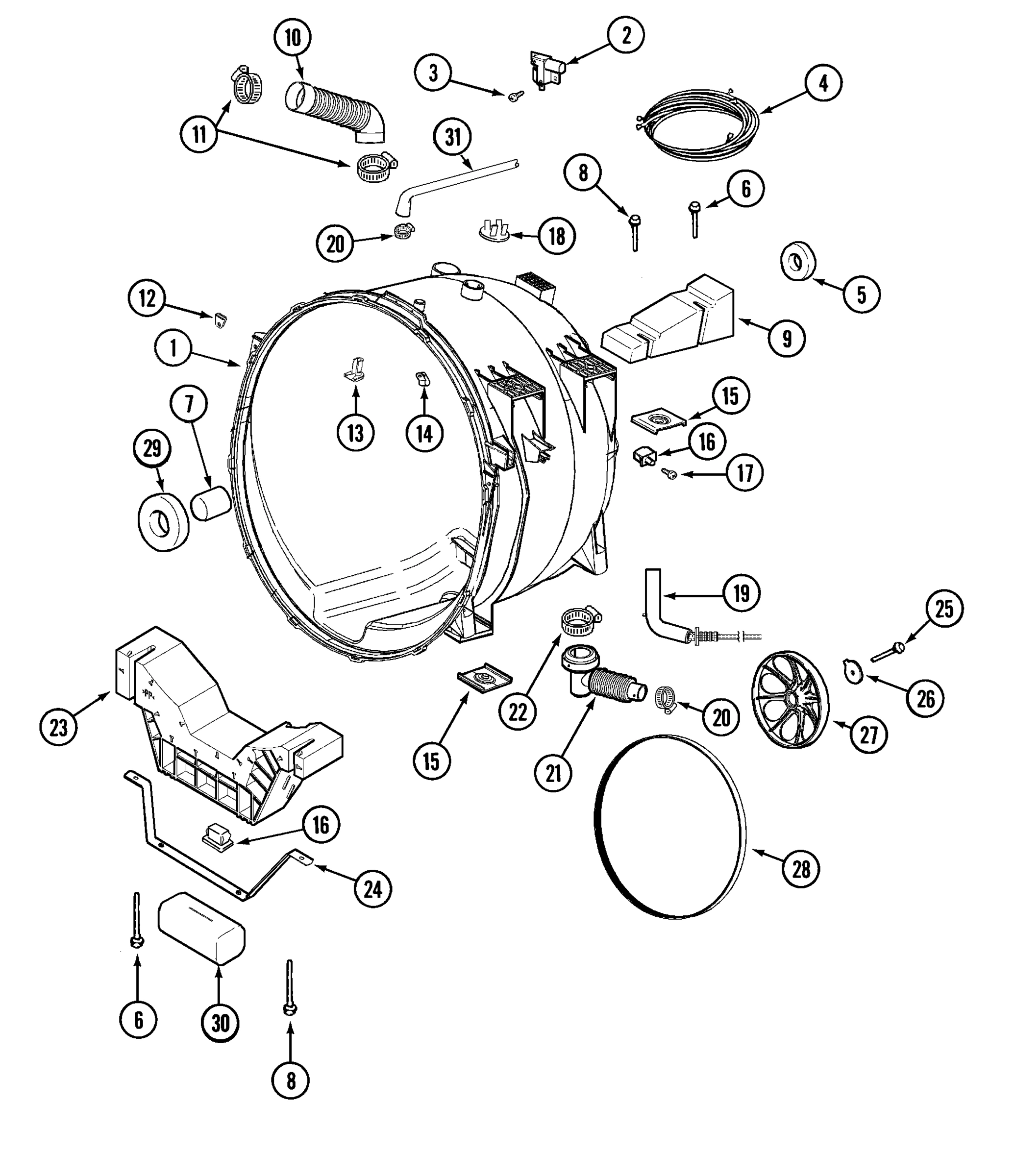

07 - OUTER TUB

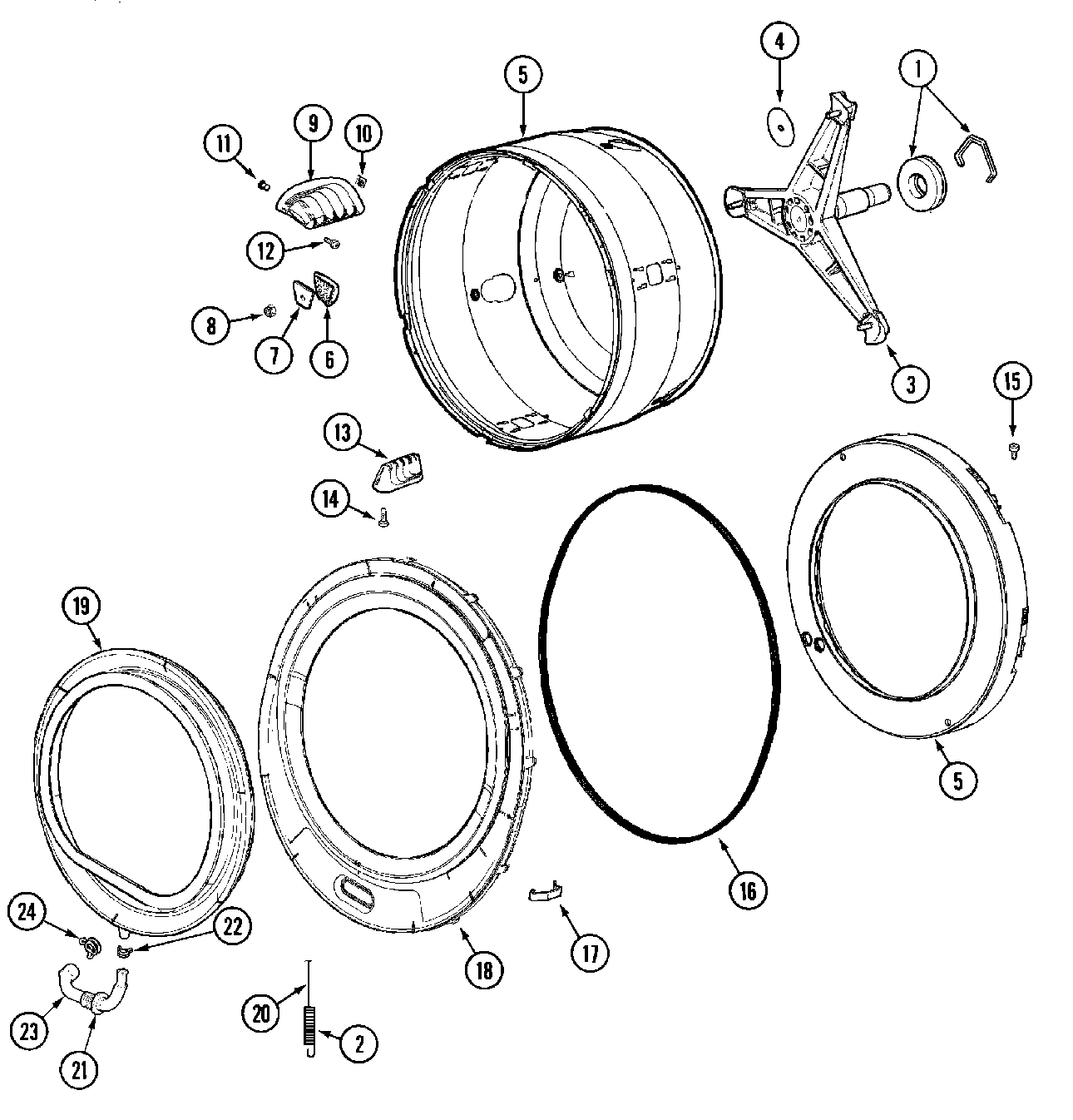

08 - SPINNER ASSEMBLY & OUTER TUB COVER

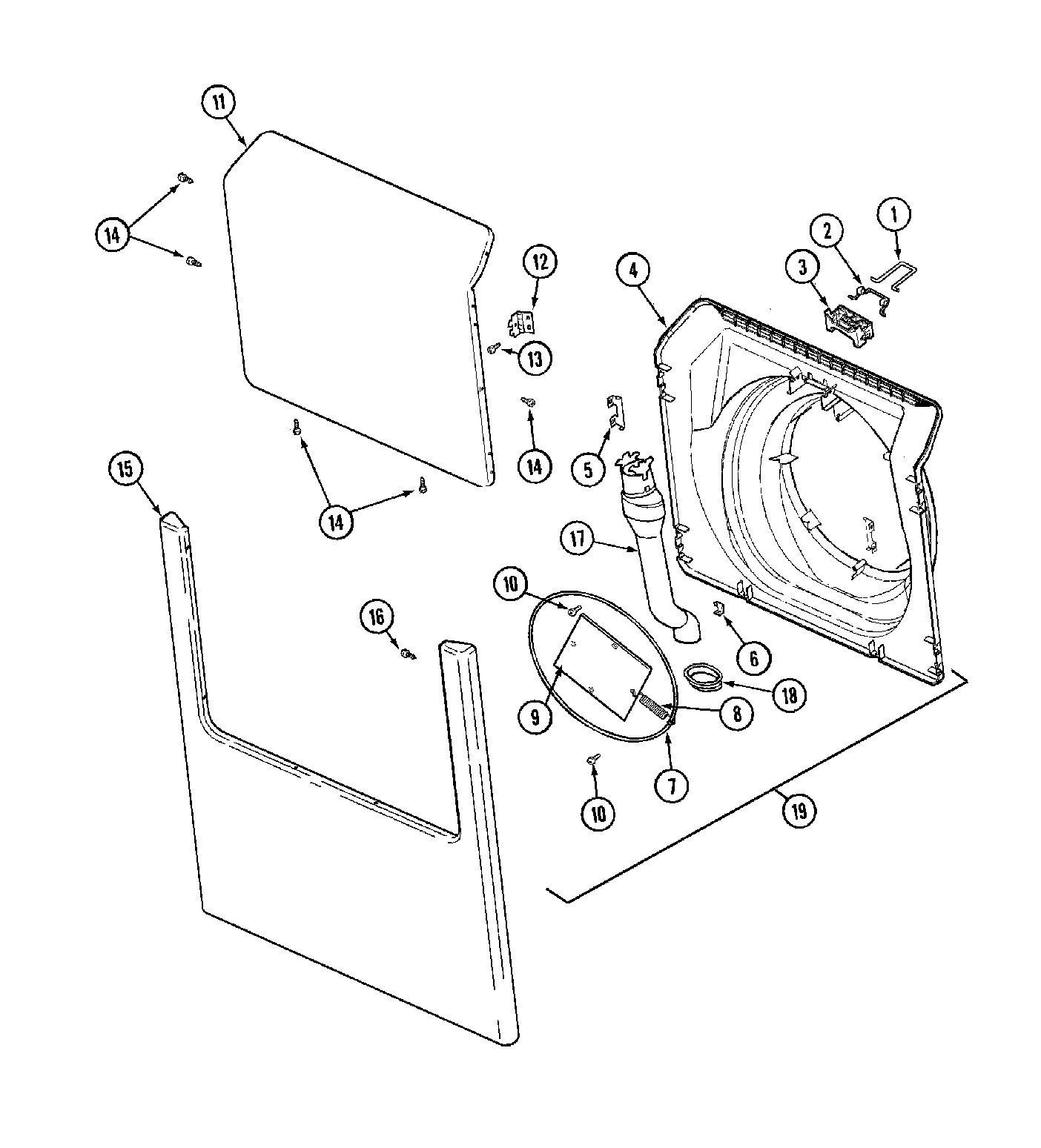

09 - DOOR & FRONT PANEL

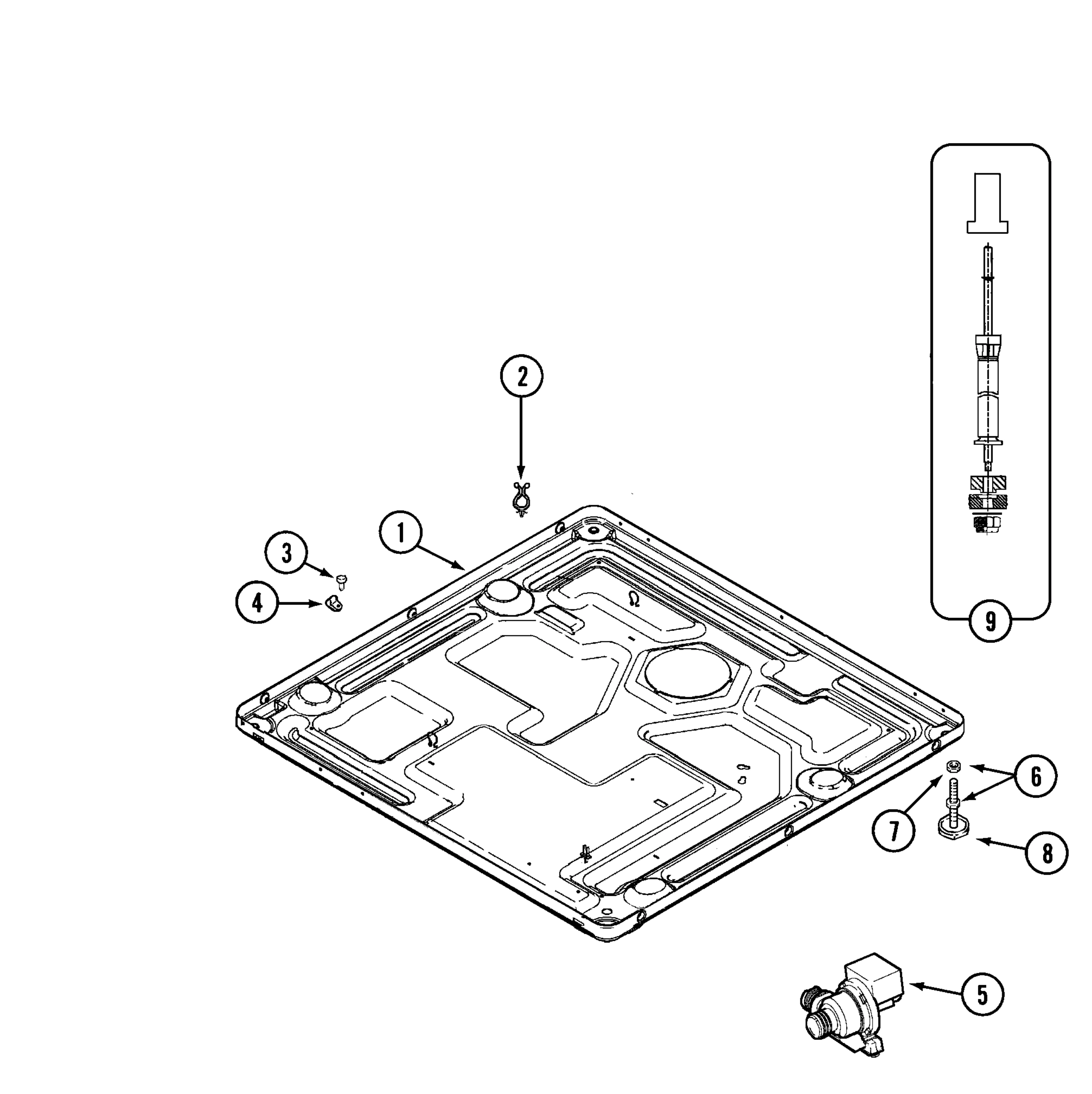

10 - BASE

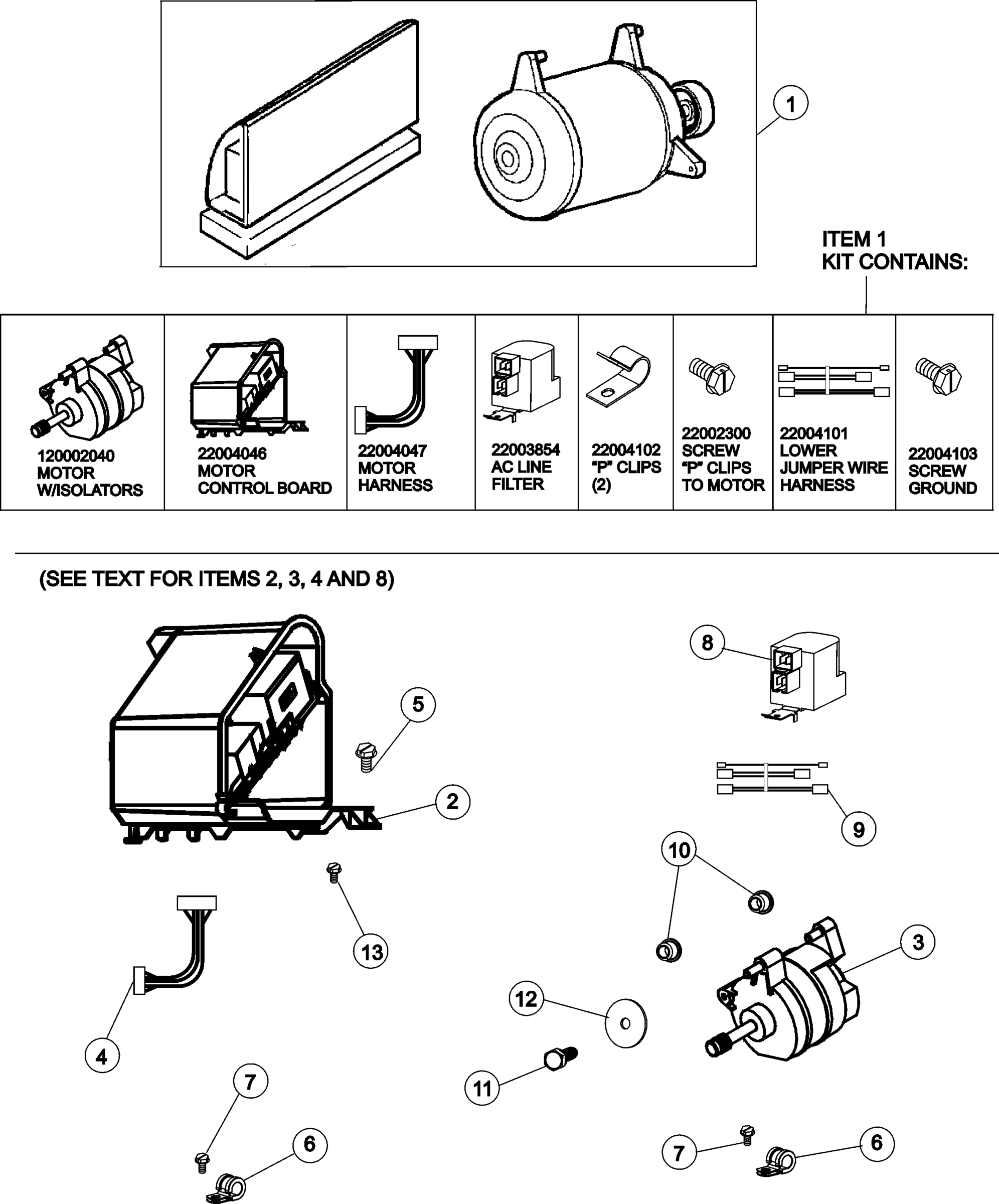

11 - MOTOR & MOTOR CONTROL

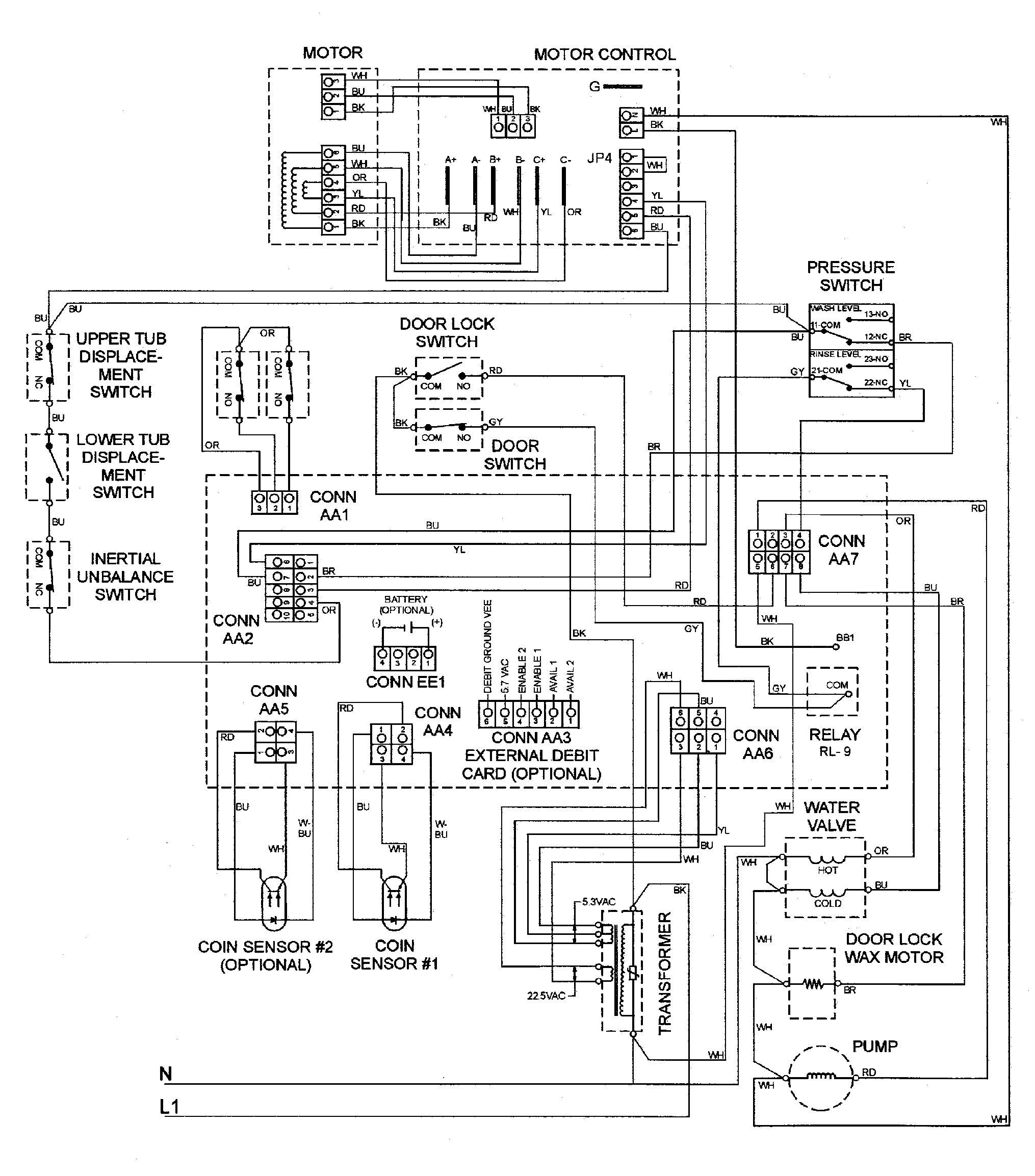

12 - WIRING INFORMATION
Common parts from model Maytag MAH14PDCBQ WASHER
001
MAY 12002039 MAY 12002039 Contact Us For Availability
001
MAY 22003716 MAY 22003716 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY 22002154 MAY 22002154 Contact Us For Availability
001
MAY 22002002 MAY 22002002 Contact Us For Availability
002
MAY 22002099 MAY 22002099 Contact Us For Availability
002
MAY 22002101 MAY 22002101 Contact Us For Availability
002
MAY 22002003 MAY 22002003 Contact Us For Availability
002
MAY 22002930 MAY 22002930 Contact Us For Availability
002
MAY 315471 MAY 315471 Contact Us For Availability
002
MAY 22002045 MAY 22002045 Contact Us For Availability
003
MAY 22003856 MAY 22003856 Contact Us For Availability
003
MAY 22002168 MAY 22002168 Contact Us For Availability
003
MAY 22002123 MAY 22002123 Contact Us For Availability
003
SCREW, WIRE HARNESS CLIP MAY 212276 Contact Us For Availability
003
MAY 22002178 MAY 22002178 Contact Us For Availability
003
MAY 22001352 MAY 22001352 Contact Us For Availability
003
SCREW, WATER VALVE MAY Y313561 Contact Us For Availability
003
SCREW, INERTIAL SWITCH MAY 912615 Contact Us For Availability
003
MAY 22001994 MAY 22001994 Contact Us For Availability
003
MAY 22002897 MAY 22002897 Contact Us For Availability
004
MAY 22002023 MAY 22002023 Contact Us For Availability
004
MAY 22002165 MAY 22002165 Contact Us For Availability
004
MAY 22002091 MAY 22002091 Contact Us For Availability
004
MAY 22002545 MAY 22002545 Contact Us For Availability
004
MAY 22002539 MAY 22002539 Contact Us For Availability
004
MAY 22003076 MAY 22003076 Contact Us For Availability
004
MAY 22003078 MAY 22003078 Contact Us For Availability
004
MAY 22004047 MAY 22004047 Contact Us For Availability
005
MAY 22002038 MAY 22002038 Contact Us For Availability
005
MAY 22002074 MAY 22002074 Contact Us For Availability
005
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
005
MAY 22002115 MAY 22002115 Contact Us For Availability
005
MAY 22001982 MAY 22001982 Contact Us For Availability
005
MAY 22002939 MAY 22002939 Contact Us For Availability
005
MAY 33002190 MAY 33002190 Contact Us For Availability
006
MAY 22002039 MAY 22002039 Contact Us For Availability
006
MAY 22002031 MAY 22002031 Contact Us For Availability
006
MAY 33001836 MAY 33001836 Contact Us For Availability
006
MAY 22002158 MAY 22002158 Contact Us For Availability
006
MAY 22001987 MAY 22001987 Contact Us For Availability
006
MAY 22003615 MAY 22003615 Contact Us For Availability
006
MAY 22002021 MAY 22002021 Contact Us For Availability
006
MAY 22004102 MAY 22004102 Contact Us For Availability
007
MAY 22002935 MAY 22002935 Contact Us For Availability
007
MAY 213035 MAY 213035 Contact Us For Availability
007
MAY 22003722 MAY 22003722 Contact Us For Availability
007
MAY 22002075 MAY 22002075 Contact Us For Availability
007
MAY 310933 MAY 310933 Contact Us For Availability
007
MAY 22002020 MAY 22002020 Contact Us For Availability
007
MAY 22002104 MAY 22002104 Contact Us For Availability
008
MAY 22002100 MAY 22002100 Contact Us For Availability
008
MAY 22002356 MAY 22002356 Contact Us For Availability
008
MAY 22003719 MAY 22003719 Contact Us For Availability
008
MAY 22002089 MAY 22002089 Contact Us For Availability
008
MAY 22003854 MAY 22003854 Contact Us For Availability
009
MAY 22001988 MAY 22001988 Contact Us For Availability
009
MAY 22001985 MAY 22001985 Contact Us For Availability
009
MAY 22004101 MAY 22004101 Contact Us For Availability
009
MAY 22002084 MAY 22002084 Contact Us For Availability
009
MAY 22002098 MAY 22002098 Contact Us For Availability
009
MAY 22003720 MAY 22003720 Contact Us For Availability
009
MAY 22002102 MAY 22002102 Contact Us For Availability
009
MAY 22002094 MAY 22002094 Contact Us For Availability
010
MAY 22002009 MAY 22002009 Contact Us For Availability
010
MAY 22001997 MAY 22001997 Contact Us For Availability
010
MAY 22002957 MAY 22002957 Contact Us For Availability
010
MAY 22002076 MAY 22002076 Contact Us For Availability
010
SCREW, WIRE FRAME MAY 22002007 Contact Us For Availability
010
MAY 22003329 MAY 22003329 Contact Us For Availability
011
MAY 22001979 MAY 22001979 Contact Us For Availability
011
MAY 22002333 MAY 22002333 Contact Us For Availability
011
MAY 22002660 MAY 22002660 Contact Us For Availability
012
MAY 22003055 MAY 22003055 Contact Us For Availability
012
MAY 22001960 MAY 22001960 Contact Us For Availability
012
MAY 22001178 MAY 22001178 Contact Us For Availability
012
MAY 22002090 MAY 22002090 Contact Us For Availability
012
MAY 22002022 MAY 22002022 Contact Us For Availability
012
MAY 22002103 MAY 22002103 Contact Us For Availability
012
SCREW, BAFFLE (REAR) MAY 22002325 Contact Us For Availability
012
MAY 22002703 MAY 22002703 Contact Us For Availability
012
MAY 22002320 MAY 22002320 Contact Us For Availability
013
MAY 22001986 MAY 22001986 Contact Us For Availability
013
MAY 211881 MAY 211881 Contact Us For Availability
013
MAY 22002164 MAY 22002164 Contact Us For Availability
013
MAY 22002092 MAY 22002092 Contact Us For Availability
013
MAY 22004103 MAY 22004103 Contact Us For Availability
014
SCREW, BAFFLE (FRONT) MAY 22002059 Contact Us For Availability
014
MAY 22003715 MAY 22003715 Contact Us For Availability
014
SCREW, POWER CORD MAY 912365 Contact Us For Availability
014
MAY 22002001 MAY 22002001 Contact Us For Availability
014
MAY 22002006 MAY 22002006 Contact Us For Availability
014
MAY 22002063 MAY 22002063 Contact Us For Availability
015
SCREW, GROUND WIRE MAY 210186 Contact Us For Availability
015
MAY 22002247 MAY 22002247 Contact Us For Availability
015
MAY 22002065 MAY 22002065 Contact Us For Availability
015
MAY 22002028 MAY 22002028 Contact Us For Availability
015
MAY 22002241 MAY 22002241 Contact Us For Availability
015
MAY 22002663 MAY 22002663 Contact Us For Availability
016
MAY 22003718 MAY 22003718 Contact Us For Availability
016
MAY 22002034 MAY 22002034 Contact Us For Availability
016
SCREW, FRONT PANEL MAY 22002243 Contact Us For Availability
016
MAY 22002244 MAY 22002244 Contact Us For Availability
017
WASHER, INLET HOSE MAY Y013783 Contact Us For Availability
017
MAY 22002050 MAY 22002050 Contact Us For Availability
017
MAY 22002035 MAY 22002035 Contact Us For Availability
017
MAY 22002990 MAY 22002990 Contact Us For Availability
018
MAY 22001993 MAY 22001993 Contact Us For Availability
018
MAY 22002093 MAY 22002093 Contact Us For Availability
018
MAY 22002704 MAY 22002704 Contact Us For Availability
018
MAY 22002238 MAY 22002238 Contact Us For Availability
019
MAY 22003085 MAY 22003085 Contact Us For Availability
019
MAY 22002231 MAY 22002231 Contact Us For Availability
019
MAY 22001978 MAY 22001978 Contact Us For Availability
020
MAY 22002095 MAY 22002095 Contact Us For Availability
020
MAY 22002612 MAY 22002612 Contact Us For Availability
020
MAY 22002105 MAY 22002105 Contact Us For Availability
021
MAY 22002239 MAY 22002239 Contact Us For Availability
021
MAY 22002015 MAY 22002015 Contact Us For Availability
021
MAY 22002893 MAY 22002893 Contact Us For Availability
021
MAY 22002081 MAY 22002081 Contact Us For Availability
022
MAY 22002234 MAY 22002234 Contact Us For Availability
022
MAY 22002025 MAY 22002025 Contact Us For Availability
023
MAY 22002302 MAY 22002302 Contact Us For Availability
024
MAY Y310376 MAY Y310376 Contact Us For Availability
024
MAY 22002008 MAY 22002008 Contact Us For Availability
025
MAY 22002046 MAY 22002046 Contact Us For Availability
027
MAY 22001998 MAY 22001998 Contact Us For Availability
029
MAY 22002934 MAY 22002934 Contact Us For Availability
030
MAY 22002011 MAY 22002011 Contact Us For Availability
× ![]()
