Model Whirlpool LW3503L WASHER – Common Parts & Diagrams

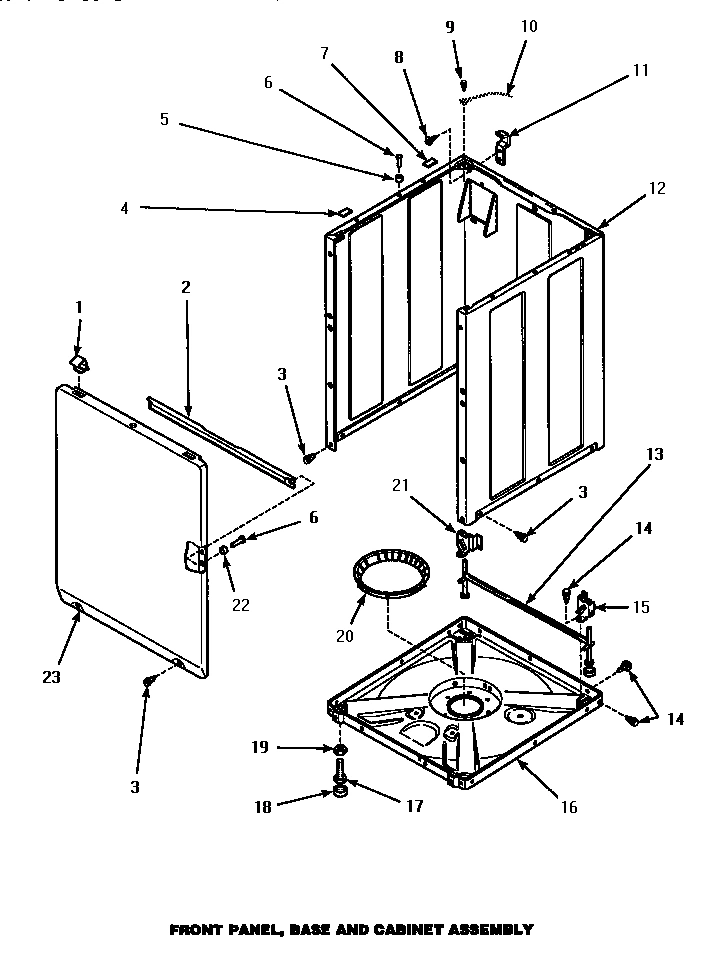

07 - FRONT PANEL, BASE & CABINET ASSY

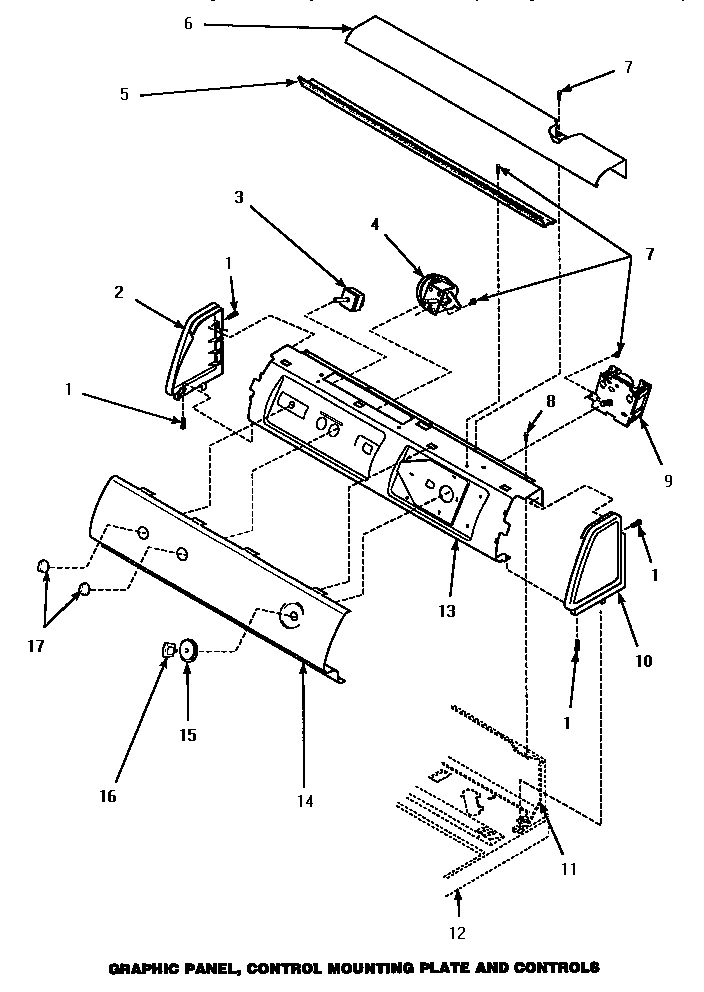

08 - GRAPHIC PANEL, CTRL MTG PLATE & CTRLS

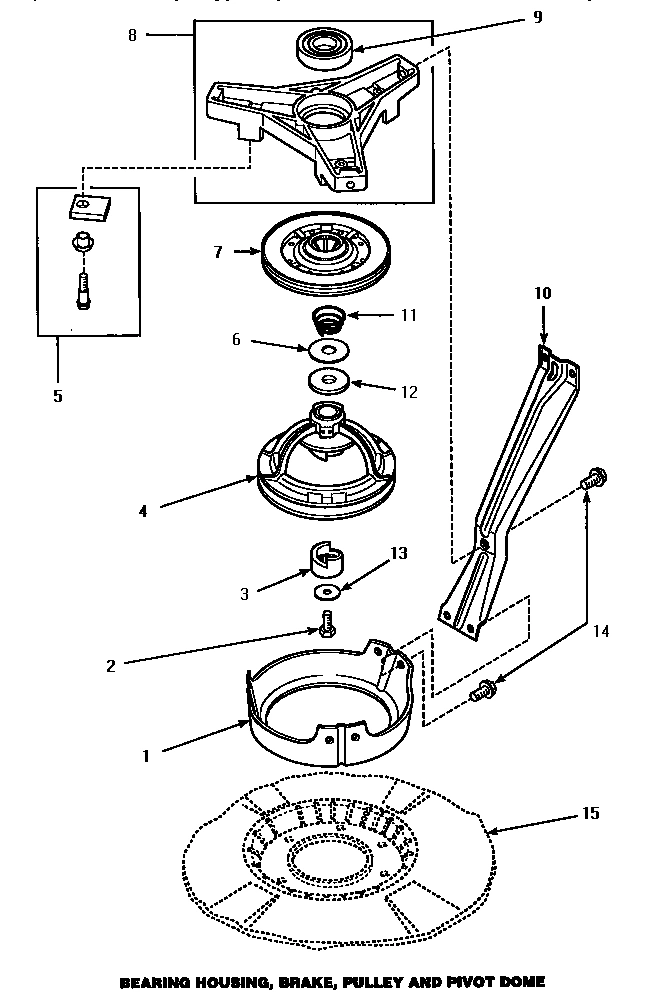

03 - BRG HSG/BRAKE/PULLEY & PIVOT DOME

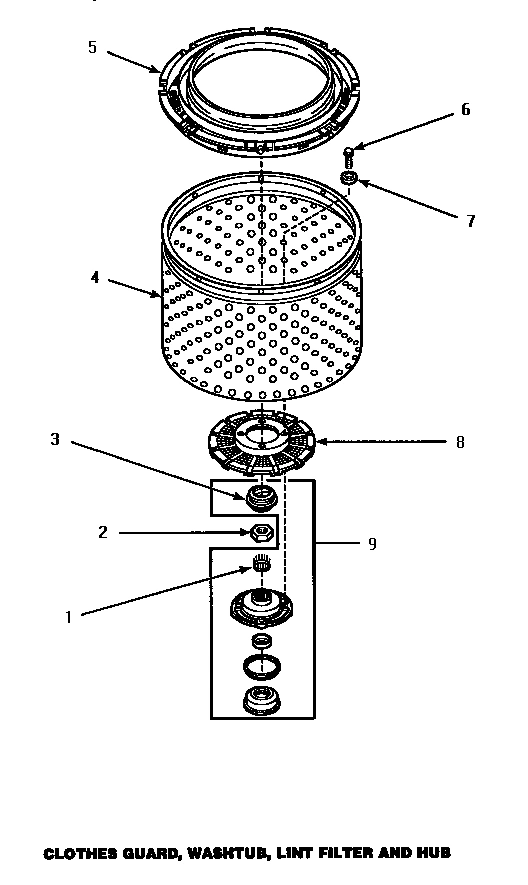

05 - CLOTHES GUARD/WASHTUB/LINT FILTER & HUB

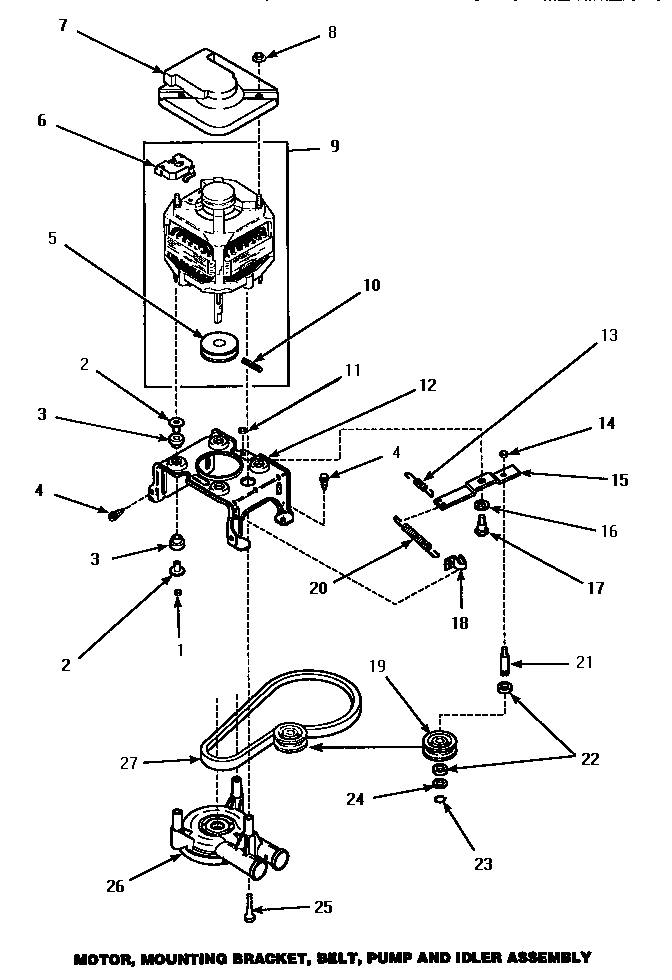

12 - MOTOR, MTG BRKT, BELT, PUMP & IDLER ASSY

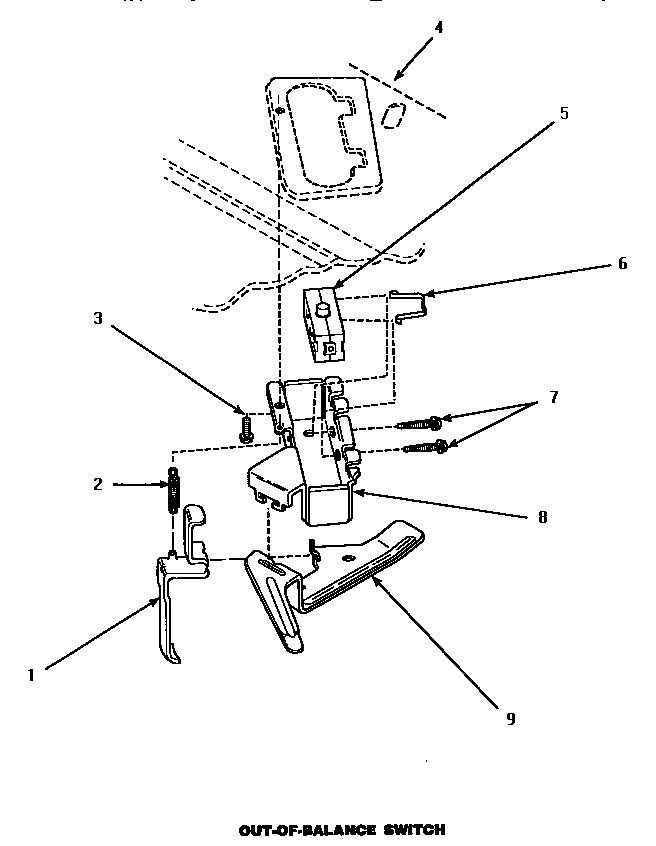

14 - OUT-OF-BALANCE SWITCH

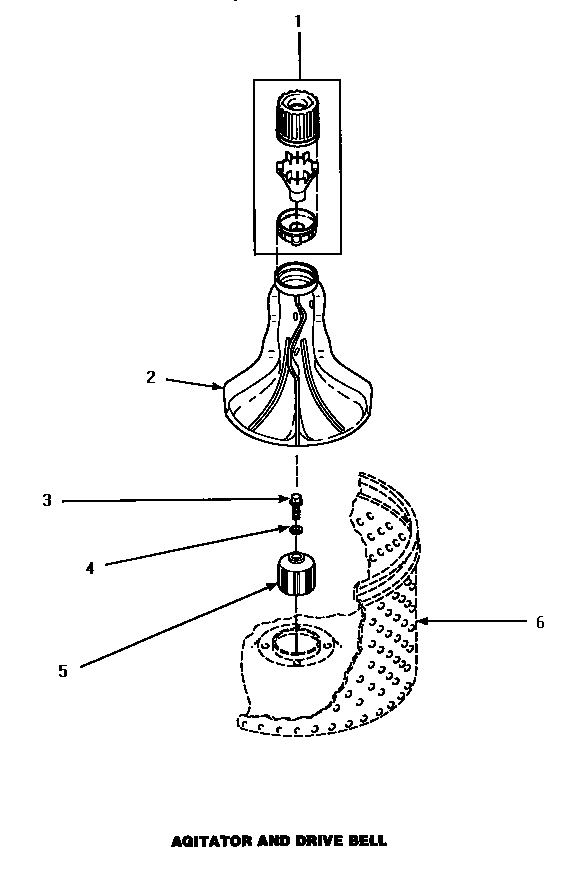

02 - AGITATOR & DRIVE BELL

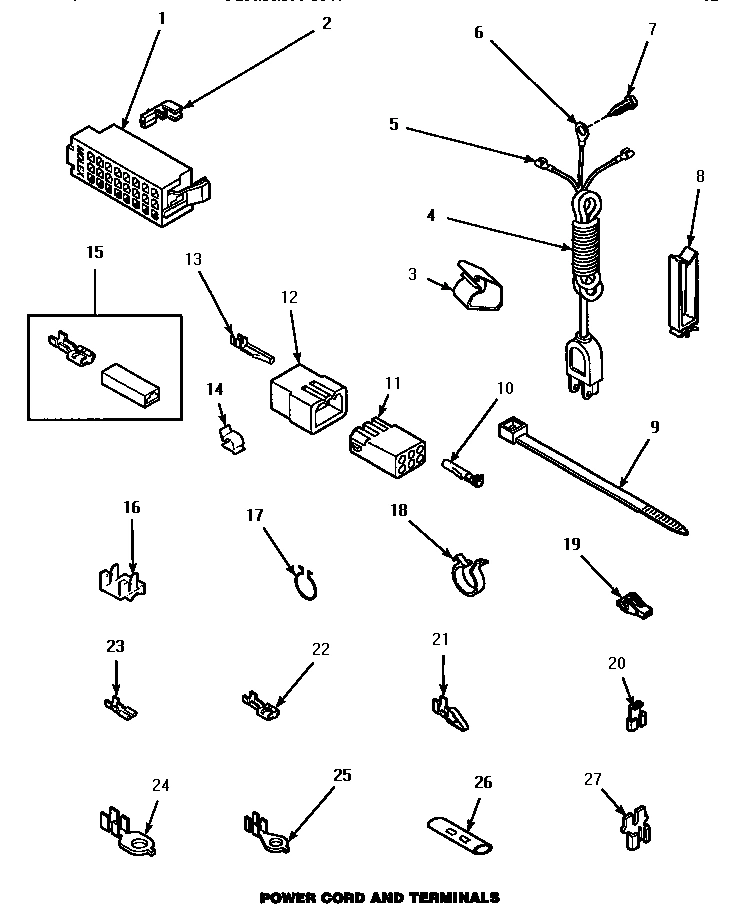

15 - POWER CORD & TERMINALS

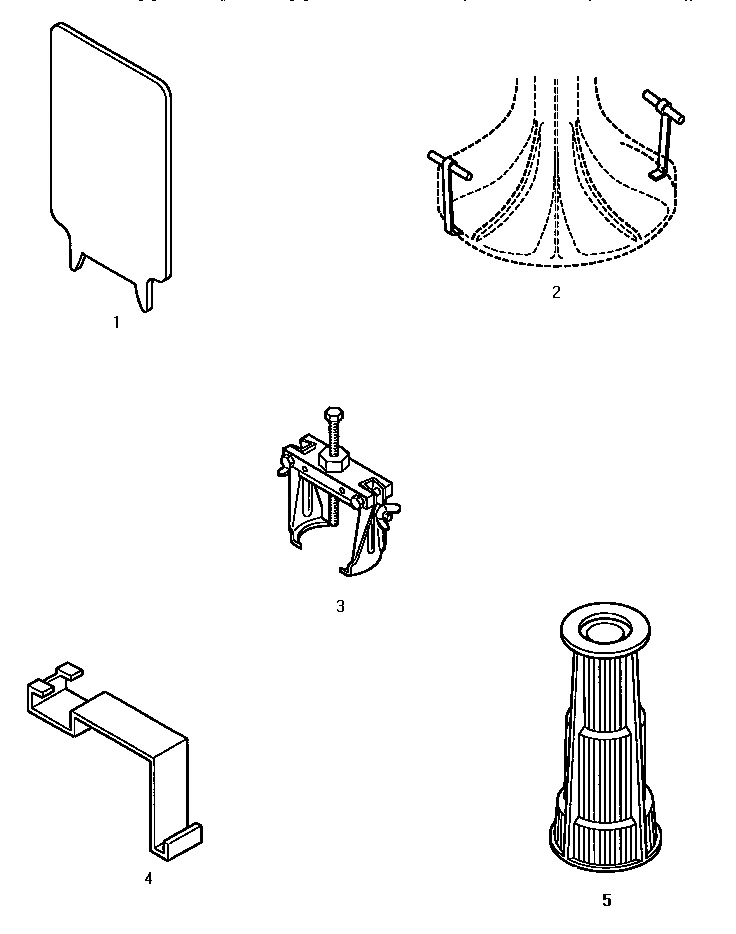

17 - SPECIAL TOOLS

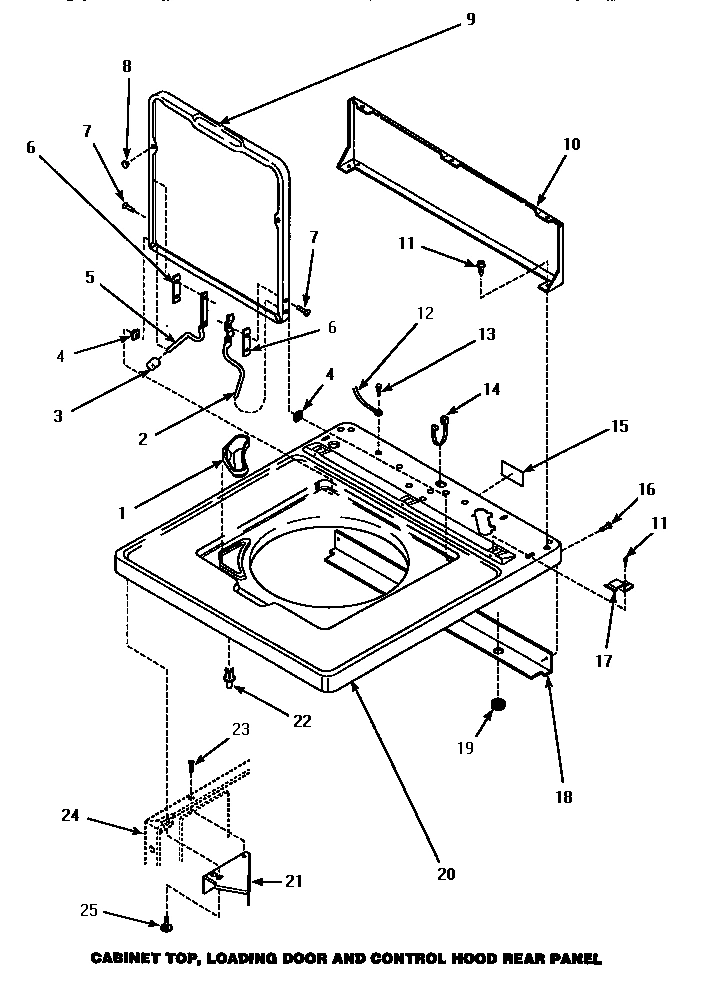

04 - CAB TOP/LOADING DR & CTRL HOOD REAR PAN

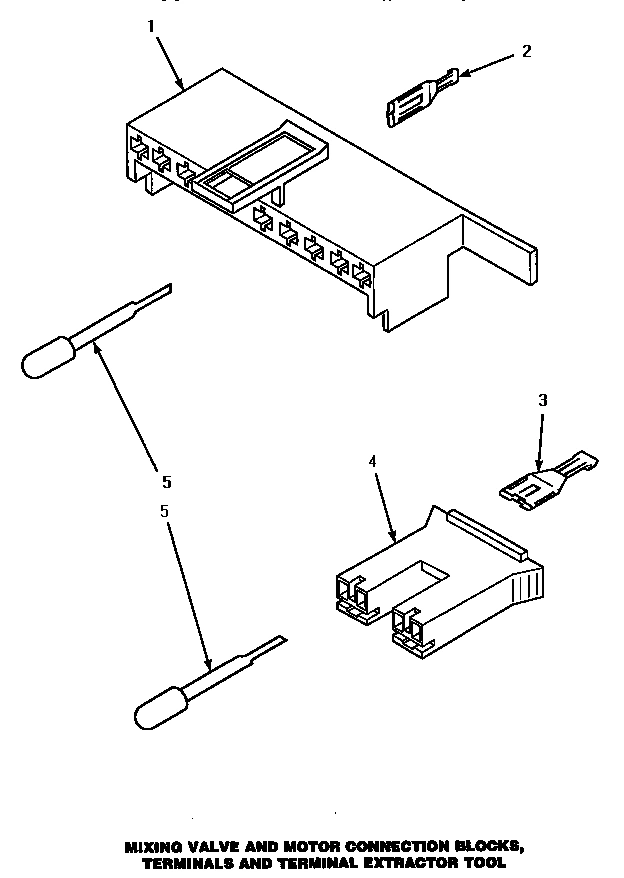

11 - MIXING VLV & MTR CONN BLOCKS/TERM & TOOL

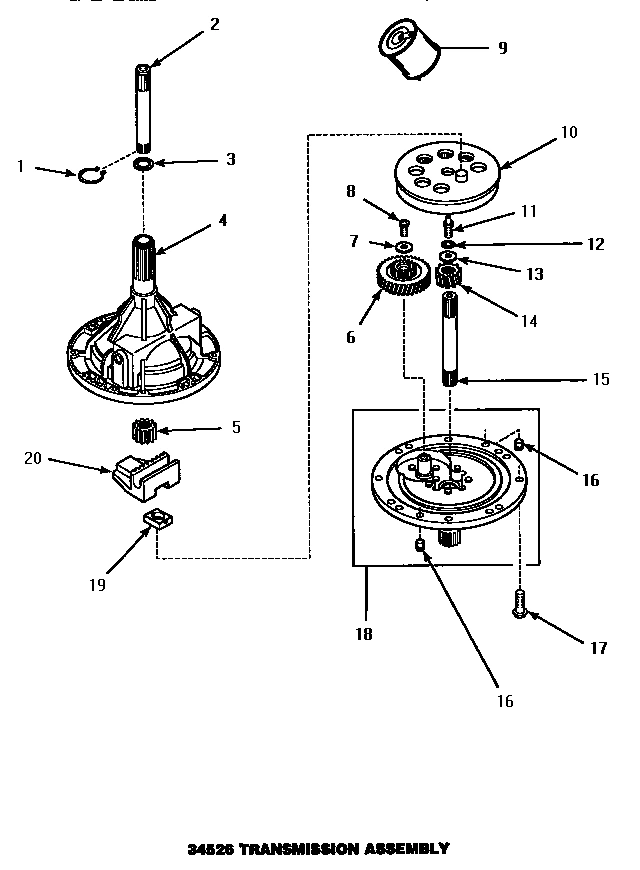

01 - 34526 TRANSMISSION ASSY

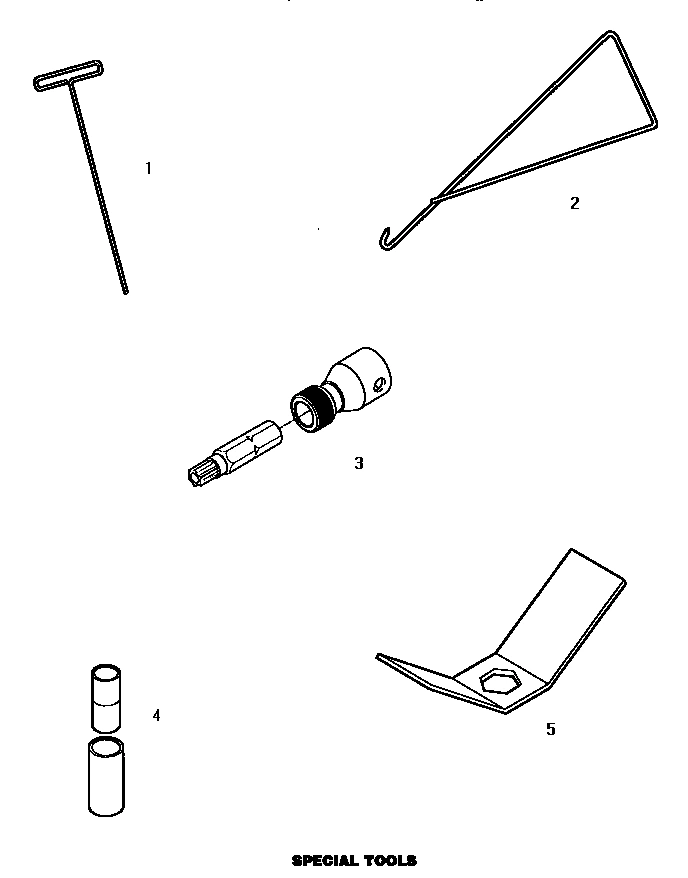

16 - SPECIAL TOOLS

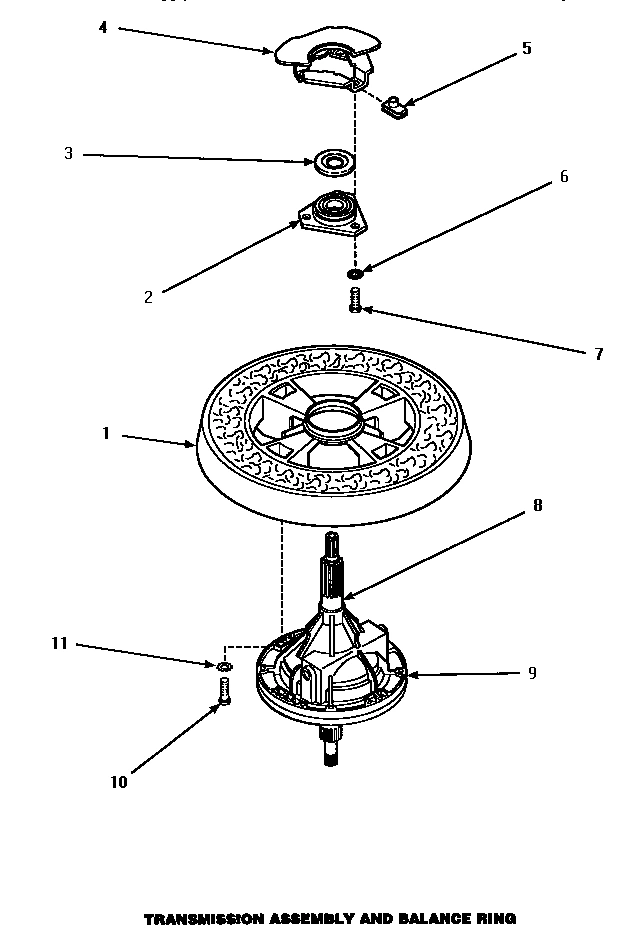

18 - TRANSMISSION ASSY & BALANCE RING

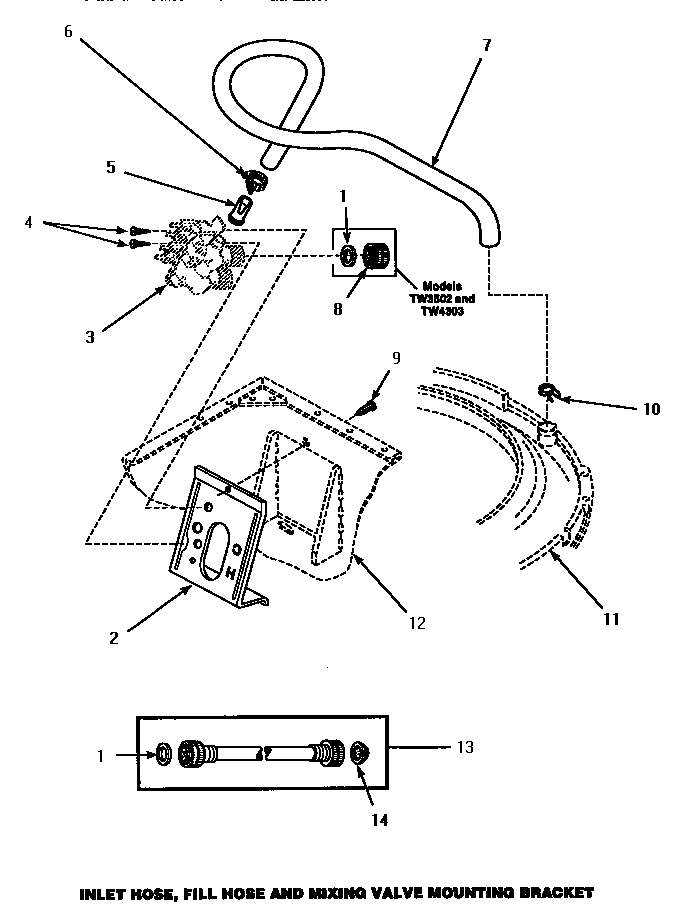

09 - INLET/FILL HOSE & MIXING VLV MTG BRKT

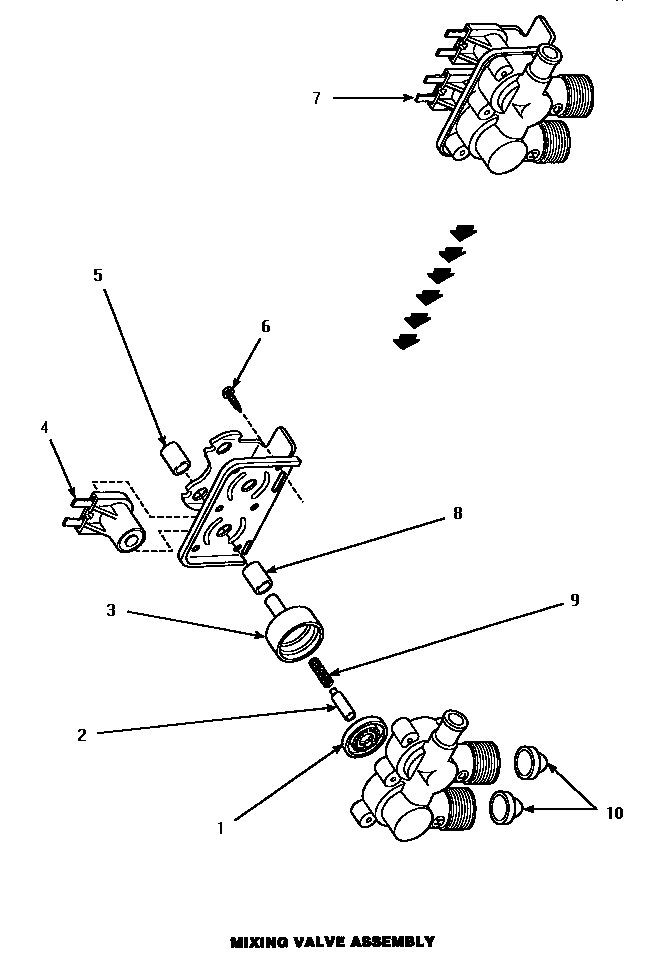

10 - MIXING VALVE ASSY

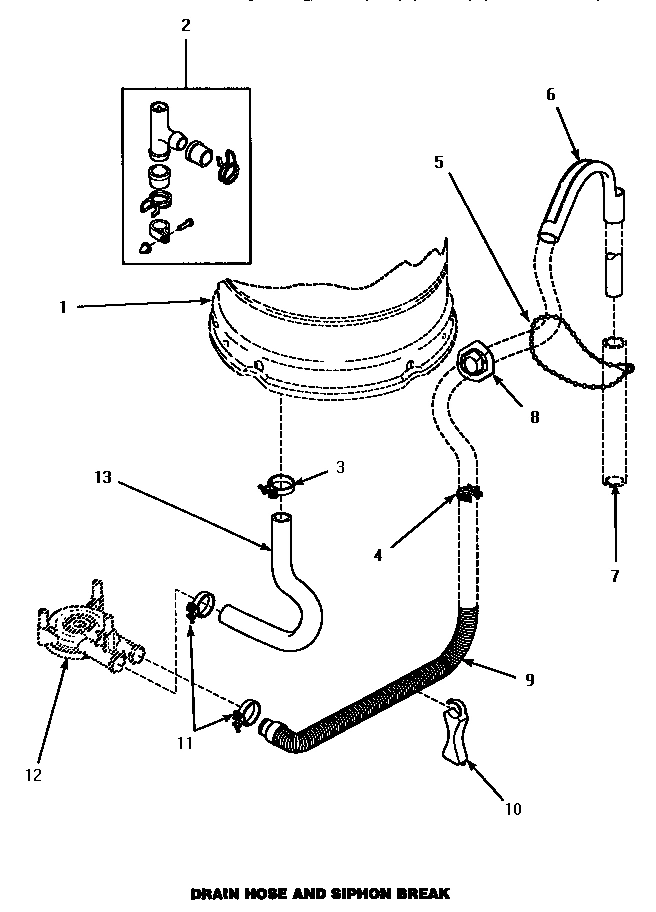

06 - DRAIN HOSE & SIPHON BREAK

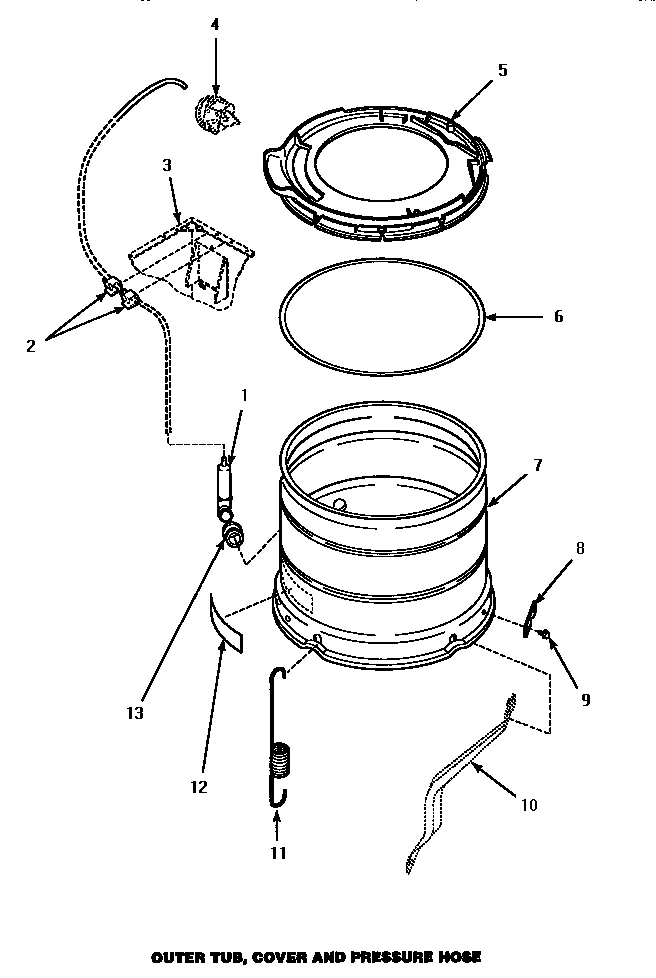

13 - OUTER TUB, COVER & PRESSURE HOSE
Common parts from model Whirlpool LW3503L WASHER
OUTER TUB COVER AND GASKET TOOL IS FOR REMOVA WPL NOTE Contact Us For Availability
1
SPLINED INSERT WPL WP40008301 No Longer Available
1
CLIP,HOLD-DOWN FRONT PANEL WPL 35865 Contact Us For Availability
1
DOME,PIVOT WPL 34470 Contact Us For Availability
1
LEVER,UNBALANCED LOAD WPL 33442 Contact Us For Availability
1
FABRIC SOFTENER DISPENSER WPL 34155 Contact Us For Availability
1
HOUSING,R.H.-24 POSITI WPL 32746 Contact Us For Availability
1
HOUSING,LH -24 POSITION WPL 34123 Contact Us For Availability
1
TOOL,LID SWITCH INSTAL WPL 272P4 Contact Us For Availability
1
DISPENSER,BLEACH WPL 34776 Contact Us For Availability
1
10 CIRCUIT PLUG WPL 34677 Contact Us For Availability
1
RING,RETAINING WPL 27197 Contact Us For Availability
1
WRENCH, T - ALLEN WPL 291P4 Contact Us For Availability
1
ASSY,BALANCE RING-COMPL WPL 34731 Contact Us For Availability
1
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
1
DIAPHRAGM WPL 24134 Contact Us For Availability
1
PRESSURE BULB WPL 30907 Contact Us For Availability
2
BRACE, FRT PNL WPL Y35097 Contact Us For Availability
2
PANEL, END (BLK,L.H.) WPL 34816 Contact Us For Availability
2
SCREW WPL 27220 Contact Us For Availability
2
LOCKNUT WPL Y29220 Contact Us For Availability
2
POST,MOUNT-MOTOR WPL 34791 Contact Us For Availability
2
SPRING WPL 33443 Contact Us For Availability
2
AGITATOR WPL 33174 Contact Us For Availability
2
TERMINAL,FEMALE-MOLEX- WPL Y00188 Contact Us For Availability
2
CLIP,CABLE WPL 21036 Contact Us For Availability
2
AGITATOR HOOKS WPL 254P4P Contact Us For Availability
2
HINGE, LID R WPL 36437 Contact Us For Availability
2
SHAFT, OUTPUT WPL Y36570 Contact Us For Availability
2
HOOK, SPRING WPL 289P4 Contact Us For Availability
2
MIXING VALVE MOUNTING BRACKET WPL 34972 Contact Us For Availability
2
ARMATURE WPL 24132 Contact Us For Availability
3
SWITCH,TEMPERATURE 3 P WPL 35115 Contact Us For Availability
3
HELIX WPL 27018 Contact Us For Availability
3
HUB AND TRANSMISSION TUBE SEAL WPL 34184 Contact Us For Availability
3
MOUNT,MOTOR WPL 34788 Contact Us For Availability
3
SHOULDER SCREW WPL 34288 Contact Us For Availability
3
CLIP,HARNESS HOLDER WPL 35521 Contact Us For Availability
3
BELL TOOL WPL 253P4 Contact Us For Availability
3
BUMPER,HINGE-STOP WPL 35112 Contact Us For Availability
3
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
3
WASHER,3628ID X 1.00 X .056 WPL 35092 Contact Us For Availability
3
TORX BIT HOLDER WPL 24161 Contact Us For Availability
3
T25 TAMPER RESISTANT BIT WPL 282P4 Contact Us For Availability
3
FLINGER WPL 27187 Contact Us For Availability
3
GUIDE,ARMATURE WPL 24130 Contact Us For Availability
4
PAD, BUMPER WPL Y56128 Contact Us For Availability
4
SCREW,8-18 X 3/8 TAPPI WPL 56392 Contact Us For Availability
4
PRESSURE SWITCH WPL 36045 Contact Us For Availability
4
ASSY,PULLEY-SPIN & AGITATE WPL 34921 Contact Us For Availability
4
WASHTUB STAINLESS STEEL ALL WPL 33501P Contact Us For Availability
4
O-RING WPL 36472 Contact Us For Availability
4
POWER CORD ALL WPL Y34458 Contact Us For Availability
4
TUB COVER GASKET TOOL WPL 273P4 Contact Us For Availability
4
BUSHING WPL 33446 Contact Us For Availability
4
PLUG WPL 34675 Contact Us For Availability
4
PLUG WPL 34676 Contact Us For Availability
4
ASSY,TRANSMISSION CASE WPL 33223 Contact Us For Availability
4
INSTALLER,SPRING WPL 242P4 Contact Us For Availability
4
SOLENOID,MIXING VALVE WPL 33930A Contact Us For Availability
4
CLIP, RETAINER-HOSE WPL 36014 Contact Us For Availability
5
LOCATER, PANEL WPL 56079 Contact Us For Availability
5
DIFFUSER,LAMP-CLEAR WPL Y34826 Contact Us For Availability
5
BRAKE PAD KIT WPL 548P3 Contact Us For Availability
5
GUARD, CLOTHES WPL 35035 Contact Us For Availability
5
PULLEY,MOTOR WPL 27171 Contact Us For Availability
5
SWITCH WPL 33445 Contact Us For Availability
5
DRIVE BELL AND SEAL KIT WPL 34504P Contact Us For Availability
5
NUT WPL 03673 Contact Us For Availability
5
SEAL TOOL WPL 274P4 Contact Us For Availability
5
HINGE, LID LEFT WPL 36438 Contact Us For Availability
5
TERMINAL EXTRACTOR TOOL WPL 283P4 Contact Us For Availability
5
PINION,AGITATOR WPL 27003 Contact Us For Availability
5
HEX WRENCH WPL 237P4 Contact Us For Availability
5
NUT,RETAINER 5/16-18 WPL 27222 Contact Us For Availability
5
PREVENTOR, BACKFLOW WPL 34500 Contact Us For Availability
5
SLEEVE,LONG WPL 24128 Contact Us For Availability
5
STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability
5
OUTER TUB COVER ASSEMBLY WPL 36025 Contact Us For Availability
6
COVER, TOP WPL 34823 Contact Us For Availability
6
WASHER WPL 35535 Contact Us For Availability
6
SWITCH, MOTOR WPL 35632 Contact Us For Availability
6
CLIP,HOLDER-SWITCH WPL 33433 Contact Us For Availability
6
GASKET,HINGE WPL 34338 Contact Us For Availability
6
GEAR,REDUCTION WPL 29161 Contact Us For Availability
6
LOCKWASHER,5/16INTSHKP WPL 04366 Contact Us For Availability
6
SCREW WPL 25817C Contact Us For Availability
6
SLEEVE, DRAIN HOSE WPL 33615 Contact Us For Availability
6
GASKET,TUB COVER SMALL WPL 32857 Contact Us For Availability
7
PAD, BUMPER .25 WPL 36226 Contact Us For Availability
7
BRAKE WPL 31961P Contact Us For Availability
7
GASKET WPL 28094 Contact Us For Availability
7
MOTOR SHIELD WPL 34754 Contact Us For Availability
7
SCREW WPL 36510 Contact Us For Availability
7
WASHER WPL 29260 Contact Us For Availability
7
SCREW WPL 01355 Contact Us For Availability
7
HOSE,MIX VALVE TO TUB WPL 35874 Contact Us For Availability
7
ASSY, OUTER TUB WPL 34438P Contact Us For Availability
8
SCREW, No.10B X 1/4 TAP IN HX WPL 34499 Contact Us For Availability
8
ASSY,BEARING HOUSING-L WPL 35746 Contact Us For Availability
8
LINT FILTER WPL 32998 Contact Us For Availability
8
PALNUT WPL 35139 Contact Us For Availability
8
CLIP, HARNESS WPL 36274 Contact Us For Availability
8
BUMPER WPL 21685 Contact Us For Availability
8
SCREW,1/4-20 X 3/8 WPL 29273 Contact Us For Availability
8
NEVER-SEEZE 1 OZ TUBE WPL 27604P Contact Us For Availability
8
CAP WPL 24145 Contact Us For Availability
8
SLEEVE,SHORT WPL 24129 Contact Us For Availability
8
RELIEF, STRAIN WPL 32219 Contact Us For Availability
8
PLATE,LEG .063 WPL 27926 Contact Us For Availability
9
TIMER,3 CYCLE WPL 31239 Contact Us For Availability
9
SCREW WPL 35369 Contact Us For Availability
9
HUB & SEAL KIT WPL 495P3 Contact Us For Availability
9
MOTOR ASSEMBLIES WPL 34910 Contact Us For Availability
9
MOTOR ASSEMBLY, ONE SPEED, 120 WPL 35032 Contact Us For Availability
9
ARM,ACTUATOR WPL 33441 Contact Us For Availability
9
WIRE TIE WPL 36466 Contact Us For Availability
9
LID,W/INSTRUCTIONS WPL 33541HP Contact Us For Availability
9
LID,W/INSTRUCTIONS WPL 33541LP Contact Us For Availability
9
LID,W/INSTRUCTIONS WPL 33541WP Contact Us For Availability
9
OIL,CW TRANSMISSION F- WPL 27243P Contact Us For Availability
9
TRANSMISSION ASSEMBLY WPL Y34526 Contact Us For Availability
9
SPRING WPL 23224E Contact Us For Availability
10
SEE NOTE SUPPORT LEG WPL Y00000000 Contact Us For Availability
10
PANEL, END R.H. (BLK) WPL 34815 Contact Us For Availability
10
LEG,SUPPORT WPL 34471 Contact Us For Availability
10
PIN,ROLL WPL 23750 Contact Us For Availability
10
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
10
PANEL, BACK HOOD (USE 37782) WPL 34903 Contact Us For Availability
10
ASSY,GEAR & STUD WPL 26577 Contact Us For Availability
10
CAP SCREW WPL 27200 Contact Us For Availability
10
HOSE CLAMP WPL 29210 Contact Us For Availability
10
SUPPORT,HOSE WPL 35487 Contact Us For Availability
11
HINGE,HOLD-DOWN LUG WPL Y27103 Contact Us For Availability
11
SPRING,CONICAL WPL 33435 Contact Us For Availability
11
RECEPTACLE,9 CIRCUIT WPL 26163 Contact Us For Availability
11
RECEPTACLE,MOLEX WPL 26301 Contact Us For Availability
11
RECEPTACLE,6 CIRCUIT WPL 26708 Contact Us For Availability
11
SCREW,1/4-20 SPECIAL WPL 27030 Contact Us For Availability
11
LOCKWASHER,1/4 EXT SHK WPL 02431 Contact Us For Availability
11
SPRING,LEG-LARGE TUB WPL 35948 Contact Us For Availability
12
KIT,SERVICE CABINET WPL 34475HP Contact Us For Availability
12
CABINET WPL 34475LP Contact Us For Availability
12
CABINET WPL 34475WP Contact Us For Availability
12
WASHER WPL 27015 Contact Us For Availability
12
BRACKET,MOTOR MOUNT WPL 34890 Contact Us For Availability
12
PLUG,9 CIRCUIT WPL 23033 Contact Us For Availability
12
PLUG,6 CIRCUIT WPL 23041 Contact Us For Availability
12
PLUG,1 CIRCUIT WPL 26302 Contact Us For Availability
12
LOCKWASHER,1/4 INTSHKP WPL 21456 Contact Us For Availability
12
STICKER WPL 500049 Contact Us For Availability
13
ASSY,LEG & STABILIER WPL 34443 Contact Us For Availability
13
CONTROL MOUNTING PLATE WPL 34821 Contact Us For Availability
13
WASHER WPL 26509 Contact Us For Availability
13
SPRING,IDLER LEVER HEL WPL 30620 Contact Us For Availability
13
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
13
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
13
HOSE,TUB TO PUMP-DDP WPL 35753 Contact Us For Availability
13
GROMMET WPL 29175 Contact Us For Availability
14
SCREW,1/4-14 X 3/8 HX HD WPL 35148 Contact Us For Availability
14
PANEL,GRAPHIC-AMANA WPL 35317 Contact Us For Availability
14
STRAIN RELIEF WPL 21903 Contact Us For Availability
14
PINION,DRIVE WPL Y29160 Contact Us For Availability
15
BRACKET,SLL-RIGHT WPL 36036 Contact Us For Availability
15
ASSY,TIMER SKIRT WPL 34848 Contact Us For Availability
15
IDLER LEVER WPL 31054 Contact Us For Availability
15
TERMINAL,INSULATED WPL 00234 Contact Us For Availability
15
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
15
SHAFT,INPUT WPL 34853 Contact Us For Availability
16
ASSY NUT/LEG BASE WPL 34434P Contact Us For Availability
16
KNOB,TIMER WPL 34844 Contact Us For Availability
16
WASHER WPL 81392 Contact Us For Availability
16
GROUND CLIP WPL Y00161 Contact Us For Availability
16
PIN,DOWEL WPL 27172 Contact Us For Availability
17
ASSY,KNOB-ROTARY WPL 34847 Contact Us For Availability
17
SHOULDER BOLT WPL 27229 Contact Us For Availability
17
CLIP,WIRE WPL 51291 Contact Us For Availability
17
HOLD-DOWN CLIP WPL 35887 Contact Us For Availability
17
SCREW,1/4-20X7/8 SERRA WPL 32814 Contact Us For Availability
18
RUBBER FOOT WPL 34318 Contact Us For Availability
18
CLIP,SPRING WPL 28849 Contact Us For Availability
18
CLIP,WIRE WPL 61510 Contact Us For Availability
18
TRANSMISSION COVER WPL 34854 Contact Us For Availability
19
WHEEL,IDLER WPL 28800 Contact Us For Availability
19
INSULATOR,BLUE WPL 70210 Contact Us For Availability
19
SLIDE WPL 26493 Contact Us For Availability
20
SNUBBER PAD & ISOLATOR WPL 36108 Contact Us For Availability
20
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
20
ASSY,TOP-DOMESTIC W/BLEACH WPL 34902HP Contact Us For Availability
20
ASSY,TOP-AMANA WPL 34902LP Contact Us For Availability
20
ASSY,TOP-AMANA WPL 34902WP Contact Us For Availability
20
RACK WPL Y31526 Contact Us For Availability
21
BRACKET,SLL-LEFT WPL 36037 Contact Us For Availability
21
SHAFT,IDLER WPL 28802 Contact Us For Availability
21
TERMINAL,CRIMP-SINGLE WPL 00220 Contact Us For Availability
21
BRACKET,DIRECTOR-MODULE WPL 36034 Contact Us For Availability
22
LOCATOR,PANEL WPL 28102 Contact Us For Availability
22
WASHER,FELT WPL Y29443 Contact Us For Availability
22
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
22
BARREL,SUPPORT WPL 56534 Contact Us For Availability
23
ASSY,FRONT PANEL WPL 34656HP Contact Us For Availability
23
ASSY,FRONT PANEL WPL 34656LP Contact Us For Availability
23
ASSY,FRONT PANEL WPL 34656WP Contact Us For Availability
23
TERMINAL,SPADE-3/16 FE WPL 00112 Contact Us For Availability
23
SCREW,8-18X3/8 PHIL FLT HD WPL 36035 Contact Us For Availability
24
TERMINAL,RING-1/4 STUD WPL Y00113 Contact Us For Availability
25
SCREW WPL Y34565 Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
26
PUMP ASSEMBLY WPL 35742P Contact Us For Availability
26
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
27
DOUBLE CONNECTOR WPL 29673 Contact Us For Availability
NI
KIT,CAPACITOR WPL 258P3 Contact Us For Availability
NI
LOCTITE WPL 28434P Contact Us For Availability
NI
KIT, TOOL WPL 555P3 Contact Us For Availability
NI
DRAIN HOSE EXTENSION KIT WPL 406P3 Contact Us For Availability
NI
PRESSURE HOSE WPL 29213 Contact Us For Availability
× ![]()
Login and Registration Form
