Model Maytag LW2603 WASHER – Common Parts & Diagrams

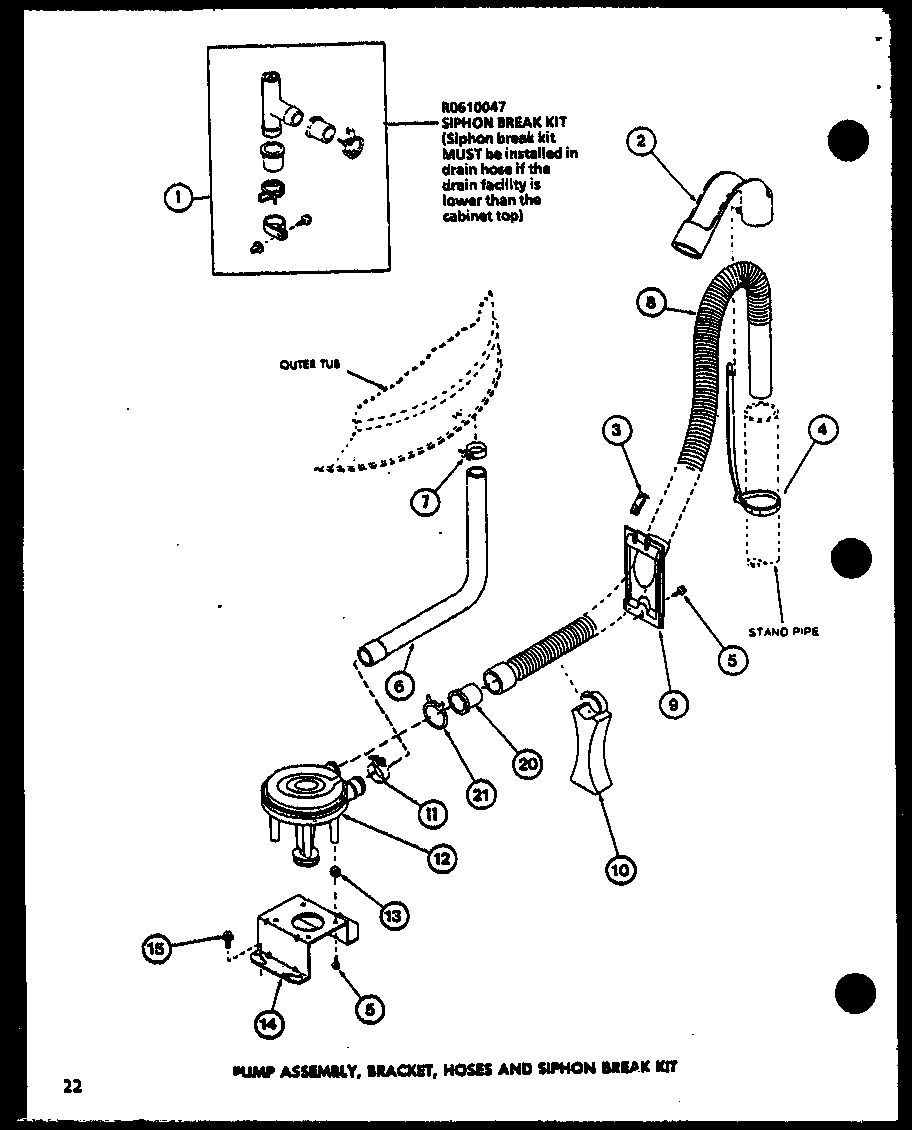

01 - FRONT PANEL
02 - INLET HOSE

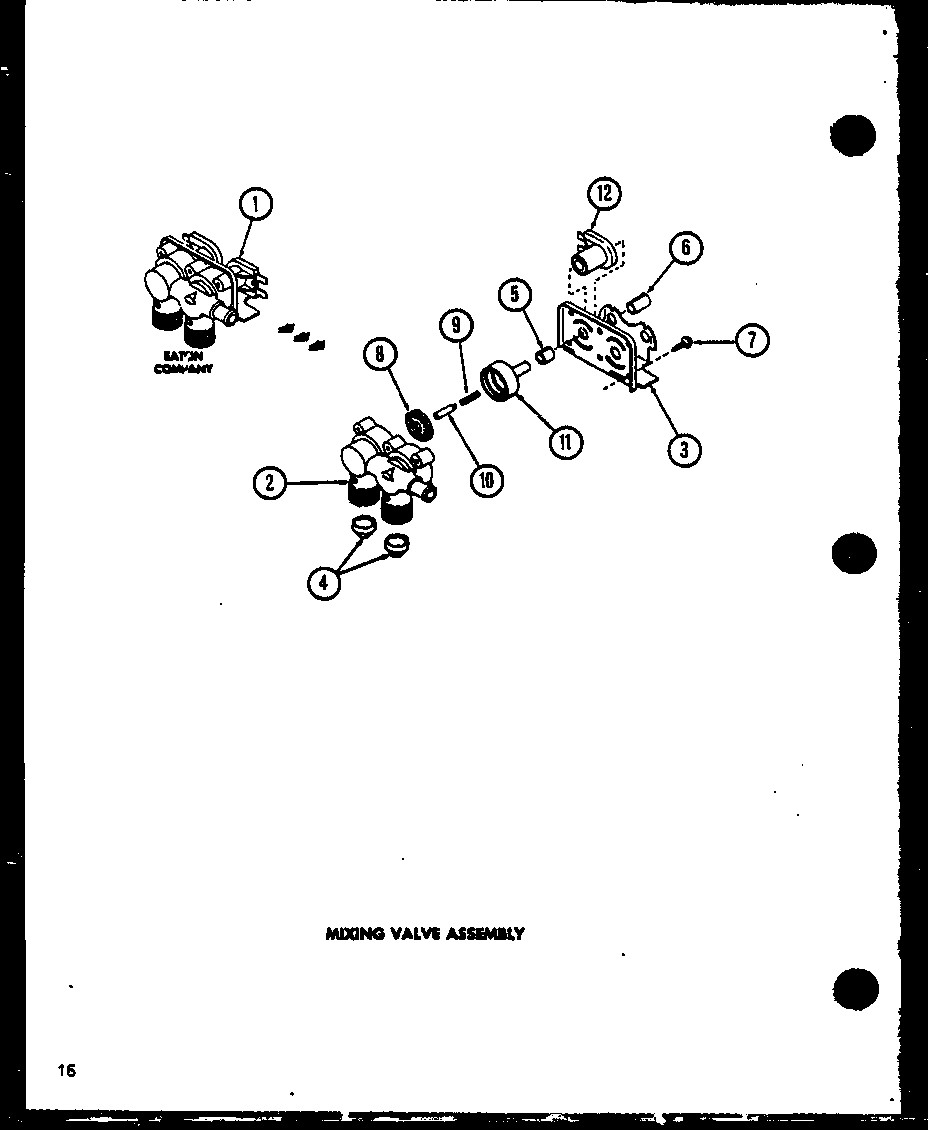

03 - MIXING VALVE ASSY

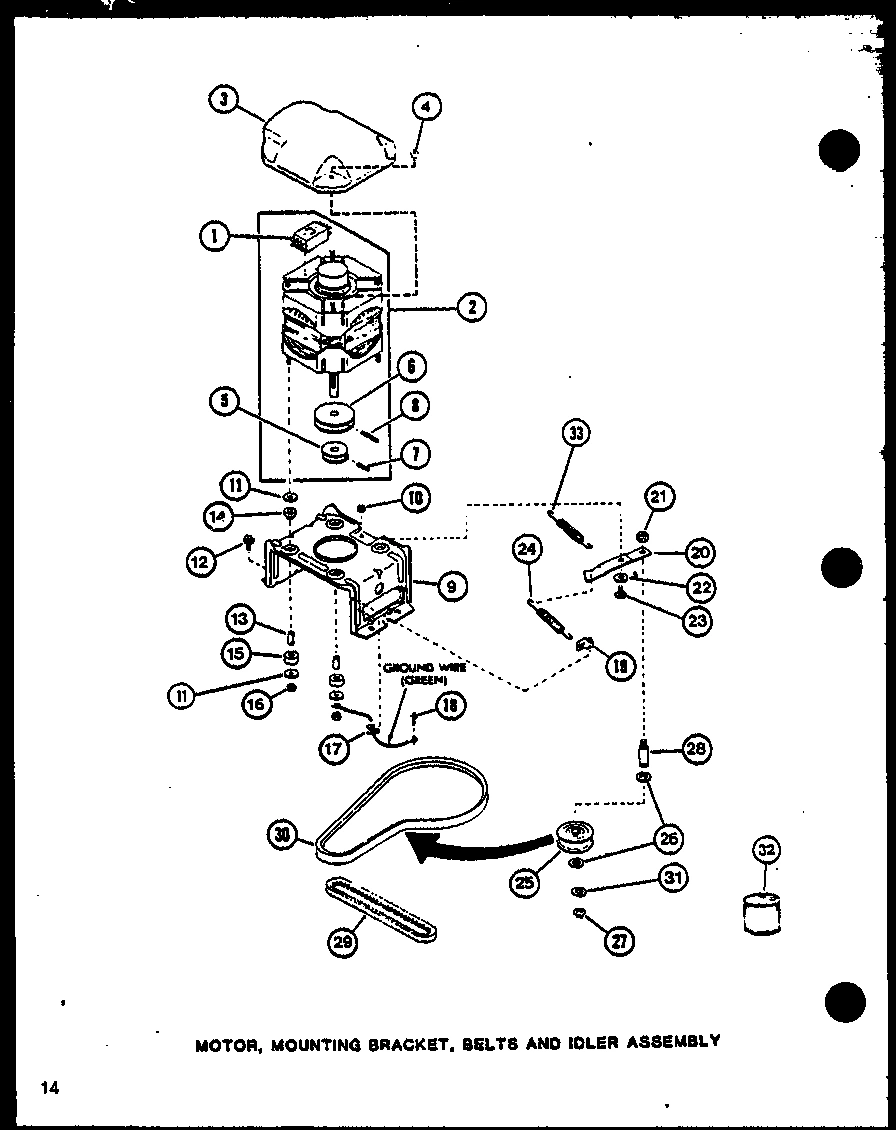

04 - MOTOR

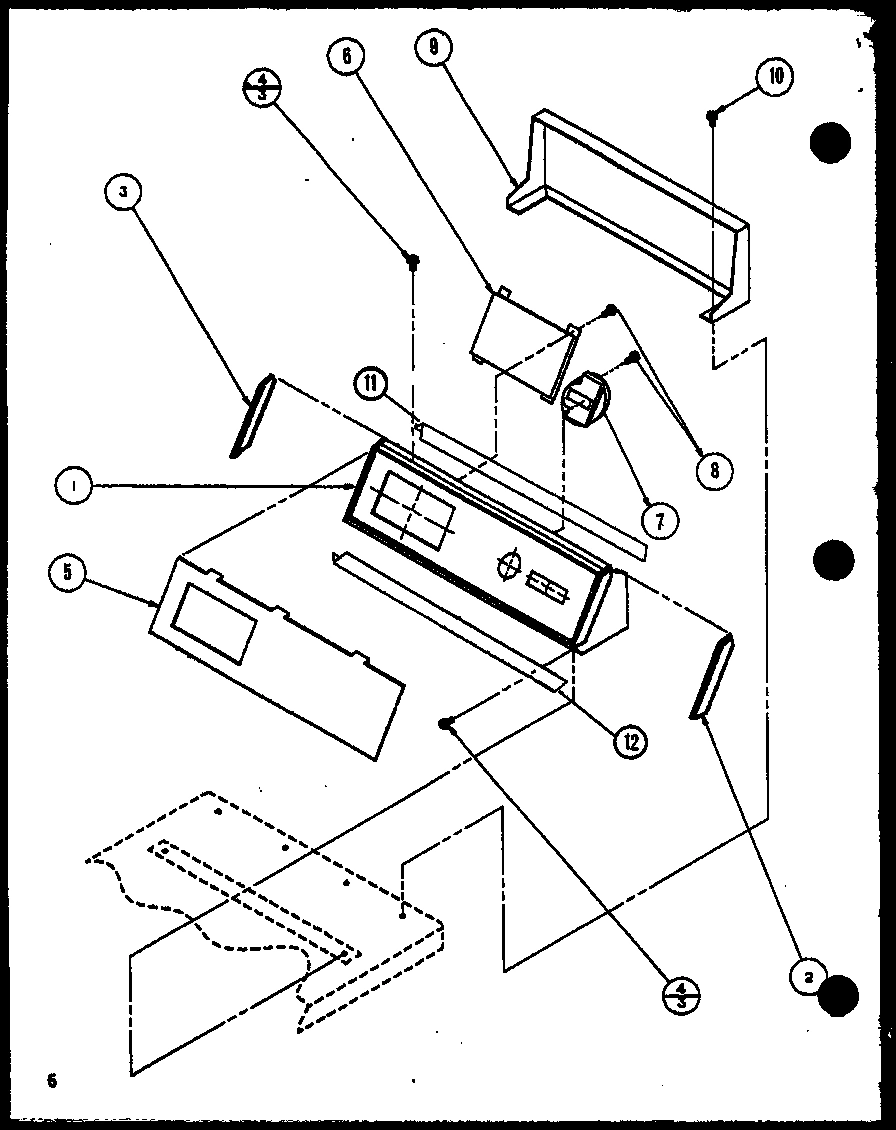

05 - Page 1

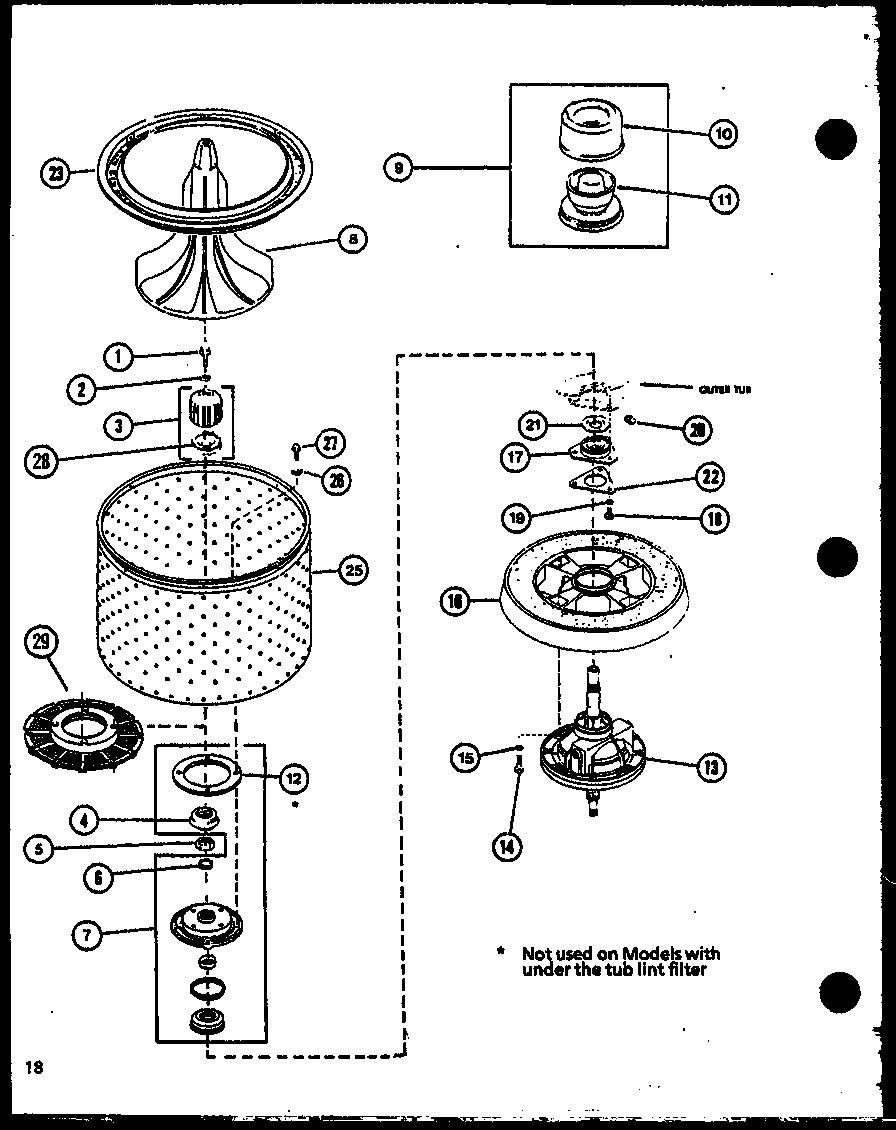

06 - Page 7

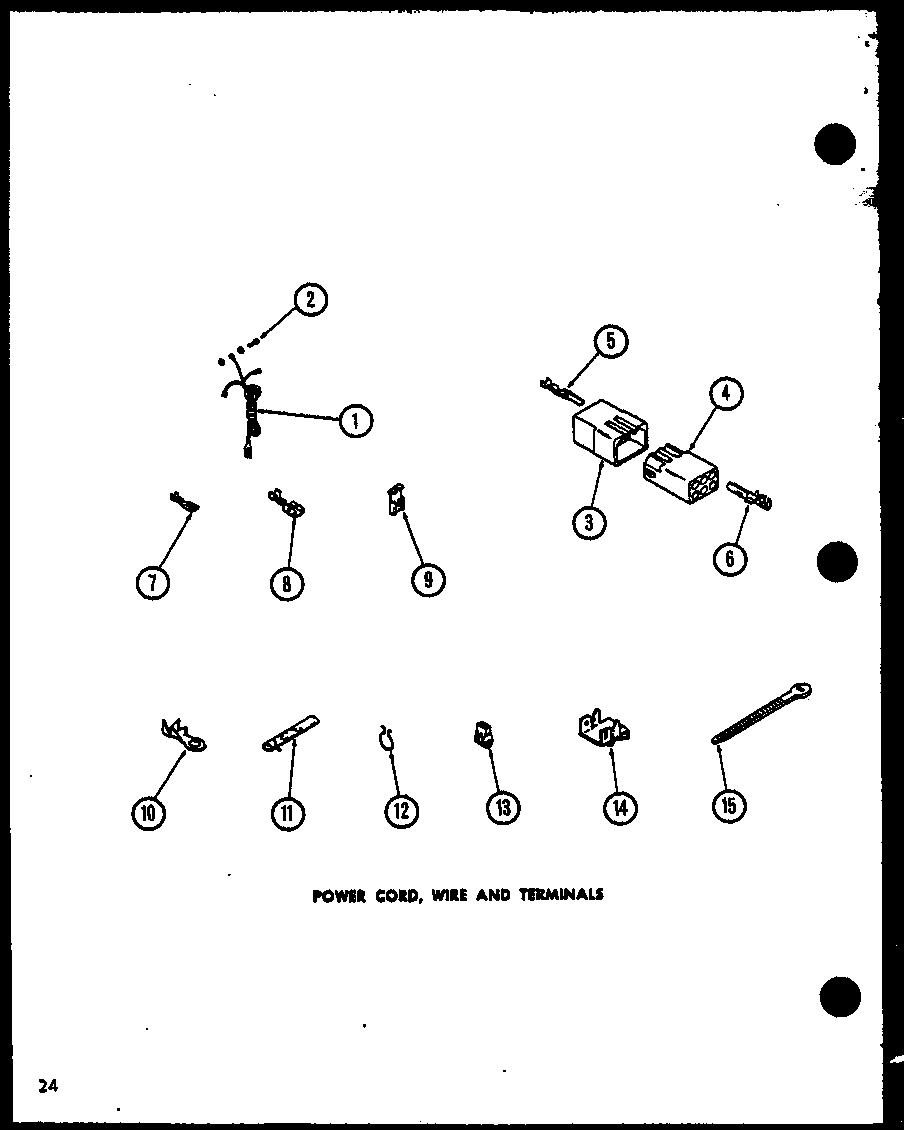

07 - POWER CORD

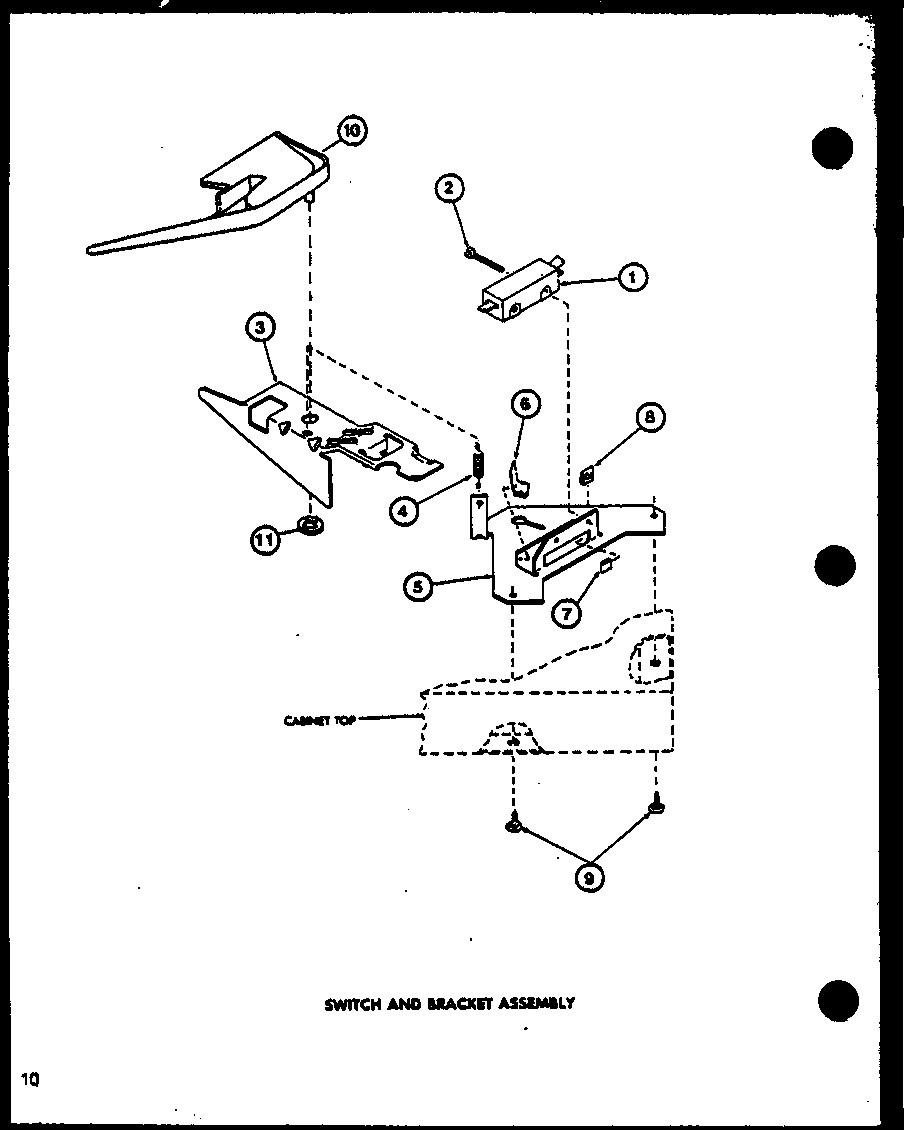

08 - SWITCH AND BRACKET ASSY
Common parts from model Maytag LW2603 WASHER
1
MAY R0603144 MAY R0603144 Contact Us For Availability
1
MAY R0603145 MAY R0603145 Contact Us For Availability
1
MAY R0606548 MAY R0606548 Contact Us For Availability
1
MAY R0606001 MAY R0606001 Contact Us For Availability
1
MAY R0602509 MAY R0602509 Contact Us For Availability
1
MAY R0602511 MAY R0602511 Contact Us For Availability
1
MAY R0603163 MAY R0603163 Contact Us For Availability
1
MAY R0600092 MAY R0600092 Contact Us For Availability
1
MAY R0605001 MAY R0605001 Contact Us For Availability
1
MAY R0602507 MAY R0602507 Contact Us For Availability
2
MAY R0605695 MAY R0605695 Contact Us For Availability
2
MAY R0600040 MAY R0600040 Contact Us For Availability
2
MAY R0606503 MAY R0606503 Contact Us For Availability
2
MAY R0606003 MAY R0606003 Contact Us For Availability
2
MAY R0607002 MAY R0607002 Contact Us For Availability
2
MAY R0605696 MAY R0605696 Contact Us For Availability
2
MAY R0600554 MAY R0600554 Contact Us For Availability
2
MAY R0600011 MAY R0600011 Contact Us For Availability
3
MAY R0603579 MAY R0603579 Contact Us For Availability
3
MAY R0601541 MAY R0601541 Contact Us For Availability
3
MAY R0605515 MAY R0605515 Contact Us For Availability
3
MAY R0603011 MAY R0603011 Contact Us For Availability
3
MAY R0605698 MAY R0605698 Contact Us For Availability
3
MAY R0603552 MAY R0603552 Contact Us For Availability
3
MAY R0605009 MAY R0605009 Contact Us For Availability
3
MAY R0605504 MAY R0605504 Contact Us For Availability
4
MAY R0603504 MAY R0603504 Contact Us For Availability
4
MAY R0605507 MAY R0605507 Contact Us For Availability
4
MAY R0603506 MAY R0603506 Contact Us For Availability
4
MAY R0601008 MAY R0601008 Contact Us For Availability
4
MAY R0600095 MAY R0600095 Contact Us For Availability
4
MAY R0603553 MAY R0603553 Contact Us For Availability
4
MAY R0605010 MAY R0605010 Contact Us For Availability
4
MAY R0605506 MAY R0605506 Contact Us For Availability
5
MAY R0600008 MAY R0600008 Contact Us For Availability
5
MAY R0603508 MAY R0603508 Contact Us For Availability
5
MAY R0609501 MAY R0609501 Contact Us For Availability
5
MAY R0603159 MAY R0603159 Contact Us For Availability
5
MAY R0601034 MAY R0601034 Contact Us For Availability
5
MAY R0605003 MAY R0605003 Contact Us For Availability
5
MAY R0605505 MAY R0605505 Contact Us For Availability
6
MAY R0606501 MAY R0606501 Contact Us For Availability
6
MAY R0600009 MAY R0600009 Contact Us For Availability
6
MAY R0603510 MAY R0603510 Contact Us For Availability
6
MAY R0609502 MAY R0609502 Contact Us For Availability
6
MAY R0603156 MAY R0603156 Contact Us For Availability
6
MAY R0605674 MAY R0605674 Contact Us For Availability
6
MAY R0605004 MAY R0605004 Contact Us For Availability
6
MAY R0601503 MAY R0601503 Contact Us For Availability
7
MAY R0603090 MAY R0603090 Contact Us For Availability
7
MAY R0603115 MAY R0603115 Contact Us For Availability
7
MAY R0601007 MAY R0601007 Contact Us For Availability
7
MAY R0600013 MAY R0600013 Contact Us For Availability
7
MAY R0601508 MAY R0601508 Contact Us For Availability
7
MAY R0602534 MAY R0602534 Contact Us For Availability
7
MAY R0605723 MAY R0605723 Contact Us For Availability
7
MAY R0605002 MAY R0605002 Contact Us For Availability
7
MAY R0601504 MAY R0601504 Contact Us For Availability
8
MAY R0606504 MAY R0606504 Contact Us For Availability
8
MAY R0606506 MAY R0606506 Contact Us For Availability
8
MAY R0601509 MAY R0601509 Contact Us For Availability
8
MAY R0600093 MAY R0600093 Contact Us For Availability
8
MAY R0603551 MAY R0603551 Contact Us For Availability
8
MAY R0605005 MAY R0605005 Contact Us For Availability
8
MAY R0601006 MAY R0601006 Contact Us For Availability
9
MAY R0605528 MAY R0605528 Contact Us For Availability
9
MAY R0600505 MAY R0600505 Contact Us For Availability
9
MAY R0605509 MAY R0605509 Contact Us For Availability
9
MAY R0605514 MAY R0605514 Contact Us For Availability
9
MAY R0603103 MAY R0603103 Contact Us For Availability
9
MAY R0603549 MAY R0603549 Contact Us For Availability
9
MAY R0605006 MAY R0605006 Contact Us For Availability
9
MAY R0600012 MAY R0600012 Contact Us For Availability
10
MAY R0600032 MAY R0600032 Contact Us For Availability
10
MAY R0600004 MAY R0600004 Contact Us For Availability
10
MAY R0600504 MAY R0600504 Contact Us For Availability
10
MAY R0605511 MAY R0605511 Contact Us For Availability
10
MAY R0601011 MAY R0601011 Contact Us For Availability
10
MAY R0603515 MAY R0603515 Contact Us For Availability
10
MAY R0605007 MAY R0605007 Contact Us For Availability
10
MAY R0605671 MAY R0605671 Contact Us For Availability
11
MAY R0600033 MAY R0600033 Contact Us For Availability
11
MAY R0605513 MAY R0605513 Contact Us For Availability
11
MAY R0600510 MAY R0600510 Contact Us For Availability
11
MAY R0605678 MAY R0605678 Contact Us For Availability
11
MAY R0603550 MAY R0603550 Contact Us For Availability
11
MAY R0605008 MAY R0605008 Contact Us For Availability
11
MAY R0601032 MAY R0601032 Contact Us For Availability
12
MAY R0603524 MAY R0603524 Contact Us For Availability
12
MAY R0601542 MAY R0601542 Contact Us For Availability
12
MAY R0609002 MAY R0609002 Contact Us For Availability
12
MAY R0600098 MAY R0600098 Contact Us For Availability
12
MAY R0605701 MAY R0605701 Contact Us For Availability
12
MAY R0604505 MAY R0604505 Contact Us For Availability
12
MAY R0601522 MAY R0601522 Contact Us For Availability
13
MAY R0603142 MAY R0603142 Contact Us For Availability
13
MAY R0603143 MAY R0603143 Contact Us For Availability
13
MAY R0601505 MAY R0601505 Contact Us For Availability
13
MAY R0603511 MAY R0603511 Contact Us For Availability
13
MAY R0607505 MAY R0607505 Contact Us For Availability
13
MAY R0605011 MAY R0605011 Contact Us For Availability
14
MAY R0601502 MAY R0601502 Contact Us For Availability
14
MAY R0606509 MAY R0606509 Contact Us For Availability
14
MAY R0601507 MAY R0601507 Contact Us For Availability
14
MAY R0600022 MAY R0600022 Contact Us For Availability
15
MAY R0600030 MAY R0600030 Contact Us For Availability
15
MAY R0606510 MAY R0606510 Contact Us For Availability
15
MAY R0600520 MAY R0600520 Contact Us For Availability
15
MAY R0601521 MAY R0601521 Contact Us For Availability
16
MAY YR0601010 MAY YR0601010 Contact Us For Availability
16
MAY R0610012 MAY R0610012 Contact Us For Availability
17
MAY R0600096 MAY R0600096 Contact Us For Availability
17
MAY R0610011 MAY R0610011 Contact Us For Availability
18
MAY R0603603 MAY R0603603 Contact Us For Availability
18
MAY R0600017 MAY R0600017 Contact Us For Availability
18
MAY R0600021 MAY R0600021 Contact Us For Availability
19
MAY R0603052 MAY R0603052 Contact Us For Availability
19
MAY R0603116 MAY R0603116 Contact Us For Availability
19
MAY R0601539 MAY R0601539 Contact Us For Availability
19
MAY R0600519 MAY R0600519 Contact Us For Availability
20
MAY R0600029 MAY R0600029 Contact Us For Availability
20
MAY R0605684 MAY R0605684 Contact Us For Availability
20
MAY R0601013 MAY R0601013 Contact Us For Availability
21
MAY R0601520 MAY R0601520 Contact Us For Availability
21
MAY R0601031 MAY R0601031 Contact Us For Availability
21
MAY R0605536 MAY R0605536 Contact Us For Availability
22
MAY R0603526 MAY R0603526 Contact Us For Availability
22
MAY R0600506 MAY R0600506 Contact Us For Availability
22
MAY R0600518 MAY R0600518 Contact Us For Availability
23
MAY R0603525 MAY R0603525 Contact Us For Availability
23
MAY R0600016 MAY R0600016 Contact Us For Availability
23
MAY R0603569 MAY R0603569 Contact Us For Availability
24
MAY R0600031 MAY R0600031 Contact Us For Availability
24
MAY R0605539 MAY R0605539 Contact Us For Availability
25
MAY R0605527 MAY R0605527 Contact Us For Availability
25
MAY R0609508 MAY R0609508 Contact Us For Availability
25
MAY R0603211 MAY R0603211 Contact Us For Availability
26
MAY R0600552 MAY R0600552 Contact Us For Availability
26
MAY R0604504 MAY R0604504 Contact Us For Availability
27
MAY R0606519 MAY R0606519 Contact Us For Availability
27
MAY R0601527 MAY R0601527 Contact Us For Availability
27
MAY R0600019 MAY R0600019 Contact Us For Availability
28
MAY R0603107 MAY R0603107 Contact Us For Availability
28
MAY R0605538 MAY R0605538 Contact Us For Availability
28
MAY R0603509 MAY R0603509 Contact Us For Availability
29
MAY R0601016 MAY R0601016 Contact Us For Availability
29
MAY R0606507 MAY R0606507 Contact Us For Availability
29
MAY R0610072 MAY R0610072 Contact Us For Availability
30
MAY R0606518 MAY R0606518 Contact Us For Availability
30
MAY R0606539 MAY R0606539 Contact Us For Availability
31
MAY R0608002 MAY R0608002 Contact Us For Availability
31
MAY R0600526 MAY R0600526 Contact Us For Availability
32
MAY R0610052 MAY R0610052 Contact Us For Availability
32
MAY R0608011 MAY R0608011 Contact Us For Availability
33
MAY R0608012 MAY R0608012 Contact Us For Availability
33
MAY R0605683 MAY R0605683 Contact Us For Availability
NI
MAY R0603599 MAY R0603599 Contact Us For Availability
NI
MAY R0603602 MAY R0603602 Contact Us For Availability
NI
MAY R0605015 MAY R0605015 Contact Us For Availability
NI
MAY R0605074 MAY R0605074 Contact Us For Availability
NI
MAY R0605101 MAY R0605101 Contact Us For Availability
NI
MAY R0605102 MAY R0605102 Contact Us For Availability
NI
MAY R0603601 MAY R0603601 Contact Us For Availability
× ![]()
