Model Whirlpool LMR5243AW0 AUTOMATIC WASHER – Common Parts & Diagrams

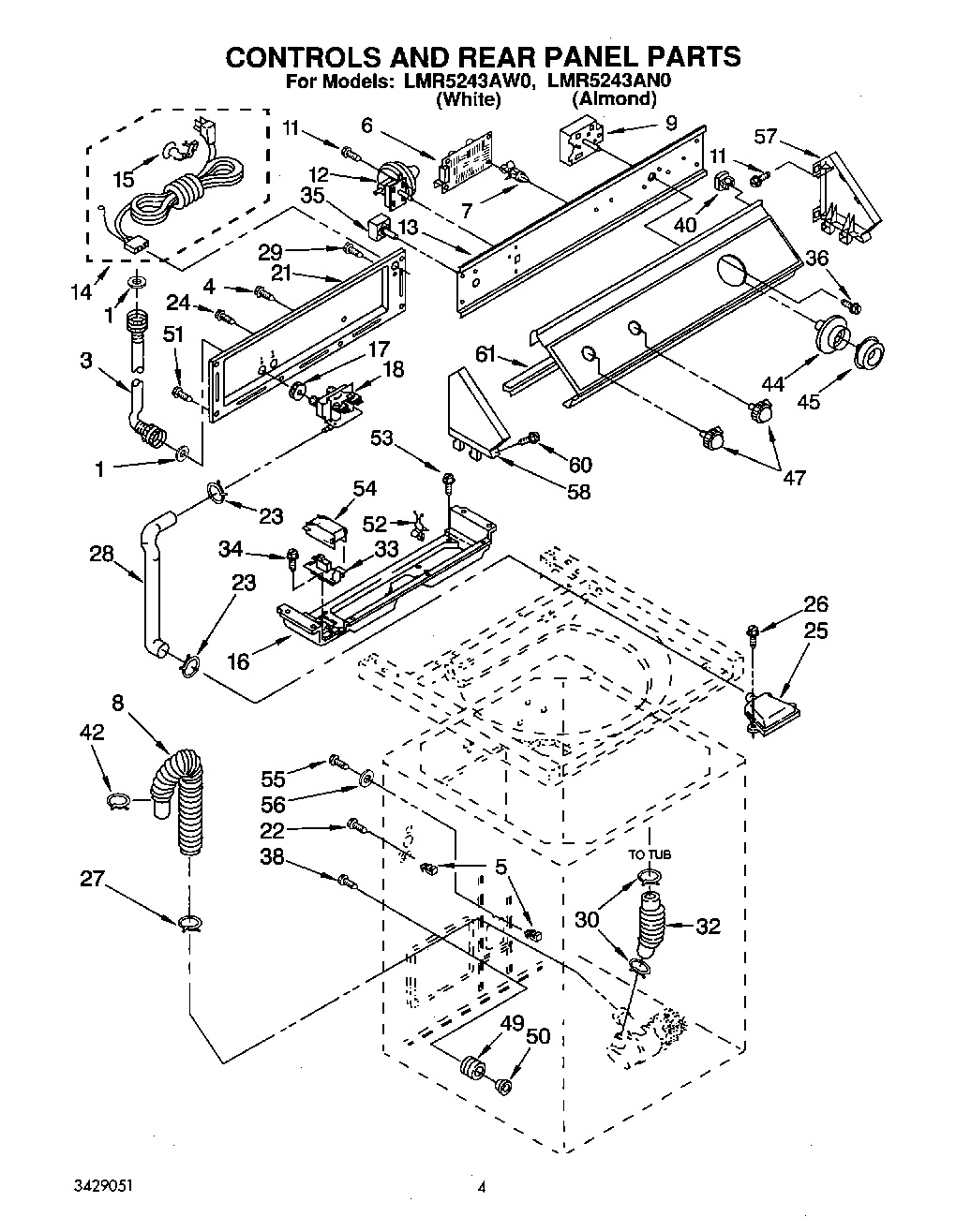

02 - CONTROLS AND REAR PANEL

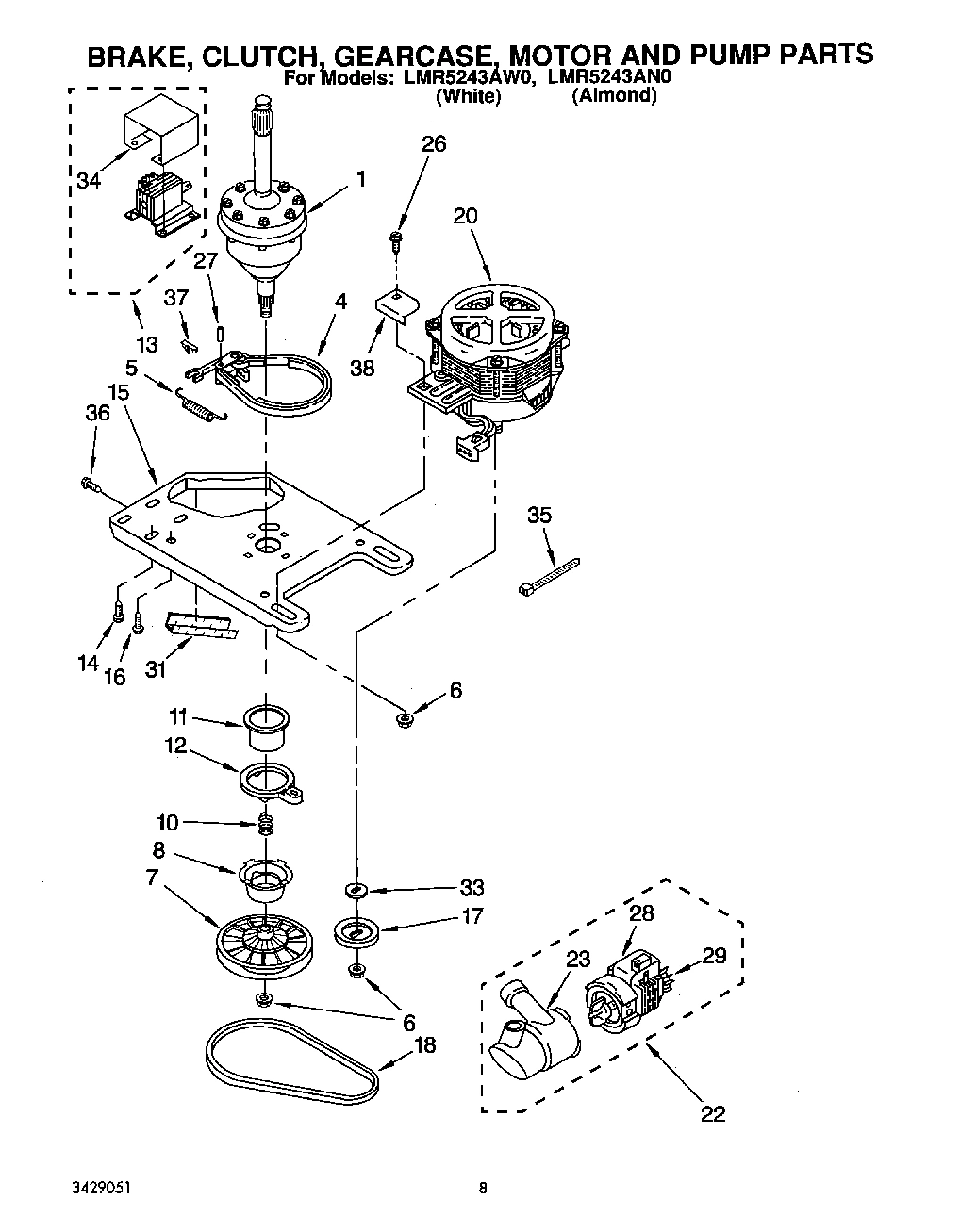

05 - BRAKE, CLUTCH, GEARCASE, MOTOR & PUMP

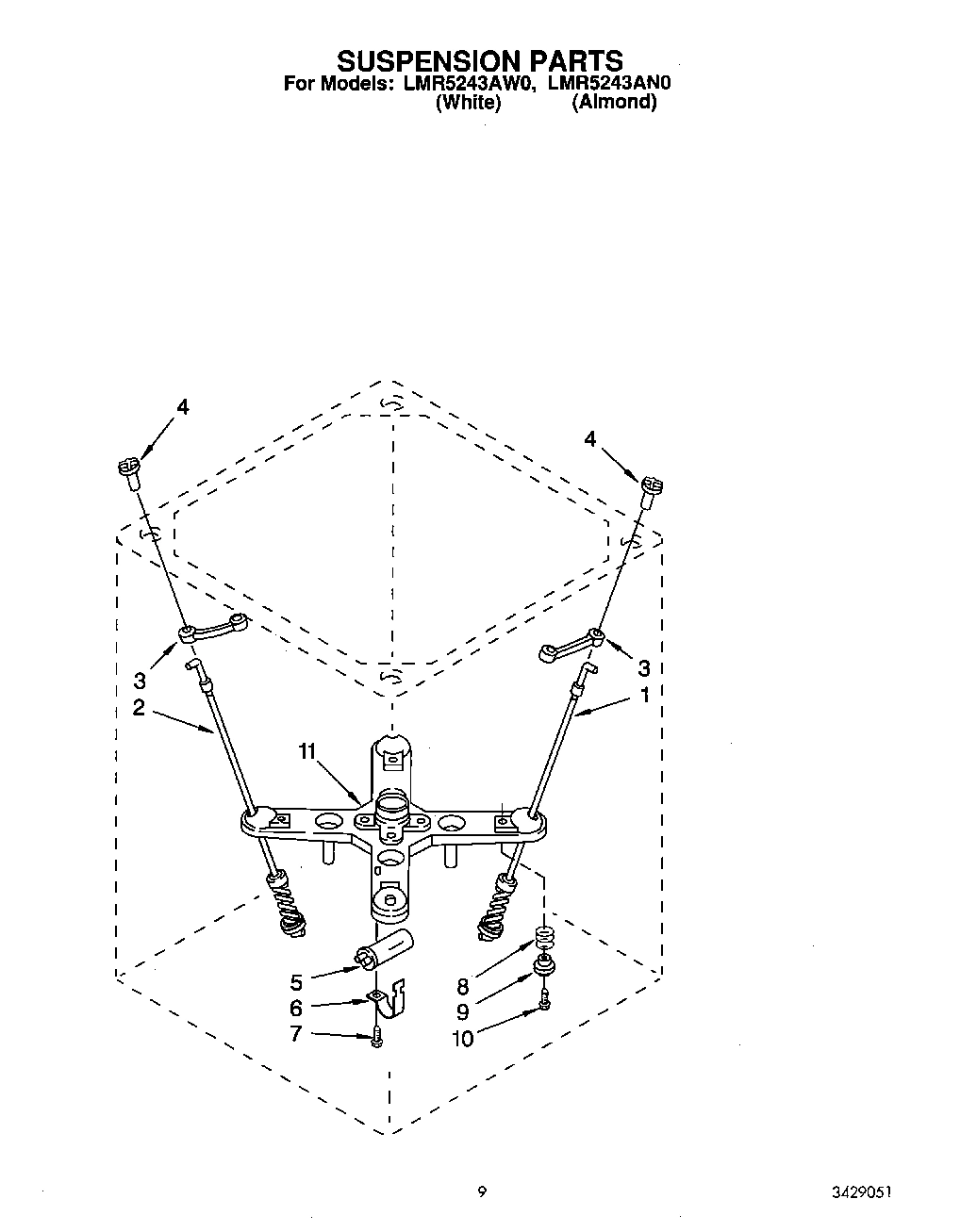

06 - SUSPENSION

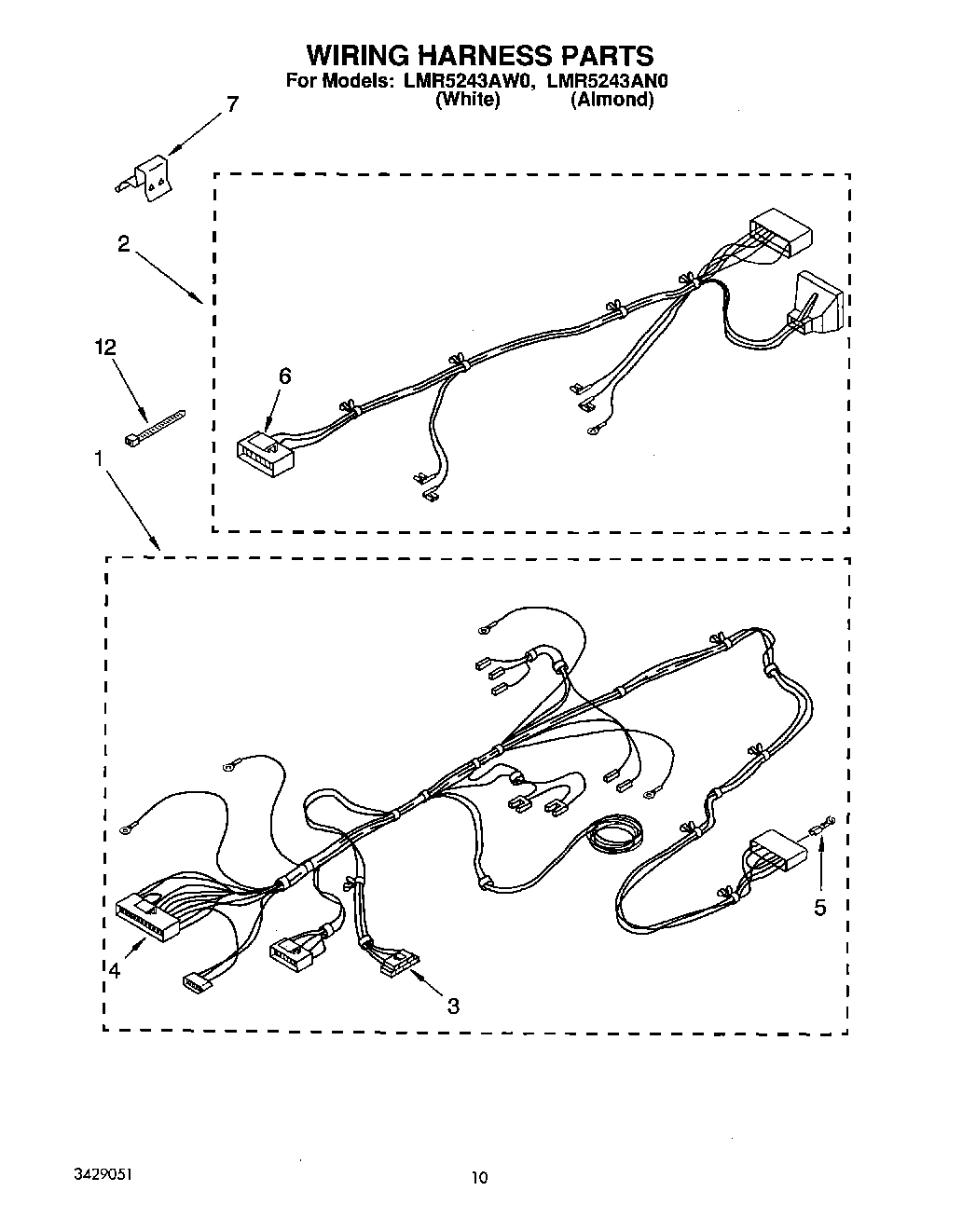

07 - WIRING HARNESS

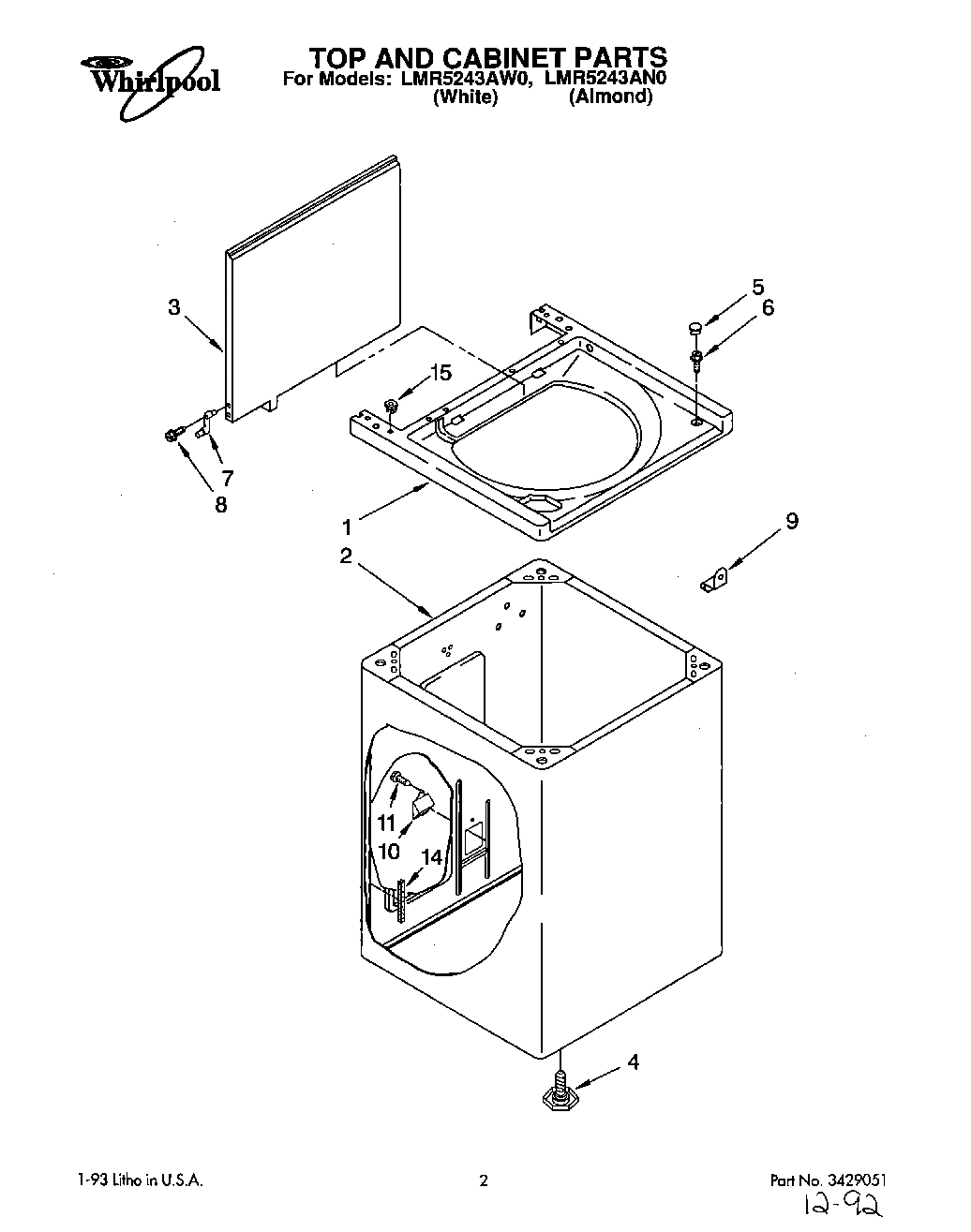

01 - TOP AND CABINET, LIT/OPTIONAL

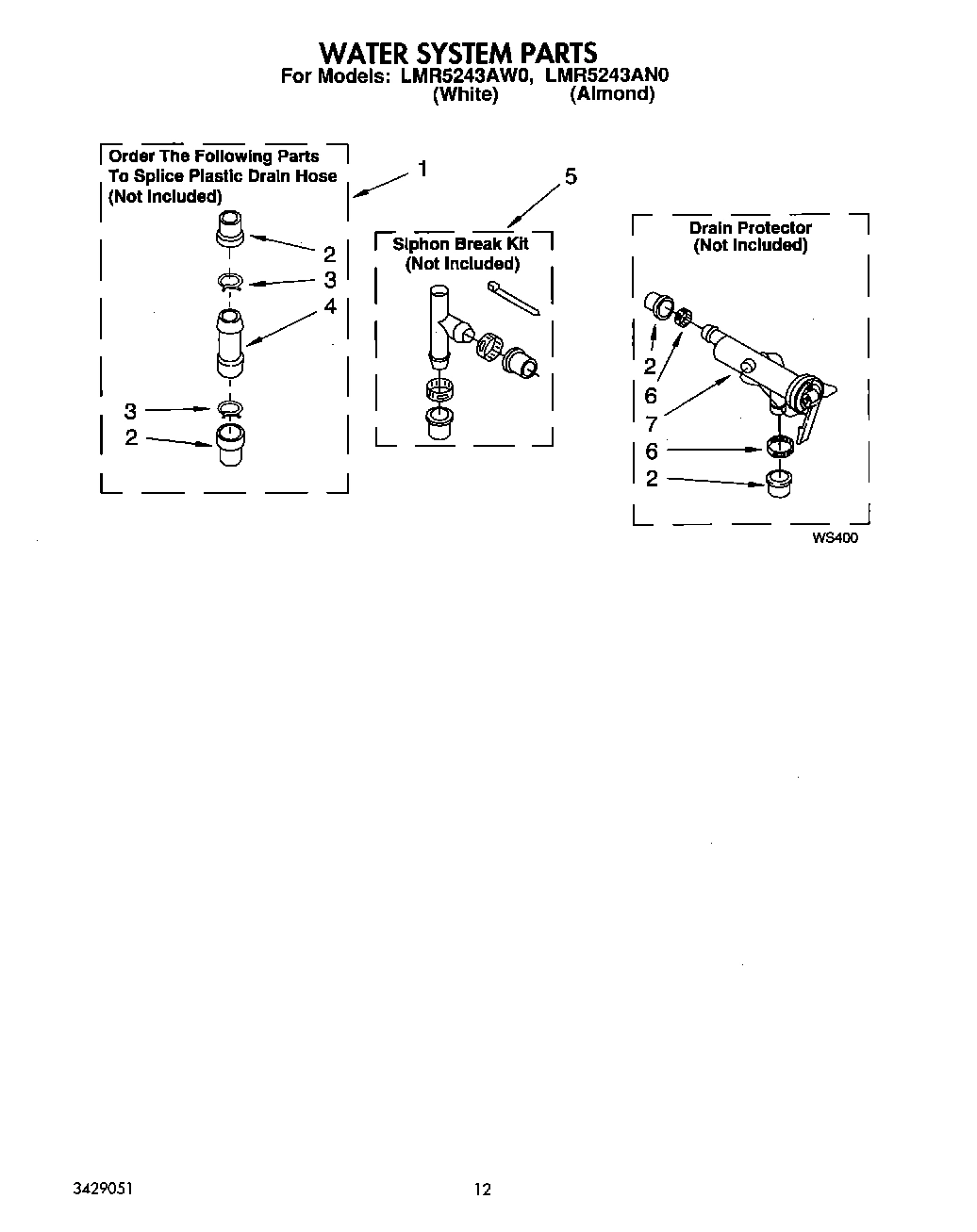

08 - WATER SYSTEM

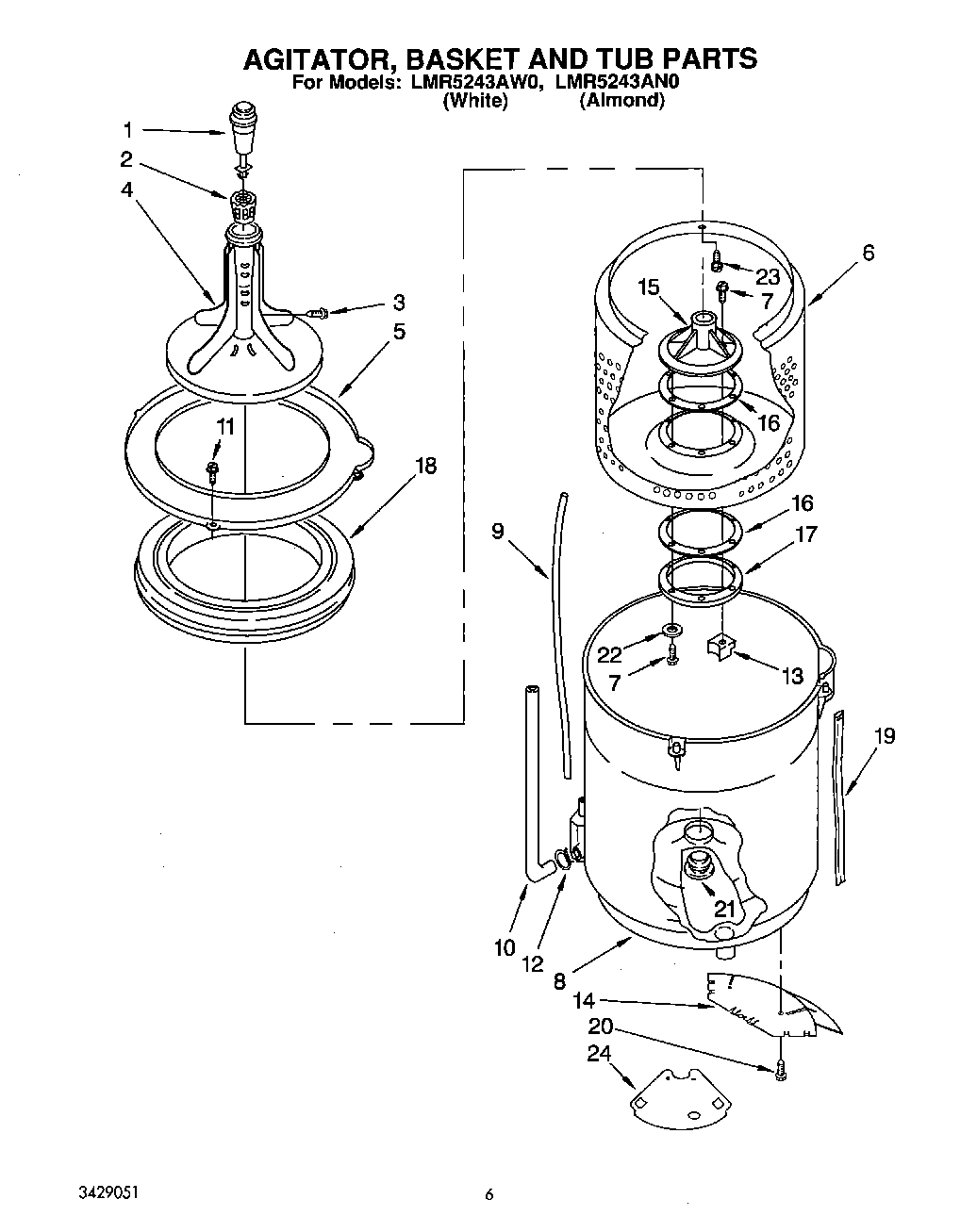

03 - AGITATOR, BASKET AND TUB

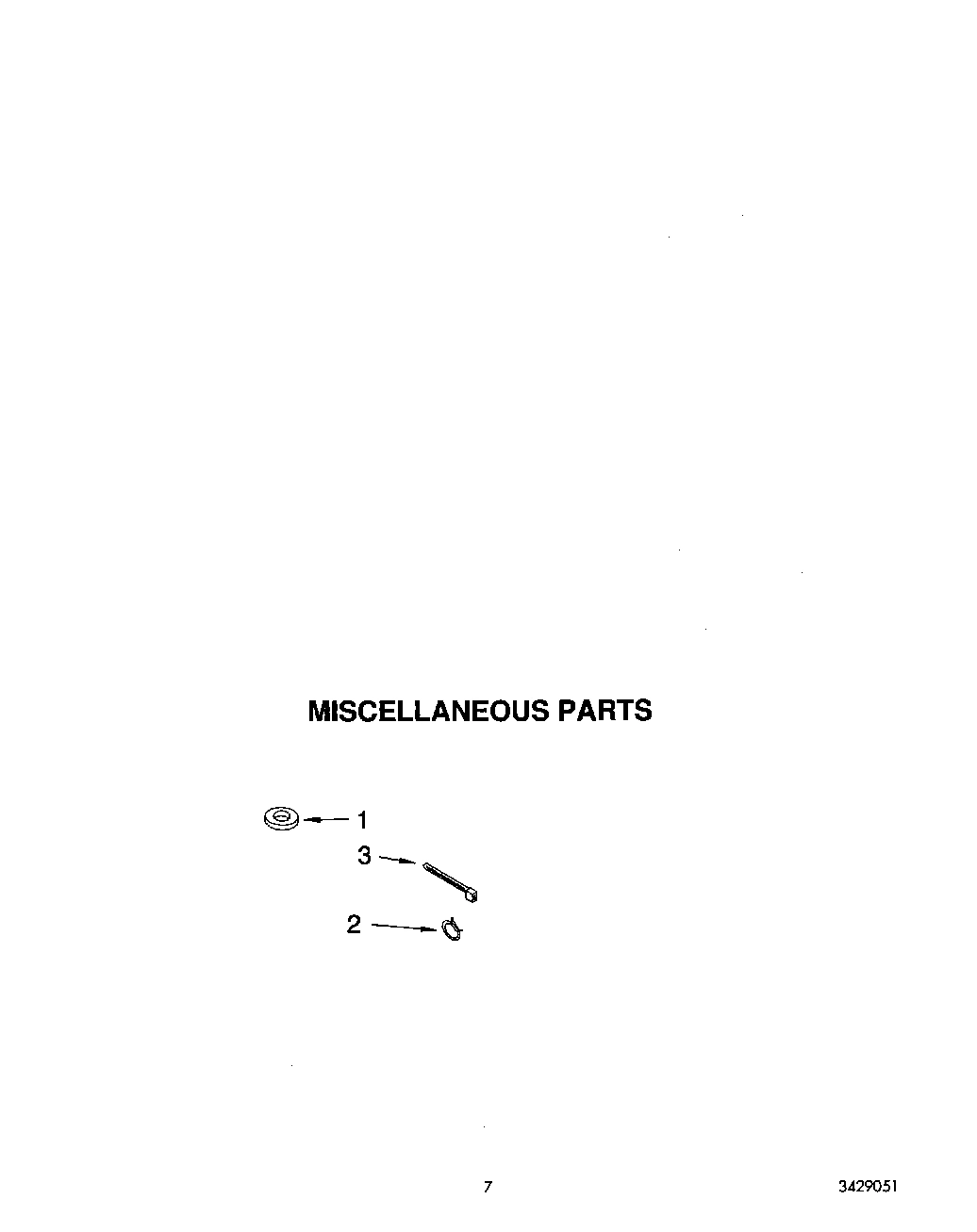

04 - MISCELLANEOUS
Common parts from model Whirlpool LMR5243AW0 AUTOMATIC WASHER
Leveler (Thinner) WPL 350941 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
List, Repair Parts WPL LIT3429051 Contact Us For Availability
Sheet, Installation Instructions WPL LIT3429275 Contact Us For Availability
Energy Guide WPL LIT3429489 Contact Us For Availability
Guide, Use and Care WPL LIT3430145 Contact Us For Availability
Label, Wiring Diagram WPL LIT3934180 Contact Us For Availability
1
Gearcase Assembly WPL 3429856 Contact Us For Availability
1
Suspension Rod, Front (2) WPL 3430076 Contact Us For Availability
1
Harness, Wiring (Upper) WPL 3430195 Contact Us For Availability
1
Top (White) WPL 3430084 Contact Us For Availability
1
Top (Almond) WPL 3430085 Contact Us For Availability
2
Suspension Rod, Rear (2) WPL 3430077 Contact Us For Availability
2
Harness, Wiring (Lower) WPL 3430155 Contact Us For Availability
2
Cabinet (White) WPL 3429981 Contact Us For Availability
2
Cabinet (Almond) WPL 3429982 Contact Us For Availability
2
Filter WPL 3428391 Contact Us For Availability
3
Strap, Snubber WPL 3428508 Contact Us For Availability
3
Connector, Temp. Switch WPL 3347243 Contact Us For Availability
3
Lid (White) WPL 3430198 Contact Us For Availability
3
Lid (Almond) WPL 3430199 Contact Us For Availability
4
Brake Band WPL 3428323 Contact Us For Availability
4
Ball, Upper Suspension (4) WPL 3428423 Contact Us For Availability
4
Block, Timer Disconnect (White) WPL 3369366 Contact Us For Availability
4
Foot (4) WPL 3429895 Contact Us For Availability
4
Agitator WPL 3428392 Contact Us For Availability
5
Capacitor WPL 3429938 Contact Us For Availability
5
Spring, Brake WPL 3428342 Contact Us For Availability
5
Terminal, Female WPL 3369365 Contact Us For Availability
5
Bumper, Lid (White) WPL 3428720 Contact Us For Availability
5
Bumper, Lid (Almond) WPL 3429565 Contact Us For Availability
5
Tub Ring WPL 3429902 Contact Us For Availability
6
Screw, Top To Cabinet (2) WPL 3429941 Contact Us For Availability
6
Nut, Washer Locking WPL 3428083 Contact Us For Availability
6
Bracket, Capacitor WPL 3428343 Contact Us For Availability
6
Block, Disconnect (Motor) (Uses Terminal No.3 WPL 311150 Contact Us For Availability
6
Basket WPL 3428186 Contact Us For Availability
7
Pulley, Splutch WPL 3428359 Contact Us For Availability
7
Screw, Bracket WPL 3934040 Contact Us For Availability
7
Clip, Harness WPL 3429522 Contact Us For Availability
7
Hinge, Lid (2) WPL 3428543 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
7
Screw WPL 3428430 Contact Us For Availability
8
Cam, Splutch WPL 3428378 Contact Us For Availability
8
Spring (4) WPL 3429000 Contact Us For Availability
8
Screw, Lid Hinge Mounting (2) WPL 3430073 Contact Us For Availability
8
Tub WPL 3428517 Contact Us For Availability
9
Retainer, Tub Spring (4) WPL 3428876 Contact Us For Availability
9
Clip, Cabinet To Top WPL 3428732 Contact Us For Availability
10
Spring, Splutch WPL 3934212 Contact Us For Availability
10
Screw (4) WPL 3428033 Contact Us For Availability
10
Cover, Pump WPL 3428525 Contact Us For Availability
10
Hose, Bleach WPL 3430339 Contact Us For Availability
11
Slider, Splutch WPL 3428380 Contact Us For Availability
11
Support, Tub WPL 3934037 Contact Us For Availability
12
Cam Ring, Splutch WPL 3428379 Contact Us For Availability
13
Solenoid WPL 3430336 Contact Us For Availability
13
Saddle Block WPL 3428429 Contact Us For Availability
14
Protector, Edge WPL 3429705 Contact Us For Availability
14
Shield, Tub/Motor WPL 3428814 Contact Us For Availability
15
Plate, Motor Mount WPL 3430205 Contact Us For Availability
15
Hub, Drive WPL 3430098 Contact Us For Availability
16
Bolt, Motor Plate (4) WPL 3934341 Contact Us For Availability
16
Gasket, Hub (2) WPL 3428179 Contact Us For Availability
17
Pulley, Motor WPL 3428683 Contact Us For Availability
17
Clamp, Ring WPL 3428395 Contact Us For Availability
18
Drive Belt WPL 3428097 Contact Us For Availability
18
Balance Ring WPL 3428181 Contact Us For Availability
19
Hose, Tub Overflow WPL 3430093 Contact Us For Availability
20
Motor, Main Drive (Includes Items 33, 17, & 6 WPL 3934034 Contact Us For Availability
22
Pump (Complete) WPL 3430119 Contact Us For Availability
22
Washer WPL 3429750 Contact Us For Availability
23
Screw, Balance Ring (4) WPL 3428014 Contact Us For Availability
23
Housing, Pump WPL 3430120 Contact Us For Availability
24
Shield, Tub/Solenoid WPL 3430303 Contact Us For Availability
26
Bolt, Motor Mounting (2) WPL 3429371 Contact Us For Availability
27
Pin, Brake Band WPL 3934183 Contact Us For Availability
28
Hose, Valve To Water Inlet WPL 3428574 Contact Us For Availability
28
Pump WPL 3430089 Contact Us For Availability
29
Blade, Fan WPL 3429939 Contact Us For Availability
32
Hose, Pump To Tub WPL 3430217 Contact Us For Availability
33
Switch, Lid WPL 3934248 Contact Us For Availability
33
Washer, Pulley WPL 3428377 Contact Us For Availability
34
Solenoid Shield, Top WPL 3430305 Contact Us For Availability
35
Switch, Water Temperature WPL 3429541 Contact Us For Availability
37
Lock, Solenoid WPL 3429416 Contact Us For Availability
38
Screw, Pump Mtg. (2) WPL 3428934 Contact Us For Availability
38
Shield, Motor Connector WPL 3430197 Contact Us For Availability
39
Panel, Console WPL 3430108 Contact Us For Availability
49
Grommet, Pump (3) WPL 3428526 Contact Us For Availability
50
Spacer, Pump (3) WPL 3428933 Contact Us For Availability
51
Screw WPL 3429942 Contact Us For Availability
52
Clip, Coil (2) WPL 3429534 Contact Us For Availability
54
Shield, Lid Switch WPL 3429706 Contact Us For Availability
56
Washer WPL 3429923 Contact Us For Availability
57
Cap, End (R.H.) (White/Chrome) WPL 3358516 Contact Us For Availability
57
Cap, End (R.H.) (Almond/Chrome) WPL 3358517 Contact Us For Availability
58
Cap, End (L.H.) (White/Chrome) WPL 3358531 Contact Us For Availability
58
Cap, End (L.H.) (Almond/Ch WPL 3358532 Contact Us For Availability
61
WPL 3430105 WPL 3430105 Contact Us For Availability
× ![]()
