Model Whirlpool LHI7501W0 GAS DRYER – Common Parts & Diagrams
01 - SECTION
03 - SECTION
02 - SECTION

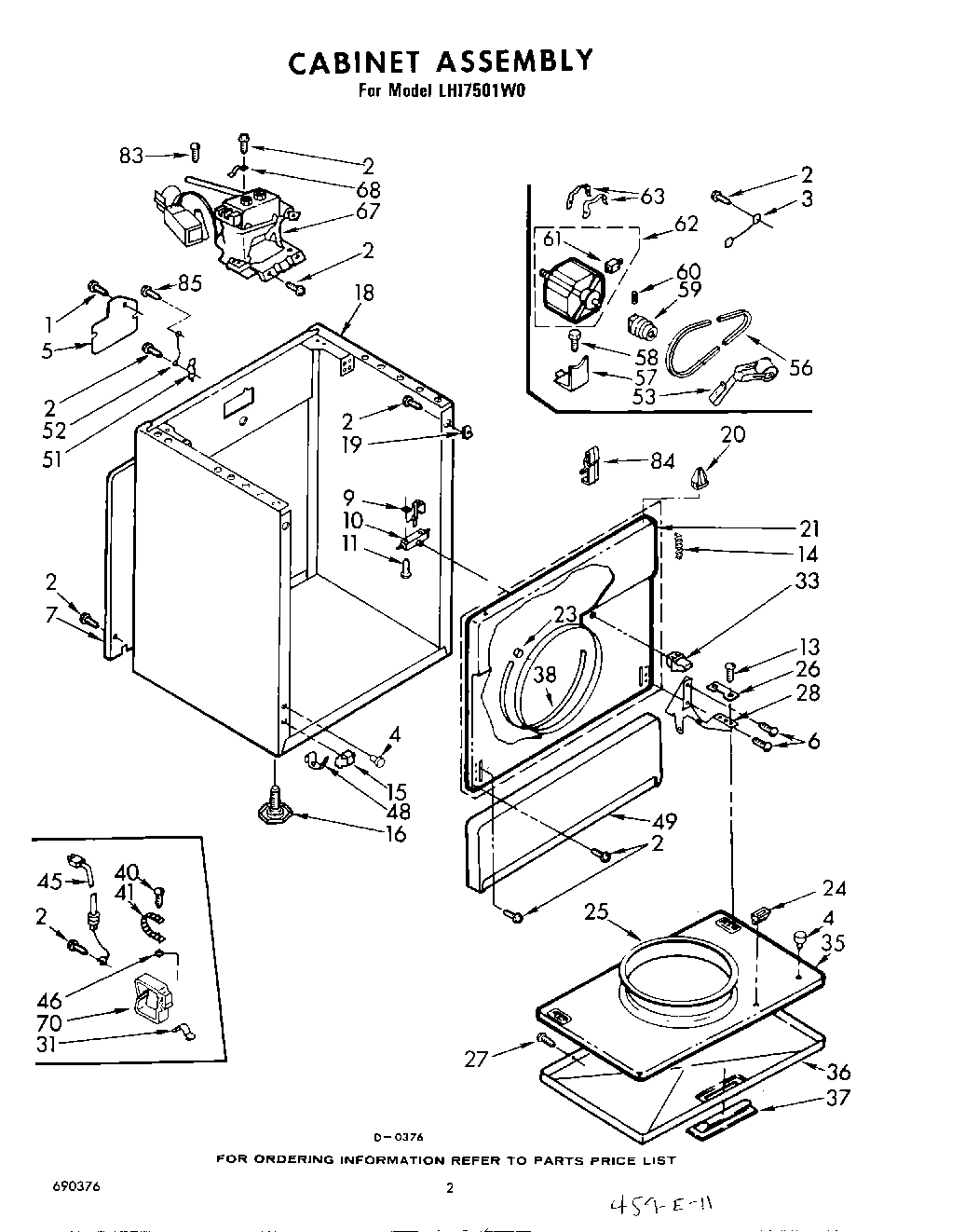

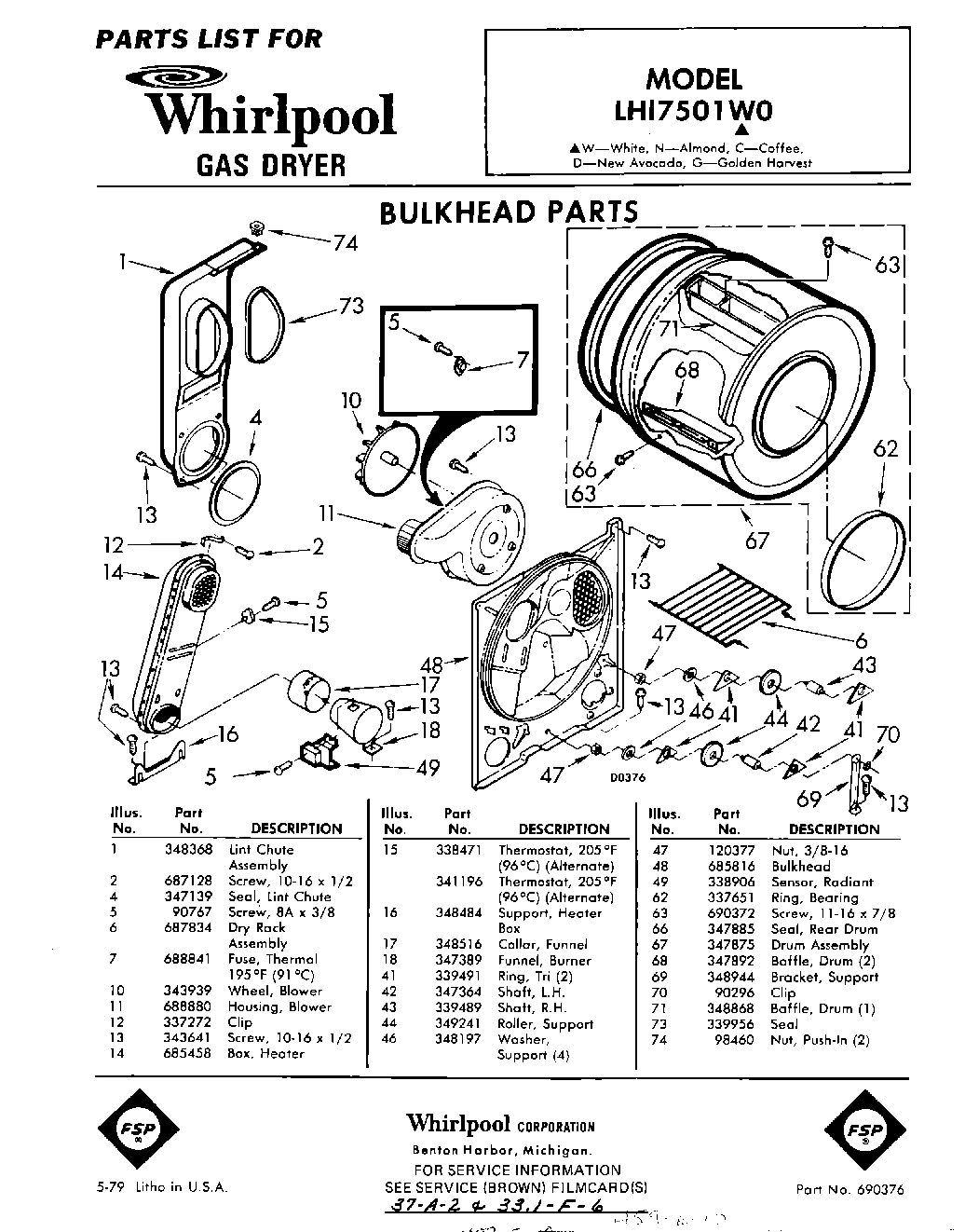

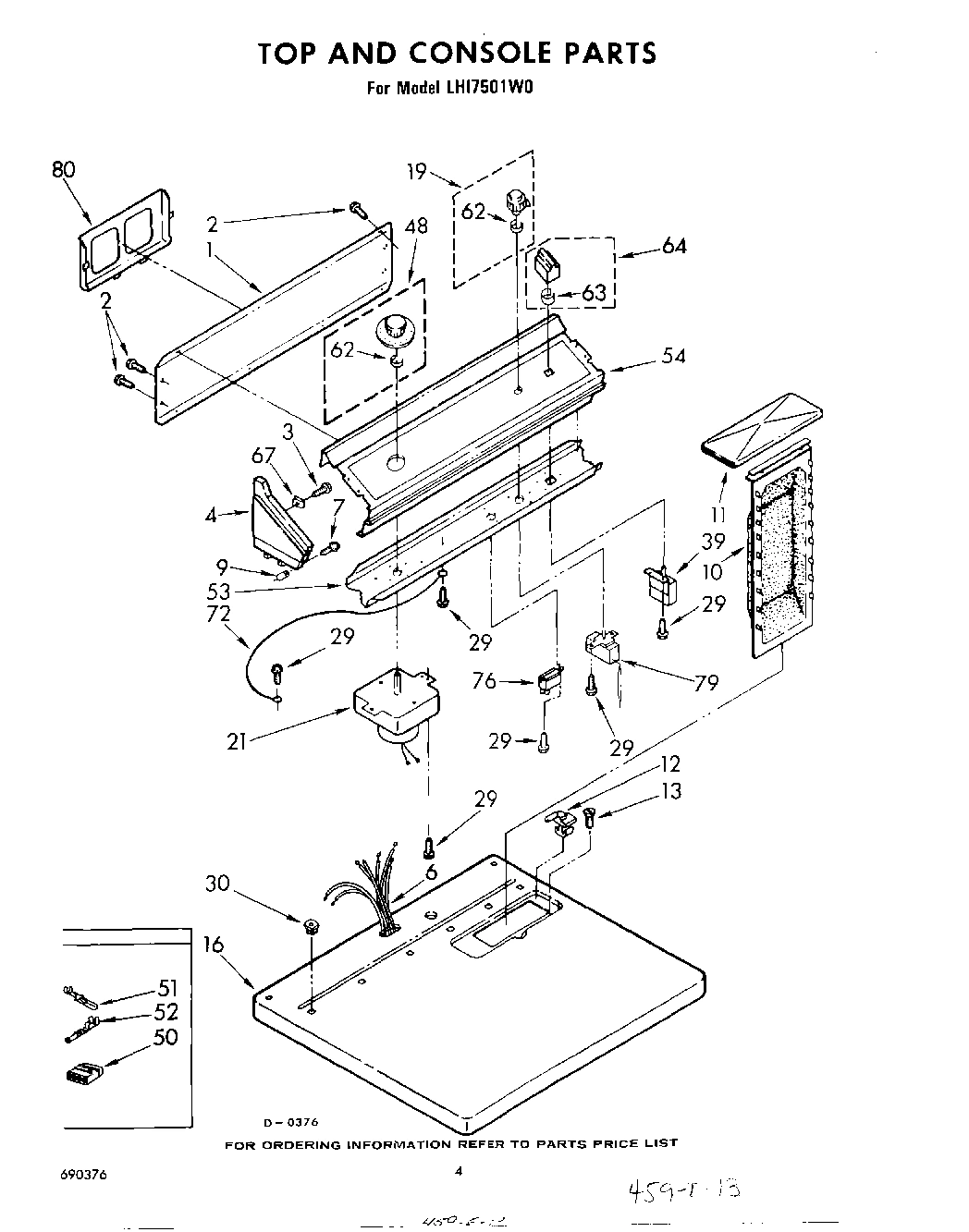

Common parts from model Whirlpool LHI7501W0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
3
Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability
3
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap, End L.H. (White) WPL 375309 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Coffee) WPL 375314 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability
4
Cap, End (L.H.) (Coffee) WPL 375316 Contact Us For Availability
4
Cap, End (L.H.) (New Avocado) WPL 375317 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability
4
Cap, End (L.H.) (New Avocado) WPL 377282 Contact Us For Availability
4
Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability
5
Cover, Block WPL 343630 Contact Us For Availability
6
Harness, Wiring WPL 690324 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
7
Screw, 8-18 (2) WPL 358225 Contact Us For Availability
7
Panel, Rear WPL 348364 Contact Us For Availability
9
Stop, Push-In (2) WPL 358472 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Coffee) WPL 689311 Contact Us For Availability
11
Cover, Lint Screen (New Avocado) WPL 689312 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
14
Spring, Door (2) WPL 237979 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alternate) WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 342601 Contact Us For Availability
16
top (white) WPL 688479 Contact Us For Availability
16
Top (Almond) WPL 689449 Contact Us For Availability
16
Top (Coffee) WPL 689450 Contact Us For Availability
16
Top (New Avocado) WPL 689451 Contact Us For Availability
16
Top (Golden Harvest) WPL 689452 Contact Us For Availability
18
Cabinet (White) WPL 688265 Contact Us For Availability
18
Cabinet (Almond) WPL 689342 Contact Us For Availability
18
Cabinet (Coffee) WPL 689343 Contact Us For Availability
18
Cabinet (New Avocado) WPL 689346 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 689347 Contact Us For Availability
19
Control Knob Assembly WPL 690293 Contact Us For Availability
21
Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability
21
Upper Front Panel Assembly (White) WPL 337969 Contact Us For Availability
21
Upper Front Panel Assembly (Almond) WPL 689334 Contact Us For Availability
21
Panel Assembly, Upper Front (Coffee) WPL 689335 Contact Us For Availability
21
Upper Front Panel Assembly (New Avocado) WPL 689336 Contact Us For Availability
21
Upper Front Panel Assembly (Golden Harvest) WPL 689337 Contact Us For Availability
27
Screw WPL 689791 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
28
Hinge, L.H. WPL 687906 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
35
Door, Rear (White) WPL 346370 Contact Us For Availability
35
Door, Rear (Almond) WPL 689258 Contact Us For Availability
35
Door, Rear (Coffee) WPL 689259 Contact Us For Availability
35
Door, Rear (New Avocado) WPL 689260 Contact Us For Availability
35
Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
36
Door, Front (Coffee) WPL 689331 Contact Us For Availability
36
Door, Front (New Avocado) WPL 689332 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability
37
Handle, Door (Almond) WPL 690266 Contact Us For Availability
37
Handle, Door (Coffee) WPL 690267 Contact Us For Availability
37
Handle, Door (Golden WPL 690269 Contact Us For Availability
39
Switch, Push-To-Start WPL 688769 Contact Us For Availability
40
WPL 132848 WPL 132848 Contact Us For Availability
41
WPL 22965 WPL 22965 Contact Us For Availability
46
WPL 364089 WPL 364089 Contact Us For Availability
48
Timer Knob Assembly WPL 690200 Contact Us For Availability
49
WPL 337833 WPL 337833 Contact Us For Availability
49
WPL 689246 WPL 689246 Contact Us For Availability
49
WPL 689247 WPL 689247 Contact Us For Availability
49
WPL 689248 WPL 689248 Contact Us For Availability
49
WPL 689249 WPL 689249 Contact Us For Availability
50
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
52
WPL 340025 WPL 340025 Contact Us For Availability
53
Bracket, Control WPL 358467 Contact Us For Availability
54
Panel, Control WPL 690404 Contact Us For Availability
59
WPL 348946 WPL 348946 Contact Us For Availability
60
WPL 690046 WPL 690046 Contact Us For Availability
61
WPL 298699 WPL 298699 Contact Us For Availability
63
Clip WPL 90015 Contact Us For Availability
64
Button, Push-To-Start WPL 689857 Contact Us For Availability
67
Nut, Push-In (4) WPL 689559 Contact Us For Availability
67
WPL 279243 WPL 279243 Contact Us For Availability
67
WPL 688637 WPL 688637 Contact Us For Availability
67
WPL 688639 WPL 688639 Contact Us For Availability
70
WPL 688412 WPL 688412 Contact Us For Availability
72
Wire, Ground WPL 688121 Contact Us For Availability
76
Signal, Cycle (Bu WPL 686864 Contact Us For Availability
79
WPL 688710 WPL 688710 Contact Us For Availability
80
WPL 230082 WPL 230082 Contact Us For Availability
80
WPL 261886 WPL 261886 Contact Us For Availability
80
WPL 261888 WPL 261888 Contact Us For Availability
80
WPL 261890 WPL 261890 Contact Us For Availability
80
WPL 299663 WPL 299663 Contact Us For Availability
80
WPL 299669 WPL 299669 Contact Us For Availability
80
WPL 340704 WPL 340704 Contact Us For Availability
80
WPL 350941 WPL 350941 Contact Us For Availability
80
WPL 357645 WPL 357645 Contact Us For Availability
80
WPL 688644 WPL 688644 Contact Us For Availability
80
WPL 688898 WPL 688898 Contact Us For Availability
80
WPL 690376 WPL 690376 Contact Us For Availability
80
WPL 690707 WPL 690707 Contact Us For Availability
80
WPL 72108 WPL 72108 Contact Us For Availability
80
WPL 799351 WPL 799351 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
84
WPL 689180 WPL 689180 Contact Us For Availability
× ![]()
