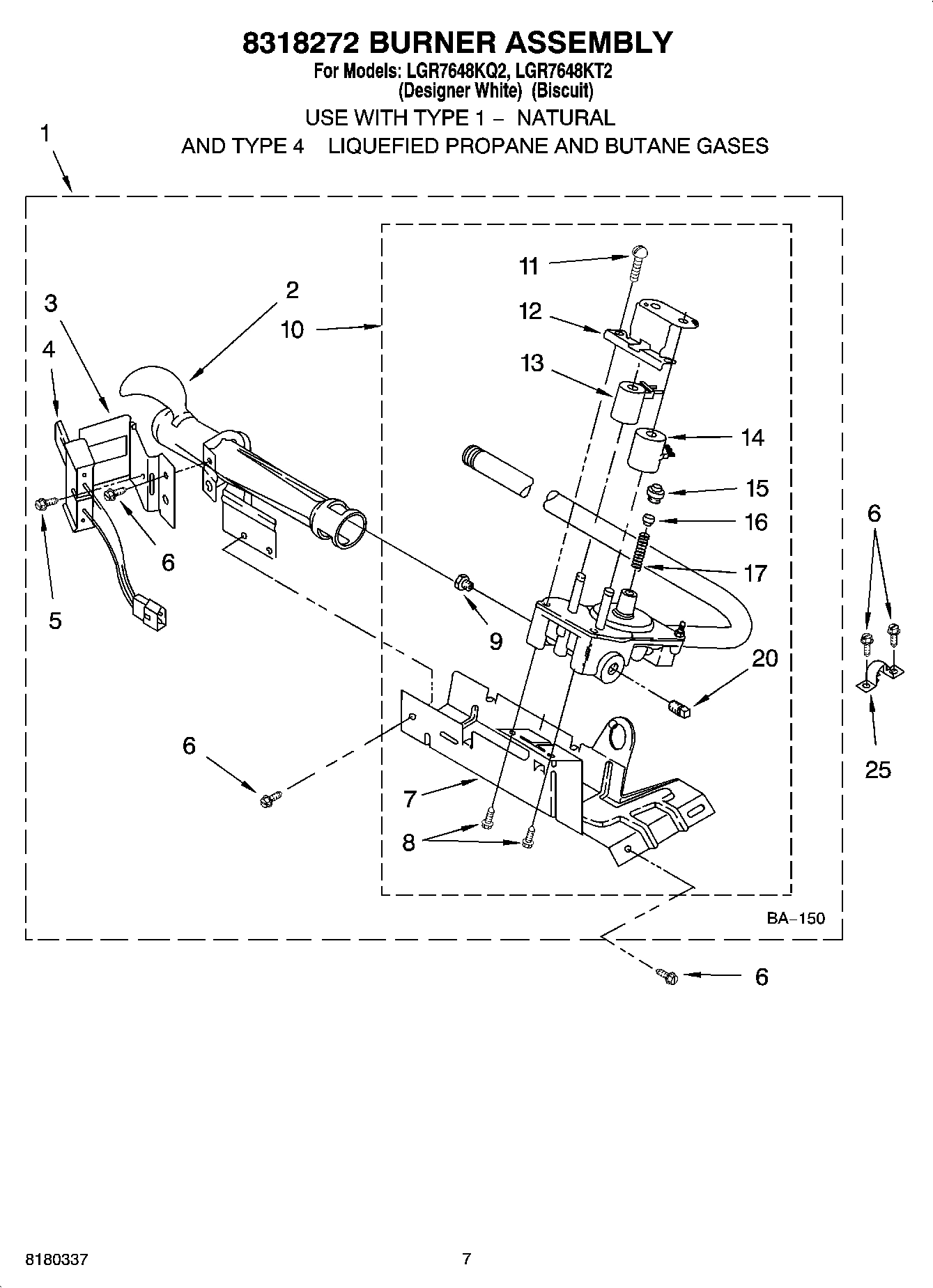

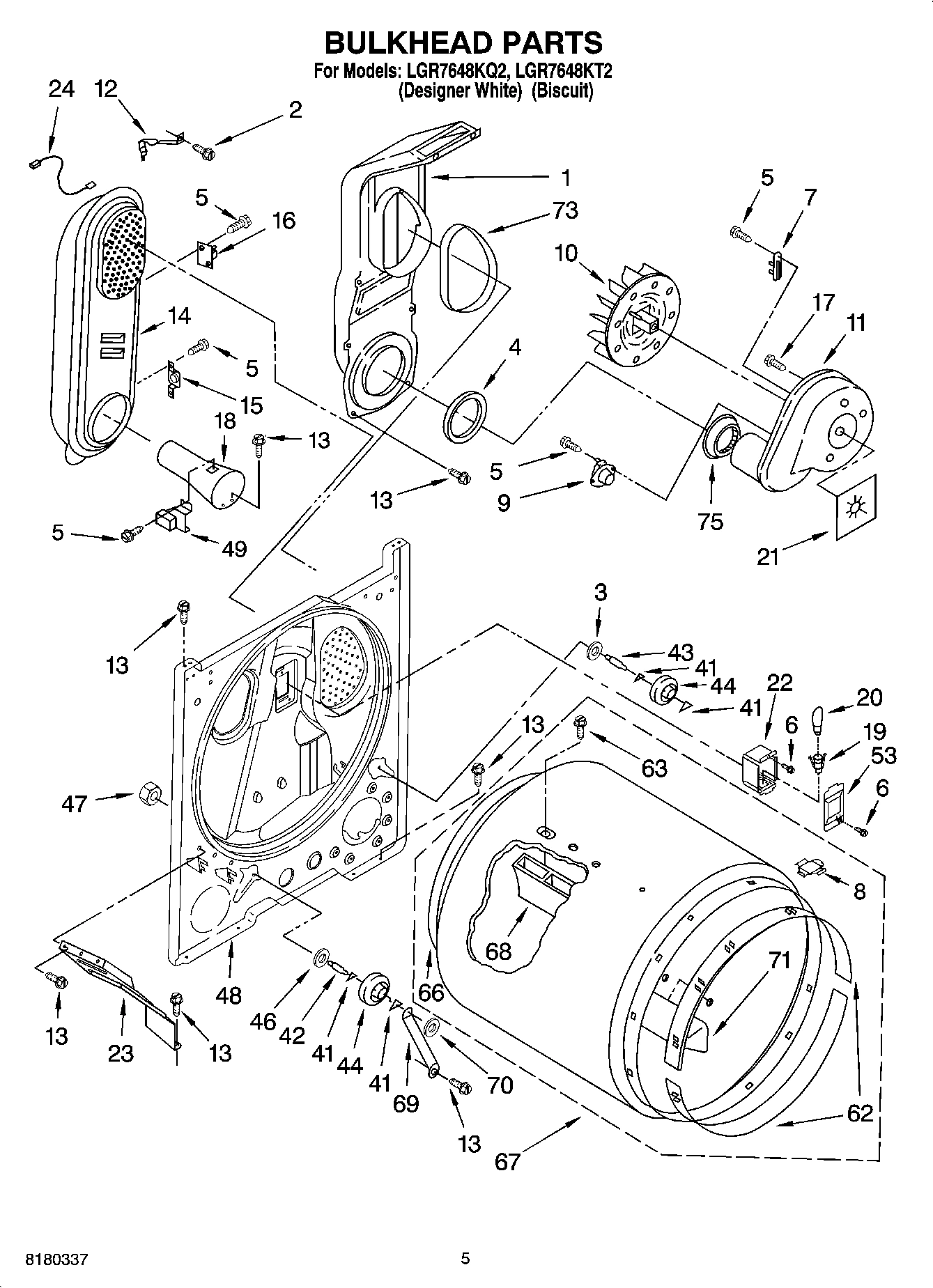

Model Whirlpool LGR7648KT2 29``GAS DRYER – Common Parts &amp; Diagrams

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

2

Wire, Jumper (Black) WPL 3401684 Contact Us For Availability

3

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

5

W11539855 Whirlpool Refrigerator Pump In Stock WPL W11539855 $338.82

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

WP3399639 Whirlpool Switch In Stock WPL WP3399639 $33.03

8

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

8

8546676 Whirlpool Clip Backorder WPL 8546676 $36.12

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

9

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $10.86

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

WP8318277 Whirlpool Gas Valve In Stock WPL WP8318277 $198.88

11

Cover, Lint Screen (White) WPL 8283378 Contact Us For Availability

14

3400859 Whirlpool Screw Backorder WPL 3400859 $9.13

14

8541401 Whirlpool Door Spring Backorder WPL 8541401 $37.28

15

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

Cabinet (Includes Illus. 4) (Biscuit) WPL 8530606 Contact Us For Availability

19

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

20

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

WP8299766 Whirlpool Timer Assembly Backorder WPL WP8299766 $156.96

Seal, Blower WPL 3394196 Contact Us For Availability

Panel, Front (Biscuit) WPL 3977243 Contact Us For Availability

22

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

W11398682 Whirlpool Bracket Backorder WPL W11398682 $19.91

24

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

24

Connector, Timer WPL 3397269 Contact Us For Availability

25

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

3397695 Whirlpool Wire Harness Backorder WPL 3397695 $28.80

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

8299879 Whirlpool Wire Harness Backorder WPL 8299879 $133.07

33

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

34

WP3405156 Whirlpool Switch In Stock WPL WP3405156 $48.50

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

36

Door, Front (Biscuit) WPL 3977241 Contact Us For Availability

37

3977242 Whirlpool Handle Backorder WPL 3977242 $26.21

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $42.64

39

WP3398095 Whirlpool Dryer Start Relay In Stock WPL WP3398095 $45.97

39

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

39

Plug, Front Panel (Biscuit) WPL 3394978 Contact Us For Availability

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

48

W10828431 Whirlpool Oven Bulkhead Backorder WPL W10828431 $118.41

48

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

3406839 Whirlpool Drying Rack In Stock WPL 3406839 $42.42

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $4.76

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

62

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

67

W10823508 Whirlpool Gas Burner In Stock WPL W10823508 $166.75

68

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76
