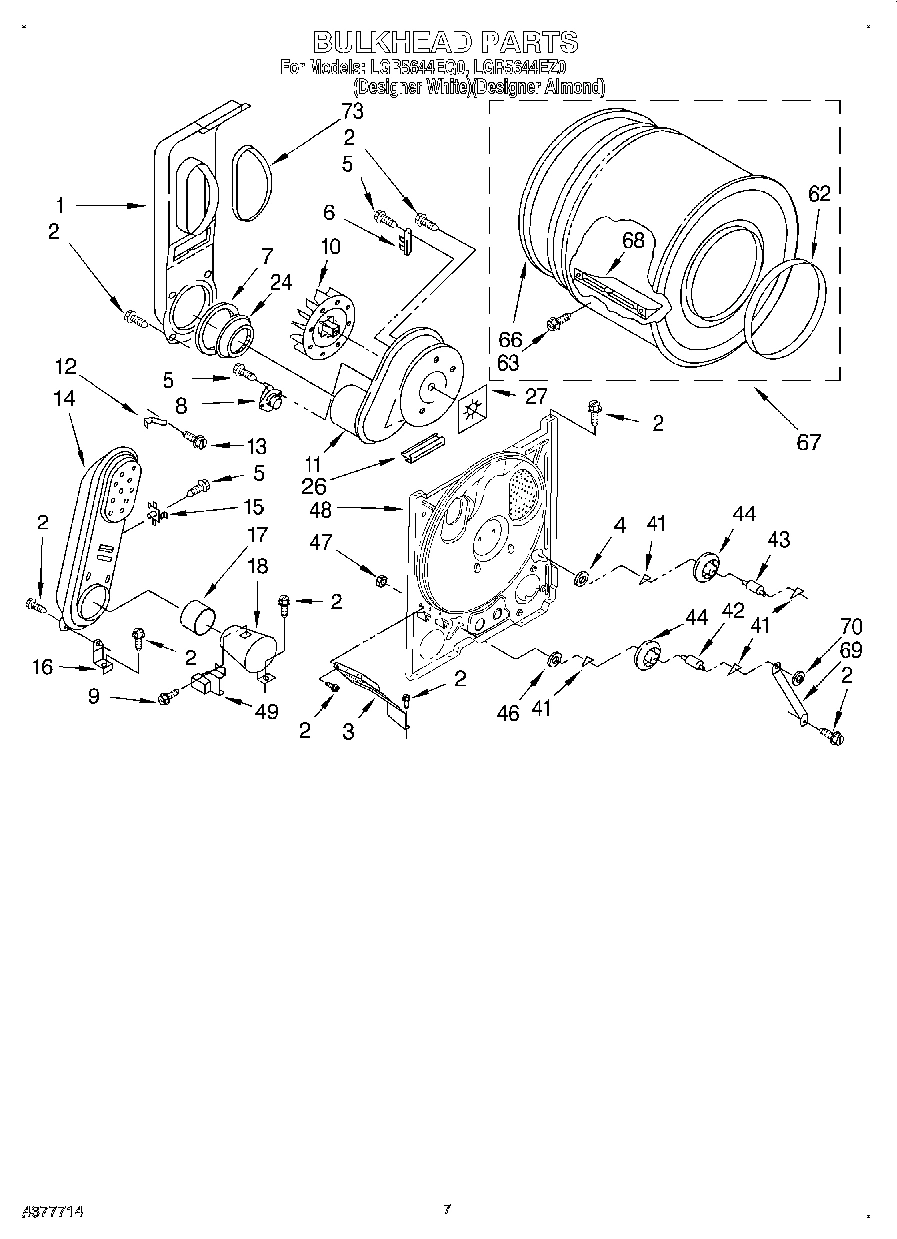

Model Whirlpool LGR5644EQ0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly Backorder WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

279505 Whirlpool Chute Backorder WPL 279505 $131.33

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

W11398682 Whirlpool Bracket Backorder WPL W11398682 $20.90

4

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

4

WP3404413 Whirlpool Plug Backorder WPL WP3404413 $2.51

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

5

Connector (Door Switch) WPL 353425 Contact Us For Availability

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

6

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

6

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

7

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

7

Cap, End (R.H.) (White) WPL 3358513 Contact Us For Availability

7

Cap, End (R.H.) (Almond) WPL 3358514 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

8

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

9

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

10

SCREEN WPL 339392 Contact Us For Availability

11

WP8577230 Whirlpool Housing In Stock WPL WP8577230 $66.34

11

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

11

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

14

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

15

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

15

W11050897 Whirlpool Dryer High Limit Thermost In Stock WPL W11050897 $6.28

15

Connector, Timer WPL 3397269 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

Top (White) WPL 3396022 Contact Us For Availability

Top (Almond) WPL 3396023 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

19

WP3405156 Whirlpool Switch In Stock WPL WP3405156 $50.93

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

21

WP3976580 Whirlpool Timer In Stock WPL WP3976580 $159.61

23

Harness, Wiring WPL 3405127 Contact Us For Availability

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $3.51

Nut, Compression WPL 233076 Contact Us For Availability

25

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $3.70

25

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

26

686889 Whirlpool Pad Backorder WPL 686889 $10.76

27

Seal, Blower Shaft WPL 3392123 Contact Us For Availability

29

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

32

WP3399639 Whirlpool Switch In Stock WPL WP3399639 $33.03

33

3397695 Whirlpool Wire Harness Backorder WPL 3397695 $30.25

33

W11429589 Whirlpool Strike In Stock WPL W11429589 $9.48

34

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

35

8539893 Whirlpool Wire Harness Backorder WPL 8539893 $7.36

37

WP3405184 Whirlpool White Door Handle In Stock WPL WP3405184 $33.80

37

Handle, Door (Almond) WPL 3405185 Contact Us For Availability

39

WP3398095 Whirlpool Dryer Start Relay In Stock WPL WP3398095 $48.28

40

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

W10861521 Whirlpool Dryer Door Seal In Stock WPL W10861521 $38.69

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $32.39

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $7.32

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

48

3957753 Whirlpool Knob Backorder WPL 3957753 $37.09

48

WP3957752 Whirlpool Knob Backorder WPL WP3957752 $35.83

48

Bulkhead WPL 3397264 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control (White) WPL 3399068 Contact Us For Availability

54

Panel, Control (Almond) WPL 3399069 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $41.32

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

64

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $252.54

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $52.08

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

73

Wire, Jumper (Black) WPL 3401684 Contact Us For Availability

75

Receptacle, Latching (2-Way) (Uses Terminal 9 WPL 717252 Contact Us For Availability

81

3957797 Whirlpool Knob In Stock WPL 3957797 $30.89

81

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $32.48

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
