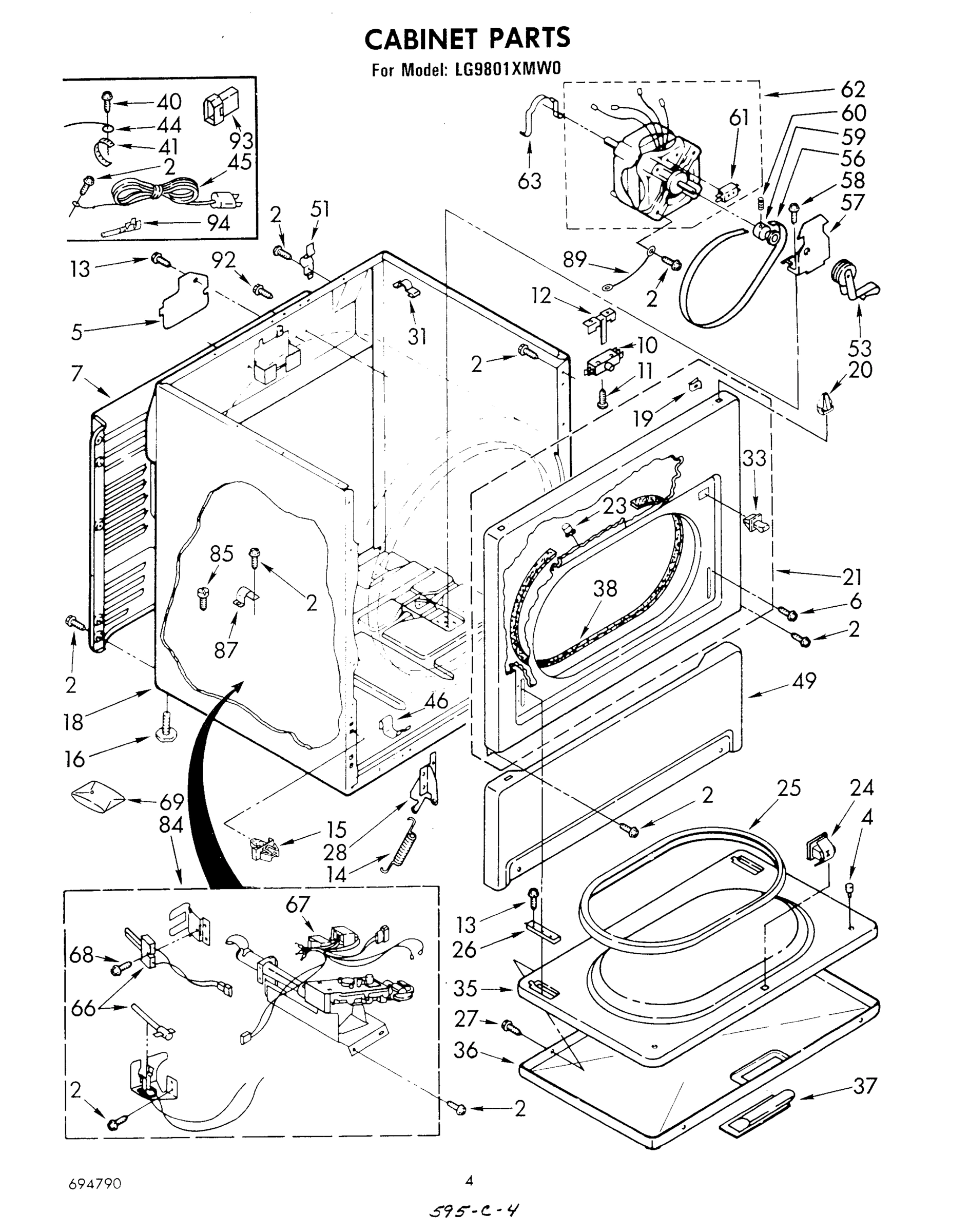

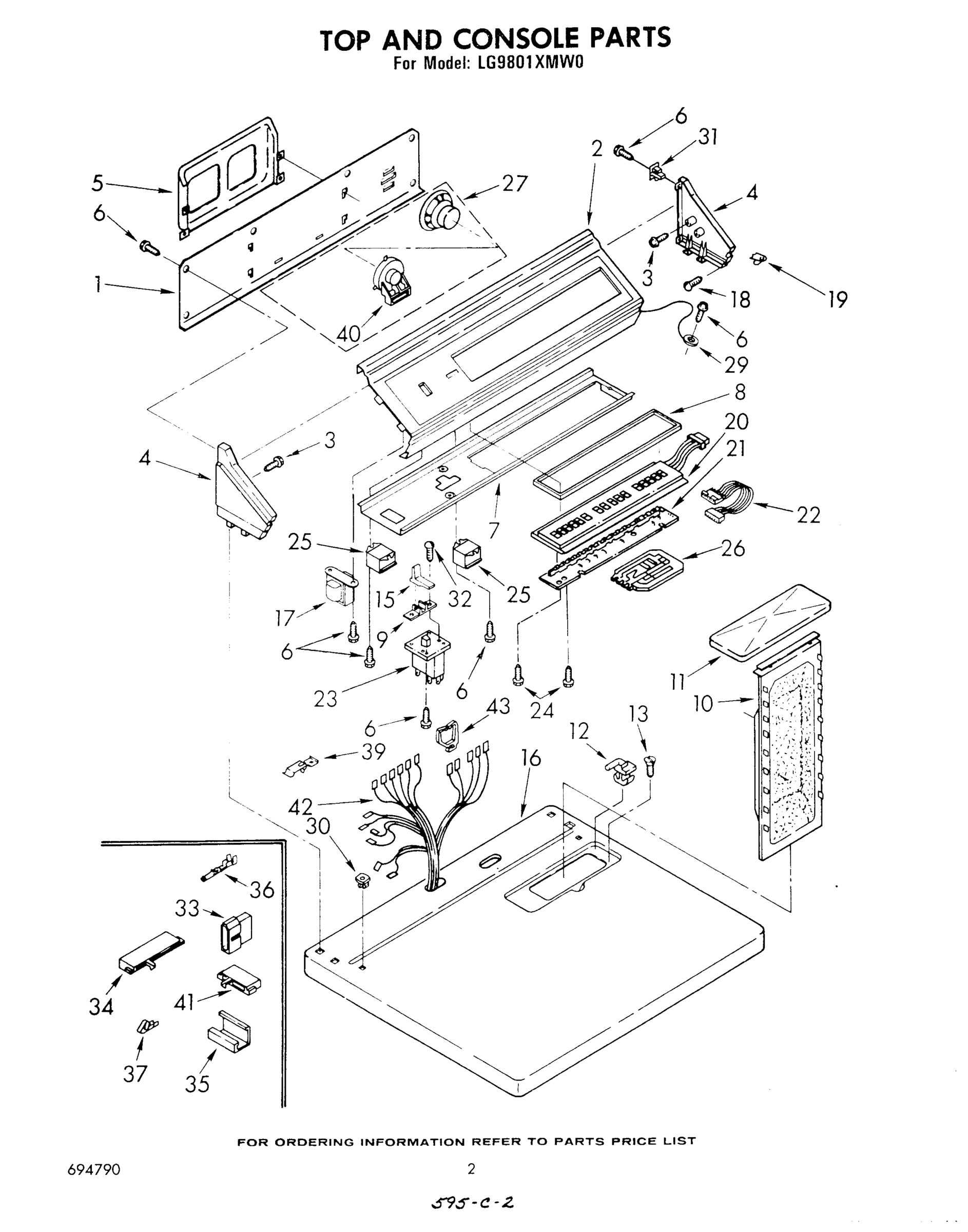

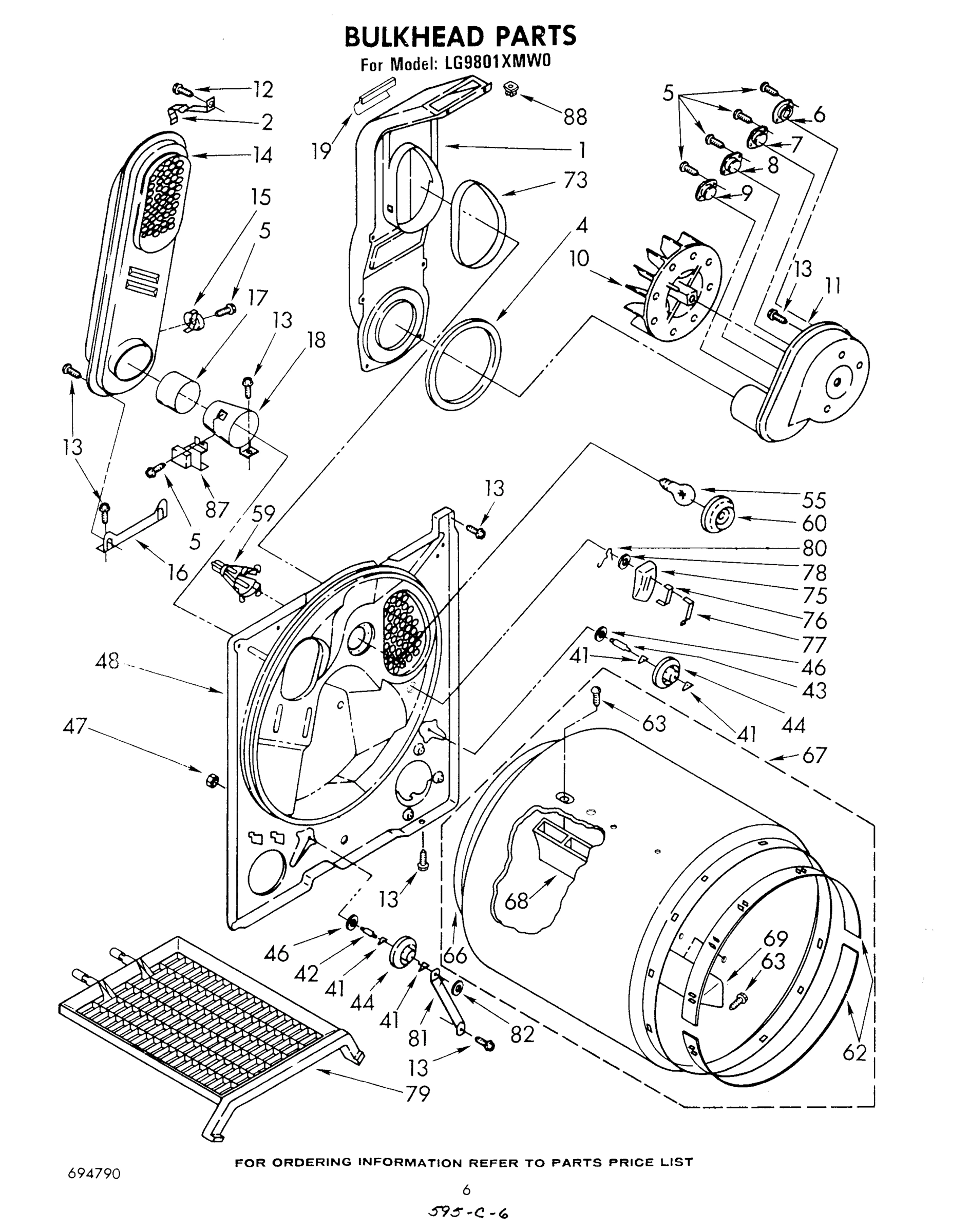

Model Whirlpool LG9801XMW0 GAS DRYER – Common Parts &amp; Diagrams

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

W11117429 Whirlpool Chute Assembly Backorder WPL W11117429 $63.75

1

Panel, Rear Console WPL 690096 Contact Us For Availability

1

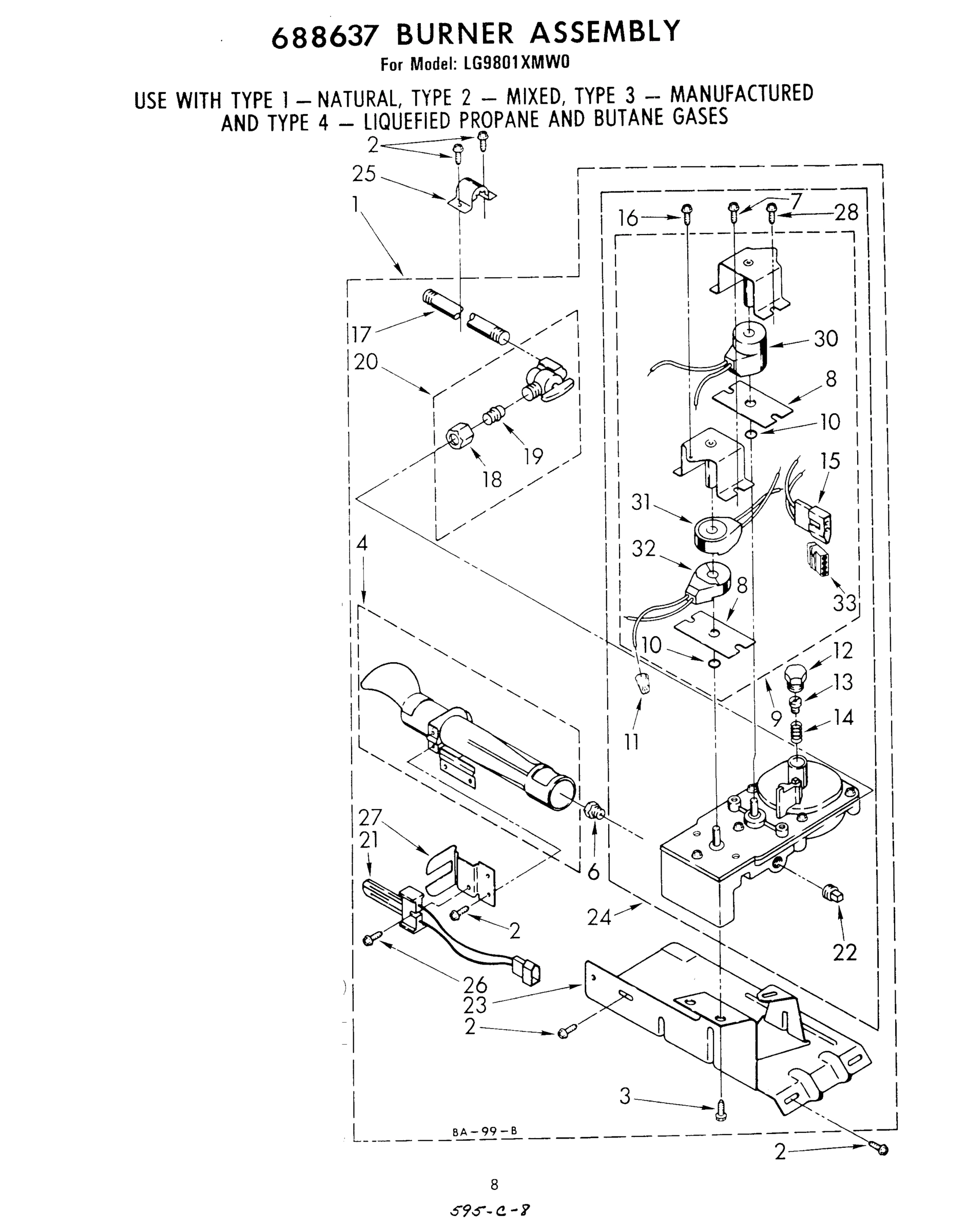

Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688637 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

2

Panel, Control WPL 693655 Contact Us For Availability

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

4

End Cap Assembly, L.H. (White) WPL 375305 Contact Us For Availability

4

End Cap Assembly, L.H. (White) WPL 375309 Contact Us For Availability

4

End Cap Assembly, L.H. (Almond) WPL 375313 Contact Us For Availability

4

End Cap Assembly, L.H. (Almond) WPL 375315 Contact Us For Availability

4

End Cap Assembly, L.H. (Golden Harvest) WPL 375318 Contact Us For Availability

4

End Cap Assembly, L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

4

End Cap Assembly, L.H. (Toast) WPL 377284 Contact Us For Availability

4

End Cap Assembly, L.H. (Platinum End Cap Asse WPL 377285 Contact Us For Availability

4

End Cap Assembly, L.H. (Toast) WPL 377286 Contact Us For Availability

4

End Cap Assembly, L.H. (Platinum) WPL 377287 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

5

Rack, Literature WPL 357645 Contact Us For Availability

6

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

6

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

6

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

6

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

6

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

Bracket, Control WPL 690010 Contact Us For Availability

7

Panel, Rear WPL 348364 Contact Us For Availability

8

Plate (2) WPL 338869 Contact Us For Availability

8

Trim, Frame WPL 359121 Contact Us For Availability

9

BURNER-GAS WPL 685947 Contact Us For Availability

9

Pivot, Lever WPL 358563 Contact Us For Availability

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

Ring, ``O`` (2) WPL 296302 Contact Us For Availability

10

Switch, Door WPL 691361 Contact Us For Availability

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Connector, Wire (3) WPL 340140 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

Screw, Leak Limiter WPL 338868 Contact Us For Availability

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

13

Screw, Regulator Adjustment WPL 99996 Contact Us For Availability

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

14

Spring, Regulator WPL 339226 Contact Us For Availability

15

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

15

Lever WPL 358564 Contact Us For Availability

15

Clip, Toe Panel (2) WPL 690625 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

Top (Toast) WPL 694983 Contact Us For Availability

Top (Platinum) WPL 694984 Contact Us For Availability

17

Pipe, Gas Supply WPL 233273 Contact Us For Availability

17

Transformer WPL 60996 Contact Us For Availability

Nut, Compression WPL 233076 Contact Us For Availability

Screw, 8-18 (2) WPL 358225 Contact Us For Availability

Cabinet (White) WPL 690841 Contact Us For Availability

Cabinet (Almond) WPL 690842 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability

cabinet (toast) WPL 694876 Contact Us For Availability

Cabinet (Platinum) WPL 694877 Contact Us For Availability

19

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Stop, Push-In (2) WPL 358472 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

20

Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability

20

Module, Touch WPL 693263 Contact Us For Availability

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

Display Assembly WPL 60985 Contact Us For Availability

Upper Front Panel (Almond) WPL 692436 Contact Us For Availability

Upper Front Panel (Golden Harvest) WPL 692439 Contact Us For Availability

Upper Front Panel (Toast) WPL 692454 Contact Us For Availability

Upper Front Panel (Platinum) WPL 692455 Contact Us For Availability

22

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

22

Harness, Display WPL 690092 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

Baseplate WPL 338455 Contact Us For Availability

23

Relay, Start-To-Stop WPL 691359 Contact Us For Availability

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability

Screw, 8-18 x 1/2 (6) WPL 690756 Contact Us For Availability

BURNER-GAS WPL 688631 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

25

Power Relay WPL 691360 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

26

Microcomputer Assembly WPL 61203 Contact Us For Availability

27

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

27

Speaker & Housing WPL 359201 Contact Us For Availability

27

Screw, 6-18 x 1/2 WPL 689791 Contact Us For Availability

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

28

Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability

29

Wire, Ground WPL 690853 Contact Us For Availability

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

30

Coil Assembly (Main) WPL 348376 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

31

Coil Assembly (Hold) WPL 348375 Contact Us For Availability

32

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

32

Coil Assembly (Assist) WPL 348374 Contact Us For Availability

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $63.59

Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability

Pl WPL 342529 Contact Us For Availability

Receptacle, 2 Way WPL 717252 Contact Us For Availability

34

WPL 60447 WPL 60447 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

35

WPL 60719 WPL 60719 Contact Us For Availability

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

Door, Front (Almond) WPL 692319 Contact Us For Availability

Door, Front (Golden Harvest) WPL 692322 Contact Us For Availability

door, front (toast) WPL 695130 Contact Us For Availability

Door, Front (Platinum) WPL 695131 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

WPL 60279 WPL 60279 Contact Us For Availability

Handle, Door (Almond) WPL 690266 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

Handle, Door (Toast) WPL 695016 Contact Us For Availability

Handle, Door (Platinum) WPL 695017 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $42.64

39

WPL 357144 WPL 357144 Contact Us For Availability

40

WPL 359188 WPL 359188 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPL 60671 WPL 60671 Contact Us For Availability

41

Strap, Ground WPL 22965 Contact Us For Availability

42

WPL 693137 WPL 693137 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 688412 WPL 688412 Contact Us For Availability

WPL 688644 WPL 688644 Contact Us For Availability

WPL 691269 WPL 691269 Contact Us For Availability

WPL 691556 WPL 691556 Contact Us For Availability

WPL 693849 WPL 693849 Contact Us For Availability

WPL 694790 WPL 694790 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

44

Wire, Ground WPL 364089 Contact Us For Availability

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

WPL 692427 WPL 692427 Contact Us For Availability

WPL 692428 WPL 692428 Contact Us For Availability

WPL 692431 WPL 692431 Contact Us For Availability

WPL 695142 WPL 695142 Contact Us For Availability

WPL 695143 WPL 695143 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WPL 348946 WPL 348946 Contact Us For Availability

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $40.53

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

66

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

82

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

84

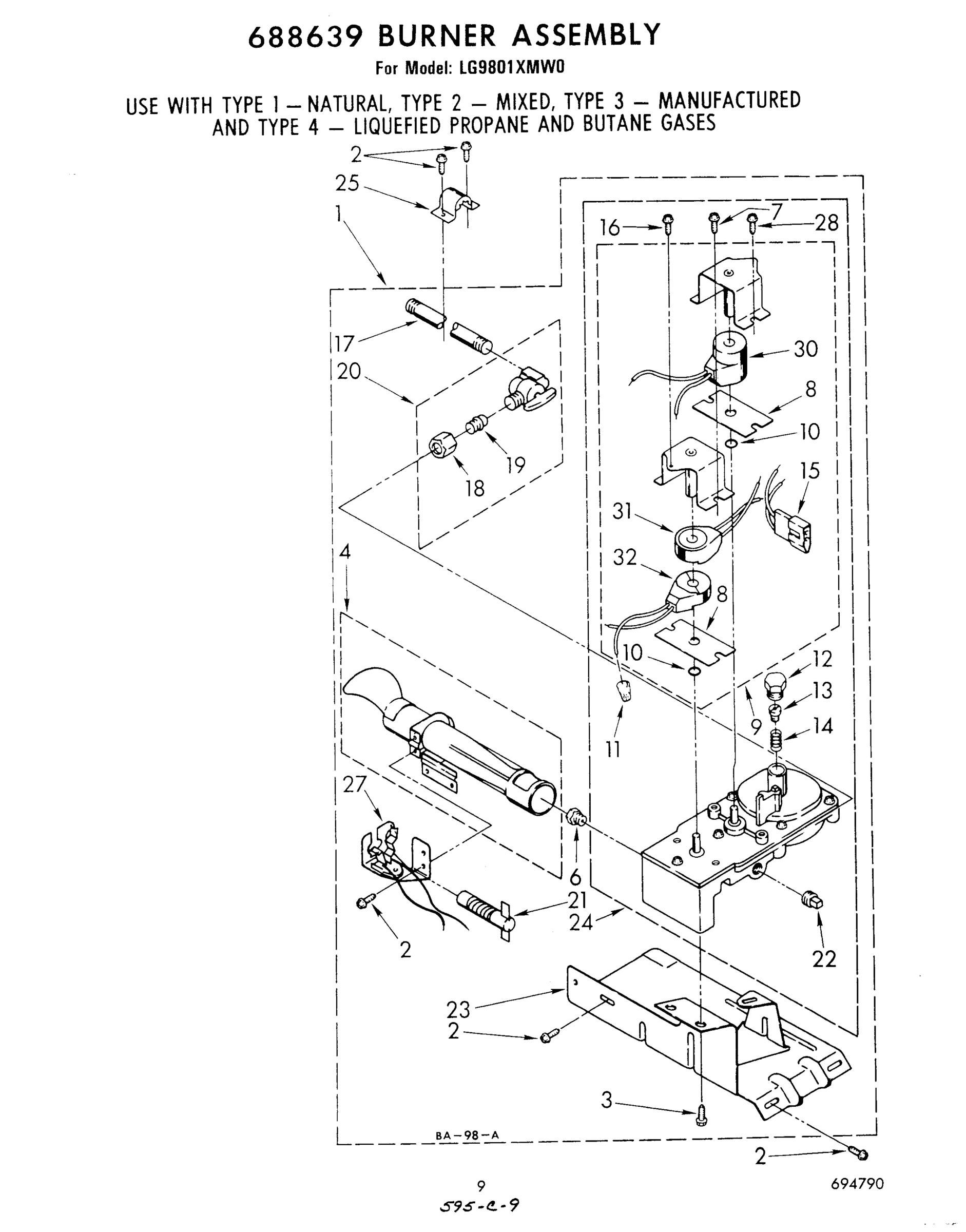

WPL 688639 WPL 688639 Contact Us For Availability

85

WPL 343826 WPL 343826 Contact Us For Availability

87

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

89

WPL 690236 WPL 690236 Contact Us For Availability

93

353424 Whirlpool Connector Backorder WPL 353424 $10.76

93

WPL 353425 WPL 353425 Contact Us For Availability

94

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

94

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51
