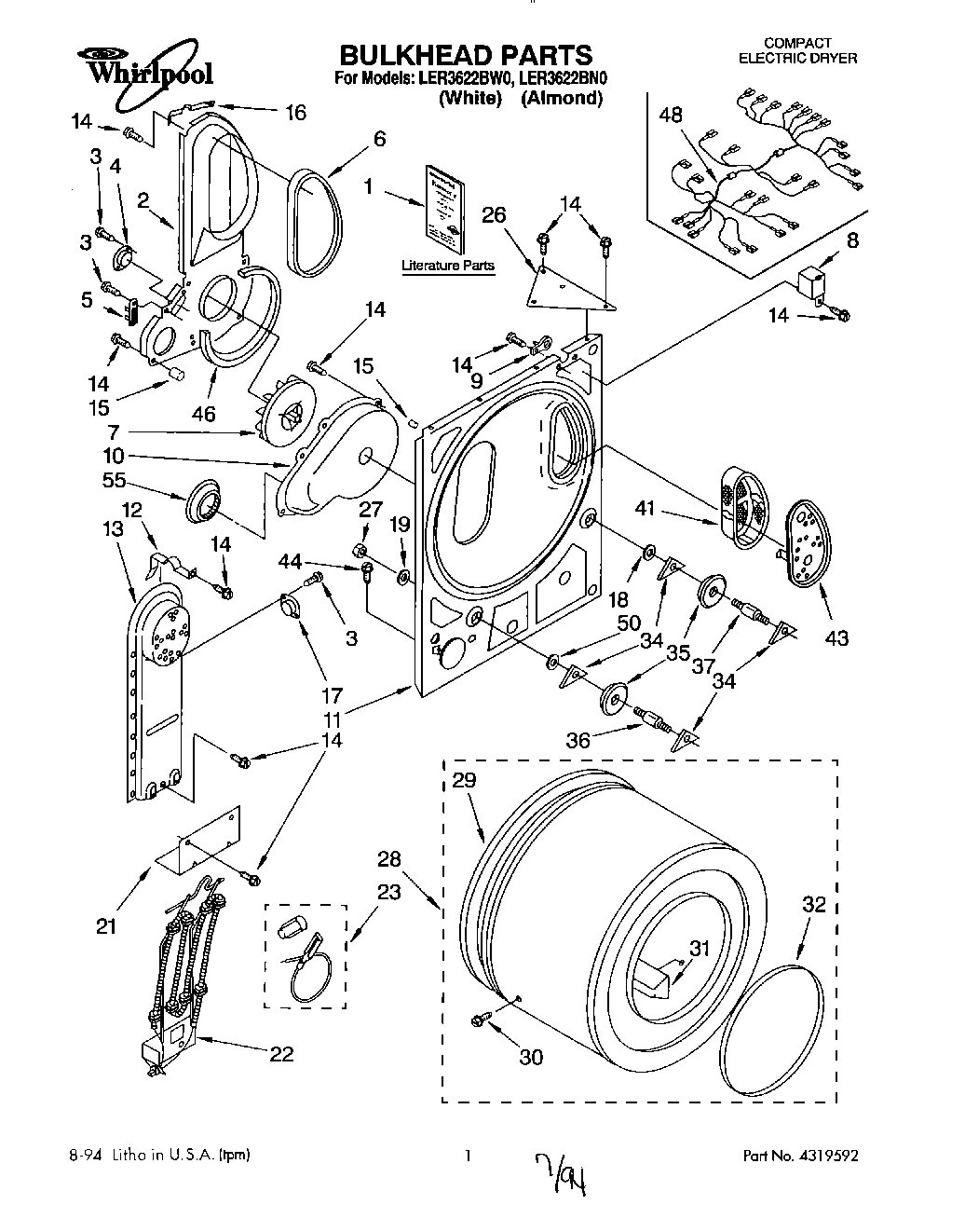

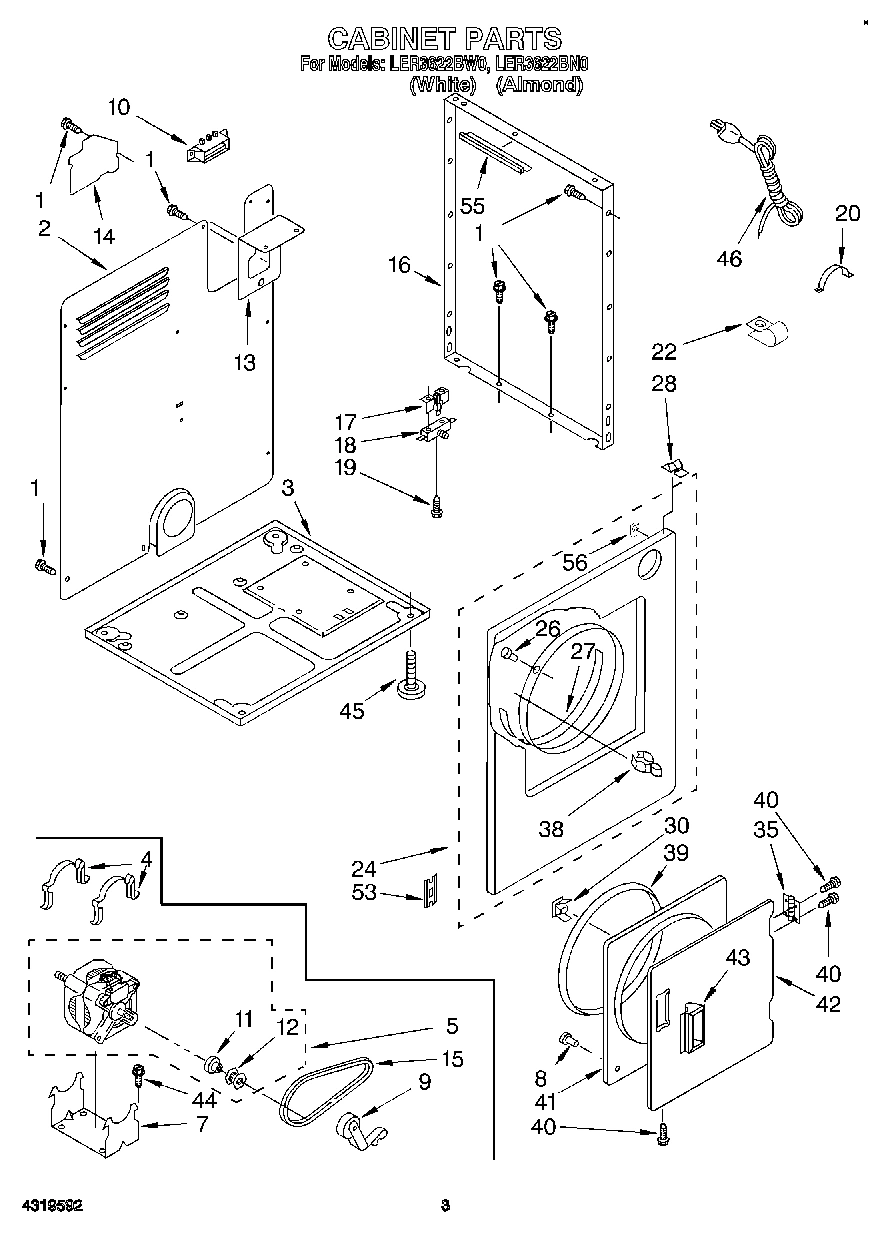

Model Whirlpool LER3622BW0 ELECTRIC DRYER – Common Parts & Diagrams

1
Literature Parts (Label, Operating Instructio
Literature Parts (Label, Operating Instructio WPL LIT9830513 Contact Us For Availability
View on Model
1
Literature Parts (Label, Wiring Diagram)
Literature Parts (Label, Wiring Diagram) WPL LIT9830899 Contact Us For Availability
View on Model
1
Literature Parts (Guide, Use & Care)
Literature Parts (Guide, Use & Care) WPL LIT9830929 Contact Us For Availability
View on Model
1
Top (Almond)
Top (Almond) WPL 4319405 Contact Us For Availability
View on Model
2
Air Duct Assembly
Air Duct Assembly WPL 9830484 Contact Us For Availability
View on Model
2
Rivet, Pop
Rivet, Pop WPL 307563 Contact Us For Availability
View on Model
3
Nut, Hex
Nut, Hex WPL 9831122 Contact Us For Availability
View on Model
4
Lockwasher
Lockwasher WPL 688193 Contact Us For Availability
View on Model
5
Ring, Trim
Ring, Trim WPL 345530 Contact Us For Availability
View on Model
6
Nut, Knurled
Nut, Knurled WPL 688041 Contact Us For Availability
View on Model
7
BASE
BASE WPL 696541 Contact Us For Availability
View on Model
8
Bumper
Bumper WPL 238614 Contact Us For Availability
View on Model
13
Box, Heater
Box, Heater WPL 4319438 Contact Us For Availability
View on Model
15
Belt, Drive
Belt, Drive WPL 3394652 Contact Us For Availability
View on Model
17
THRMST-FIX
THRMST-FIX WPL 696818 Contact Us For Availability
View on Model
18
Washer, Support
Washer, Support WPL 339492 Contact Us For Availability
View on Model
19
Washer, Support
Washer, Support WPL 4319307 Contact Us For Availability
View on Model
21
Reflector, Heat
Reflector, Heat WPL 4319395 Contact Us For Availability
View on Model
22
Element, Heater
Element, Heater WPL 3398169 Contact Us For Availability
View on Model
23
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING WPL 279457 Contact Us For Availability
View on Model
30
Screw, 11-16 x 7/8
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
View on Model
31
Panel, Control (White)
Panel, Control (White) WPL 9831178 Contact Us For Availability
View on Model
31
Panel, Control (Almond)
Panel, Control (Almond) WPL 9831179 Contact Us For Availability
View on Model
32
Timer Knob & Dial (White)
Timer Knob & Dial (White) WPL 9830894 Contact Us For Availability
View on Model
32
Timer Knob & Dial (Almond)
Timer Knob & Dial (Almond) WPL 9830900 Contact Us For Availability
View on Model
36
Switch, Push-To-Start
Switch, Push-To-Start WPL 689038 Contact Us For Availability
View on Model
46
Seal
Seal WPL 9830394 Contact Us For Availability
View on Model
48
Harness, Wiring
Harness, Wiring WPL 9830908 Contact Us For Availability
View on Model
55
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
55
Paint, Spray 13 Oz. (Almond)
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
View on Model
55
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
View on Model
55
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
55
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
55
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
