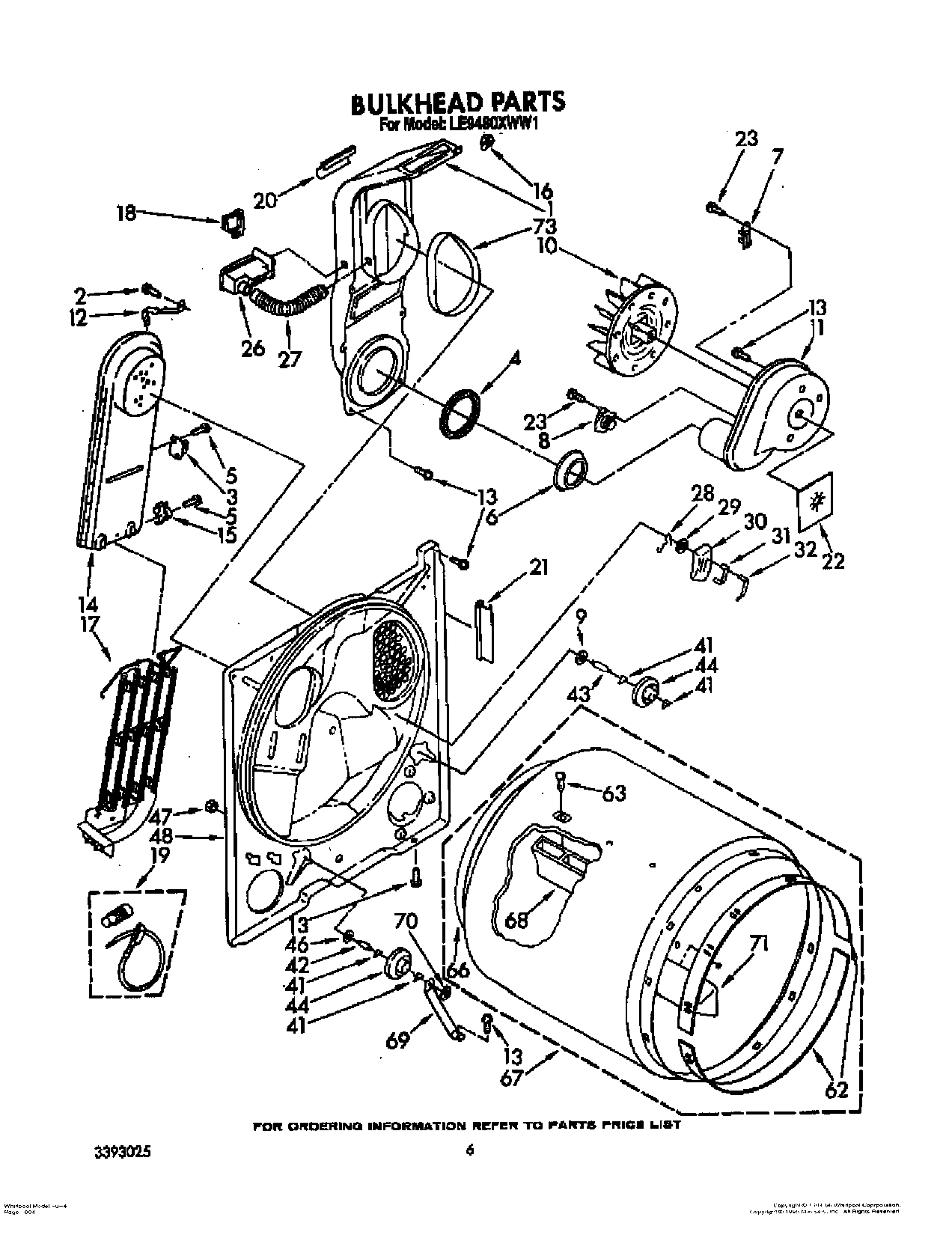

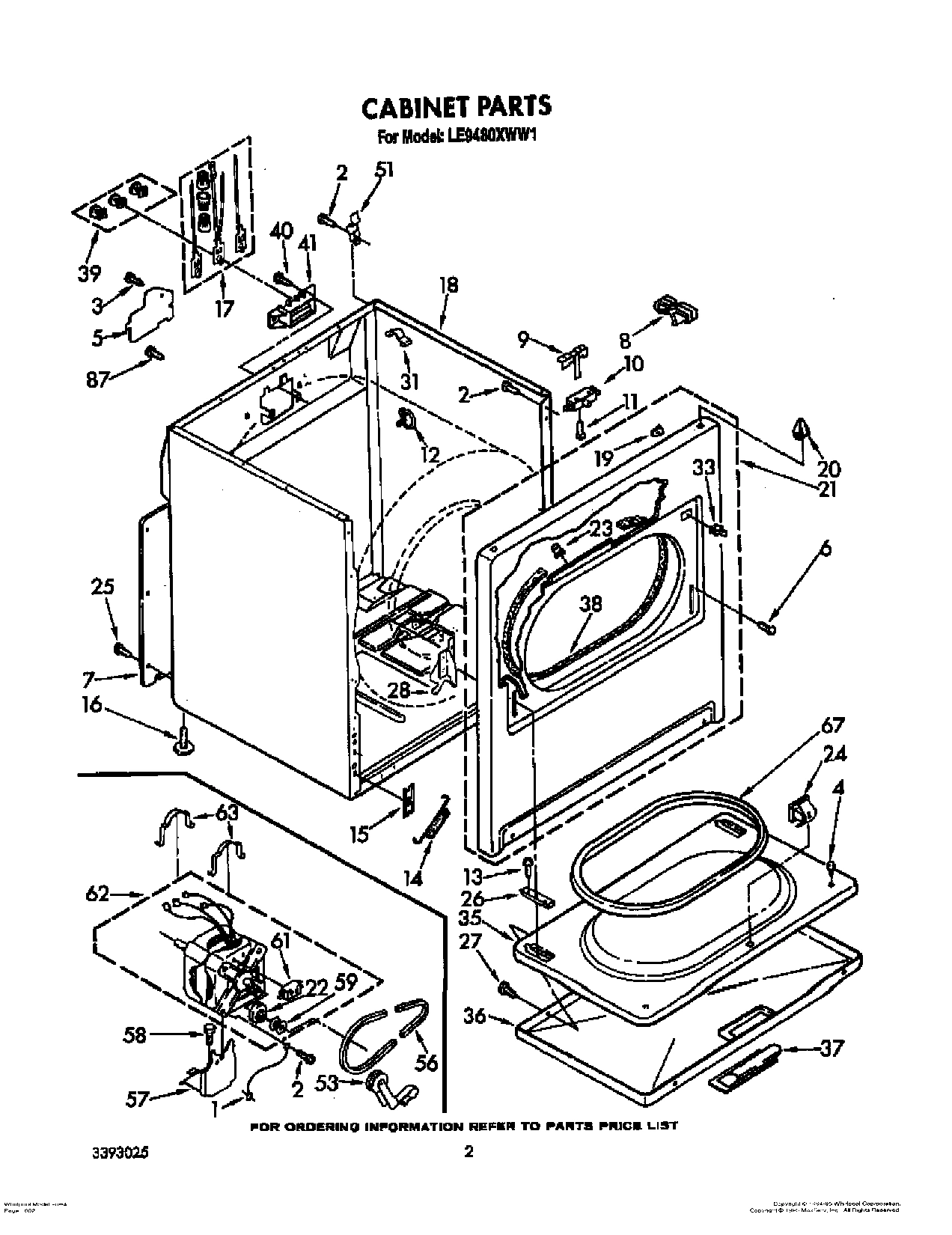

Model Whirlpool LE9480XWW1 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation WPL LIT3389444 Contact Us For Availability

Use & WPL LIT3391358 Contact Us For Availability

WPL LIT3391427 WPL LIT3391427 Contact Us For Availability

WPL LIT3393025 WPL LIT3393025 Contact Us For Availability

1

Lint Chute Assembly WPL 686214 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

3

279769 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 279769 $36.08

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

6

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

6

Screw, 8-18 WPL 64211 Contact Us For Availability

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

7

Stop, Push-In WPL 358472 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

8

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

9

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

9

Rack, Dry WPL 692990 Contact Us For Availability

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

Housing, Blower WPL 695081 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

Box, Heater WPL 695547 Contact Us For Availability

14

Wire, Jumper (Violet) WPL 3393811 Contact Us For Availability

15

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $44.08

15

WPW10476828-includeCORE Whirlpool WPW10476828 Backorder WPL WPW10476828-includeCORE $180.58

98460 Whirlpool Nut Backorder WPL 98460 $9.59

Top (White) WPL 3393385 Contact Us For Availability

Top (Almond) WPL 3393386 Contact Us For Availability

Top (Golden Harvest) WPL 3393387 Contact Us For Availability

17

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

17

3391885 Whirlpool Connector Backorder WPL 3391885 $30.25

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $33.79

18

Clip, Retainer WPL 688412 Contact Us For Availability

18

Wire, Jumper (Blue) WPL 3393812 Contact Us For Availability

19

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

21

686889 Whirlpool Pad Backorder WPL 686889 $10.76

21

Timer, 60 Hz. WPL 3392949 Contact Us For Availability

22

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

22

Seal, Blower WPL 3392123 Contact Us For Availability

23

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

Alert, Lint WPL 690981 Contact Us For Availability

27

Hose, Differential WPL 686577 Contact Us For Availability

28

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.36

29

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32

29

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

30

279366 Whirlpool Sensor Kit In Stock WPL 279366 $54.81

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

31

Harness, Wiring WPL 3392952 Contact Us For Availability

32

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

39

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

39

Relay, Push-To-Start WPL 348314 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

Bulkhead WPL 685823 Contact Us For Availability

48

Timer Knob Assembly WPL 3387900 Contact Us For Availability

49

Button, Push To Start WPL 3391230 Contact Us For Availability

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

53

Bracket, Control WPL 3391255 Contact Us For Availability

54

Panel, Control WPL 3391301 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $45.04

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $26.88

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $132.34

67

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

67

Nut, Push-On (4) WPL 689559 Contact Us For Availability

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

79

Switch, Clean-Touch WPL 3393834 Contact Us For Availability

87

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51
