Model Speed Queen LE7121*M Dryer – Common Parts & Diagrams

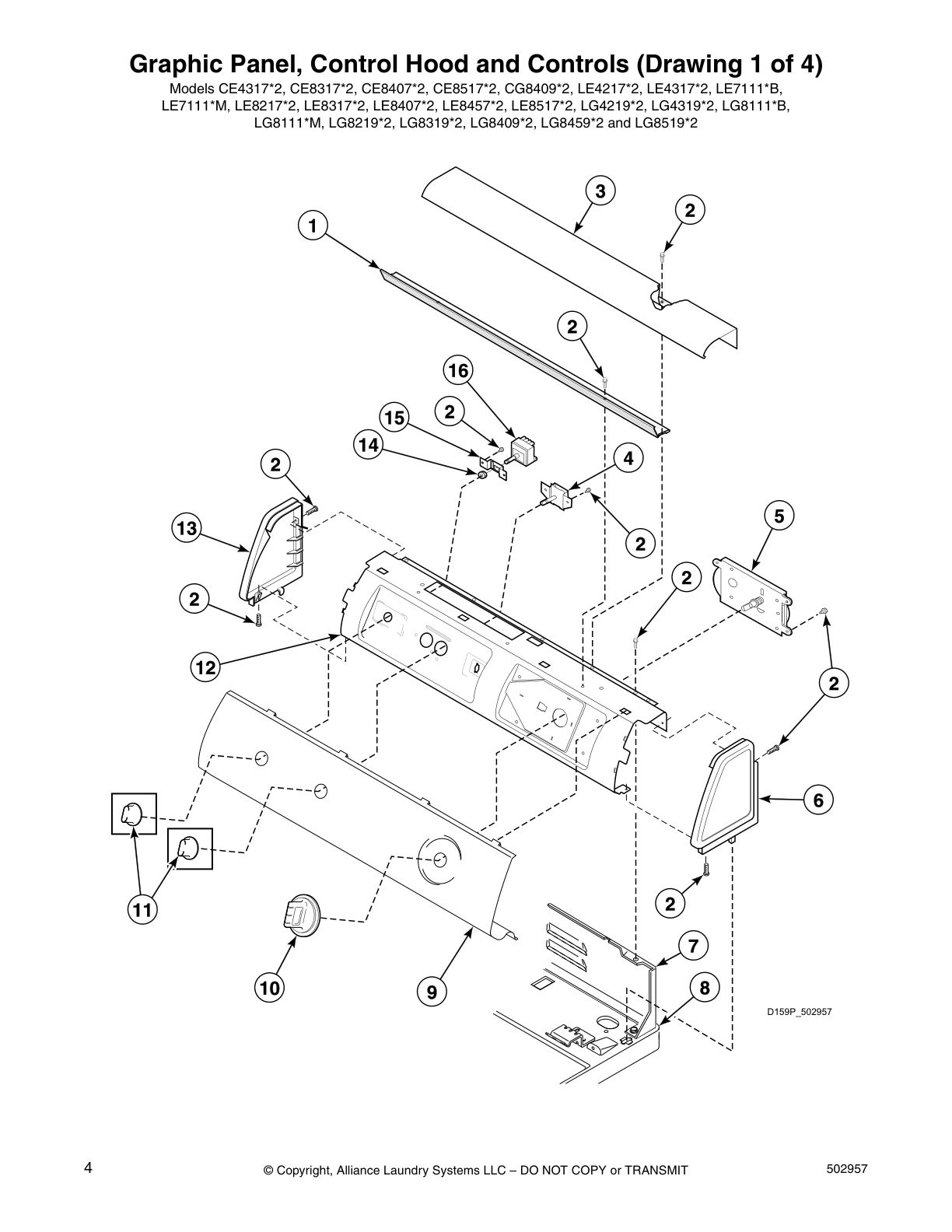

Graphic Panel, Control Hood and Controls (Drawing 1 of 4)

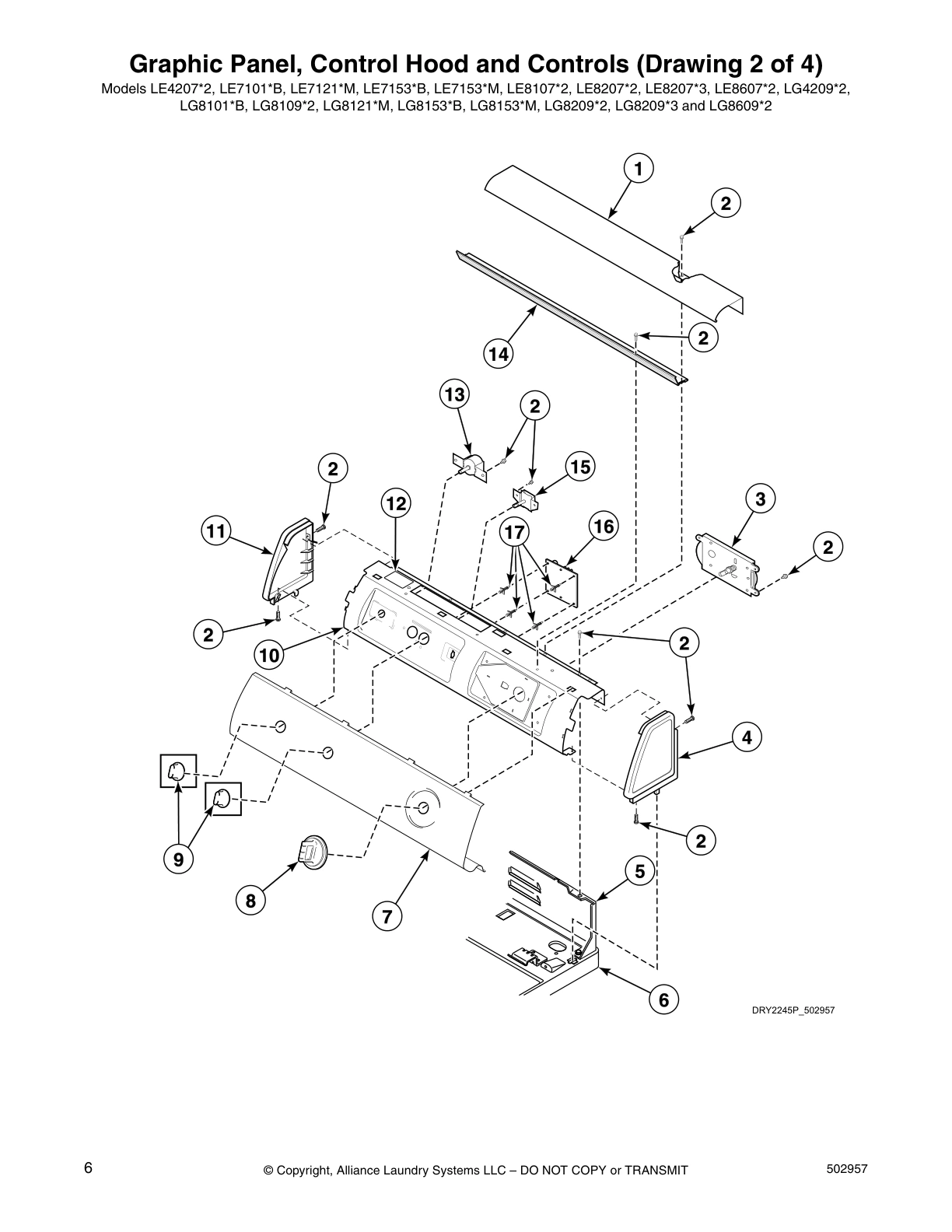

Graphic Panel, Control Hood and Controls (Drawing 2 of 4)

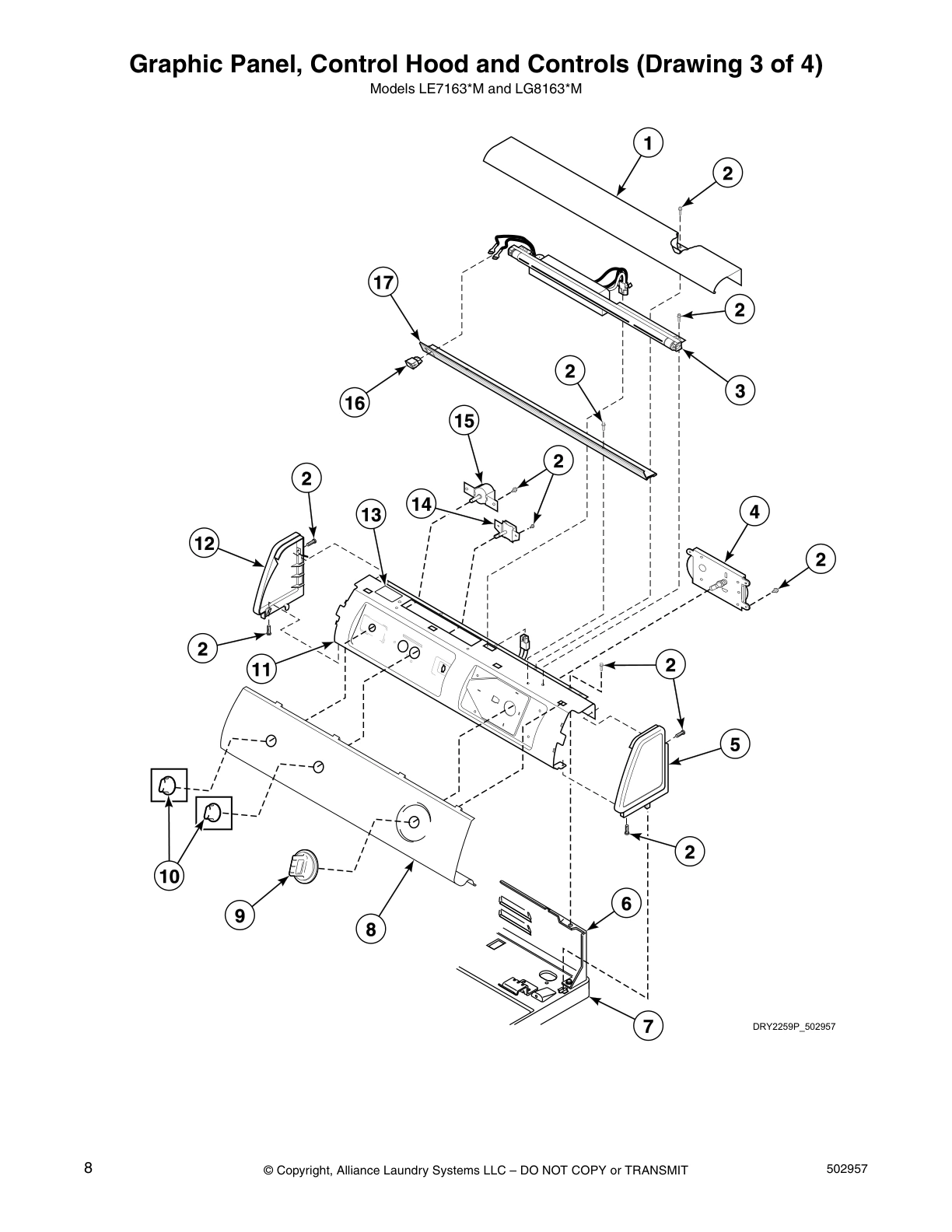

Graphic Panel, Control Hood and Controls (Drawing 3 of 4)

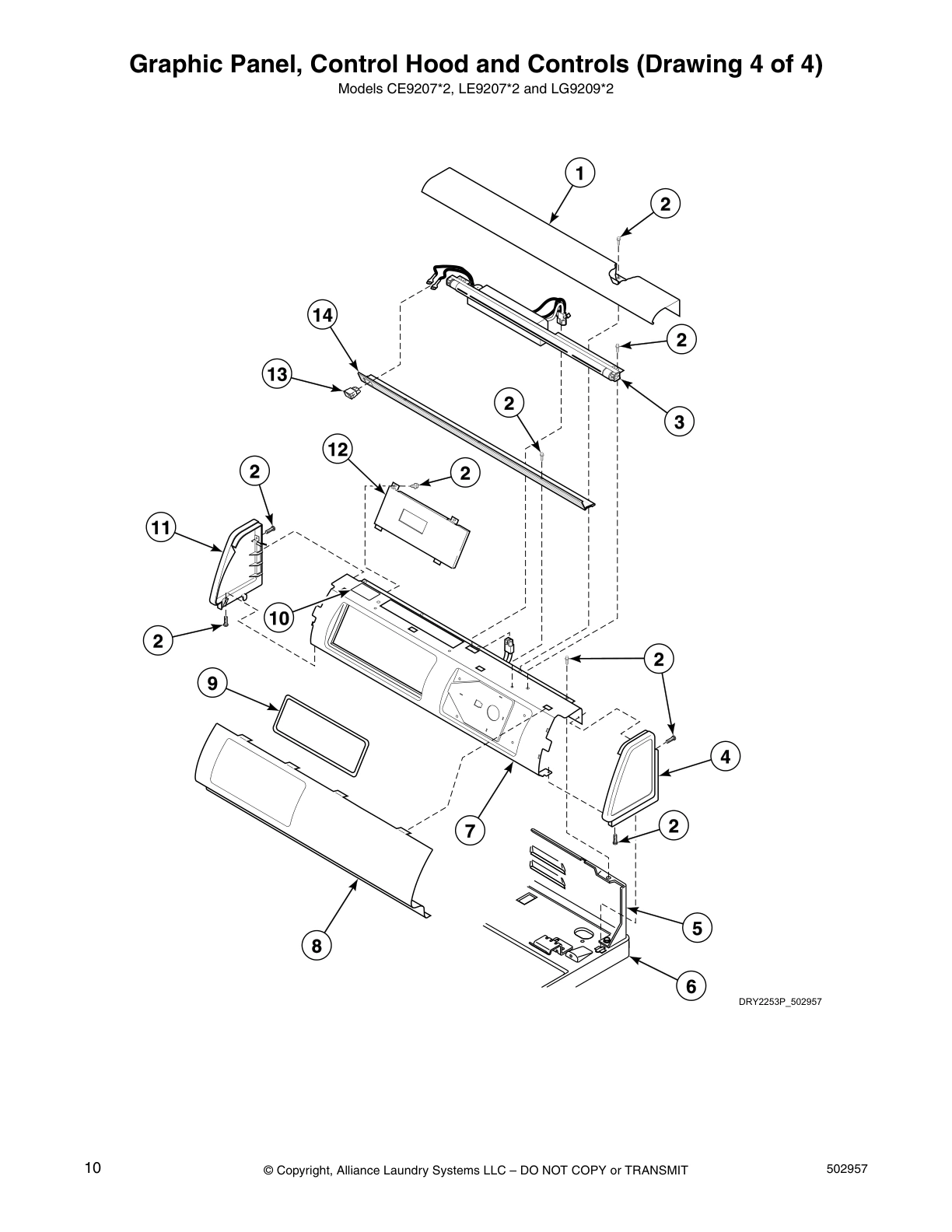

Graphic Panel, Control Hood and Controls (Drawing 4 of 4)

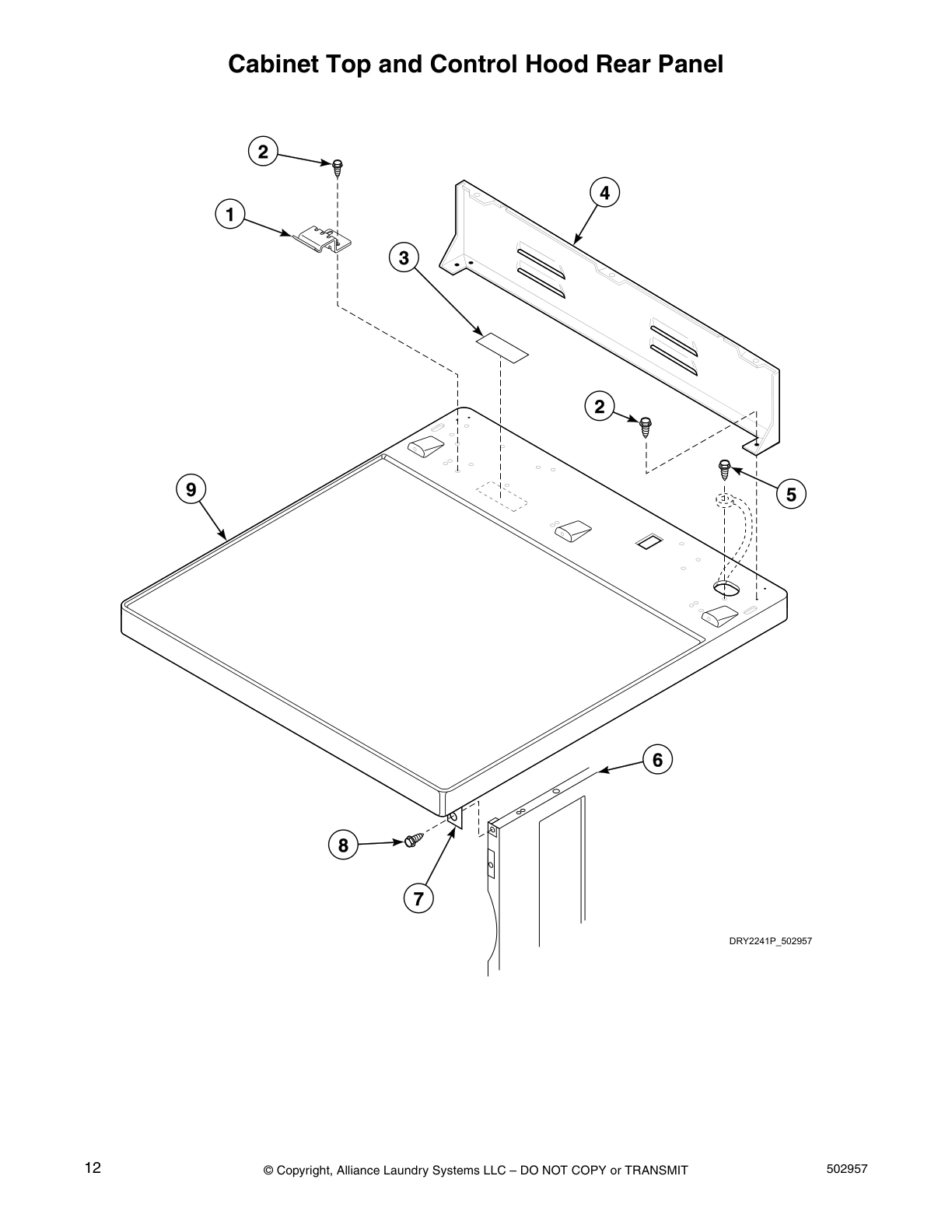

Cabinet Top and Control Hood Rear Panel

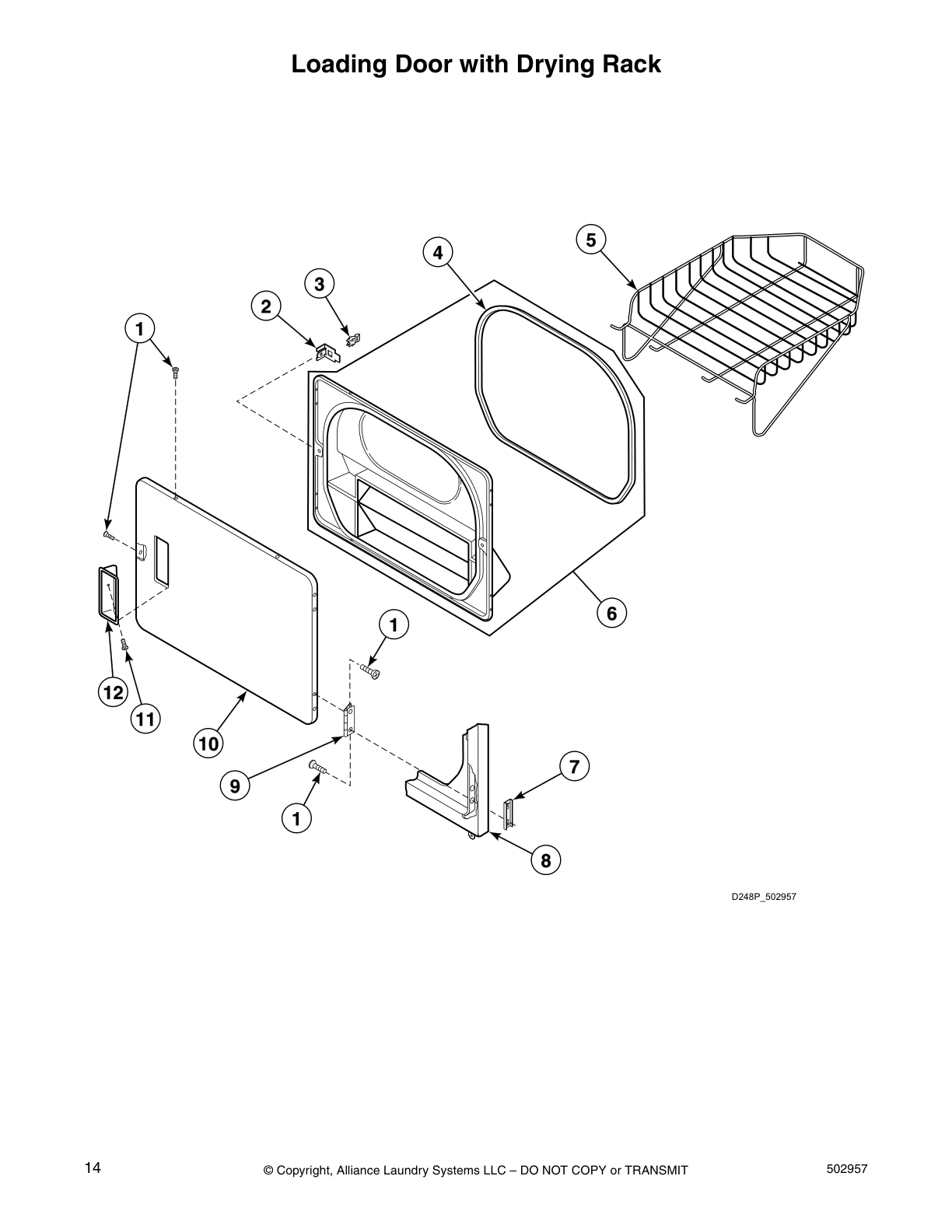

Loading Door with Drying Rack

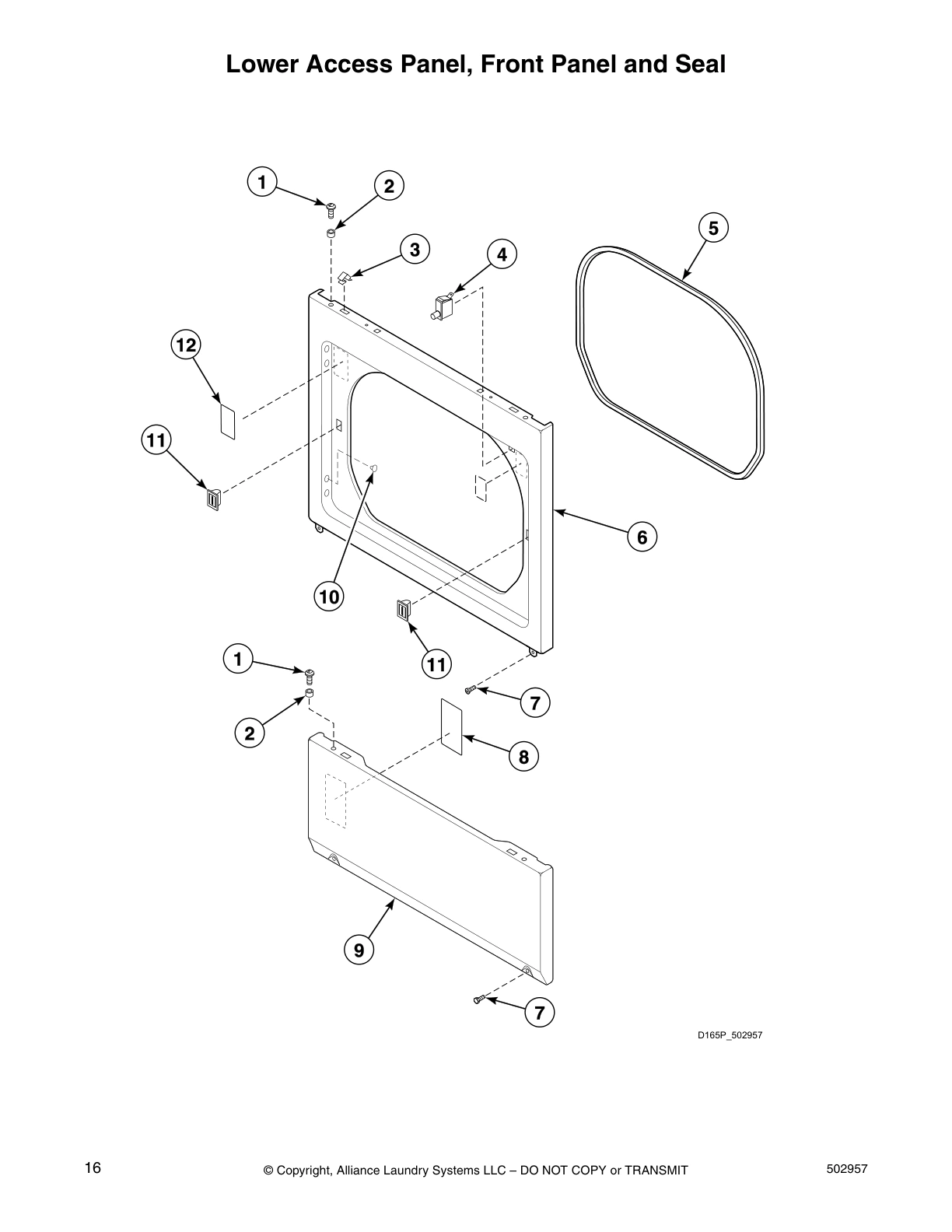

Lower Access Panel, Front Panel and Seal

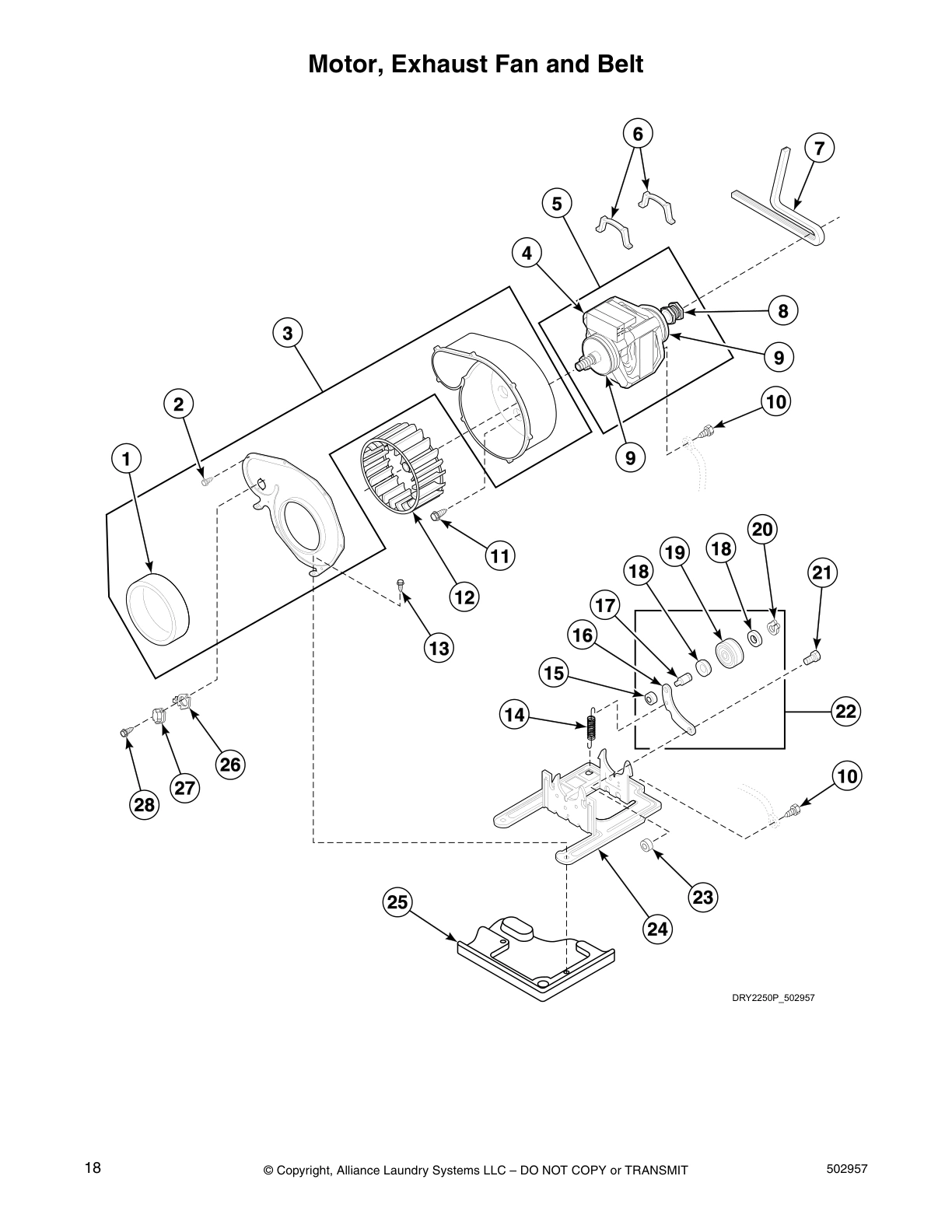

Motor, Exhaust Fan and Belt

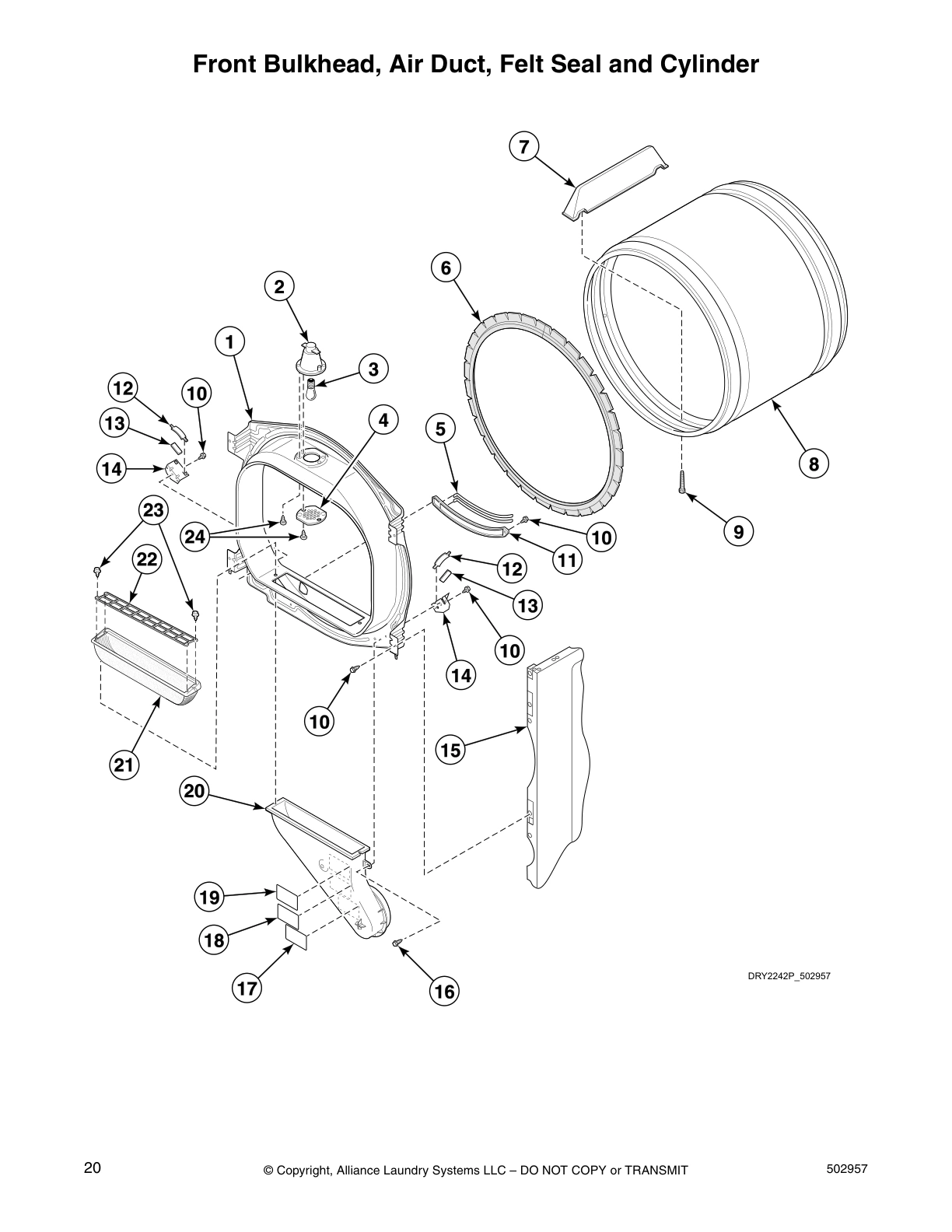

Front Bulkhead, Air Duct, Felt Seal and Cylinder

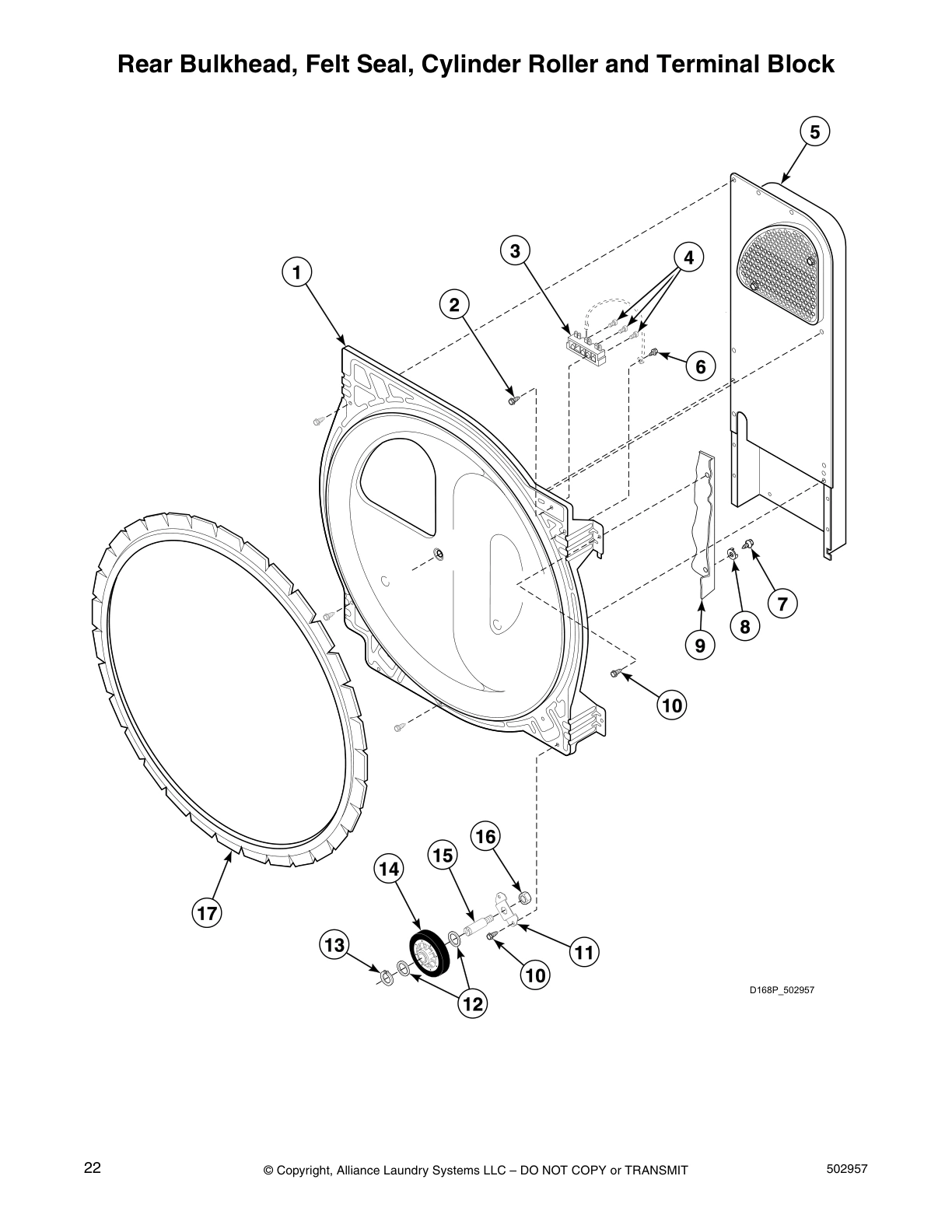

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

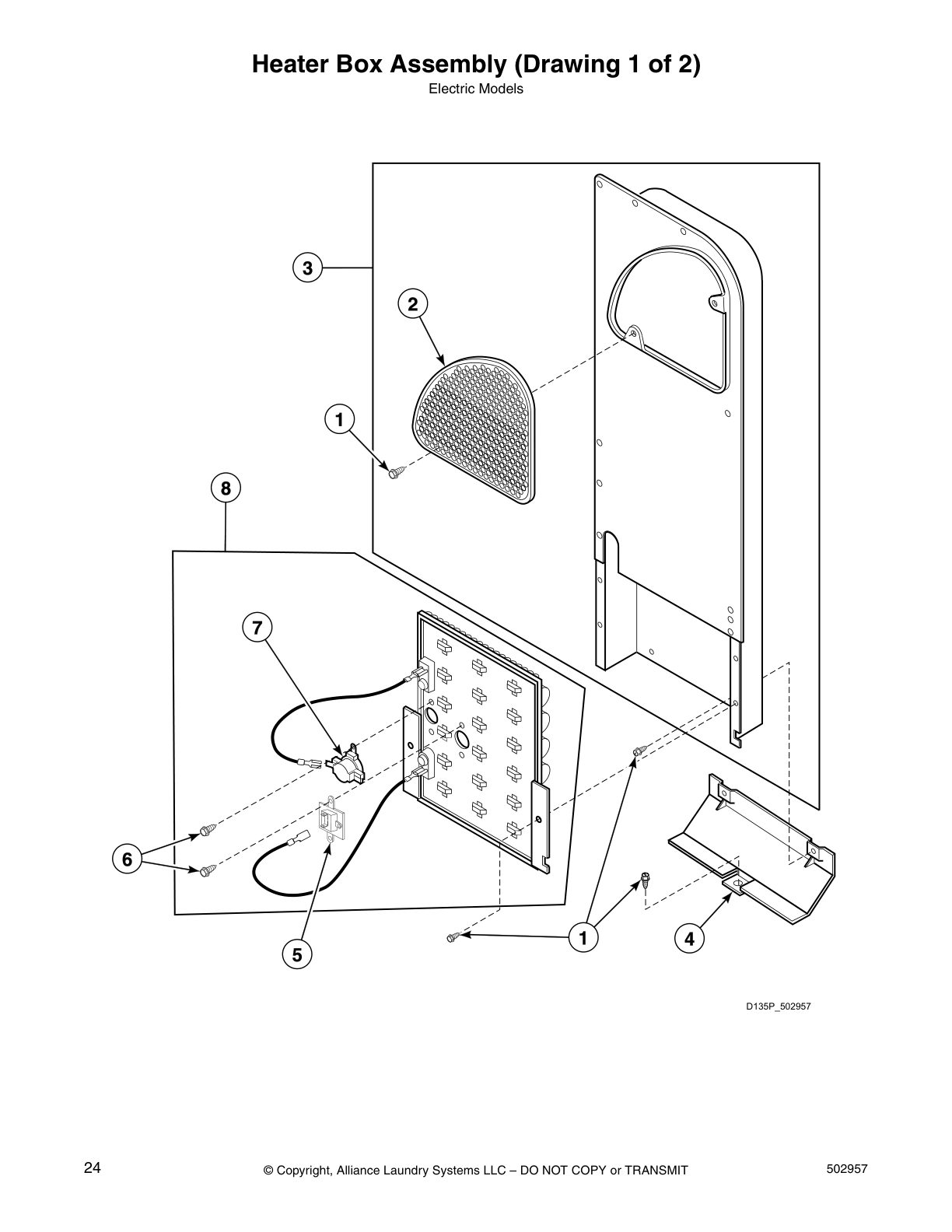

Heater Box Assembly (Drawing 1 of 2)

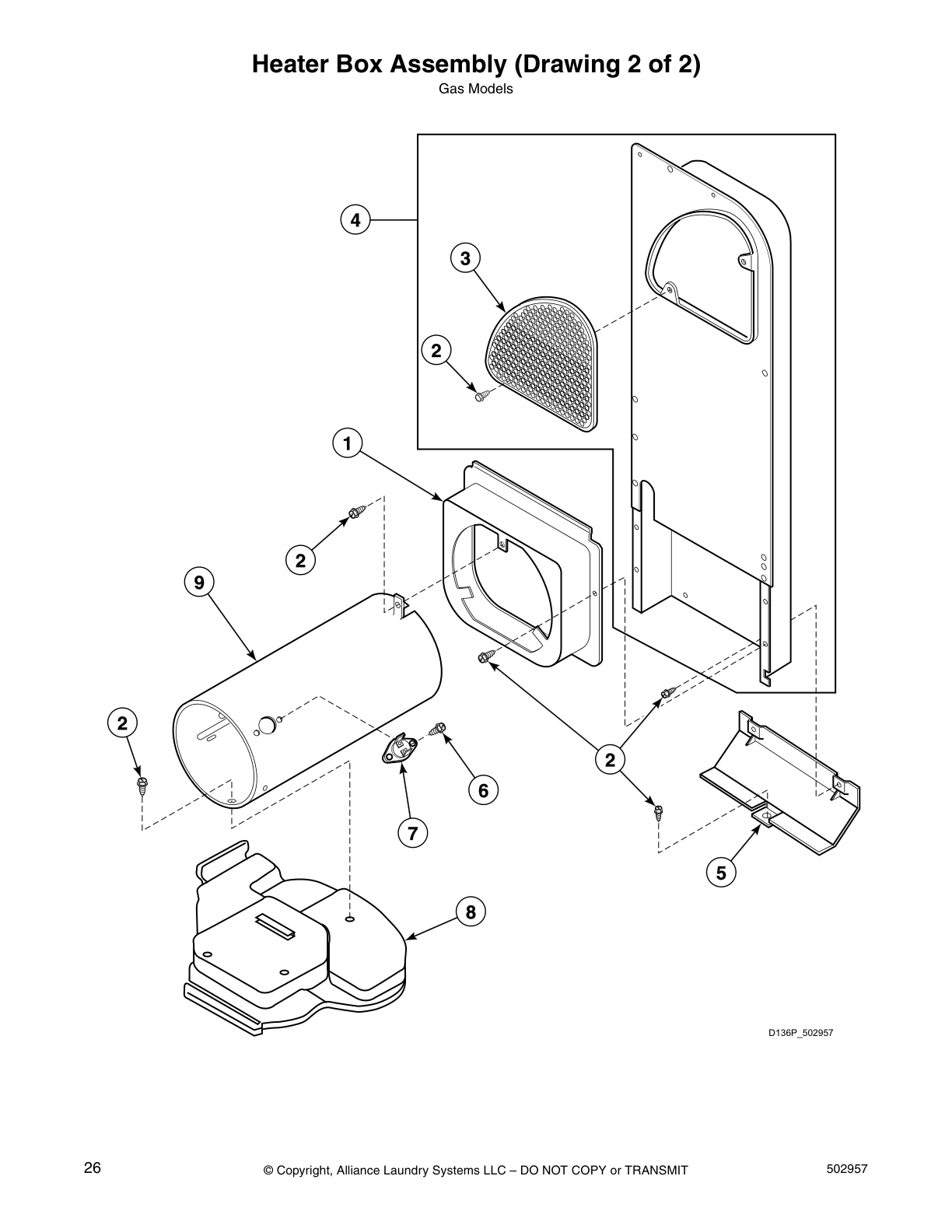

Heater Box Assembly (Drawing 2 of 2)

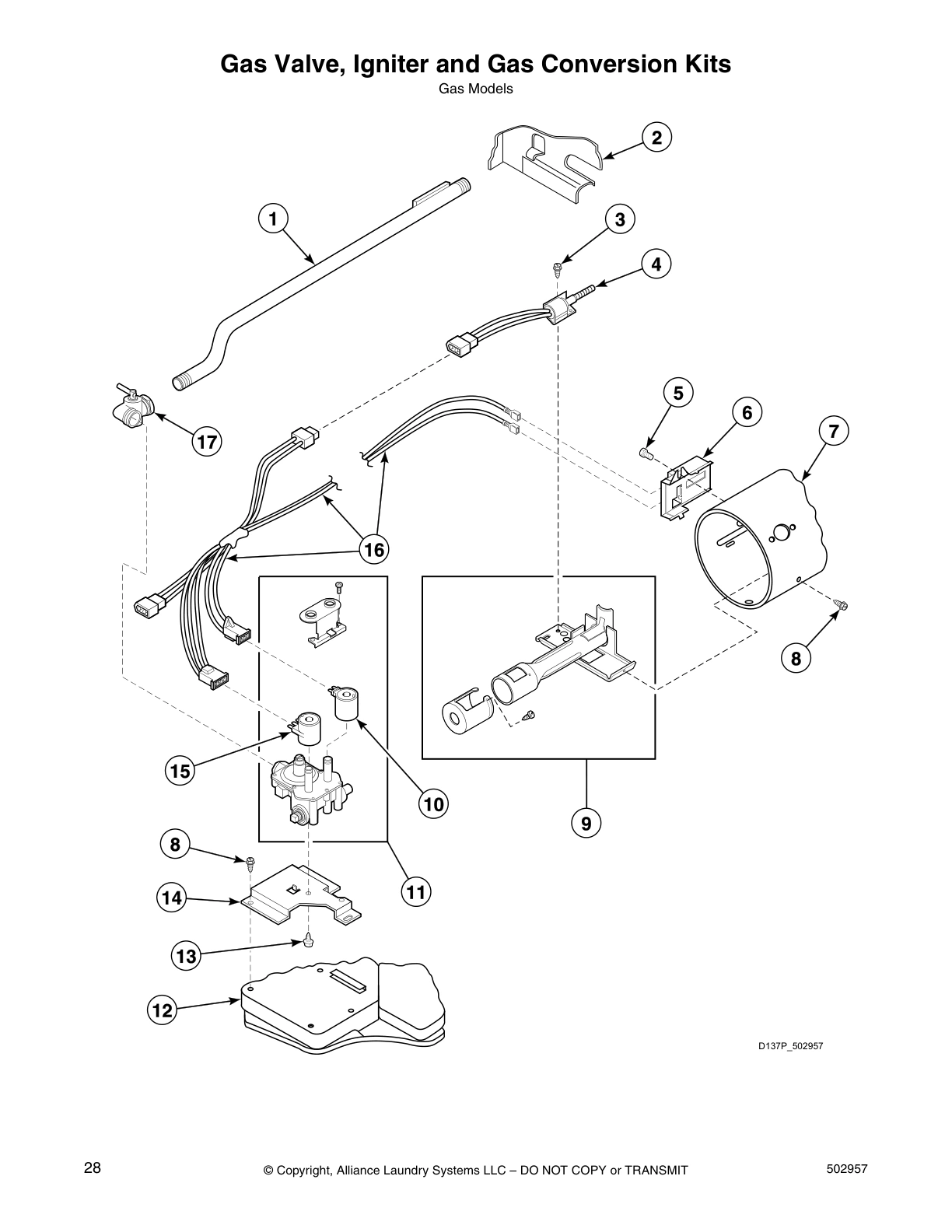

Gas Valve, Igniter and Gas Conversion Kits

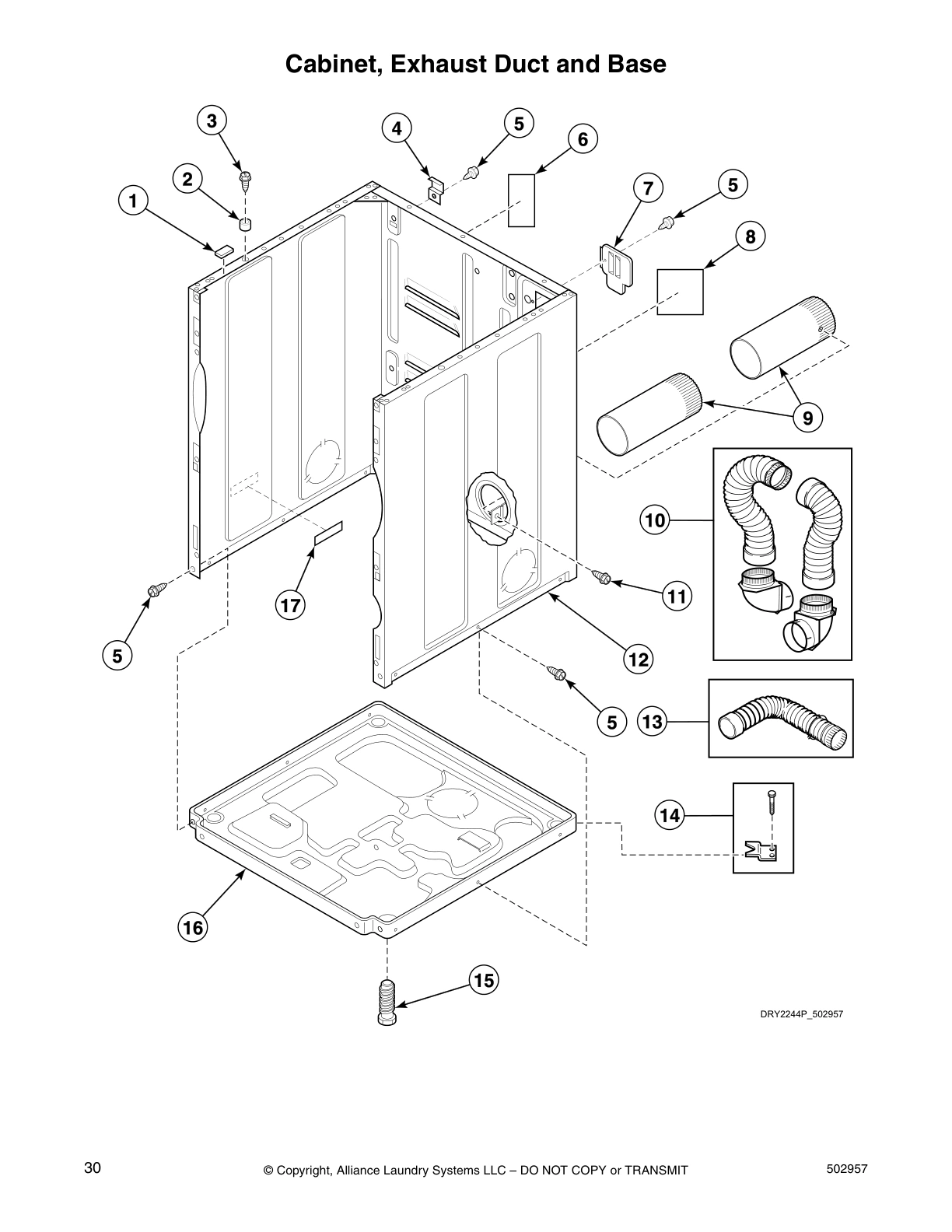

Cabinet, Exhaust Duct and Base

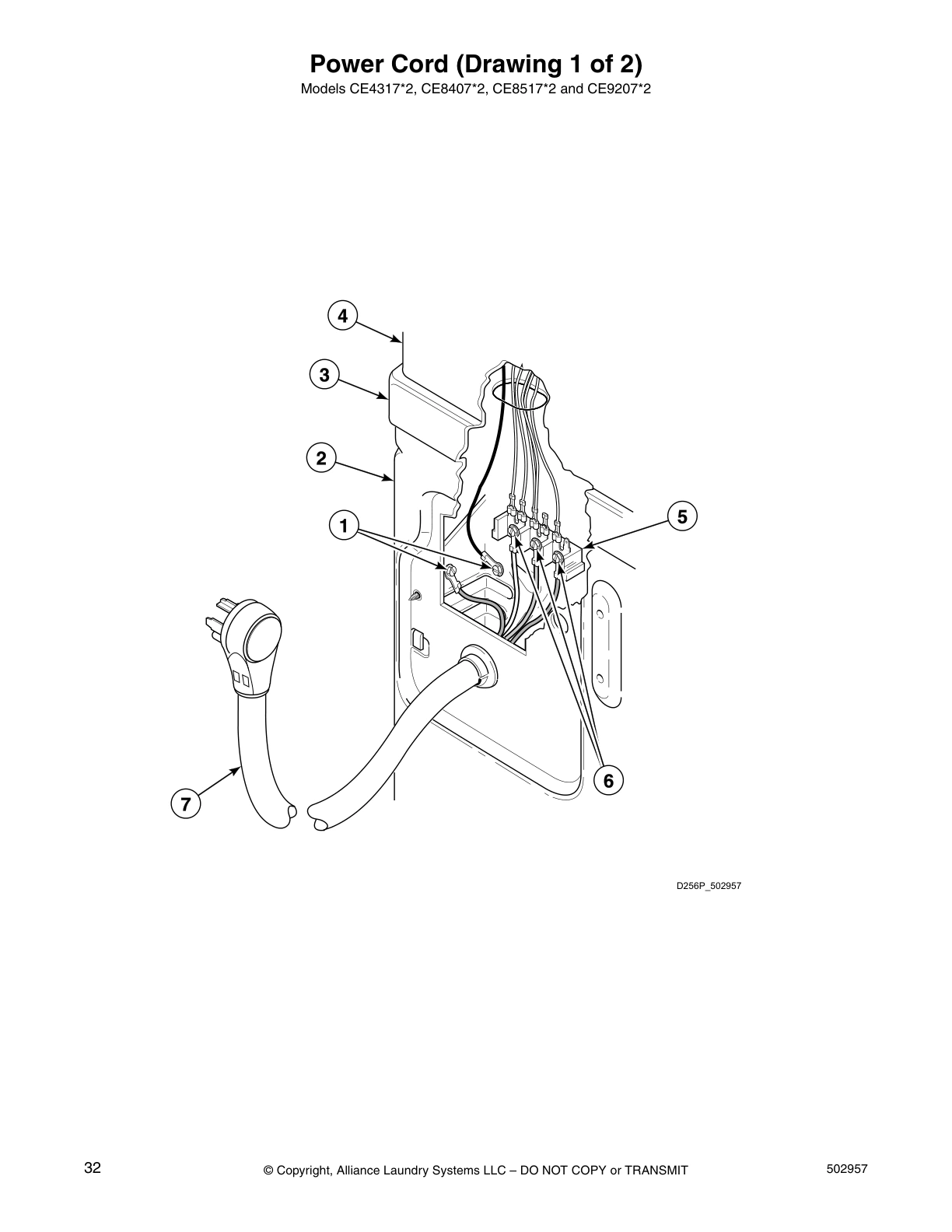

Power Cord (Drawing 1 of 2)

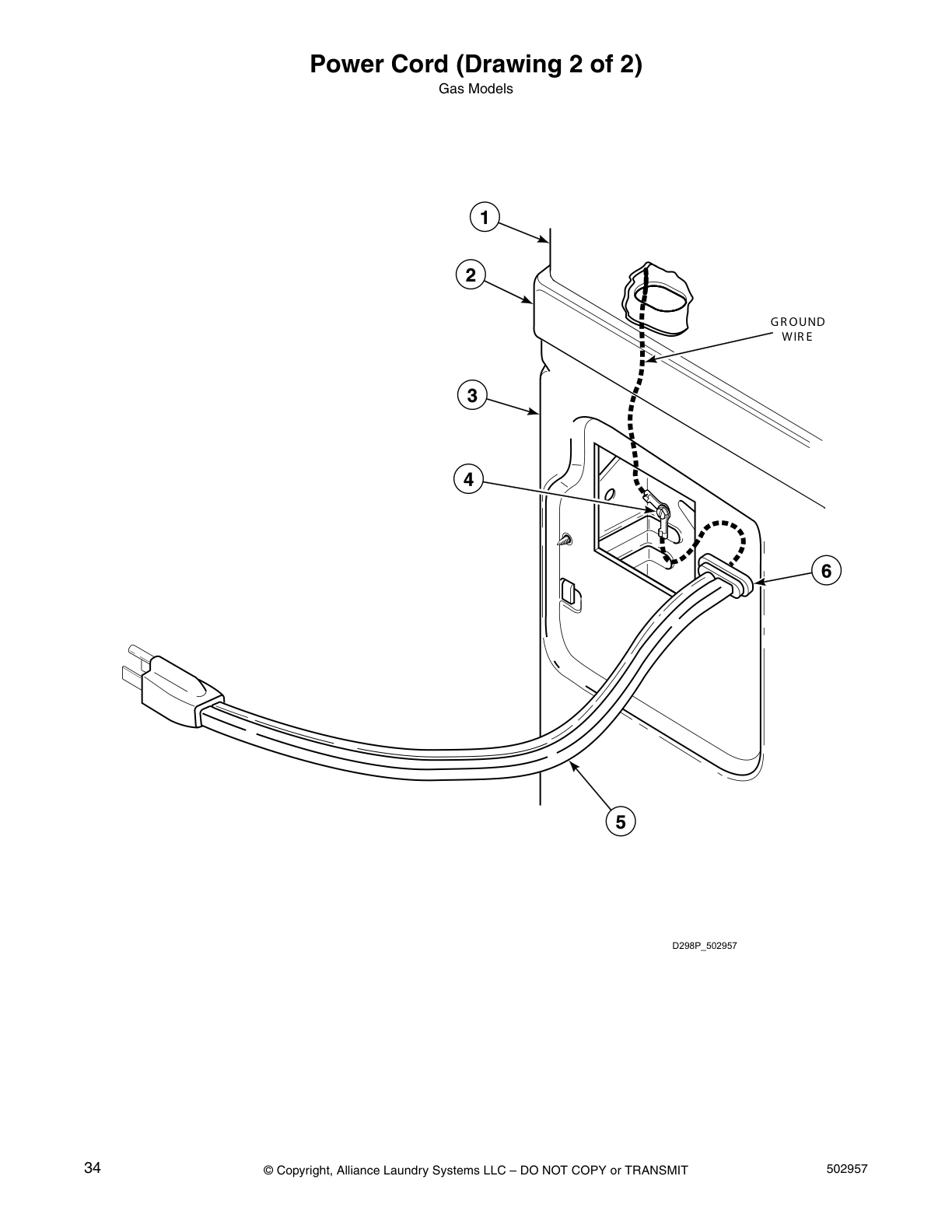

Power Cord (Drawing 2 of 2)

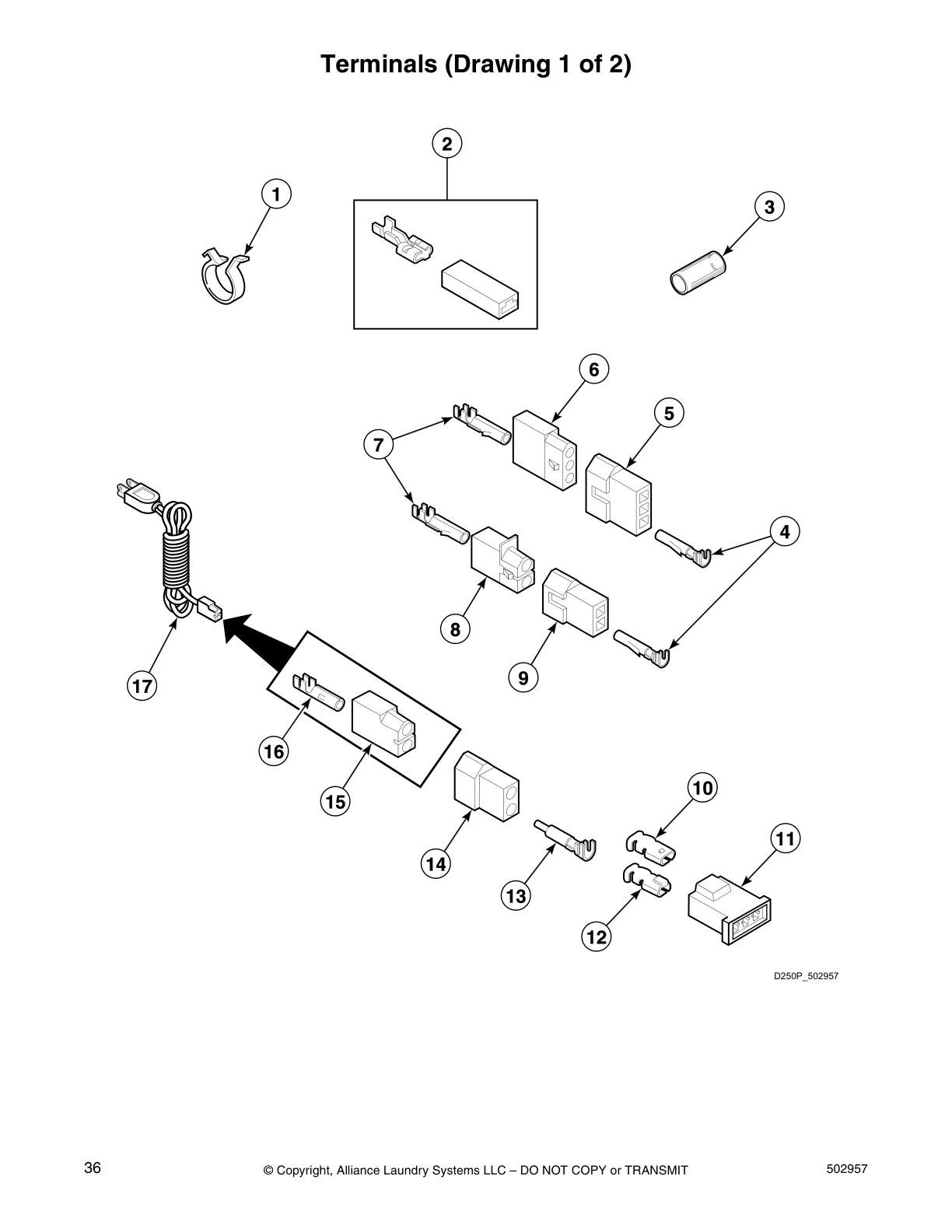

Terminals (Drawing 1 of 2)

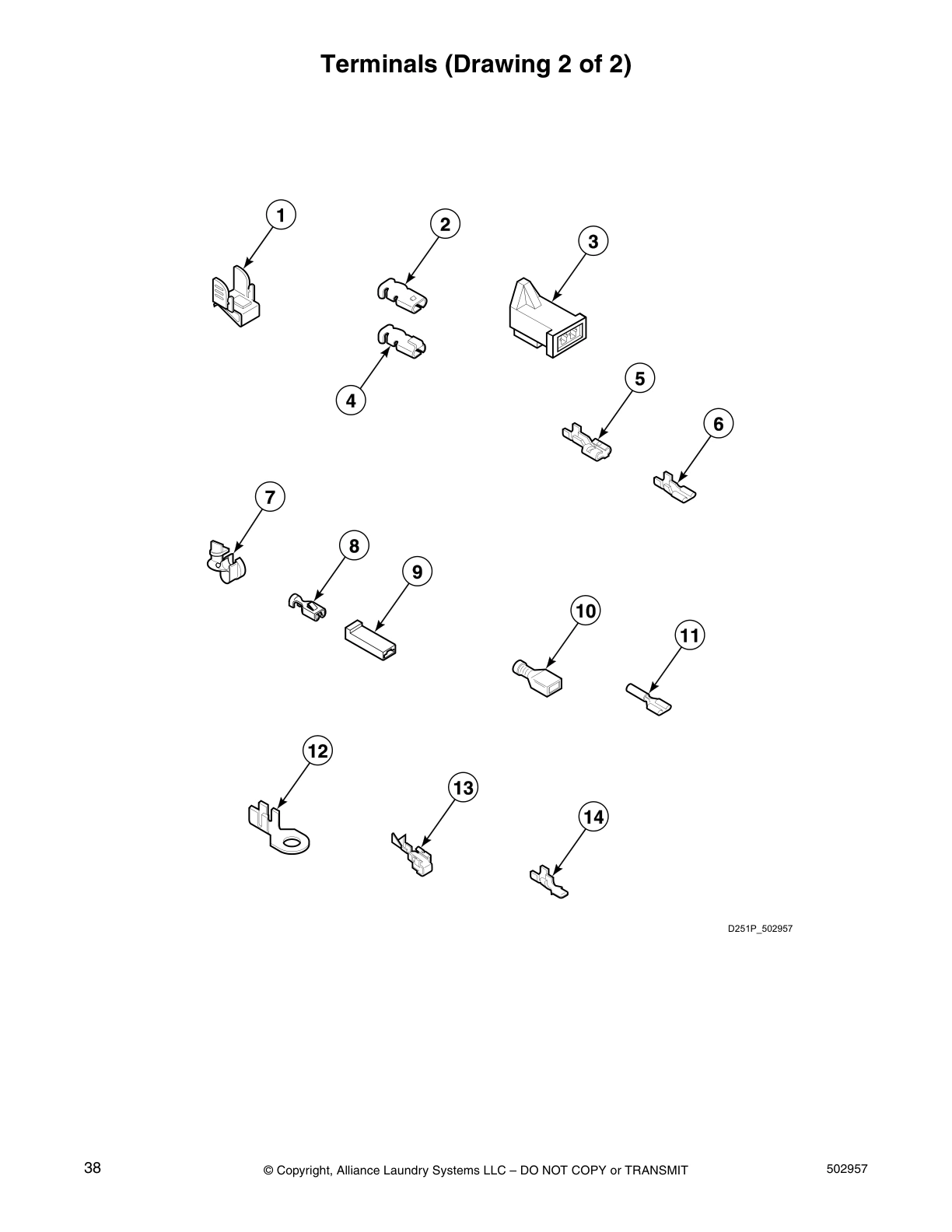

Terminals (Drawing 2 of 2)

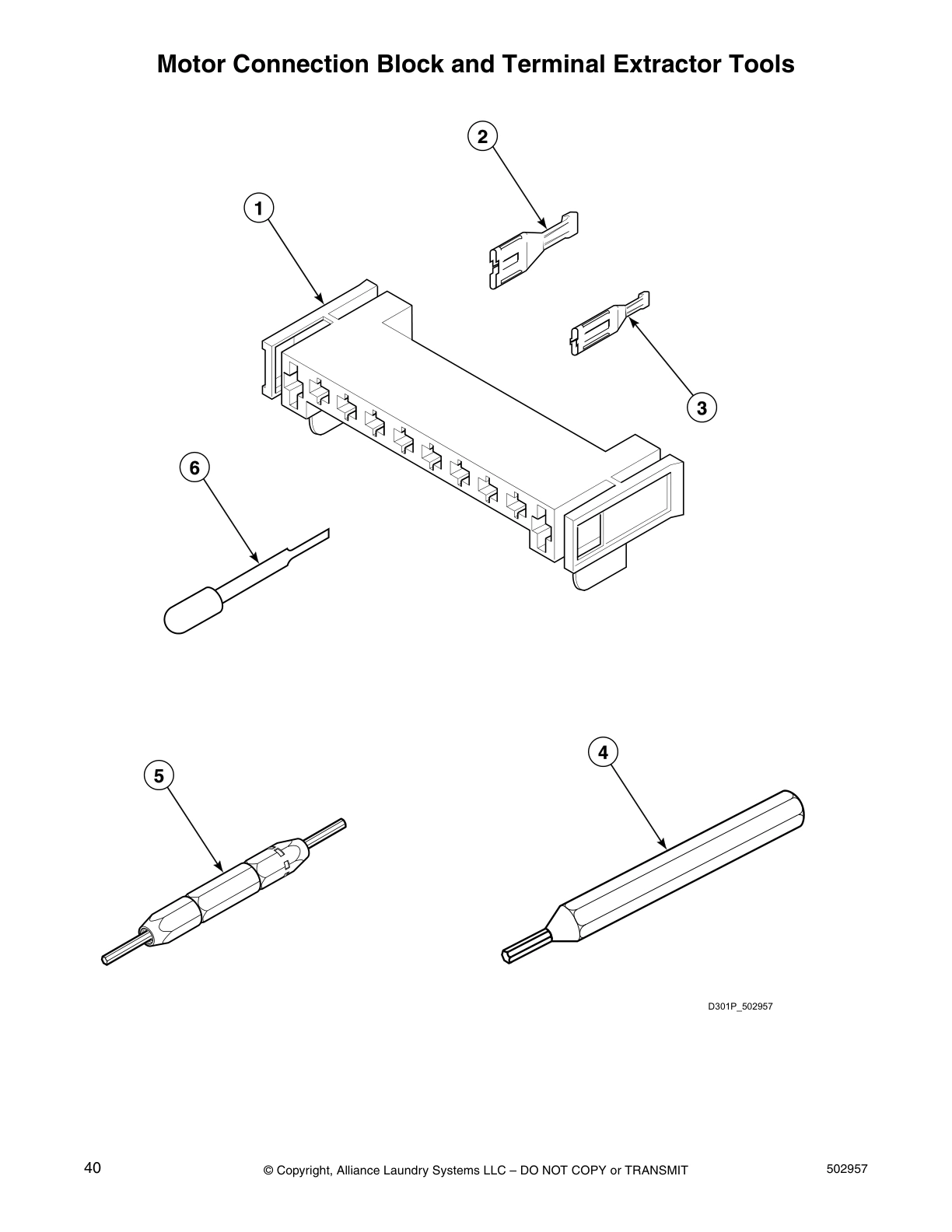

Motor Connection Block and Terminal Extractor Tools
Common parts from model Speed Queen LE7121*M Dryer
4
Timer SPQ 502967P Contact Us For Availability
5
Thermal Fuse Kit SPQ 490P3 Contact Us For Availability
16
Washer SPQ 510133 Contact Us For Availability
23
Cylinder Seal Assembly SPQ 502140P Contact Us For Availability
24
Motor Mount Clamp SPQ 510060 Contact Us For Availability
26
Cylinder Belt SPQ 61401 Contact Us For Availability
× ![]()
