Model Whirlpool LE5605XPW0 ELECTRIC DRYER – Common Parts & Diagrams
04 - SECTION
02 - SECTION

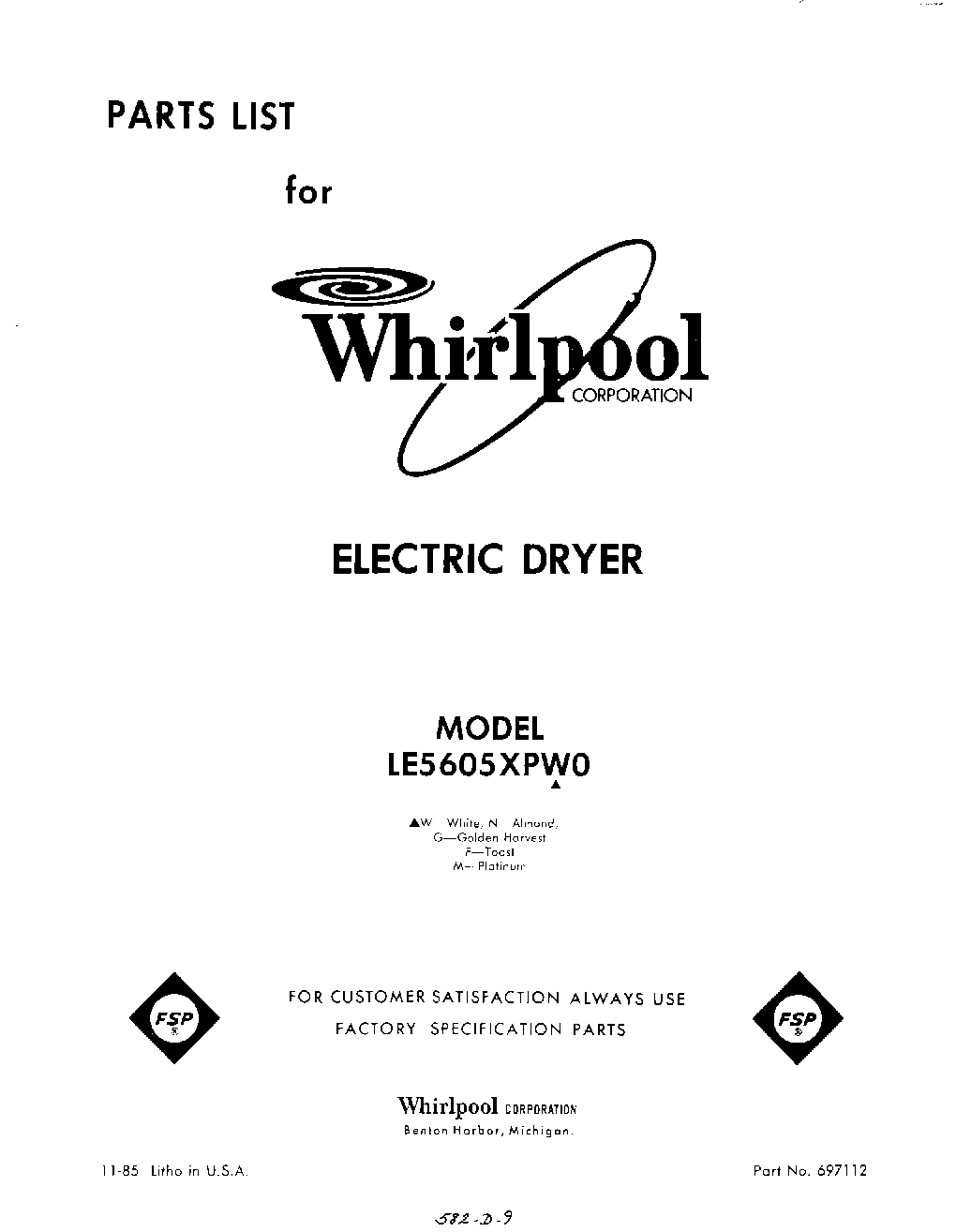

01 - SECTION

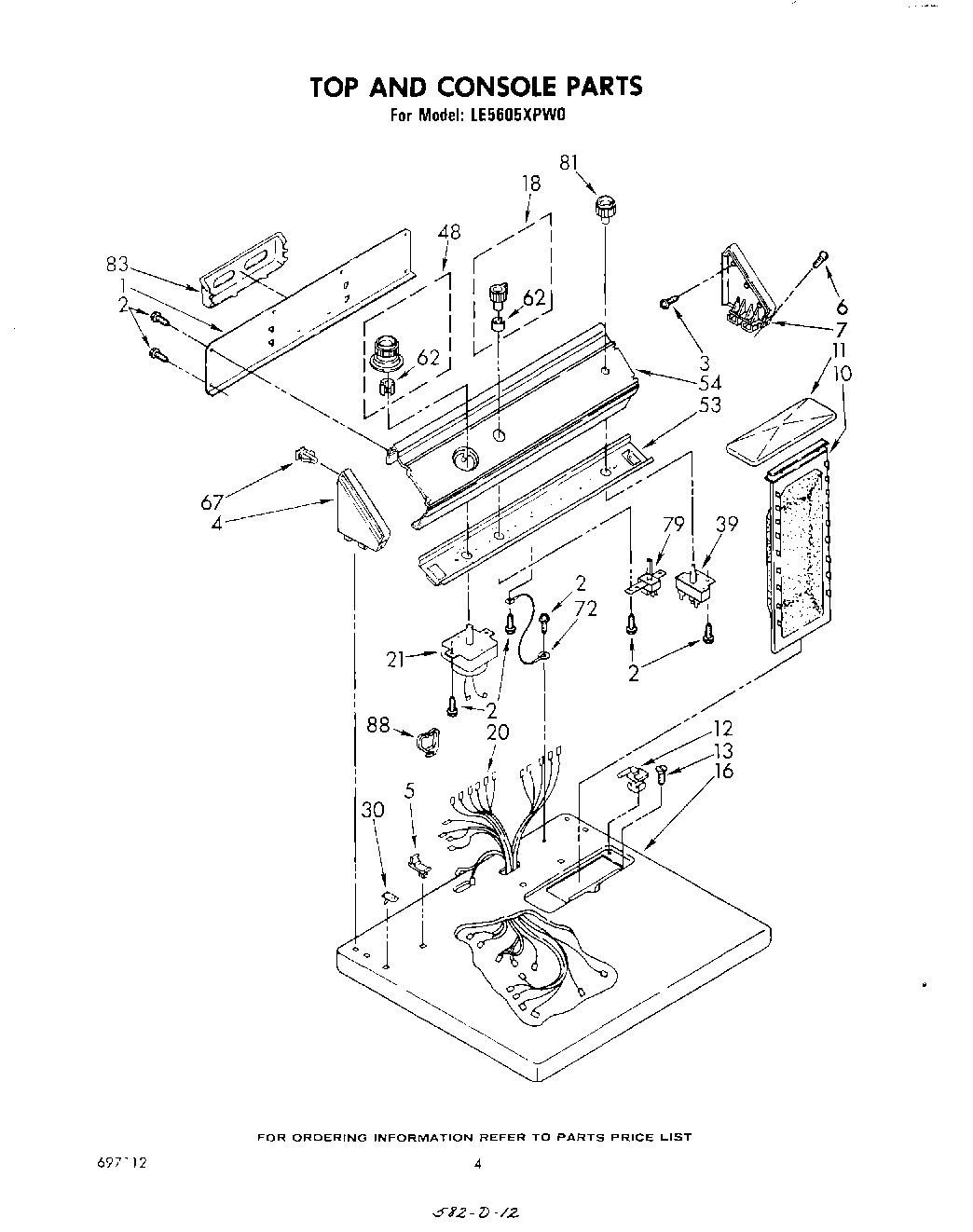

03 - SECTION
Common parts from model Whirlpool LE5605XPW0 ELECTRIC DRYER
WPL LIT693849 WPL LIT693849 Contact Us For Availability
WPL LIT696234 WPL LIT696234 Contact Us For Availability
WPL LIT696759 WPL LIT696759 Contact Us For Availability
WPL LIT697112 WPL LIT697112 Contact Us For Availability
1
Panel, Rear Console WPL 386367 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) WPL 63789 Contact Us For Availability
5
Stop, Push-In WPL 358472 Contact Us For Availability
6
Screw, 8-18 WPL 64211 Contact Us For Availability
7
Panel, Rear WPL 346368 Contact Us For Availability
7
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
11
Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability
11
Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability
16
Top (White) WPL 695507 Contact Us For Availability
16
Top (Almond) WPL 695508 Contact Us For Availability
16
Top (Golden Harvest) WPL 695509 Contact Us For Availability
16
Top (Toast) WPL 695510 Contact Us For Availability
16
Top (Platinum) WPL 695511 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
18
Cabinet (Toast) WPL 694874 Contact Us For Availability
18
Cabinet (Platinum) WPL 694875 Contact Us For Availability
18
Control Knob, Temperature WPL 386629 Contact Us For Availability
20
Harness, Wiring WPL 696072 Contact Us For Availability
21
Panel, Front (White) WPL 693197 Contact Us For Availability
21
Panel, Front (Almond) WPL 693198 Contact Us For Availability
21
Panel, Front (Golden Harvest) WPL 693201 Contact Us For Availability
21
Toast WPL 695259 Contact Us For Availability
21
Platinum WPL 695260 Contact Us For Availability
21
Timer Assembly, 60 Hz. WPL 687950 Contact Us For Availability
22
Heater, Thermostat WPL 61894 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
36
Door, Front (Almond) WPL 689314 Contact Us For Availability
36
Door Front (Golden Harvest) WPL 689319 Contact Us For Availability
36
Door, Front (Toast) WPL 695214 Contact Us For Availability
36
Door, Front (Platinum) WPL 695215 Contact Us For Availability
37
Handle, Door (Almond) WPL 689306 Contact Us For Availability
37
Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability
37
Handle, Door (Platinum) WPL 695286 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
48
Timer Knob Assembly WPL 695555 Contact Us For Availability
53
Bracket, Control WPL 386627 Contact Us For Availability
54
Panel, Control WPL 695964 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
79
Switch, Temperature Selector WPL 694720 Contact Us For Availability
81
Knob, Push To Start WPL 695946 Contact Us For Availability
83
Rack, Literature WPL 63020 Contact Us For Availability
88
Golden Harvest WPL 261890 Contact Us For Availability
88
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
88
Toast WPL 285365 Contact Us For Availability
88
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
88
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
88
Platinum (Uncut) WPL 285368 Contact Us For Availability
88
Leveler (Thinner) WPL 350941 Contact Us For Availability
88
Clip, Retainer WPL 688412 Contact Us For Availability
88
WPL 72112 WPL 72112 Contact Us For Availability
88
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
