Model Maytag LDG7500ABE GAS DRYER – Common Parts & Diagrams
01 - CABINET-FRONT (LDE7500ACE,ADE) & (LDG)
02 - CABINET-FRONT (LDE7500ACM,ADM) & (LDG)
03 - CABINET-REAR (LDE7500ACE,ADE) & (LDG)

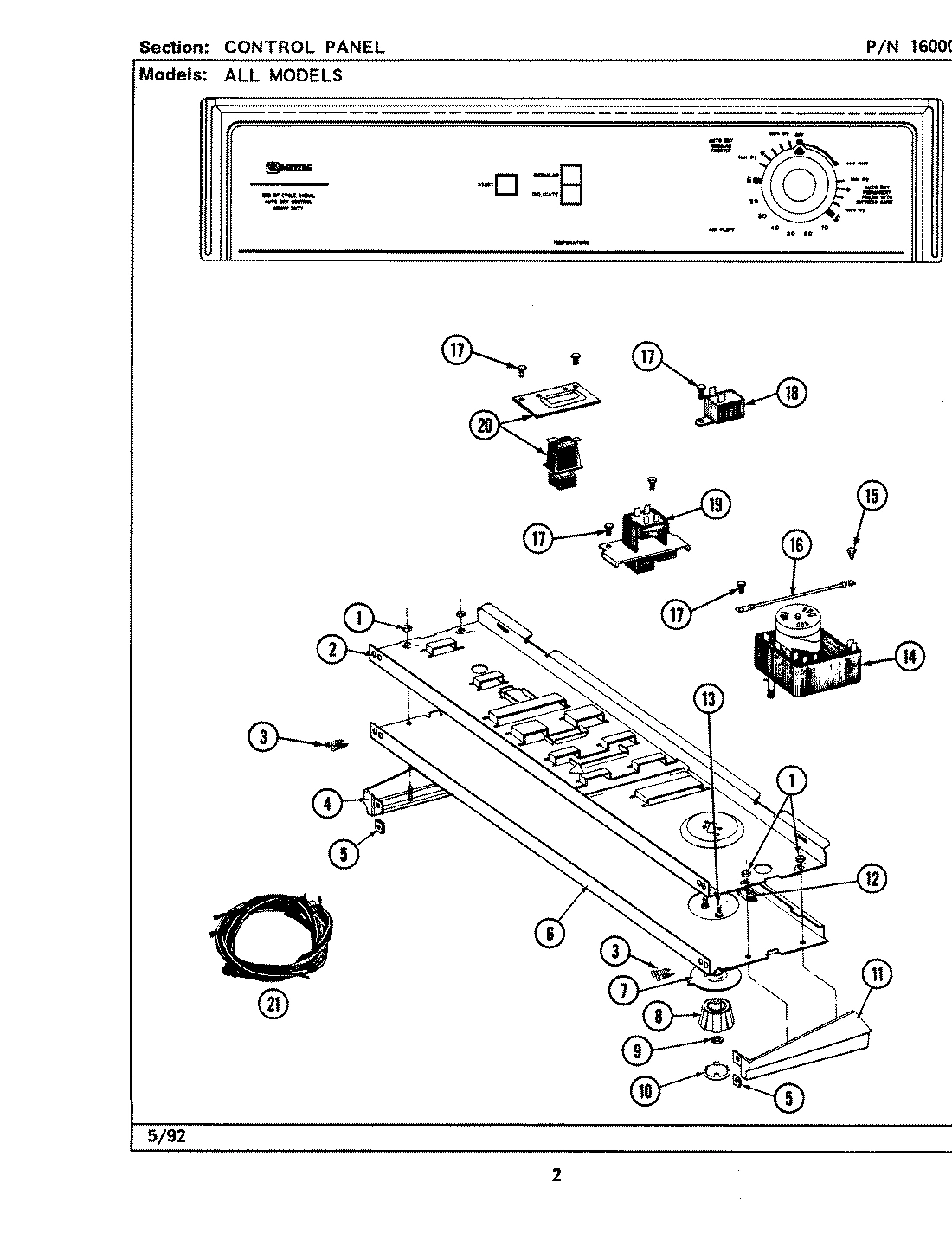

04 - CONTROL PANEL (LDE7500ACE,ADE) & (LDG)

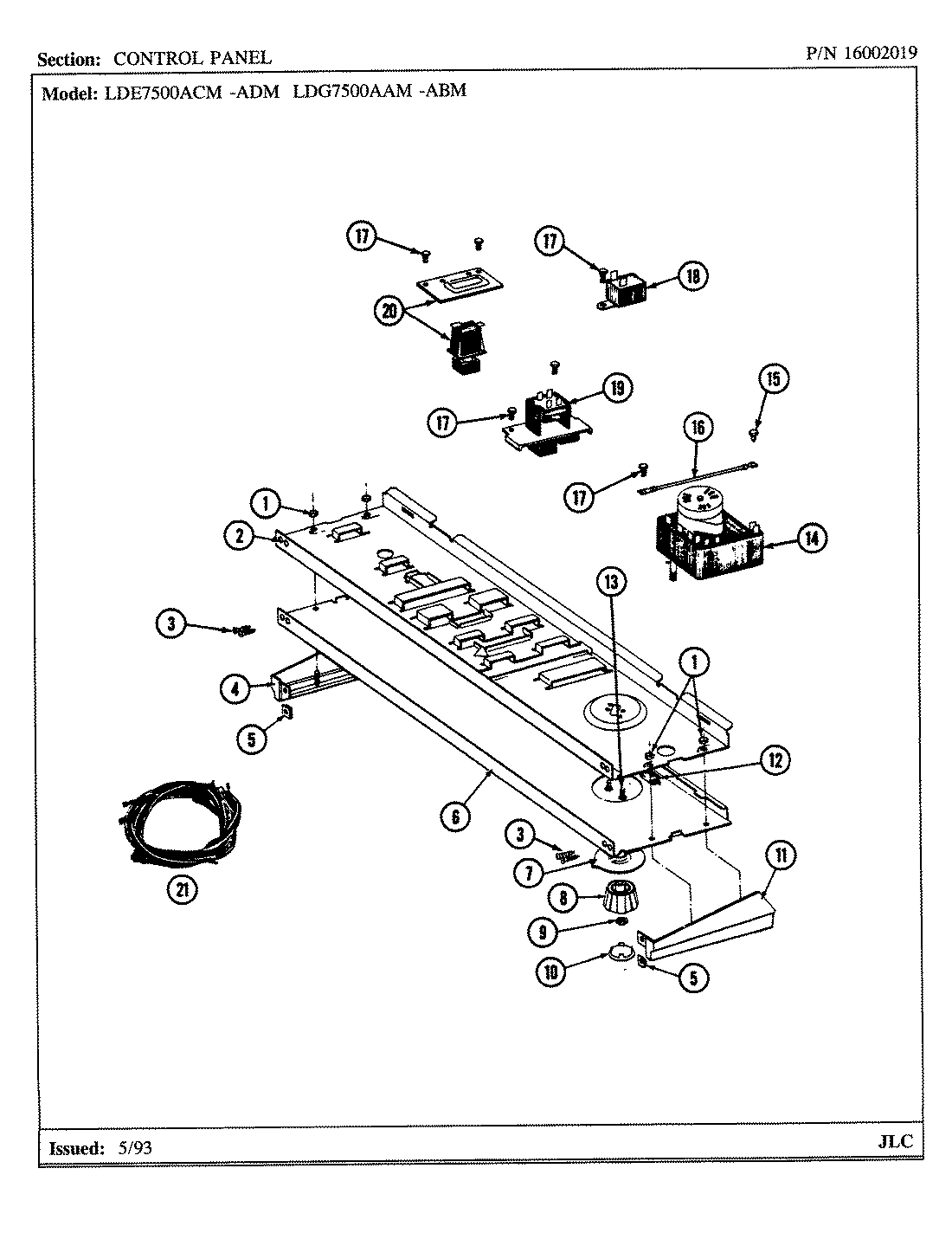

05 - CONTROL PANEL (LDE7500ACM,ADM) & (LDG)

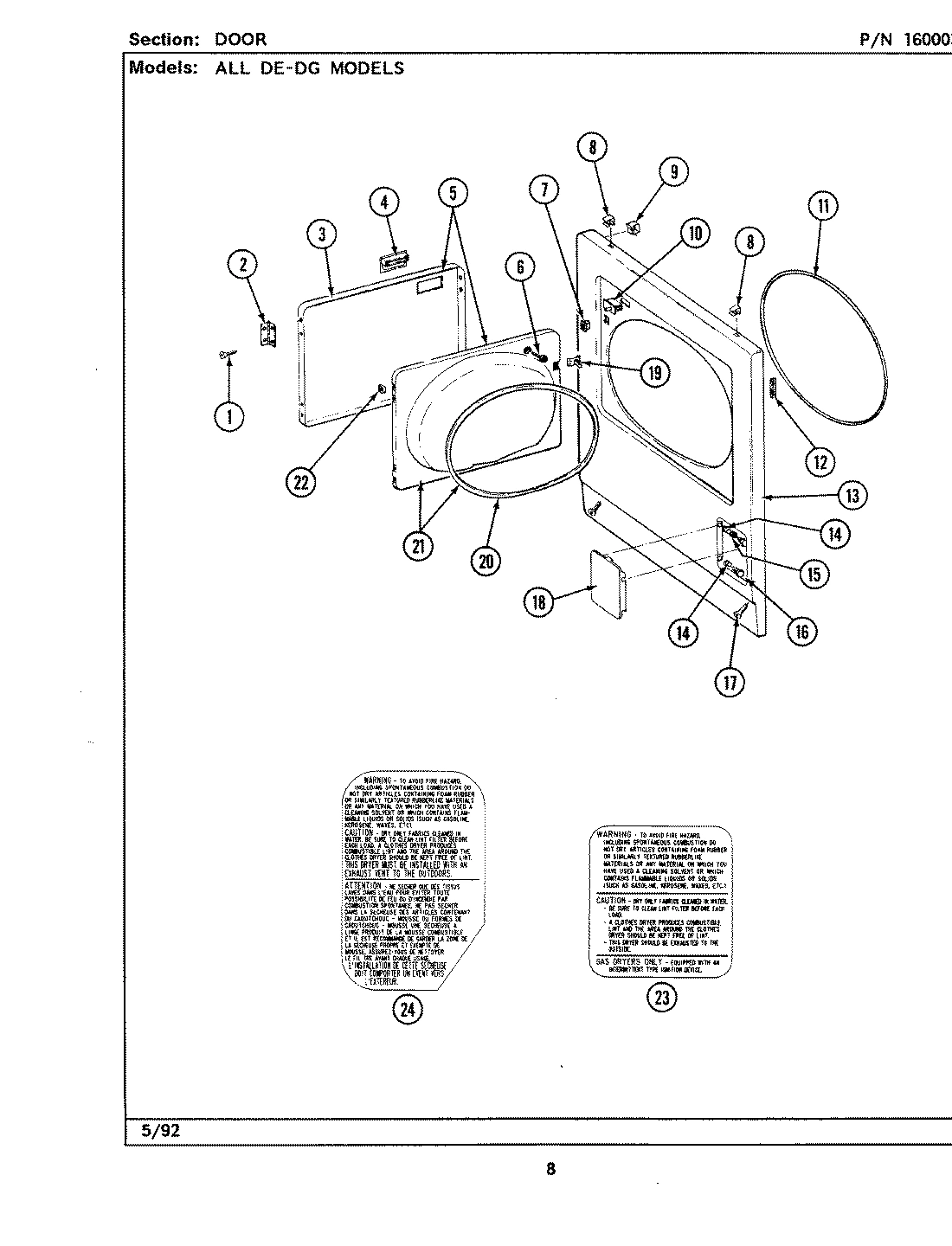

06 - DOOR (LDE7500ACE,ADE) & (LDG)

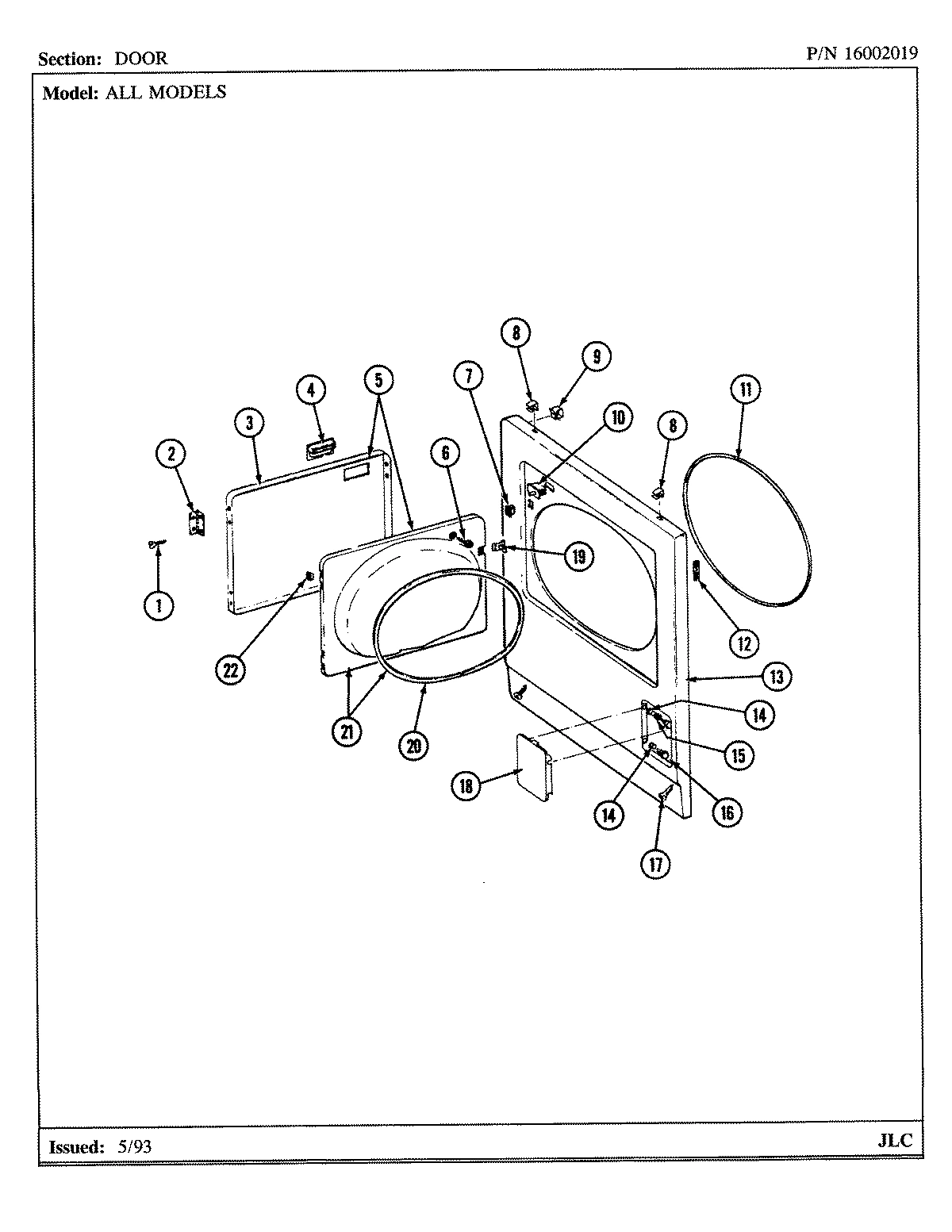

07 - DOOR (LDE7500ACM,ADM) & (LDG)

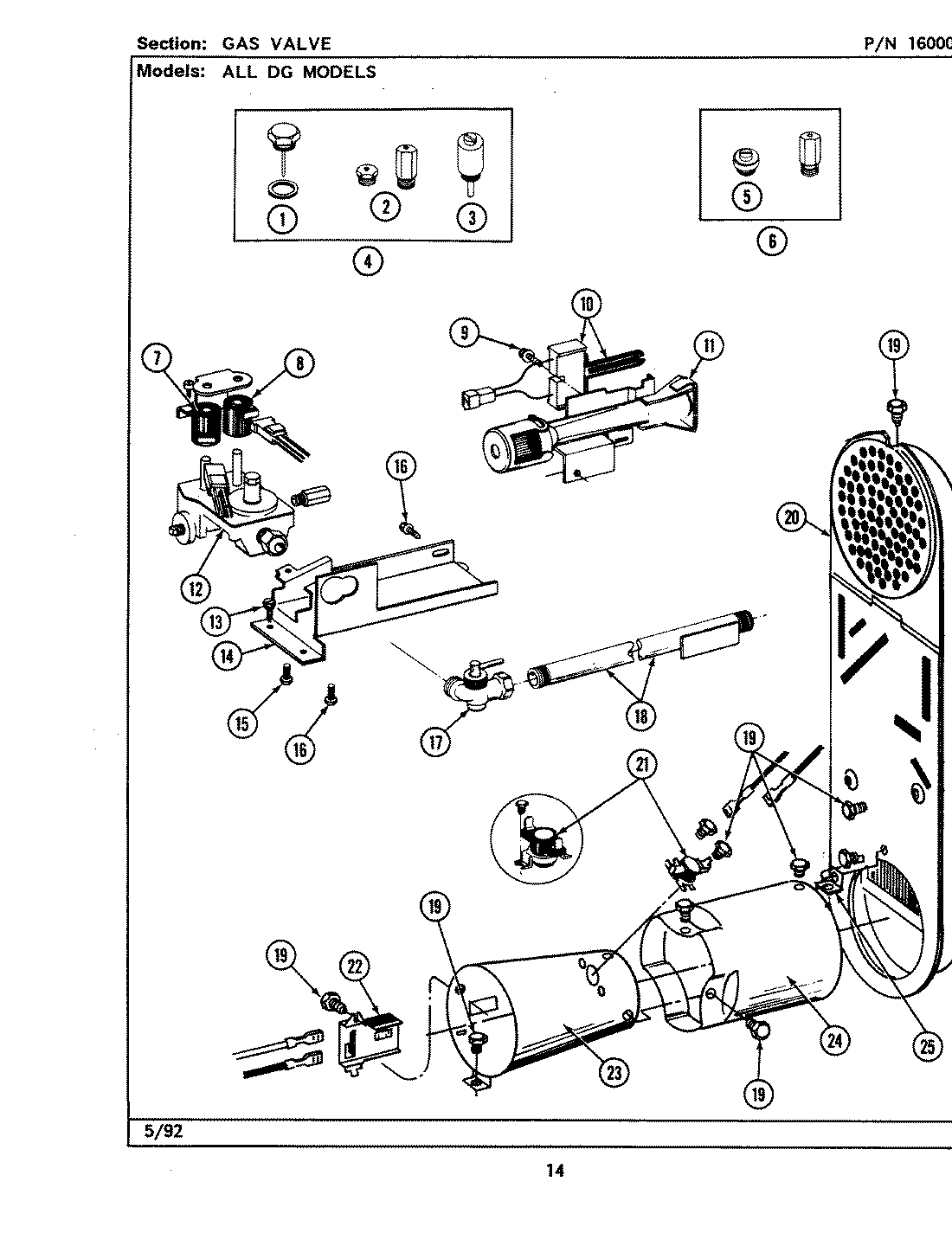

08 - GAS VALVE (LDG7500AAE, ABE)
09 - MOTOR DRIVE (LDE7500ACE,ADE) & (LDG)
10 - MOTOR DRIVE (LDE7500ACL,ACW,ADL,ADW)

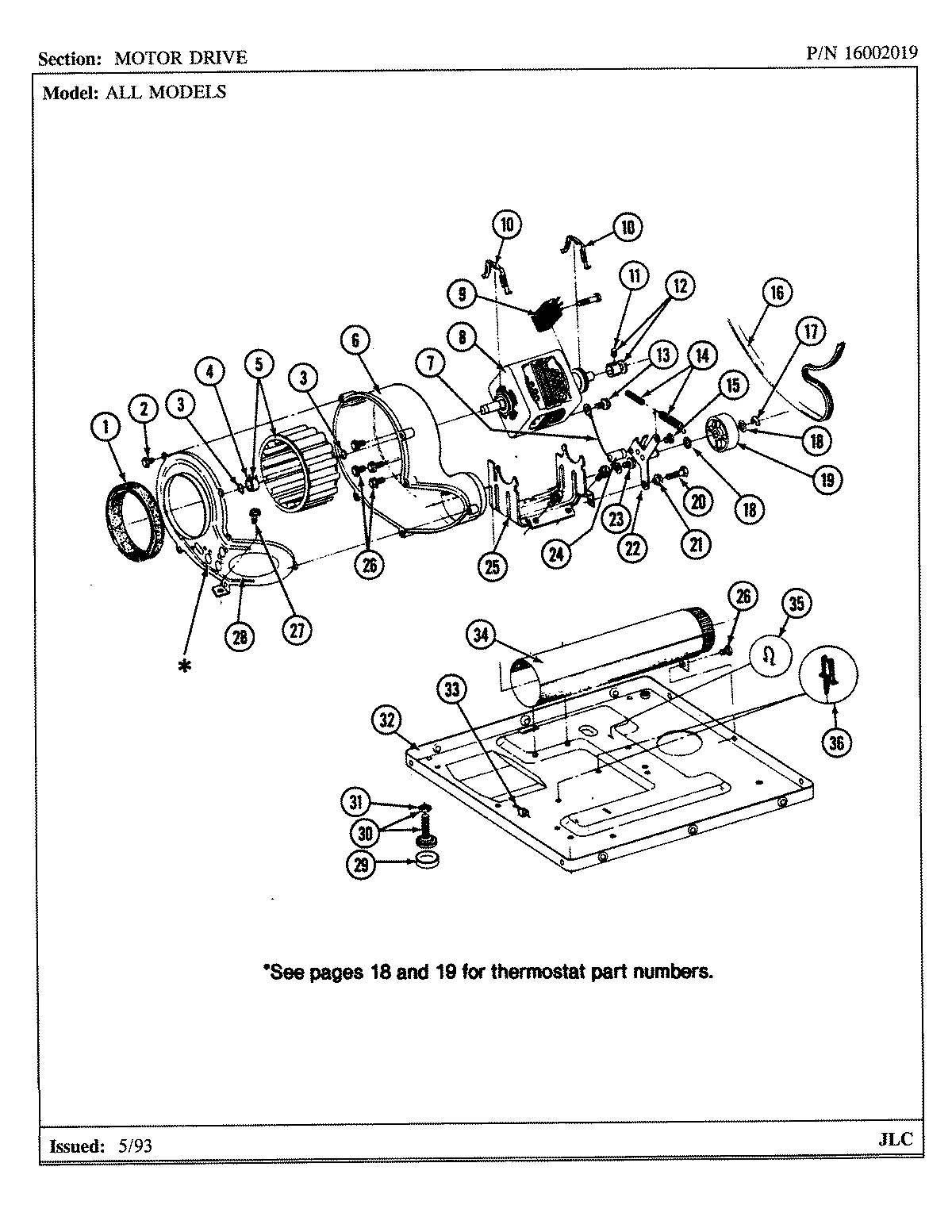

11 - MOTOR DRIVE (LDE7500ACM,ADM) & (LDG)

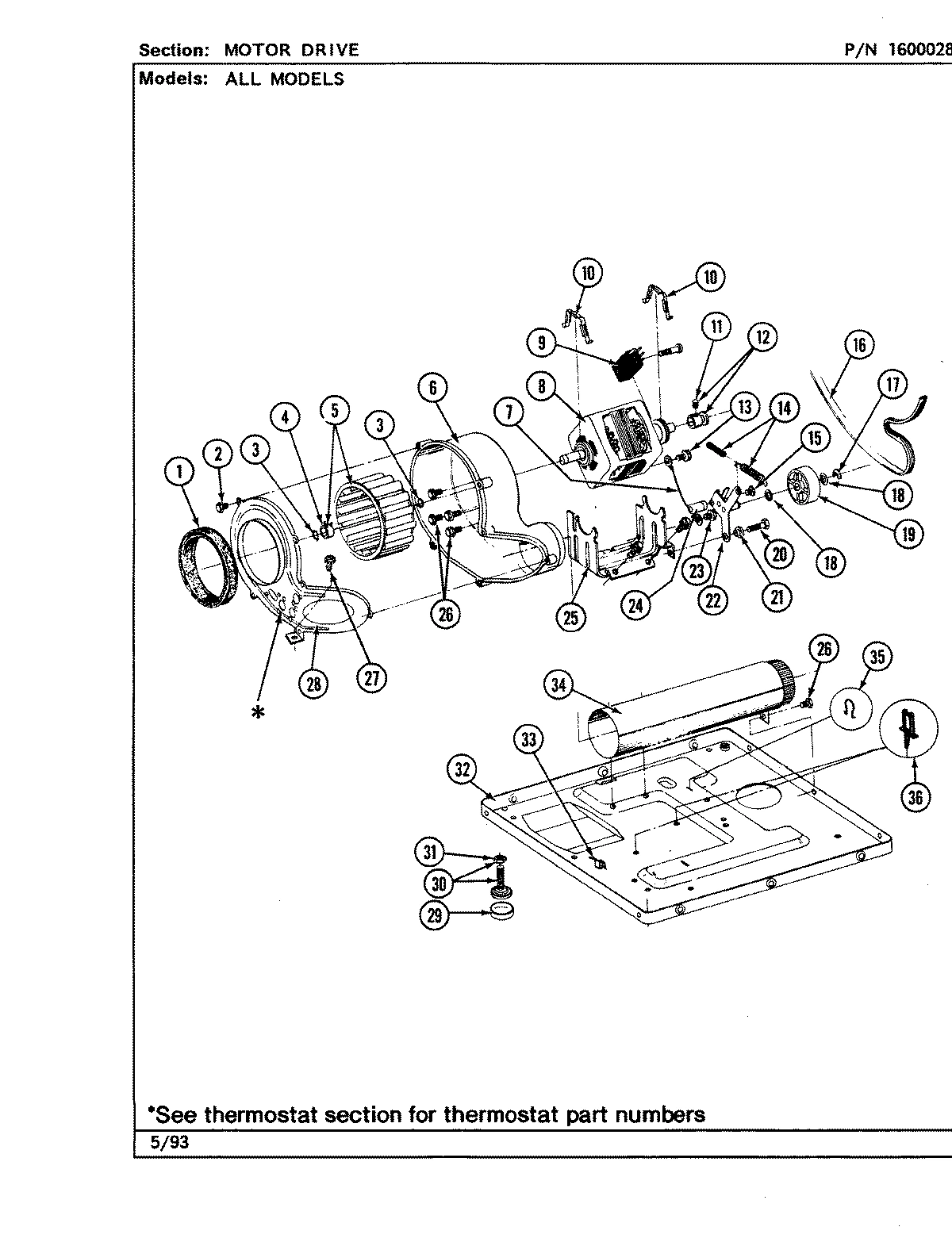

12 - MOTOR DRIVE (LDG7500AAL,AAW,ABL,ABW)

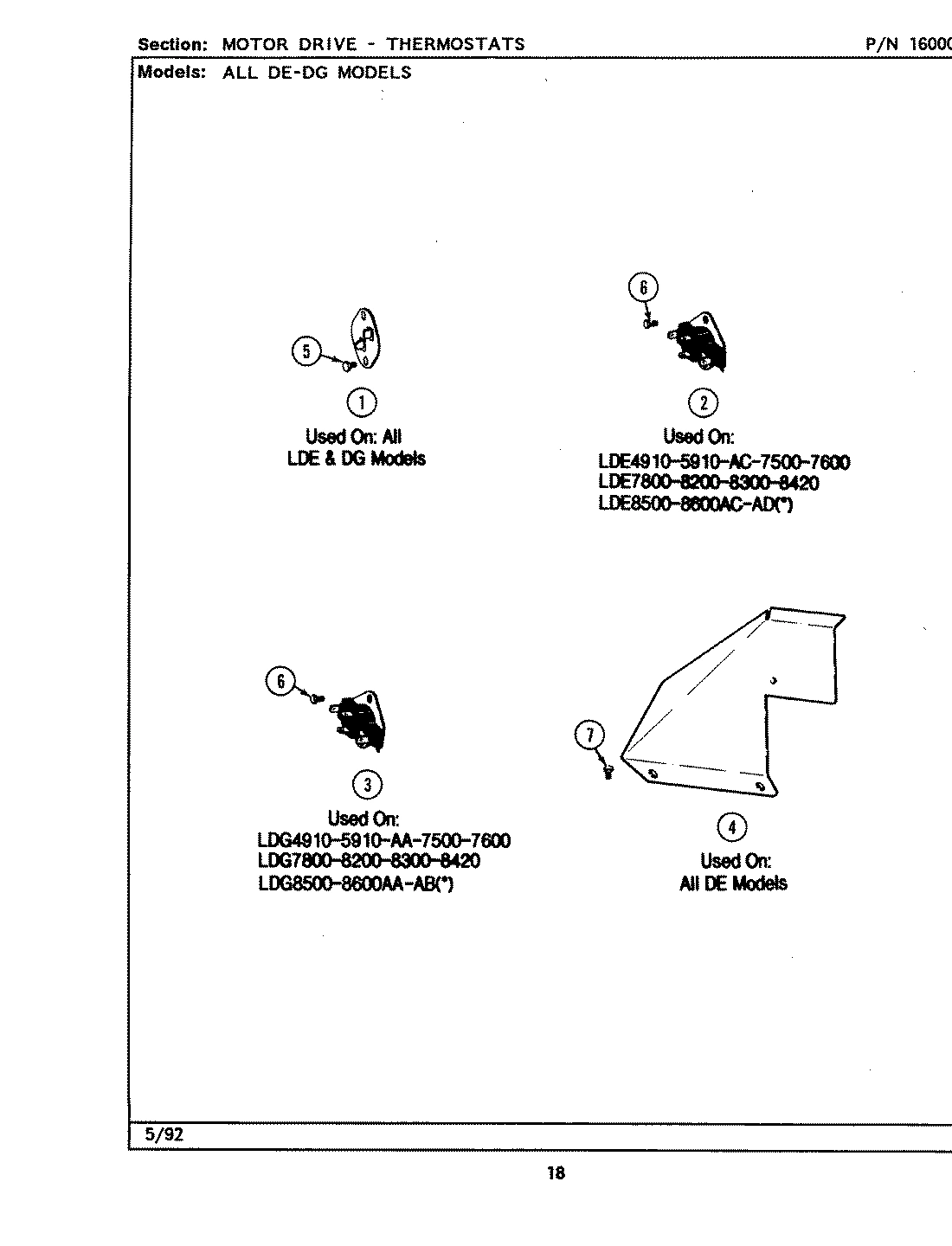

13 - THERMOSTATS (LDE7500ACE,ADE) & (LDG)

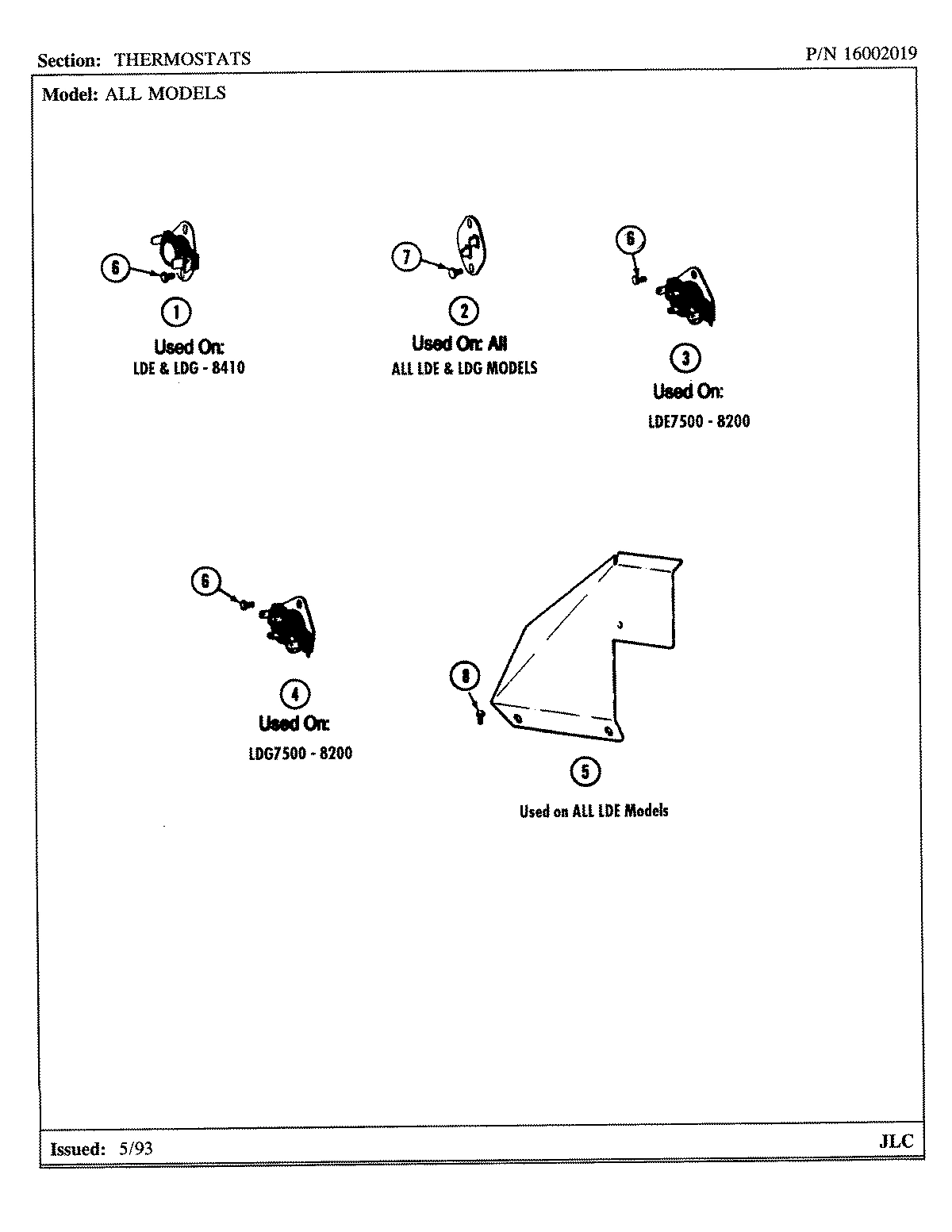

14 - THERMOSTATS (LDE7500ACM,ADM) & (LDG)

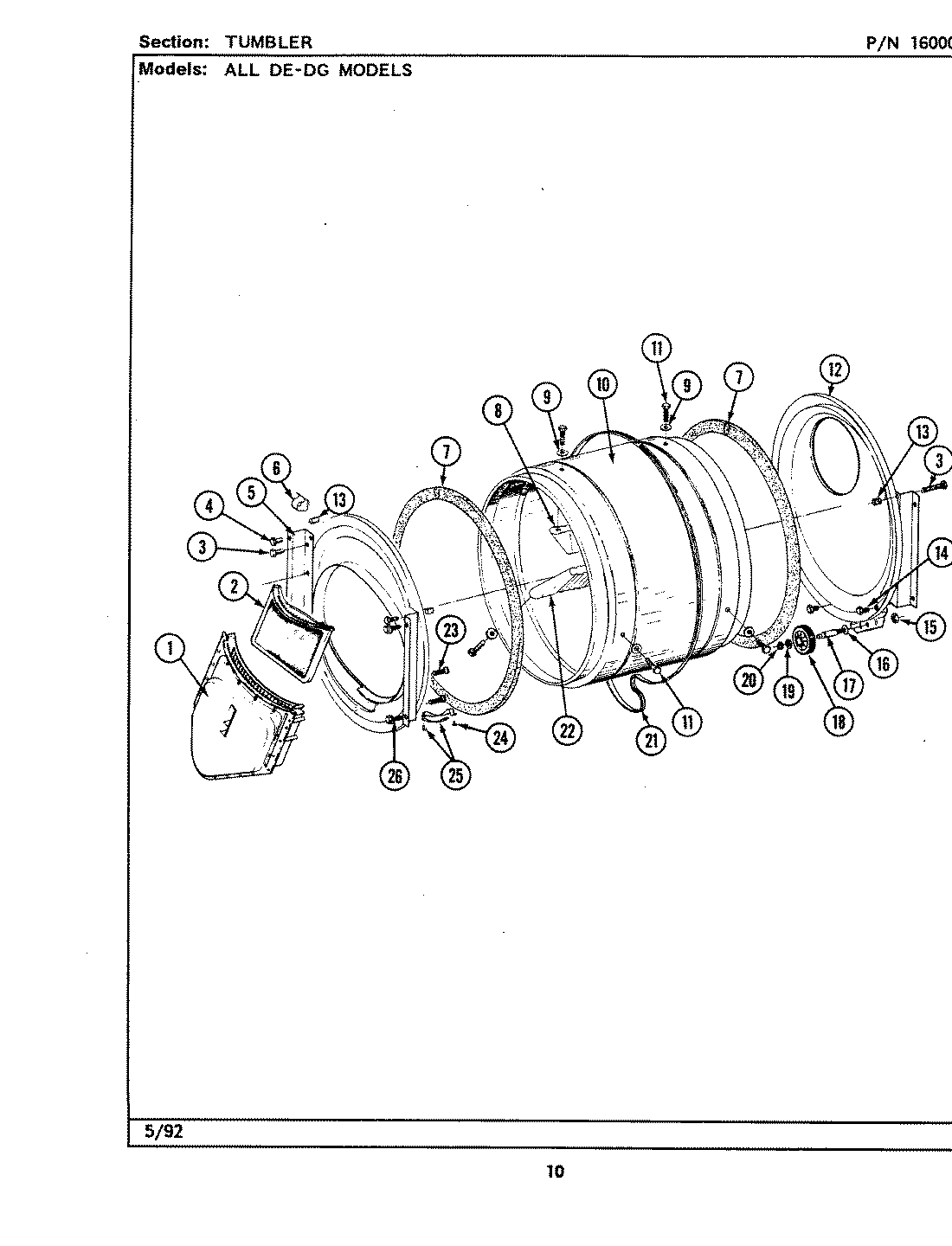

15 - TUMBLER (LDE7500ACE,ADE) & (LDG)
Common parts from model Maytag LDG7500ABE GAS DRYER
1
MAY 302810 MAY 302810 Contact Us For Availability
1
DUCT, OUTLET ASSY. MAY Y307112 Contact Us For Availability
2
BACK UP PLATE MAY 314184 Contact Us For Availability
2
MAY 307099 MAY 307099 Contact Us For Availability
2
MAY 305861 MAY 305861 Contact Us For Availability
2
SCREEN, LINT MAY 307108 Contact Us For Availability
3
MAY 210932 MAY 210932 Contact Us For Availability
3
MAY 314966 MAY 314966 Contact Us For Availability
3
MAY 314966L MAY 314966L Contact Us For Availability
3
MAY 306184 MAY 306184 Contact Us For Availability
3
MAY 313764 MAY 313764 Contact Us For Availability
4
MAY 308651 MAY 308651 Contact Us For Availability
4
HANDLE WHITE MAY 314946 Contact Us For Availability
4
HANDLE DOOR ALM MAY 314972 Contact Us For Availability
4
MAY Y306195 MAY Y306195 Contact Us For Availability
4
MAY Y313561 MAY Y313561 Contact Us For Availability
5
MAY 214894 MAY 214894 Contact Us For Availability
5
MAY Y307111 MAY Y307111 Contact Us For Availability
5
MAY 307111L MAY 307111L Contact Us For Availability
5
MAY 307109 MAY 307109 Contact Us For Availability
6
MAY 308648 MAY 308648 Contact Us For Availability
6
MAY Y310376 MAY Y310376 Contact Us For Availability
6
MAY Y312893 MAY Y312893 Contact Us For Availability
7
MAY 315438 MAY 315438 Contact Us For Availability
7
MAY 315521 MAY 315521 Contact Us For Availability
7
MAY 901220 MAY 901220 Contact Us For Availability
7
MAY 314848 MAY 314848 Contact Us For Availability
8
MAY 204439 MAY 204439 Contact Us For Availability
8
MAY 315422 MAY 315422 Contact Us For Availability
8
MAY 315522 MAY 315522 Contact Us For Availability
8
MAY 212982 MAY 212982 Contact Us For Availability
8
MAY 314803 MAY 314803 Contact Us For Availability
9
MAY 314158 MAY 314158 Contact Us For Availability
9
MAY 304971 MAY 304971 Contact Us For Availability
9
MAY 306207 MAY 306207 Contact Us For Availability
9
MAY Y303877 MAY Y303877 Contact Us For Availability
9
MAY Y303879 MAY Y303879 Contact Us For Availability
10
MAY 216057 MAY 216057 Contact Us For Availability
10
MAY 315523 MAY 315523 Contact Us For Availability
10
MAY 314802 MAY 314802 Contact Us For Availability
11
MAY 314937 MAY 314937 Contact Us For Availability
11
MAY Y308470 MAY Y308470 Contact Us For Availability
11
MAY Y308652 MAY Y308652 Contact Us For Availability
11
MAY 304974 MAY 304974 Contact Us For Availability
11
MAY Y053241 MAY Y053241 Contact Us For Availability
11
MAY Y310759 MAY Y310759 Contact Us For Availability
12
MAY 214897 MAY 214897 Contact Us For Availability
12
MAY Y313907 MAY Y313907 Contact Us For Availability
12
MAY Y305185 MAY Y305185 Contact Us For Availability
12
BACK, TUMBLER (W/SEAL) MAY Y307114 Contact Us For Availability
12
BACK, TUMBLER (W/SEAL) MAY Y308544 Contact Us For Availability
13
MAY 315317 MAY 315317 Contact Us For Availability
13
MAY Y307998 MAY Y307998 Contact Us For Availability
13
MAY 910343 MAY 910343 Contact Us For Availability
13
MAY 313915 MAY 313915 Contact Us For Availability
14
BUSHING FOR ACCESS STUD MAY 312301 Contact Us For Availability
14
MAY 314566 MAY 314566 Contact Us For Availability
14
MAY Y303945 MAY Y303945 Contact Us For Availability
15
MAY 312369 MAY 312369 Contact Us For Availability
15
MAY 314082 MAY 314082 Contact Us For Availability
15
MAY 312538 MAY 312538 Contact Us For Availability
16
MAY 204807 MAY 204807 Contact Us For Availability
16
MAY 212949 MAY 212949 Contact Us For Availability
16
MAY Y313559 MAY Y313559 Contact Us For Availability
17
MAY Y303349 MAY Y303349 Contact Us For Availability
18
MAY 302542 MAY 302542 Contact Us For Availability
18
MAY Y303383 MAY Y303383 Contact Us For Availability
18
MAY Y312527 MAY Y312527 Contact Us For Availability
18
MAY Y303373 MAY Y303373 Contact Us For Availability
19
MAY 308467 MAY 308467 Contact Us For Availability
19
MAY 308650 MAY 308650 Contact Us For Availability
19
MAY 314936 MAY 314936 Contact Us For Availability
20
MAY 308468 MAY 308468 Contact Us For Availability
20
MAY 308649 MAY 308649 Contact Us For Availability
20
MAY 314935 MAY 314935 Contact Us For Availability
20
MAY 307119 MAY 307119 Contact Us For Availability
20
MAY Y308504 MAY Y308504 Contact Us For Availability
21
MAY 307293 MAY 307293 Contact Us For Availability
21
HARNESS, WIRE MAY 308496 Contact Us For Availability
21
MAY 307098 MAY 307098 Contact Us For Availability
21
MAY Y312894 MAY Y312894 Contact Us For Availability
22
MAY 16000327 MAY 16000327 Contact Us For Availability
22
MAY 315083 MAY 315083 Contact Us For Availability
22
MAY 315097 MAY 315097 Contact Us For Availability
22
MAY Y313910 MAY Y313910 Contact Us For Availability
23
MAY 314941 MAY 314941 Contact Us For Availability
23
MAY Y303368 MAY Y303368 Contact Us For Availability
23
MAY Y308548 MAY Y308548 Contact Us For Availability
23
MAY Y314110 MAY Y314110 Contact Us For Availability
24
MAY 314942 MAY 314942 Contact Us For Availability
24
MAY Y303841 MAY Y303841 Contact Us For Availability
25
MAY Y312890 MAY Y312890 Contact Us For Availability
25
MAY 312897 MAY 312897 Contact Us For Availability
26
MAY Y310632 MAY Y310632 Contact Us For Availability
28
MAY 314846 MAY 314846 Contact Us For Availability
32
MAY Y303361 MAY Y303361 Contact Us For Availability
34
MAY Y303442 MAY Y303442 Contact Us For Availability
35
MAY 410490 MAY 410490 Contact Us For Availability
36
MAY Y313262 MAY Y313262 Contact Us For Availability
× ![]()
