Model Whirlpool LCR7244HQ1 AUTOMATIC WASHER – Common Parts & Diagrams
03 - AGITATOR, BASKET AND TUB
05 - SUSPENSION

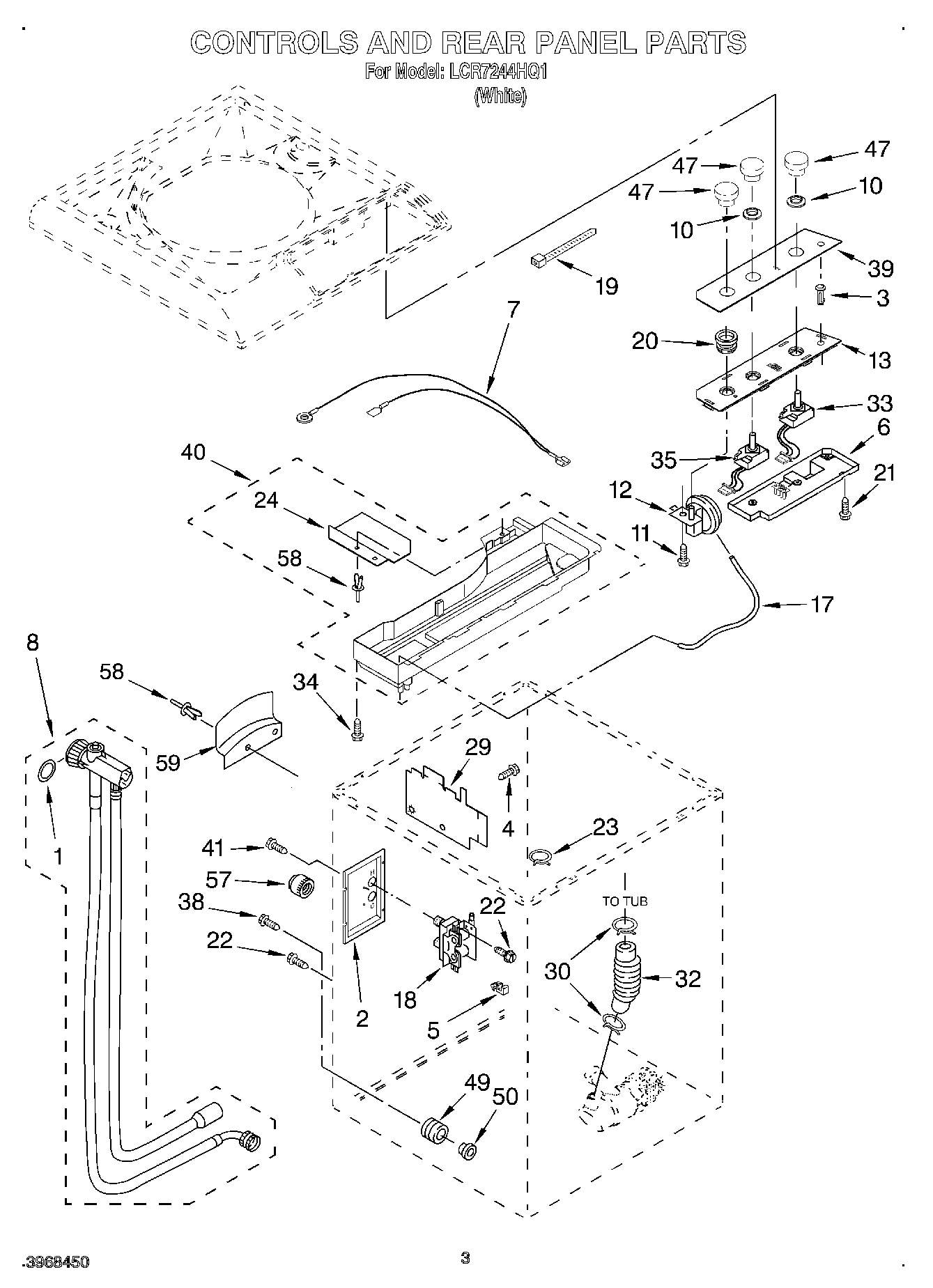

02 - CONTROLS AND REAR PANEL

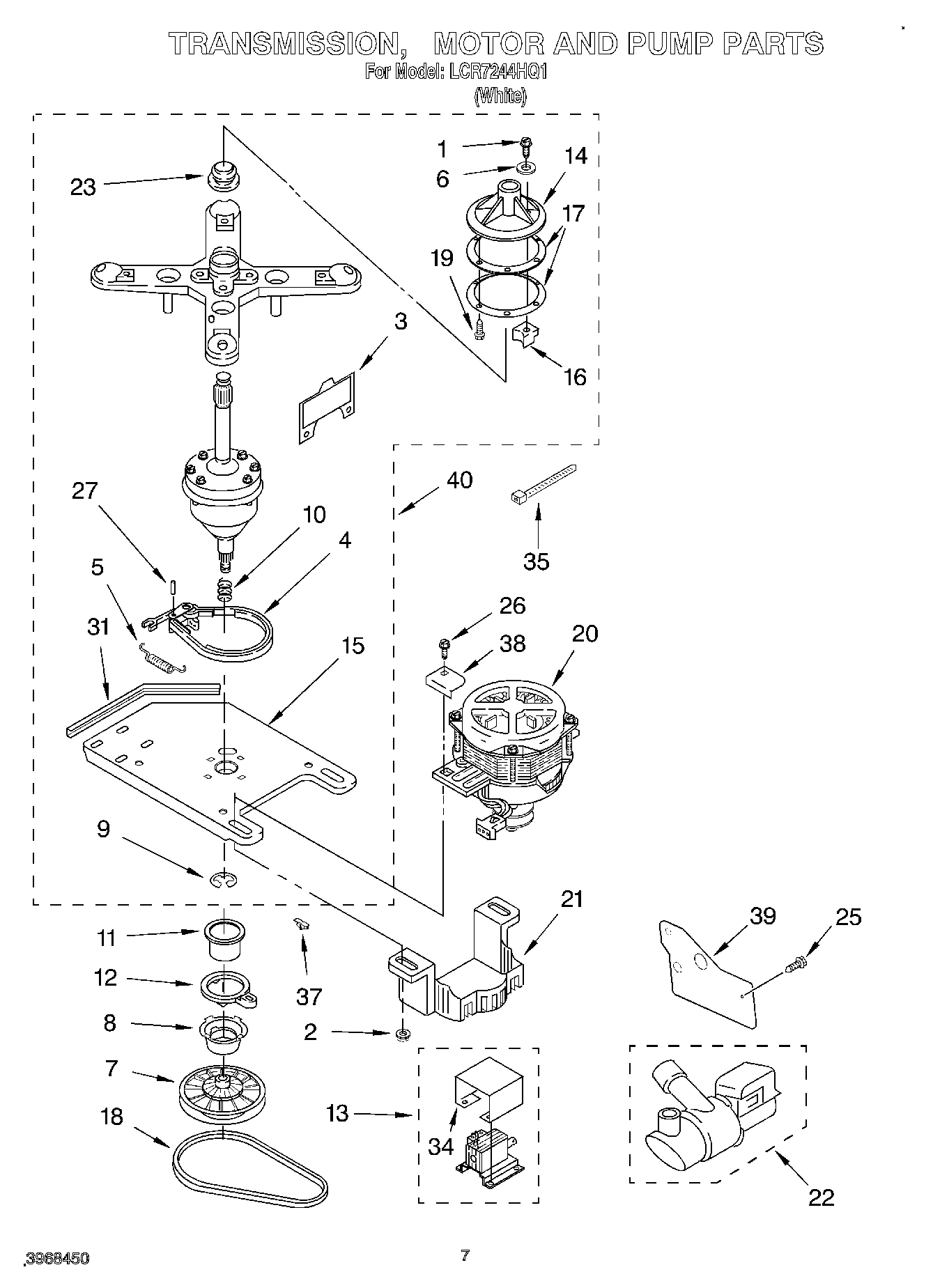

04 - TRANSMISSION, MOTOR AND PUMP

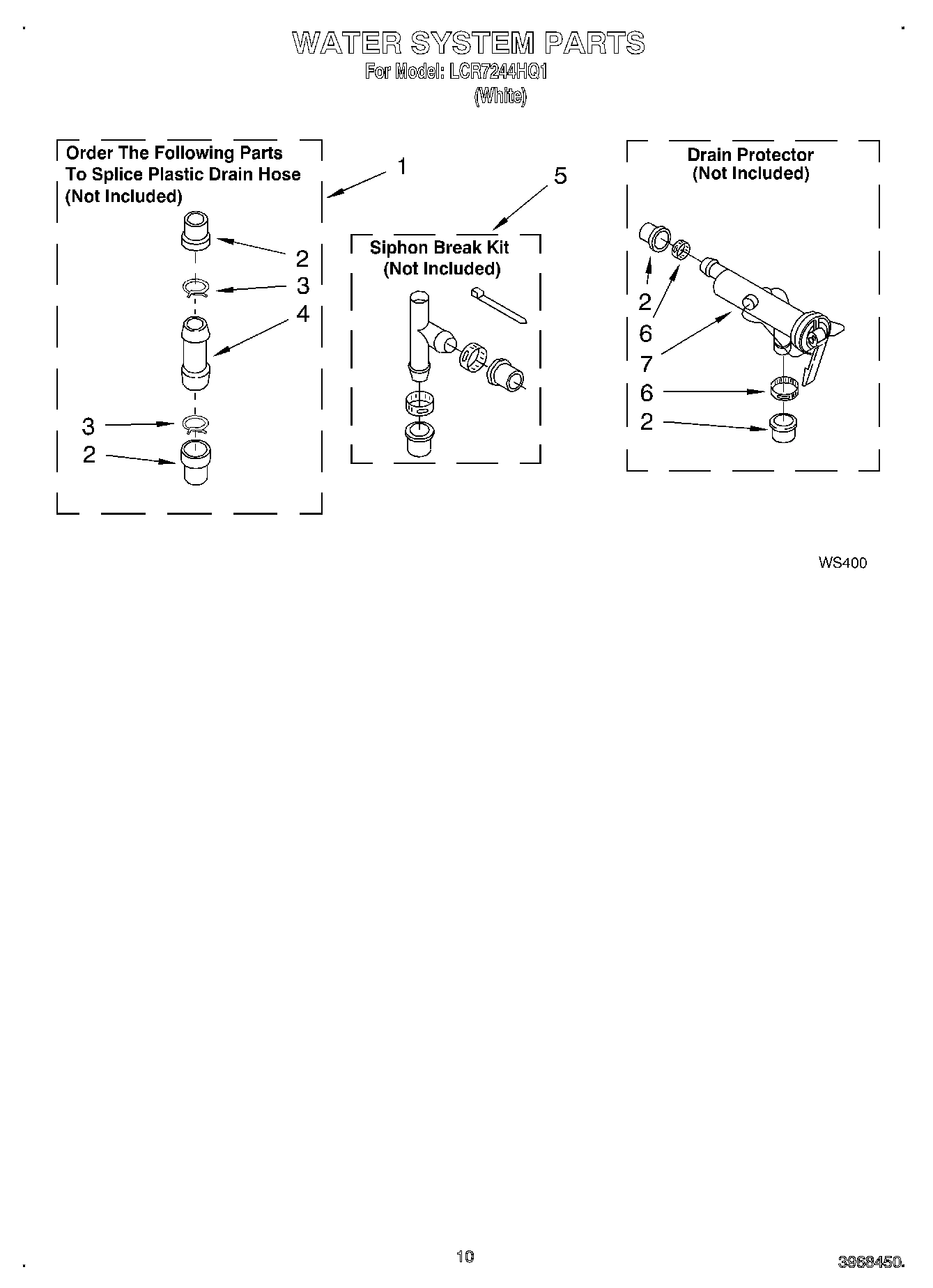

07 - WATER SYSTEM

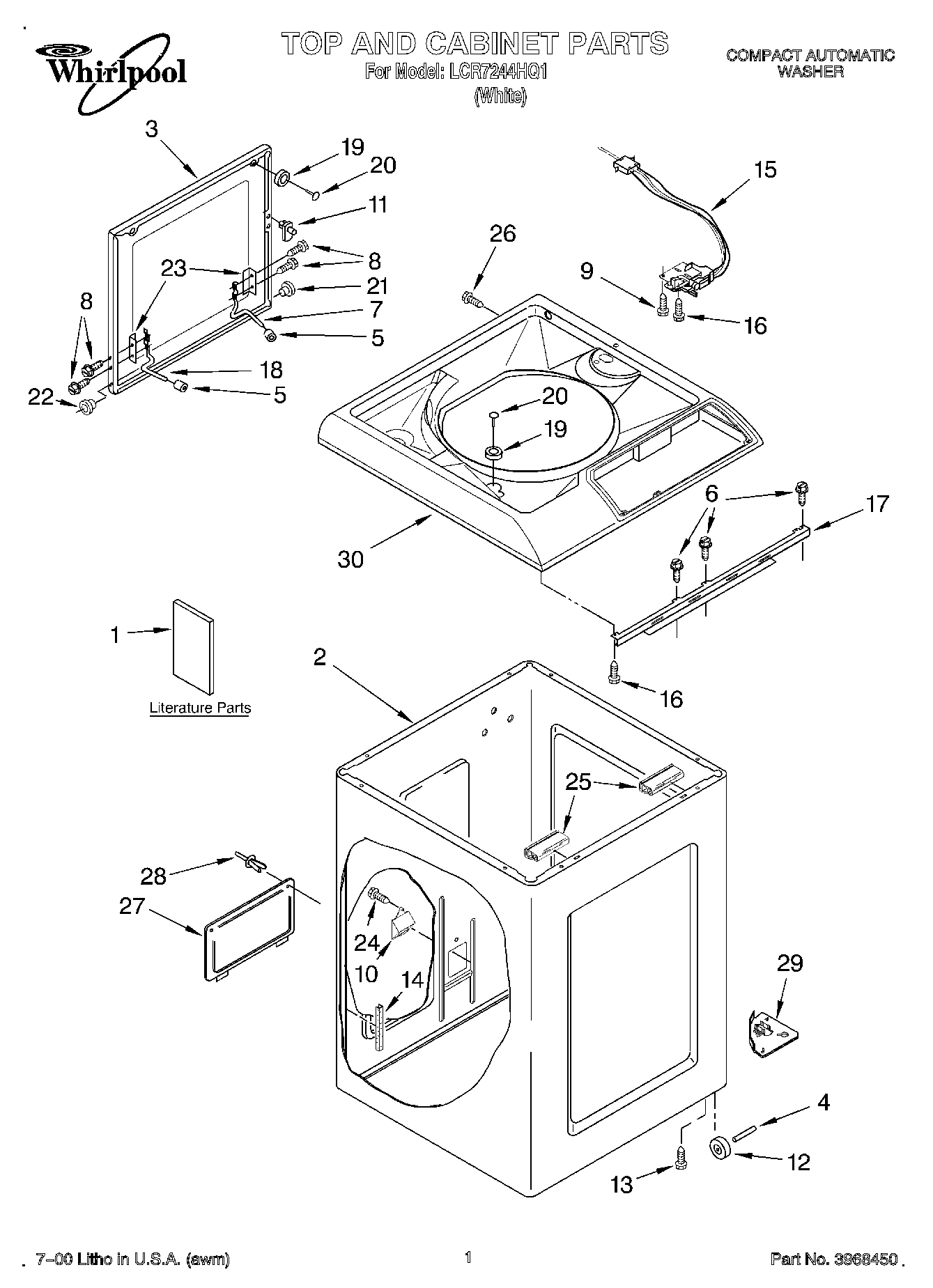

01 - TOP AND CABINET, LITERATURE

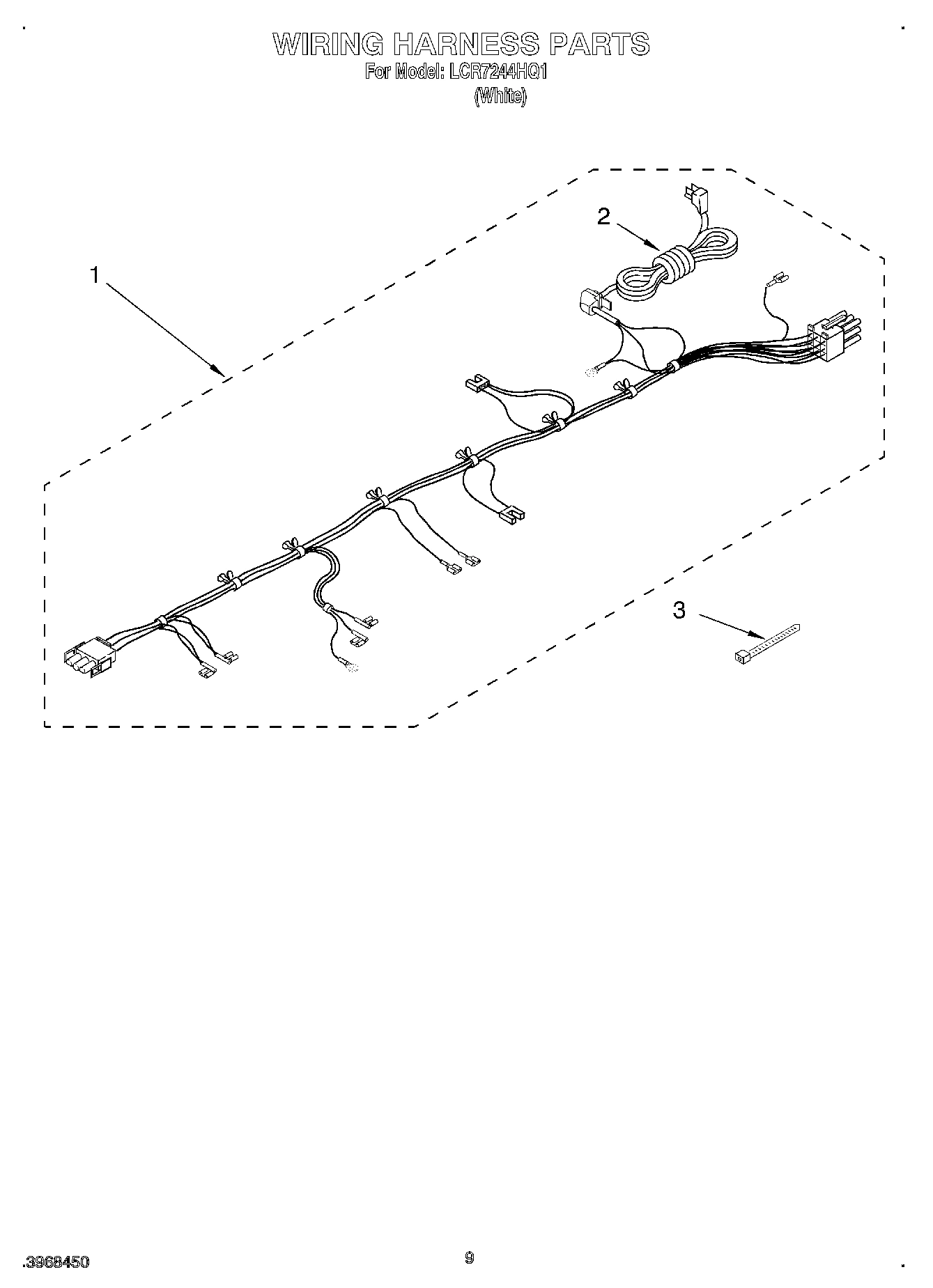

06 - WIRING HARNESS

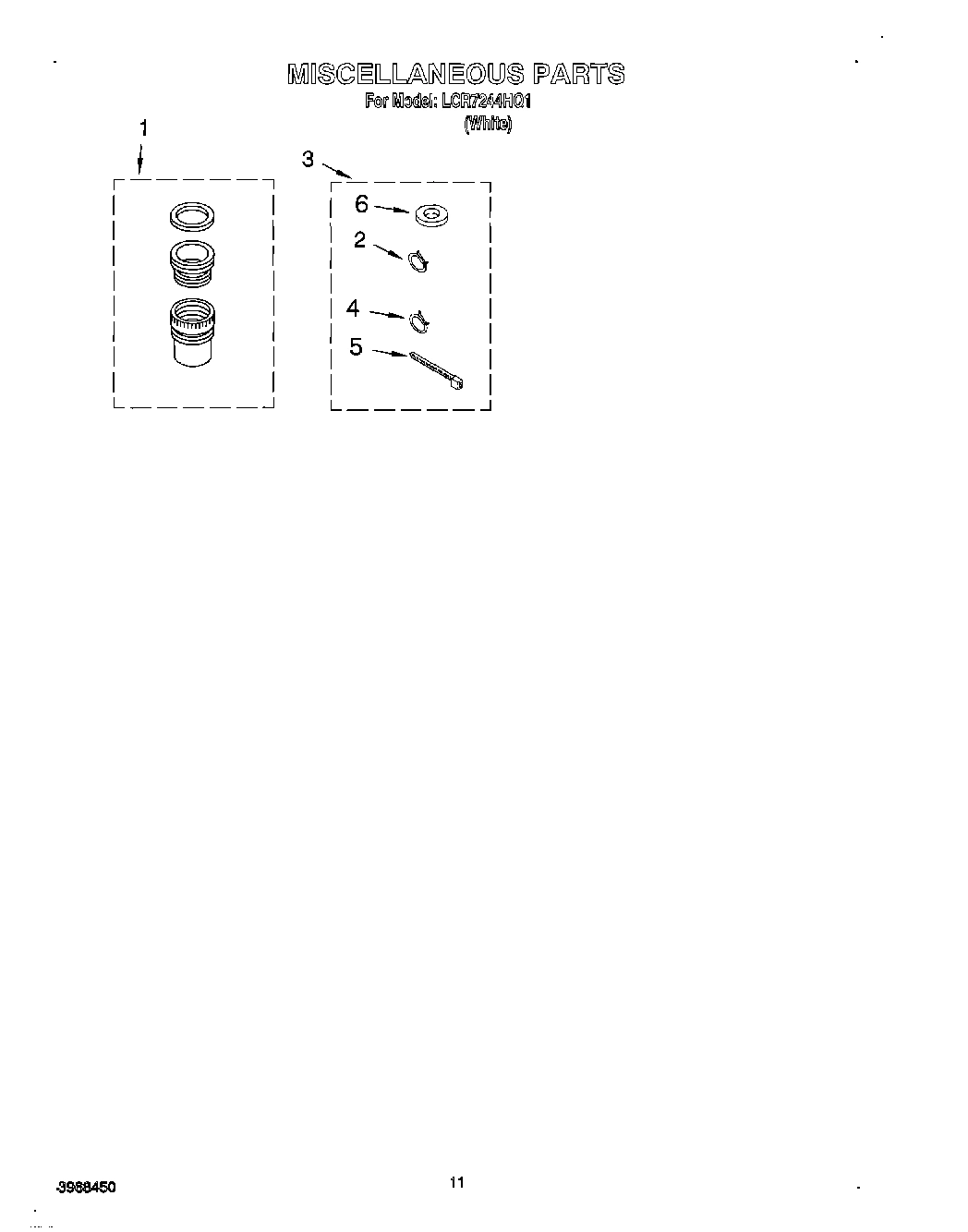

08 - MISCELLANEOUS, OPTIONAL
Common parts from model Whirlpool LCR7244HQ1 AUTOMATIC WASHER
1
Screw WPL 3428430 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT3935938 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT3967363 Contact Us For Availability
1
Literature Parts (Tech Sheet) (French) WPL LIT3968467 Contact Us For Availability
1
Literature Parts (Tech Sheet) (English) WPL LIT3968468 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT3968795 Contact Us For Availability
1
Literature Parts (Energy Guide) WPL LIT3969052 Contact Us For Availability
1
Harns/Power Cord (Includes Clip) WPL 3968671 Contact Us For Availability
2
Cabinet WPL 3967826 Contact Us For Availability
2
Kit, (Power Cord Only) WPL 3966718 Contact Us For Availability
3
Shield, Motor Splash WPL 3967287 Contact Us For Availability
3
Lid WPL 3935590 Contact Us For Availability
3
Miscellaneous Parts Bag WPL 3428855 Contact Us For Availability
4
Pin, Wheel WPL 3935130 Contact Us For Availability
4
Ball, Upper Suspension (4) WPL 3968380 Contact Us For Availability
4
Brake Band WPL 3428323 Contact Us For Availability
4
Clamp, Hose WPL 661581 Contact Us For Availability
5
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
5
Capacitor WPL 3429938 Contact Us For Availability
5
Spring, Brake WPL 3428342 Contact Us For Availability
6
Washer WPL 3429750 Contact Us For Availability
6
Stationary To Portable WPL 3935674 Contact Us For Availability
6
Almond WPL 49978 Contact Us For Availability
6
Almond (Uncut) WPL 978883 Contact Us For Availability
7
Pulley, Splutch WPL 3428359 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
7
Hinge, Lid (R.H.) WPL 3935351 Contact Us For Availability
8
Cam, Splutch WPL 3428378 Contact Us For Availability
9
Screw WPL 3935634 Contact Us For Availability
10
Spring, Splutch WPL 3934212 Contact Us For Availability
10
Cover, Pump WPL 3428525 Contact Us For Availability
11
Slider, Splutch WPL 3428380 Contact Us For Availability
12
Switch, Water Level WPL 3966789 Contact Us For Availability
12
Caster (4) WPL 3934872 Contact Us For Availability
12
Cam Ring, Splutch WPL 3428379 Contact Us For Availability
13
Solenoid WPL 3966774 Contact Us For Availability
14
Hub, Drive WPL 3934735 Contact Us For Availability
14
Protector, Edge WPL 3429705 Contact Us For Availability
15
Plate, Bottom WPL 3430205 Contact Us For Availability
16
Saddle Block WPL 3428429 Contact Us For Availability
16
Screw, Lid Switch WPL 3935602 Contact Us For Availability
17
Gasket, Hub WPL 3428179 Contact Us For Availability
17
Bracket-Cabinet To Top WPL 3935198 Contact Us For Availability
18
Drive Belt WPL 3934700 Contact Us For Availability
18
Valve, Water Mixing WPL 3967755 Contact Us For Availability
18
Hinge, Lid (L.H.) WPL 3935352 Contact Us For Availability
19
Screw WPL 3934714 Contact Us For Availability
19
Bumper WPL 3935442 Contact Us For Availability
20
Rivet WPL 3430186 Contact Us For Availability
20
Motor, Main Drive (Includes Item 6) WPL 3934201 Contact Us For Availability
21
Shield, Pulley WPL 3935999 Contact Us For Availability
21
Bearing, Hinge (RH) WPL 3935739 Contact Us For Availability
22
Pump (Complete) WPL 3967956 Contact Us For Availability
22
Bearing, Hinge (LH) WPL 3935889 Contact Us For Availability
24
Shield, Harness WPL 3935672 Contact Us For Availability
25
Screw WPL 3967955 Contact Us For Availability
25
Extrude-Top (2) WPL 3935201 Contact Us For Availability
26
Bolt, Motor Mounting (2) WPL 3934663 Contact Us For Availability
26
Screw (4) WPL 3429189 Contact Us For Availability
27
Pin, Brake Band WPL 3934183 Contact Us For Availability
27
Panel-Cabinet WPL 3430058 Contact Us For Availability
28
Rivet, Plastic (2) WPL 3429823 Contact Us For Availability
29
Shield, Water Valve WPL 3967286 Contact Us For Availability
29
Gusset (Lower (L.H.)) WPL 3935128 Contact Us For Availability
29
Gusset (Lower (R.H.)) WPL 3935129 Contact Us For Availability
30
Top WPL 3968521 Contact Us For Availability
32
Hose, Pump To Tub WPL 3429900 Contact Us For Availability
33
Switch, Cycle Selection WPL 3966202 Contact Us For Availability
34
Shield, Solenoid WPL 3967288 Contact Us For Availability
35
Switch, Water Temperature WPL 3966208 Contact Us For Availability
37
Lock, Solenoid WPL 3429416 Contact Us For Availability
38
Screw, Pump Mtg. (2) WPL 3400038 Contact Us For Availability
38
Shield, Motor Connector WPL 3430197 Contact Us For Availability
39
Panel, Console WPL 3935527 Contact Us For Availability
39
Shield, Pump WPL 3967815 Contact Us For Availability
40
Transmission Kit WPL 3966743 Contact Us For Availability
40
Top, Shield Assy. WPL 3935627 Contact Us For Availability
41
Screw, 10-16 x 1/2 WPL 3934148 Contact Us For Availability
49
Grommet, Pump (3) WPL 3428526 Contact Us For Availability
50
Spacer, Pump (2) WPL 3428933 Contact Us For Availability
59
Bracket, Hose Storage WPL 356499 Contact Us For Availability
× ![]()
