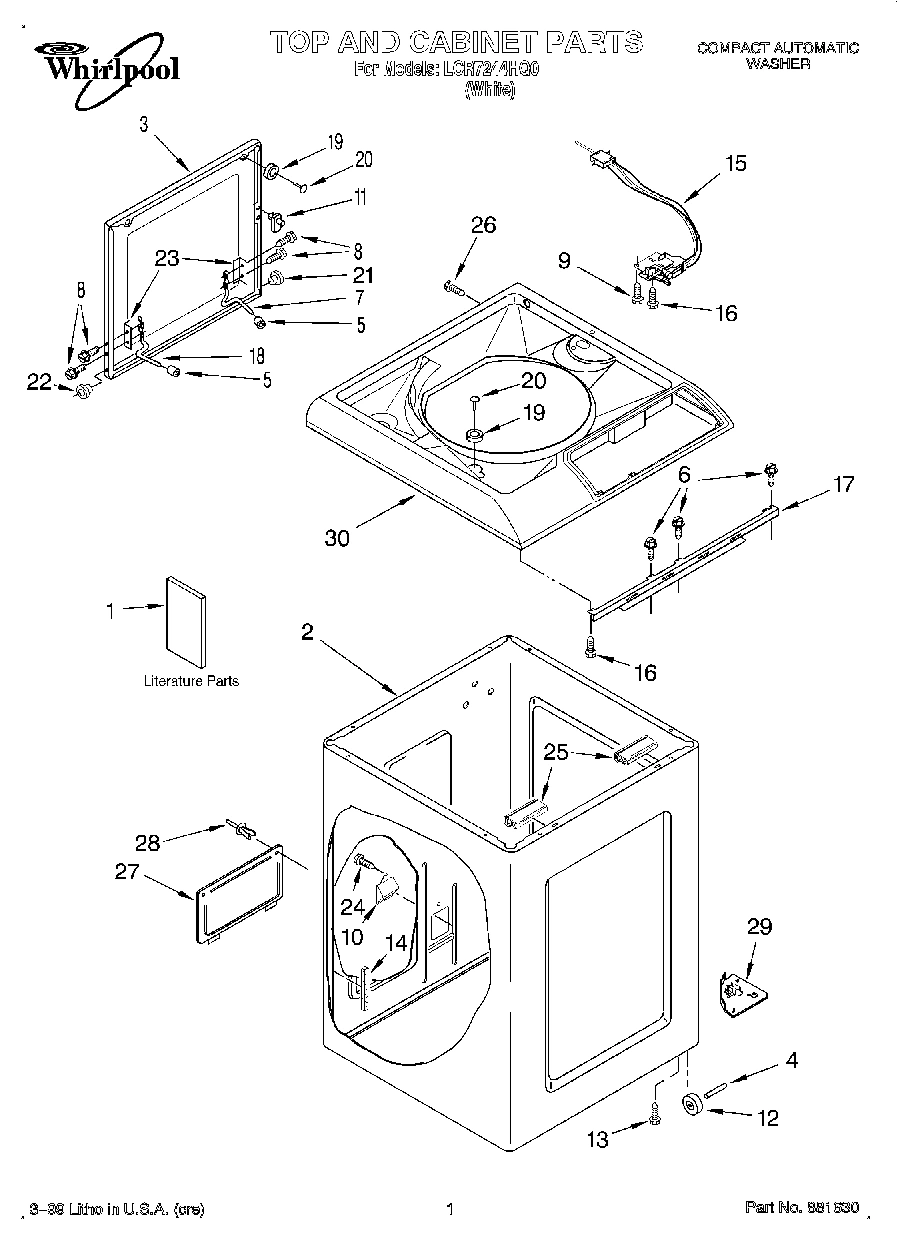

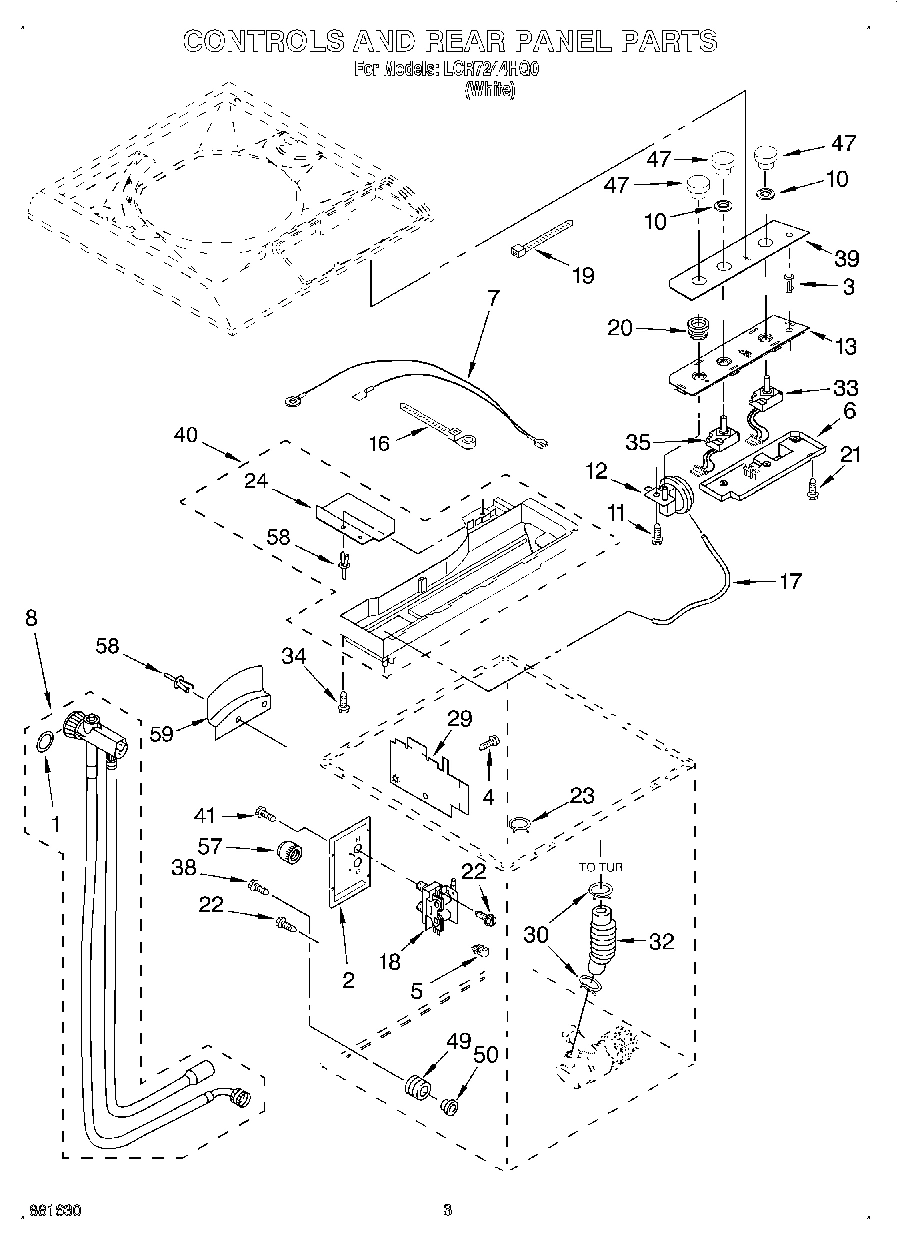

Model Whirlpool LCR7244HQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP326018423 Whirlpool Dispenser Assembly Backorder WPL WP326018423 $62.10

1

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $26.68

1

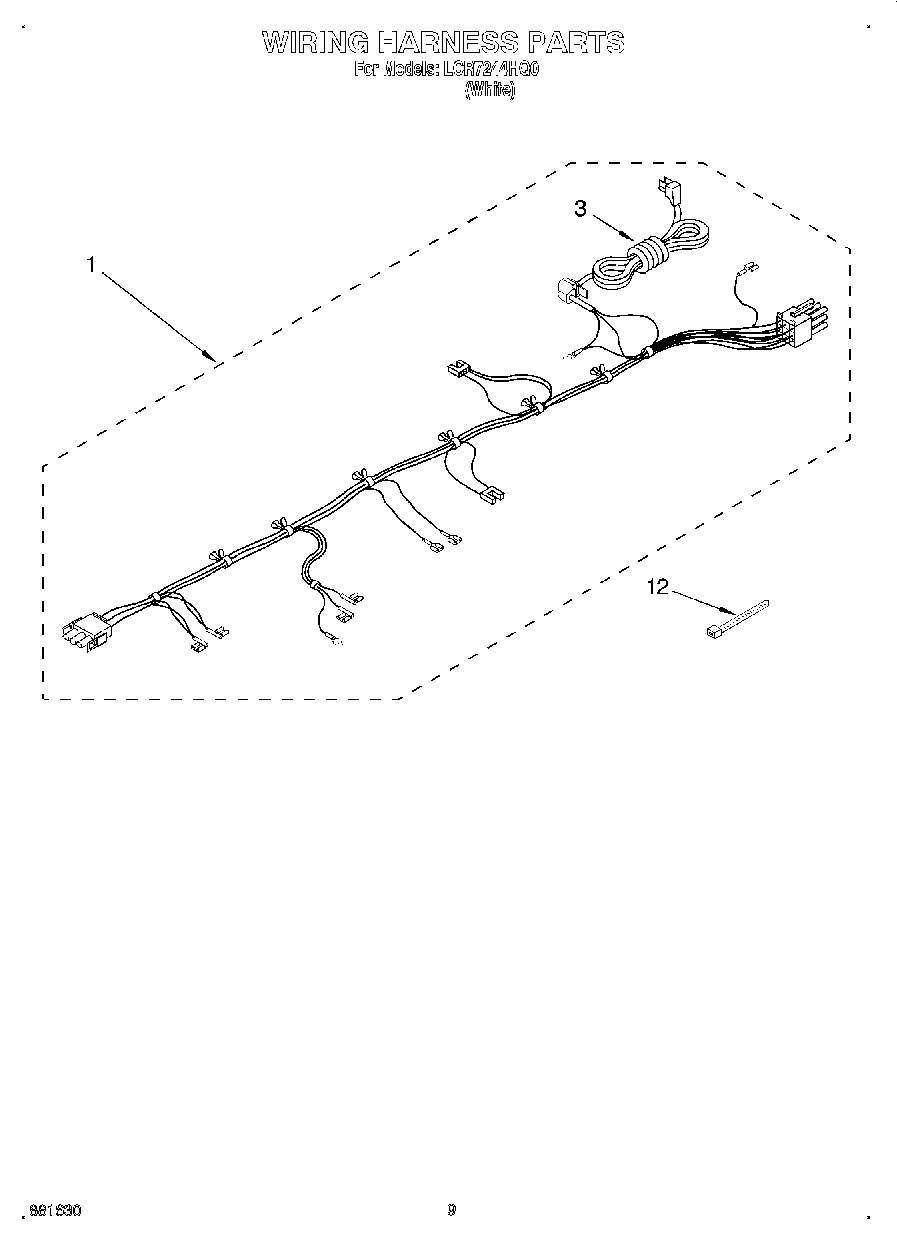

Harns/Power-Cord (Includes Clip.) WPL 3967634 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3935938 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT3966815 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT3967363 Contact Us For Availability

1

Literature Parts (Tech Sheet) (French) WPL LIT3967456 Contact Us For Availability

1

Literature Parts (Tech Sheet) (English) WPL LIT3967457 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT3968273 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

2

Cabinet WPL 3967826 Contact Us For Availability

2

Bracket-Valve WPL 3935155 Contact Us For Availability

2

Filter WPL 3428391 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3967051 Whirlpool Strap Backorder WPL WP3967051 $3.70

3

Kit, (Power Cord Only) WPL 3966718 Contact Us For Availability

3

Lid WPL 3935590 Contact Us For Availability

3

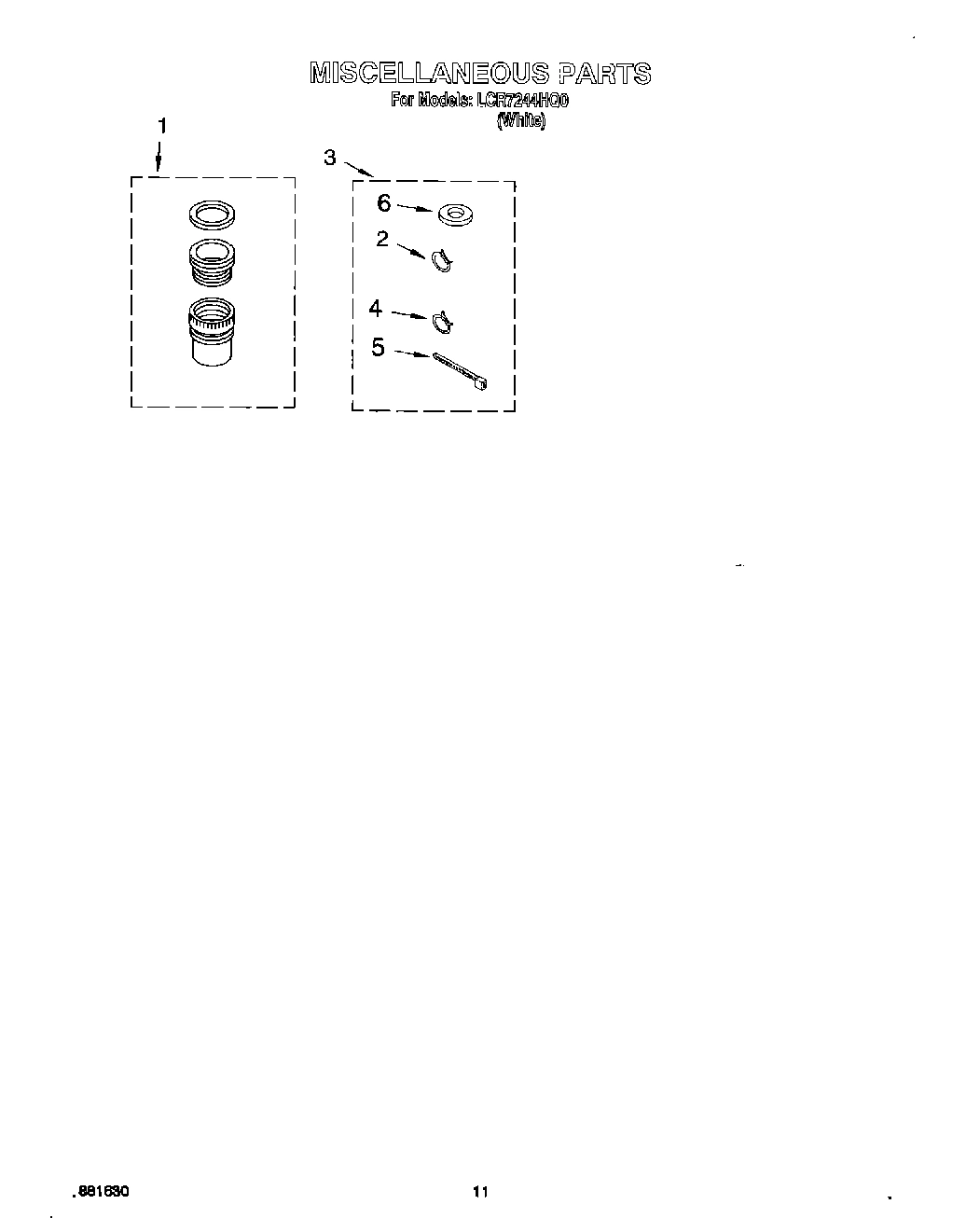

Miscellaneous Parts Bag WPL 3428855 Contact Us For Availability

3

Extension, Start-Pause WPL 3935357 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

4

Ball, Upper Suspension (4) WPL 3968380 Contact Us For Availability

4

Pin, Wheel WPL 3935130 Contact Us For Availability

4

Screw WPL 3429189 Contact Us For Availability

4

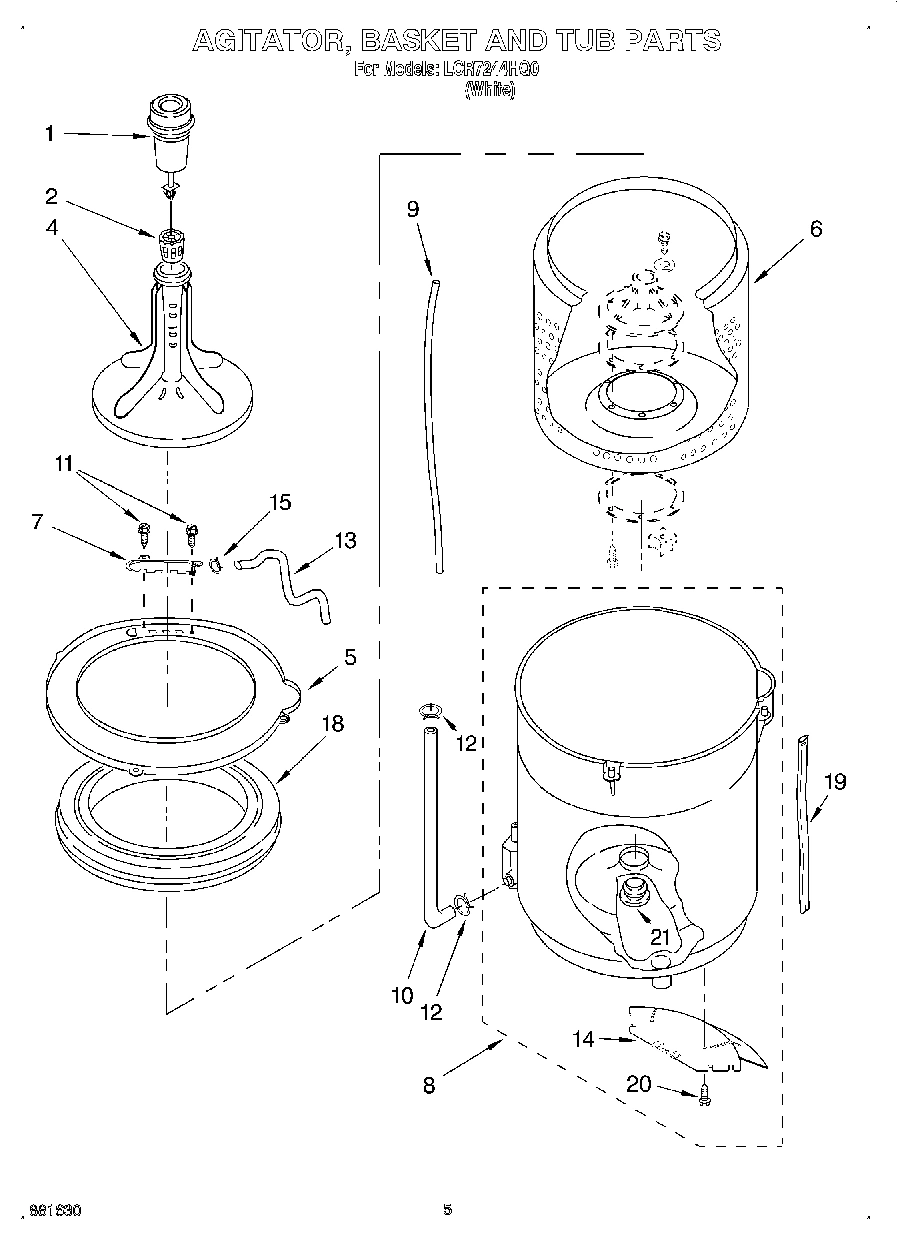

Agitator WPL 3428392 Contact Us For Availability

5

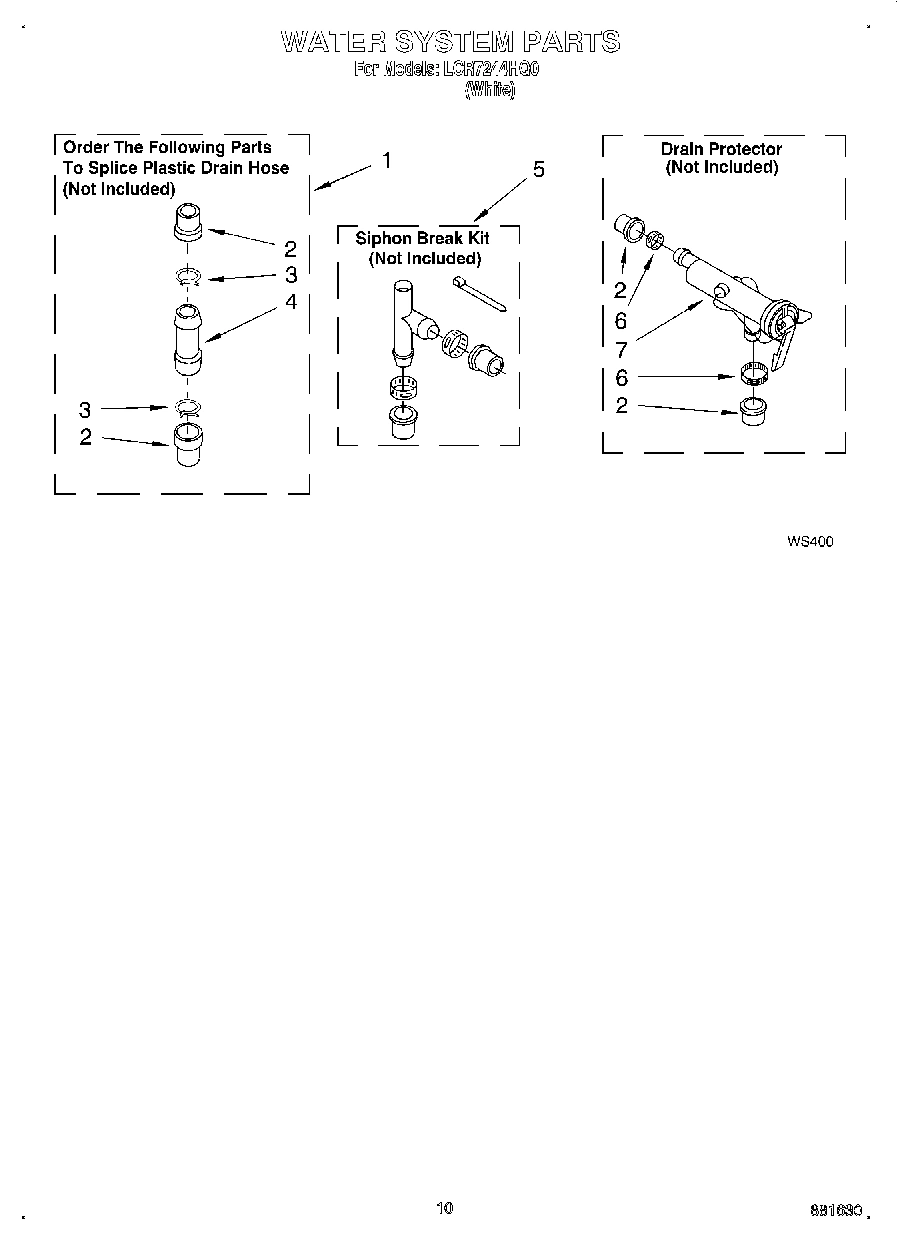

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

5

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

5

Capacitor WPL 3429938 Contact Us For Availability

5

Clip, Harness WPL 3935875 Contact Us For Availability

5

Tub Ring WPL 3968262 Contact Us For Availability

6

285677 Whirlpool Convection Kit Backorder WPL 285677 $74.55

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

6

49971 Whirlpool Compact Dryer Stand, White Backorder WPL 49971 $270.85

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

6

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

6

Bracket, Capacitor WPL 3428343 Contact Us For Availability

6

Stationary To Portable WPL 3935674 Contact Us For Availability

6

Almond WPL 49978 Contact Us For Availability

6

Almond (Uncut) WPL 978883 Contact Us For Availability

6

Timer/Control Board WPL 3968293 Contact Us For Availability

6

Basket WPL 3428186 Contact Us For Availability

7

Pulley, Splutch WPL 3428359 Contact Us For Availability

7

Screw, Bracket WPL 3934040 Contact Us For Availability

7

Hinge, Lid (R.H.) WPL 3935351 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Jumper-Wire WPL 3935929 Contact Us For Availability

8

W10849778 Whirlpool Hose Assembly Backorder WPL W10849778 $139.12

8

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

8

Tub & Inlet Asy. WPL 3968473 Contact Us For Availability

9

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

Screw (4) WPL 3428033 Contact Us For Availability

Cover, Pump WPL 3428525 Contact Us For Availability

Seal WPL 3935353 Contact Us For Availability

Hose, Bleach WPL 3430339 Contact Us For Availability

11

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $2.51

11

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

11

Screw, Switch Mtg. WPL 3935602 Contact Us For Availability

12

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

12

Switch, Water Level WPL 3966789 Contact Us For Availability

12

Caster (4) WPL 3934872 Contact Us For Availability

13

WP3969019 Whirlpool Vacuum Break Backorder WPL WP3969019 $3.66

13

Bracket, Control (Must Order No. 3 & No. 39.) WPL 3967605 Contact Us For Availability

14

Protector, Edge WPL 3429705 Contact Us For Availability

14

Shield, Tub/Motor WPL 3428814 Contact Us For Availability

15

285935 Whirlpool Lid Switch Backorder WPL 285935 $45.99

15

Clamp WPL 3968185 Contact Us For Availability

16

Clamp, Tie Wrap WPL 3935429 Contact Us For Availability

17

Bracket-Cabinet To Top WPL 3935198 Contact Us For Availability

17

Hose, Pressure Switch. WPL 3935344 Contact Us For Availability

Drive Belt WPL 3934700 Contact Us For Availability

Valve, Water Mixing WPL 3967755 Contact Us For Availability

Hinge, Lid (L.H.) WPL 3935352 Contact Us For Availability

Balance Ring WPL 3934565 Contact Us For Availability

19

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $2.51

19

Bumper WPL 3935442 Contact Us For Availability

19

Hose, Tub Overflow WPL 3966238 Contact Us For Availability

20

Seal, Pressure Switch WPL 3935354 Contact Us For Availability

21

WP3968381 Whirlpool Tub Seal Backorder WPL WP3968381 $14.22

21

Bearing, Hinge (RH) WPL 3935739 Contact Us For Availability

21

Screw, Control Board (3) WPL 3934036 Contact Us For Availability

22

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $2.51

22

Bearing, Hinge (LH) WPL 3935889 Contact Us For Availability

23

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

24

W11700520 Whirlpool Screw Backorder WPL W11700520 $8.11

24

Shield, Harness WPL 3935672 Contact Us For Availability

25

Extrude-Top (2) WPL 3935201 Contact Us For Availability

27

Panel-Cabinet WPL 3430058 Contact Us For Availability

28

Rivet, Plastic (2) WPL 3429823 Contact Us For Availability

29

Gusset (Lower (L.H.)) WPL 3935128 Contact Us For Availability

29

Gusset (Lower (R.H.)) WPL 3935129 Contact Us For Availability

29

Shield, Water Valve WPL 3967286 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

30

Top WPL 3968263 Contact Us For Availability

32

Hose, Pump To Tub WPL 3429900 Contact Us For Availability

33

Switch, Cycle Selection WPL 3966202 Contact Us For Availability

34

Screw, Top Shield (3) WPL 3935634 Contact Us For Availability

35

Switch, Water Temperature WPL 3966208 Contact Us For Availability

38

Screw, Pump Mtg. (2) WPL 3400038 Contact Us For Availability

39

Panel, Console WPL 3935527 Contact Us For Availability

40

Transmission Kit WPL 3966743 Contact Us For Availability

40

Top, Shield Assy. WPL 3935627 Contact Us For Availability

41

Screw, 10-16 x 1/2 WPL 3934148 Contact Us For Availability

47

WP3957796 Whirlpool Knob Backorder WPL WP3957796 $30.93

49

Grommet, Pump (3) WPL 3428526 Contact Us For Availability

50

Spacer, Pump (2) WPL 3428933 Contact Us For Availability

57

WP356054 Whirlpool Cap Assembly Backorder WPL WP356054 $4.56

58

Rivet (4) WPL 3430186 Contact Us For Availability

59

Bracket, Hose Storage WPL 356499 Contact Us For Availability
