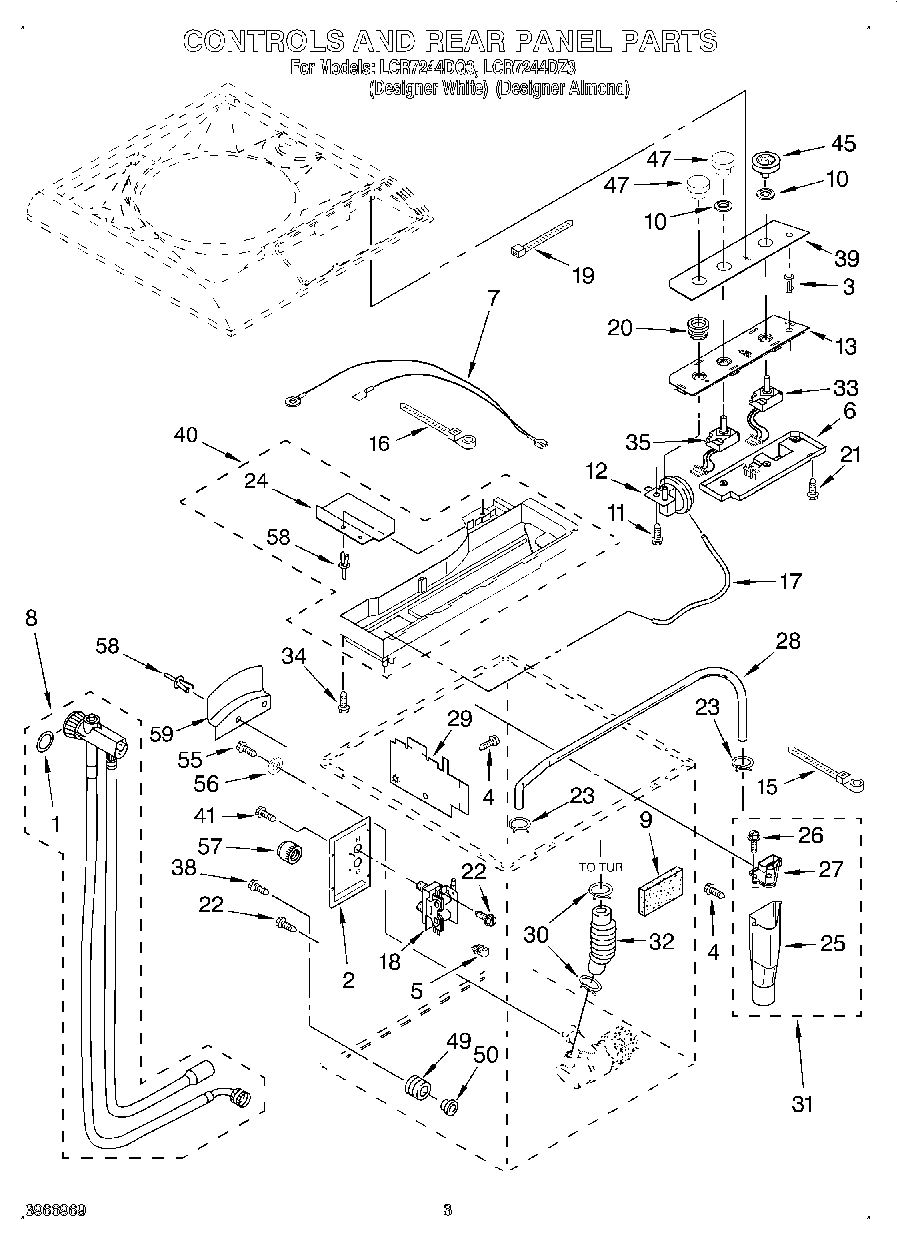

Model Whirlpool LCR7244DQ3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

49971 Whirlpool Compact Washer Stand, White Backorder WPL 49971 $271.45

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Stationary To Portable WPL 3935674 Contact Us For Availability

Almond WPL 49978 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use and Care WPL LIT3935699 Contact Us For Availability

Installation Instructions WPL LIT3935938 Contact Us For Availability

Energy Guide WPL LIT3966732 Contact Us For Availability

Wiring Diagram WPL LIT3966815 Contact Us For Availability

Tech. Sheet (French) WPL LIT3967456 Contact Us For Availability

Tech. Sheet (English) WPL LIT3967457 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

WP326018423 Whirlpool Dispenser Assembly Backorder WPL WP326018423 $62.10

1

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $46.18

1

Top (White) WPL 3935573 Contact Us For Availability

1

Top (Almond) WPL 3935574 Contact Us For Availability

1

Suspension Rod, Front (2) WPL 3935137 Contact Us For Availability

1

Screw WPL 3428430 Contact Us For Availability

1

Harns/Power-Cord (Includes Clip.) WPL 3967634 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

90984 Whirlpool Nut Backorder WPL 90984 $9.13

2

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

2

Cabinet (White) WPL 3935109 Contact Us For Availability

2

Cabinet (Almond) WPL 3935110 Contact Us For Availability

2

Filter WPL 3428391 Contact Us For Availability

2

Suspension Rod, Rear (2) WPL 3935136 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3967051 Whirlpool Strap In Stock WPL WP3967051 $3.70

3

Screw WPL 3400038 Contact Us For Availability

3

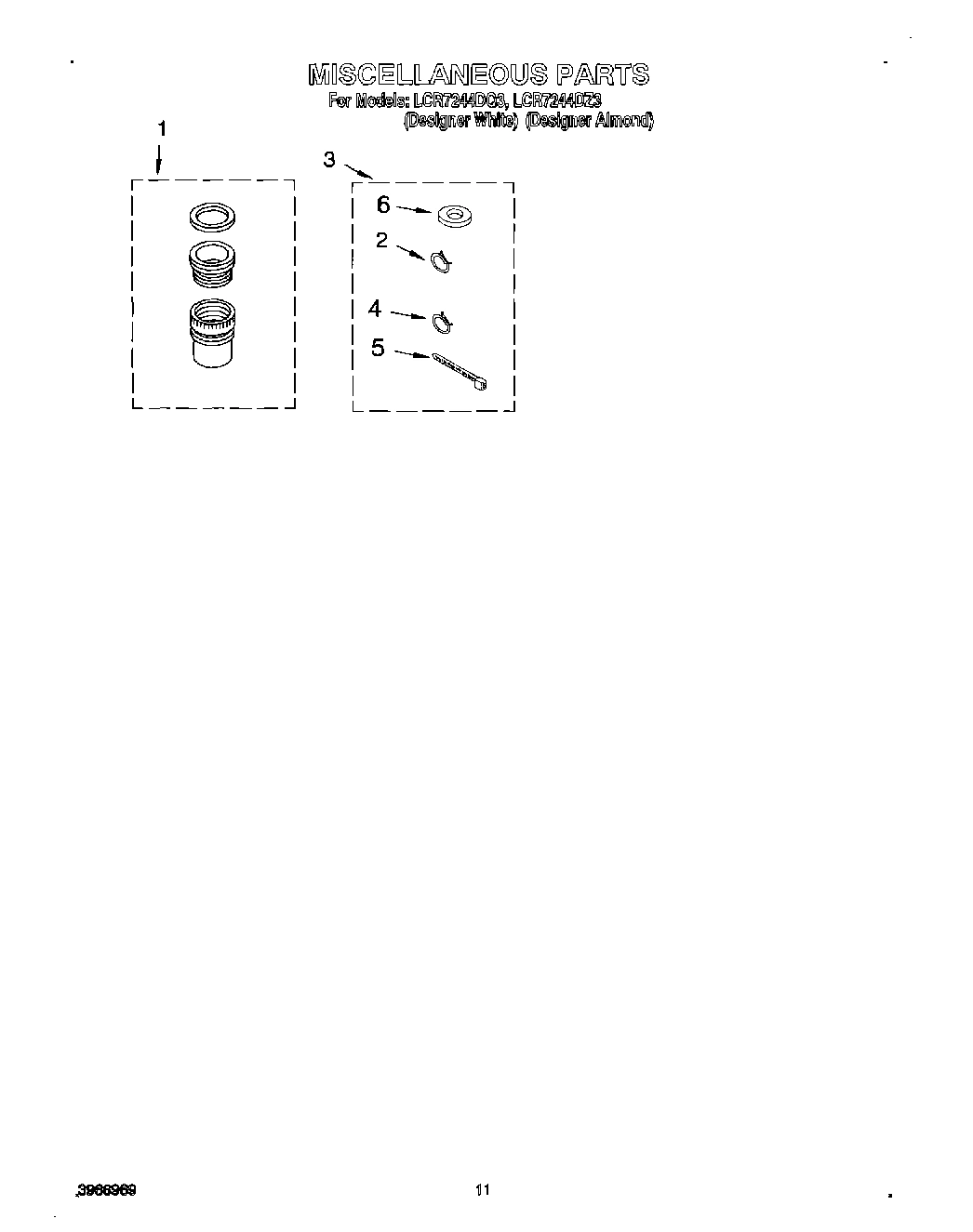

Miscellaneous Parts Bag WPL 3428855 Contact Us For Availability

3

Lid (White) WPL 3935590 Contact Us For Availability

3

Lid (Almond) WPL 3935591 Contact Us For Availability

3

Shield, Motor Splash WPL 3967287 Contact Us For Availability

3

Kit, (Power Cord Only) WPL 3966718 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

4

Pin, Wheel WPL 3935130 Contact Us For Availability

4

Agitator WPL 3428392 Contact Us For Availability

4

Ball, Upper Suspension (4) WPL 3428423 Contact Us For Availability

4

Brake Band WPL 3428323 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

5

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

5

Capacitor WPL 3429938 Contact Us For Availability

5

Tub Ring WPL 3429902 Contact Us For Availability

5

Spring, Brake WPL 3428342 Contact Us For Availability

6

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

6

Basket WPL 3428186 Contact Us For Availability

6

Bracket, Capacitor WPL 3428343 Contact Us For Availability

6

Washer WPL 3429750 Contact Us For Availability

7

Pulley, Splutch WPL 3428359 Contact Us For Availability

7

Hinge, Lid (R.H.) WPL 3935351 Contact Us For Availability

7

Screw, Bracket WPL 3934040 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

8

Tub & Inlet Asy. WPL 3935537 Contact Us For Availability

8

Cam, Splutch WPL 3428378 Contact Us For Availability

9

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

9

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

9

Screw WPL 3935634 Contact Us For Availability

Cover, Pump WPL 3967817 Contact Us For Availability

Hose, Bleach WPL 3430339 Contact Us For Availability

Screw (4) WPL 3428033 Contact Us For Availability

Spring, Splutch WPL 3934212 Contact Us For Availability

11

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

11

Slider, Splutch WPL 3428380 Contact Us For Availability

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Switch, Water Level WPL 3966789 Contact Us For Availability

Caster (4) WPL 3934872 Contact Us For Availability

Cam Ring, Splutch WPL 3428379 Contact Us For Availability

13

Screw WPL 3934148 Contact Us For Availability

13

Solenoid WPL 3966774 Contact Us For Availability

14

Shield, Tub/Motor WPL 3428814 Contact Us For Availability

14

Hub, Drive WPL 3934735 Contact Us For Availability

15

285935 Whirlpool Lid Switch Backorder WPL 285935 $48.29

15

Plate, Motor & Bearing Assy. WPL 3430205 Contact Us For Availability

16

Screw, Lid Switch WPL 3935602 Contact Us For Availability

16

Saddle Block WPL 3428429 Contact Us For Availability

17

Bracket-Cabinet To Top WPL 3935198 Contact Us For Availability

17

Inlet-Tube Assy. WPL 3935347 Contact Us For Availability

17

Gasket, Hub WPL 3428179 Contact Us For Availability

Drive Belt WPL 3934700 Contact Us For Availability

Valve, Water Mixing WPL 3967755 Contact Us For Availability

Hinge, Lid (L.H.) WPL 3935352 Contact Us For Availability

Balance Ring WPL 3934565 Contact Us For Availability

19

Bumper WPL 3935442 Contact Us For Availability

19

Hose, Tub Overflow WPL 3966238 Contact Us For Availability

19

Screw WPL 3934714 Contact Us For Availability

20

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $2.51

20

Rivet WPL 3430186 Contact Us For Availability

20

Motor, Main Drive (Includes Item 6) WPL 3934201 Contact Us For Availability

21

Bearing, Hinge (RH) WPL 3935739 Contact Us For Availability

21

Shield, Pulley WPL 3935999 Contact Us For Availability

22

Bearing, Hinge (LH) WPL 3935889 Contact Us For Availability

22

Pump & Shield WPL 3967357 Contact Us For Availability

23

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

23

WP3968381 Whirlpool Tub Seal Backorder WPL WP3968381 $14.22

24

W11700520 Whirlpool Screw Backorder WPL W11700520 $8.11

24

Ring-Protector WPL 3935678 Contact Us For Availability

25

Extrude-Top (2) WPL 3935201 Contact Us For Availability

26

Screw (4) WPL 3429189 Contact Us For Availability

26

Seal WPL 3935332 Contact Us For Availability

26

Bolt, Motor Mounting (2) WPL 3934663 Contact Us For Availability

27

Panel-Cabinet WPL 3430058 Contact Us For Availability

27

Well-Nut (2) WPL 3935431 Contact Us For Availability

27

Pin, Brake Band WPL 3934183 Contact Us For Availability

28

Rivet, Plastic (2) WPL 3429823 Contact Us For Availability

28

Screw, Well Nut (2) WPL 3935432 Contact Us For Availability

29

Gusset (Lower (L.H.)) WPL 3935128 Contact Us For Availability

29

Gusset (Lower (R.H.)) WPL 3935129 Contact Us For Availability

29

Washer, Nut (2) WPL 3935786 Contact Us For Availability

30

Hex-Nut (2) WPL 3935437 Contact Us For Availability

31

Protector, Edge WPL 3429705 Contact Us For Availability

32

Hose, Pump To Tub WPL 3429900 Contact Us For Availability

32

Clamp-Hose WPL 3935874 Contact Us For Availability

33

Switch, Cycle Selection WPL 3966202 Contact Us For Availability

34

Shield, Solenoid WPL 3967288 Contact Us For Availability

35

Switch, Water Temperature WPL 3966208 Contact Us For Availability

37

Lock, Solenoid WPL 3429416 Contact Us For Availability

38

Shield, Motor Connector WPL 3430197 Contact Us For Availability

39

Shield, Pump WPL 3967815 Contact Us For Availability

40

Transmission Kit WPL 3966743 Contact Us For Availability

45

Knob, Cycle Selection (White) WPL 3935461 Contact Us For Availability

45

Knob, Cycle Selection (Almond) WPL 3935462 Contact Us For Availability

47

3957797 Whirlpool Knob In Stock WPL 3957797 $30.89

47

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $32.48

49

Grommet, Pump (3) WPL 3428526 Contact Us For Availability

50

Spacer, Pump (2) WPL 3428933 Contact Us For Availability

56

Washer WPL 3429923 Contact Us For Availability

57

WP356054 Whirlpool Cap Assembly Backorder WPL WP356054 $4.56

59

WPL 356499 WPL 356499 Contact Us For Availability
