Model Whirlpool LCR5232HQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

1

Literature Parts (Installation Instructions) WPL LIT3935937 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT3966815 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT3967363 Contact Us For Availability

1

Literature Parts (Tech Sheet) (French) WPL LIT3967401 Contact Us For Availability

1

Literature Parts (Tech Sheet) (English) WPL LIT3967402 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT3968274 Contact Us For Availability

1

Screw WPL 3428430 Contact Us For Availability

1

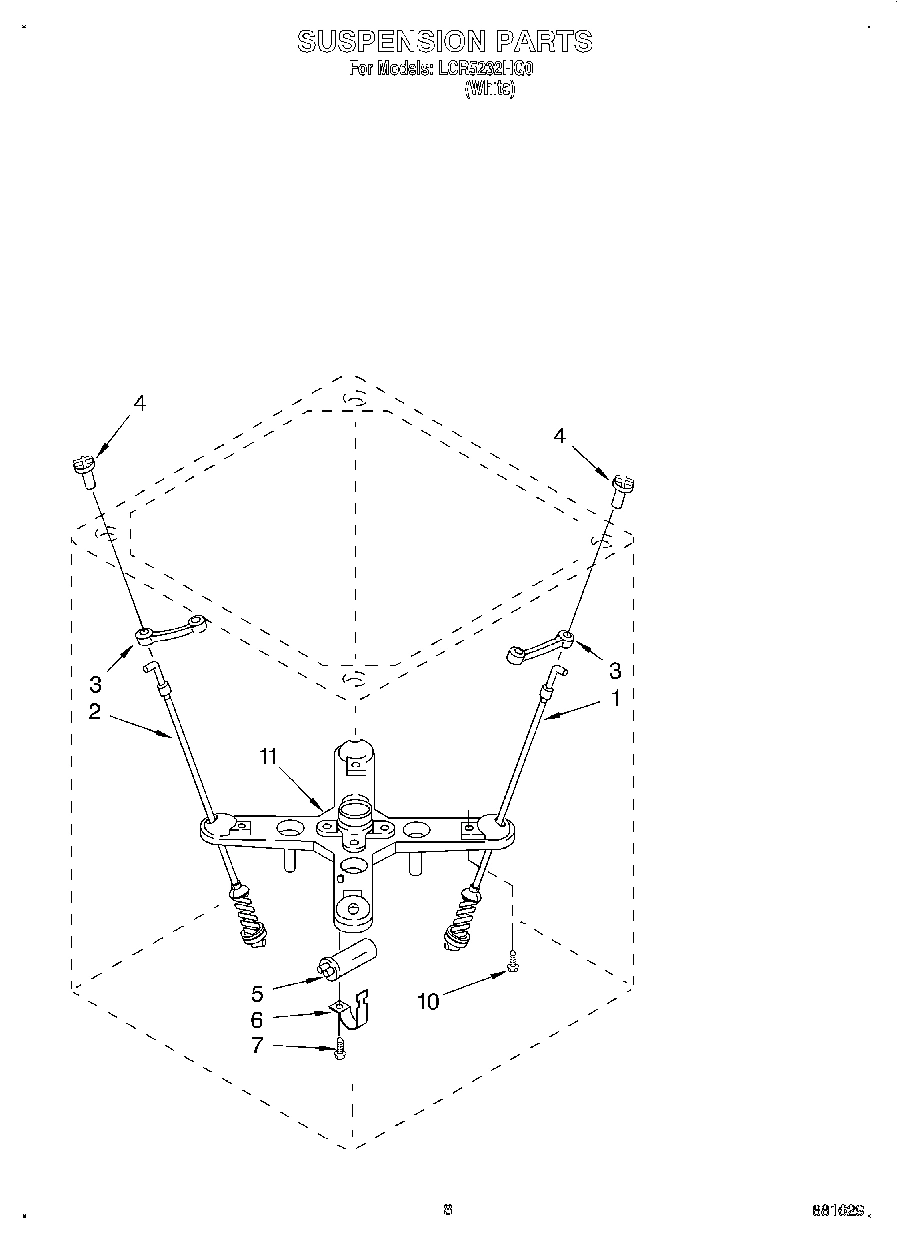

Suspension Rod, Front (2) WPL 3935137 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

90984 Whirlpool Nut Backorder WPL 90984 $9.13

2

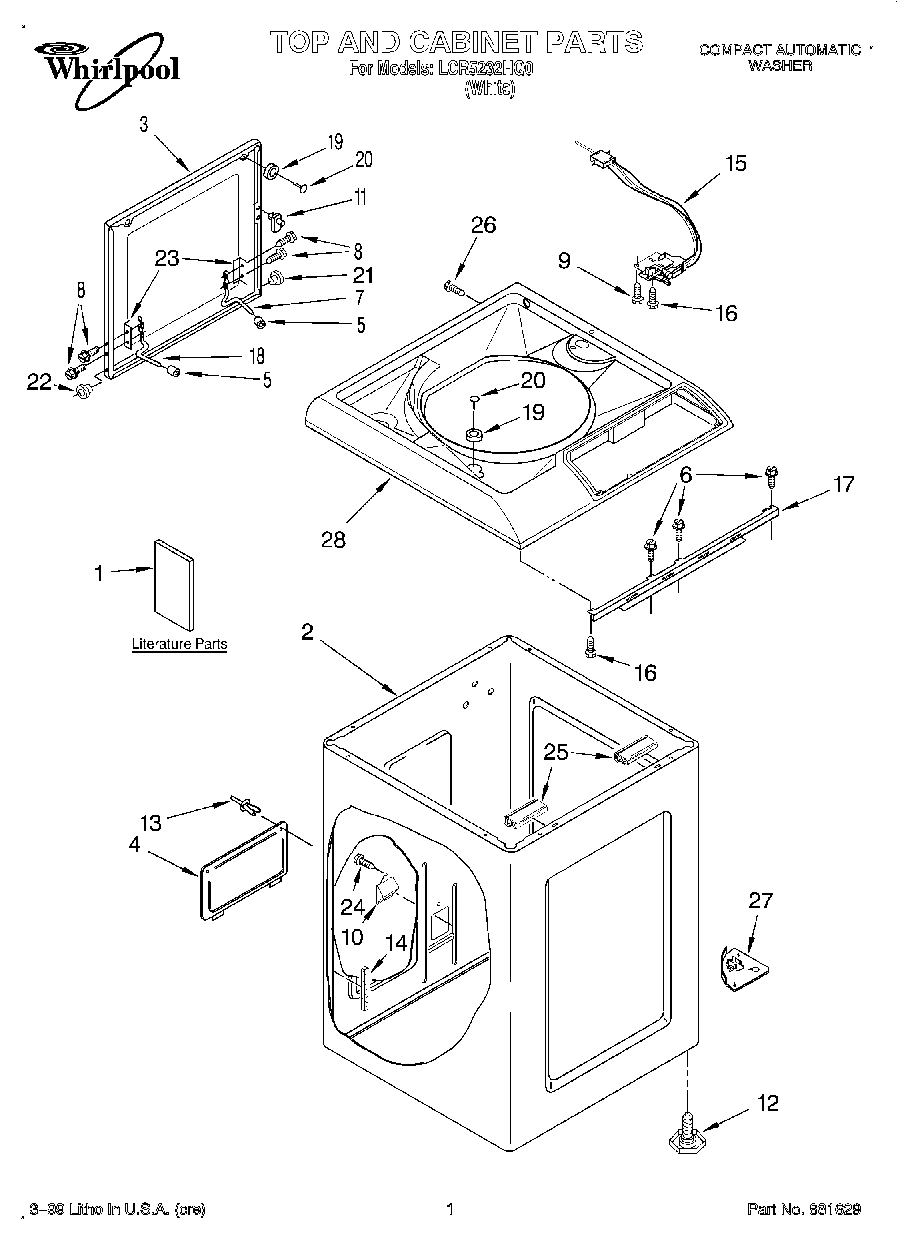

Cabinet WPL 3967826 Contact Us For Availability

2

Suspension Rod, Rear (2) WPL 3935136 Contact Us For Availability

2

Bracket-Valve WPL 3935155 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3967051 Whirlpool Strap In Stock WPL WP3967051 $3.70

3

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

3

Lid WPL 3935590 Contact Us For Availability

3

Shield & Warning Motor Splash WPL 3967287 Contact Us For Availability

3

Extension, Start-Pause WPL 3935357 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

Ball, Upper Suspension (4) WPL 3968380 Contact Us For Availability

4

Panel-Cabinet Access WPL 3430058 Contact Us For Availability

4

Screw WPL 3429189 Contact Us For Availability

4

Brake Band WPL 3428323 Contact Us For Availability

5

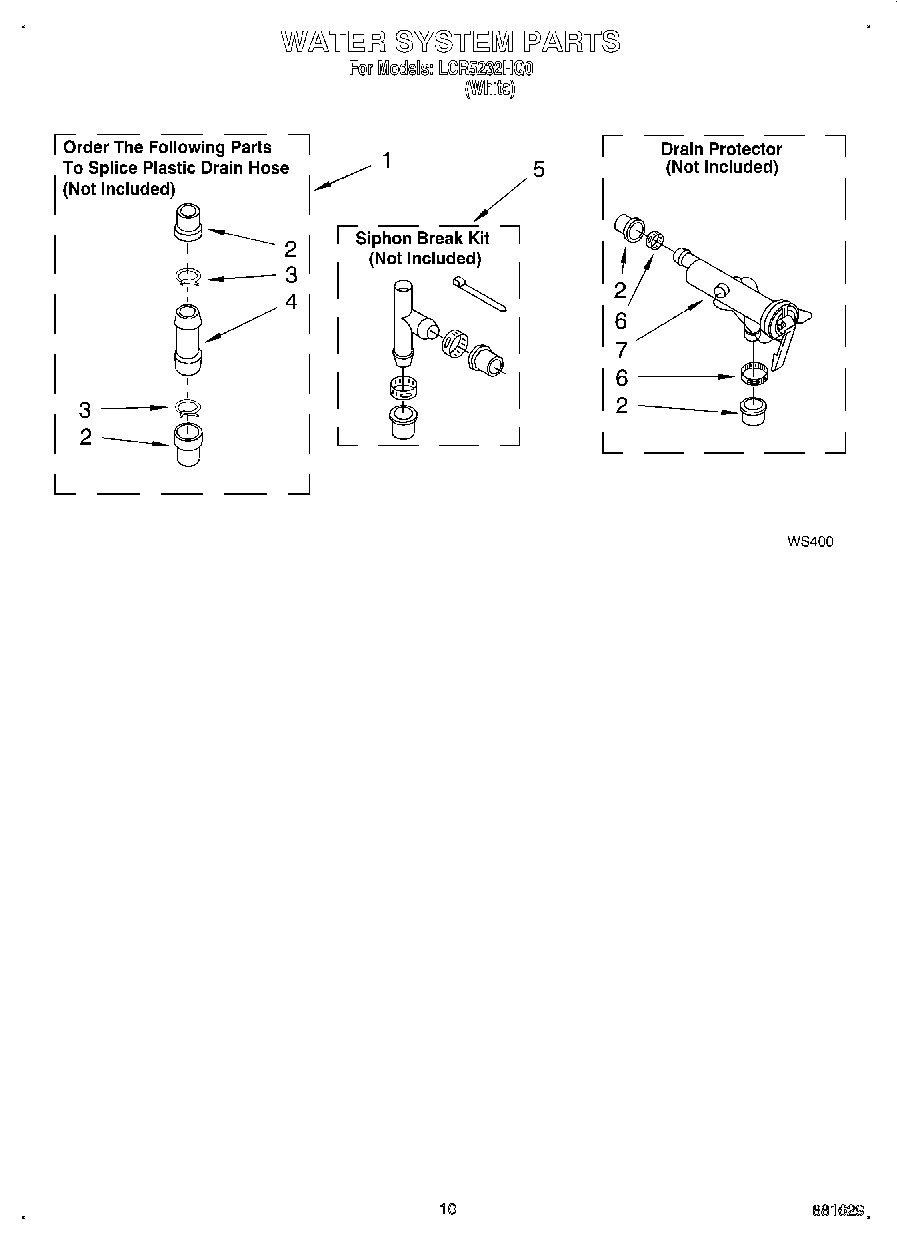

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

5

Capacitor WPL 3429938 Contact Us For Availability

5

Spring, Brake WPL 3428342 Contact Us For Availability

5

Clip, Harness WPL 3935875 Contact Us For Availability

6

285677 Whirlpool Convection Kit Backorder WPL 285677 $78.28

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

6

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

6

49971 Whirlpool Compact Washer Stand, White Backorder WPL 49971 $271.45

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

6

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $2.51

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

6

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

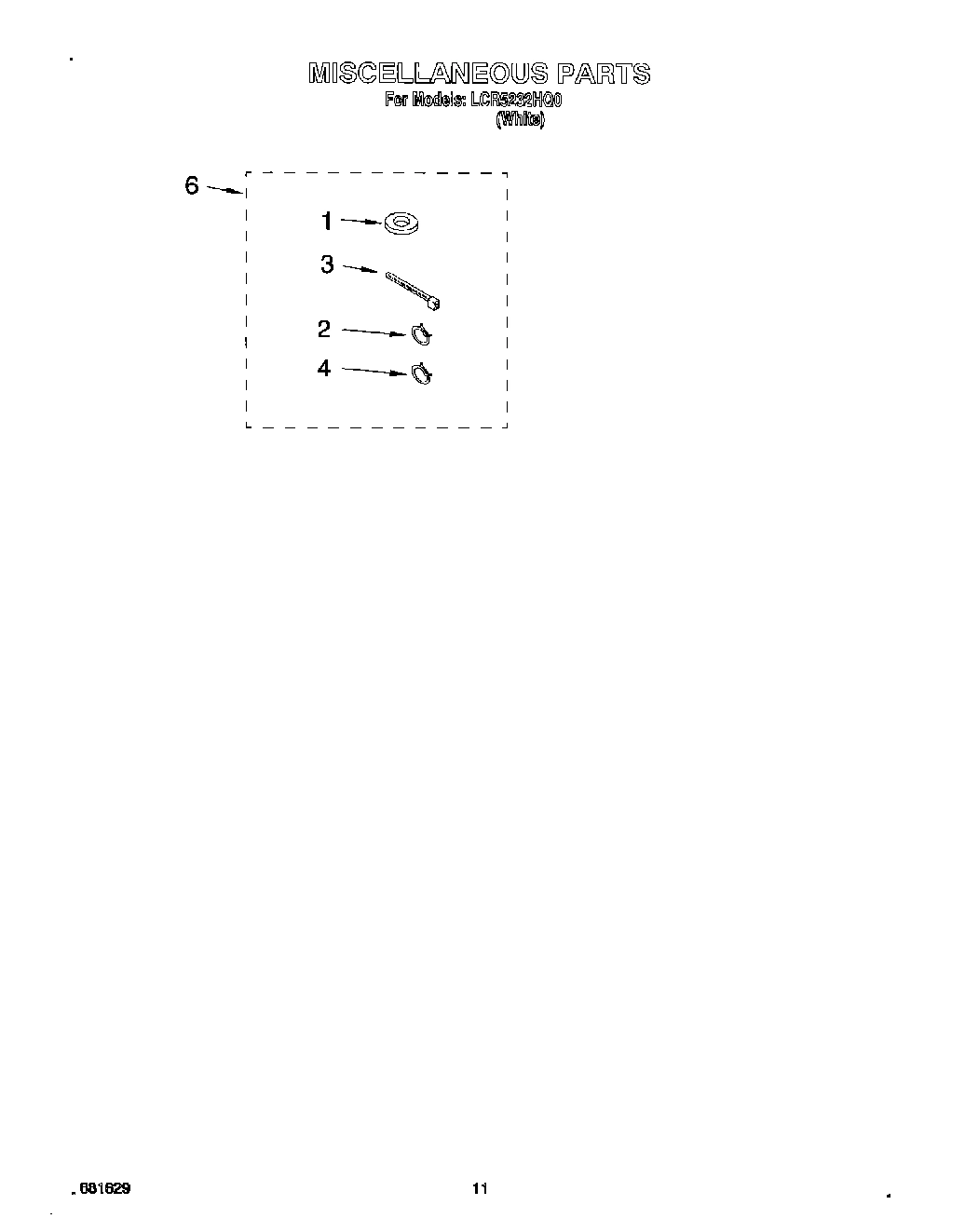

Miscellaneous Parts Bag WPL 3428855 Contact Us For Availability

6

Stationary To Portable WPL 3935674 Contact Us For Availability

6

Almond WPL 49978 Contact Us For Availability

6

Almond (Uncut) WPL 978883 Contact Us For Availability

6

Washer WPL 3429750 Contact Us For Availability

6

Bracket, Capacitor WPL 3428343 Contact Us For Availability

6

Timer/Control Board WPL 3968294 Contact Us For Availability

7

Pulley, Splutch WPL 3428359 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Hinge, Lid (R.H.) WPL 3935351 Contact Us For Availability

7

Screw, Bracket WPL 3934040 Contact Us For Availability

7

Jumper-Wire WPL 3935929 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

8

Cam, Splutch WPL 3428378 Contact Us For Availability

9

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

Cover, Pump WPL 3428525 Contact Us For Availability

Spring, Splutch WPL 3934212 Contact Us For Availability

Screw (4) WPL 3428033 Contact Us For Availability

Seal WPL 3935353 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

Screw, Switch Mtg. WPL 3935602 Contact Us For Availability

Slider, Splutch WPL 3428380 Contact Us For Availability

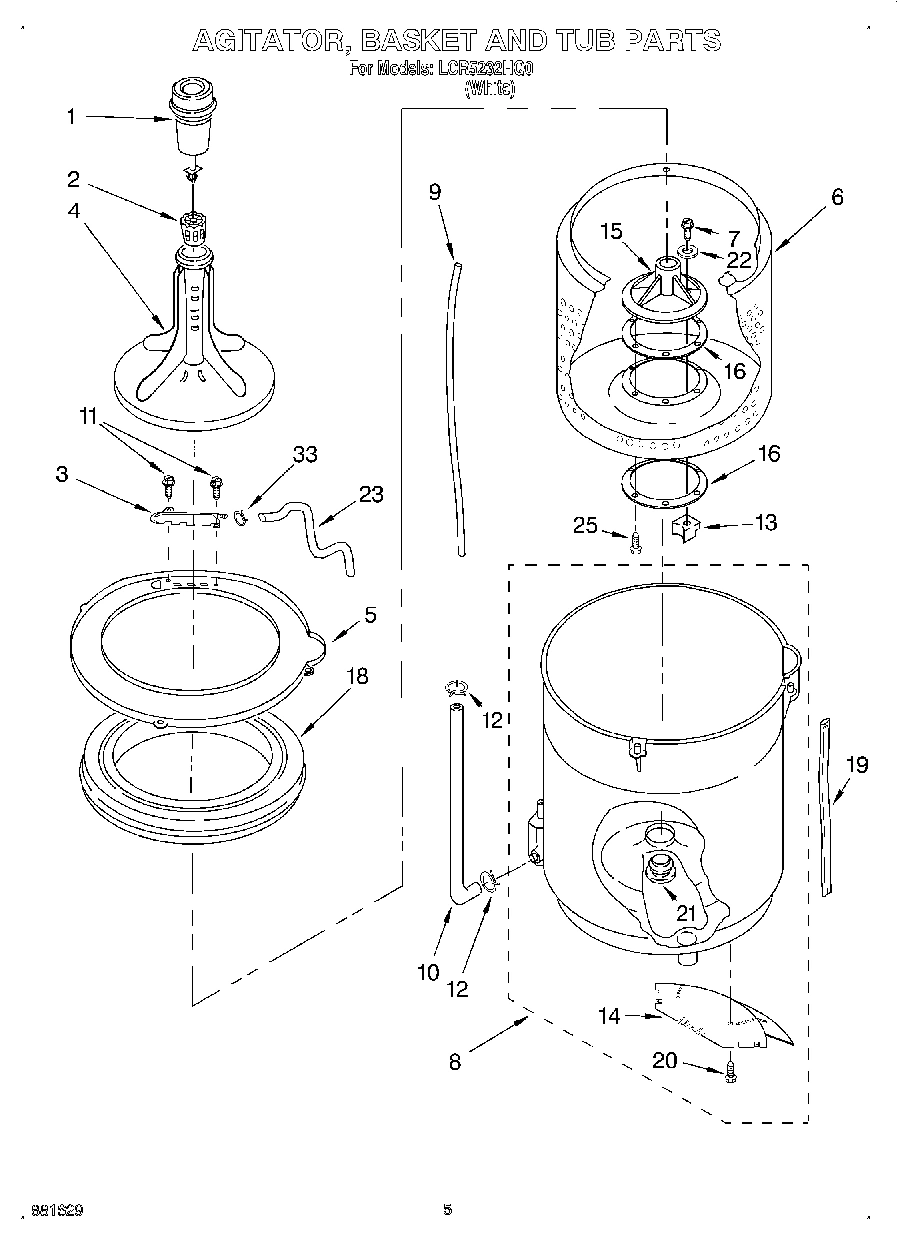

Support, Tub (Includes Bearing) WPL 3966528 Contact Us For Availability

12

Foot (4) WPL 3429895 Contact Us For Availability

12

Cam Ring, Splutch WPL 3428379 Contact Us For Availability

12

Switch, Water Level WPL 3966786 Contact Us For Availability

13

Rivet, Plastic (2) WPL 3429823 Contact Us For Availability

13

Solenoid WPL 3966774 Contact Us For Availability

13

Bracket, Control (Must Order No. 3 & No. 39.) WPL 3967605 Contact Us For Availability

14

Hub, Drive WPL 3934735 Contact Us For Availability

15

Switch, Lid WPL 3935737 Contact Us For Availability

15

Plate, Motor & Bearing Assy. WPL 3430205 Contact Us For Availability

16

Saddle Block WPL 3428429 Contact Us For Availability

16

Clamp, Tie Wrap WPL 3935429 Contact Us For Availability

17

Bracket-Cabinet To Top WPL 3935198 Contact Us For Availability

17

Gasket, Hub WPL 3428179 Contact Us For Availability

17

Hose, Pressure Switch. WPL 3935344 Contact Us For Availability

18

Drive Belt WPL 3934700 Contact Us For Availability

18

Hinge, Lid (L.H.) WPL 3935352 Contact Us For Availability

18

Valve, Water Mixing WPL 3360396 Contact Us For Availability

19

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $2.51

19

Bumper WPL 3935442 Contact Us For Availability

19

Screw WPL 3934714 Contact Us For Availability

20

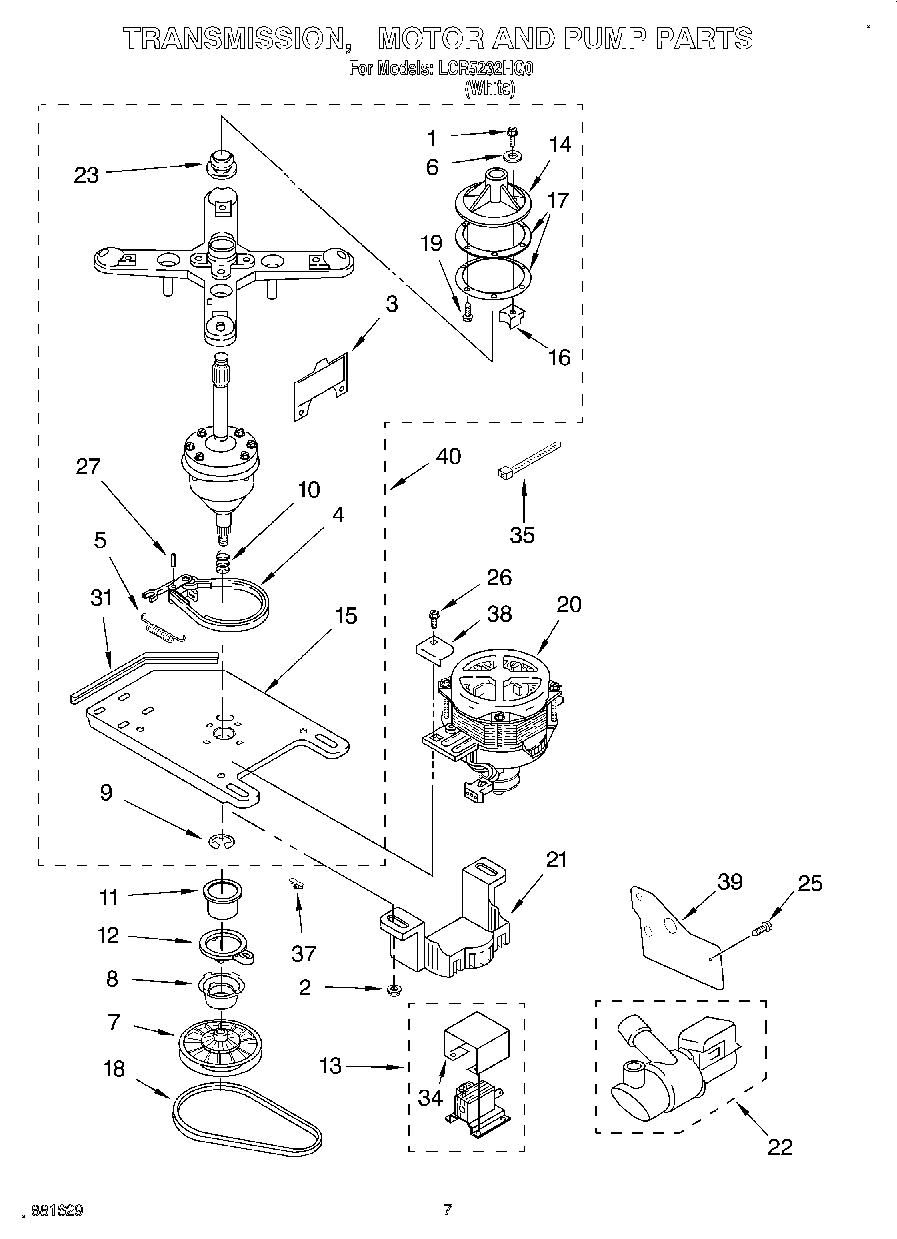

Motor, Main Drive (Includes Item 6) WPL 3934201 Contact Us For Availability

20

Seal, Pressure Switch WPL 3935354 Contact Us For Availability

21

Bearing, Hinge (RH) WPL 3935739 Contact Us For Availability

21

Shield, Pulley WPL 3935999 Contact Us For Availability

21

Screw, Control Board (5) WPL 3934036 Contact Us For Availability

22

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $2.51

22

Bearing, Hinge (LH) WPL 3935889 Contact Us For Availability

22

Pump (Complete) WPL 3967956 Contact Us For Availability

23

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

23

WP3968381 Whirlpool Tub Seal Backorder WPL WP3968381 $14.22

23

Clamp, Hose (2) WPL 3968185 Contact Us For Availability

24

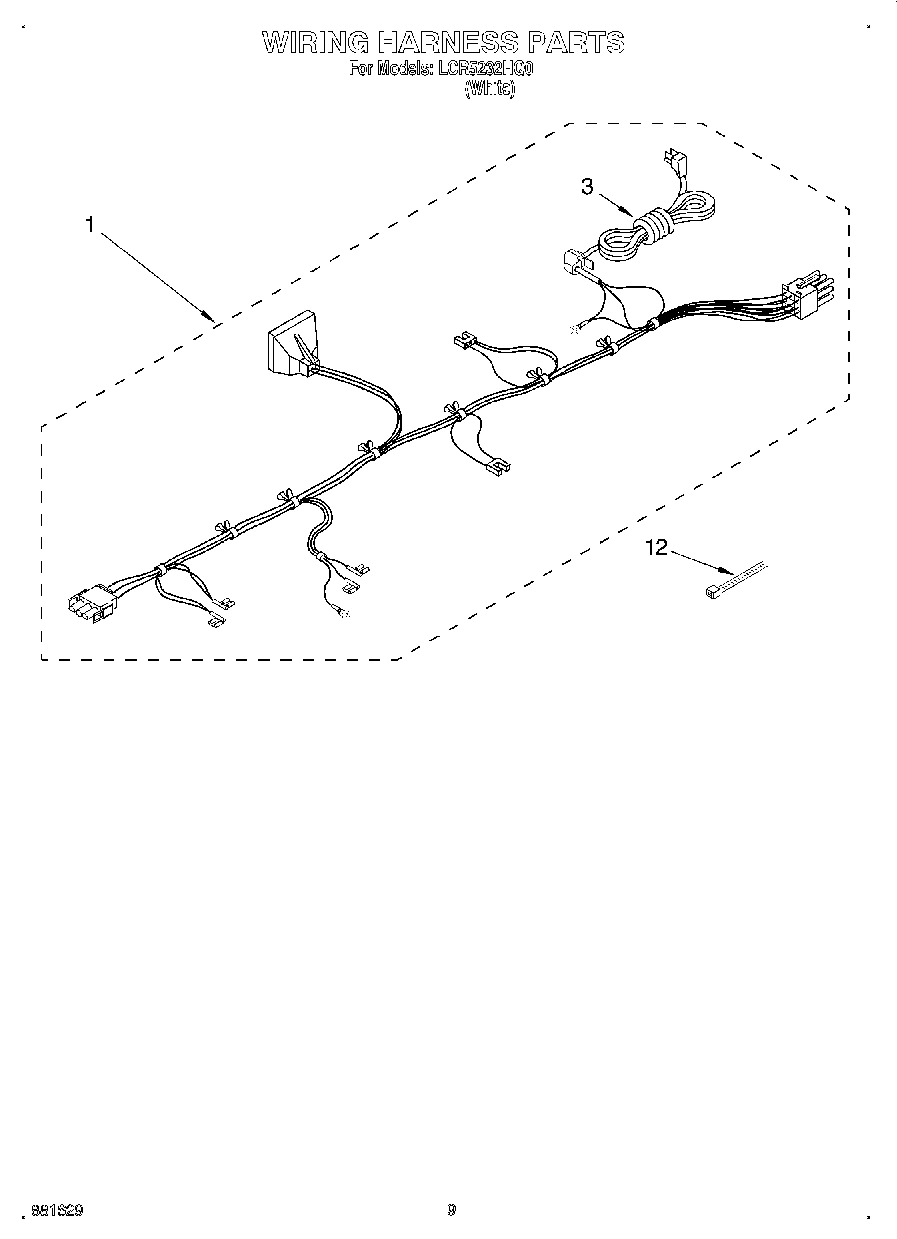

Shield, Harness WPL 3935672 Contact Us For Availability

25

Extrude-Top WPL 3935201 Contact Us For Availability

25

Screw WPL 3967955 Contact Us For Availability

26

Bolt, Motor Mounting (2) WPL 3934663 Contact Us For Availability

27

Gusset (Lower (L.H.)) WPL 3935128 Contact Us For Availability

27

Gusset (Lower (R.H.)) WPL 3935129 Contact Us For Availability

27

Pin, Brake Band WPL 3934183 Contact Us For Availability

28

Top WPL 3968263 Contact Us For Availability

29

Shield & Warning Water Valve WPL 3967286 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

Protector, Edge WPL 3429705 Contact Us For Availability

32

Hose, Pump To Tub WPL 3429900 Contact Us For Availability

33

Switch, Cycle Selection WPL 3966207 Contact Us For Availability

34

Screw, Top Shield (2) WPL 3935634 Contact Us For Availability

34

Shield, Solenoid WPL 3967288 Contact Us For Availability

35

Switch, Water Temperature WPL 3966209 Contact Us For Availability

36

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

37

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

37

Lock, Solenoid WPL 3429416 Contact Us For Availability

38

Screw, Pump Mtg. (2) WPL 3400038 Contact Us For Availability

38

Shield, Motor WPL 3430197 Contact Us For Availability

39

Shield, Pump WPL 3967815 Contact Us For Availability

39

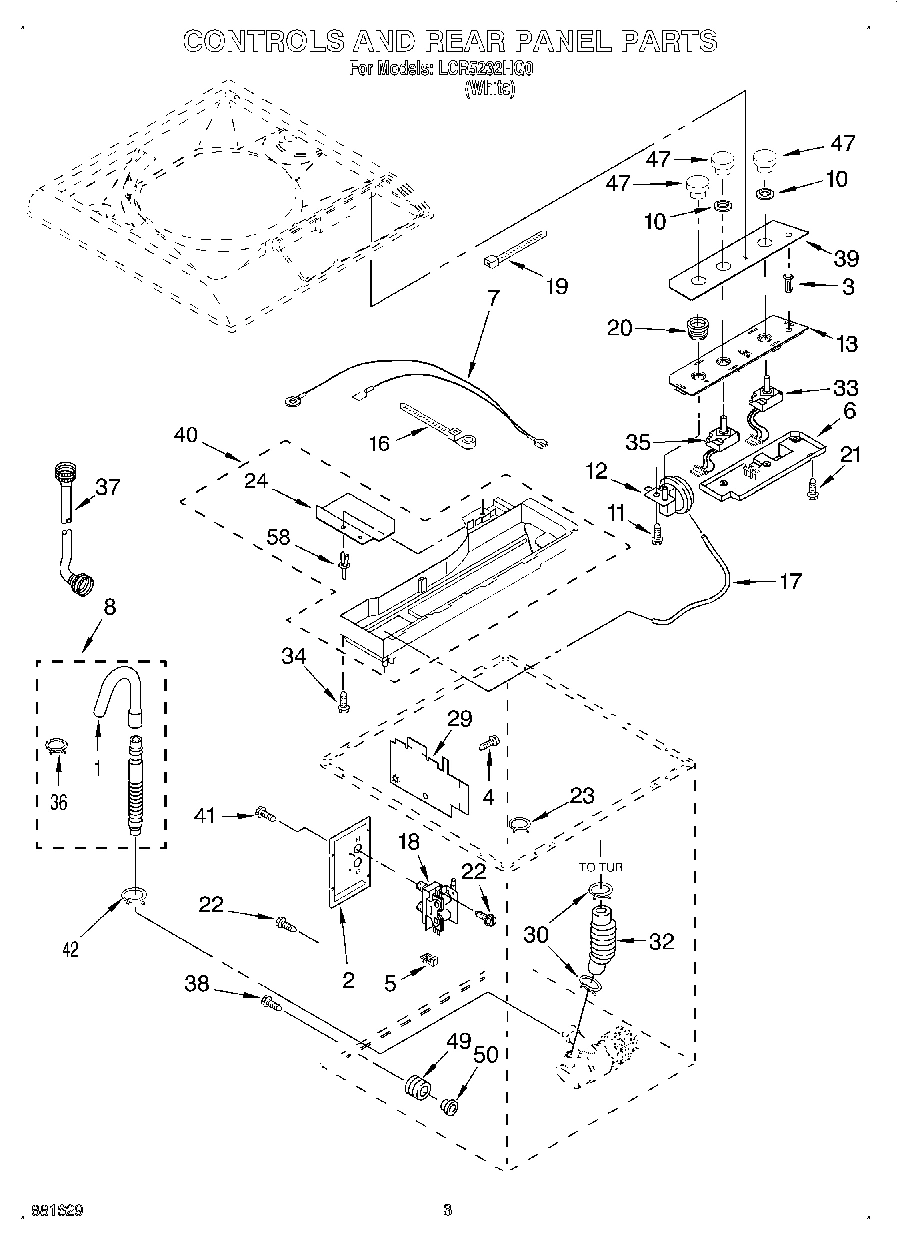

Panel, Console WPL 3935526 Contact Us For Availability

40

Transmission Kit WPL 3966743 Contact Us For Availability

40

Top, Shield Assy. WPL 3935627 Contact Us For Availability

41

Screw, 10-16 x 1/2 WPL 3934148 Contact Us For Availability

42

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

47

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $32.48

49

Grommet, Pump (3) WPL 3428526 Contact Us For Availability

50

Spacer, Pump (3) WPL 3428933 Contact Us For Availability

58

Rivet (2) WPL 3430186 Contact Us For Availability
