Model Whirlpool LCR5232DQ5 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

49971 Whirlpool Compact Dryer Stand, White Backorder WPL 49971 $270.85

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Stationary To Portable WPL 3935674 Contact Us For Availability

Almond WPL 49978 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use and Care WPL LIT3935699 Contact Us For Availability

Installation Instructions WPL LIT3935937 Contact Us For Availability

Wiring Diagram WPL LIT3966815 Contact Us For Availability

Tech. Sheet (French) WPL LIT3967401 Contact Us For Availability

Tech. Sheet (English) WPL LIT3967402 Contact Us For Availability

Energy Guide WPL LIT3968274 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

WP326018423 Whirlpool Dispenser Assembly Backorder WPL WP326018423 $62.10

1

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

1

Top (White) WPL 3968313 Contact Us For Availability

1

Top (Almond) WPL 3968314 Contact Us For Availability

1

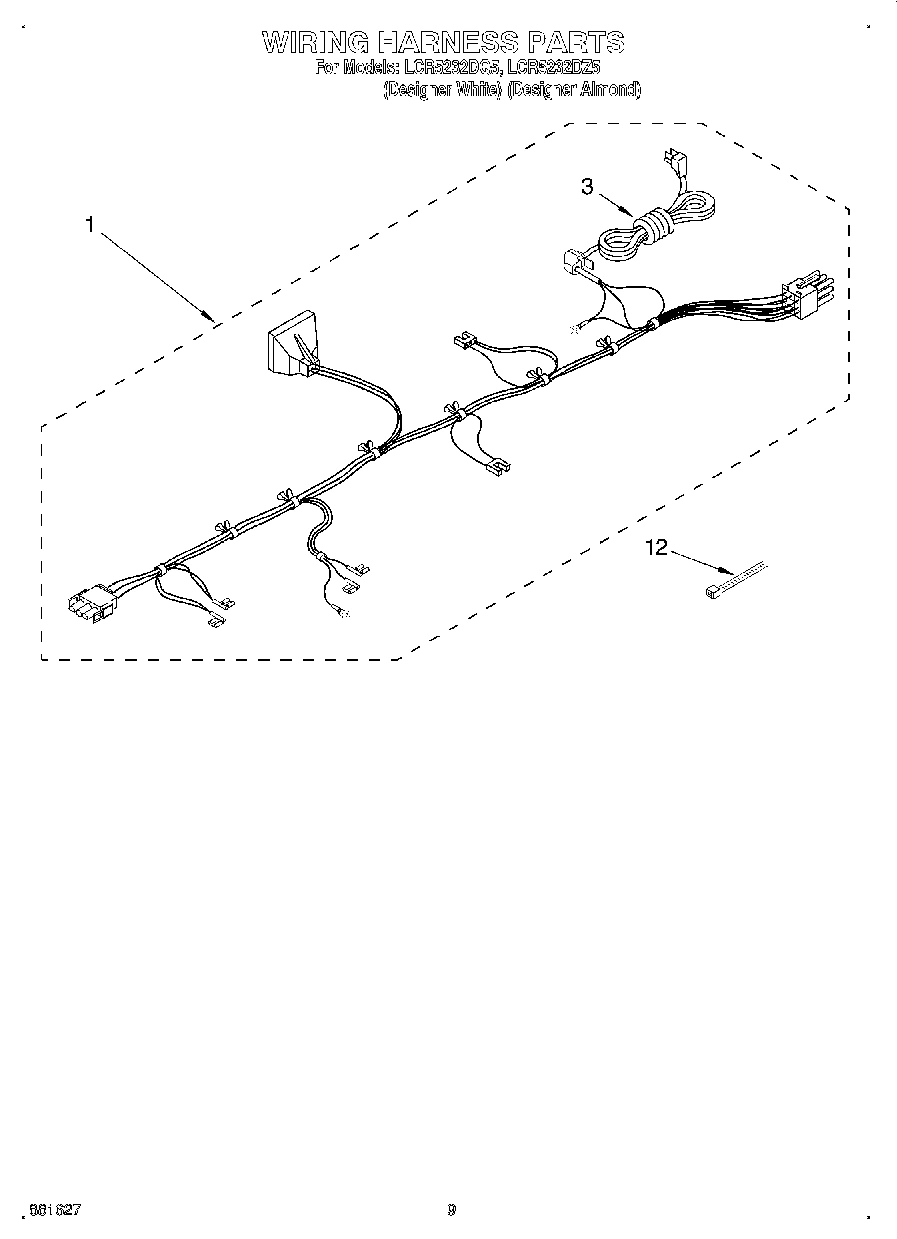

Harns/Power-Cord (Includes Clip.) WPL 3967634 Contact Us For Availability

1

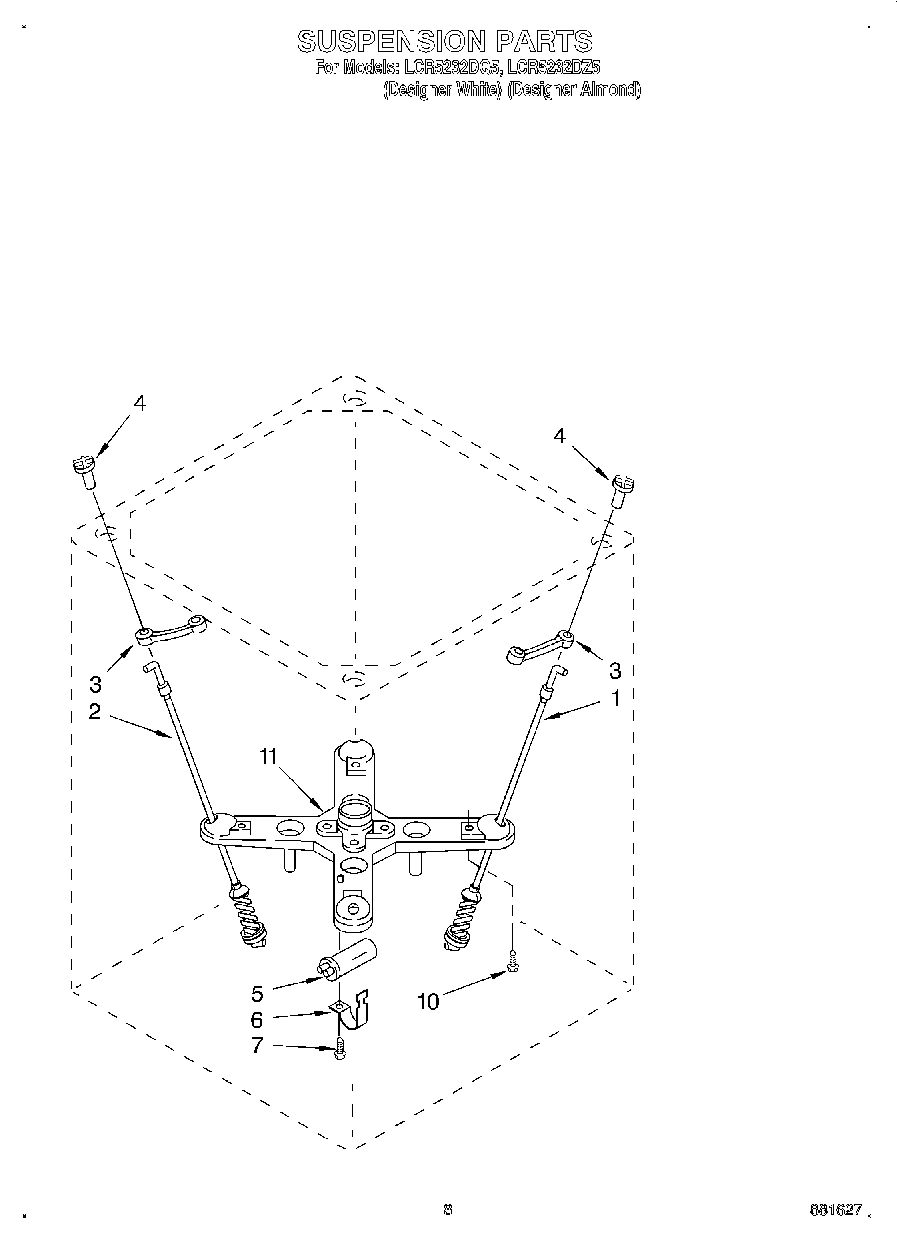

Suspension Rod, Front (2) WPL 3935137 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

90984 Whirlpool Nut Backorder WPL 90984 $9.13

2

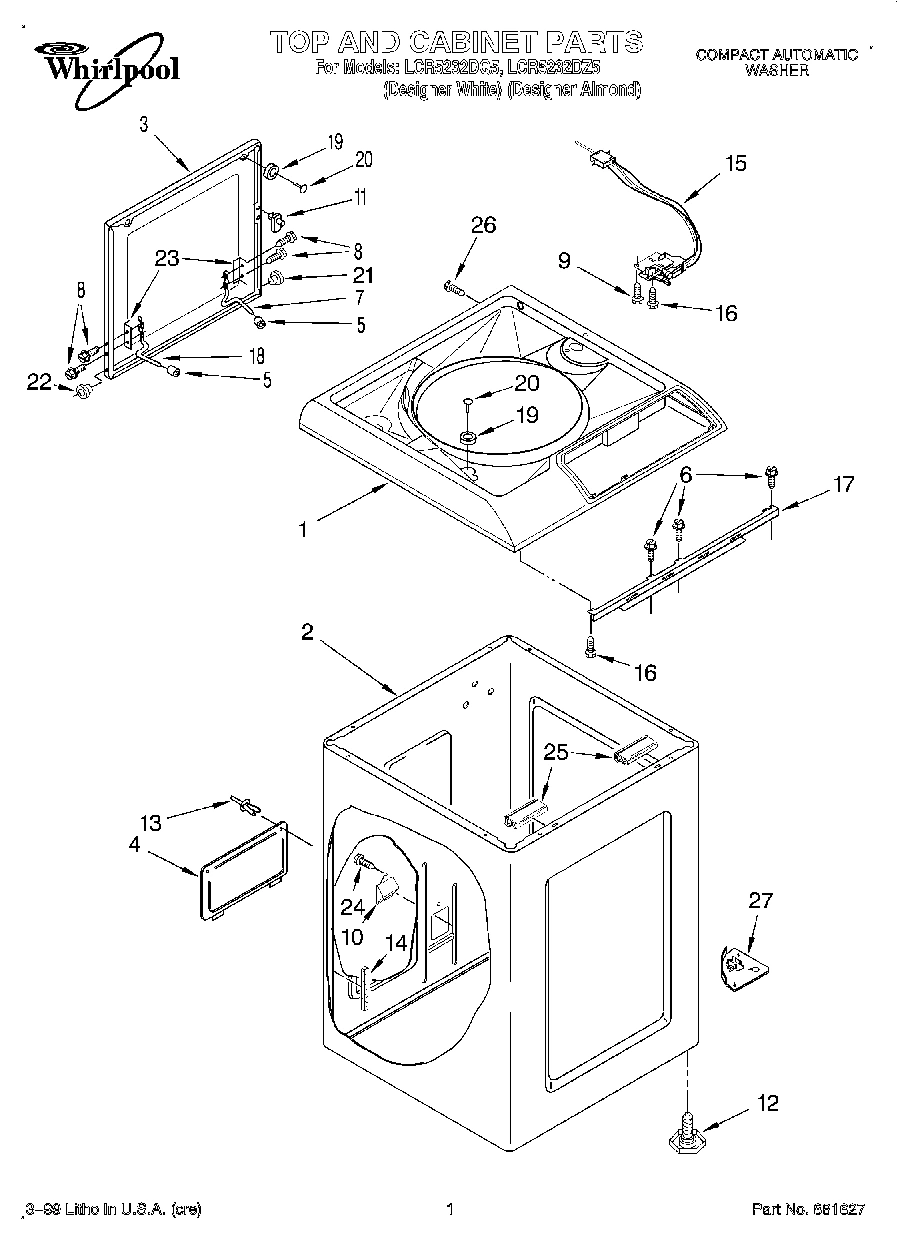

Cabinet (White) WPL 3935109 Contact Us For Availability

2

Cabinet (Almond) WPL 3935110 Contact Us For Availability

2

Filter WPL 3428391 Contact Us For Availability

2

Suspension Rod, Rear (2) WPL 3935136 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3967051 Whirlpool Strap Backorder WPL WP3967051 $3.70

3

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

3

Shield & Warning Motor Splash WPL 3967287 Contact Us For Availability

3

Lid (White) WPL 3935590 Contact Us For Availability

3

Lid (Almond) WPL 3935591 Contact Us For Availability

3

Kit, (Power Cord Only) WPL 3966718 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

4

Ball, Upper Suspension (4) WPL 3968380 Contact Us For Availability

4

Brake Band WPL 3428323 Contact Us For Availability

4

Panel-Cabinet Access WPL 3430058 Contact Us For Availability

4

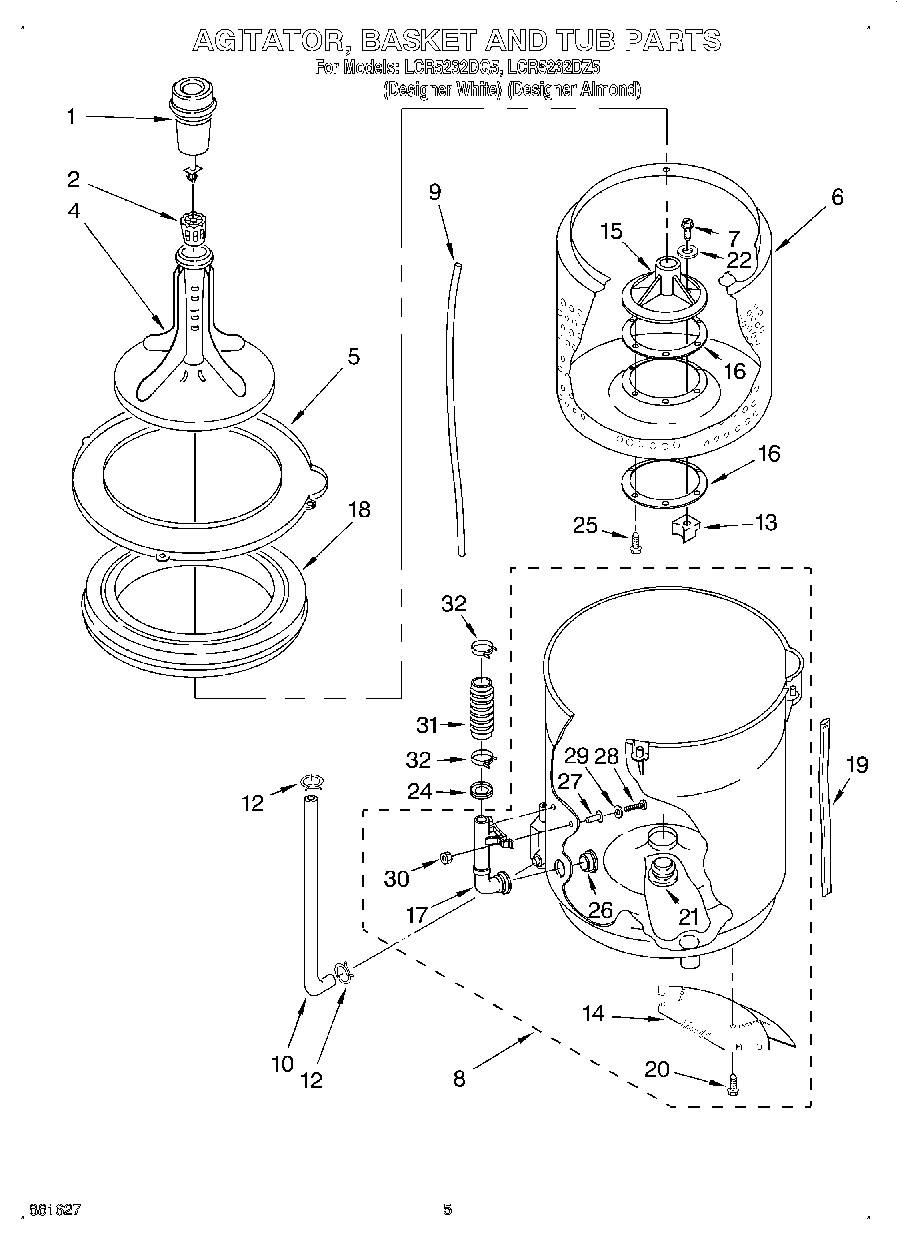

Agitator WPL 3428392 Contact Us For Availability

5

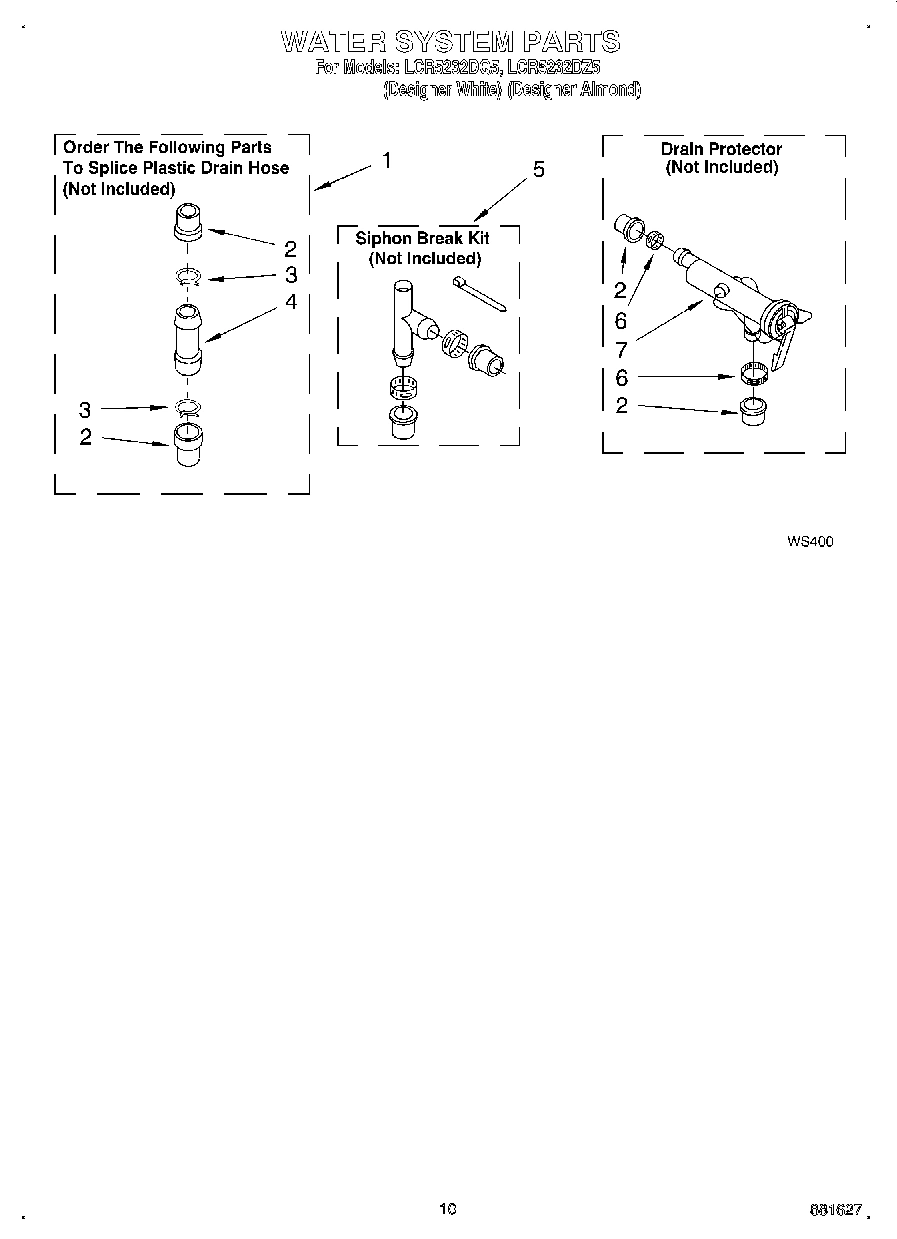

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

5

Capacitor WPL 3429938 Contact Us For Availability

5

Spring, Brake WPL 3428342 Contact Us For Availability

5

Tub Ring WPL 3429902 Contact Us For Availability

6

Basket WPL 3428186 Contact Us For Availability

6

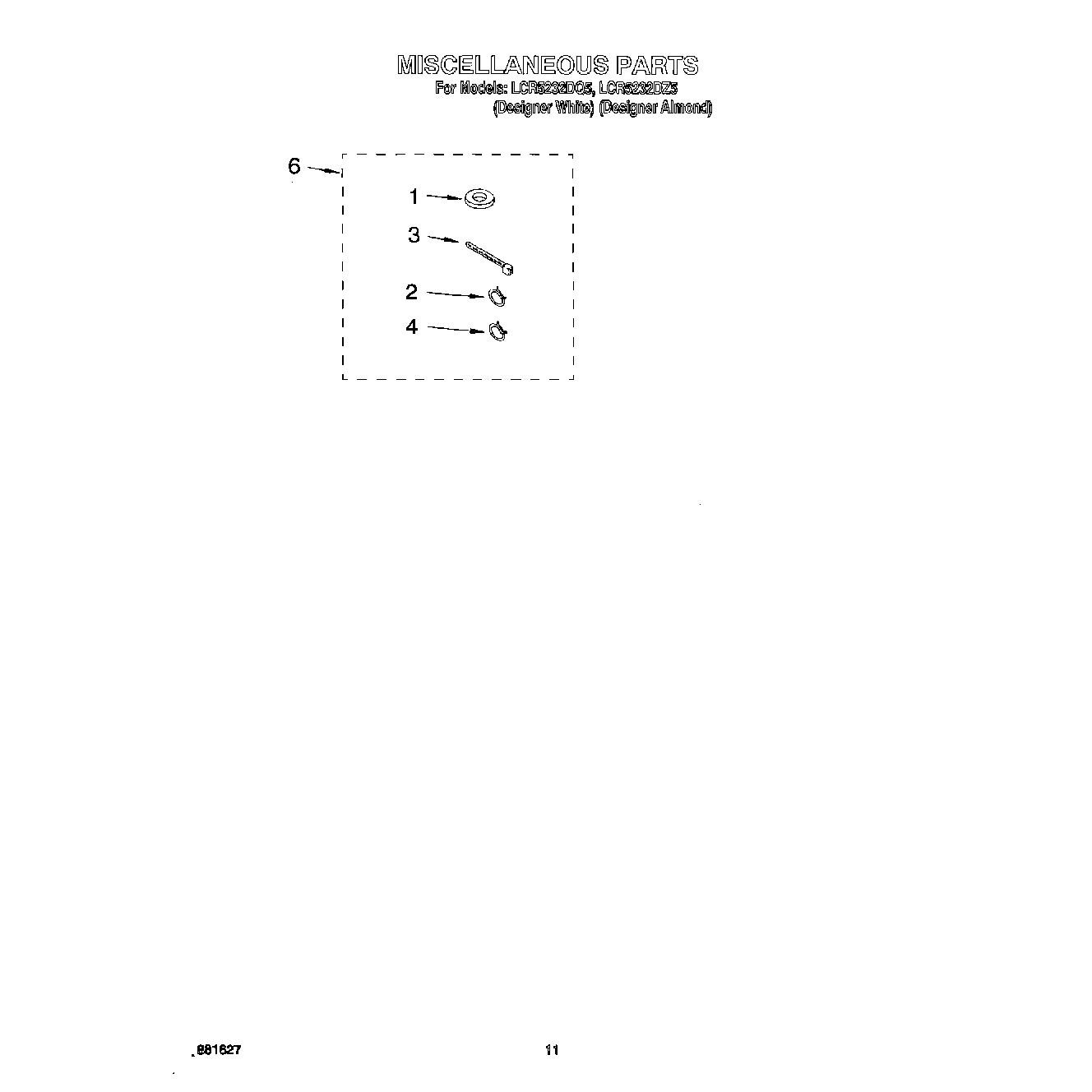

Miscellaneous Parts Bag WPL 3428855 Contact Us For Availability

6

Bracket, Capacitor WPL 3428343 Contact Us For Availability

7

Pulley, Splutch WPL 3428359 Contact Us For Availability

7

Screw WPL 3428430 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Hinge, Lid (R.H.) WPL 3935351 Contact Us For Availability

7

Screw, Bracket WPL 3934040 Contact Us For Availability

8

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

8

Cam, Splutch WPL 3428378 Contact Us For Availability

8

Tub & Inlet Asy. WPL 3935537 Contact Us For Availability

9

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

9

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

9

Screw WPL 3935634 Contact Us For Availability

Spring, Splutch WPL 3934212 Contact Us For Availability

Cover, Pump WPL 3428525 Contact Us For Availability

Hose, Bleach WPL 3430339 Contact Us For Availability

Screw (4) WPL 3428033 Contact Us For Availability

11

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

11

Slider, Splutch WPL 3428380 Contact Us For Availability

11

Support, Tub (Includes Bearing) WPL 3966528 Contact Us For Availability

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Cam Ring, Splutch WPL 3428379 Contact Us For Availability

Foot (4) WPL 3429895 Contact Us For Availability

13

Solenoid WPL 3966774 Contact Us For Availability

13

Saddle Block WPL 3428429 Contact Us For Availability

13

Rivet, Plastic (2) WPL 3429823 Contact Us For Availability

14

Protector, Edge WPL 3429705 Contact Us For Availability

14

Shield, Tub/Motor WPL 3428814 Contact Us For Availability

15

285935 Whirlpool Lid Switch Backorder WPL 285935 $45.99

15

Hub, Drive WPL 3934735 Contact Us For Availability

15

Plate, Motor & Bearing Assy. WPL 3430205 Contact Us For Availability

16

Gasket, Hub (2) WPL 3428179 Contact Us For Availability

16

Screw, Lid Switch WPL 3935602 Contact Us For Availability

17

Bracket-Cabinet To Top WPL 3935198 Contact Us For Availability

17

Inlet-Tube Assy. WPL 3935347 Contact Us For Availability

18

Drive Belt WPL 3934700 Contact Us For Availability

18

Hinge, Lid (L.H.) WPL 3935352 Contact Us For Availability

18

Balance Ring WPL 3934565 Contact Us For Availability

19

Bumper WPL 3935442 Contact Us For Availability

19

Hose, Tub Overflow WPL 3966238 Contact Us For Availability

20

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $2.51

20

Rivet WPL 3430186 Contact Us For Availability

20

Motor, Main Drive (Includes Item 6) WPL 3934201 Contact Us For Availability

21

WP3968381 Whirlpool Tub Seal Backorder WPL WP3968381 $14.22

21

Shield, Pulley WPL 3935999 Contact Us For Availability

21

Bearing, Hinge (RH) WPL 3935739 Contact Us For Availability

22

Washer WPL 3429750 Contact Us For Availability

22

Pump (Complete) WPL 3967956 Contact Us For Availability

22

Bearing, Hinge (LH) WPL 3935889 Contact Us For Availability

23

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

24

Screw WPL 3428014 Contact Us For Availability

24

Ring-Protector WPL 3935678 Contact Us For Availability

25

Screw (6) WPL 3934714 Contact Us For Availability

25

Screw WPL 3967955 Contact Us For Availability

25

Extrude-Top WPL 3935201 Contact Us For Availability

26

Bolt, Motor Mounting (2) WPL 3934663 Contact Us For Availability

26

Screw (4) WPL 3429189 Contact Us For Availability

26

Seal WPL 3935332 Contact Us For Availability

Pin, Brake Band WPL 3934183 Contact Us For Availability

Gusset (Lower (L.H.)) WPL 3935128 Contact Us For Availability

Gusset (Lower (R.H.)) WPL 3935129 Contact Us For Availability

Well-Nut (2) WPL 3935431 Contact Us For Availability

28

Hose, Valve To Water Inlet WPL 3935330 Contact Us For Availability

28

Screw, Well Nut (2) WPL 3935432 Contact Us For Availability

29

Shield & Warning Water Valve WPL 3967286 Contact Us For Availability

29

Washer, Nut (2) WPL 3935786 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

30

Hex-Nut (2) WPL 3935437 Contact Us For Availability

31

Hose-Corrugated WPL 3429900 Contact Us For Availability

31

Funnel-Inlet Asy. WPL 3935327 Contact Us For Availability

32

Clamp-Hose WPL 3935874 Contact Us For Availability

33

Switch, Cycle Selection WPL 3966207 Contact Us For Availability

34

Shield, Solenoid WPL 3967288 Contact Us For Availability

35

Switch, Water Temperature WPL 3966209 Contact Us For Availability

37

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

37

Lock, Solenoid WPL 3429416 Contact Us For Availability

38

Screw, Pump Mtg. (2) WPL 3400038 Contact Us For Availability

38

Shield, Motor WPL 3430197 Contact Us For Availability

39

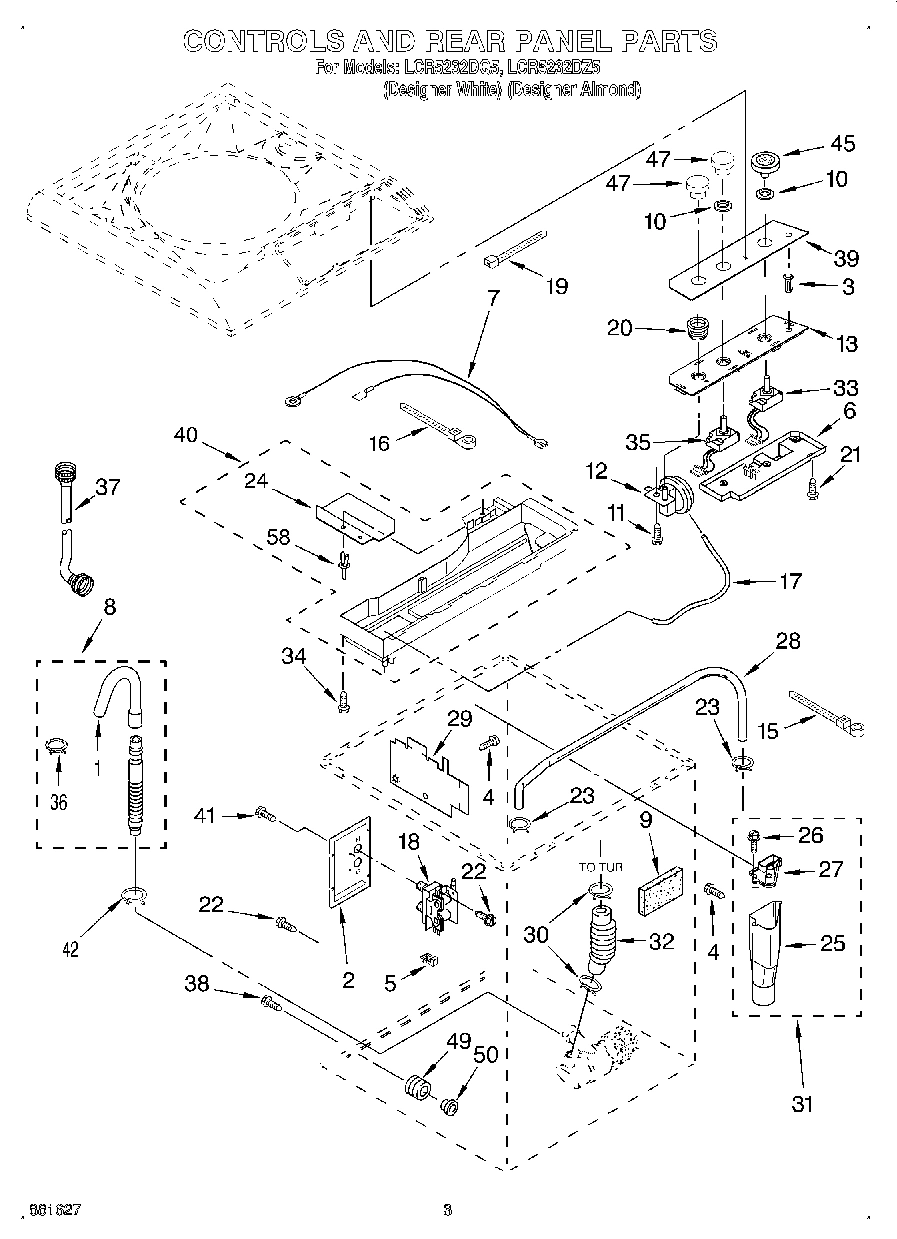

Panel, Console (Includes Inlay) (White) WPL 3935508 Contact Us For Availability

39

Panel, Console (Includes Inlay) (Almond) WPL 3935509 Contact Us For Availability

39

Shield, Pump WPL 3967815 Contact Us For Availability

40

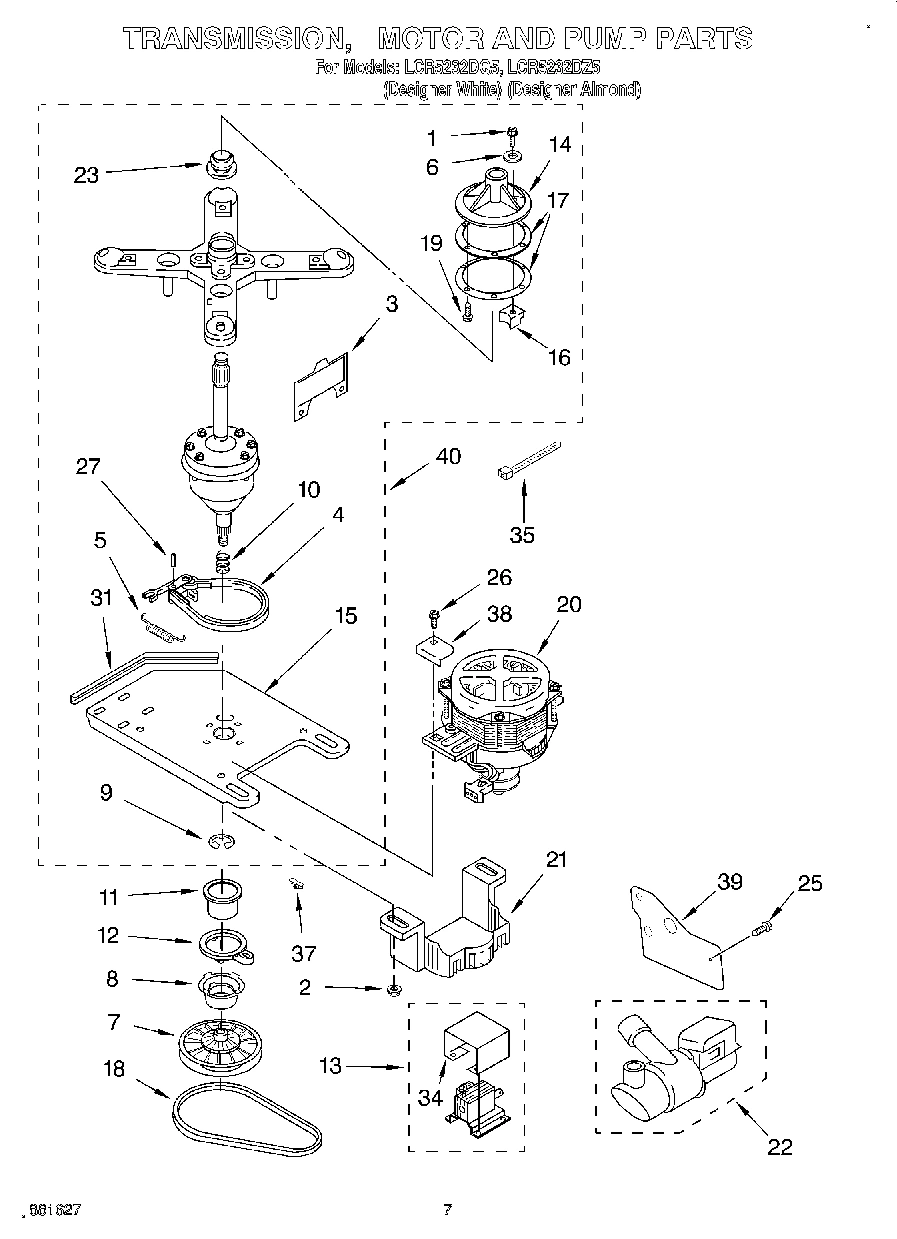

Transmission Kit WPL 3966743 Contact Us For Availability

40

Top, Shield Assy. WPL 3935627 Contact Us For Availability

41

Screw, 10-16 x 1/2 WPL 3934148 Contact Us For Availability

42

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

45

Knob, Cycle Selection (White) WPL 3935461 Contact Us For Availability

45

Knob, Cycle Selection (Almond) WPL 3935462 Contact Us For Availability

47

3957797 Whirlpool Knob Backorder WPL 3957797 $29.43

47

WP3957796 Whirlpool Knob Backorder WPL WP3957796 $30.93

49

WPL 3428526 WPL 3428526 Contact Us For Availability

50

WPL 3428933 WPL 3428933 Contact Us For Availability
