Model RCA L3B360GL0BG Electric Range – Common Parts & Diagrams
0
1
2
3

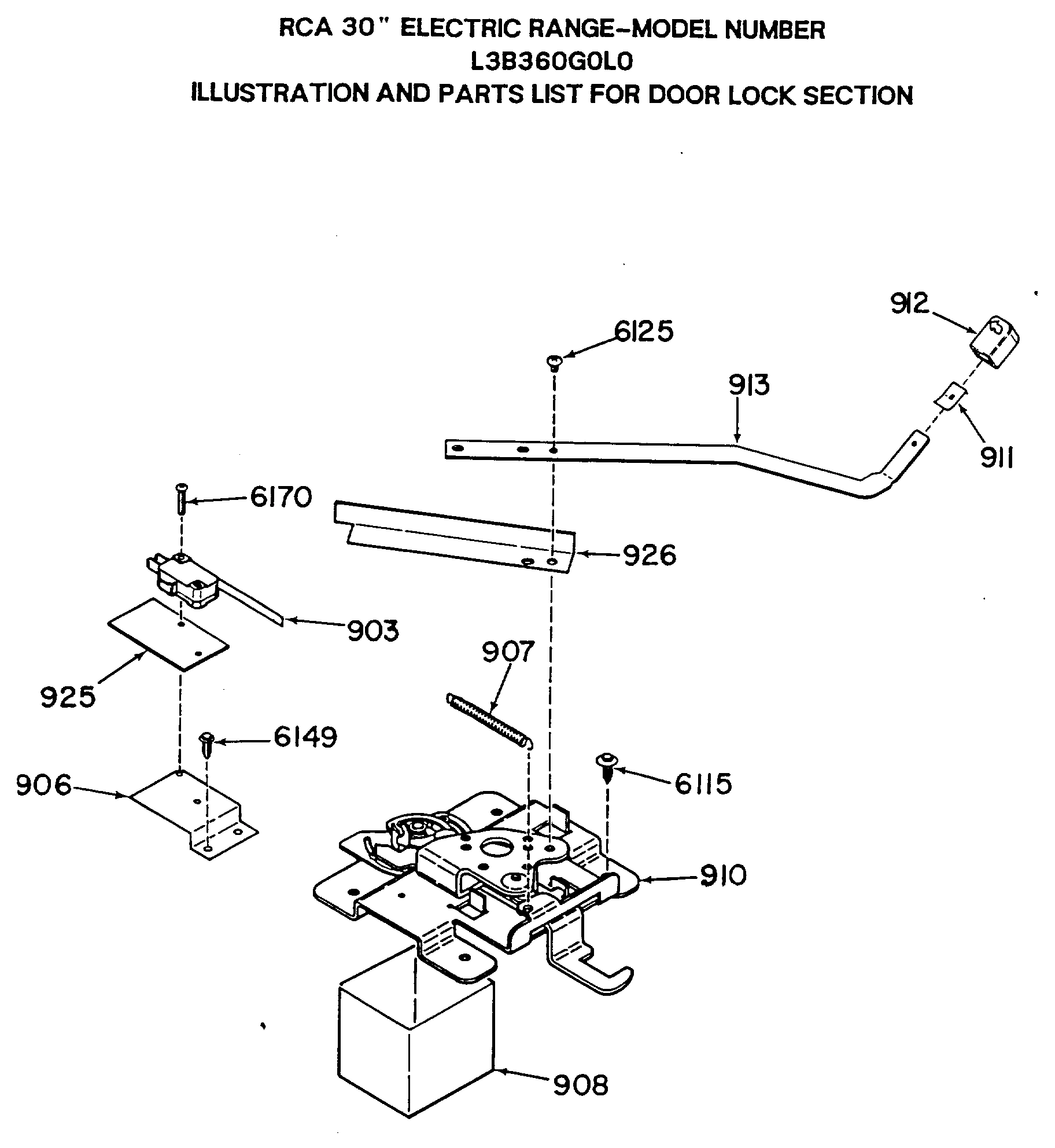

ILLUSTRATION AND PARTS LIST FOR DOOR LOCK SECTION
Common parts from model RCA L3B360GL0BG Electric Range
1
USE AND CARE BOOK GEN 79-4015 Contact Us For Availability

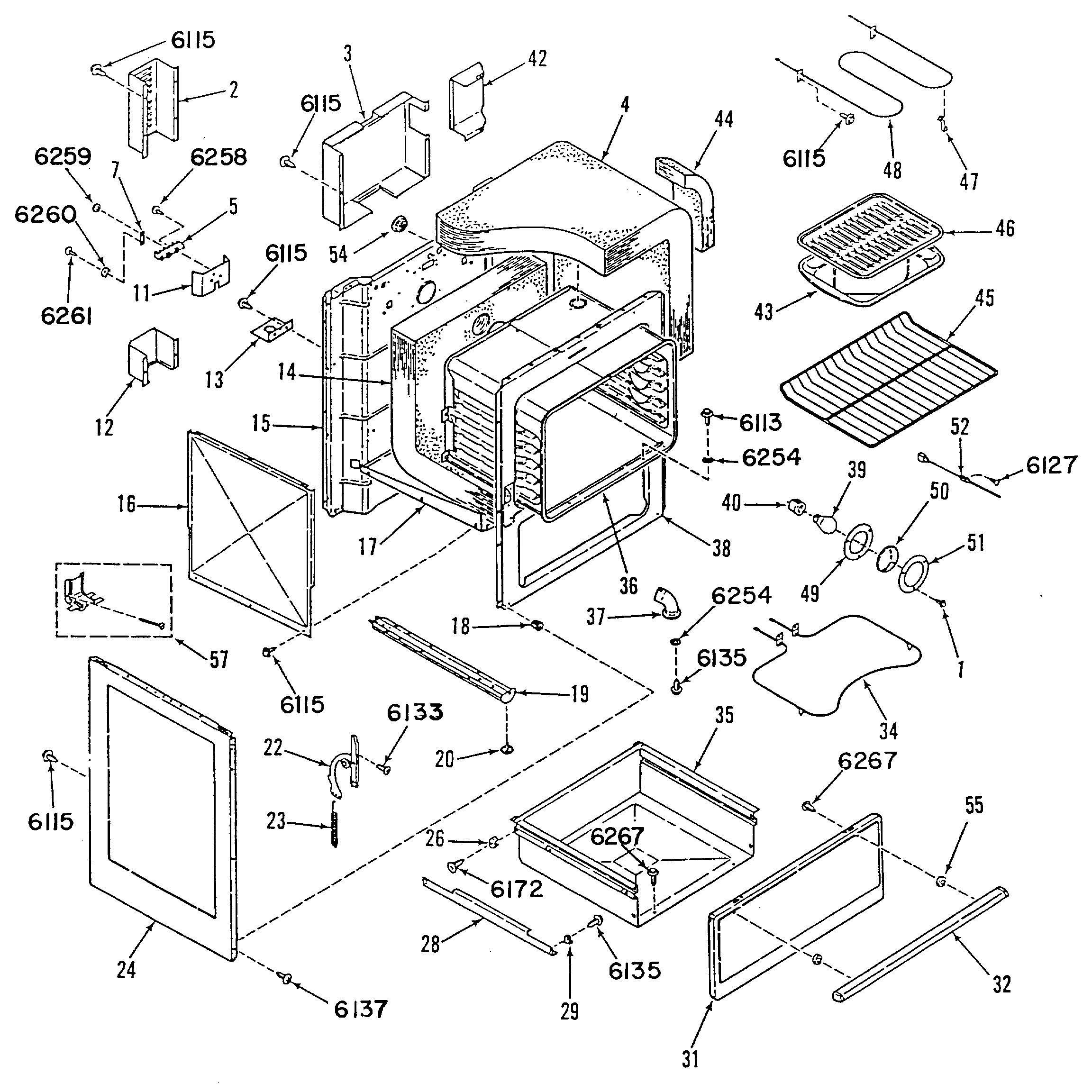

2
WIRE SHIELD-UPPER GEN WB02X9527 Contact Us For Availability
3
GEN WB02X9444 GEN WB02X9444 Contact Us For Availability
4
GEN WB02X9423 GEN WB02X9423 Contact Us For Availability
5
GEN WB17X0213 GEN WB17X0213 Contact Us For Availability
7
GEN WB02X9424 GEN WB02X9424 Contact Us For Availability
11
GEN WB02X9425 GEN WB02X9425 Contact Us For Availability
12
GEN WB02X9426 GEN WB02X9426 Contact Us For Availability
13
PLATE-POWER CORD MOUNT GEN WB02X9427 Contact Us For Availability
14
INSULATION-OVEN BACK GEN WB02X9144 Contact Us For Availability
15
MAIN BACK GEN WB63X0350 Contact Us For Availability
16
INSULATION RETAINER-SIDE GEN WB02X9445 Contact Us For Availability
17
GEN WB02X9429 GEN WB02X9429 Contact Us For Availability
18
WXPANSION NUT/SPACER GEN WB01X1177 Contact Us For Availability
19
BASE-WITH LEVELING LEGS GEN WB02X9040 Contact Us For Availability
20
LEVELING LEGS GEN WB02X9025 Contact Us For Availability
23
SPRING-OVEN DOOR-L/R GEN WB09X0273 Contact Us For Availability
24
BODY SIDE-L/R GEN WB63X0330 Contact Us For Availability
26
SLIDE BLOCK-REAR-L/R GEN WB02X9146 Contact Us For Availability
28
GEN WB02X9147 GEN WB02X9147 Contact Us For Availability
29
SLIDE BLOCK-FRONT-L/R GEN WB02X9148 Contact Us For Availability
31
FRONT PANEL-DRAWER GEN WB56X1969 Contact Us For Availability
32
HANDLE-OVEN/DRAWER GEN WB15X0272 Contact Us For Availability
35
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
36
GEN WB53X0279 GEN WB53X0279 Contact Us For Availability
37
GEN WB02X9879 GEN WB02X9879 Contact Us For Availability
38
GEN WB63X0353 GEN WB63X0353 Contact Us For Availability
39
OVEN LAMP-40 WATT GEN BUY LOCAL Contact Us For Availability
40
GEN WB08X0279 GEN WB08X0279 Contact Us For Availability
42
GEN WB02X9139 GEN WB02X9139 Contact Us For Availability
44
INSULATION GEN WB02X9430 Contact Us For Availability
45
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
49
GASKET-OVEN LAMP LENS GEN WB02X9151 Contact Us For Availability
50
GEN WB36X0754 GEN WB36X0754 Contact Us For Availability
51
RETAINER-OVEN LAMP GEN WB02X9150 Contact Us For Availability
54
BUSHING GEN WB02X9447 Contact Us For Availability
55
HANDLE SPACER GEN WB02X9037 Contact Us For Availability

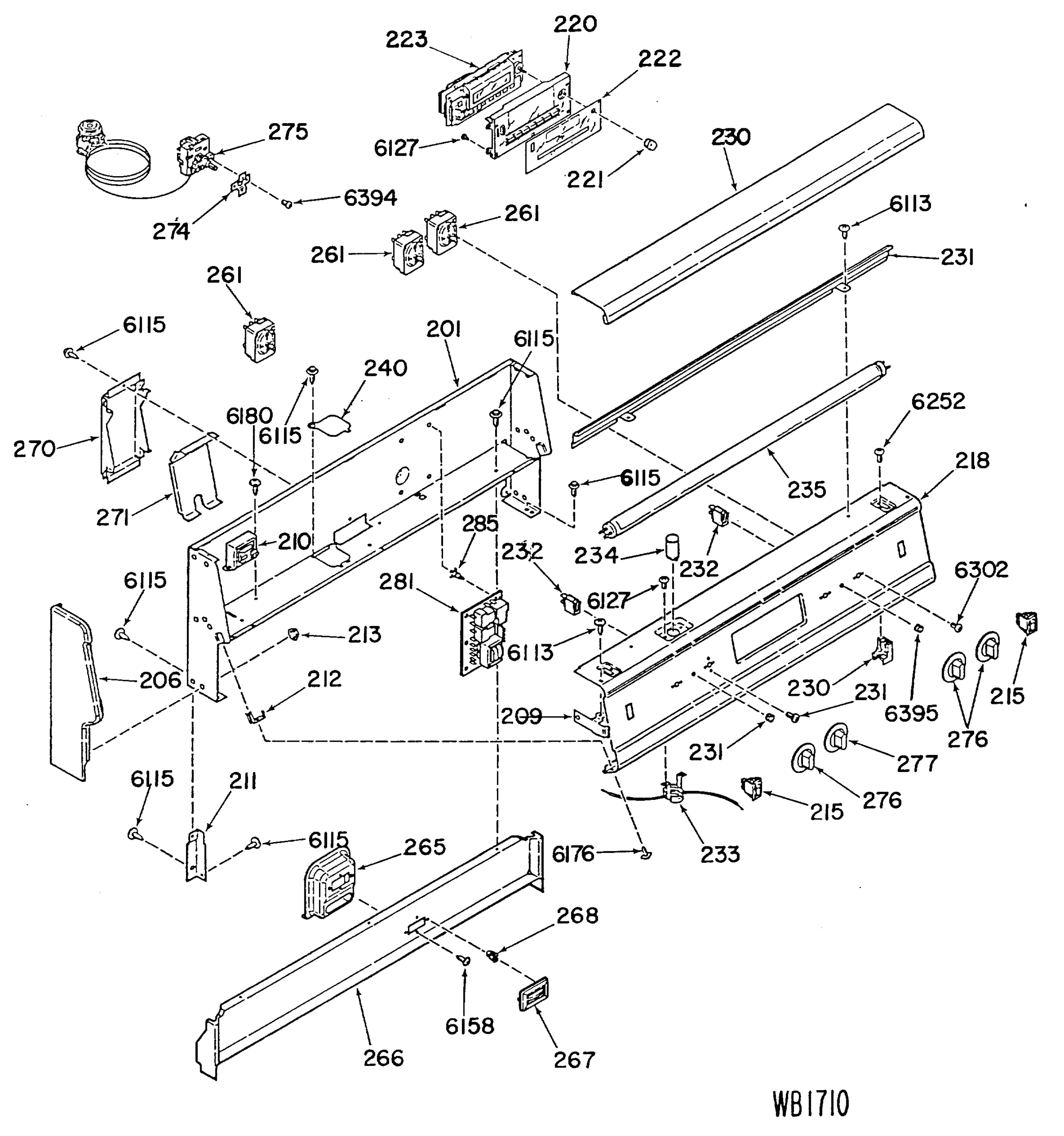

206
GEN WB07X1747 GEN WB07X1747 Contact Us For Availability
209
GEN WB02X9757 GEN WB02X9757 Contact Us For Availability
210
GEN WB20X0116 GEN WB20X0116 Contact Us For Availability
211
GEN WB02X9387 GEN WB02X9387 Contact Us For Availability
211
GEN WB02X9388 GEN WB02X9388 Contact Us For Availability
212
GEN WB02X9443 GEN WB02X9443 Contact Us For Availability
213
PAL NUT GEN WB02X9650 Contact Us For Availability
215
ROCKER SWITCH GEN WB24X0450 Contact Us For Availability
218
GEN WB07X1748 GEN WB07X1748 Contact Us For Availability
220
LENS-CLOCK GEN WB36X0781 Contact Us For Availability
221
KNOB-CLOCK GEN WB03X0780 Contact Us For Availability
222
CLOCK PLATE GEN WB02X9669 Contact Us For Availability
223
CLOCK/OVEN CONTROL GEN WB27K5061 Contact Us For Availability
230
LAMP HOLDER GEN WB08X0291 Contact Us For Availability
230
CANOPY GEN WB36X0787 Contact Us For Availability
231
BAFFLE GEN WB02X9756 Contact Us For Availability
231
LENS-INDICATOR LIGHT GEN WB25X0098 Contact Us For Availability
233
STARTER BASE GEN WB08X0290 Contact Us For Availability
234
STARTER GEN WB02X9390 Contact Us For Availability
235
FLUORESCENT BULB GEN WB02X4666 Contact Us For Availability
240
GEN WB02X9873 GEN WB02X9873 Contact Us For Availability
265
VENT BOX GEN WB38X0122 Contact Us For Availability
266
GEN WB56X2033 GEN WB56X2033 Contact Us For Availability
267
GEN WB07X1764 GEN WB07X1764 Contact Us For Availability
268
CLIP GEN WB02X9875 Contact Us For Availability
270
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
271
GEN WB02X9416 GEN WB02X9416 Contact Us For Availability
274
BRACKET GEN WB02X9874 Contact Us For Availability
275
THERMOSTAT-THERMAL UNIT GEN WB21X0517 Contact Us For Availability
276
KNOB-INFINITE CONTROL GEN WB03X0812 Contact Us For Availability
277
KNOB-THERMOSTAT GEN WB03X0823 Contact Us For Availability
281
GEN WB27X0489 GEN WB27X0489 Contact Us For Availability
285
SPACER-CIRCUIT BOARD GEN WB02X9158 Contact Us For Availability

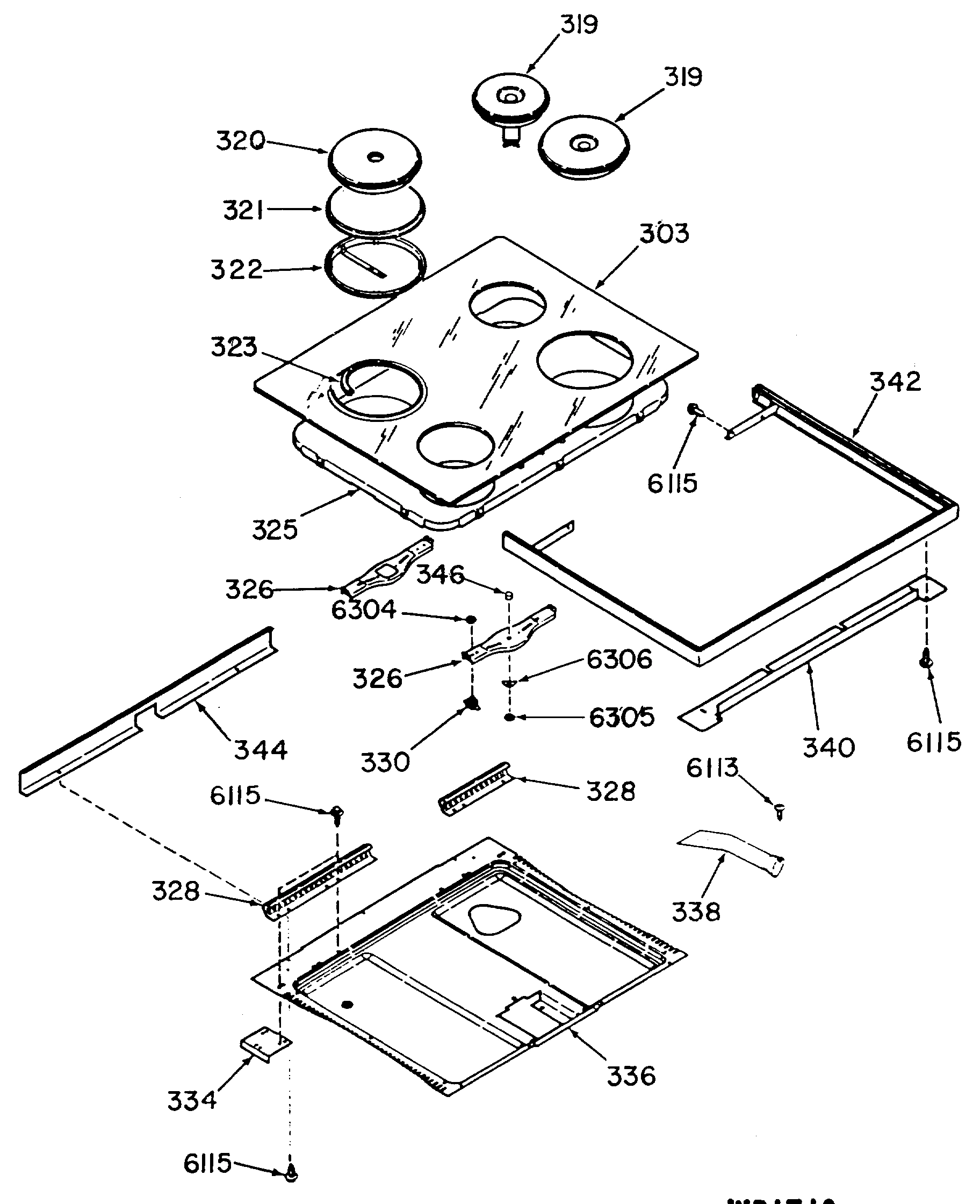

303
COOKTOP GLASS-BLACK GEN WB62X1708 Contact Us For Availability
319
SURFACE ELEMENT-LARGE GEN WB30X0260 Contact Us For Availability
319
SURFACE ELEMENT-SMALL GEN WB30X0261 Contact Us For Availability
320
SURFACE ELEMENT-THERMAL GEN WB30X0262 Contact Us For Availability
321
TRIM RING-L FRONT/R REAR GEN WB32X0110 Contact Us For Availability
321
TRIM RING-R FRONT GEN WB32X0111 Contact Us For Availability
321
TRIM RING-L REAR GEN WB32X0112 Contact Us For Availability
322
GASKET RING-L F/ R GEN WB02X9507 Contact Us For Availability
322
GASKET RING-RF GEN WB02X9508 Contact Us For Availability
322
GASKET RING-LR GEN WB02X9509 Contact Us For Availability
323
RING GASKET-LF/RR GEN WB02X9510 Contact Us For Availability
323
RING GASKET-RF GEN WB02X9511 Contact Us For Availability
323
RING GASKET-LR GEN WB02X9512 Contact Us For Availability
325
GEN WB63X0419 GEN WB63X0419 Contact Us For Availability
326
ELEMENT CLAMP-LF, RR, RF GEN WB02X9864 Contact Us For Availability
326
ELEMENT CLAMP-LR GEN WB02X9865 Contact Us For Availability
328
GLASS SUPPORT-RIGHT GEN WB02X9876 Contact Us For Availability
328
GLASS SUPPORT-LEFT GEN WB02X9877 Contact Us For Availability
330
GEN WB21X0498 GEN WB21X0498 Contact Us For Availability
334
REINFORCEMENT PLATE GEN WB02X9418 Contact Us For Availability
336
BURNER BOX BOTTOM GEN WB63X0362 Contact Us For Availability
338
GEN WB02X9526 GEN WB02X9526 Contact Us For Availability
340
GEN WB02X9878 GEN WB02X9878 Contact Us For Availability
342
FRAME-COOKTOP GLASS GEN WB07X1752 Contact Us For Availability
344
BURNER BOX BAFFLE GEN WB02X9524 Contact Us For Availability
346
GEN WB02X9872 GEN WB02X9872 Contact Us For Availability

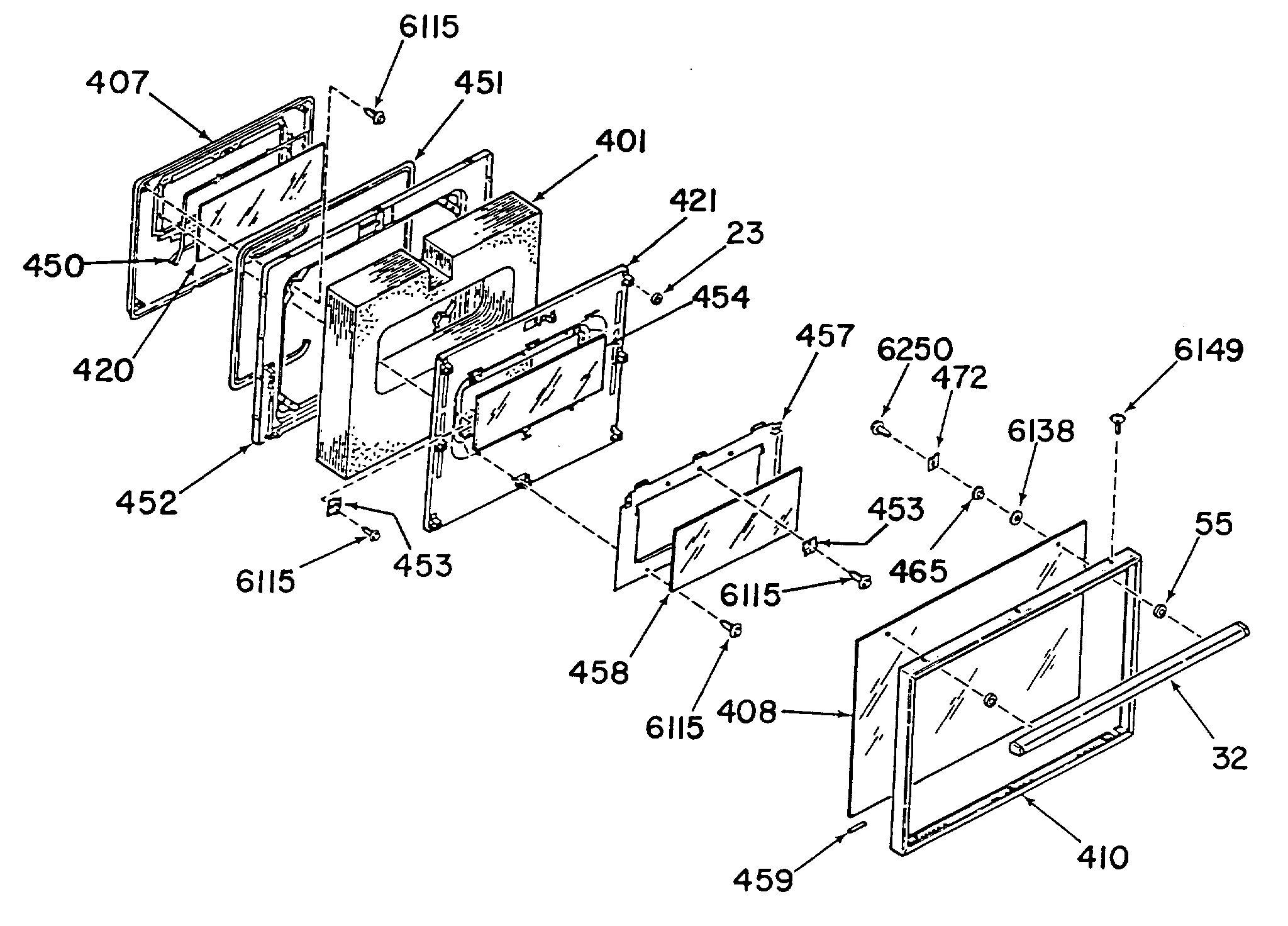

401
INSULATION GEN WB02X9169 Contact Us For Availability
407
LINER-INNER DOOR GEN WB02X9171 Contact Us For Availability
410
GEN WB07X1729 GEN WB07X1729 Contact Us For Availability
420
INNER GLASS GEN WB56X1905 Contact Us For Availability
421
INSULATION RETAINER GEN WB02X9372 Contact Us For Availability
452
BAFFLE GEN WB56X1904 Contact Us For Availability
453
GLASS RETAINER GEN WB02X9177 Contact Us For Availability
453
GLASS RETAINER GEN WB02X9382 Contact Us For Availability
454
CENTER GLASS GEN WB56X1907 Contact Us For Availability
457
PLATE-GLASS MOUNTING GEN WB02X9178 Contact Us For Availability
458
INTERMEDIATE GLASS GEN WB56X1906 Contact Us For Availability
459
CUSGION-DOOR GLASS GEN WB02X9036 Contact Us For Availability
465
SPACER GEN WB02X9039 Contact Us For Availability
472
GLASS RETAINER GEN WB02X9384 Contact Us For Availability
903
GEN WB24X0454 GEN WB24X0454 Contact Us For Availability
906
GEN WB02X9882 GEN WB02X9882 Contact Us For Availability
907
SPRING-LOCK HANDLE GEN WB09X0251 Contact Us For Availability
908
RETAINER GEN WB02X9448 Contact Us For Availability
910
GEN WB14X0128 GEN WB14X0128 Contact Us For Availability
911
GEN WB02X9404 GEN WB02X9404 Contact Us For Availability
912
KNOB-LATCH HANDLE GEN WB03X0809 Contact Us For Availability
913
LATCH HANDLE GEN WB02X9728 Contact Us For Availability
925
INSULATOR-MICRO SWITCH GEN WB02X9880 Contact Us For Availability
926
GEN WB02X9881 GEN WB02X9881 Contact Us For Availability
6113
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
6125
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
6138
WASHER GEN WB01X1138 Contact Us For Availability
6159
FELT WASHER GEN WB01X1159 Contact Us For Availability
6170
GEN WB01X1170 GEN WB01X1170 Contact Us For Availability
6172
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
6176
SCREW GEN WB01X1176 Contact Us For Availability
6250
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
6252
GEN WB01X1252 GEN WB01X1252 Contact Us For Availability
6260
GEN WB01X1260 GEN WB01X1260 Contact Us For Availability
6302
SCREW GEN WB01X1302 Contact Us For Availability
6304
NUT GEN WB01X1304 Contact Us For Availability
6305
NUT GEN WB01X1305 Contact Us For Availability
6306
SPRING WASHER GEN WB01X1306 Contact Us For Availability
6394
GEN WB01X1394 GEN WB01X1394 Contact Us For Availability
6395
GEN WB01X1395 GEN WB01X1395 Contact Us For Availability
× ![]()
