Model RCA L3B355GL0 Electric Range – Common Parts & Diagrams
0
1
2
3

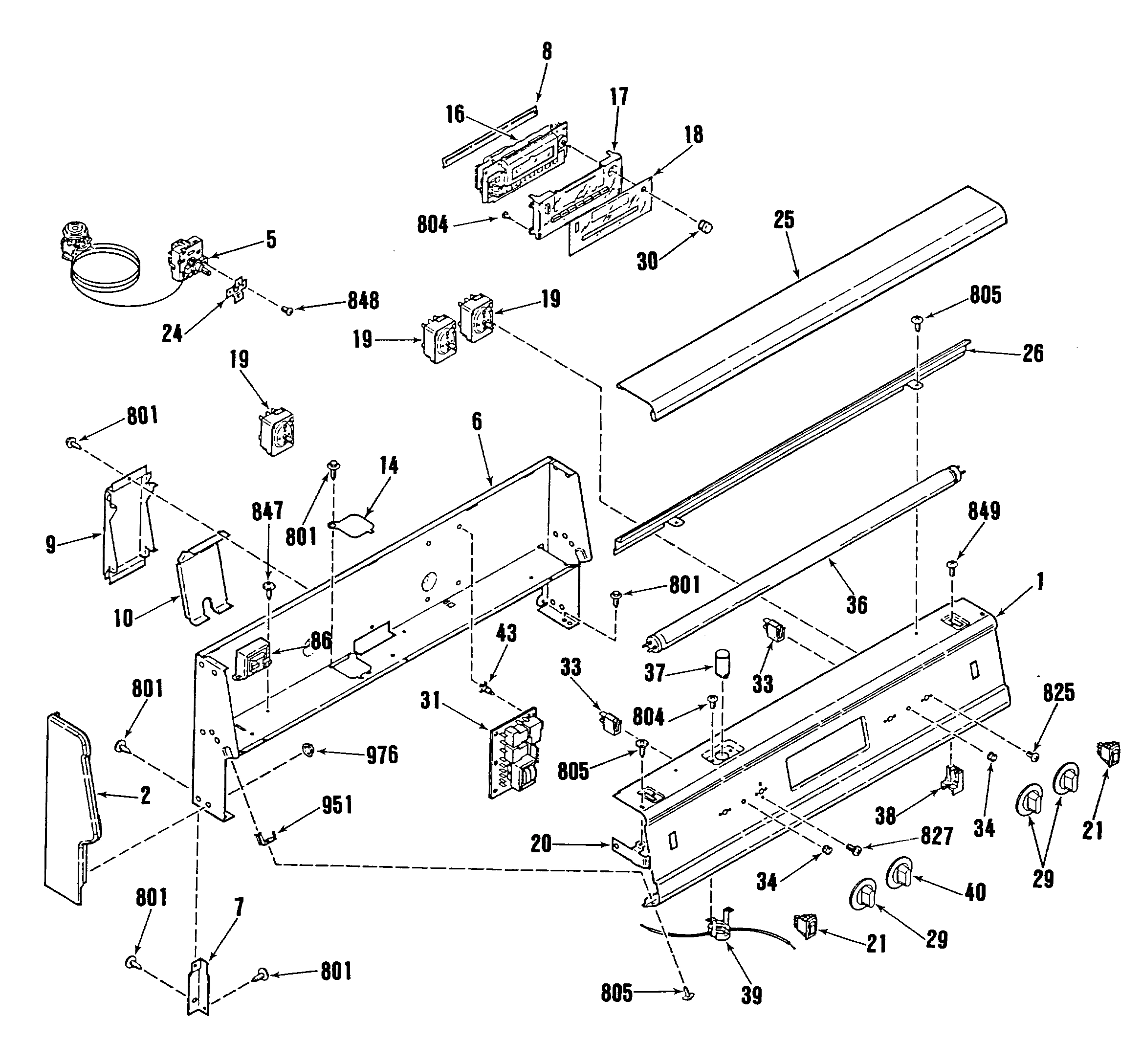

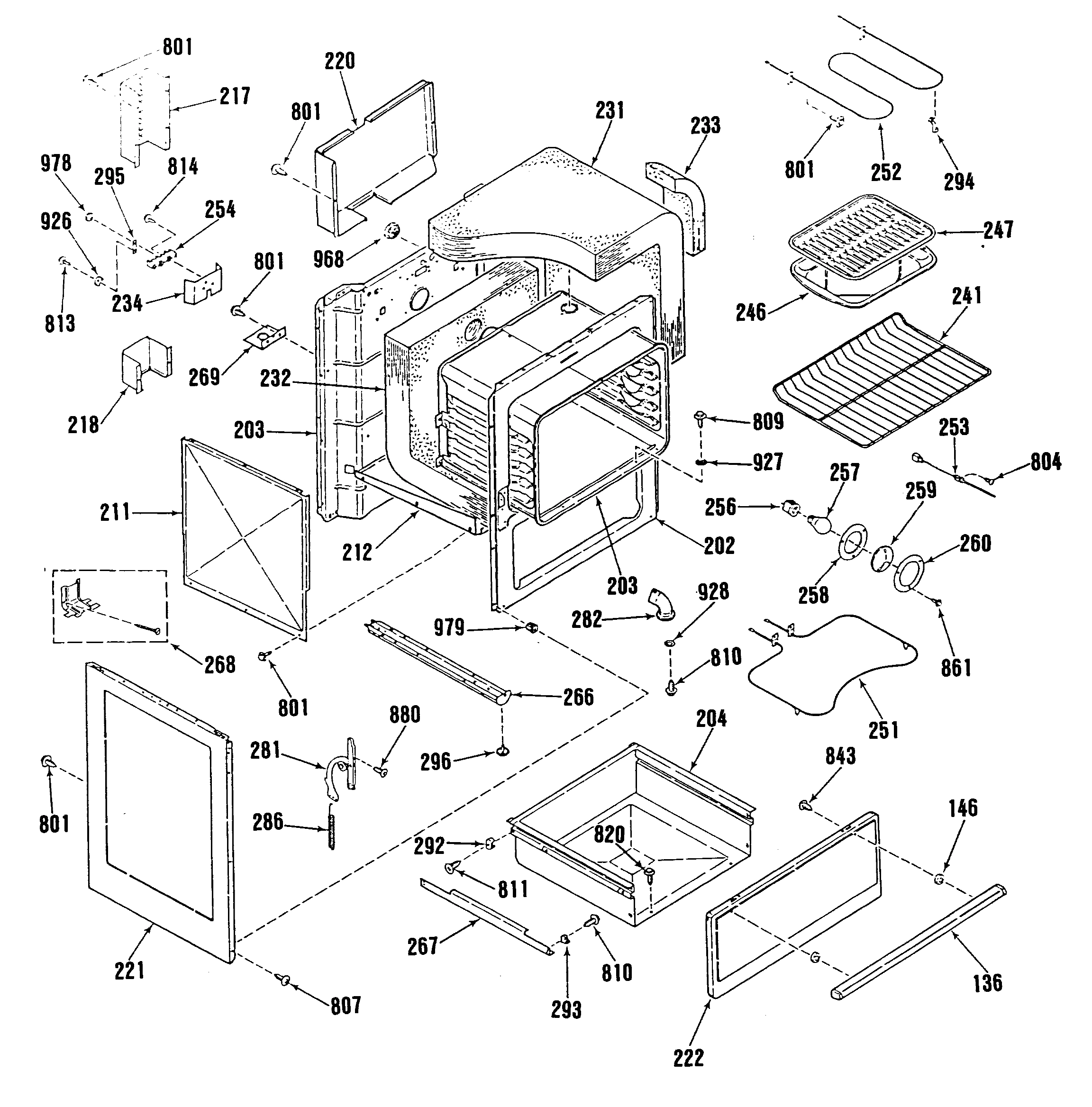

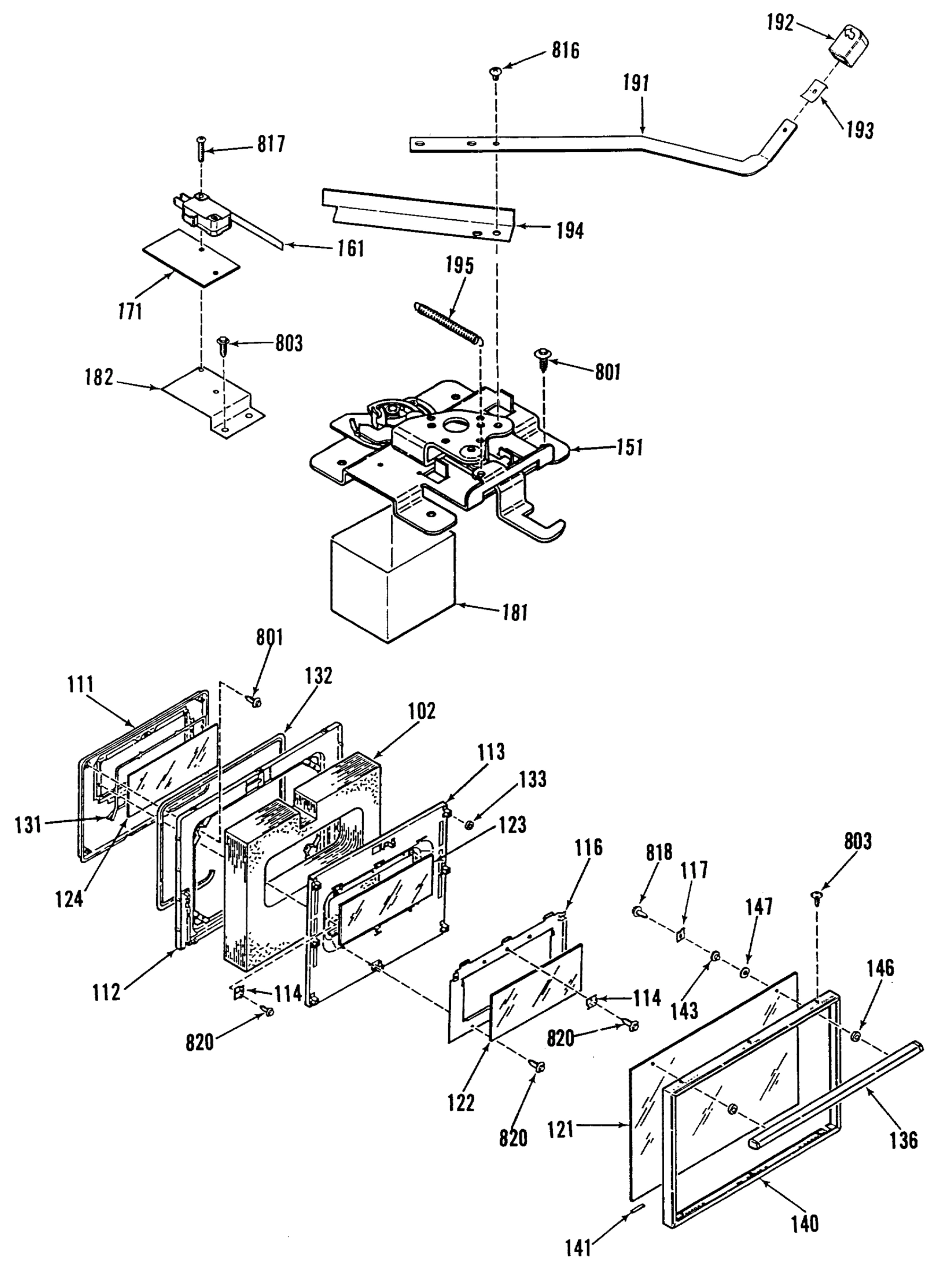

Common parts from model RCA L3B355GL0 Electric Range
2
END CAP RT GEN WB07X1747 Contact Us For Availability
5
HOB ELEMENT THERMOSTAT GEN WB21X0517 Contact Us For Availability
6
GEN WB61X0368 GEN WB61X0368 Contact Us For Availability
7
BACKGUARD SUPPORT-RT GEN WB06X0127 Contact Us For Availability
7
BACKGUARD SUPPORT-LT GEN WB06X0128 Contact Us For Availability
9
GEN WB02X9415 GEN WB02X9415 Contact Us For Availability
10
GEN WB06X0134 GEN WB06X0134 Contact Us For Availability
14
GEN WB02X9873 GEN WB02X9873 Contact Us For Availability
16
CLOCK/OVEN CONTROL GEN WB27K5061 Contact Us For Availability
17
GEN WB25M0004 GEN WB25M0004 Contact Us For Availability
18
CLOCK PLATE GEN WB02X9669 Contact Us For Availability
21
ROCKER SWITCH-GRAY GEN WB24X0450 Contact Us For Availability
24
GEN WB02M0031 GEN WB02M0031 Contact Us For Availability
25
CANOPY PANEL GEN WB36X0787 Contact Us For Availability
26
GEN WB02X9756 GEN WB02X9756 Contact Us For Availability
29
GEN WB03X0812 GEN WB03X0812 Contact Us For Availability
30
CLOCK KNOB GEN WB03X0780 Contact Us For Availability
31
RELAY CIRCUIT BOARD GEN WB27M0005 Contact Us For Availability
34
PC BOARD SPACER GEN WB02X9158 Contact Us For Availability
36
FLUOR LAMP GEN WB08M0002 Contact Us For Availability
37
GEN WB02X9390 GEN WB02X9390 Contact Us For Availability
38
GEN WB08X0291 GEN WB08X0291 Contact Us For Availability
39
STARTER BASE ASM GEN WB08X0290 Contact Us For Availability
40
GEN WB03X0823 GEN WB03X0823 Contact Us For Availability
51
GEN WB02X1725 GEN WB02X1725 Contact Us For Availability
51
GEN WB57M0017 GEN WB57M0017 Contact Us For Availability
51
GEN WB57M0018 GEN WB57M0018 Contact Us For Availability
56
HOB ELEMENT LARGE GEN WB30X0260 Contact Us For Availability
56
HOB ELEMENT SMALL GEN WB30X0261 Contact Us For Availability
58
HOB ELEMENT THERMAL GEN WB30X0263 Contact Us For Availability
61
GEN WB63M0003 GEN WB63M0003 Contact Us For Availability
62
HOB ELEMENT CLAMP SMALL GEN WB02X9520 Contact Us For Availability
63
HOB ELEMENT CLAMP LARGE GEN WB02X9519 Contact Us For Availability
64
HOB ELEM THERMAL CLAMP GEN WB02M0002 Contact Us For Availability
66
GEN WB02X9523 GEN WB02X9523 Contact Us For Availability
71
GEN WB02X9525 GEN WB02X9525 Contact Us For Availability
76
GEN WB02M9526 GEN WB02M9526 Contact Us For Availability
77
GEN WB32M0012 GEN WB32M0012 Contact Us For Availability
79
GEN WB34M0045 GEN WB34M0045 Contact Us For Availability
79
GEN WB34M0046 GEN WB34M0046 Contact Us For Availability
86
GEN WB20X0116 GEN WB20X0116 Contact Us For Availability
91
MAIN TOP HINGE LT GEN WB14X0126 Contact Us For Availability
91
MAIN TOP HINGE RT GEN WB14X0127 Contact Us For Availability
92
GEN WB02X9521 GEN WB02X9521 Contact Us For Availability
96
REINFORCEMENT PLATE GEN WB02X9418 Contact Us For Availability
102
GEN WB35M0002 GEN WB35M0002 Contact Us For Availability
111
OV DR LINING PLUG GEN WB02X9171 Contact Us For Availability
112
OVEN DOOR LINING GEN WB56M0001 Contact Us For Availability
113
OV DR INS RETAINER ASM GEN WB02X9175 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GLASS MOUNTING PLATE GEN WB02X9178 Contact Us For Availability
117
OV DOOR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
122
INTERMEDIATE GLASS GEN WB56X1906 Contact Us For Availability
123
OV DR INNER GLASS GEN WB56X1907 Contact Us For Availability
124
INNER DOOR GLASS GEN WB57M0001 Contact Us For Availability
133
WASHER GEN WB01X1159 Contact Us For Availability
136
OVEN DOOR HANDLE GEN WB15X0272 Contact Us For Availability
140
OVEN DOOR FRAME GEN WB07X1729 Contact Us For Availability
141
DR GLASS CUSHION GEN WB02X9036 Contact Us For Availability
143
DR GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
DR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
WASHER GEN WB01X1138 Contact Us For Availability
151
LATCH ASM GEN WB14X0128 Contact Us For Availability
161
GEN WB24X0454 GEN WB24X0454 Contact Us For Availability
171
GEN WB02X9880 GEN WB02X9880 Contact Us For Availability
181
DR LATCH INS RETAINER GEN WB02X9448 Contact Us For Availability
182
GEN WB02X9882 GEN WB02X9882 Contact Us For Availability
191
GEN WB02X9720 GEN WB02X9720 Contact Us For Availability
192
LOCK KNOB GEN WB03X0809 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
194
GEN WB02X9881 GEN WB02X9881 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
201
GEN WB63M0020 GEN WB63M0020 Contact Us For Availability
202
GEN WB63X0353 GEN WB63X0353 Contact Us For Availability
203
GEN WB63M0001 GEN WB63M0001 Contact Us For Availability
204
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
211
GEN WB02M0004 GEN WB02M0004 Contact Us For Availability
212
INSULATION RETAINER LO GEN WB02X9528 Contact Us For Availability
217
WIRE SHIELD UPPER GEN WB02X9527 Contact Us For Availability
218
WIRE SHIELDLO GEN WB02X9426 Contact Us For Availability
220
GEN WB34M0001 GEN WB34M0001 Contact Us For Availability
221
BODY SIDE WHITE GEN WB63X0351 Contact Us For Availability
221
BODY SIDE-ALMOND GEN WB63X0352 Contact Us For Availability
221
BODY SIDE-BLACK GEN WB63X0357 Contact Us For Availability
222
LO FRONT PANEL-WHITE GEN WB56X1959 Contact Us For Availability
222
LO FRONT PANEL-BLACK GEN WB56X1969 Contact Us For Availability
222
LO FRONT PANEL-ALMOND GEN WB56X1973 Contact Us For Availability
231
INSULATION GEN WB02X9423 Contact Us For Availability
232
INSULATION OV BTM & BACK GEN WB02X9428 Contact Us For Availability
233
INSULATION TOP & SIDES GEN WB02X9718 Contact Us For Availability
234
SERVICE CORD INSULATOR GEN WB02X9425 Contact Us For Availability
241
GEN WB48X0210 GEN WB48X0210 Contact Us For Availability
254
GEN WB02X9424 GEN WB02X9424 Contact Us For Availability
254
BLOCK JUNCTION GEN WB17X0215 Contact Us For Availability
256
OV LAMP HOLDER GEN WB08X0295 Contact Us For Availability
257
OVEN LIGHT BULB GEN BUY LOCAL Contact Us For Availability
258
LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OV LAMP LENS GEN WB36X0754 Contact Us For Availability
260
OV LITE LENS RETAINER GEN WB02X9150 Contact Us For Availability
266
BASE ASM GEN WB02X9040 Contact Us For Availability
267
STORAGE DRAWER SUPPORT GEN WB56M0003 Contact Us For Availability
269
SERVICE RANGE MTG PLATE GEN WB02X9427 Contact Us For Availability
282
GEN WB38M0001 GEN WB38M0001 Contact Us For Availability
286
GEN WB09X0273 GEN WB09X0273 Contact Us For Availability
292
SLIDE BLOCK REAR GEN WB02X9146 Contact Us For Availability
293
SLIDE BLOCK FRT GEN WB02X9148 Contact Us For Availability
296
LEG LEVELER GEN WB02X9025 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
815
SCREW GEN WB01X1176 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
817
GEN WB01X1346 GEN WB01X1346 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
825
GEN WB01M0002 GEN WB01M0002 Contact Us For Availability
848
GEN WB01X1394 GEN WB01X1394 Contact Us For Availability
849
GEN WB01X1252 GEN WB01X1252 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
871
GEN WB25X0098 GEN WB25X0098 Contact Us For Availability
888
M4 NUT THERMAL ELEMENT GEN WB01X1304 Contact Us For Availability
888
M6 PAL NUT STD ELEMENT GEN WB01X1305 Contact Us For Availability
926
GEN WB01X1260 GEN WB01X1260 Contact Us For Availability
928
GEN WB01X1310 GEN WB01X1310 Contact Us For Availability
936
BUSHING GEN WB02X9447 Contact Us For Availability
951
BACKGUARD CLIP GEN WB02X9443 Contact Us For Availability
976
GEN WB01X1251 GEN WB01X1251 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
999
GEN 31-0728 GEN 31-0728 Contact Us For Availability
999
GEN 31-0916 GEN 31-0916 Contact Us For Availability
999
GEN 79-4015 GEN 79-4015 Contact Us For Availability
999
SOILD ELEMENT CLEANER GEN WB06M0001 Contact Us For Availability
999
WIRE HARNESS MT RT GEN WB18M0044 Contact Us For Availability
999
GEN WB18M0045 GEN WB18M0045 Contact Us For Availability
999
GEN WB18M0046 GEN WB18M0046 Contact Us For Availability
999
GEN WB18M0047 GEN WB18M0047 Contact Us For Availability
999
GEN WB18M0048 GEN WB18M0048 Contact Us For Availability
999
GEN WB18X0414 GEN WB18X0414 Contact Us For Availability
× ![]()
