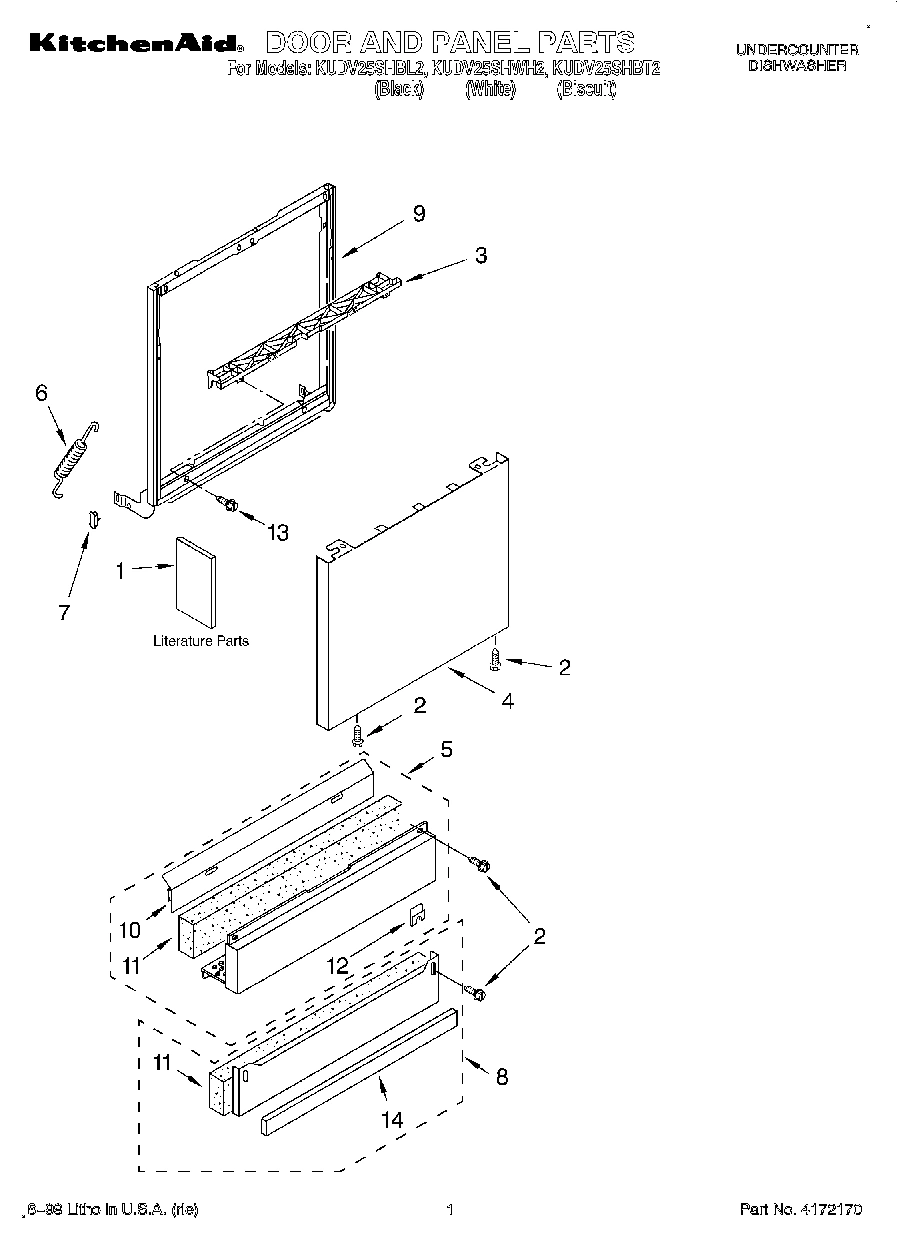

Model Whirlpool KUDV25SHBT2 – Common Parts &amp; Diagrams

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

1

4378867 Whirlpool Dishwasher Panel Backorder WPL 4378867 $156.64

1

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $21.05

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

1

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

1

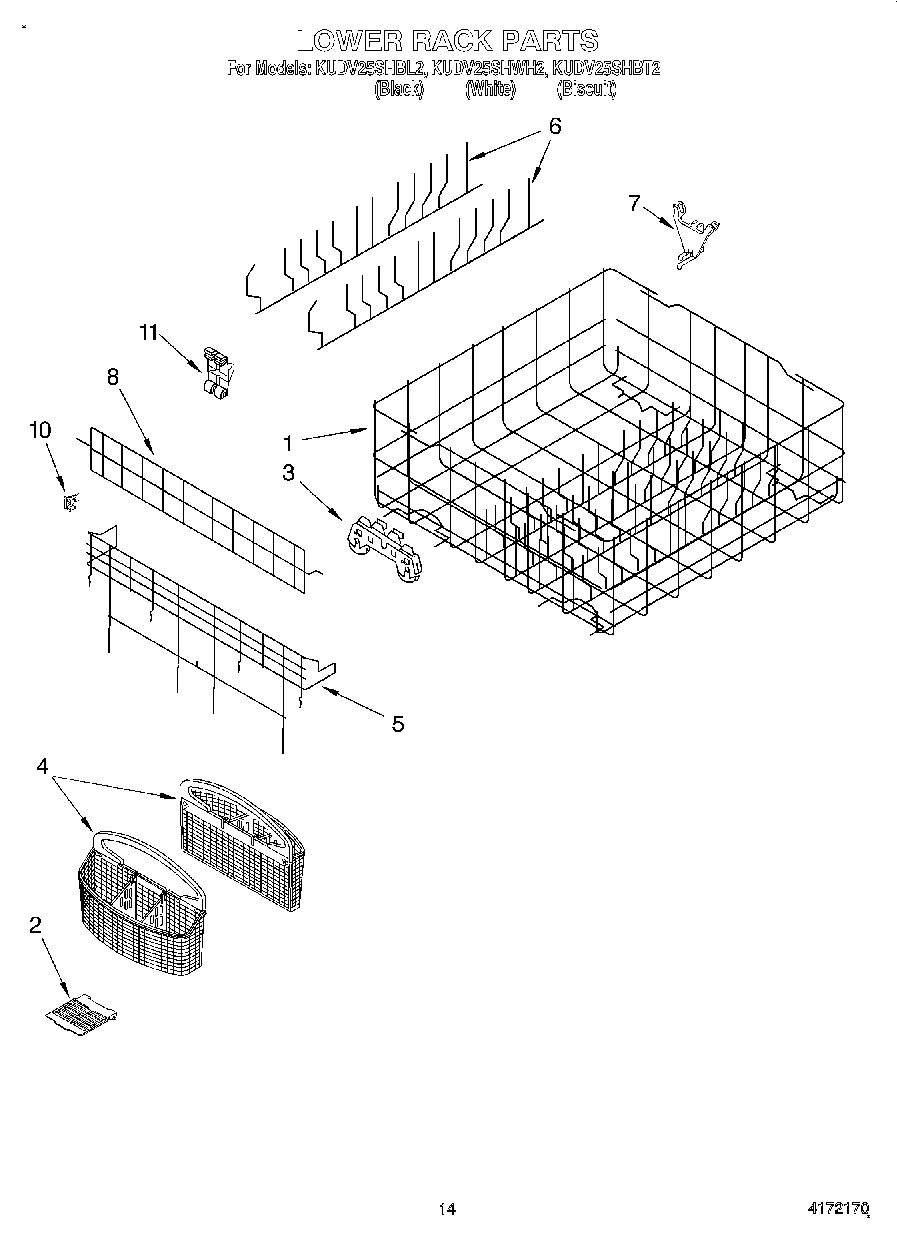

W10134647 Whirlpool Lower Dish Rack Backorder WPL W10134647 $179.00

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

WPW10253040 Whirlpool Dishwasher Dish Rack Backorder WPL WPW10253040 $232.32

1

Cap, Dispenser WPL 9743399 Contact Us For Availability

1

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

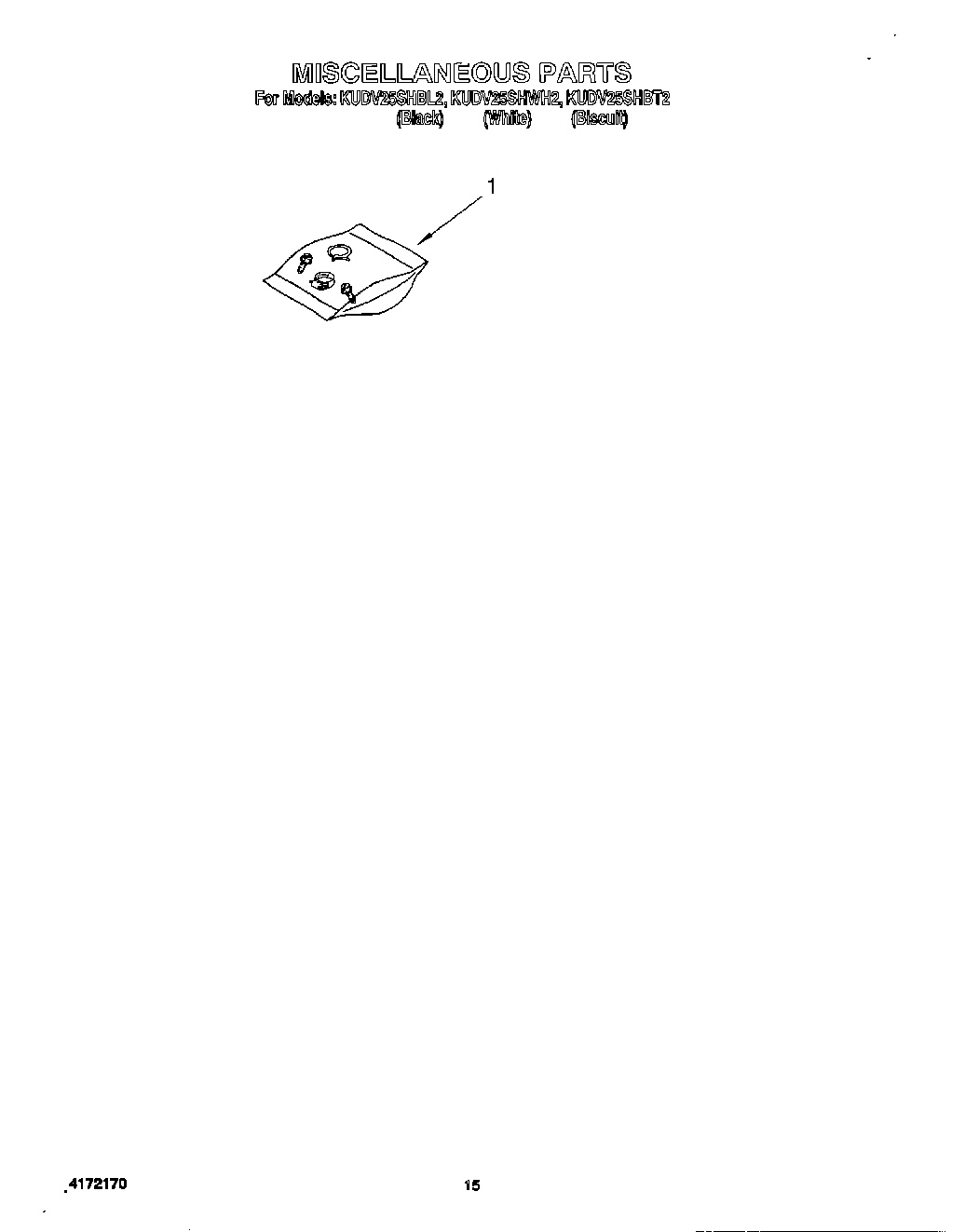

Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability

1

Glisten WPL 4319102 Contact Us For Availability

1

Frameless (White) WPL 4378861 Contact Us For Availability

1

Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability

1

Frameless (Almond) WPL 4378863 Contact Us For Availability

1

Door Framed Kits (White) WPL 4378864 Contact Us For Availability

1

Door Framed Kits (Black) WPL 4378865 Contact Us For Availability

1

Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability

1

Side Panel Kits (Black) WPL 4378868 Contact Us For Availability

1

Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability

1

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

1

Almond (Uncut) WPL 978883 Contact Us For Availability

1

Plate, Perforated (Also Order Item 30) See No WPL 9740982 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP9742727 Whirlpool Dishwasher Fill Hose Backorder WPL WP9742727 $5.44

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $3.51

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

2

Cover, Silverware Basket WPL 9743048 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

3

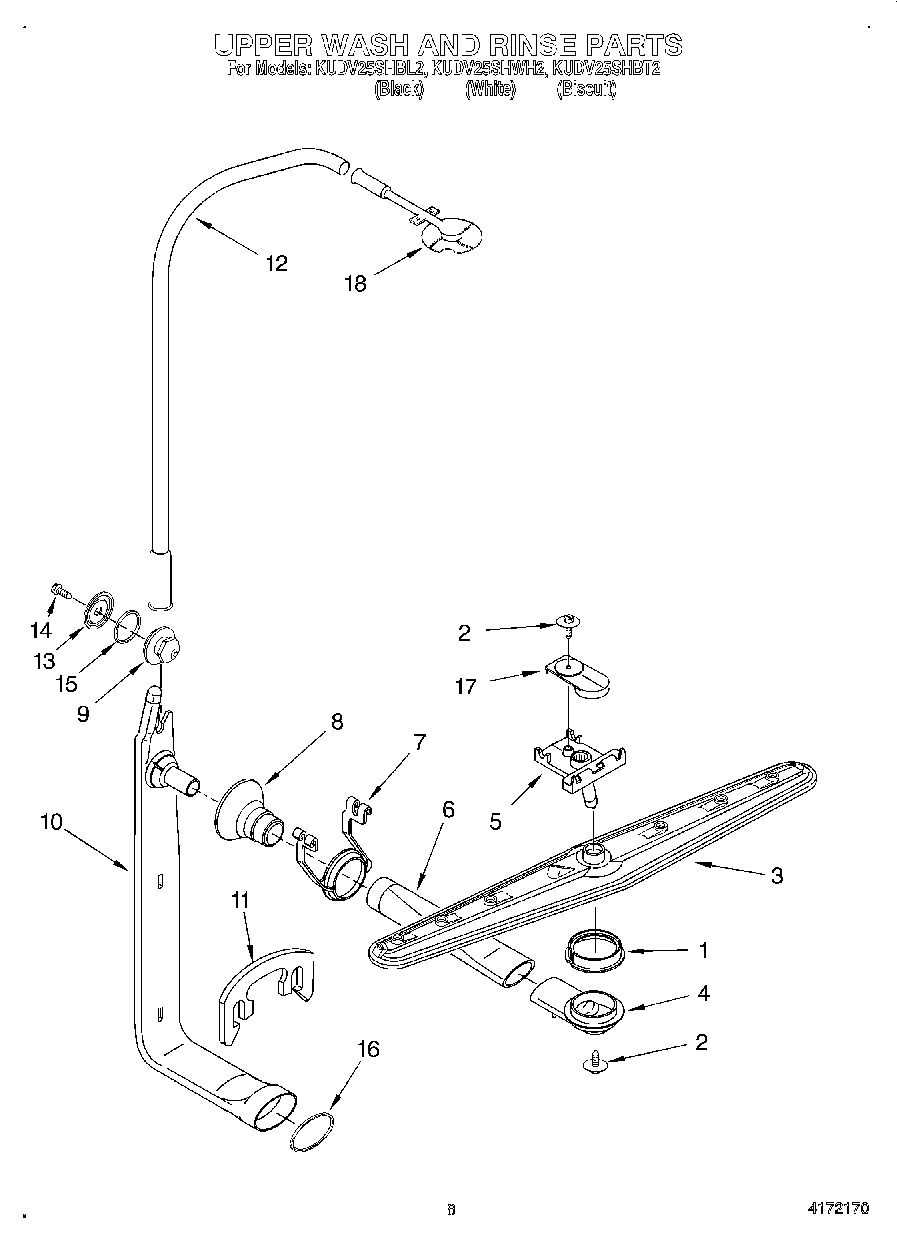

675808 Whirlpool Dishwasher Middle Spray Arm In Stock WPL 675808 $18.92

3

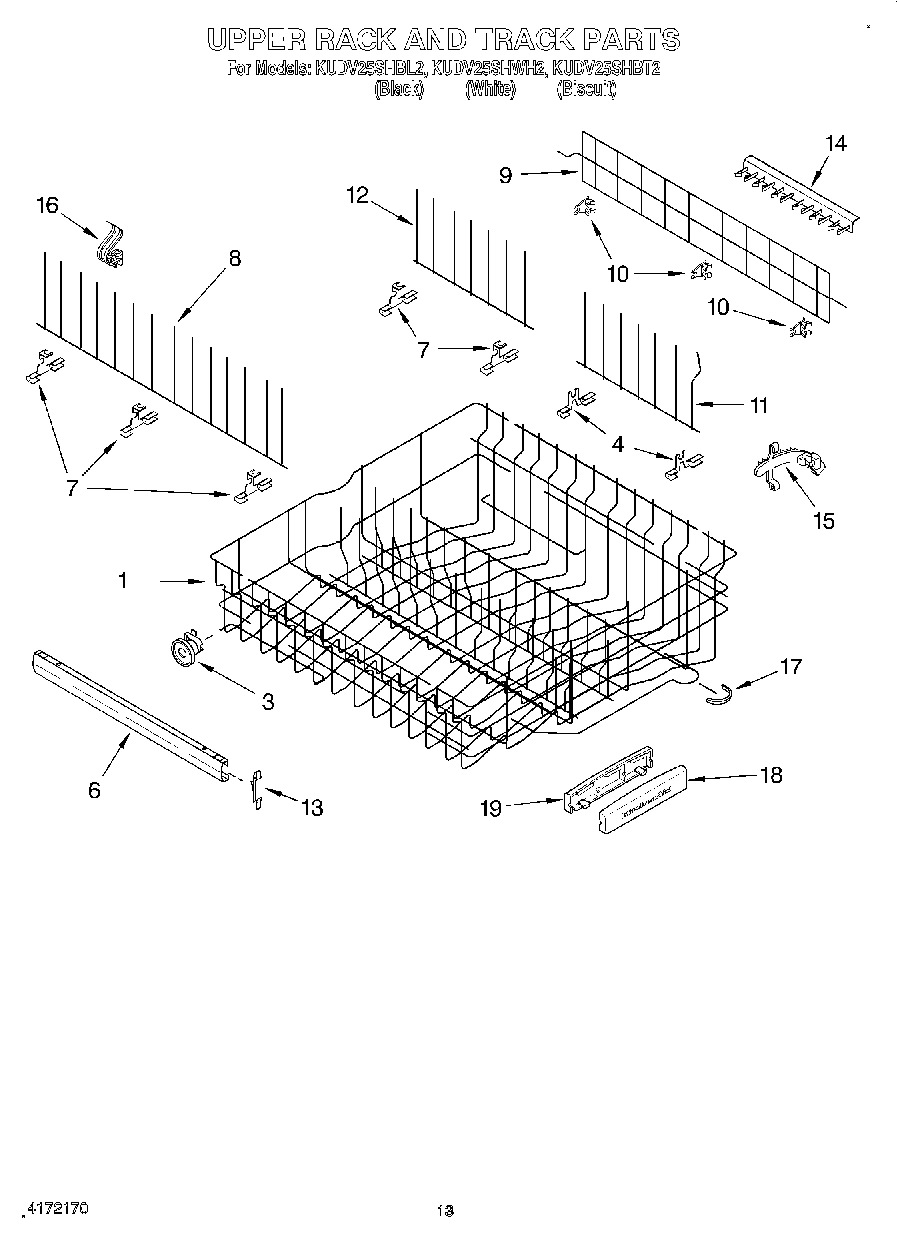

WP8268807 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8268807 $5.36

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

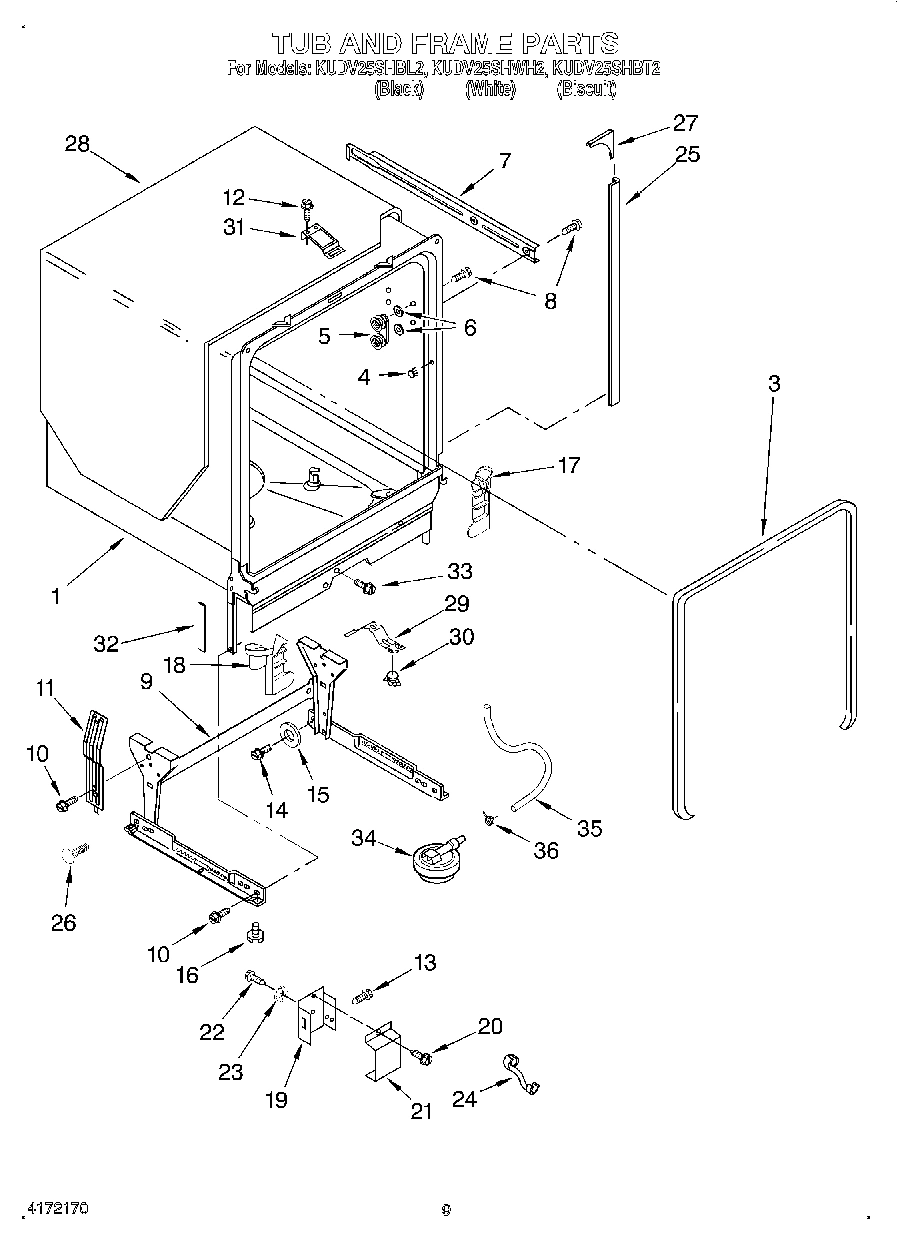

Door Seal WPL 9743590 Contact Us For Availability

3

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $11.42

4

WP9743016 Whirlpool Dishwasher Tine Pivot Backorder WPL WP9743016 $4.48

4

WP9743573 Whirlpool Dishwasher Spring Backorder WPL WP9743573 $2.51

4

Latch, Bolt Assy. (Includes Item 2) WPL 3380654 Contact Us For Availability

4

Gasket WPL 9742787 Contact Us For Availability

4

Panel Front (White Model) WPL 3379376 Contact Us For Availability

4

Panel Front (Black Model) WPL 3379375 Contact Us For Availability

4

Basket Half, Silverware WPL 9743574 Contact Us For Availability

4

Panel Front (Biscuit Model) WPL 8054178 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $4.67

5

WP8539324 Whirlpool Dishwasher Upper Spray Ar In Stock WPL WP8539324 $3.29

5

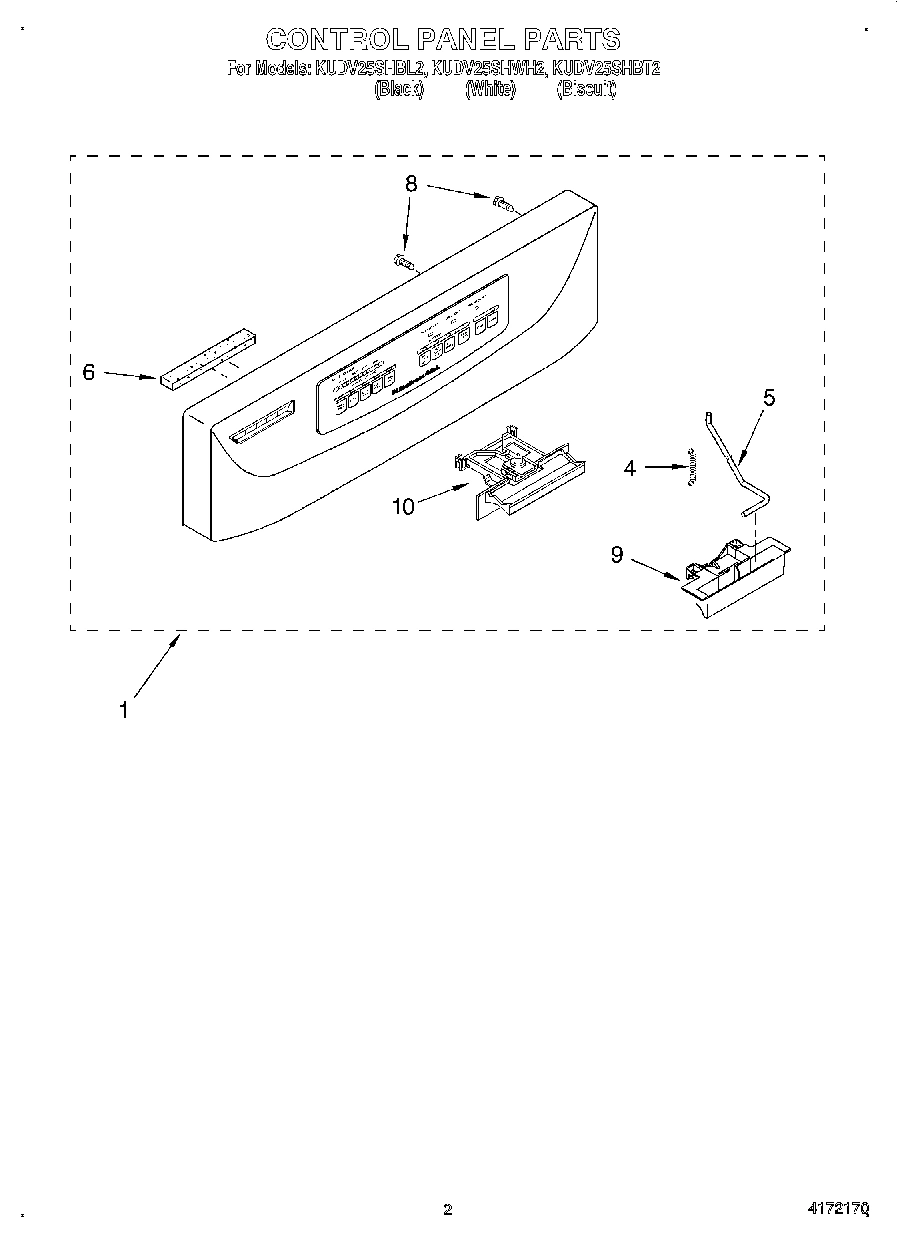

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Extension, Side Wall WPL 9743536 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

WP9743986 Whirlpool Spring Backorder WPL WP9743986 $9.99

6

Flexrow (2) WPL 9743685 Contact Us For Availability

6

``O`` Ring WPL 95080 Contact Us For Availability

7

W10844024 Whirlpool Water Inlet Valve In Stock WPL W10844024 $38.67

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

7

WP3378186 Whirlpool Dishwasher Holder In Stock WPL WP3378186 $10.82

7

WP719929 Whirlpool Dishwasher Check Ball In Stock WPL WP719929 $4.43

7

WP8268816 Whirlpool Tine Row Clip In Stock WPL WP8268816 $3.70

7

Pivot, Folddown WPL 3379955 Contact Us For Availability

8

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

8

Tine Row WPL 3377429 Contact Us For Availability

8

Cupshelf WPL 3377419 Contact Us For Availability

9

WP9743028 Whirlpool Dishwasher Frame Backorder WPL WP9743028 $71.95

9

WP9743903 Whirlpool Dishwasher Handle Backorder WPL WP9743903 $50.67

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Flapper WPL 9744360 Contact Us For Availability

9

Connector (Includes Items 13, 14 & 15) WPL 9743473 Contact Us For Availability

9

Filter Assembly WPL 3380788 Contact Us For Availability

661651 Whirlpool Dishwasher Tube Backorder WPL 661651 $43.32

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $4.45

Screw WPL 3935667 Contact Us For Availability

Screw WPL 3400001 Contact Us For Availability

WP3368629 Whirlpool Dishwasher Retainer Backorder WPL WP3368629 $3.70

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $13.18

Tine Row, Upper (Multi Position) WPL 3377443 Contact Us For Availability

Clip, Rear Tube WPL 3380889 Contact Us For Availability

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP9741997 Whirlpool Dishwasher Standpipe Backorder WPL WP9741997 $26.75

Tube (3rd Level) WPL 9743958 Contact Us For Availability

Tine Row, Upper Mini WPL 3377439 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

WP3379941 Whirlpool Dishwasher Stop Backorder WPL WP3379941 $33.96

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

Washer WPL 9743475 Contact Us For Availability

8194582 Whirlpool Dishwasher Outlet Backorder WPL 8194582 $33.16

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

Holder, Stemware (2) WPL 3377604 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Positioner WPL 9743018 Contact Us For Availability

Gasket, Connector WPL 9743474 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

Seal, Tube WPL 9742953 Contact Us For Availability

Clip, No Flip (4) WPL 3377464 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

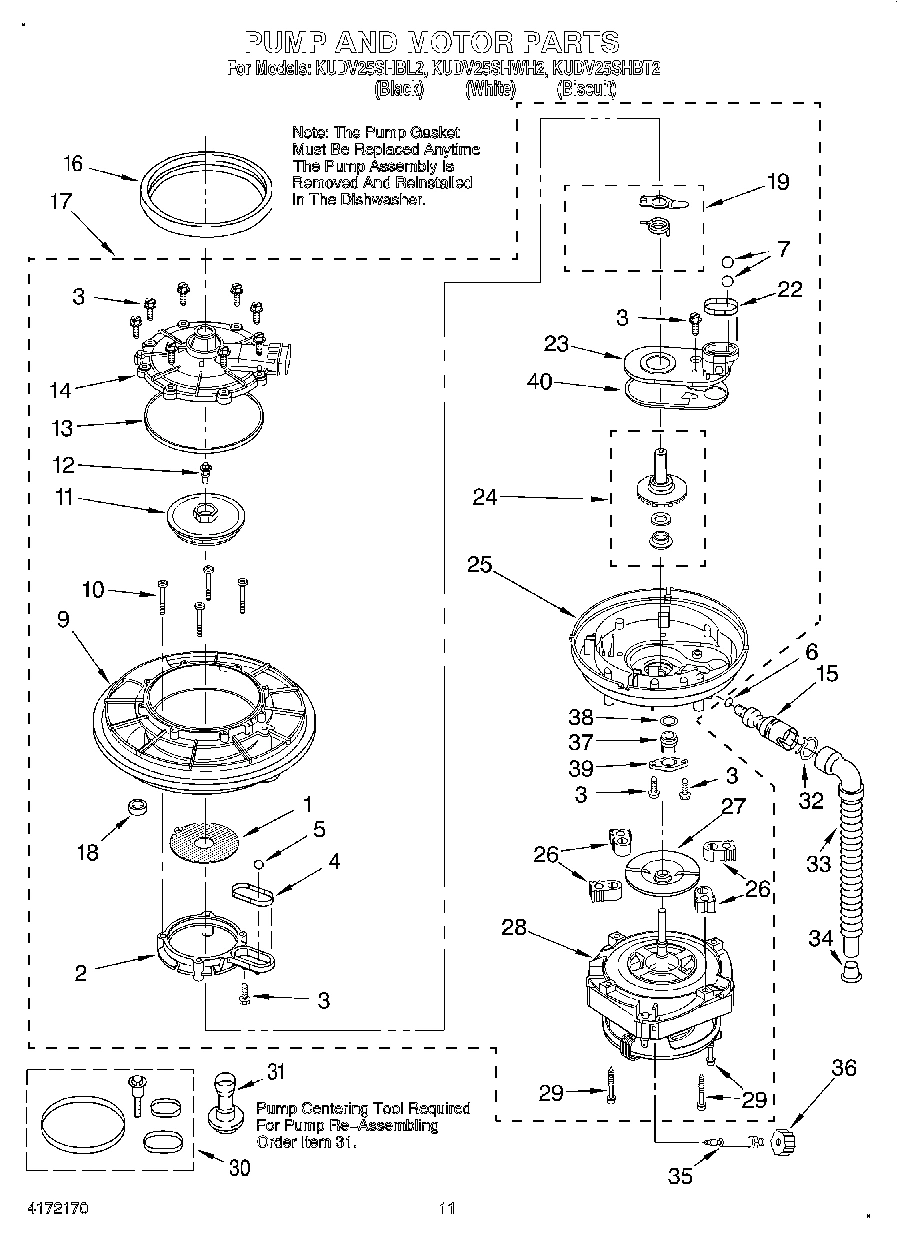

17

W10428168 Whirlpool Dishwasher Pump and Motor Backorder WPL W10428168 $373.12

17

WP8268812 Whirlpool Dishwasher Mounting Assem In Stock WPL WP8268812 $6.35

17

Protector, Sprayarm Guard WPL 9742999 Contact Us For Availability

18

WP3379369 Whirlpool Dishwasher Wash Assembly Backorder WPL WP3379369 $28.80

18

Handle, Dishrack Front WPL 9743010 Contact Us For Availability

18

Seal, Pump base WPL 3379340 Contact Us For Availability

19

Handle, Dishrack Rear WPL 9743011 Contact Us For Availability

20

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

21

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

23

Cover, Drain (Also Order Item 30 & 40) See No WPL 3376845 Contact Us For Availability

24

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

25

Base, Pump (Also Order Item 30) See Note A. WPL 3379336 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

28

Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3377333 Contact Us For Availability

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

29

Screw (4) WPL 3369331 Contact Us For Availability

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

35

Hose, Pressure Switch WPL 3380785 Contact Us For Availability

35

Shaft, Absorber WPL 3374757 Contact Us For Availability

36

Weight, Absorber WPL 3378202 Contact Us For Availability

37

Thermistor WPL 9743158 Contact Us For Availability

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $3.93

39

WP3376358 Whirlpool Dishwasher Retainer Backorder WPL WP3376358 $4.48

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70
