Model Whirlpool KUDS24SEBS5 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.97

4378867 Whirlpool Dishwasher Panel Backorder WPL 4378867 $156.64

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $21.05

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Glisten WPL 4319102 Contact Us For Availability

Door Frameless Kits (White) WPL 4378861 Contact Us For Availability

Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability

Door Frameless Kits (Almond) WPL 4378863 Contact Us For Availability

Door Framed Kits (White) WPL 4378864 Contact Us For Availability

Door Framed Kits (Black) WPL 4378865 Contact Us For Availability

Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability

Side Panel Kits (Black) WPL 4378868 Contact Us For Availability

Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Energy WPL LIT8054170 Contact Us For Availability

Guide, Use & Care WPL LIT9743110 Contact Us For Availability

Tech Sheet (English) WPL LIT9743814 Contact Us For Availability

Tech Sheet (French) WPL LIT9743815 Contact Us For Availability

Instructions, Installation WPL LIT9743822 Contact Us For Availability

1

W10134647 Whirlpool Lower Dish Rack Backorder WPL W10134647 $179.00

1

Cap, Dispenser WPL 9743399 Contact Us For Availability

1

Console (Also order item No.2) (Stainless Mdl WPL 9743591 Contact Us For Availability

1

Door Frame WPL 9743028 Contact Us For Availability

1

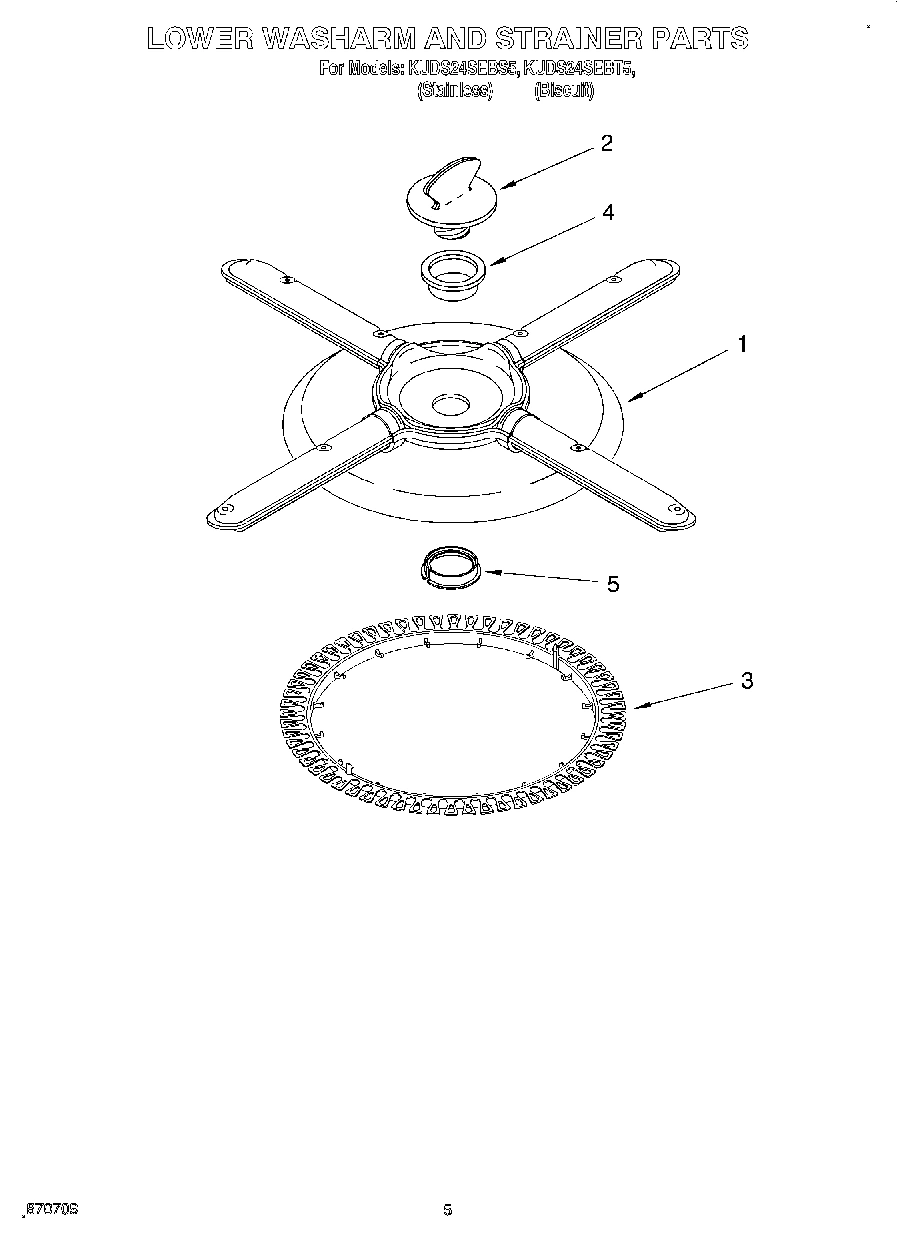

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

Control, Overfill Assembly (Also Order Item 1 WPL 9741999 Contact Us For Availability

1

Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $3.51

2

Insert (Stainless Steel) WPL 9743375 Contact Us For Availability

2

Hose, Inlet WPL 9742727 Contact Us For Availability

2

Cover, Silverware Basket WPL 9743048 Contact Us For Availability

3

WP8268807 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8268807 $5.36

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

WP9743241 Whirlpool Dishwasher Membrane Switc Backorder WPL WP9743241 $148.83

3

Door Seal WPL 9743590 Contact Us For Availability

3

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

3

Water Inlet Assembly (Includes Items 4 & 5) WPL 9742783 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $11.42

4

WP9743016 Whirlpool Dishwasher Tine Pivot Backorder WPL WP9743016 $4.48

4

Latch, Bolt Assy. (Includes Item 2) WPL 3380654 Contact Us For Availability

4

Gasket WPL 9742787 Contact Us For Availability

4

Spring, Handle WPL 9743573 Contact Us For Availability

4

Basket Half, Silverware WPL 9743574 Contact Us For Availability

4

Panel Front (Biscuit Mdl.) WPL 8054178 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $12.16

5

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Bezel, Inlet WPL 9742786 Contact Us For Availability

5

Extension, Side Wall WPL 9743536 Contact Us For Availability

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

Flexrow (2) WPL 9743685 Contact Us For Availability

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $4.43

7

WP8268816 Whirlpool Tine Row Clip In Stock WPL WP8268816 $4.27

7

Pivot, Folddown WPL 3379955 Contact Us For Availability

7

Fill Valve Assembly WPL 9743559 Contact Us For Availability

8

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

8

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

8

Cupshelf WPL 3377419 Contact Us For Availability

8

Tine Row WPL 3377429 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle In Stock WPL WP9743903 $53.20

9

WPW10253040 Whirlpool Dishwasher Dish Rack In Stock WPL WPW10253040 $232.32

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Rear Support Assembly WPL 9743149 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $4.45

Latch Lever Asm. WPL 3380655 Contact Us For Availability

Screw WPL 3400404 Contact Us For Availability

Retainer, Flexrow (2) WPL 3368629 Contact Us For Availability

Switch, Overfill Control WPL 9743413 Contact Us For Availability

Tine Row, Upper (Multi Position) WPL 3377443 Contact Us For Availability

Connector Tub To Brace WPL 9742610 Contact Us For Availability

12

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

12

Standpipe, Overfill WPL 9741997 Contact Us For Availability

12

Tine Row, Upper Mini WPL 3377439 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $11.66

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

13

Track Stop (4) WPL 3379941 Contact Us For Availability

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

Screw (2) WPL 3370389 Contact Us For Availability

Holder, Stemware (2) WPL 3377604 Contact Us For Availability

15

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

15

Wheel, Leg WPL 302819 Contact Us For Availability

15

Positioner WPL 9743018 Contact Us For Availability

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $28.99

Gasket, Pump WPL 717000 Contact Us For Availability

Seal, Tube WPL 9742953 Contact Us For Availability

Clip, No Flip (4) WPL 3377464 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

17

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $43.10

17

Protector, Sprayarm Guard WPL 9742999 Contact Us For Availability

18

Handle, Dishrack Front WPL 9743010 Contact Us For Availability

19

Control, Electronic WPL 8051136 Contact Us For Availability

19

Terminal Box WPL 3378131 Contact Us For Availability

19

Handle, Dishrack Rear WPL 9743011 Contact Us For Availability

20

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

20

Screw WPL 3369138 Contact Us For Availability

21

Cover, Terminal Box WPL 300068 Contact Us For Availability

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

23

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

24

Relief, Strain WPL 3370307 Contact Us For Availability

25

Trim Strip, Tub WPL 9743460 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

27

Corner Trim, Tub WPL 9742789 Contact Us For Availability

28

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

32

Pad, Friction WPL 9743406 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $50.11

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

38

Seal, O-Ring WPL 3376723 Contact Us For Availability

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70
