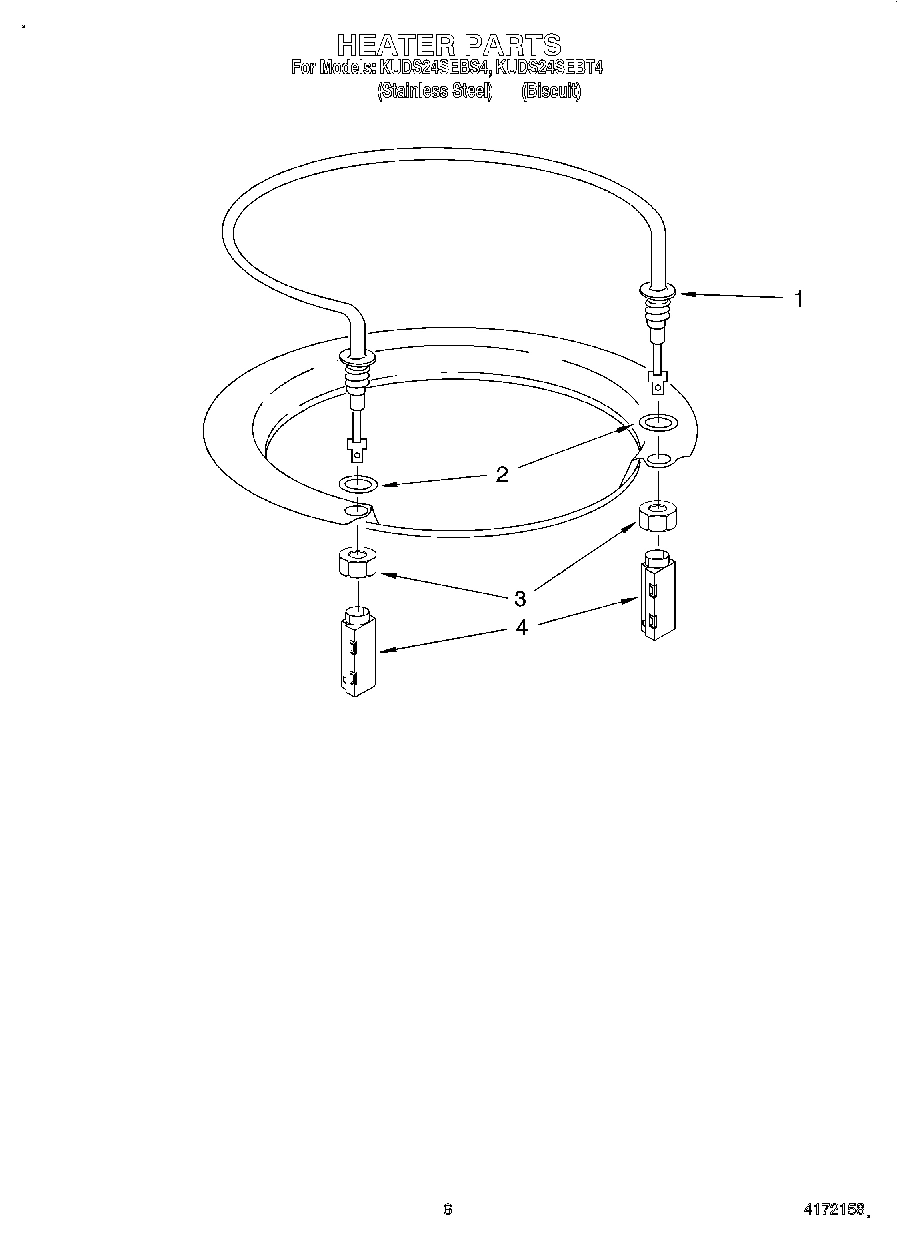

Model Whirlpool KUDS24SEBS4 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4378867 Whirlpool Dishwasher Panel Backorder WPL 4378867 $156.64

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $21.05

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Glisten WPL 4319102 Contact Us For Availability

White WPL 4378861 Contact Us For Availability

Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability

Almond WPL 4378863 Contact Us For Availability

Door Framed Kits (White) WPL 4378864 Contact Us For Availability

Door Framed Kits (Black) WPL 4378865 Contact Us For Availability

Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability

Side Panel Kits (Black) WPL 4378868 Contact Us For Availability

Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Energy WPL LIT8054170 Contact Us For Availability

Guide, Use & Care WPL LIT9743110 Contact Us For Availability

Instructions, Installation WPL LIT9743822 Contact Us For Availability

Tech Sheet (English) WPL LIT9743964 Contact Us For Availability

Tech Sheet (French) WPL LIT9743965 Contact Us For Availability

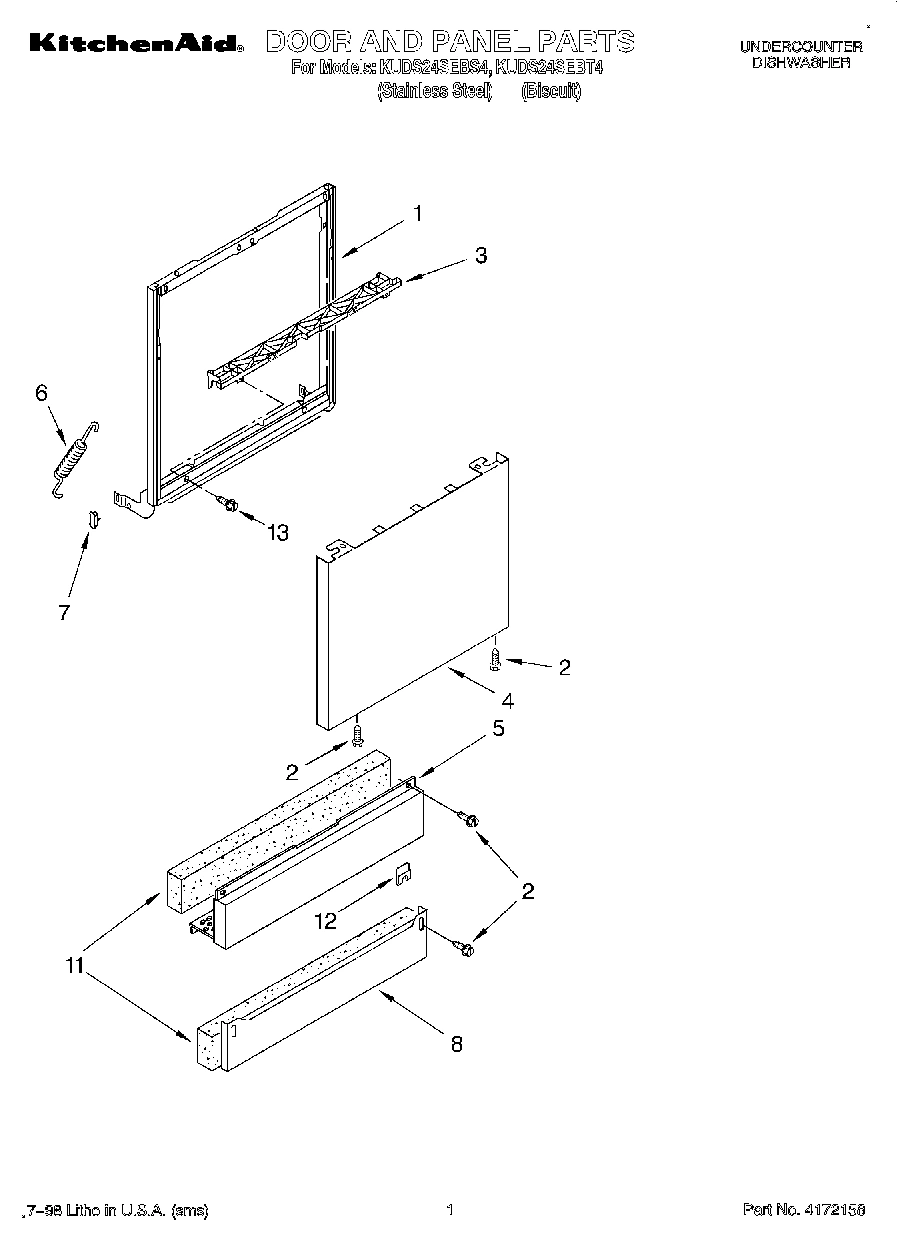

1

WP9743028 Whirlpool Dishwasher Frame Backorder WPL WP9743028 $71.95

1

WPW10253040 Whirlpool Dishwasher Dish Rack Backorder WPL WPW10253040 $232.32

1

Cap, Dispenser WPL 9743399 Contact Us For Availability

1

Console (Also Order Item 2) (Stainless Steel) WPL 9743591 Contact Us For Availability

1

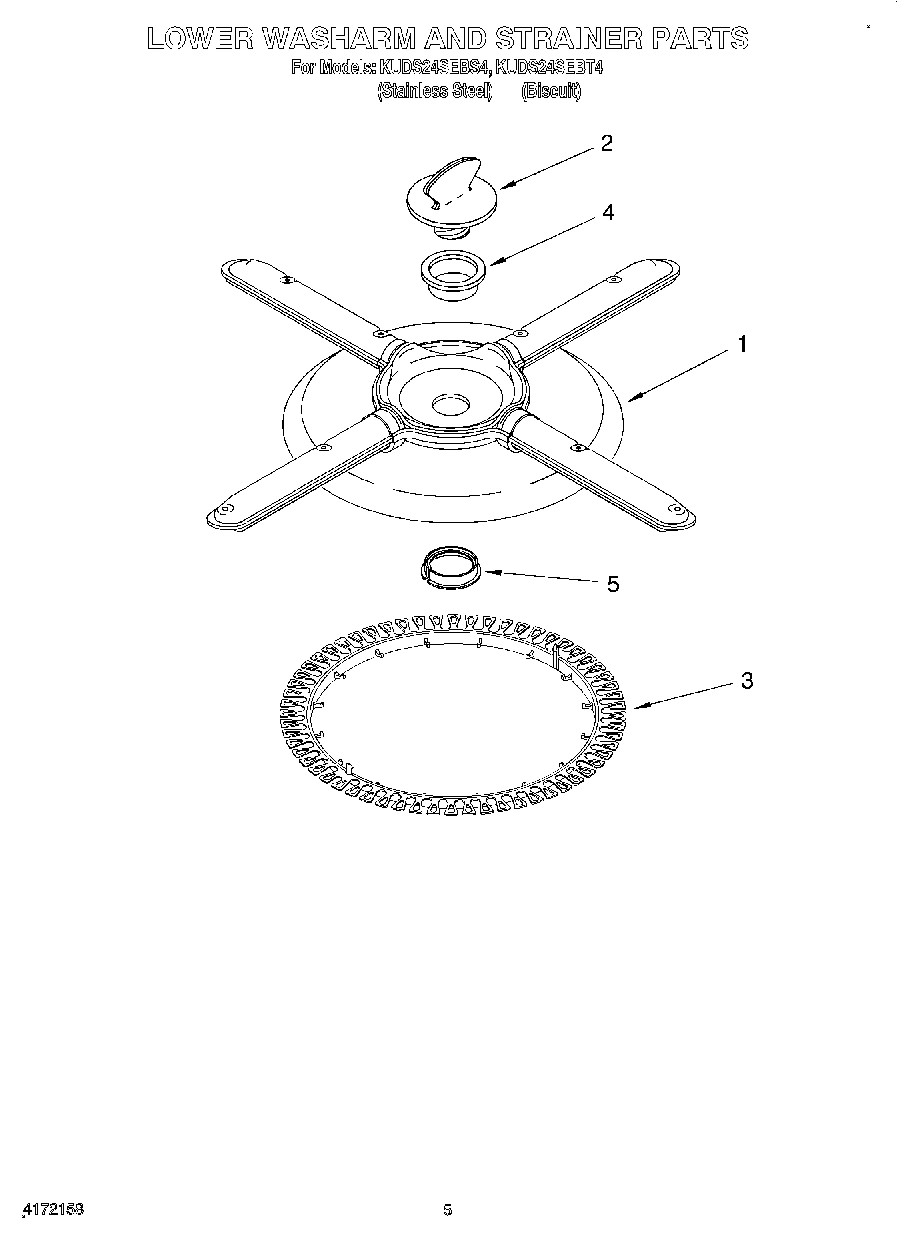

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

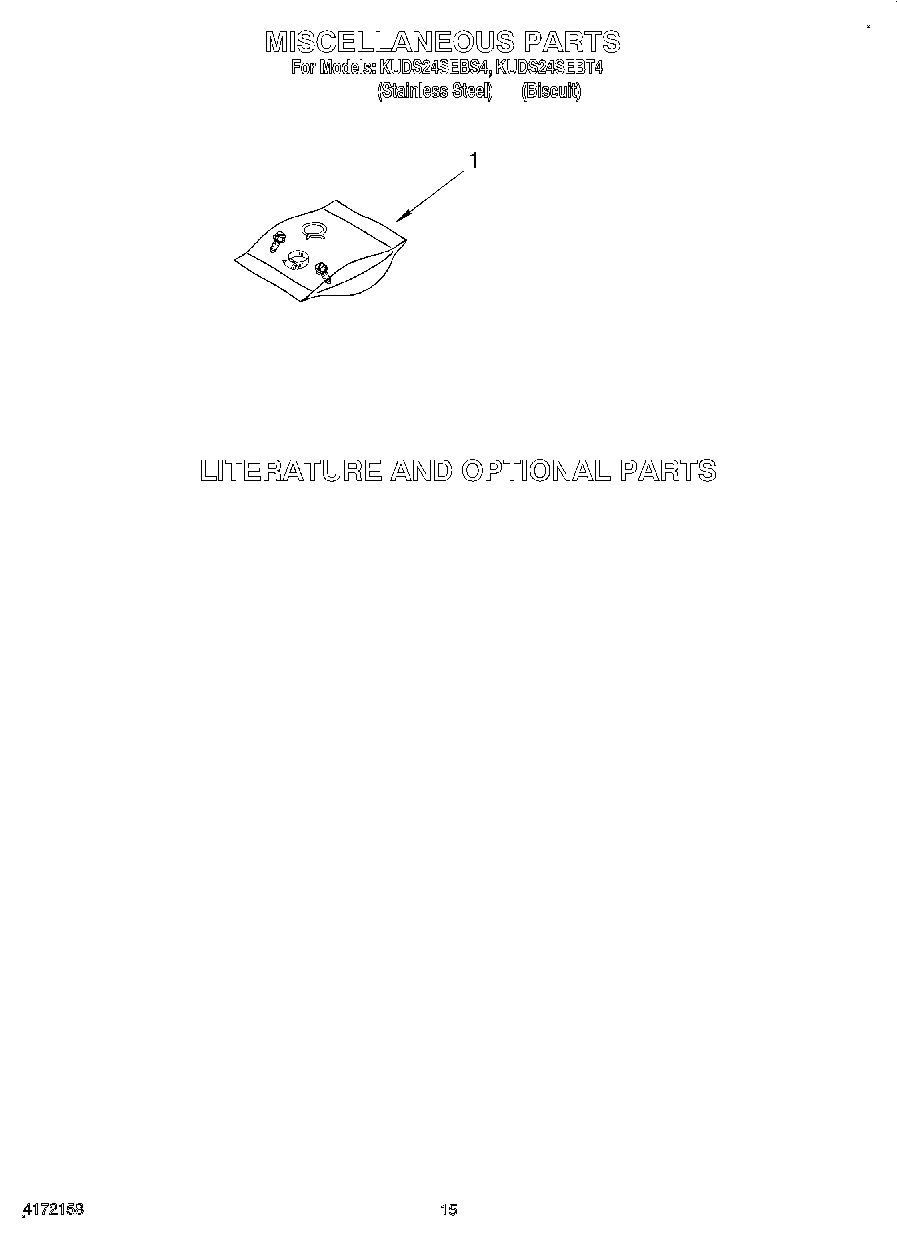

Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

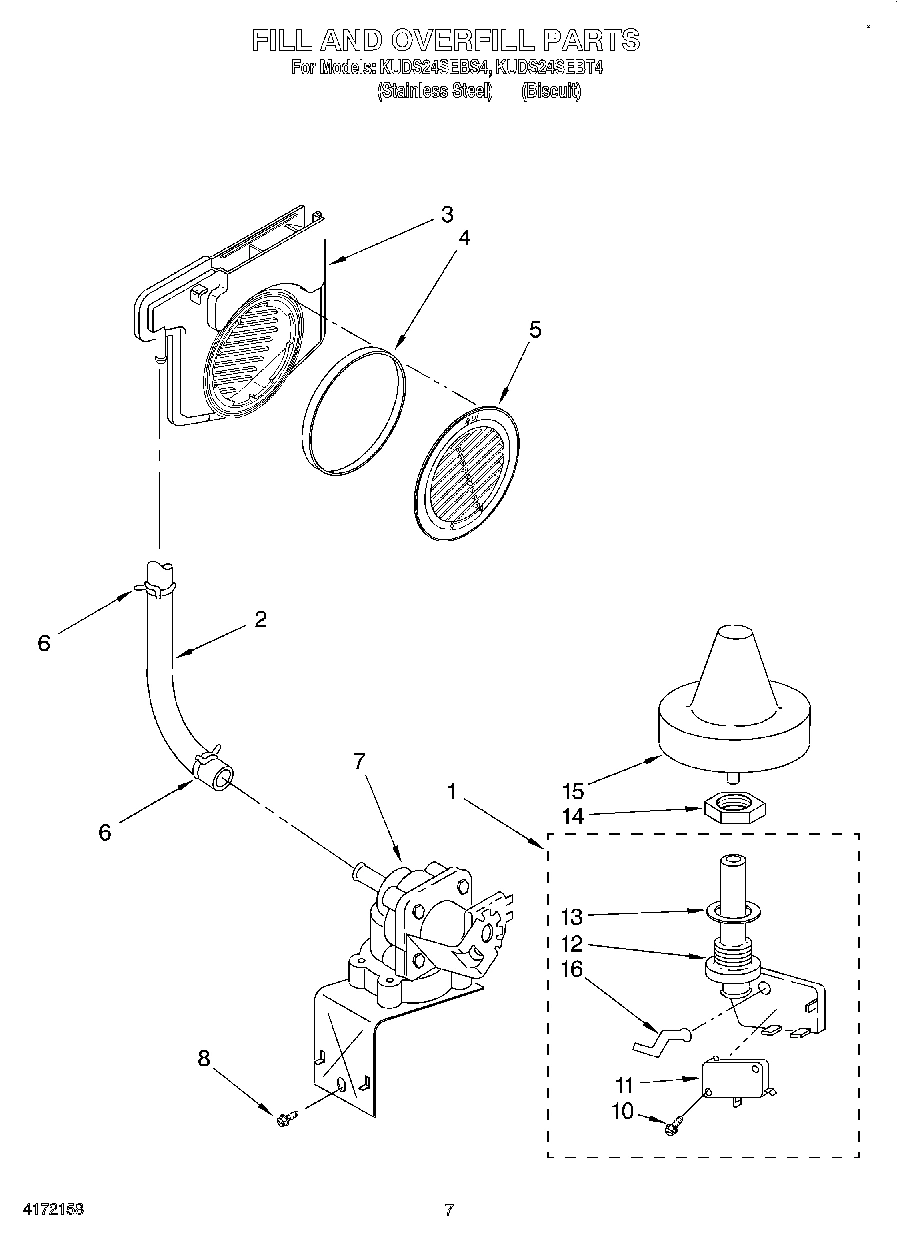

WP9742727 Whirlpool Dishwasher Fill Hose Backorder WPL WP9742727 $5.44

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $3.51

2

WP9743375 Whirlpool Dishwasher Insert In Stock WPL WP9743375 $70.07

2

Switch WPL 3369325 Contact Us For Availability

3

WP8268807 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8268807 $5.36

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

WP9743241 Whirlpool Dishwasher Membrane Switc Backorder WPL WP9743241 $141.74

3

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

3

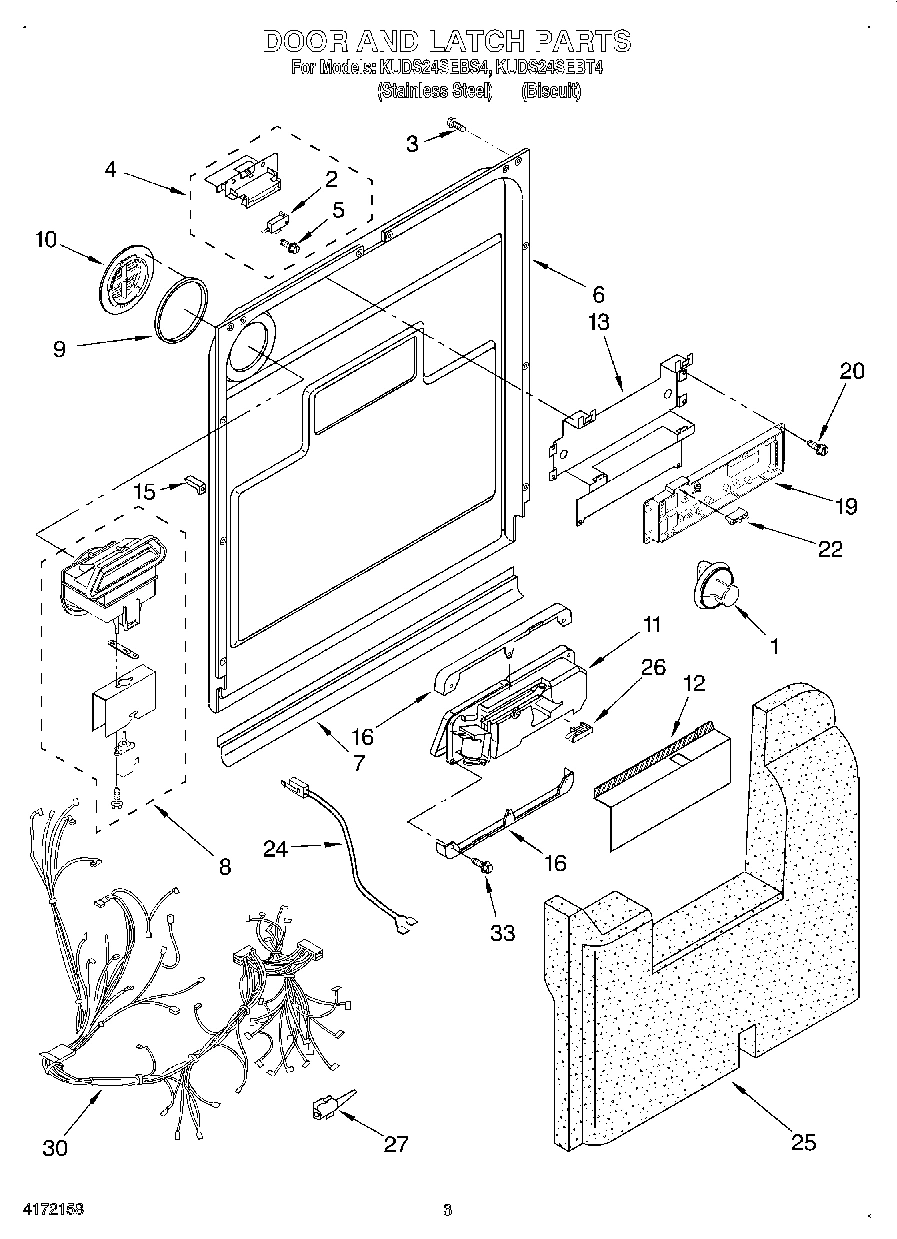

Door Seal WPL 9743590 Contact Us For Availability

3

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

3

Stiffener, Door WPL 9742964 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $11.42

4

WP9743016 Whirlpool Dishwasher Tine Pivot Backorder WPL WP9743016 $4.48

4

WP9743573 Whirlpool Dishwasher Spring Backorder WPL WP9743573 $2.51

4

Gasket WPL 9742787 Contact Us For Availability

4

Basket Half, Silverware WPL 9743574 Contact Us For Availability

4

Panel Front (Biscuit) WPL 8051478 Contact Us For Availability

4

Panel Front (Stainless Steel) WPL 9743581 Contact Us For Availability

4

Latch Assembly (Includes Item 2) WPL 9743978 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $4.67

5

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Access Panel & Clip Assembly (Includes Items WPL 9743800 Contact Us For Availability

5

Access Panel & Clip Assembly (Includes Items WPL 9743896 Contact Us For Availability

5

Screw WPL 3400404 Contact Us For Availability

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

WP9743986 Whirlpool Spring Backorder WPL WP9743986 $9.99

6

Inner Door Mastic Assembly (Also Includes Ite WPL 9742353 Contact Us For Availability

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

7

WP719929 Whirlpool Dishwasher Check Ball In Stock WPL WP719929 $4.43

7

WP8268816 Whirlpool Tine Row Clip In Stock WPL WP8268816 $3.70

7

Pivot, Folddown WPL 3379955 Contact Us For Availability

8

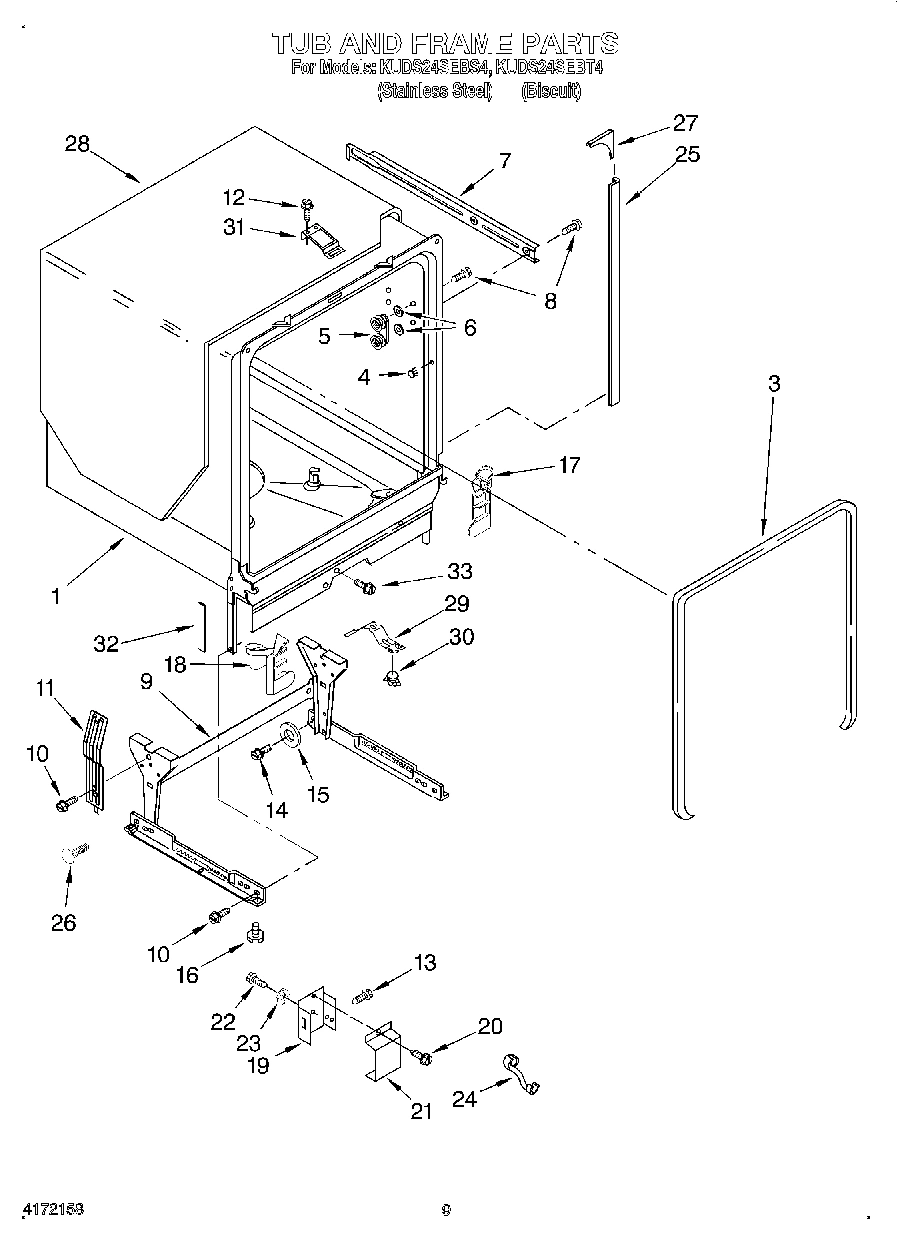

WP3379920 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379920 $78.93

8

Toe Panel (Includes Item 11) (Biscuit) WPL 9743897 Contact Us For Availability

8

Vent Assembly (Also Order Item 9) WPL 9742770 Contact Us For Availability

8

Tine Row WPL 3377429 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle Backorder WPL WP9743903 $50.67

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Cupshelf WPL 3377419 Contact Us For Availability

10

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $4.45

10

Deflector, Vent (Also Order Item 9) WPL 9742780 Contact Us For Availability

WP3368629 Whirlpool Dishwasher Retainer Backorder WPL WP3368629 $3.70

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $13.18

WPW10616003 Whirlpool Dishwasher Dispenser As In Stock WPL WPW10616003 $154.38

Tine Row, Upper (Multi Position) WPL 3377443 Contact Us For Availability

Insulation WPL 9743825 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Clip, Grounding WPL 3378123 Contact Us For Availability

Shield, Dispenser WPL 9743450 Contact Us For Availability

Tine Row, Upper Mini WPL 3377439 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP3379941 Whirlpool Dishwasher Stop Backorder WPL WP3379941 $33.96

Bracket, Controls WPL 9742623 Contact Us For Availability

14

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

14

Holder, Stemware (2) WPL 3377604 Contact Us For Availability

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Guide, Door WPL 9743487 Contact Us For Availability

Positioner WPL 9743018 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

Seal, Tube WPL 9742953 Contact Us For Availability

Clip, No Flip (4) WPL 3377464 Contact Us For Availability

Bracket, Dispenser (2) WPL 9743486 Contact Us For Availability

17

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $26.44

17

Protector, Sprayarm Guard WPL 9742999 Contact Us For Availability

18

Handle, Dishrack Front WPL 9743010 Contact Us For Availability

19

Terminal Box WPL 3378131 Contact Us For Availability

19

Control, Electronic WPL 3380945 Contact Us For Availability

19

Handle, Dishrack Rear WPL 9743011 Contact Us For Availability

20

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

20

Screw WPL 3369138 Contact Us For Availability

21

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

22

Fuse Thermal Electronic WPL 9743451 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

24

Relief, Strain WPL 3370307 Contact Us For Availability

24

Dispenser, Wiring Harness WPL 9743154 Contact Us For Availability

25

Trim Strip, Tub WPL 9743460 Contact Us For Availability

25

Sound Absorber WPL 9742397 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

26

Sensor, Rinse Aid WPL 9742852 Contact Us For Availability

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

27

Corner Trim, Tub WPL 9742789 Contact Us For Availability

28

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

30

Wiring Harness Main WPL 9743820 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

32

Pad, Friction WPL 9743406 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

33

Screw (6) WPL 3400700 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $3.93

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70
