Model Whirlpool KUDS21MS1 – Common Parts & Diagrams

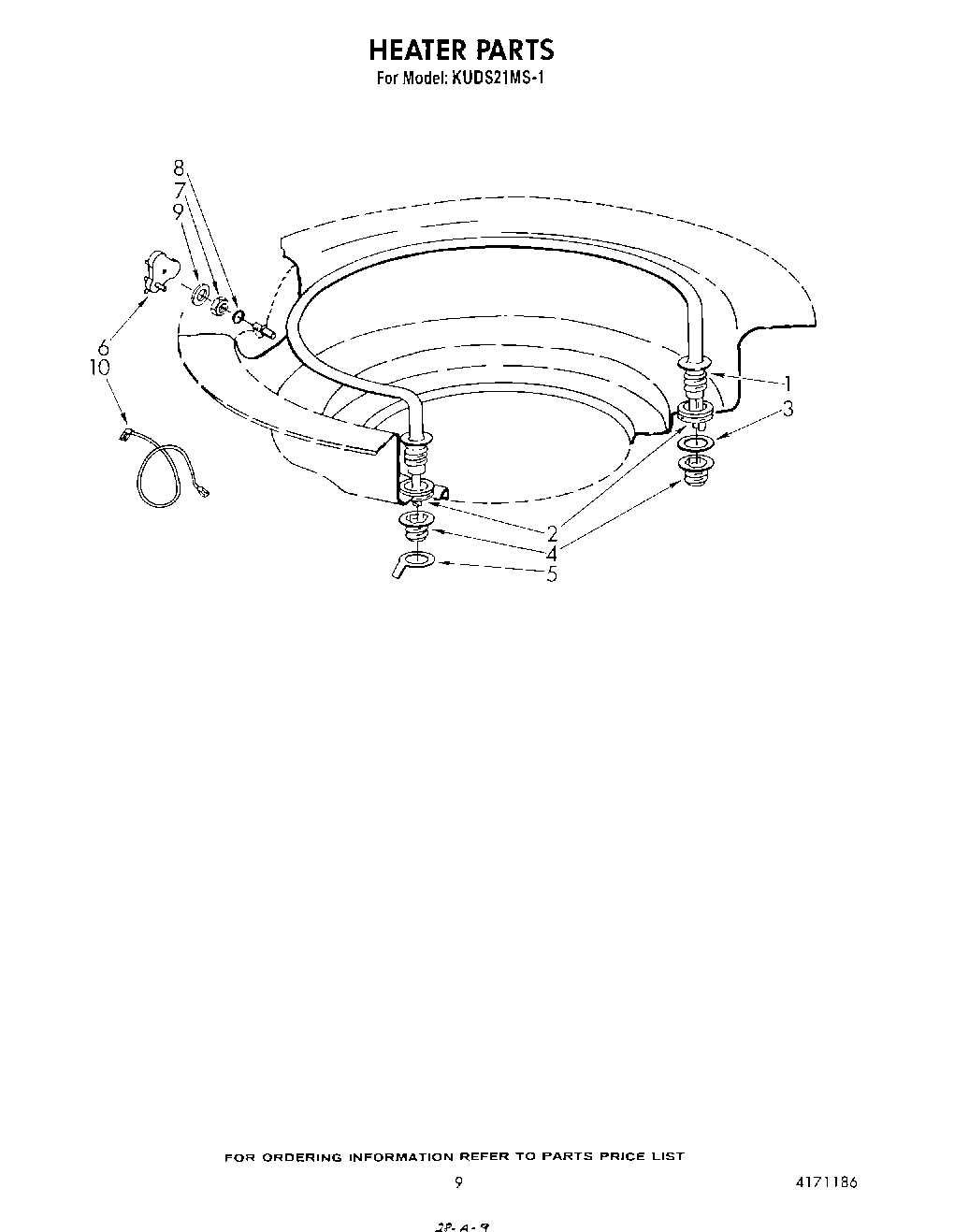

07 - HEATER

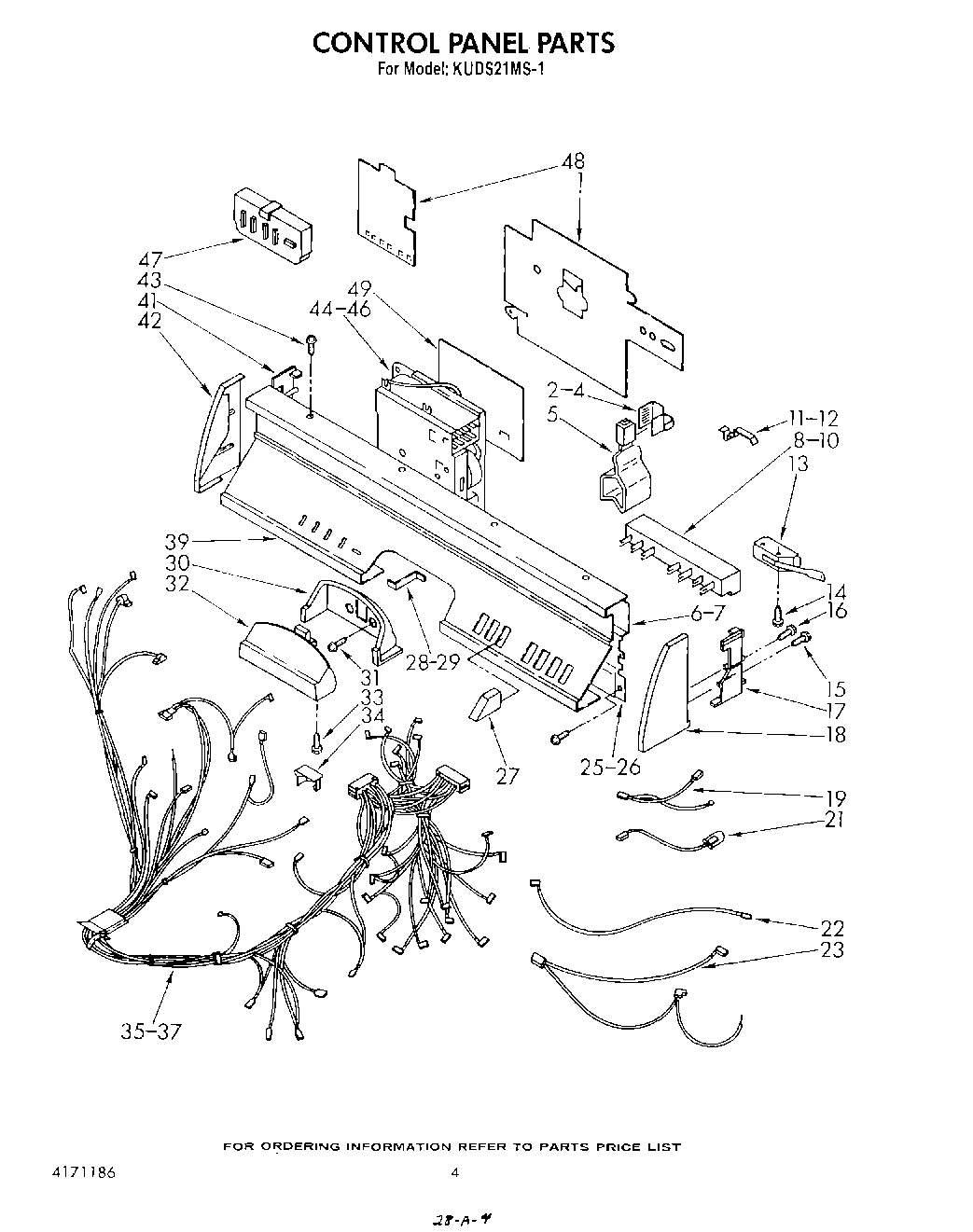

04 - CONTROL PANEL , LITERATURE AND OPTIONAL
06 - LOWER WASH ARM AND STRAINER
11 - UPPER RANK AND TRACK
02 - DOOR AND PANEL
09 - UPPER WASH AND RINSE
03 - BLOWER
05 - PUMP AND MOTOR
12 - LOWER RACK
13 - DOOR AND LATCH
08 - FILL AND OVER FILL
10 - FRAME AND TANK
Common parts from model Whirlpool KUDS21MS1
WPL 72112 WPL 72112 Contact Us For Availability
WPL 799640 WPL 799640 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT4171136 WPL LIT4171136 Contact Us For Availability
WPL LIT4171186 WPL LIT4171186 Contact Us For Availability
WPL LIT4171187 WPL LIT4171187 Contact Us For Availability
WPL LIT4171188 WPL LIT4171188 Contact Us For Availability
WPL LIT4177706 WPL LIT4177706 Contact Us For Availability
1
Insulator, Latch WPL 4171130 Contact Us For Availability
1
Wash Arm Assembly WPL 4162925 Contact Us For Availability
1
Upper Rack Assy. (Incls. Items 2, 3, 4, 5 & 1 WPL 4162515 Contact Us For Availability
1
Screw WPL 4162215 Contact Us For Availability
1
Tube & Connector Assembly WPL 4162664 Contact Us For Availability
1
Cover, Air Inlet (Incls. Items 2 thru 5) WPL 4162102 Contact Us For Availability
1
Washer WPL 4162892 Contact Us For Availability
1
Lower Rack Assembly (Includes Items 2 & 3) WPL 4161654 Contact Us For Availability
1
Cover, Wiring Harness WPL 4161659 Contact Us For Availability
1
Hose, Flexible (Fill Valve to Air Gap) WPL 4163236 Contact Us For Availability
1
Short Frame Assembly (Includes Items 2, 18, 1 WPL 4162908 Contact Us For Availability
2
Axle, Lower Rack WPL 4162321 Contact Us For Availability
2
Anchor, Cancel Spring WPL 4171120 Contact Us For Availability
2
Strainer (Fine) WPL 4162927 Contact Us For Availability
2
Nut, Roller WPL 4161226 Contact Us For Availability
2
Upper Mounting Panel Assy WPL ARI115895A Contact Us For Availability
2
Connector, Vertical Conduit WPL 4162723 Contact Us For Availability
2
Float, Check Valve WPL 4161590 Contact Us For Availability
2
Washer WPL 4159513 Contact Us For Availability
2
Clamp, Hose WPL 4162103 Contact Us For Availability
3
Door Seal Assy. (Incls. Item 4) WPL 4161631 Contact Us For Availability
3
Strainer (Coarse) WPL 4162934 Contact Us For Availability
3
Bearing & Spacer, Rack Roller WPL 4162457 Contact Us For Availability
3
Filler (Upper Panel) WPL ARI115896A Contact Us For Availability
3
Conduit, Vertical WPL 4162655 Contact Us For Availability
3
Support, Air Inlet Cover WPL 4161597 Contact Us For Availability
3
Wash Pump Top (Includes Items 1 & 23) WPL 4163521 Contact Us For Availability
3
Air Gap, Fill Assy. (Incls. Items 1 & 2) WPL 4163273 Contact Us For Availability
4
Rivet WPL 4159169 Contact Us For Availability
4
Washer WPL 4162452 Contact Us For Availability
4
Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability
4
Retainer, Conduit WPL 4162609 Contact Us For Availability
4
Deflector, Air (Upper) WPL 4161650 Contact Us For Availability
4
Screw, 10-32 WPL 4162918 Contact Us For Availability
4
Latch Mechanism Assembly WPL 4161613 Contact Us For Availability
4
Gasket, Rubber WPL 4161545 Contact Us For Availability
4
Clip, Seal WPL 4161608 Contact Us For Availability
5
Spring, Switch Cancel WPL 4163257 Contact Us For Availability
5
Side Trim (Upper Panel) WPL 4162685 Contact Us For Availability
5
Retainer, Manifold WPL 4162500 Contact Us For Availability
5
Deflector, Air (Lower) WPL 4160652 Contact Us For Availability
5
Lock Washer WPL 4159500 Contact Us For Availability
5
Bumper, Lower Rack WPL 4162575 Contact Us For Availability
5
Insulation, Switch WPL 4162145 Contact Us For Availability
5
Nut (Fill Air Gap) WPL 4161667 Contact Us For Availability
5
Bumper, Door WPL 4161626 Contact Us For Availability
6
Bracket, Program Switch WPL 4163256 Contact Us For Availability
6
Track, Rack WPL 4162442 Contact Us For Availability
6
Side Trim (Lower Panel) WPL 4162686 Contact Us For Availability
6
Manifold, Upper Arm WPL 4162466 Contact Us For Availability
6
Dryer Housing & Bracket Assembly (Includes It WPL 4162701 Contact Us For Availability
6
Washer, Spring (Impeller) WPL 4160297 Contact Us For Availability
6
Inner Door Assy WPL 4162508 Contact Us For Availability
6
Clamp, Hose WPL 4161507 Contact Us For Availability
7
Screw, 10-16 X 3/8 WPL 4159466 Contact Us For Availability
7
Bracket, Housing Support WPL 4162703 Contact Us For Availability
7
Washer, Impeller WPL 4162917 Contact Us For Availability
7
Protector, Upper Water Inlet WPL 4161699 Contact Us For Availability
8
Switch, Program WPL 4163286 Contact Us For Availability
8
Gasket, Rack Stud WPL 4162943 Contact Us For Availability
8
Lower Mounting Panel Assy WPL ARI115897A Contact Us For Availability
8
Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability
8
Screw, 8-18 X 5/16 (8) WPL 4159442 Contact Us For Availability
8
``O`` Ring WPL 4159826 Contact Us For Availability
8
Screw, 10-32 x 5/16 WPL 4159275 Contact Us For Availability
8
Speed Nut WPL 4162174 Contact Us For Availability
9
Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability
9
Stud, Rack Roller WPL 4162945 Contact Us For Availability
9
Filler (Lower Panel) WPL ARI115898A Contact Us For Availability
9
Bearing, Arm (Top) WPL 4162491 Contact Us For Availability
9
Wash Impeller Assembly WPL 4162921 Contact Us For Availability
9
Strap (Flexible Connector to Tank) WPL 4162935 Contact Us For Availability
9
Actuator, Interlock Switch WPL 4163574 Contact Us For Availability
10
Screw, 6-32 X 3/8 WPL 4159432 Contact Us For Availability
10
Washer, Roller Spacing WPL 4162947 Contact Us For Availability
10
Wash/Rinse Arm Assembly WPL 4162468 Contact Us For Availability
10
Plate, Air Inlet Cover WPL 4162952 Contact Us For Availability
10
Plug Button WPL 4159121 Contact Us For Availability
10
Screw, 4-40 X 3/4 WPL 4159424 Contact Us For Availability
10
Lock Nut WPL 4159115 Contact Us For Availability
11
Bearing, Door Stop Insert WPL 4160355 Contact Us For Availability
11
Spring, Door Interlock WPL 4163571 Contact Us For Availability
11
Roller, Rack Track WPL 4162944 Contact Us For Availability
11
Clip, Arm Guard WPL 4162501 Contact Us For Availability
11
Wheel, Blower WPL 4162741 Contact Us For Availability
11
Gasket, Cover Plate WPL 4162953 Contact Us For Availability
11
Keeper, Latch WPL 4160092 Contact Us For Availability
12
Panel Insert Kits (Stainless Steal (Optional) WPL 4169400 Contact Us For Availability
12
Bushing, Rack Roller WPL 4162946 Contact Us For Availability
12
Panel Insert Kits (Fresh Avocado/Coffee (Opti WPL 4162835 Contact Us For Availability
12
Panel Insert Kits (Almond/White) WPL 4162836 Contact Us For Availability
12
Panel Insert Kits (Sand/Onyx Black (Optional) WPL 4169403 Contact Us For Availability
12
Panel Insert Kits (Silver/Onyx Black (Optiona WPL 4169404 Contact Us For Availability
12
Panel Insert Kits (Platinum/Toast (Optional)) WPL 4169407 Contact Us For Availability
12
Panel Insert Kits (Harvest Gold/Onyx Black) WPL 4171096 Contact Us For Availability
12
Lower Pump Housing (Includes Items 13 & 23) WPL 4162929 Contact Us For Availability
12
Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability
12
Screw, 10-16 x 3/8 WPL 4159421 Contact Us For Availability
13
Switch, Interlock WPL 4160658 Contact Us For Availability
13
Bumper, Rack Track WPL 4162084 Contact Us For Availability
13
Screw WPL 4161737 Contact Us For Availability
13
Seal, Wash Pump Ring WPL 4162919 Contact Us For Availability
13
Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability
13
Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability
14
Screw 6-32 X 7/8 WPL 4159353 Contact Us For Availability
14
Stud, Bumper Retaining WPL 4160423 Contact Us For Availability
14
Tube (Manifold to Receiver) WPL 4161617 Contact Us For Availability
14
Cover, Dryer Motor WPL 4162443 Contact Us For Availability
14
Fine Strainer WPL 4162933 Contact Us For Availability
14
Nut, Standpipe WPL 4161596 Contact Us For Availability
15
Screw & Washer Assy WPL 4163263 Contact Us For Availability
15
Bumper, Upper Rack WPL 4162048 Contact Us For Availability
15
Guard, Arm WPL 4162469 Contact Us For Availability
15
Blower Motor Assembly WPL 4162742 Contact Us For Availability
15
Float & Retainer Assembly WPL 4162407 Contact Us For Availability
15
Channel, Evaporation WPL 4162306 Contact Us For Availability
16
Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability
16
Screw, 8-32 X 7/8 WPL 4159467 Contact Us For Availability
16
Track, Adjustable (L.H.) WPL 4161652 Contact Us For Availability
16
Track, Adjustable (R.H.) WPL 4161653 Contact Us For Availability
16
Washer WPL 4162624 Contact Us For Availability
16
``O`` Ring WPL 4159827 Contact Us For Availability
16
Lever, Overflow Switch WPL 4171116 Contact Us For Availability
16
Support, Evaporation Channel WPL 4161564 Contact Us For Availability
17
Roller, Upper Rack Track WPL 4161607 Contact Us For Availability
17
Spacer, End Cap (R.H.) WPL 4163288 Contact Us For Availability
17
Arm, Receiver WPL 4161581 Contact Us For Availability
17
Motor Mounting Plate (Incls. Items 18 & 35) WPL 4162932 Contact Us For Availability
17
Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability
18
End Cap (R.H.) WPL 4163241 Contact Us For Availability
18
Washer WPL 4159593 Contact Us For Availability
18
Clip, Thermoprotector WPL 4162990 Contact Us For Availability
18
Gasket, Motor Mounting Plate WPL 4161497 Contact Us For Availability
18
Frame Assembly (L.H.) WPL 4162910 Contact Us For Availability
19
Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability
19
Wiring Harness (Grounding) WPL 4163272 Contact Us For Availability
19
Screw, 8-32 X 1/4 (4) WPL 4159283 Contact Us For Availability
19
Grommet, Panel (10) WPL 4162735 Contact Us For Availability
19
Thermostat WPL 4160464 Contact Us For Availability
19
Thermostat (Alt.) WPL 4171162 Contact Us For Availability
19
Thermostat (Alt.) WPL 4171163 Contact Us For Availability
19
Thermostat (Alt.) WPL 4171164 Contact Us For Availability
19
Screw, 8-32 x 1/2 WPL 4159299 Contact Us For Availability
19
Drain Pump Top Assembly WPL 4162924 Contact Us For Availability
19
Cross Frame, Rear WPL 4162867 Contact Us For Availability
20
Lift, Receiver (L.H.) WPL 4161629 Contact Us For Availability
20
Lift, Receiver (R.H.) WPL 4161630 Contact Us For Availability
20
Screw, 10-16 X 5/8 WPL 4159178 Contact Us For Availability
20
Gasket, Drain Pump WPL 4163050 Contact Us For Availability
21
Lead (Fill Control to Fill Valve) WPL 4163471 Contact Us For Availability
21
Screw, 10 X 5/8 WPL 4159428 Contact Us For Availability
21
Heater, Open WPL 4162034 Contact Us For Availability
21
Heater, Open (Alt.) WPL 4171159 Contact Us For Availability
21
Heater, Open (Alt.) WPL 4171160 Contact Us For Availability
21
Heater, Open (Alt.) WPL 4171161 Contact Us For Availability
21
Pin, Hinge WPL 4161563 Contact Us For Availability
21
Frame Assembly (R.H.) WPL 4163604 Contact Us For Availability
22
Lead Assembly (Interlock Switch to Program Sw WPL 4162614 Contact Us For Availability
22
Partition WPL 4161577 Contact Us For Availability
22
Access Cover WPL 4163186 Contact Us For Availability
22
Motor Clamp Assembly WPL 4161986 Contact Us For Availability
22
Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability
22
Screw, 1/4-20 x 1/2 WPL 4159443 Contact Us For Availability
23
Clip, Partition (6) WPL 4160480 Contact Us For Availability
23
Wiring Harness (Lower Common) WPL 4163270 Contact Us For Availability
23
Bracket, Blower Mounting WPL 4171153 Contact Us For Availability
23
Gasket, Venturi WPL 4162916 Contact Us For Availability
23
Screw WPL 4162113 Contact Us For Availability
23
Cross Frame, Front WPL 4161368 Contact Us For Availability
24
Quadrant, Divider (L.H.) WPL 4160860 Contact Us For Availability
24
Quadrant, Divider (R.H.) WPL 4160861 Contact Us For Availability
24
Start Relay Kit (Includes Item 25) WPL 4171129 Contact Us For Availability
24
Gasket, Detergent Dispenser WPL 4161619 Contact Us For Availability
24
Kick Board WPL 4161580 Contact Us For Availability
25
Clip, Grounding (Front Panel) WPL 4162043 Contact Us For Availability
25
Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability
25
Foot, Leveling WPL 4162911 Contact Us For Availability
26
Lock Washer WPL 4159494 Contact Us For Availability
26
Tube - Flexible (Drain) WPL 4163151 Contact Us For Availability
27
Baffle, Lower WPL 4161295 Contact Us For Availability
27
Button, Program Switch (7) WPL 4163239 Contact Us For Availability
27
Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability
28
Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability
28
Clamp, Hose (.937`` Dia.) WPL 4161508 Contact Us For Availability
28
Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability
29
Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability
29
Bracket, Check Valve WPL 4163305 Contact Us For Availability
30
Trim, Handle WPL 4163254 Contact Us For Availability
30
Check Valve Assembly WPL 4162920 Contact Us For Availability
30
Trim, Tank (Screw, 10-16 X 1/2) WPL 4159389 Contact Us For Availability
30
Trim, Tank (R.H.) WPL 4160560 Contact Us For Availability
30
Trim, Tank (L.H.) WPL 4161559 Contact Us For Availability
31
Motor, Seal & Gasket Kit (Incls. Items 18, 24 WPL 4163523 Contact Us For Availability
32
Handle, Latch WPL 4163243 Contact Us For Availability
32
Screw, 1/4-20 x 1 WPL 4159235 Contact Us For Availability
32
Washer (Rubber) WPL 4159594 Contact Us For Availability
32
Tank (Serviced Complete with Frame) WPL 4163603 Contact Us For Availability
33
Screw, 10-32 x 5/8 WPL 4159225 Contact Us For Availability
33
Connector, Overhead WPL 4161605 Contact Us For Availability
34
Clip, Harness Guide WPL 4163372 Contact Us For Availability
34
Clamp, Hose (1.468`` Dia.) WPL 4162031 Contact Us For Availability
34
Fill Hole Plug Assembly (Includes Item 35) WPL 4162536 Contact Us For Availability
35
Wiring Harness (Main) WPL 4171093 Contact Us For Availability
35
Shaft Seal WPL 4163366 Contact Us For Availability
35
Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability
36
Cutter WPL 4163042 Contact Us For Availability
37
Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability
38
Rinse Agent Dispensing Valve WPL 4162522 Contact Us For Availability
39
Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability
39
Control Panel WPL 4169306 Contact Us For Availability
41
Spacer, End Cap (L.H.) WPL 4163289 Contact Us For Availability
41
Shim Washer Kit WPL 4163634 Contact Us For Availability
41
Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability
42
End Cap (L.H.) WPL 4163242 Contact Us For Availability
43
Screw, 6-20 x 3/8 WPL 4159408 Contact Us For Availability
44
Timer Assy. (115 V., 60 Hz.) (Alt.) WPL 4171091 Contact Us For Availability
44
Timer Assy. (115 V., 60 Hz.) WPL 4171156 Contact Us For Availability
44
Timer Assy. (115 V., 60 Hz.) (Alt.) WPL 4171157 Contact Us For Availability
47
Light Package WPL 4163237 Contact Us For Availability
48
Insulator, Light WPL 4163352 Contact Us For Availability
49
Barrier, Timer WPL 4171158 Contact Us For Availability
× ![]()
