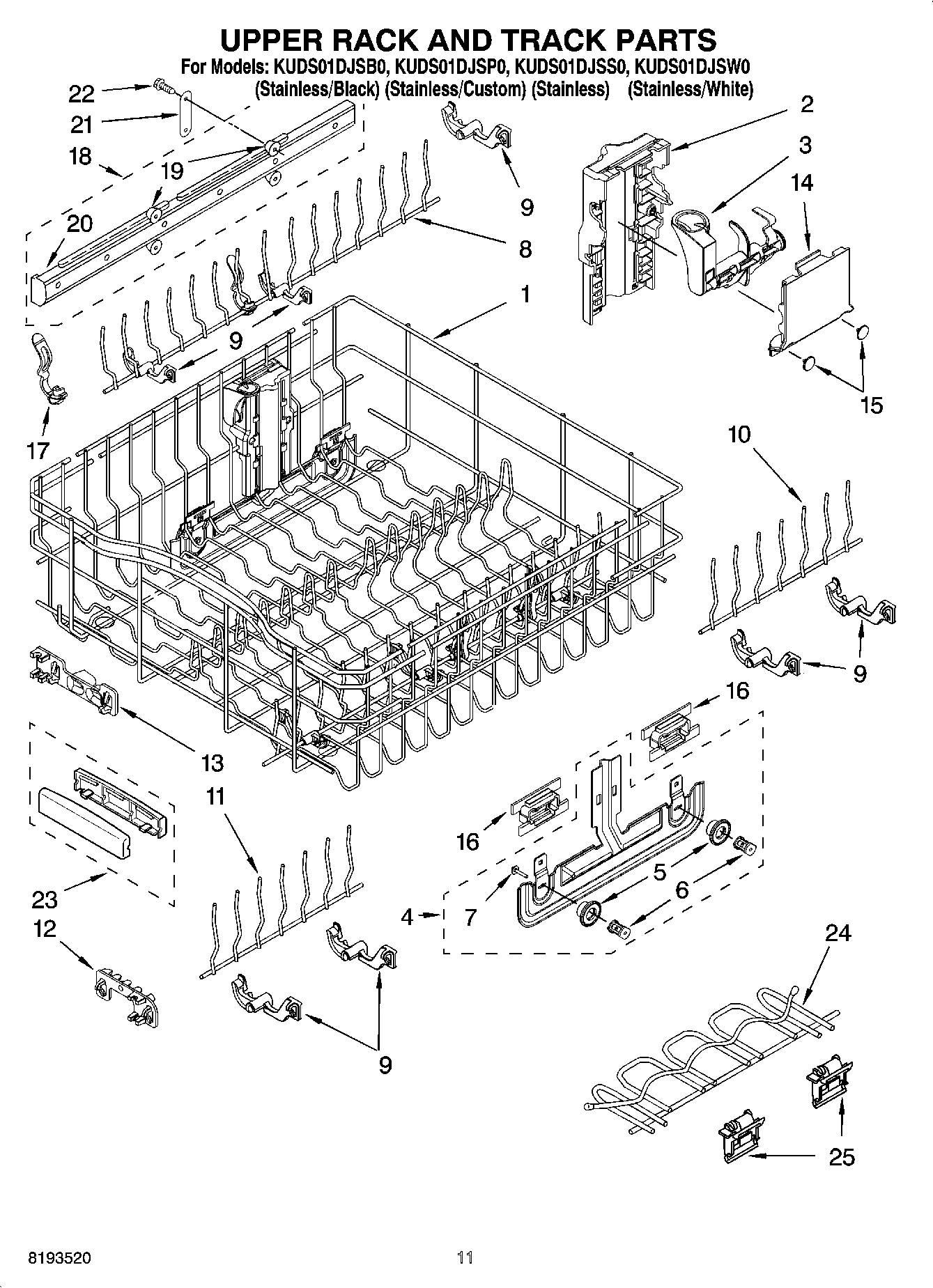

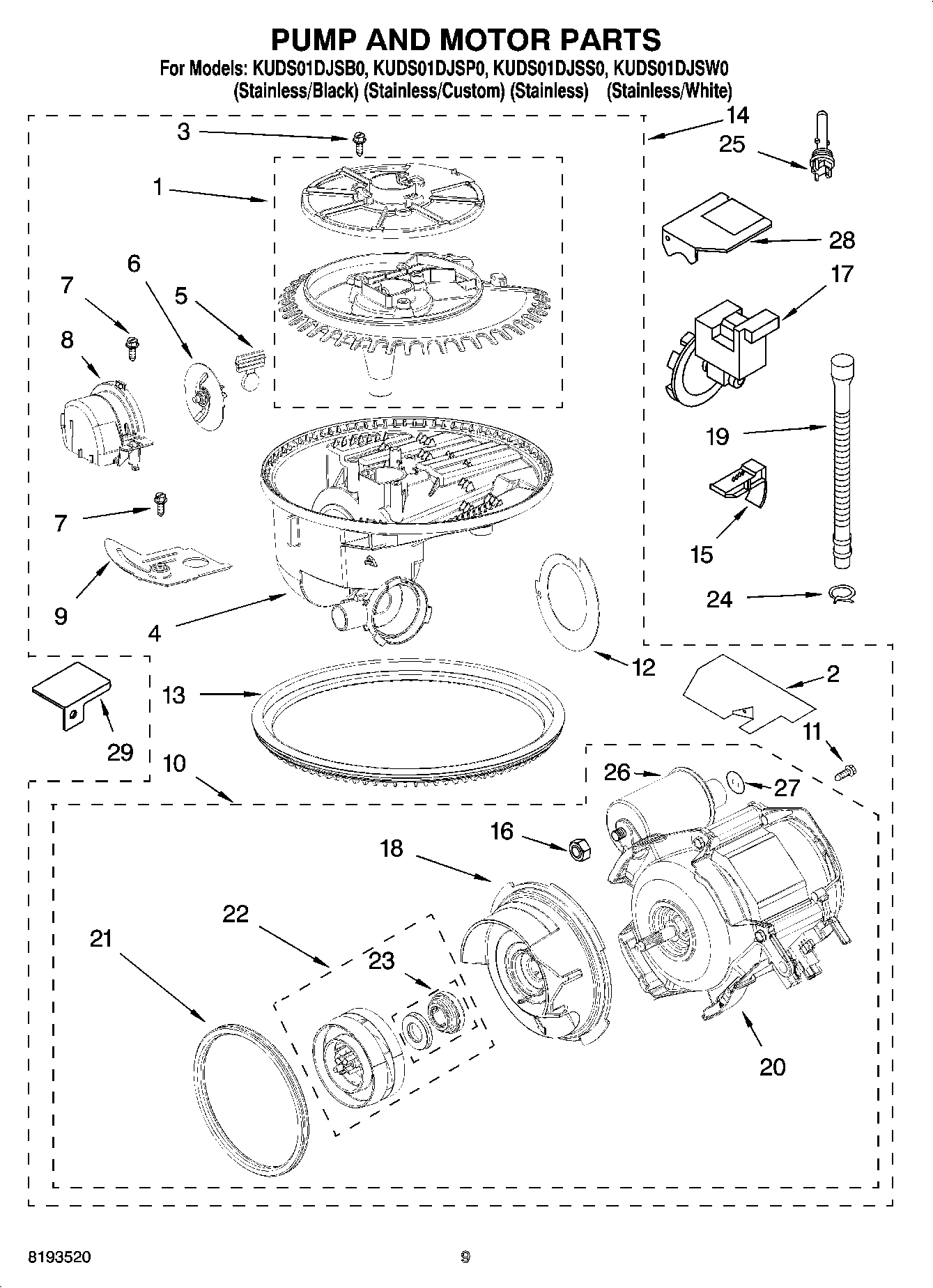

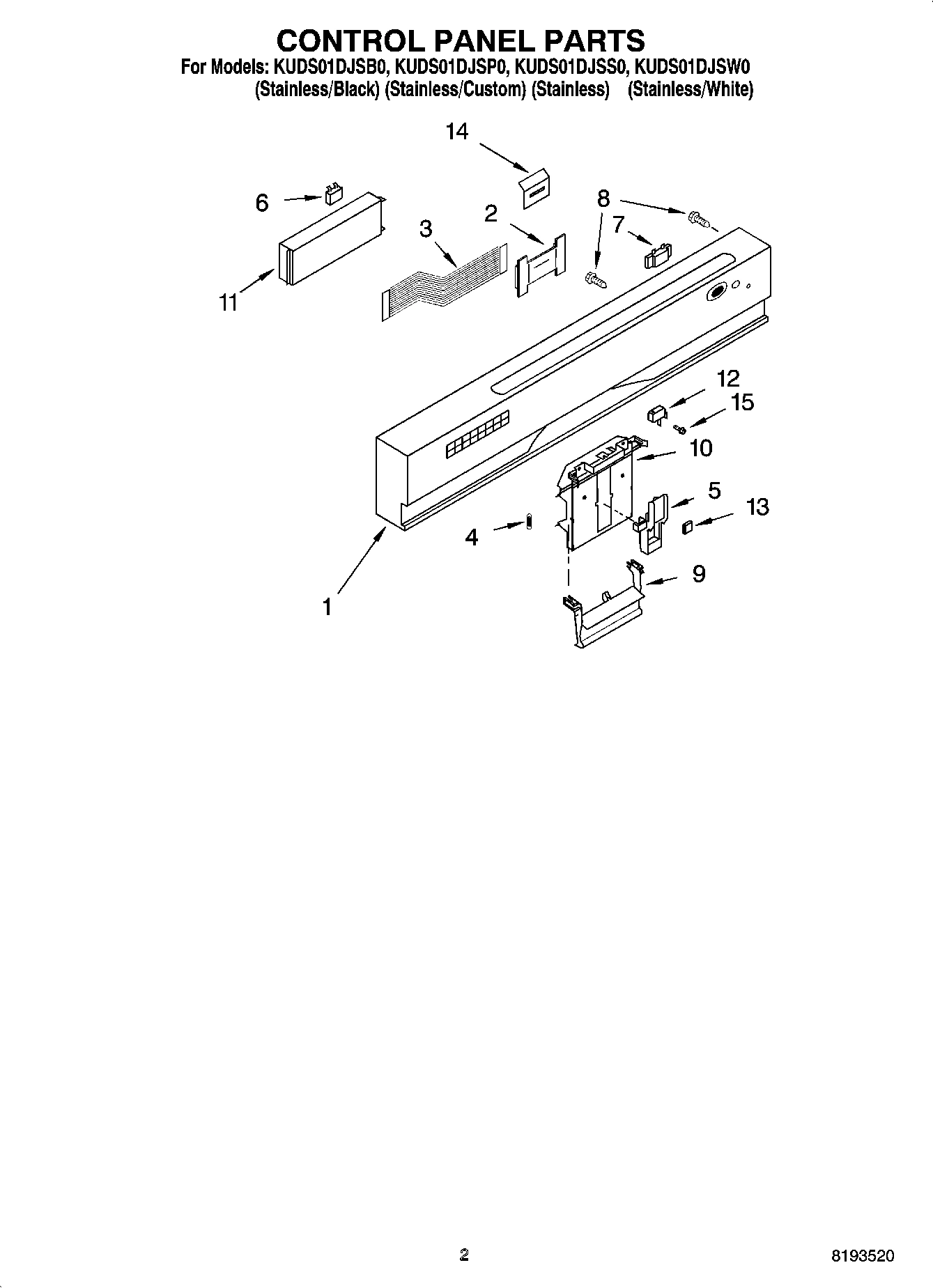

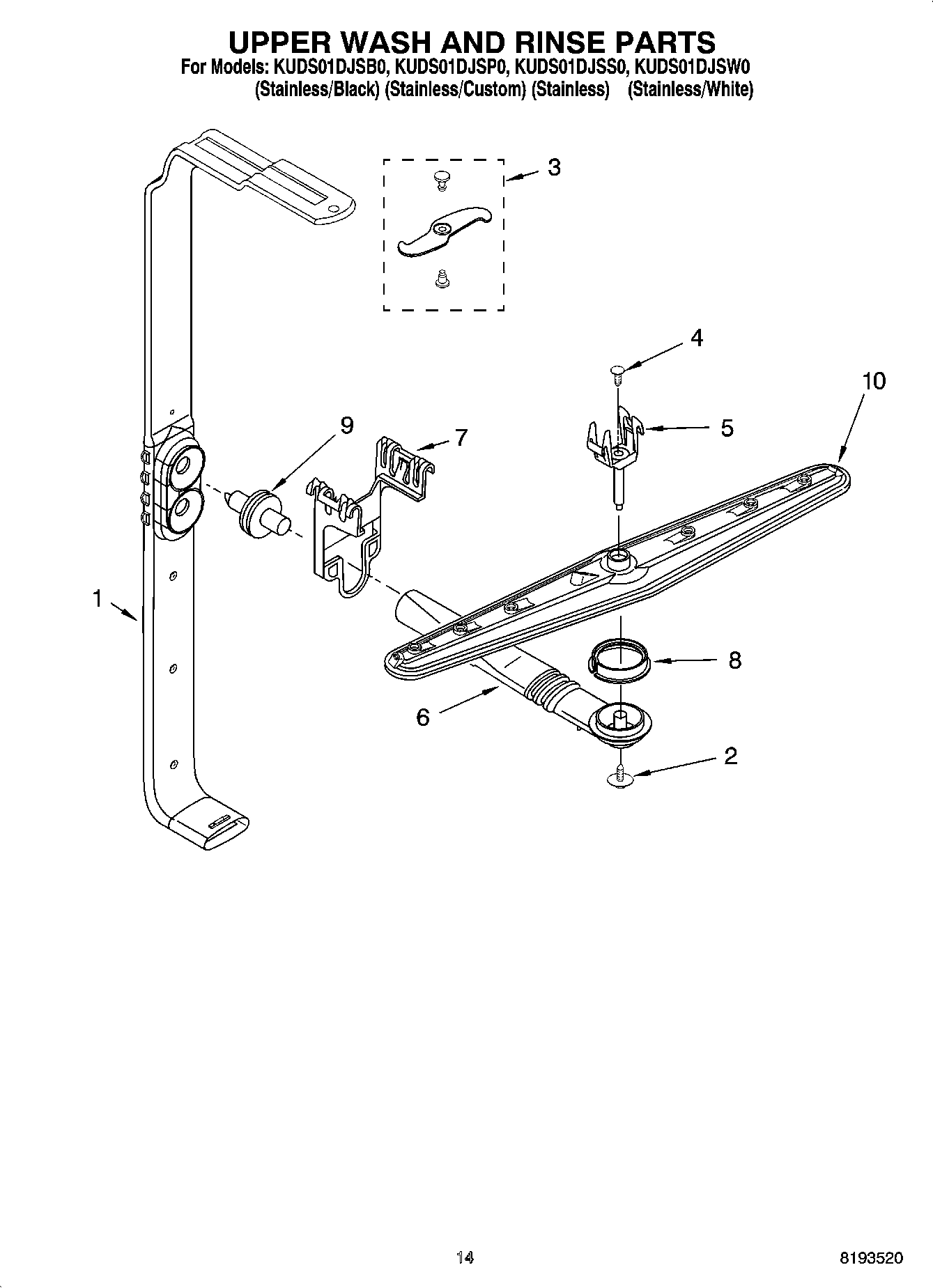

Model Whirlpool KUDS01DJSW0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

1

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

1

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

1

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $12.81

1

8171651 Whirlpool Touch Up Backorder WPL 8171651 $8.40

1

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

1

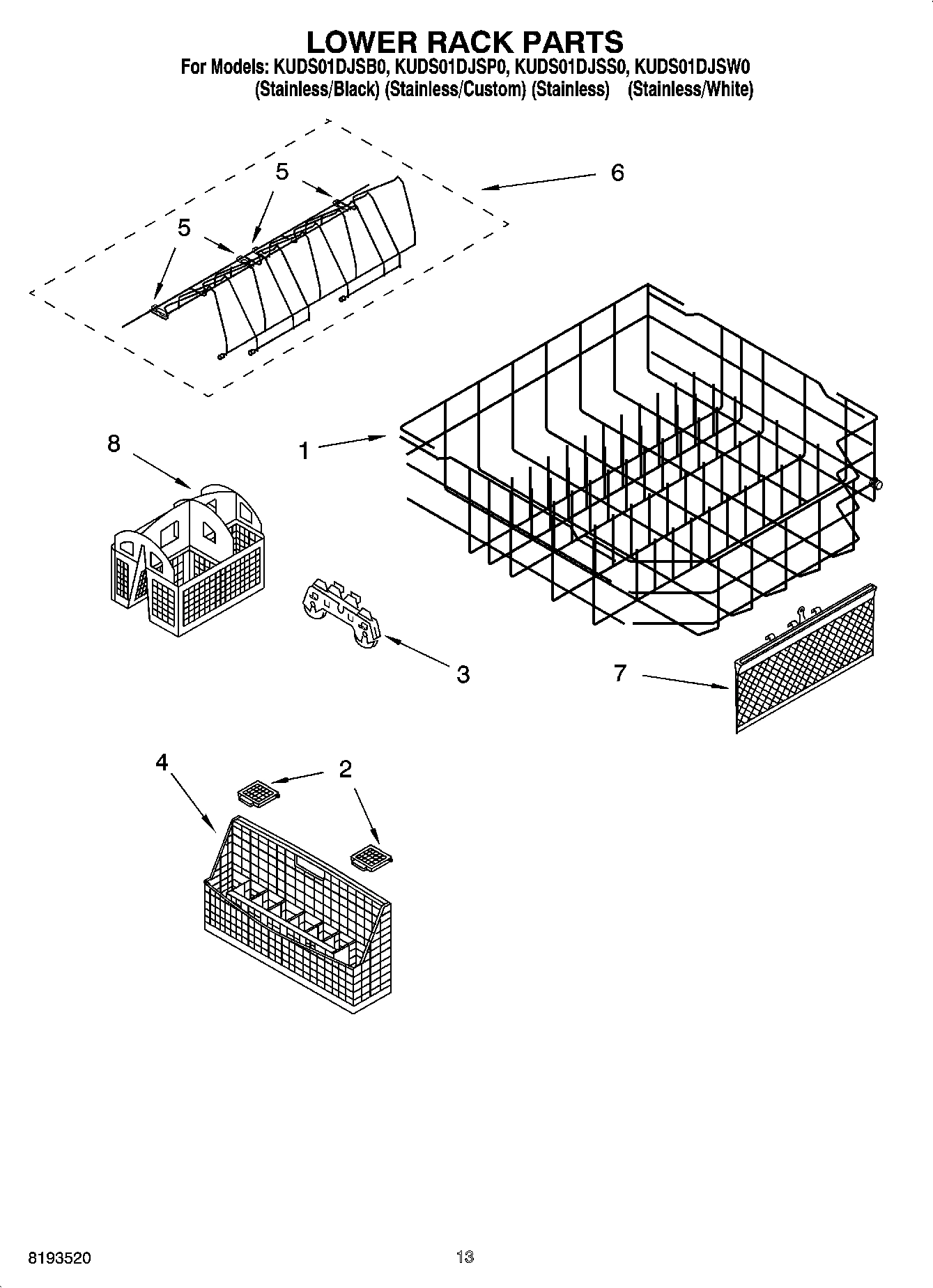

W10728159 Whirlpool Dishwasher Lower Dishrack In Stock WPL W10728159 $148.04

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

WPW10292170 Whirlpool Dishwasher Miscellaneou Backorder WPL WPW10292170 $32.83

1

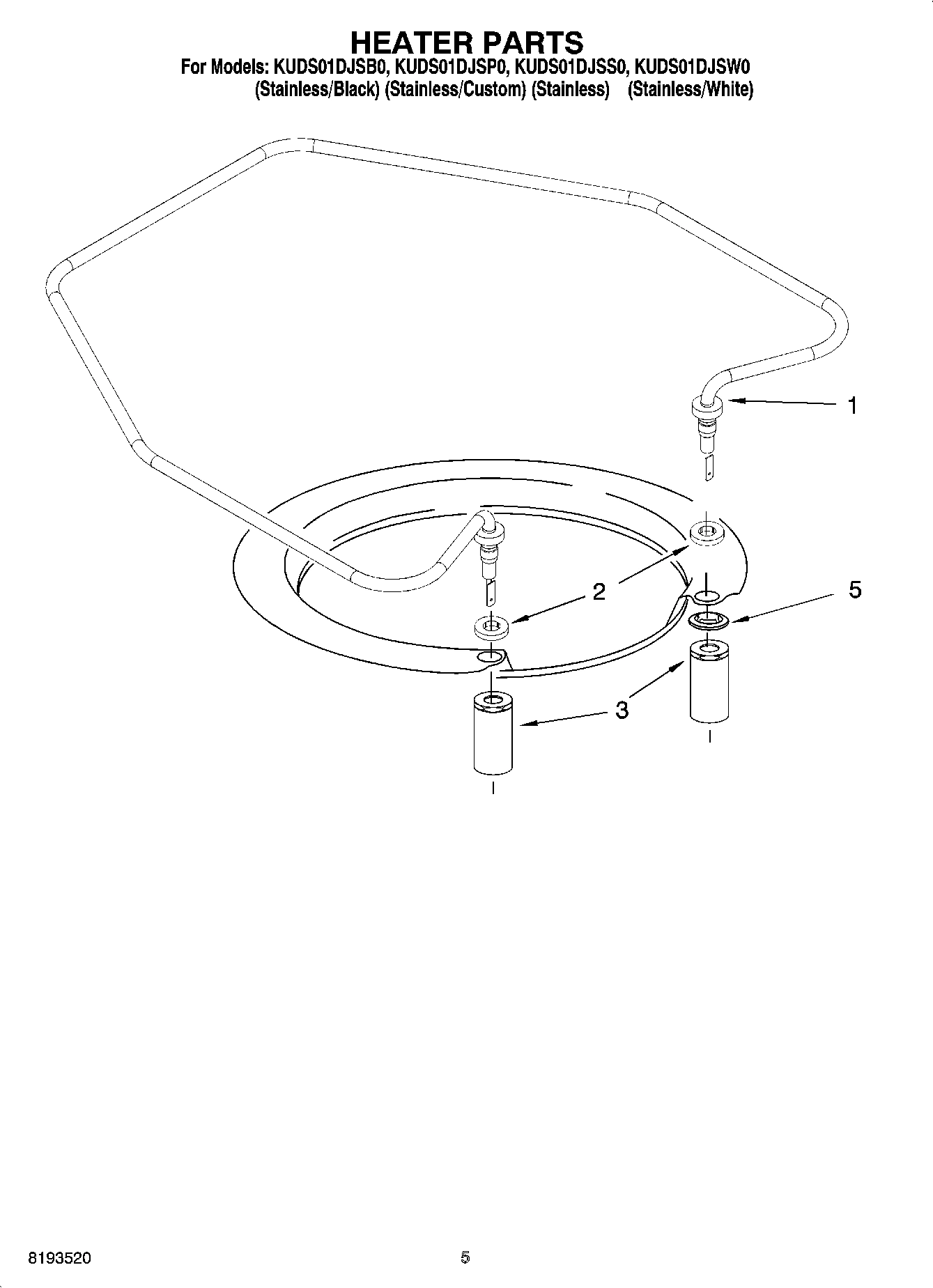

Heater Element Assembly (Also Includes Item 2 WPL 8194200 Contact Us For Availability

1

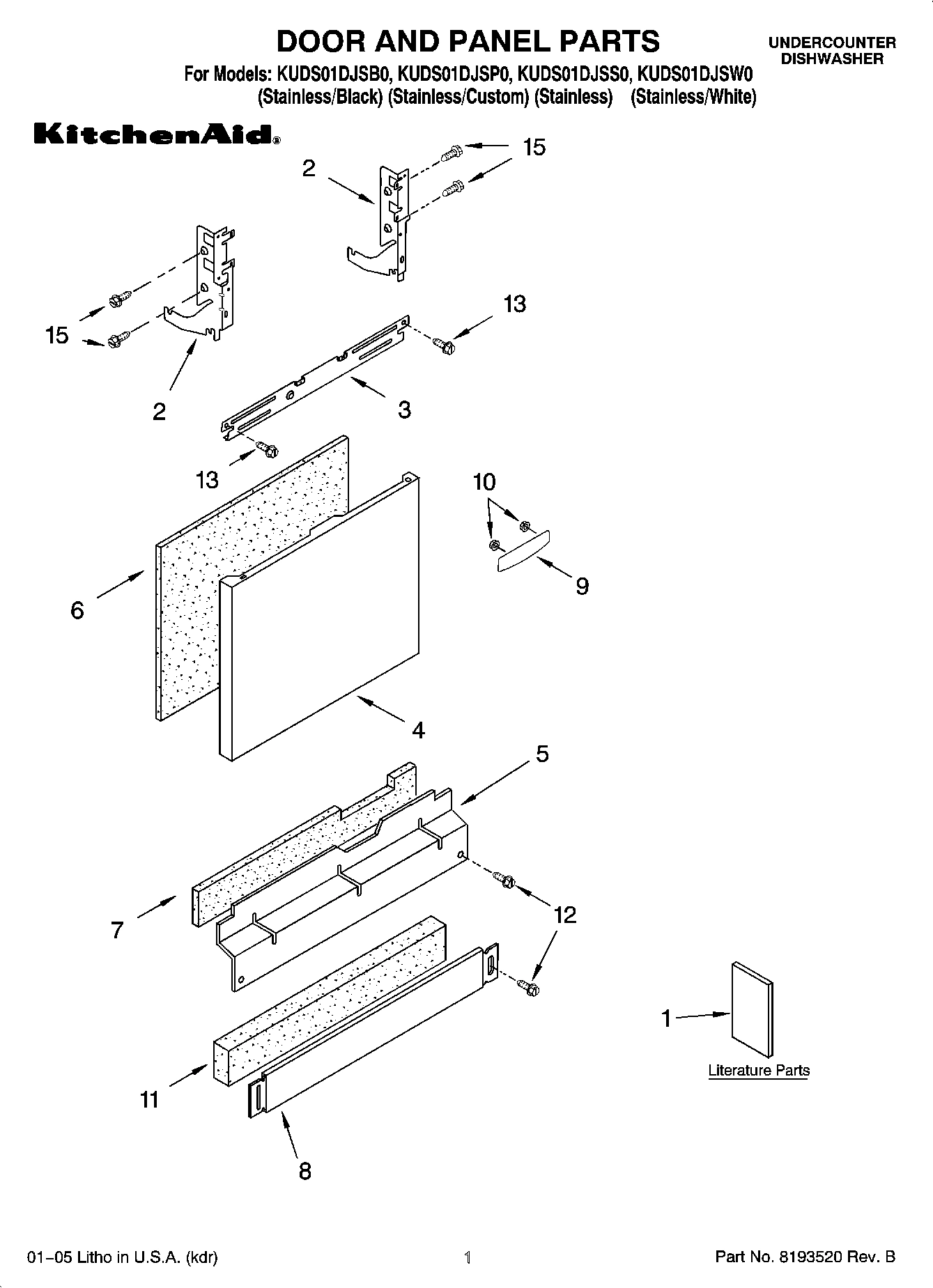

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

1

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

1

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

1

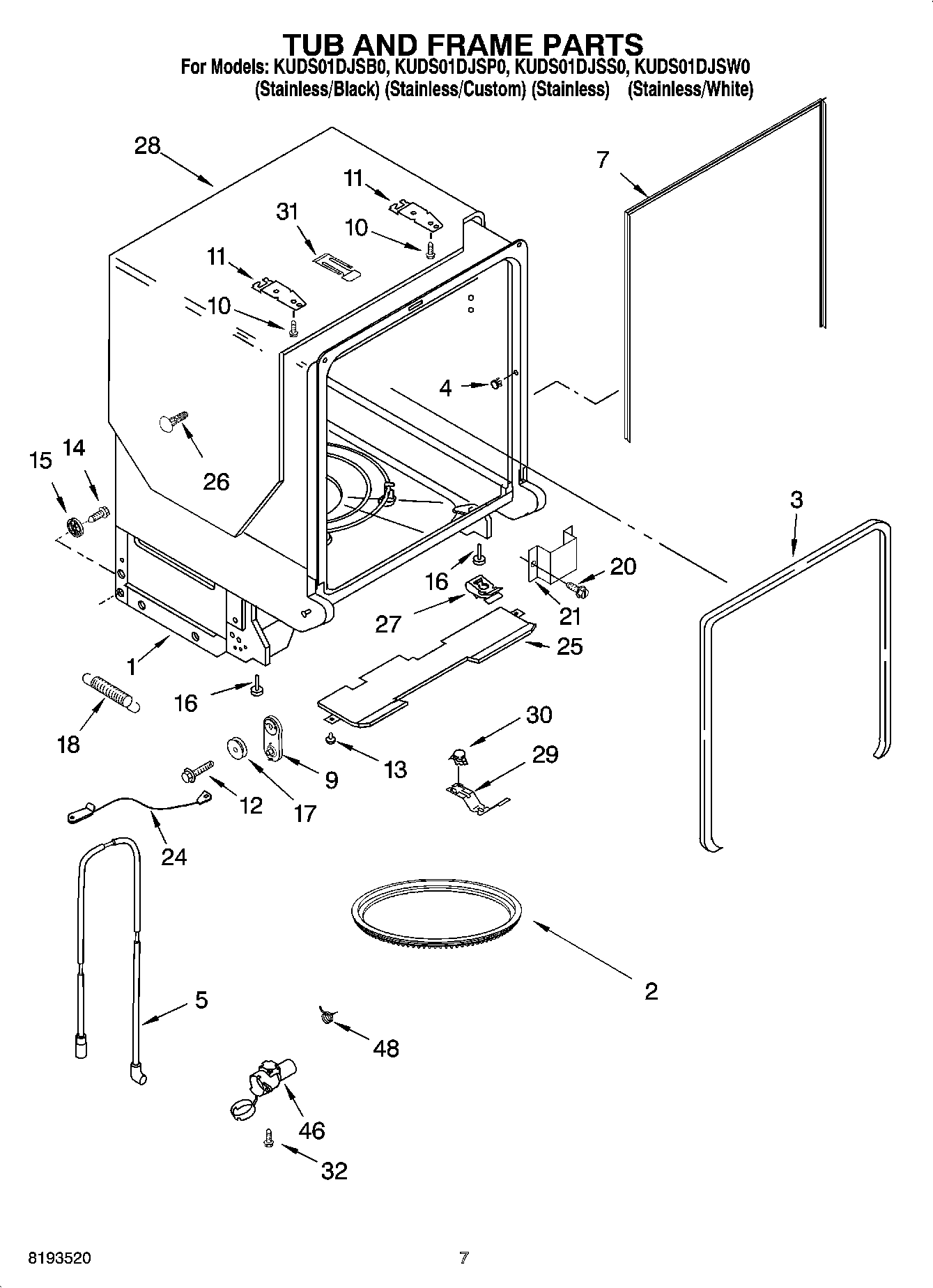

Tub Assembly (Also Order Item 2) WPL 8269105 Contact Us For Availability

1

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

1

Custom Panel Kits (Black) WPL 8171555 Contact Us For Availability

1

Custom Panel Kits (White) WPL 8171556 Contact Us For Availability

1

Custom Panel Kits (Biscuit) WPL 8171557 Contact Us For Availability

1

Custom Panel Kits (Graphite) WPL 8171558 Contact Us For Availability

1

Custom Panel Kits Color Panel Kits (Cobalt Bl WPL 8171574 Contact Us For Availability

1

Custom Panel Kits Color Panel Kits (Hunter Gr WPL 8171575 Contact Us For Availability

1

Custom Panel Kits Color Panel Kits (Empire Re WPL 8171576 Contact Us For Availability

1

Custom Panel Kits Color Panel Kits (Majestic WPL 8171577 Contact Us For Availability

1

Paint, Touch-Up 1/2 Oz. (Majestic Yellow) WPL 8171653 Contact Us For Availability

1

Side Panel Kits (Biscuit) WPL 8171658 Contact Us For Availability

1

WPL 978883 WPL 978883 Contact Us For Availability

1

WPL ARI156295A WPL ARI156295A Contact Us For Availability

1

WPL ARI156296A WPL ARI156296A Contact Us For Availability

1

WPL ARI156297A WPL ARI156297A Contact Us For Availability

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $32.13

2

WP8269242 Whirlpool Dishwasher Fill Hose Backorder WPL WP8269242 $32.56

2

Seal, Sump WPL 8268395 Contact Us For Availability

2

Cover Basket Silverware WPL 8268749 Contact Us For Availability

3

W10542314 Whirlpool Dishwasher Door Gasket an In Stock WPL W10542314 $45.07

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268701 Whirlpool Dishwasher Adjuster Backorder WPL WP8268701 $1.41

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $29.92

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

Actuator, Adjuster (Also Order Item 15) (Righ WPL 8268649 Contact Us For Availability

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $5.34

4

W10840140 Whirlpool Dishwasher Silverware Bas In Stock WPL W10840140 $56.25

4

WP3400920 Whirlpool Screw Cover Backorder WPL WP3400920 $4.43

4

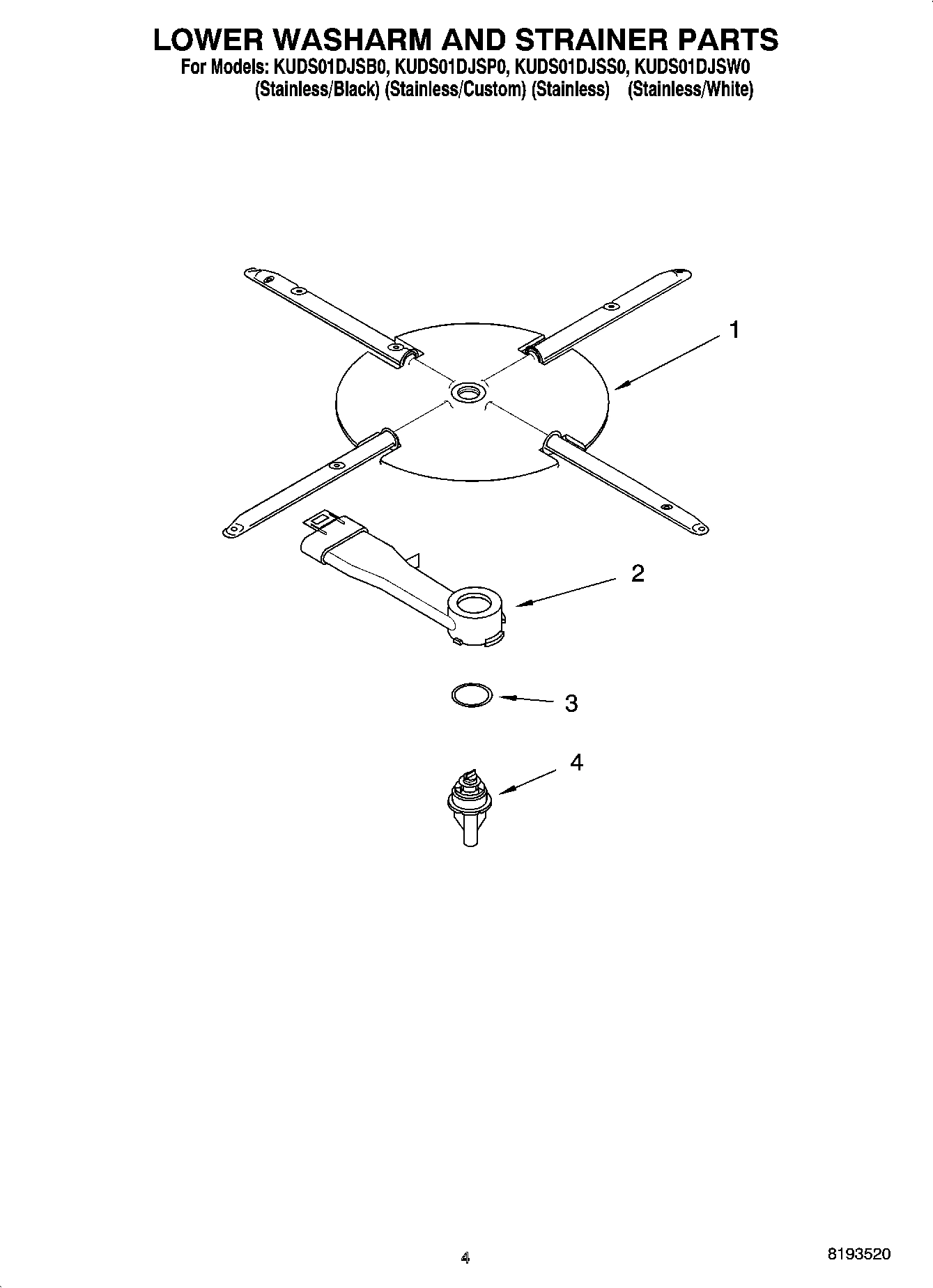

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $31.64

4

WP8268540 Whirlpool Door Handle Spring In Stock WPL WP8268540 $2.51

4

Gasket WPL 8269241 Contact Us For Availability

5

WP8270138 Whirlpool Dishwasher Upper Wheel Backorder WPL WP8270138 $4.56

5

WP8524471 Whirlpool Dishwasher Actuator In Stock WPL WP8524471 $24.96

5

WPW10358302 Whirlpool Dishwasher Drain Hose In Stock WPL WPW10358302 $40.39

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

5

NOTE: If heater element is removed, it must b WPL ARI156294A Contact Us For Availability

5

Clip-Base, Plate Holder WPL 8268493 Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

WP8268703 Whirlpool Dishwasher Rack Axle Backorder WPL WP8268703 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

6

Holder, Plate WPL 661641 Contact Us For Availability

7

W10864081 Whirlpool Dishwasher Seal In Stock WPL W10864081 $47.10

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8269206 Whirlpool Dishwasher Display Backorder WPL WP8269206 $44.08

7

WP8281156 Whirlpool Dishwasher Screw Backorder WPL WP8281156 $2.51

7

Basket-Small Items WPL 8270096 Contact Us For Availability

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

Caddie-Utensil WPL 8268693 Contact Us For Availability

9

8194001 Whirlpool Dishwasher Door Balance Lin In Stock WPL 8194001 $12.88

9

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

9

WP8269117 Whirlpool Dishwasher Handle In Stock WPL WP8269117 $49.46

9

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $28.80

10

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

10

Dispenser, Wiring Harness WPL 8269190 Contact Us For Availability

10

Tine Row, Rear WPL 8268801 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $28.82

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

Tine Row, Front WPL 8268802 Contact Us For Availability

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $30.85

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

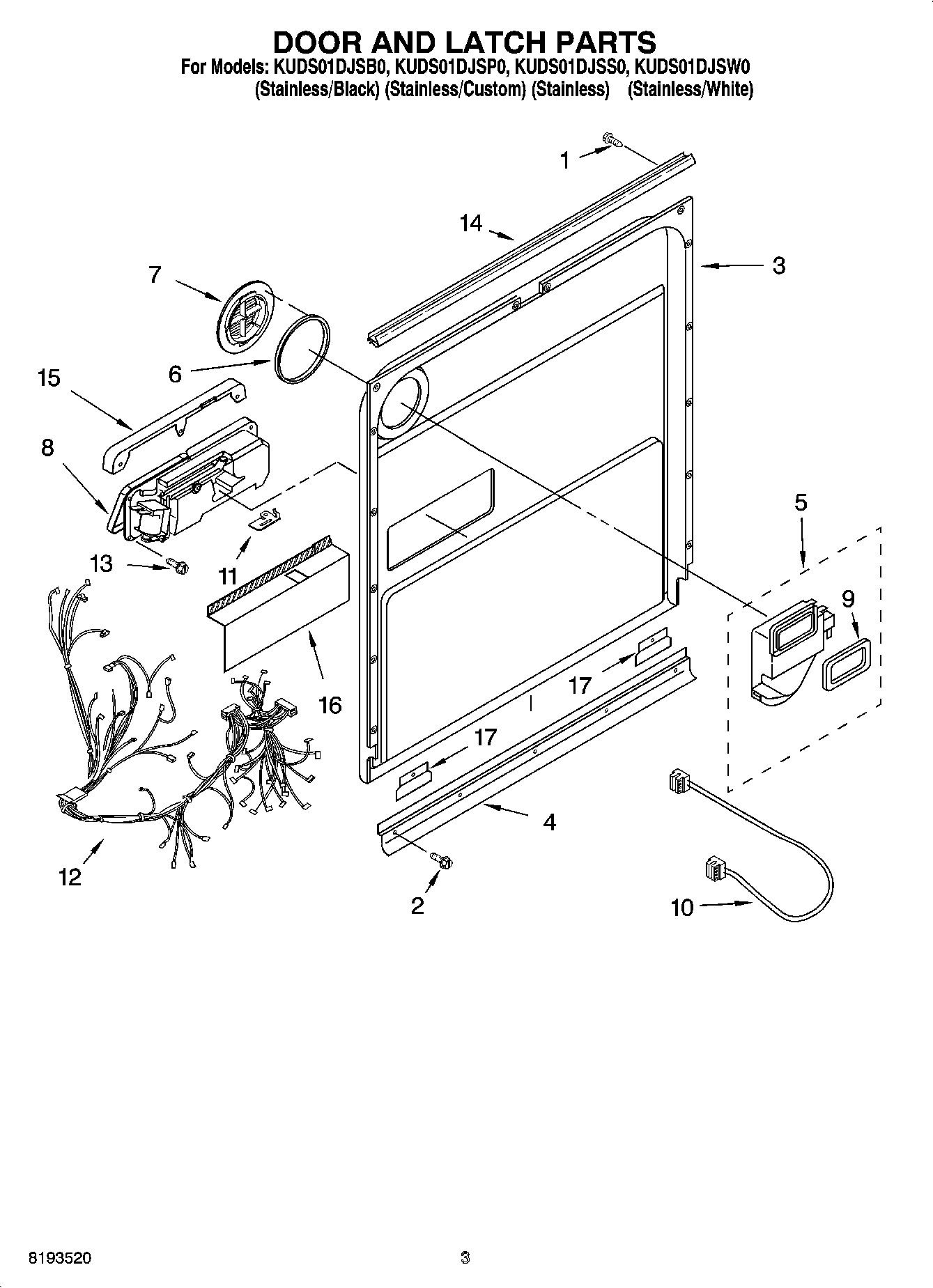

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.05

Wiring Harness Main WPL 8269191 Contact Us For Availability

Positioner, Dual WPL 8268740 Contact Us For Availability

13

WP3400924 Whirlpool Dishwasher Retainer In Stock WPL WP3400924 $14.31

13

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

13

Positioner, Multi WPL 8268741 Contact Us For Availability

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

14

Screw (2) WPL 3370389 Contact Us For Availability

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP3400918 Whirlpool Fastener In Stock WPL WP3400918 $14.35

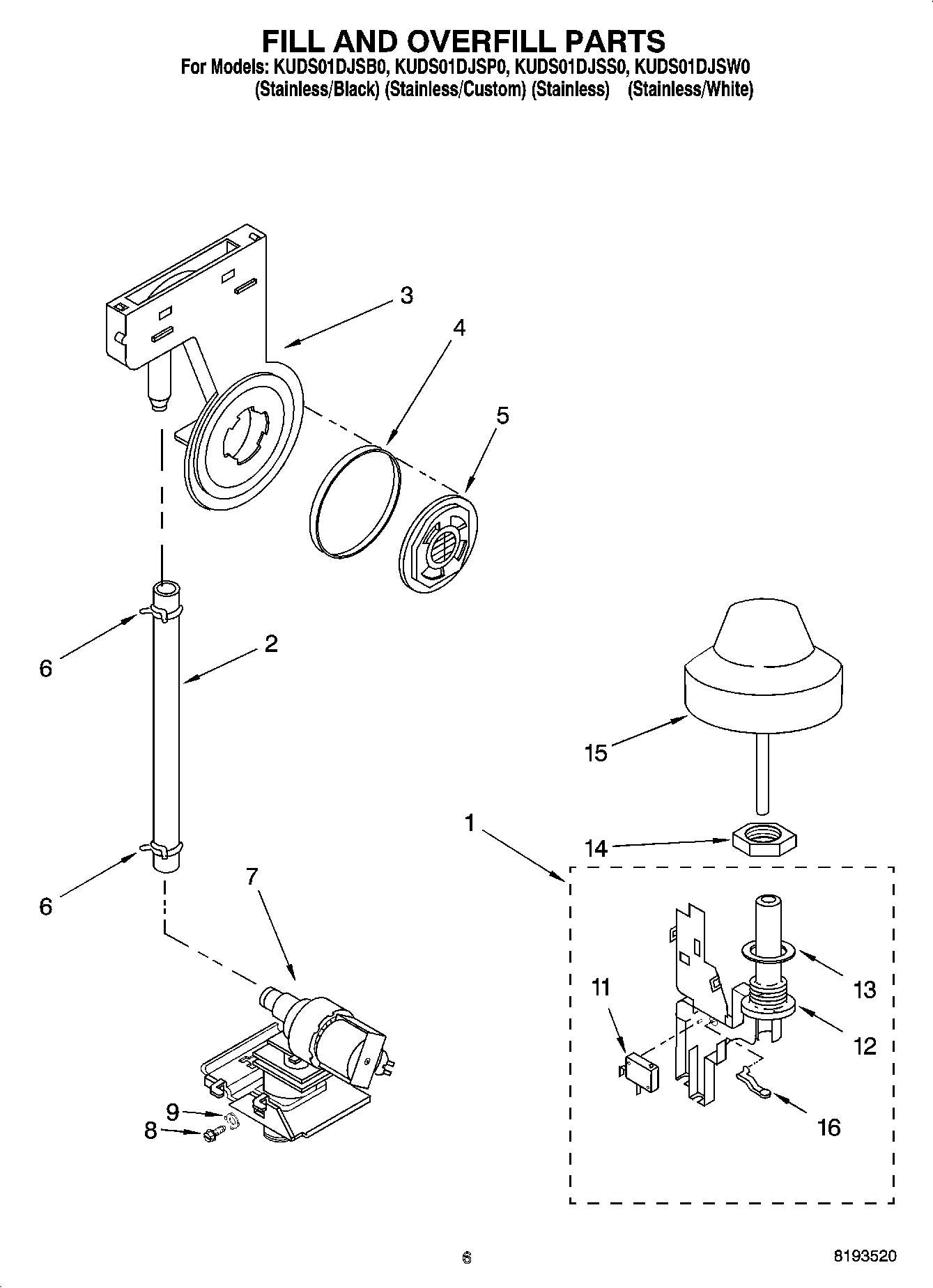

WP8268895 Whirlpool Dishwasher Float Assembly Backorder WPL WP8268895 $30.80

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

16

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

16

WP8268738 Whirlpool Dishwasher Positioner Backorder WPL WP8268738 $32.85

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $28.80

17

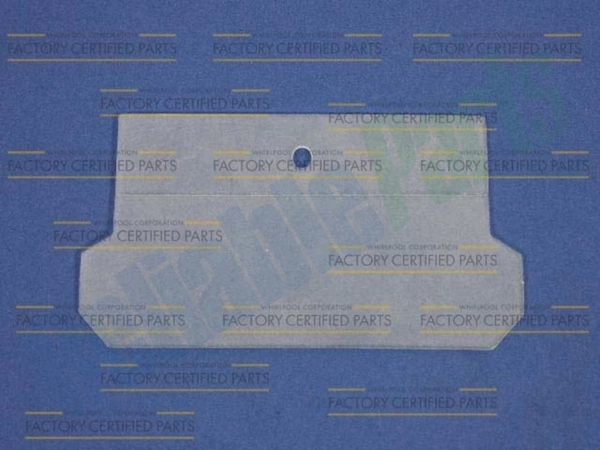

WP8268933 Whirlpool Dishwasher Door Guard Backorder WPL WP8268933 $26.21

17

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

17

Clip, No-Flip WPL 8268742 Contact Us For Availability

18

W10404344 Whirlpool Dishwasher Track Backorder WPL W10404344 $175.40

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $12.17

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8270136 Whirlpool Dishwasher Stop Backorder WPL WP8270136 $28.11

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

22

WPW10348407 Whirlpool Dishwasher Screw Backorder WPL WPW10348407 $3.70

23

Handle, Dishrack WPL 8269714 Contact Us For Availability

24

W11125975 Whirlpool Dishwasher Cup Shelf Backorder WPL W11125975 $40.15

25

WPW10746770 Whirlpool Insulation Pad Backorder WPL WPW10746770 $16.05

25

Thermister WPL 8269208 Contact Us For Availability

25

Clip, Cupshelf WPL 8270025 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

28

W10877094 Whirlpool Shield In Stock WPL W10877094 $79.73

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

31

WP8580309 Whirlpool Dishwasher Strike In Stock WPL WP8580309 $28.90

32

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

46

Switch, Pressure WPL 8268477 Contact Us For Availability

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
