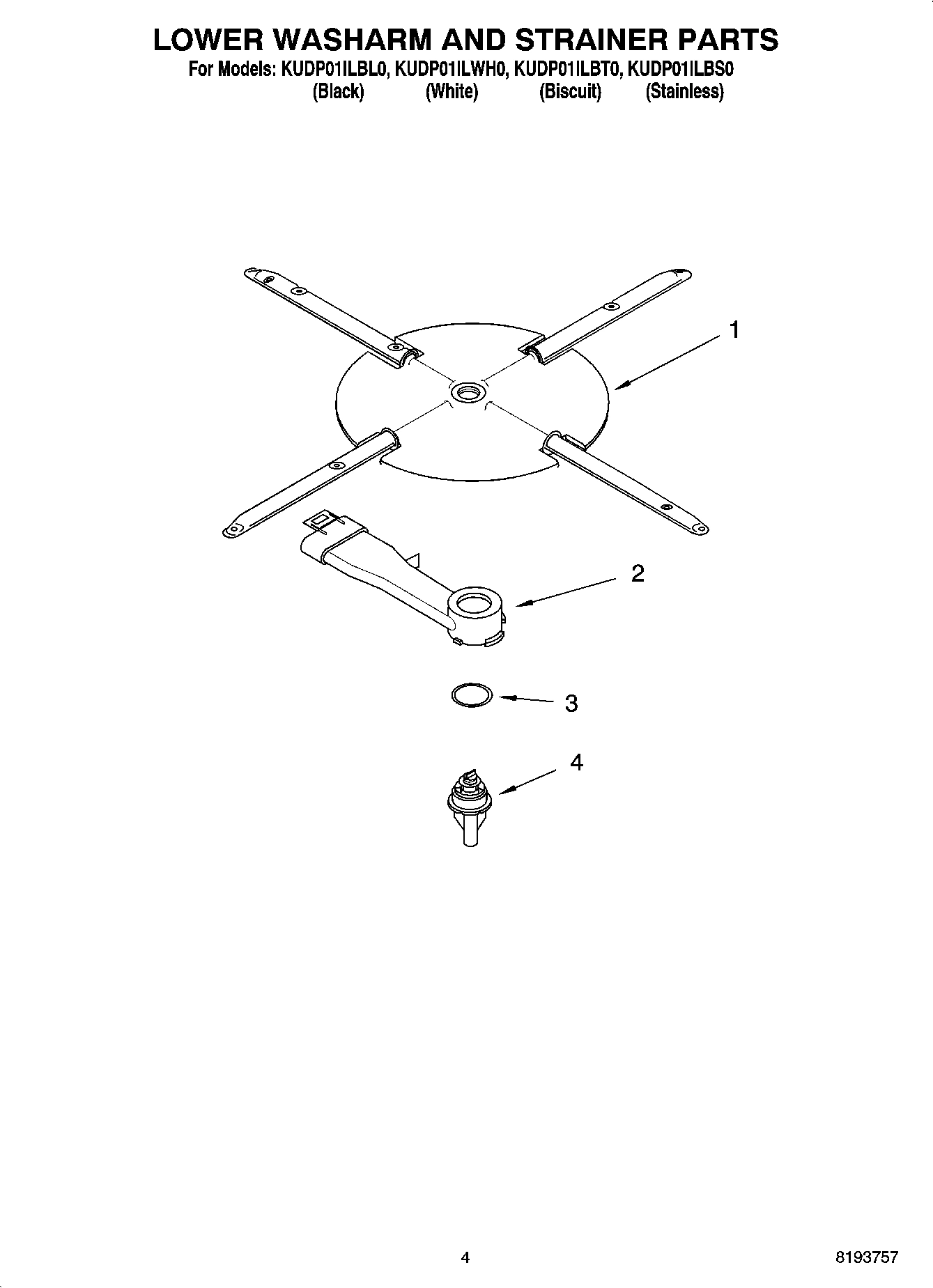

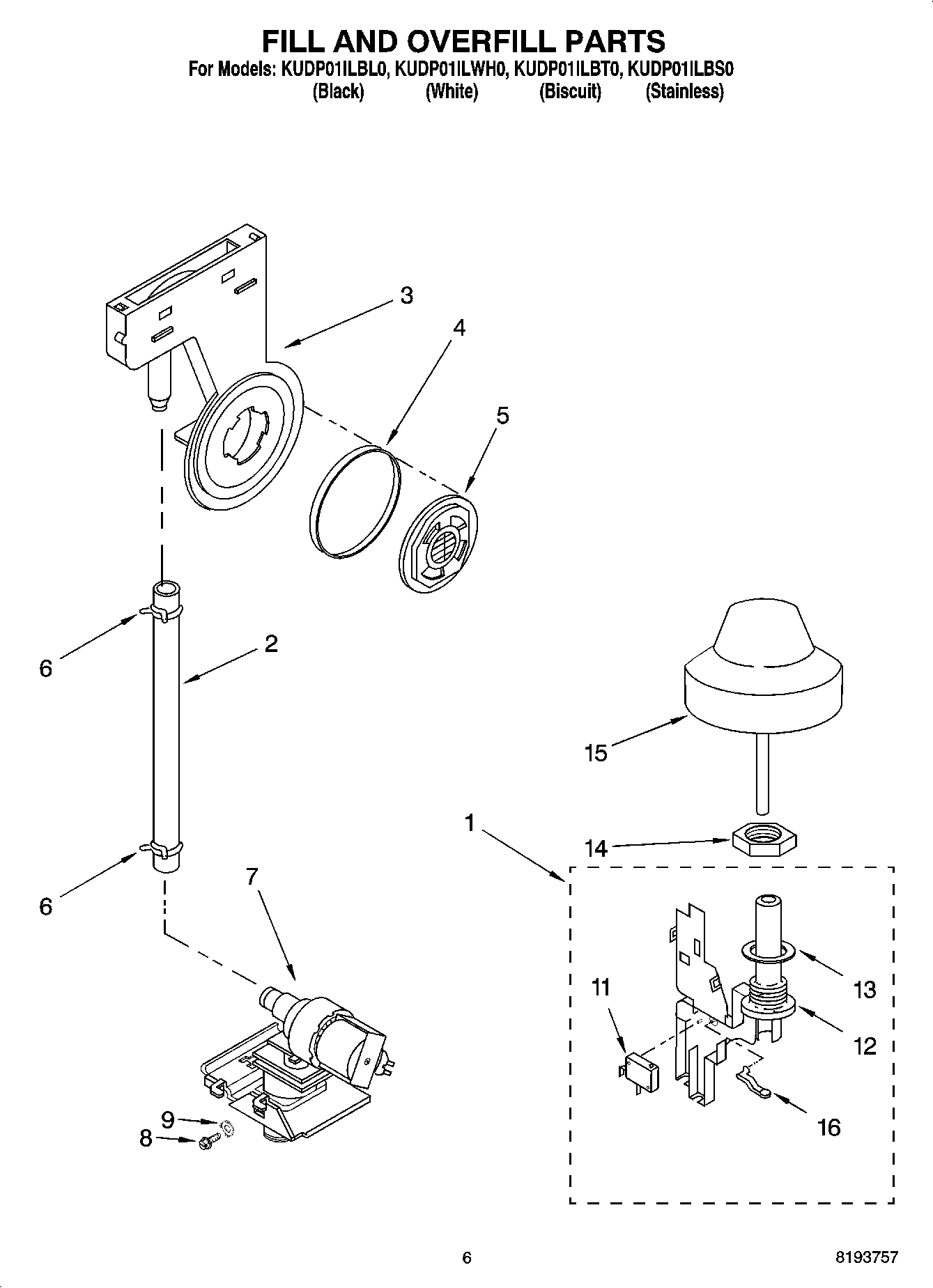

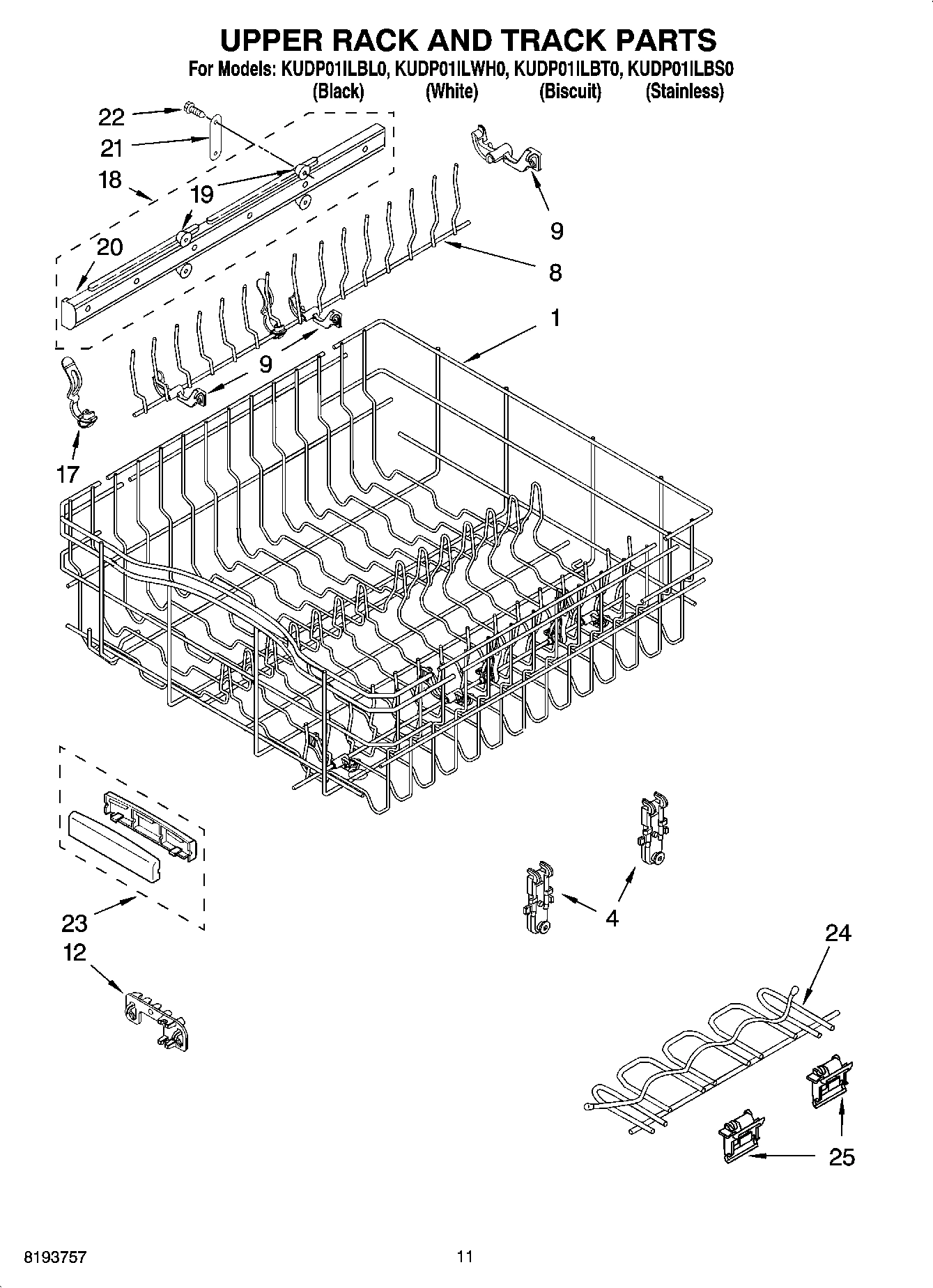

Model Whirlpool KUDP01ILBL0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

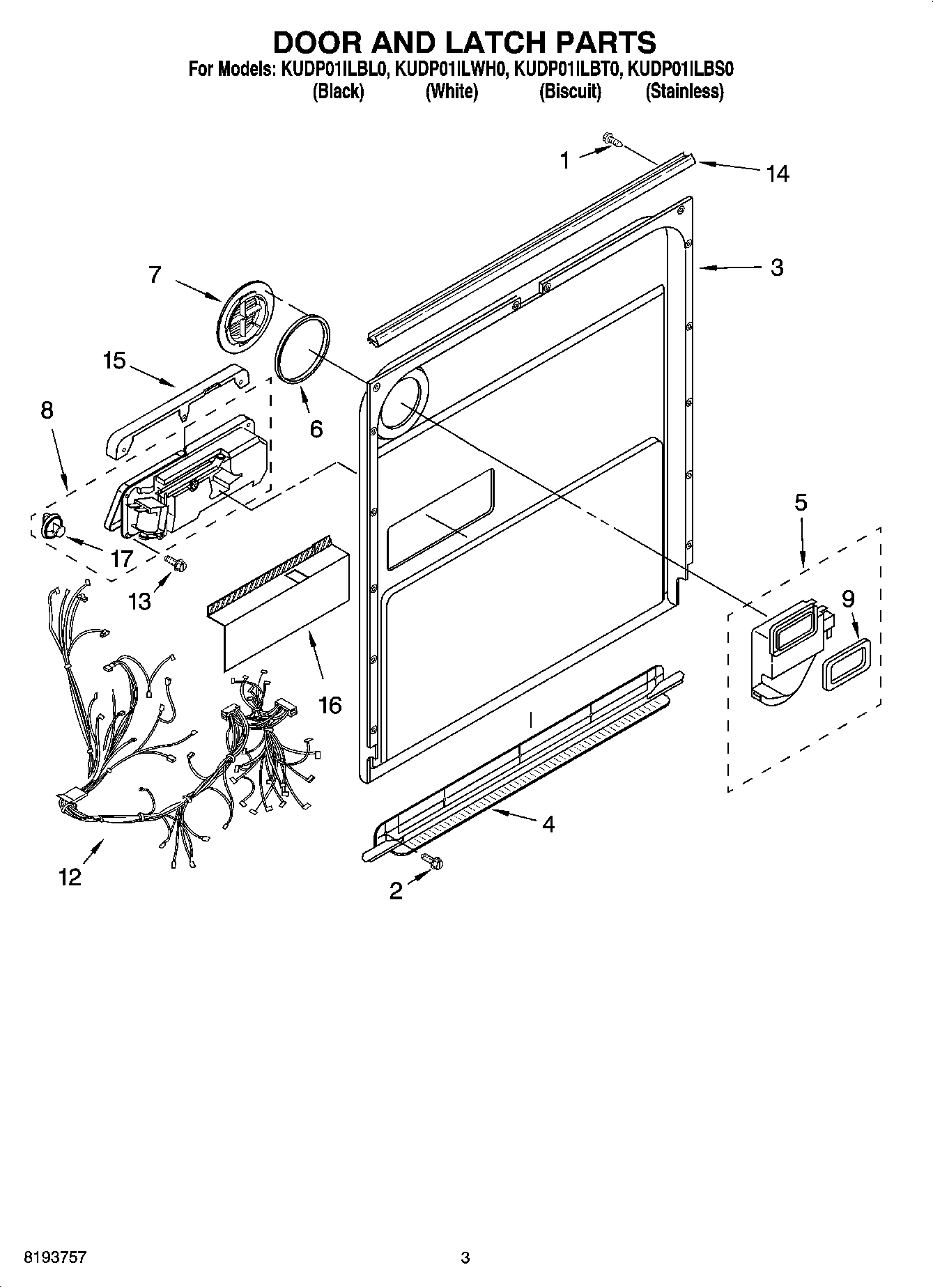

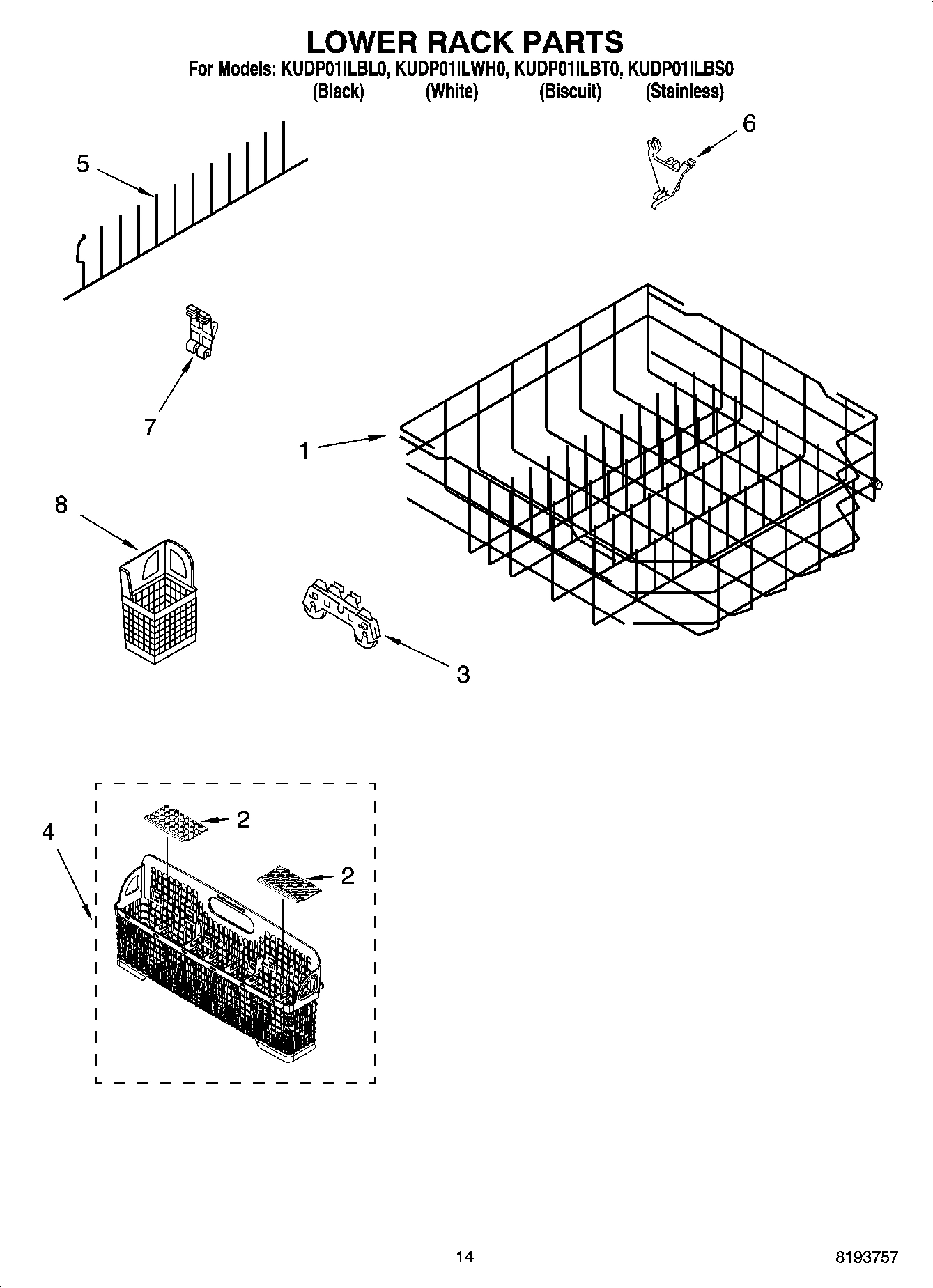

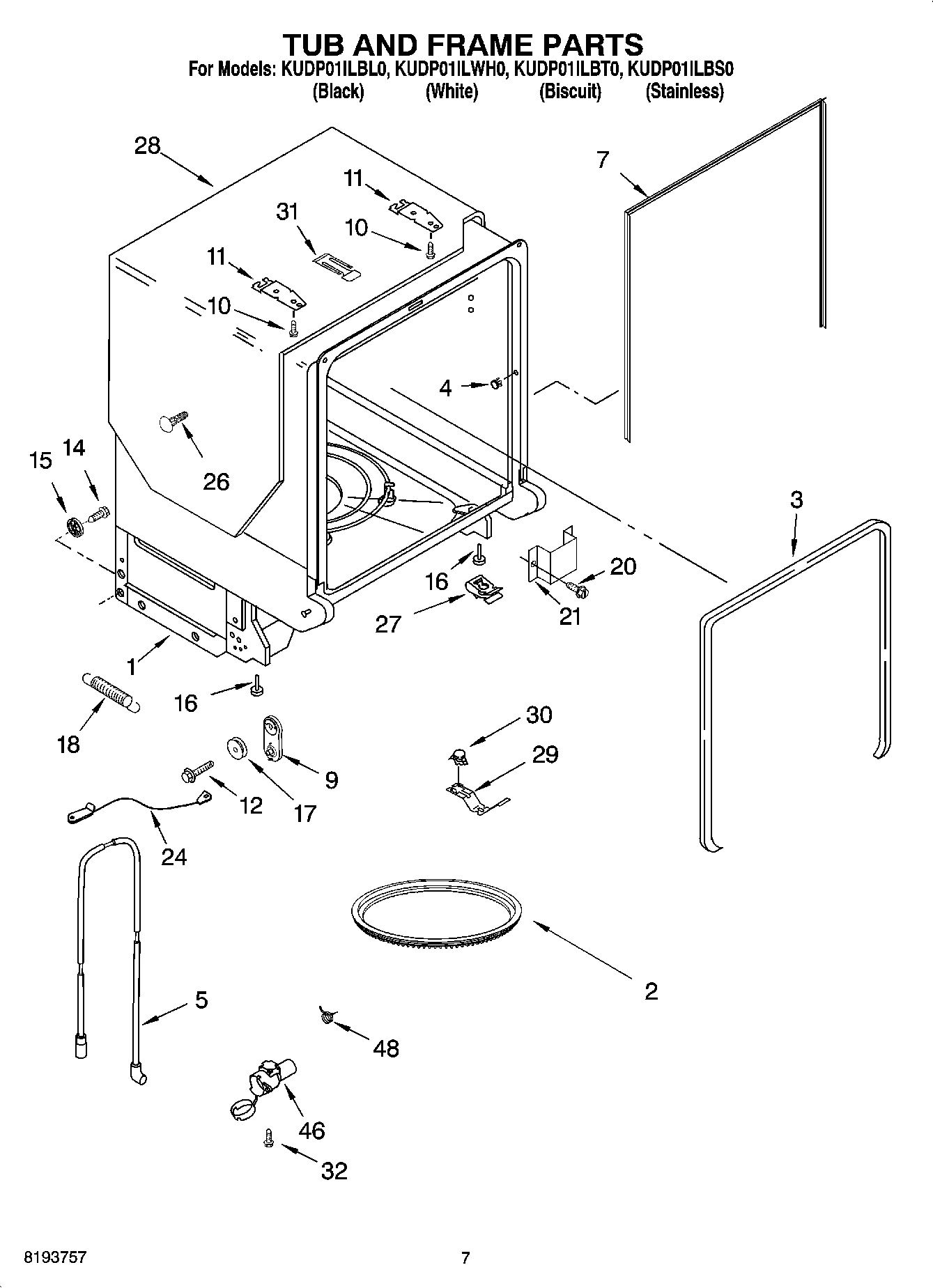

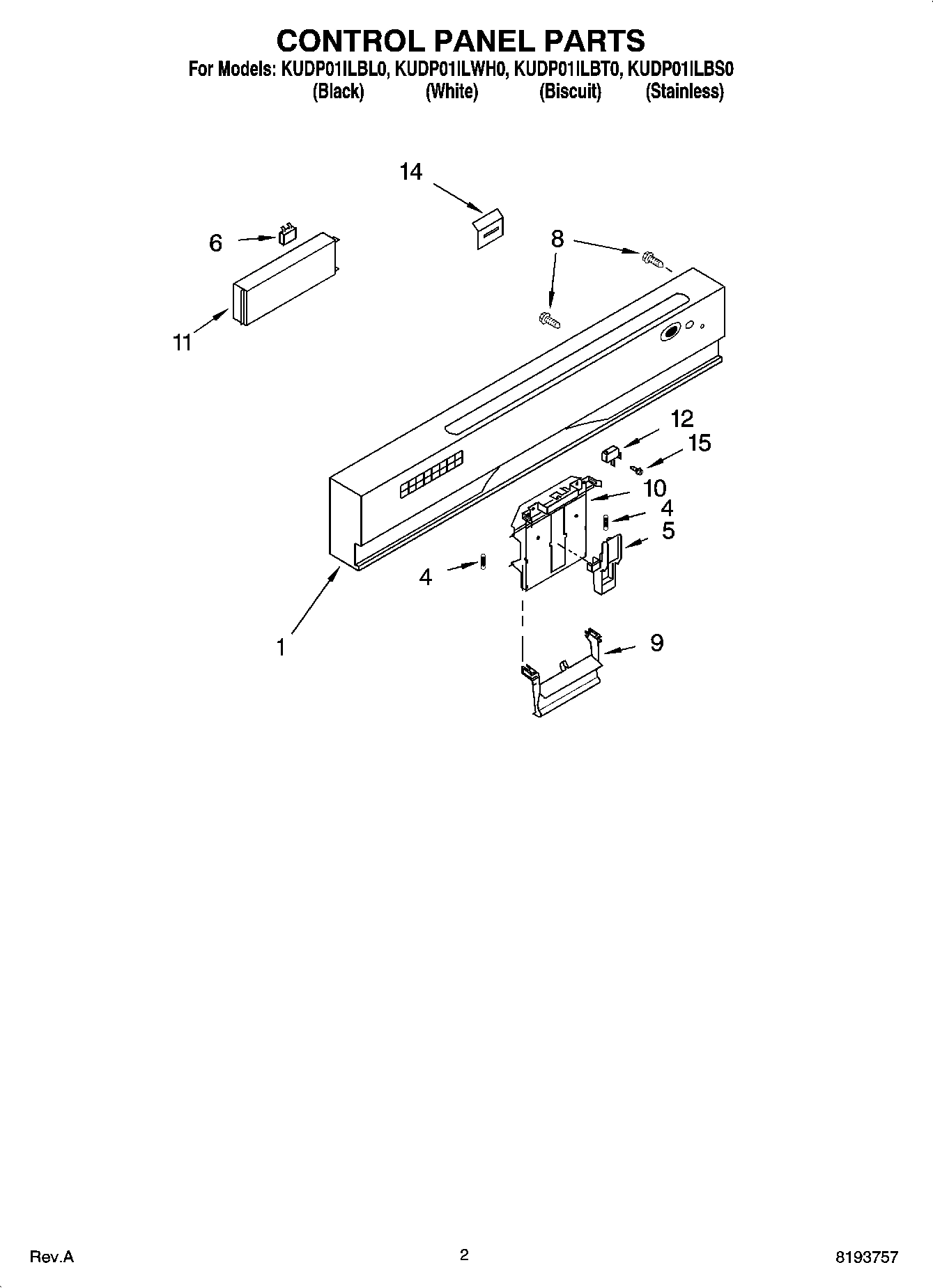

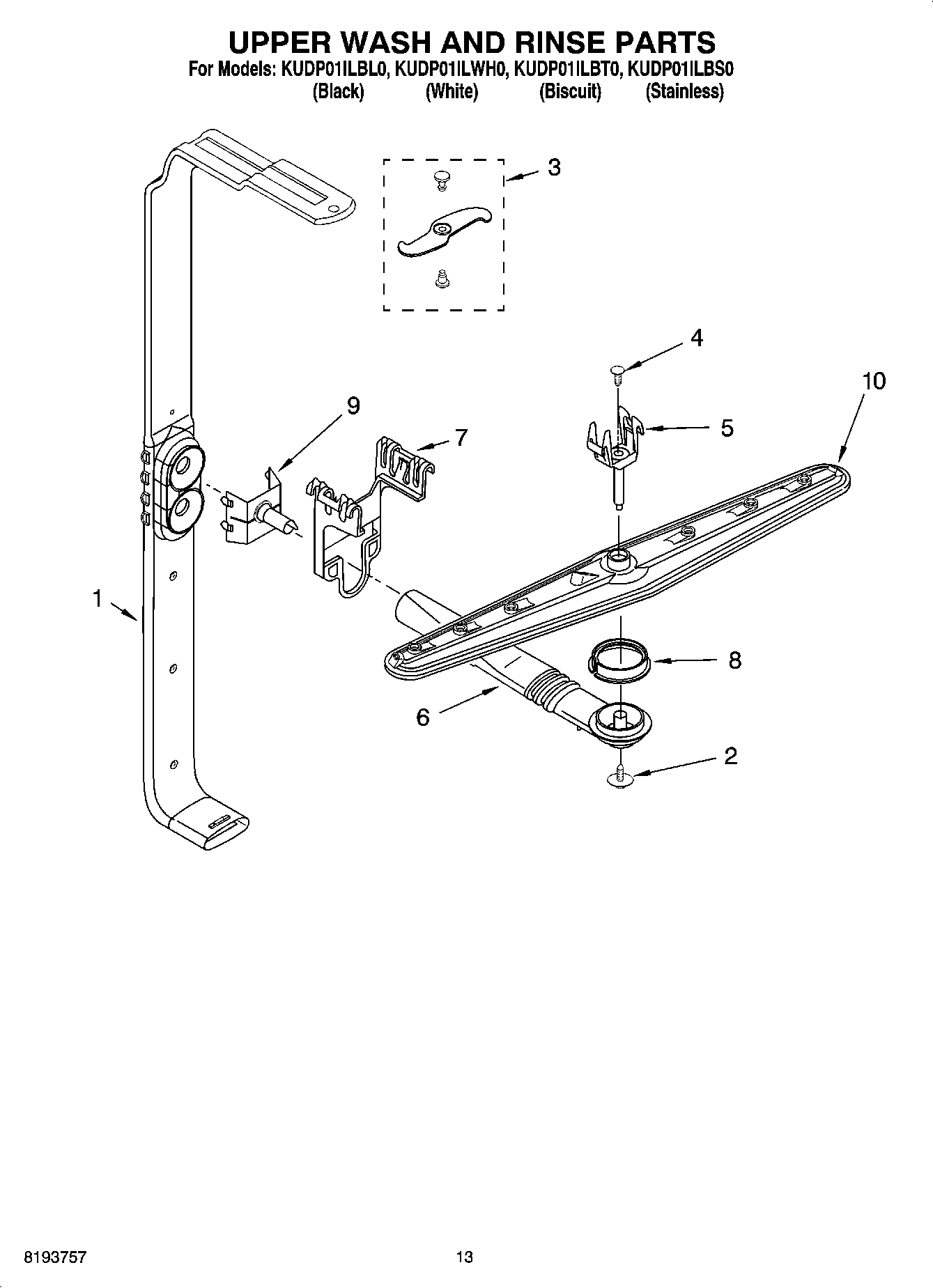

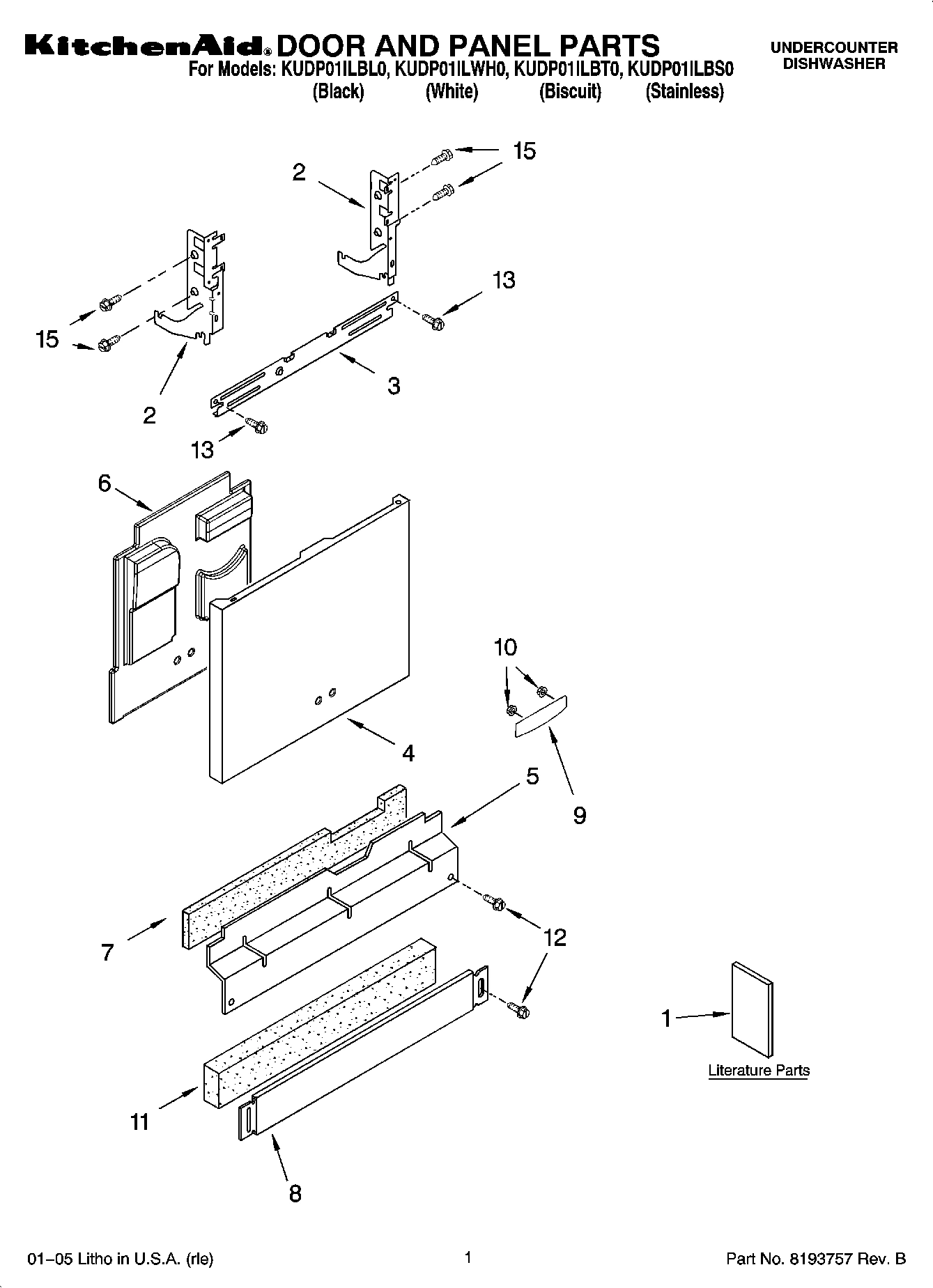

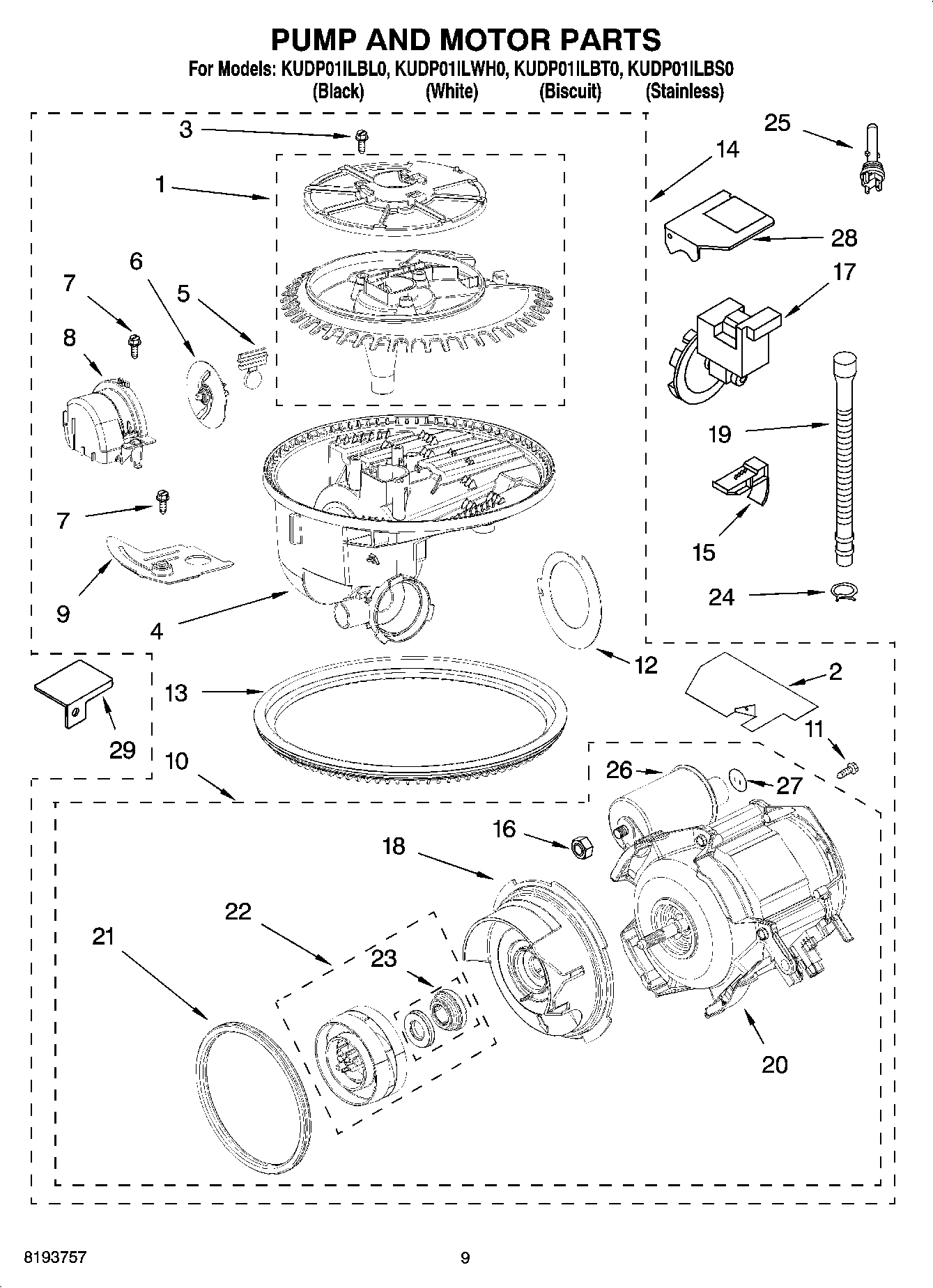

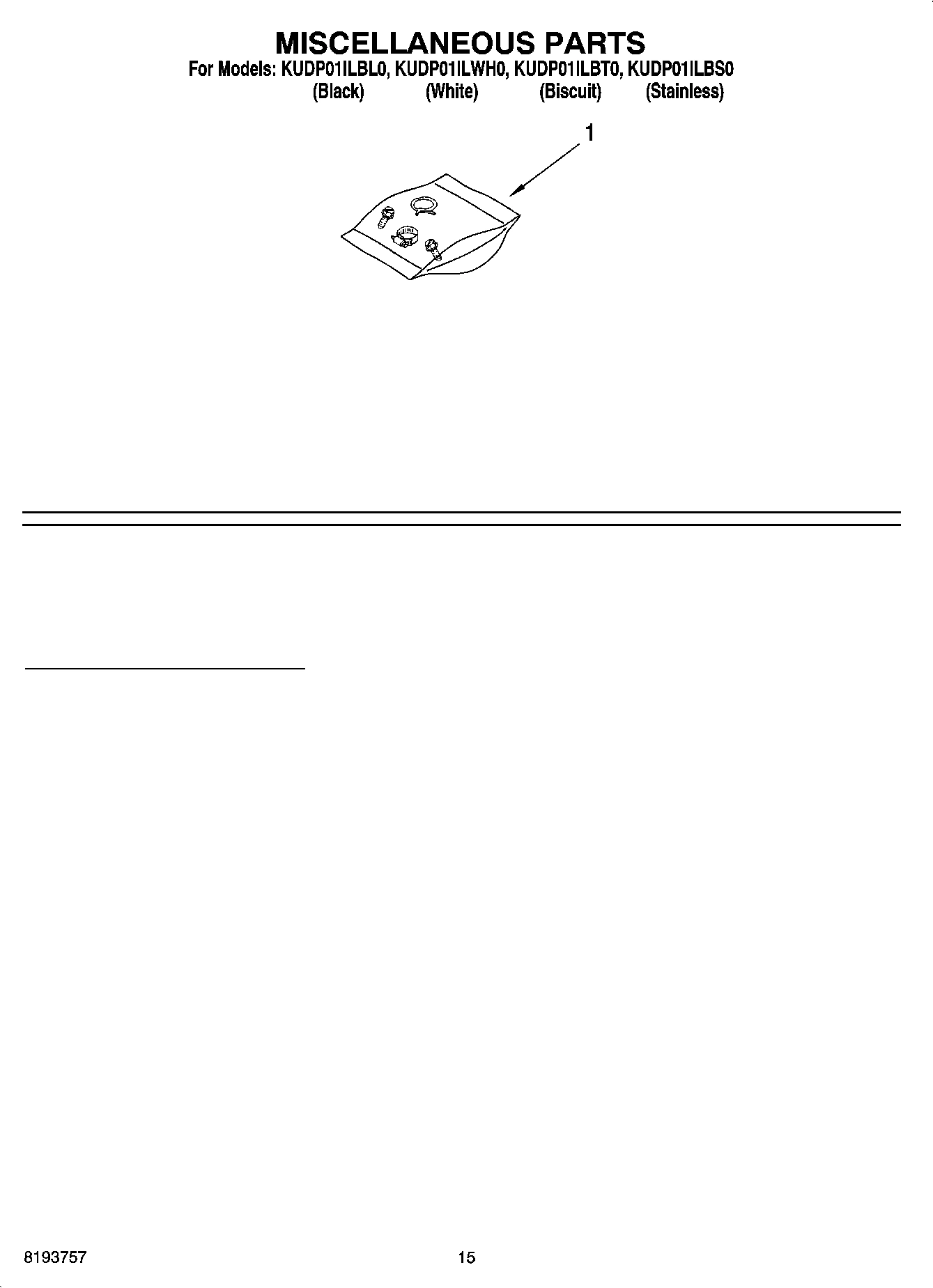

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

1

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

1

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

1

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $12.81

1

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

1

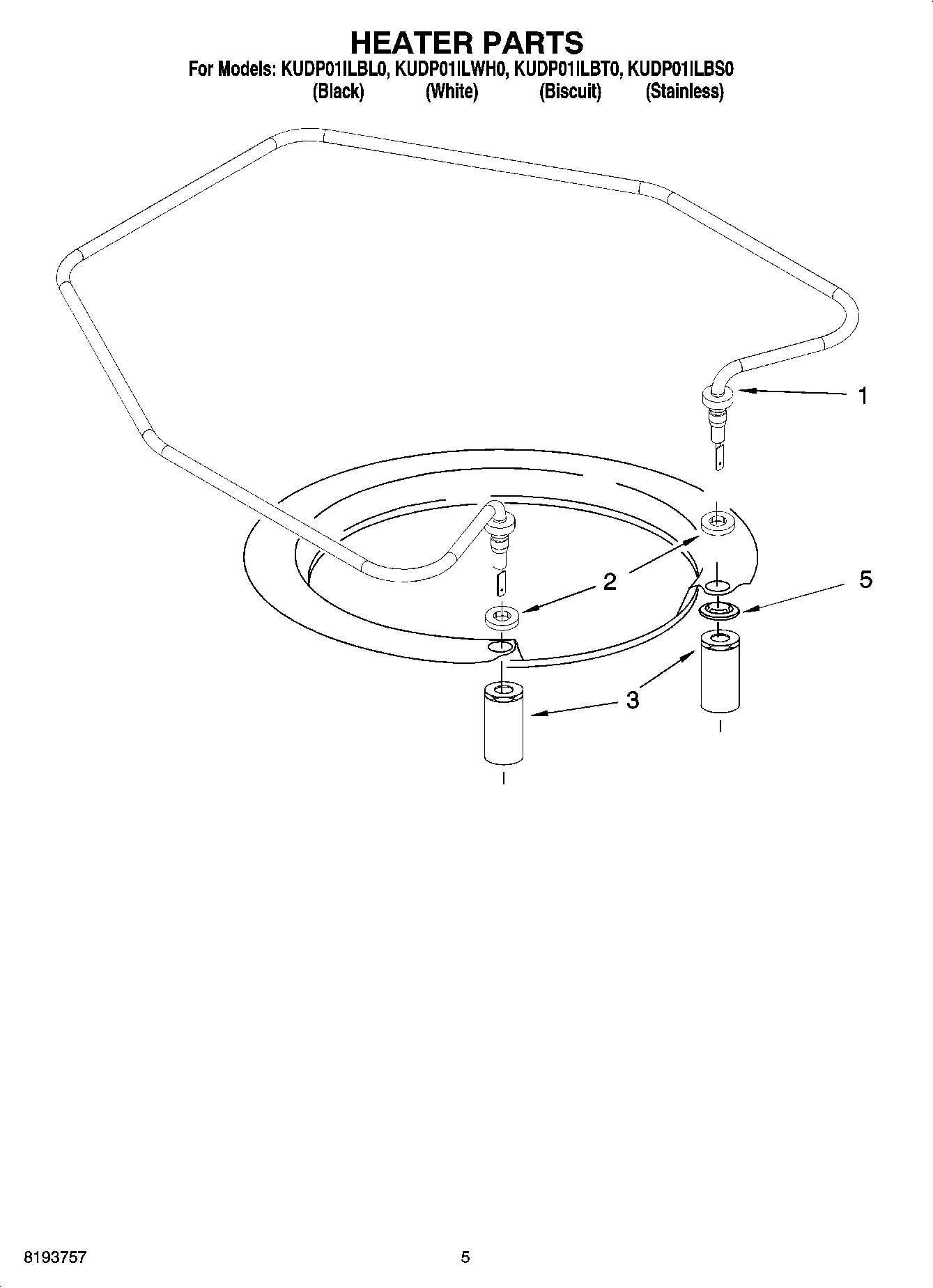

Heater Element Assembly (Also Includes Item 2 WPL 8194200 Contact Us For Availability

1

Feed Tube Assembly (Also Includes Item 3) WPL 8268361 Contact Us For Availability

1

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

1

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

1

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $29.43

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $61.92

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $61.92

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $32.13

2

WP8269242 Whirlpool Dishwasher Fill Hose Backorder WPL WP8269242 $32.56

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $29.92

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

Inner Door Mastic Assembly (Also Order Item 6 WPL 8530900 Contact Us For Availability

4

WP3400920 Whirlpool Screw Cover Backorder WPL WP3400920 $4.43

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $31.64

4

WP8268540 Whirlpool Door Handle Spring In Stock WPL WP8268540 $2.51

4

WP8268785 Whirlpool Dishwasher Wheel In Stock WPL WP8268785 $13.03

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $26.75

4

WP8531233 Whirlpool Dishwasher Silverware Bas In Stock WPL WP8531233 $32.78

4

Gasket WPL 8269241 Contact Us For Availability

4

Panel Front (Includes Item 6) (Biscuit) WPL 8270086 Contact Us For Availability

5

W10871198 Whirlpool Dishwasher Panel Backorder WPL W10871198 $52.03

5

W10909064 Whirlpool Dishwasher Black Access P In Stock WPL W10909064 $65.72

5

W10909066 Whirlpool Dishwasher Panel Backorder WPL W10909066 $56.54

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $30.80

5

WP8524471 Whirlpool Dishwasher Actuator In Stock WPL WP8524471 $24.96

5

WP8545533 Whirlpool Dishwasher Vent Backorder WPL WP8545533 $84.85

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

6

Manifold WPL 8268355 Contact Us For Availability

6

Brace, Foam WPL 8531330 Contact Us For Availability

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8531314 Whirlpool Dishwasher Retainer In Stock WPL WP8531314 $10.76

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $30.85

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

WP8558129 Whirlpool Dishwasher Detergent Disp In Stock WPL WP8558129 $43.87

8

WPW10586591 Whirlpool Dishwasher Toe Panel Backorder WPL WPW10586591 $124.83

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

8

Toe Panel (Includes Item 11) (Biscuit) WPL 8270028 Contact Us For Availability

9

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

9

WP8269117 Whirlpool Dishwasher Handle In Stock WPL WP8269117 $49.46

9

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $28.80

9

Nozzle, Feed Tube WPL 8269295 Contact Us For Availability

9

Clip, Pivot WPL 8519669 Contact Us For Availability

9

Nameplate (Black) WPL 2005292 Contact Us For Availability

9

Nameplate (Biscuit) WPL 2209118T Contact Us For Availability

9

Nameplate (White) WPL 2209118W Contact Us For Availability

10

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

W10831329 Whirlpool Dishwasher Shield In Stock WPL W10831329 $16.05

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $28.82

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $30.85

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.05

Wiring Harness Main WPL 8269191 Contact Us For Availability

13

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

13

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $3.46

13

Seal, Sump WPL 8268395 Contact Us For Availability

14

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $56.09

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP8268895 Whirlpool Dishwasher Float Assembly Backorder WPL WP8268895 $30.80

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WPW10462232 Whirlpool Dishwasher Dispenser Mo In Stock WPL WPW10462232 $12.13

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $28.80

16

Shield, Dispenser WPL 8268541 Contact Us For Availability

17

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

17

WP8533380 Whirlpool Dishwasher Cap In Stock WPL WP8533380 $12.68

17

Pump, Drain WPL 661658 Contact Us For Availability

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $12.17

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8270136 Whirlpool Dishwasher Stop Backorder WPL WP8270136 $28.11

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

25

Thermister WPL 8269208 Contact Us For Availability

25

Clip, Cupshelf WPL 8270025 Contact Us For Availability

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

32

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
