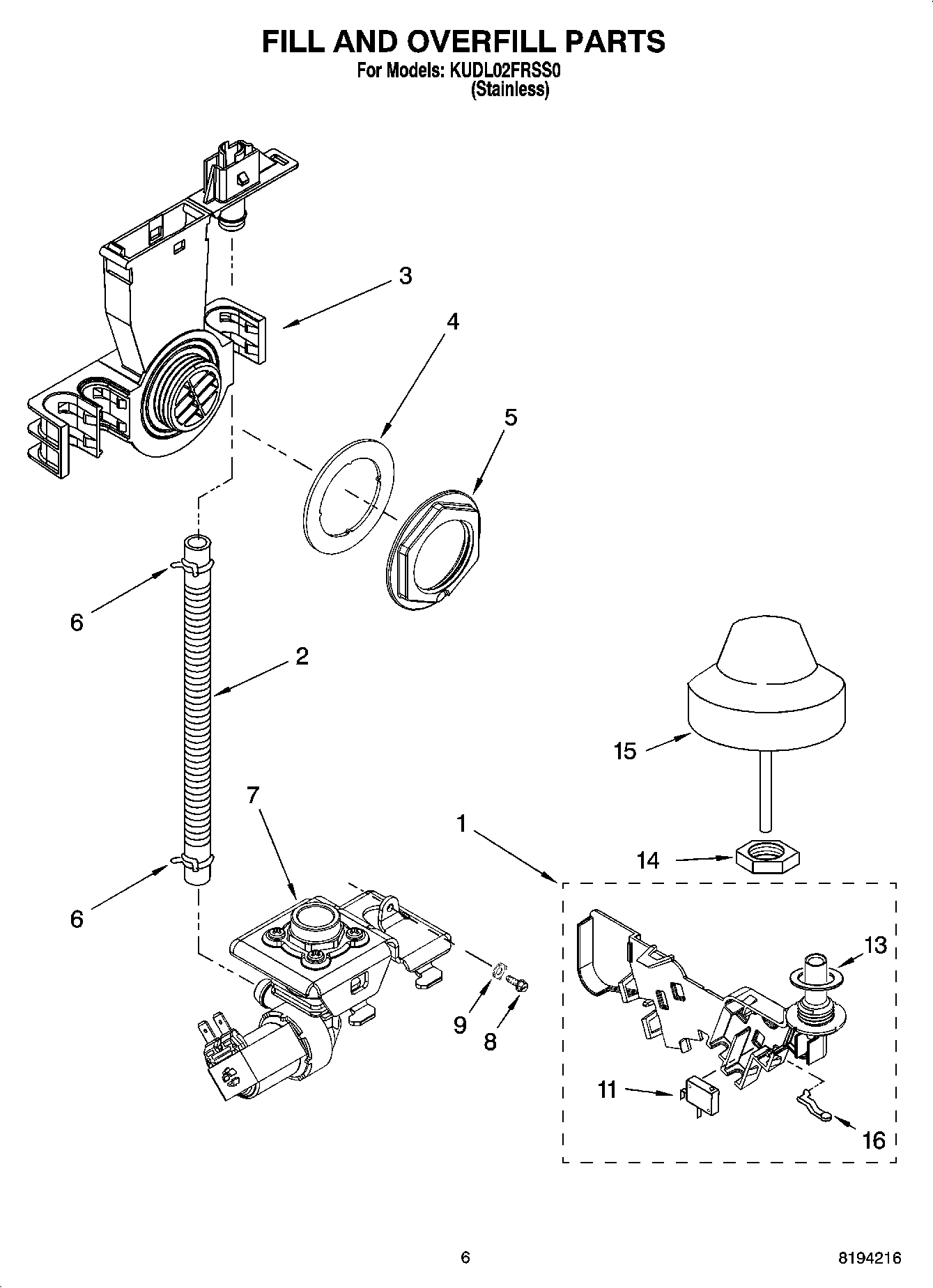

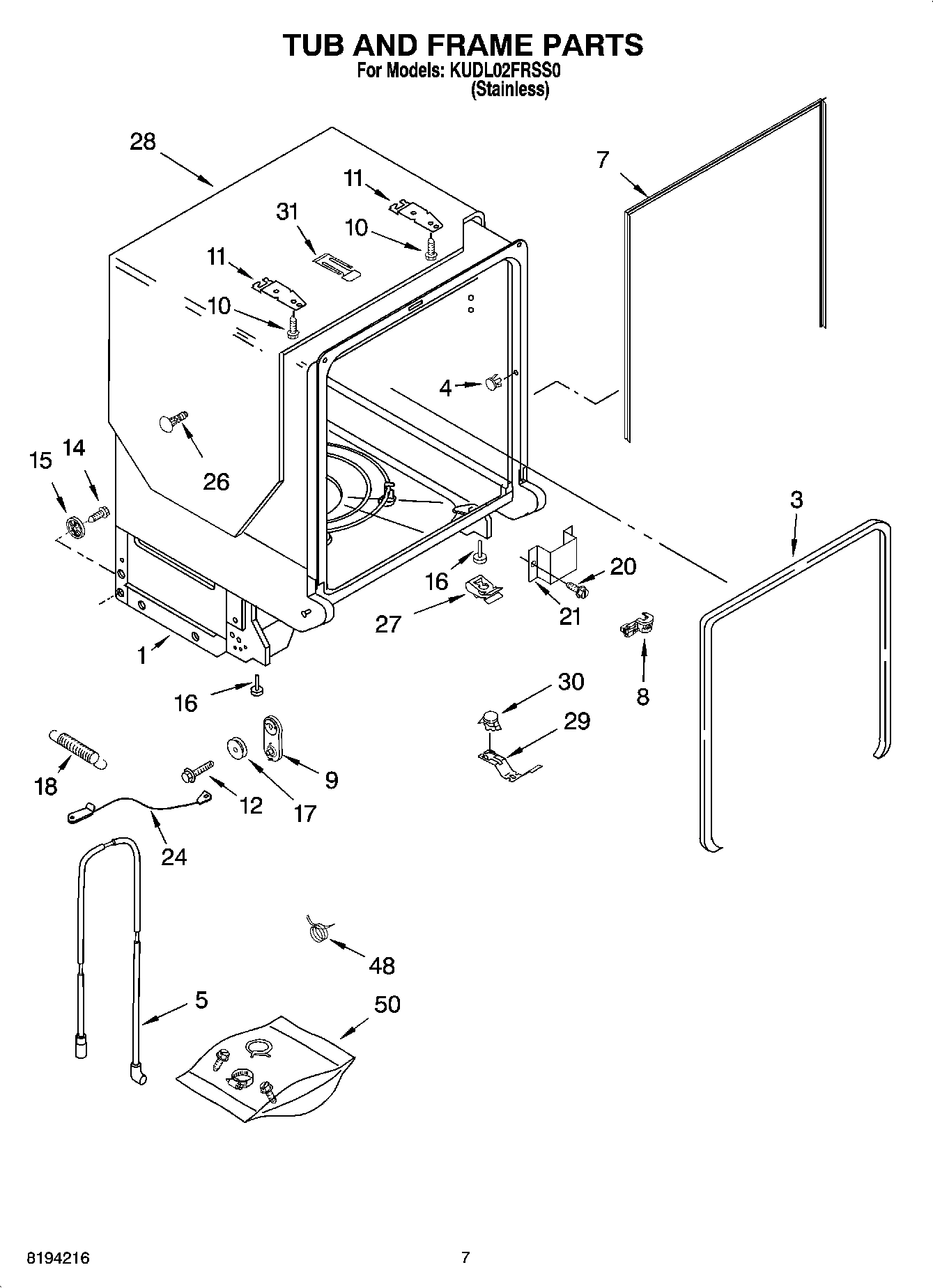

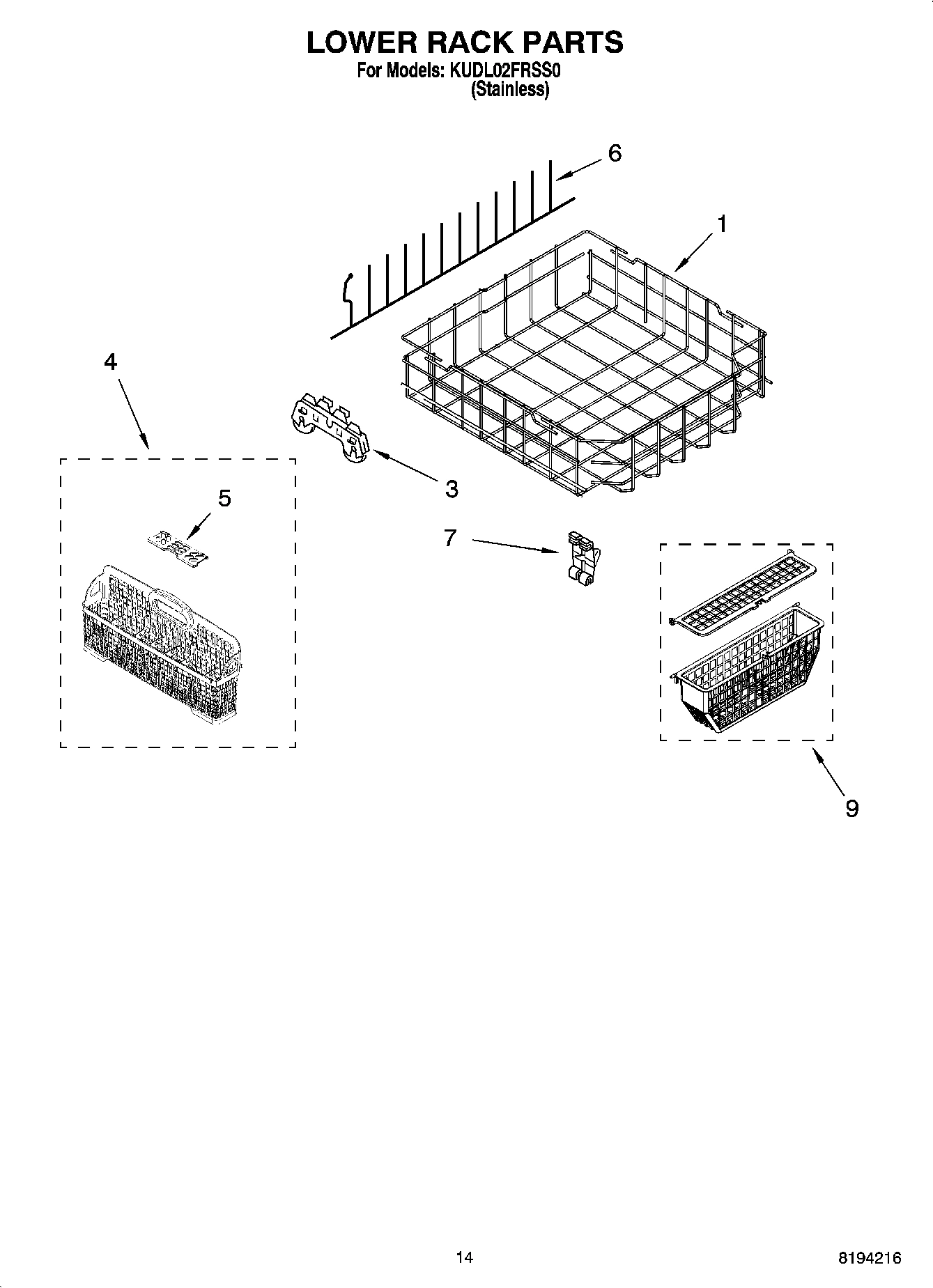

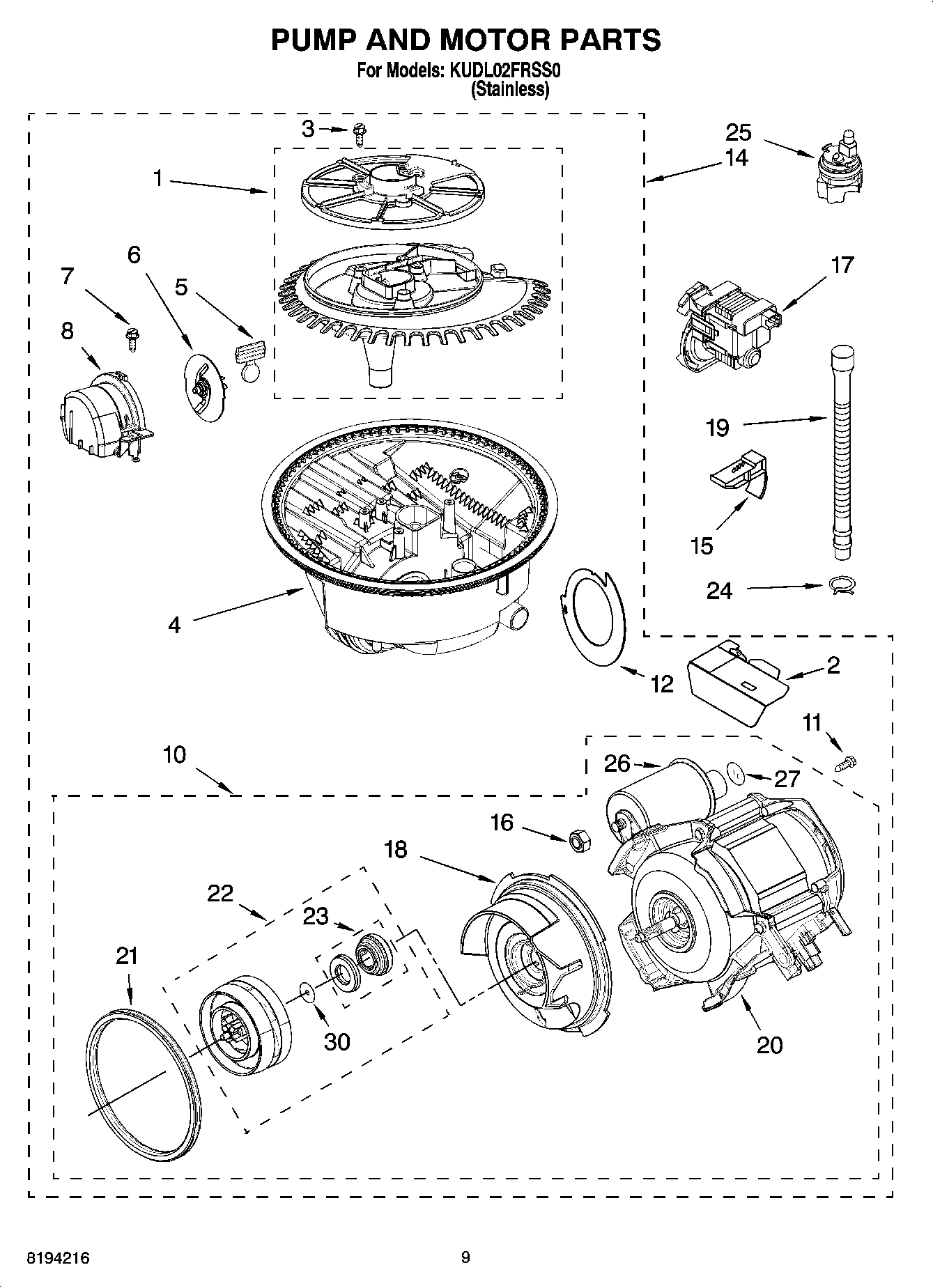

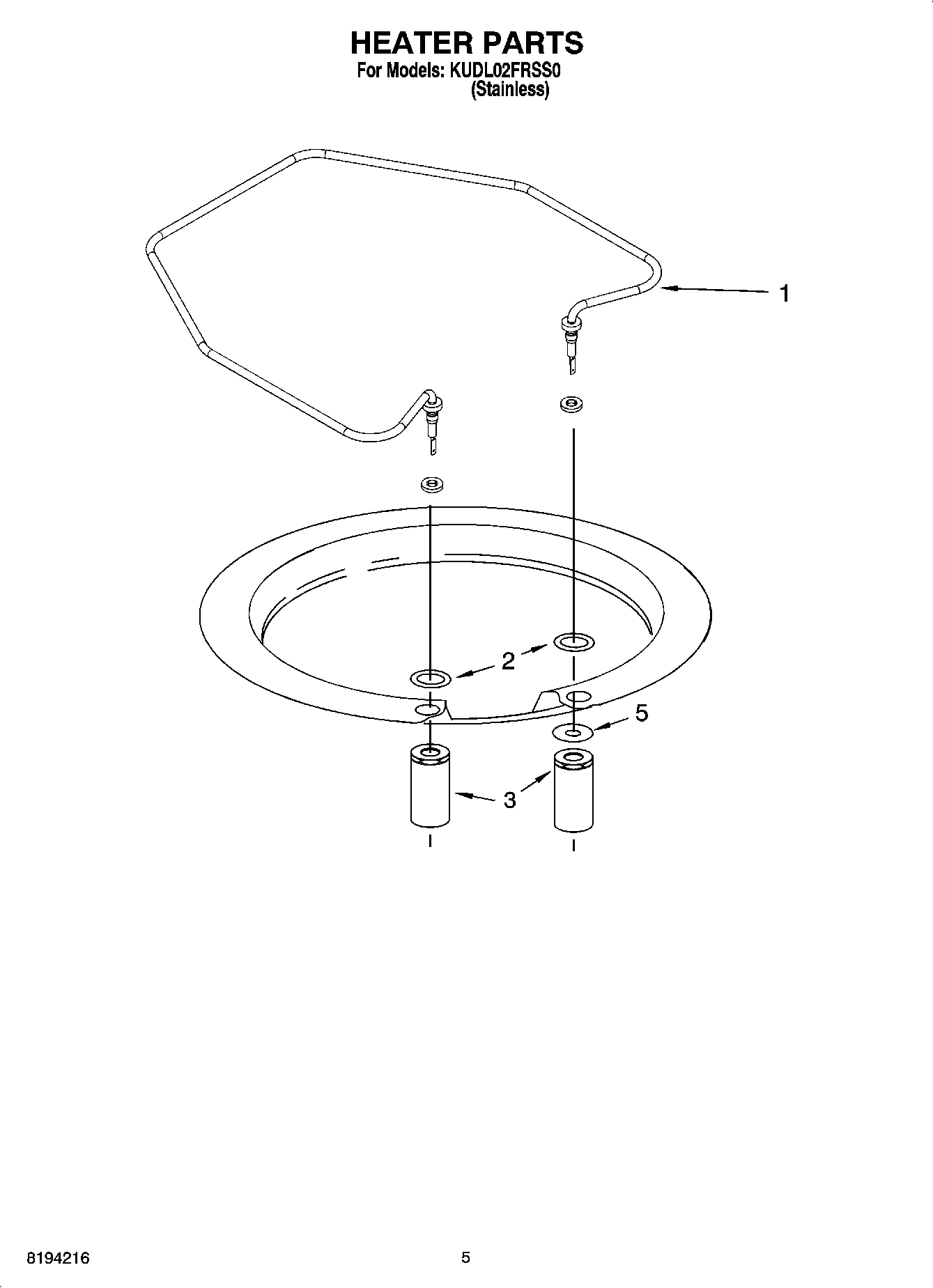

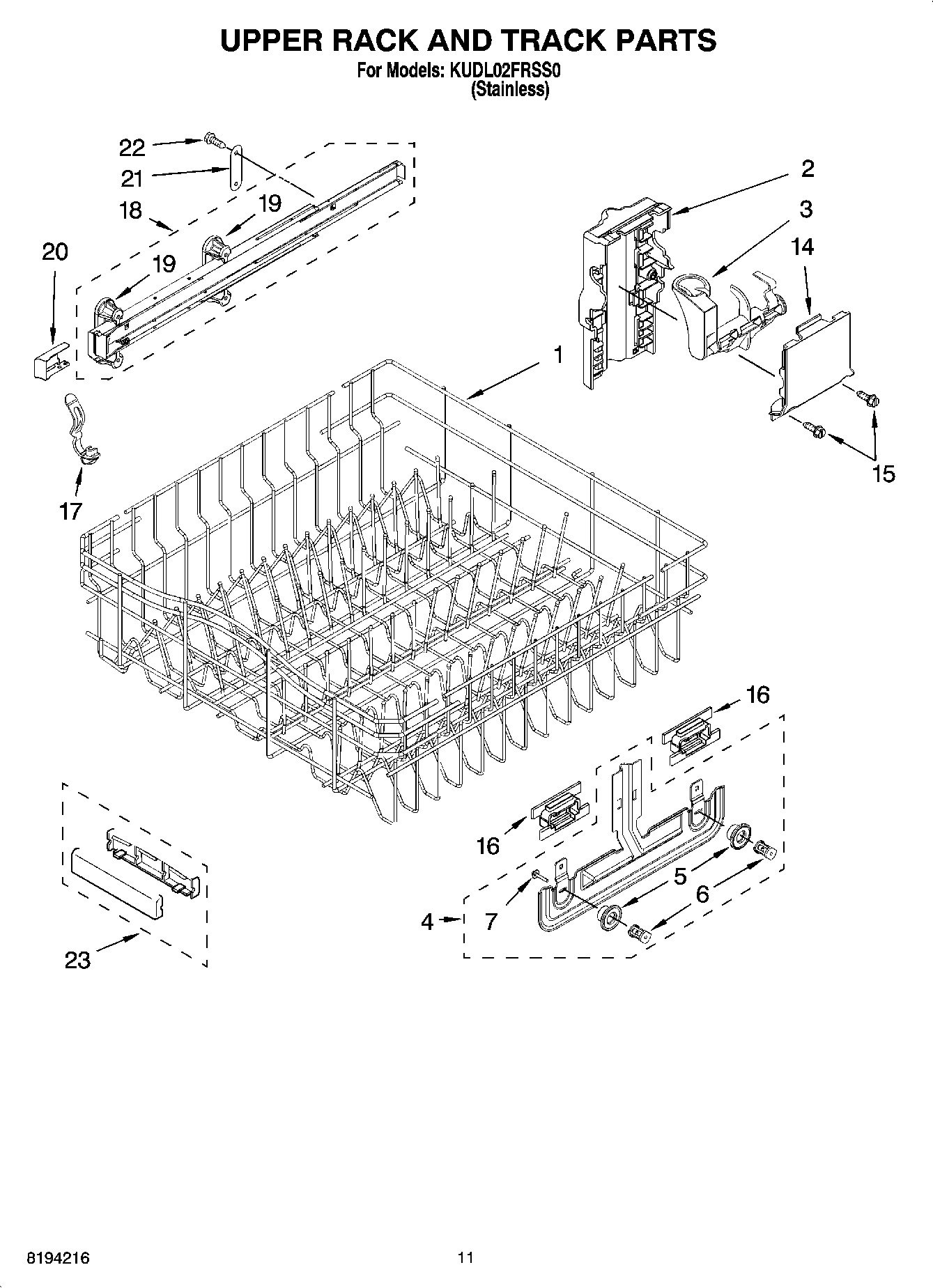

Model Whirlpool KUDL02FRSS0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $12.81

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

WPL 8171659 WPL 8171659 Contact Us For Availability

WPL 8171656 WPL 8171656 Contact Us For Availability

WPL 8171657 WPL 8171657 Contact Us For Availability

1

WPW10320510 Whirlpool Dishwasher Spray Arm In Stock WPL WPW10320510 $80.71

1

Console Assembly (Includes Insert) (Stainless WPL 8572484 Contact Us For Availability

2

W10850507 Whirlpool Dishwasher Ribbon Cable Backorder WPL W10850507 $114.79

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $37.28

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $61.92

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $61.92

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $32.13

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268645 Whirlpool Dishwasher Lower Dishrack In Stock WPL WP8268645 $29.96

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

Clip, BI-Metal WPL 8546546 Contact Us For Availability

4

WP3400412 Whirlpool Dishwasher Screw Backorder WPL WP3400412 $2.51

4

WP3400920 Whirlpool Screw Cover Backorder WPL WP3400920 $4.43

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $31.64

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $26.75

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

WP8562043 Whirlpool Silverware Basket In Stock WPL WP8562043 $28.66

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $113.08

5

8519662 Whirlpool Dishwasher Lid Backorder WPL 8519662 $29.44

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $30.80

5

WP8270138 Whirlpool Dishwasher Upper Wheel Backorder WPL WP8270138 $4.56

5

WP8572611 Whirlpool Air Duct Assembly Backorder WPL WP8572611 $86.52

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

W10258275 Whirlpool Dishwasher Bimetal Fuse In Stock WPL W10258275 $16.01

6

W10728160 Whirlpool Tine Assembly In Stock WPL W10728160 $27.32

6

WP8268703 Whirlpool Dishwasher Rack Axle Backorder WPL WP8268703 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8281156 Whirlpool Dishwasher Screw Backorder WPL WP8281156 $2.51

7

WP8531314 Whirlpool Dishwasher Retainer In Stock WPL WP8531314 $10.76

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $30.85

8

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.76

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $60.15

8

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

9

8193830 Whirlpool Dishwasher Door Latch Switc In Stock WPL 8193830 $71.93

9

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

9

WP8564929 Whirlpool Rinse Aid Cap In Stock WPL WP8564929 $13.76

10

WP8564951 Whirlpool Dishwasher Stud Backorder WPL WP8564951 $7.12

10

Harness, Vent Motor WPL 8545608 Contact Us For Availability

11

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

11

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $28.82

11

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $30.85

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.05

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

14

WP8534008 Whirlpool Screw Backorder WPL WP8534008 $2.40

14

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $56.09

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP8268895 Whirlpool Dishwasher Float Assembly Backorder WPL WP8268895 $30.80

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $28.80

16

Positioner, Arm WPL 8268704 Contact Us For Availability

17

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

17

WP8539101 Whirlpool Dishwasher Clip In Stock WPL WP8539101 $31.86

18

WP8270182 Whirlpool Door Spring Assembly In Stock WPL WP8270182 $15.12

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

WP8573953 Whirlpool Dishwasher Stop Assembly Backorder WPL WP8573953 $3.70

WP8573954 Whirlpool Dishwasher Stop Assembly Backorder WPL WP8573954 $3.70

WPW10757217 Whirlpool Circulation Pump and Mo In Stock WPL WPW10757217 $150.68

21

W11622922 Whirlpool Dishwasher Volute In Stock WPL W11622922 $8.20

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

23

8193951A Whirlpool Impeller Assembly In Stock WPL 8193951A $83.10

25

WPW10705575 Whirlpool Dishwasher Sensor In Stock WPL WPW10705575 $15.45

26

WPW10334457 Whirlpool Dishwasher Capacitor Backorder WPL WPW10334457 $68.89

27

8534946 Whirlpool Dishwasher Shield Backorder WPL 8534946 $10.25

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
