Model KUDK02CRWH3 – Common Parts & Diagrams

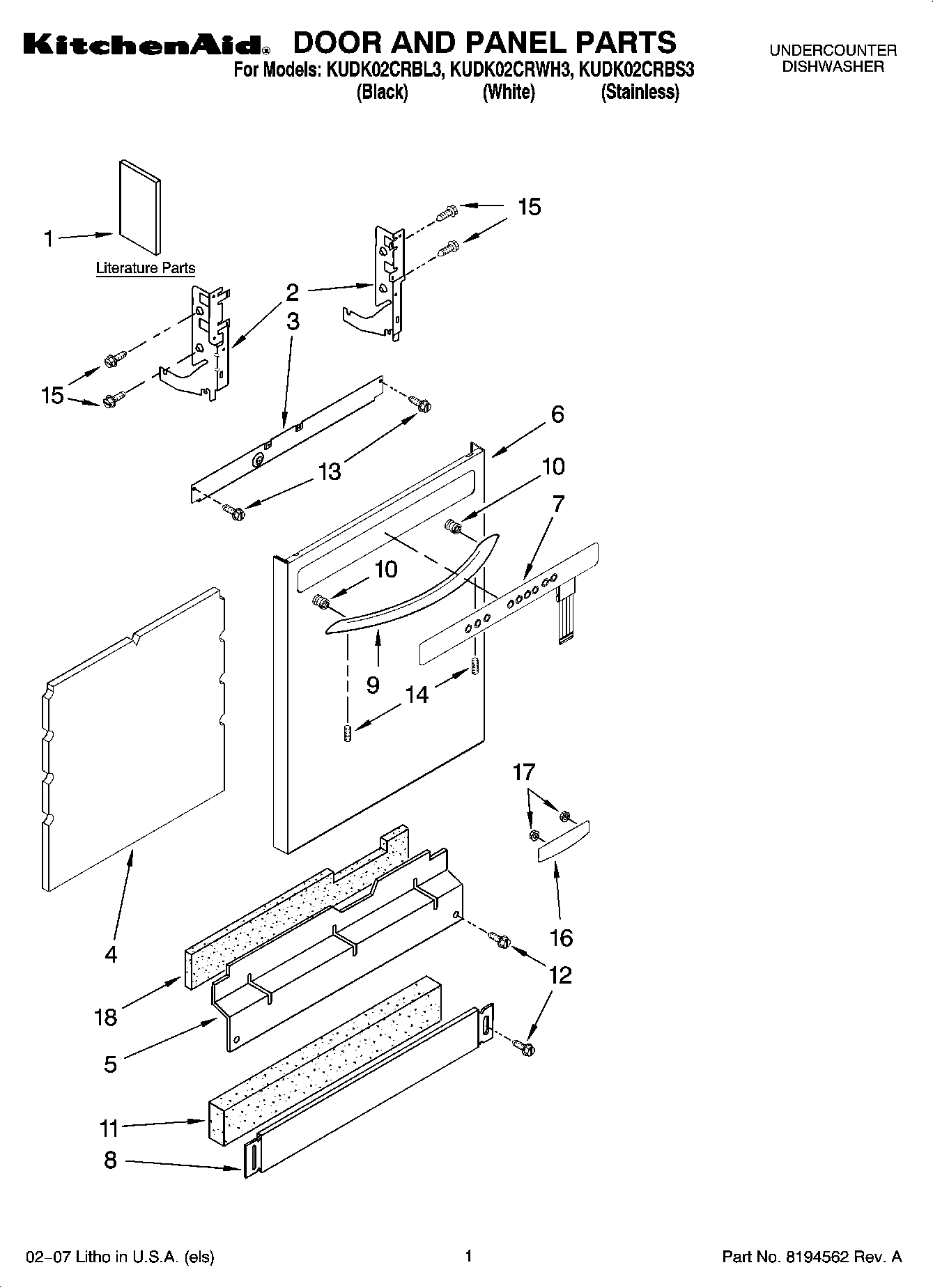

01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL PARTS
03 - DOOR AND LATCH PARTS
04 - LOWER WASHARM AND STRAINER PARTS
05 - HEATER PARTS
06 - FILL AND OVERFILL PARTS

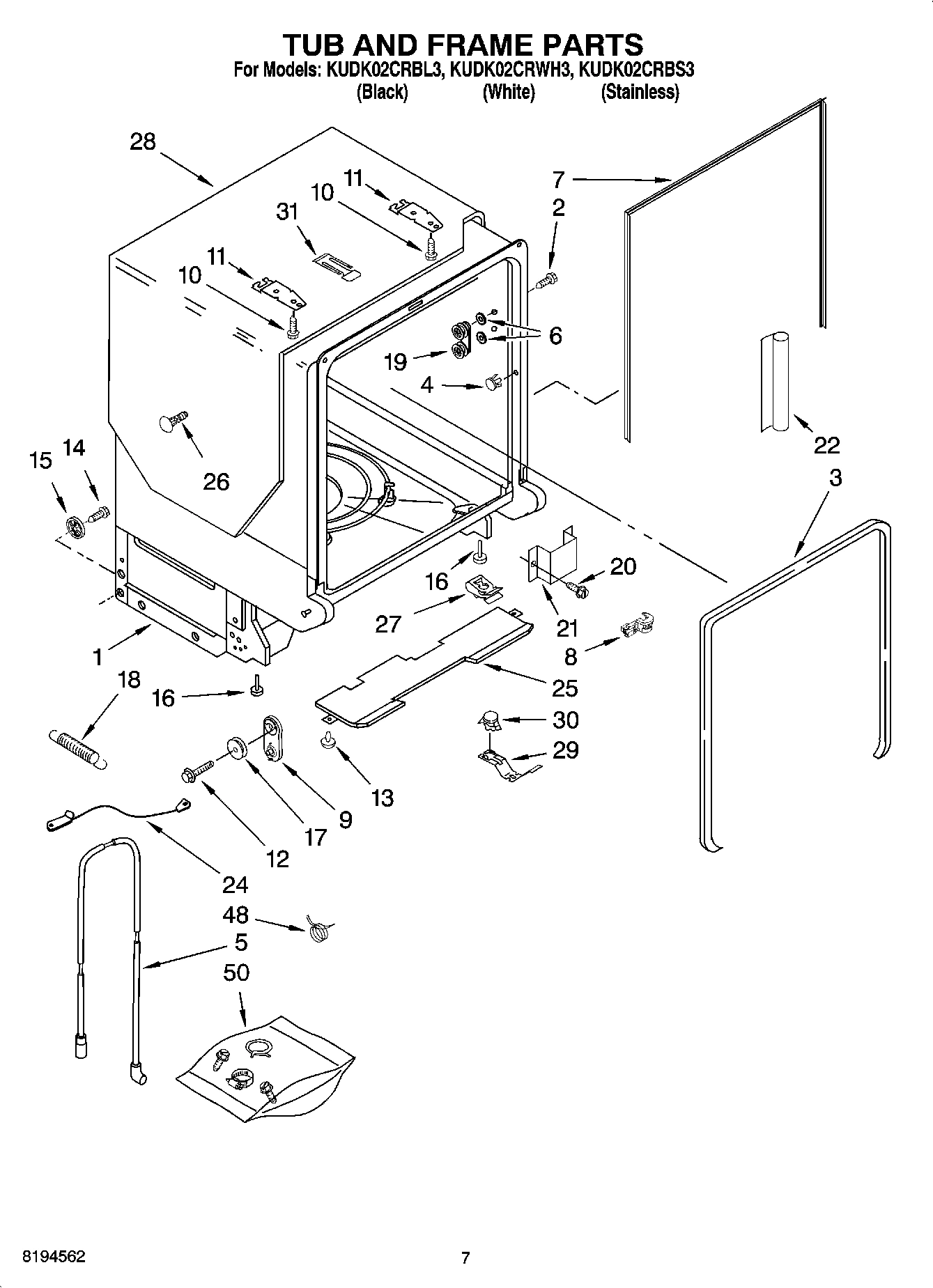

07 - TUB AND FRAME PARTS
08 - PUMP AND MOTOR PARTS

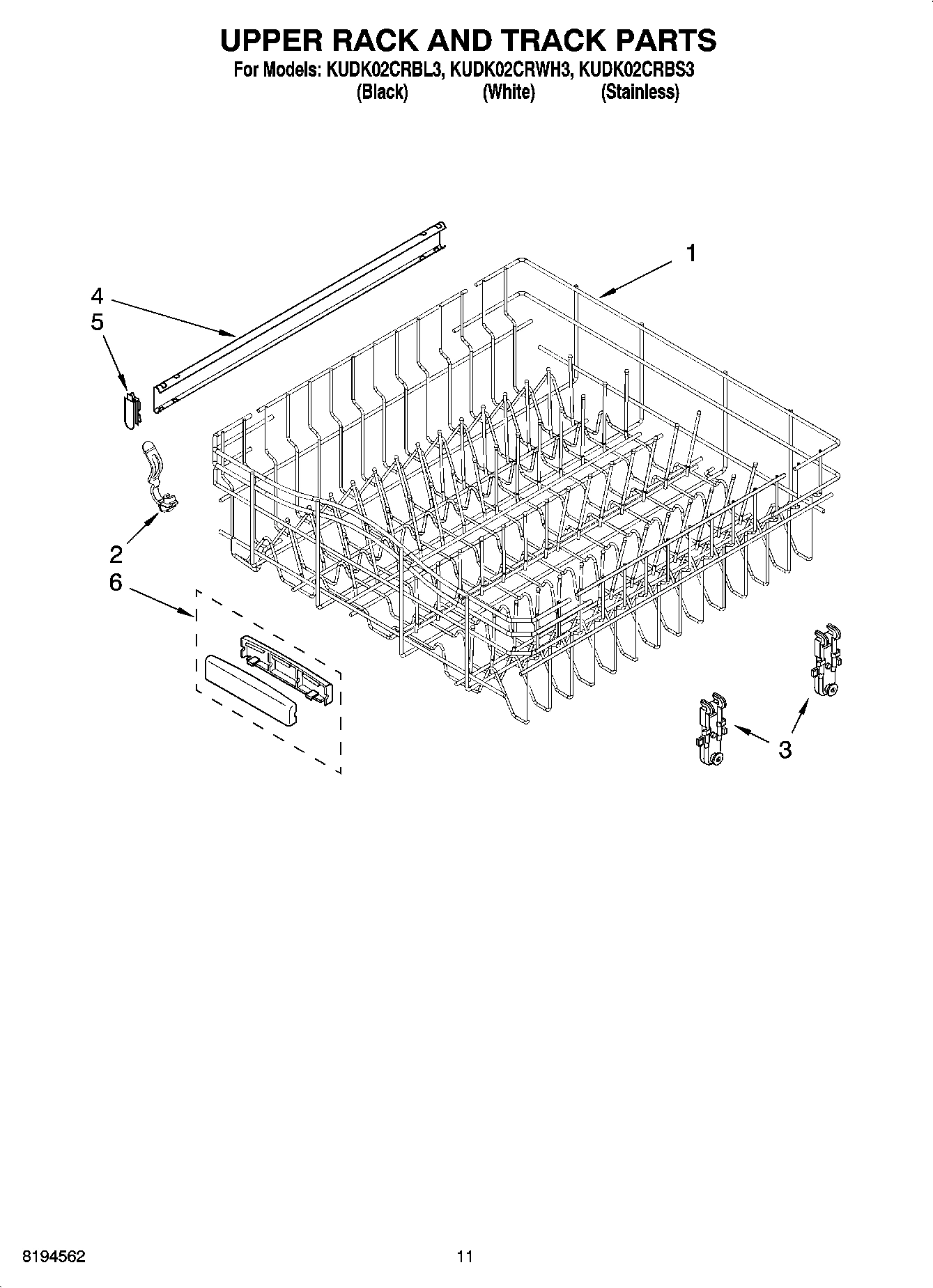

09 - UPPER RACK AND TRACK PARTS

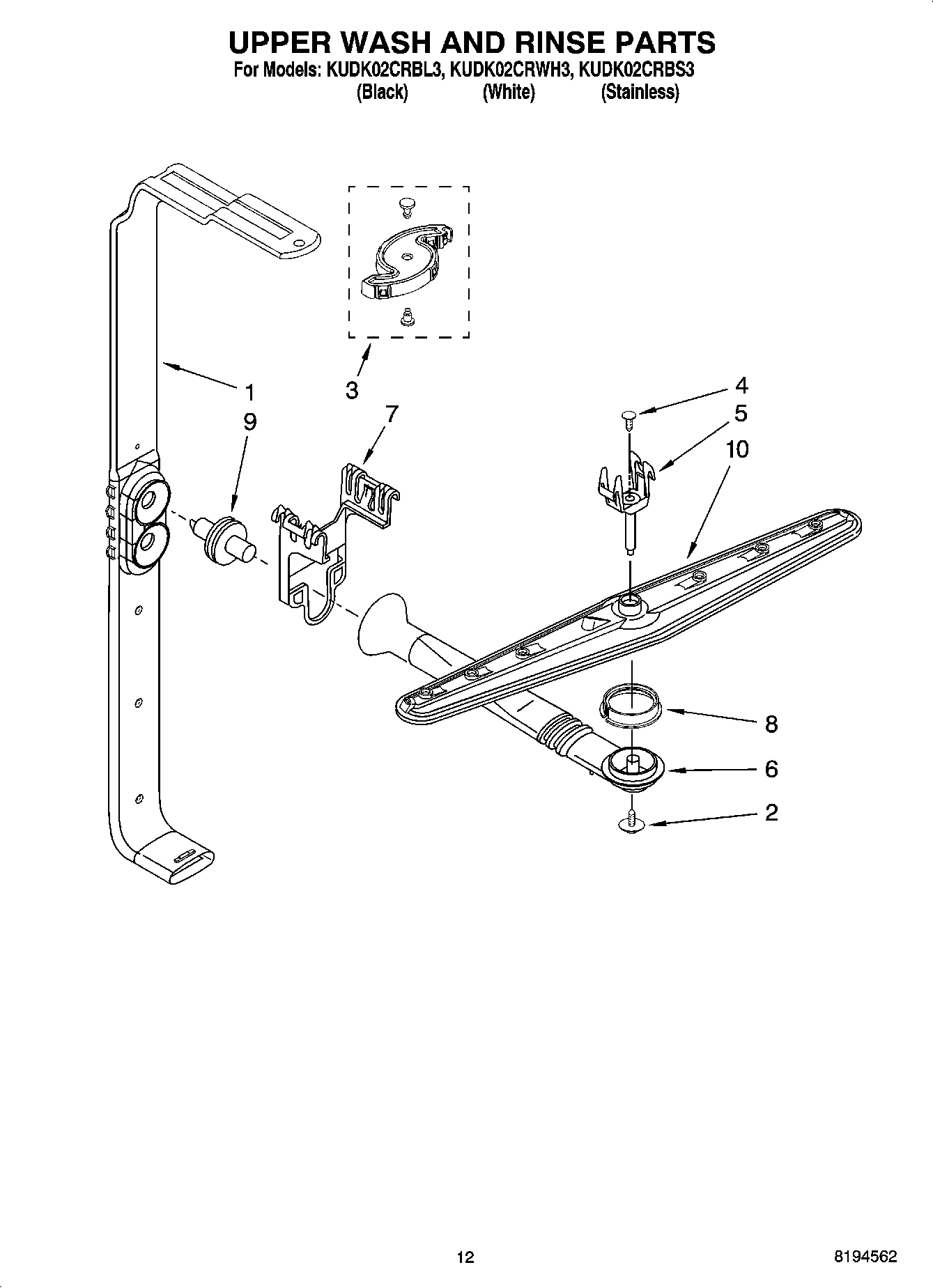

10 - UPPER WASH AND RINSE PARTS
11 - LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
