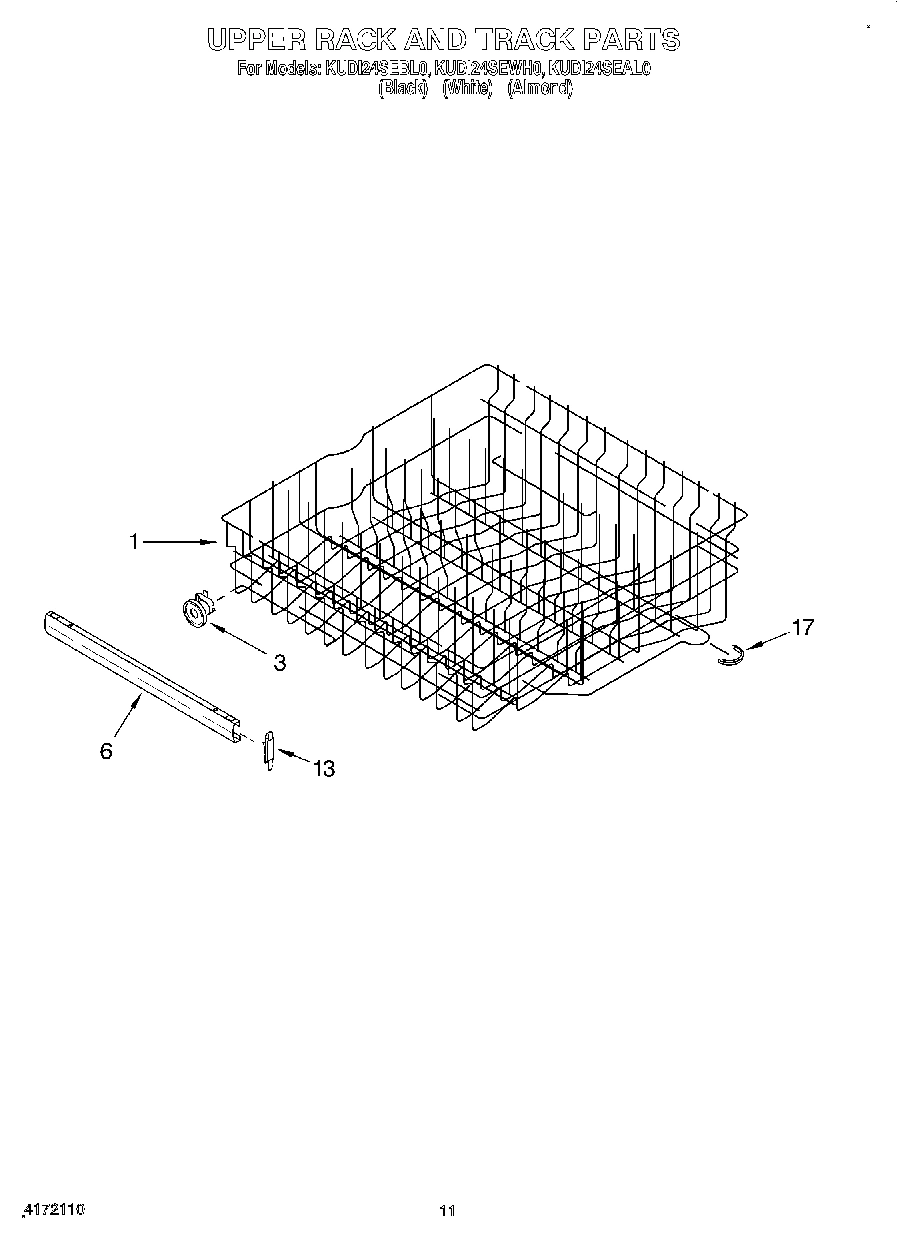

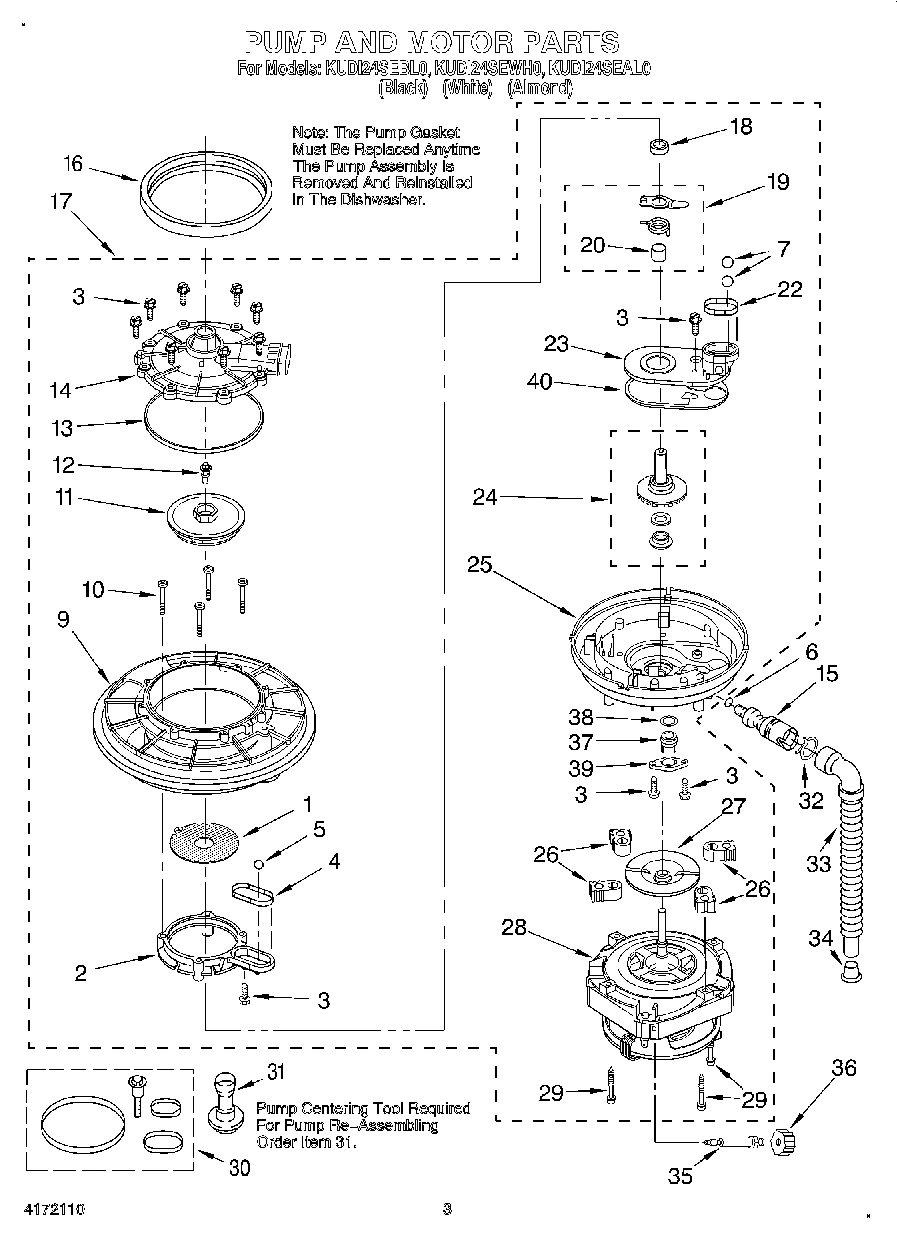

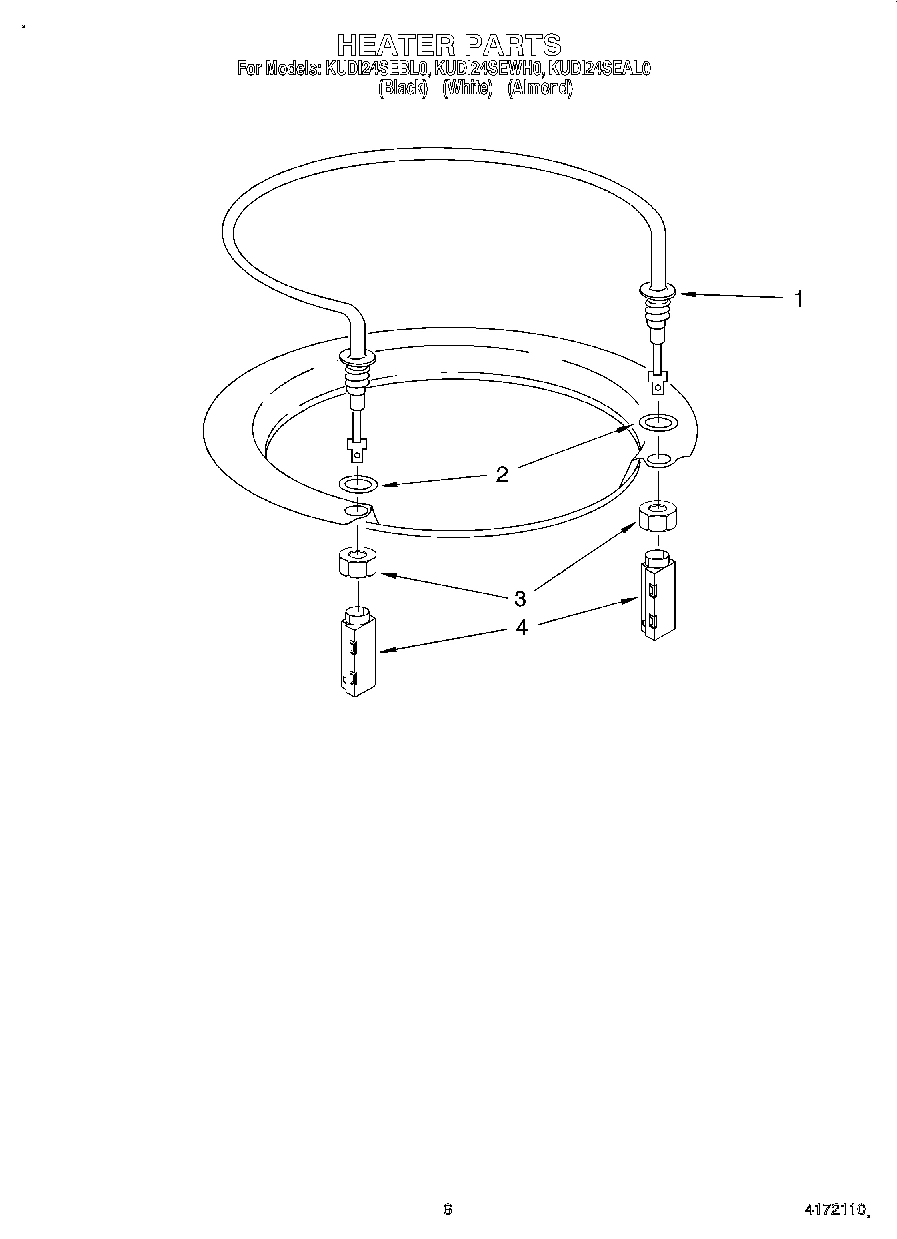

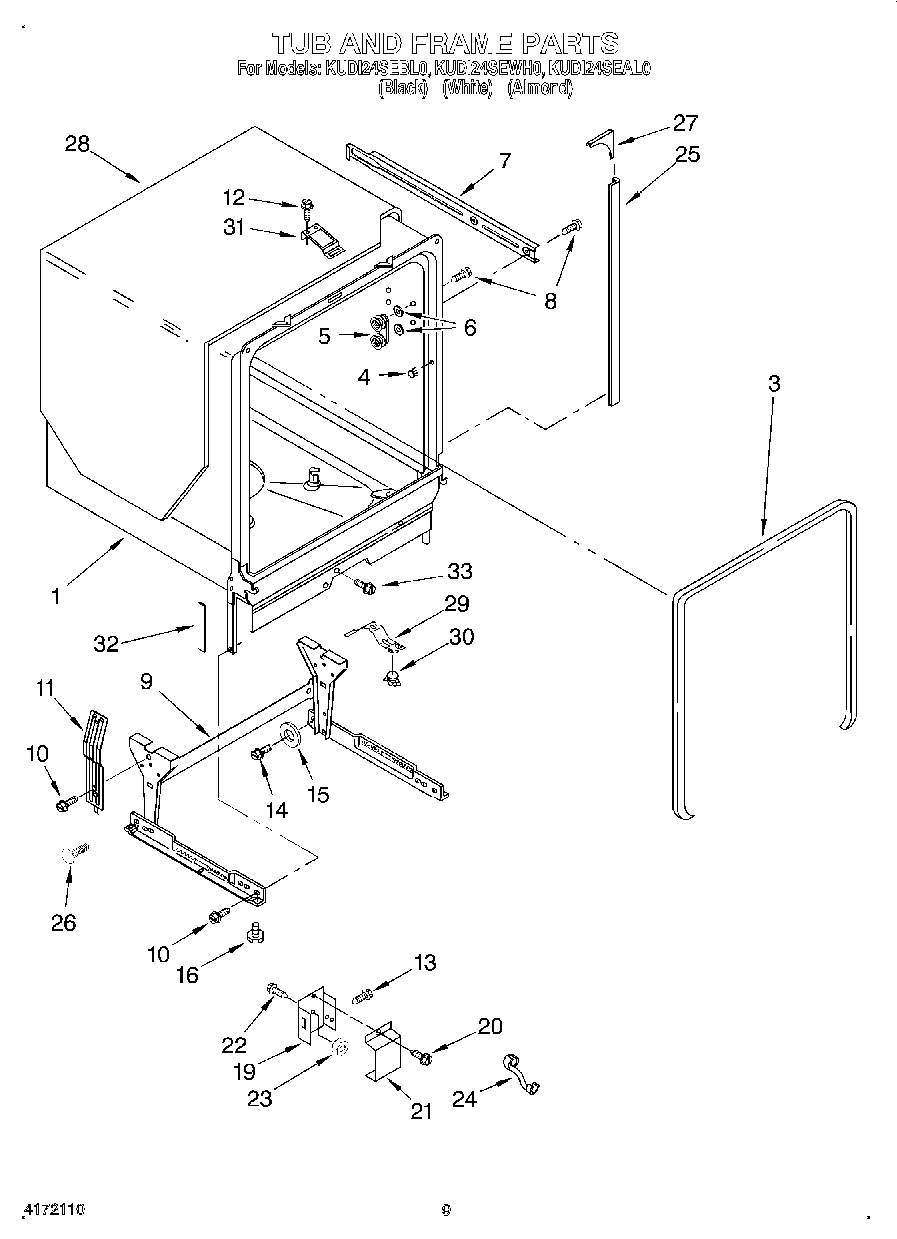

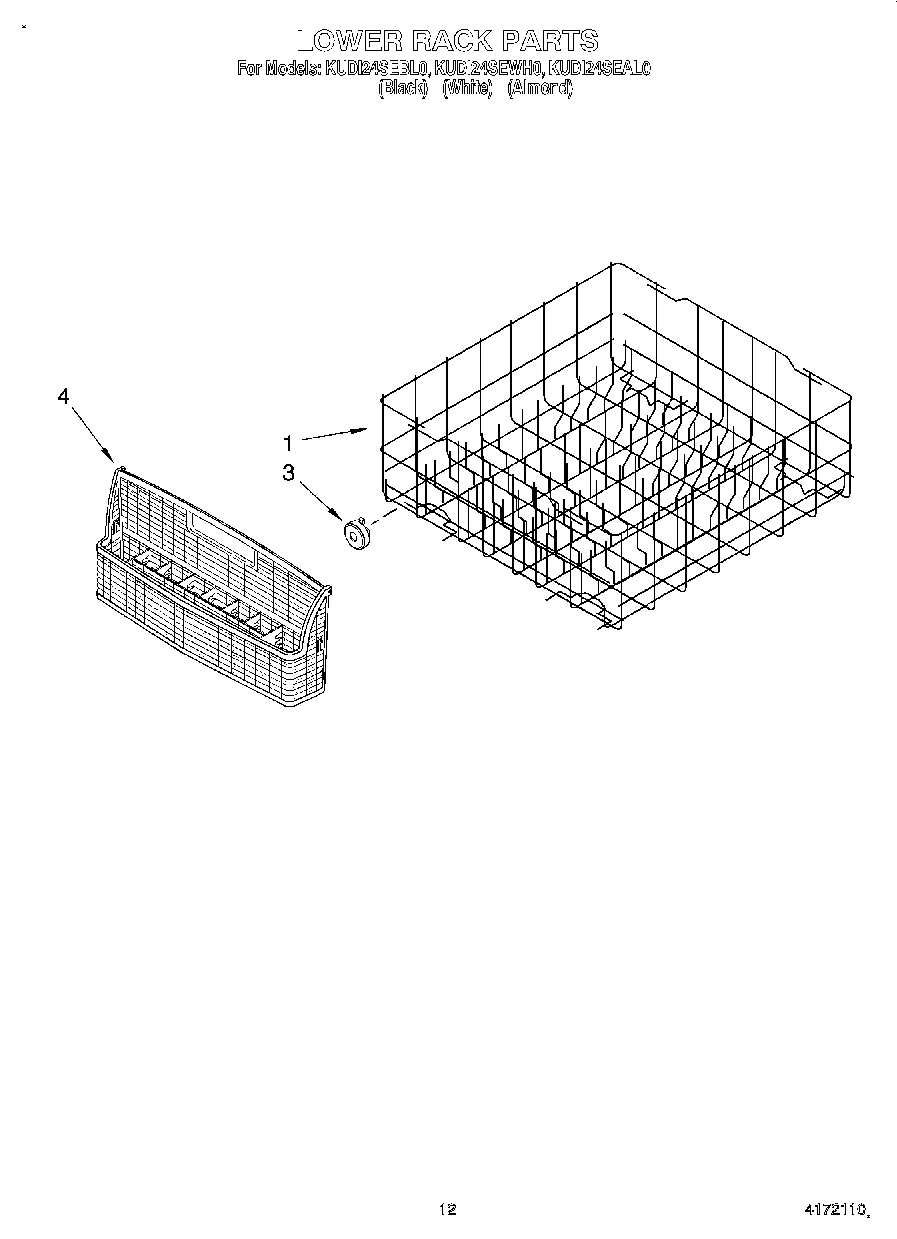

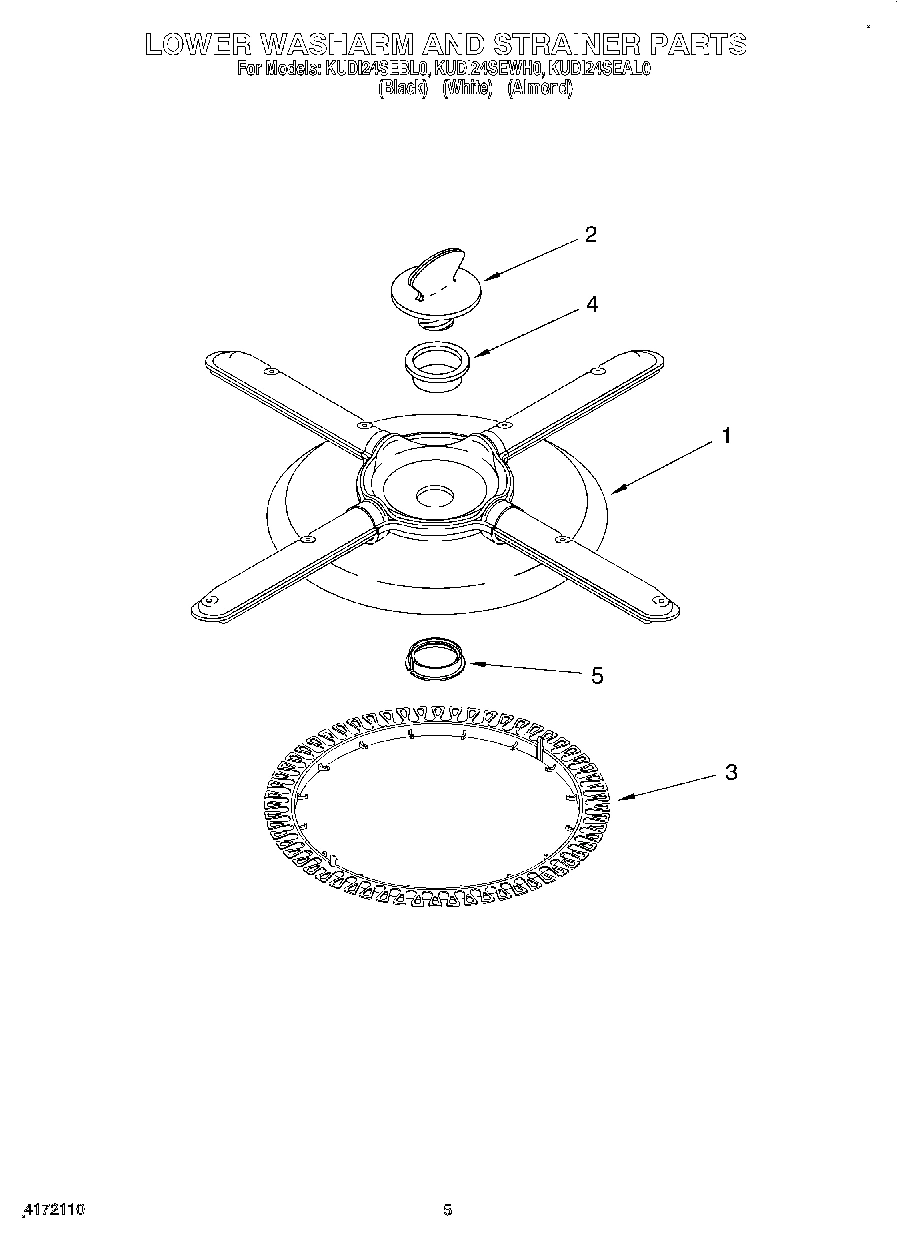

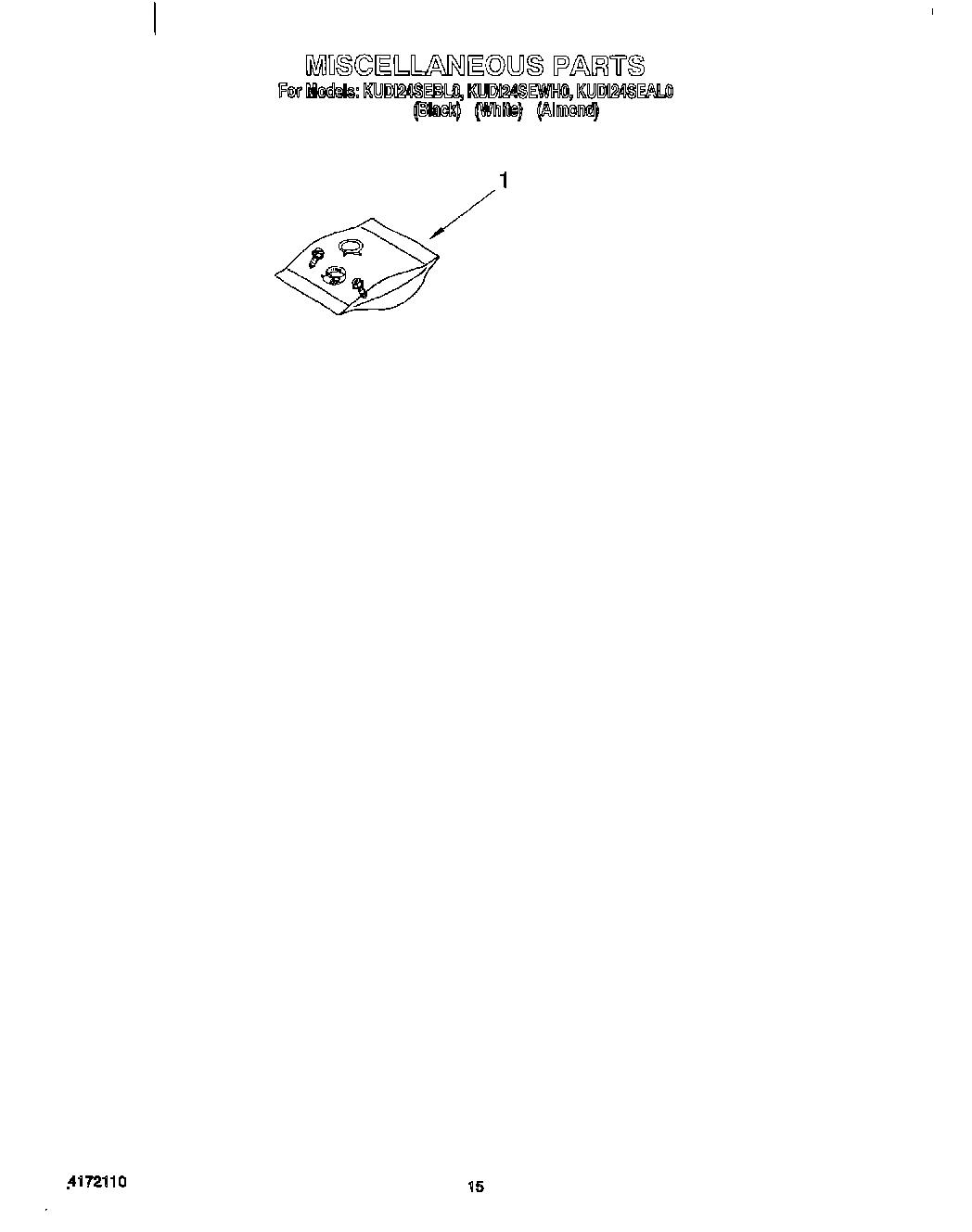

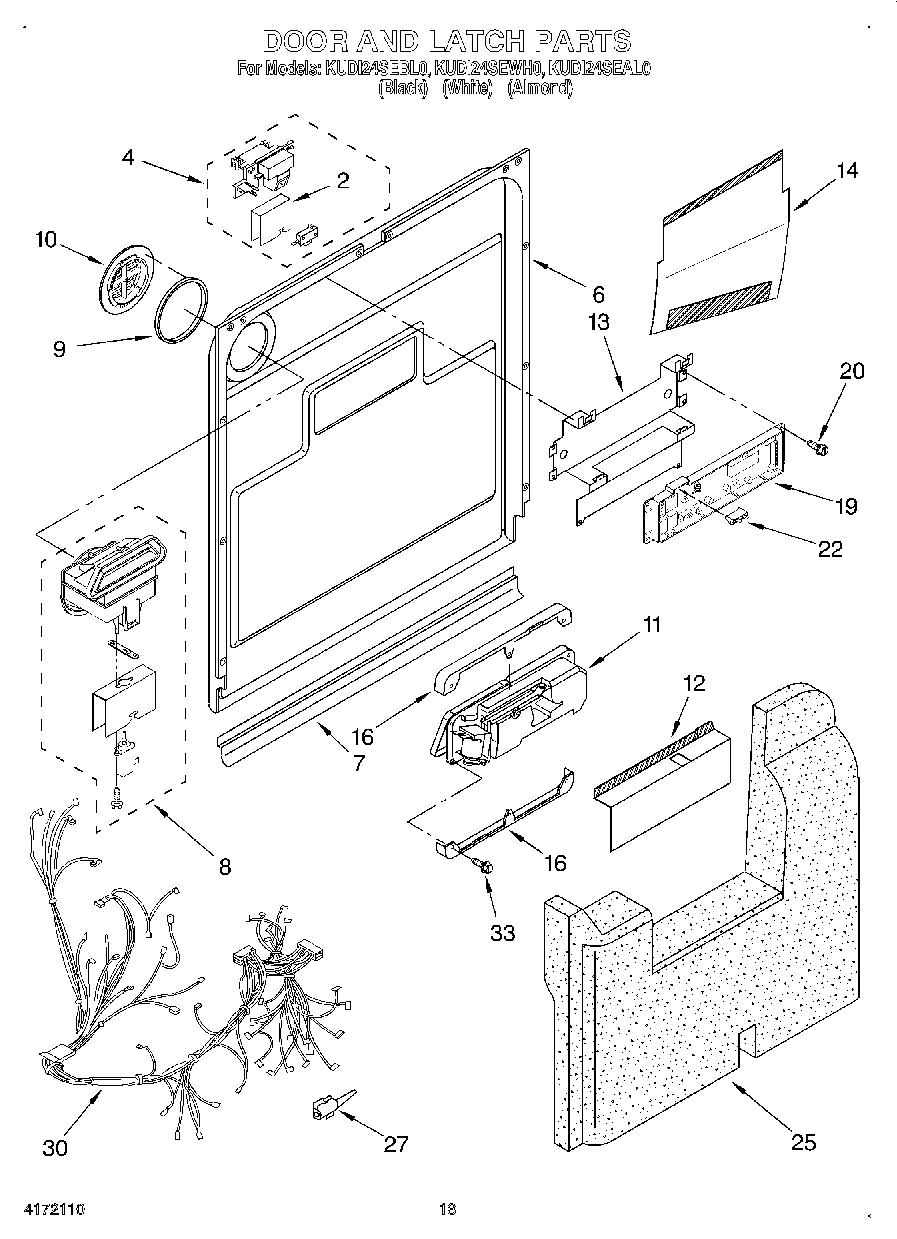

Model Whirlpool KUDI24SEAL0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4378867 Whirlpool Dishwasher Panel Backorder WPL 4378867 $156.64

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $21.05

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Frameless (White) WPL 4378861 Contact Us For Availability

Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability

Frameless (Almond) WPL 4378863 Contact Us For Availability

Door Framed Kits (White) WPL 4378864 Contact Us For Availability

Door Framed Kits (Black) WPL 4378865 Contact Us For Availability

Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability

Side Panel Kits (Black) WPL 4378868 Contact Us For Availability

Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use & Care WPL LIT9743093 Contact Us For Availability

Instructions, Installation WPL LIT9743128 Contact Us For Availability

Energy Guide WPL LIT9743395 Contact Us For Availability

Tech Sheet WPL LIT9743409 Contact Us For Availability

1

W10134647 Whirlpool Lower Dish Rack Backorder WPL W10134647 $179.00

1

WP9743028 Whirlpool Dishwasher Frame Backorder WPL WP9743028 $71.95

1

WPW10253040 Whirlpool Dishwasher Dish Rack Backorder WPL WPW10253040 $232.32

1

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

Plate, Perforated (Also Order Item 30) See No WPL 9740982 Contact Us For Availability

1

Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability

1

Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP9742727 Whirlpool Dishwasher Fill Hose Backorder WPL WP9742727 $5.44

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $3.51

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

2

Insert (White Model) WPL 9743367 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

3

675808 Whirlpool Dishwasher Middle Spray Arm In Stock WPL 675808 $18.92

3

WP8268807 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8268807 $5.36

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

Wheel Assembly (2) Lower Rack (8) WPL 9743007 Contact Us For Availability

3

Switch, Panel (User Interface) WPL 9743244 Contact Us For Availability

3

Strainer (Coarse) WPL 9742646 Contact Us For Availability

3

Nut, Heater Element WPL 9743039 Contact Us For Availability

3

Water Inlet Assembly (Includes Items 4 & 5) WPL 9742783 Contact Us For Availability

4

675760 Whirlpool Dishwasher Door Latch Assemb Backorder WPL 675760 $36.33

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $11.42

4

Gasket WPL 9742787 Contact Us For Availability

4

Pod, Terminal Heater WPL 9743166 Contact Us For Availability

4

Basket, Silverware WPL 9742853 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $4.67

5

WP8539324 Whirlpool Dishwasher Upper Spray Ar In Stock WPL WP8539324 $3.29

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

5

Bezel, Inlet WPL 9742786 Contact Us For Availability

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

``O`` Ring WPL 95080 Contact Us For Availability

6

Inner Door Mastic Assembly (Also Includes Ite WPL 9742625 Contact Us For Availability

7

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $26.44

7

W10844024 Whirlpool Water Inlet Valve In Stock WPL W10844024 $38.67

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

7

WP3378186 Whirlpool Dishwasher Holder In Stock WPL WP3378186 $10.82

7

WP719929 Whirlpool Dishwasher Check Ball In Stock WPL WP719929 $4.43

8

Vent Assembly (Also Order Item 9) WPL 9742770 Contact Us For Availability

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Connector (Includes Items 13, 14 & 15) WPL 9743473 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Screw WPL 3400001 Contact Us For Availability

Deflector, Vent (Also Order Item 9) WPL 9742780 Contact Us For Availability

Feed Tube Assembly WPL 9742950 Contact Us For Availability

11

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $13.18

11

WPW10616003 Whirlpool Dishwasher Dispenser As Backorder WPL WPW10616003 $154.38

W10207863 Whirlpool Dishwasher Switch Backorder WPL W10207863 $33.16

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Shield, Dispenser WPL 9743450 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

Bracket, Controls WPL 9742623 Contact Us For Availability

Washer WPL 9743475 Contact Us For Availability

Stop, Track (4) WPL 9743472 Contact Us For Availability

8194582 Whirlpool Dishwasher Outlet Backorder WPL 8194582 $33.16

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

Shield, Control WPL 9742963 Contact Us For Availability

Nut, Standpipe WPL 4161596 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Screw WPL ARI114195A Contact Us For Availability

Gasket, Connector WPL 9743474 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

Seal, Tube WPL 9742953 Contact Us For Availability

Bracket, Dispenser (2) WPL 9743486 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

17

W10428773 Whirlpool Pump and Motor Assembly Backorder WPL W10428773 $334.40

17

WP8268812 Whirlpool Dishwasher Mounting Assem In Stock WPL WP8268812 $6.35

17

Protector, Sprayarm Guard WPL 9742999 Contact Us For Availability

18

Bushing, Grind WPL 302707 Contact Us For Availability

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

19

Control Electronic WPL 9742617 Contact Us For Availability

20

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

20

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

21

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

22

Fuse Thermal Electronic WPL 9743451 Contact Us For Availability

23

Cover, Drain (Also Order Item 30 & 40) See No WPL 3376845 Contact Us For Availability

25

Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability

25

Sound Absorber WPL 9743026 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

28

Motor & Fan (Assembly) (Includes Item 27) (Al WPL 3376765 Contact Us For Availability

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

29

Screw (4) WPL 3369331 Contact Us For Availability

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

30

Wiring Harness Main WPL 9743462 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

32

Pad, Friction WPL 9743406 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

33

Screw (6) WPL 3400700 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

35

Shaft, Absorber WPL 3374757 Contact Us For Availability

36

Weight, Absorber WPL 3374756 Contact Us For Availability

37

Thermostat WPL 3378083 Contact Us For Availability

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $3.93

39

WP3376358 Whirlpool Dishwasher Retainer Backorder WPL WP3376358 $4.48

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70
