Model Whirlpool KUDI230BWH0 – Common Parts & Diagrams
02 - BLOWER
04 - PUMP AND MOTOR

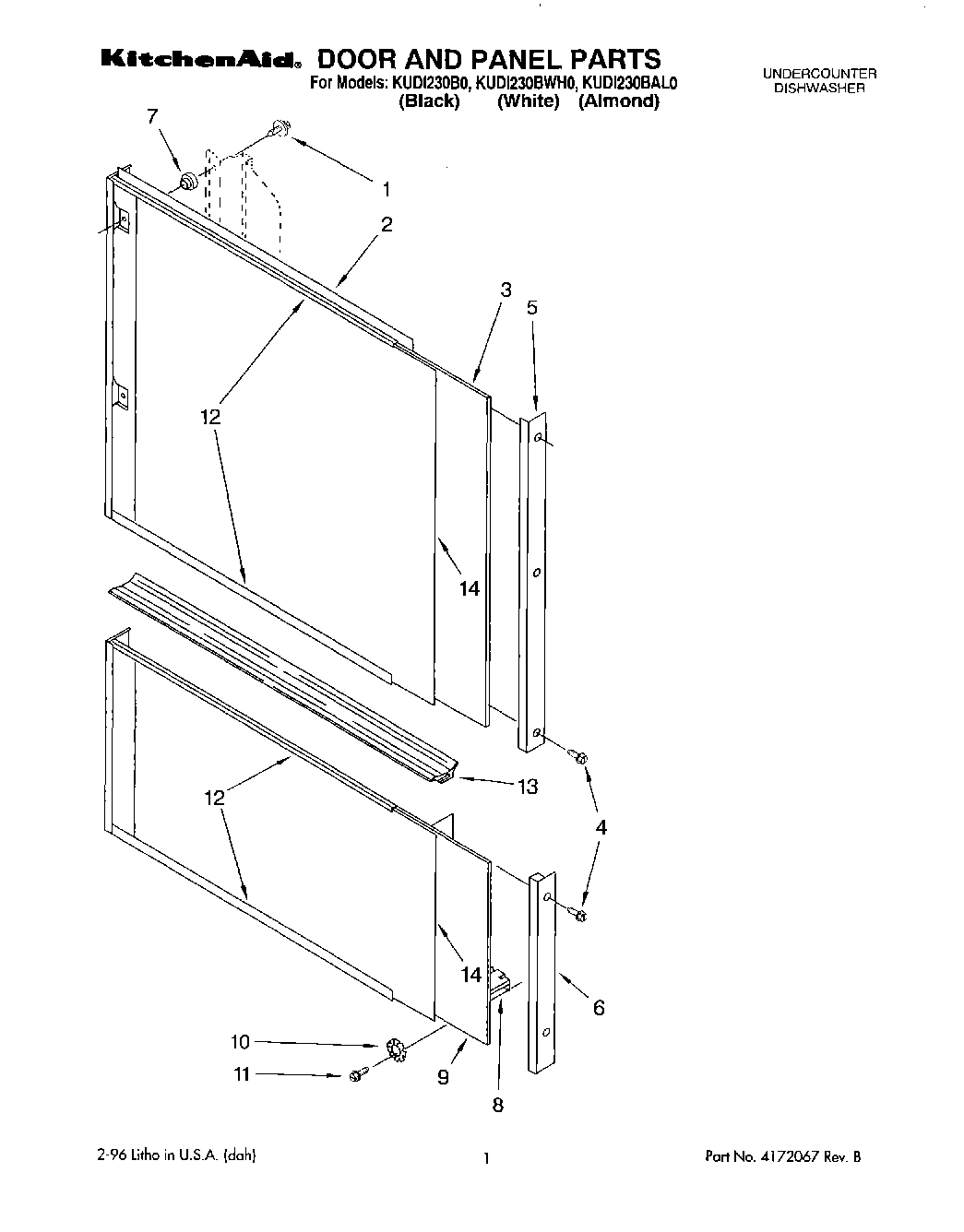

01 - DOOR AND PANEL
12 - DOOR AND LATCH

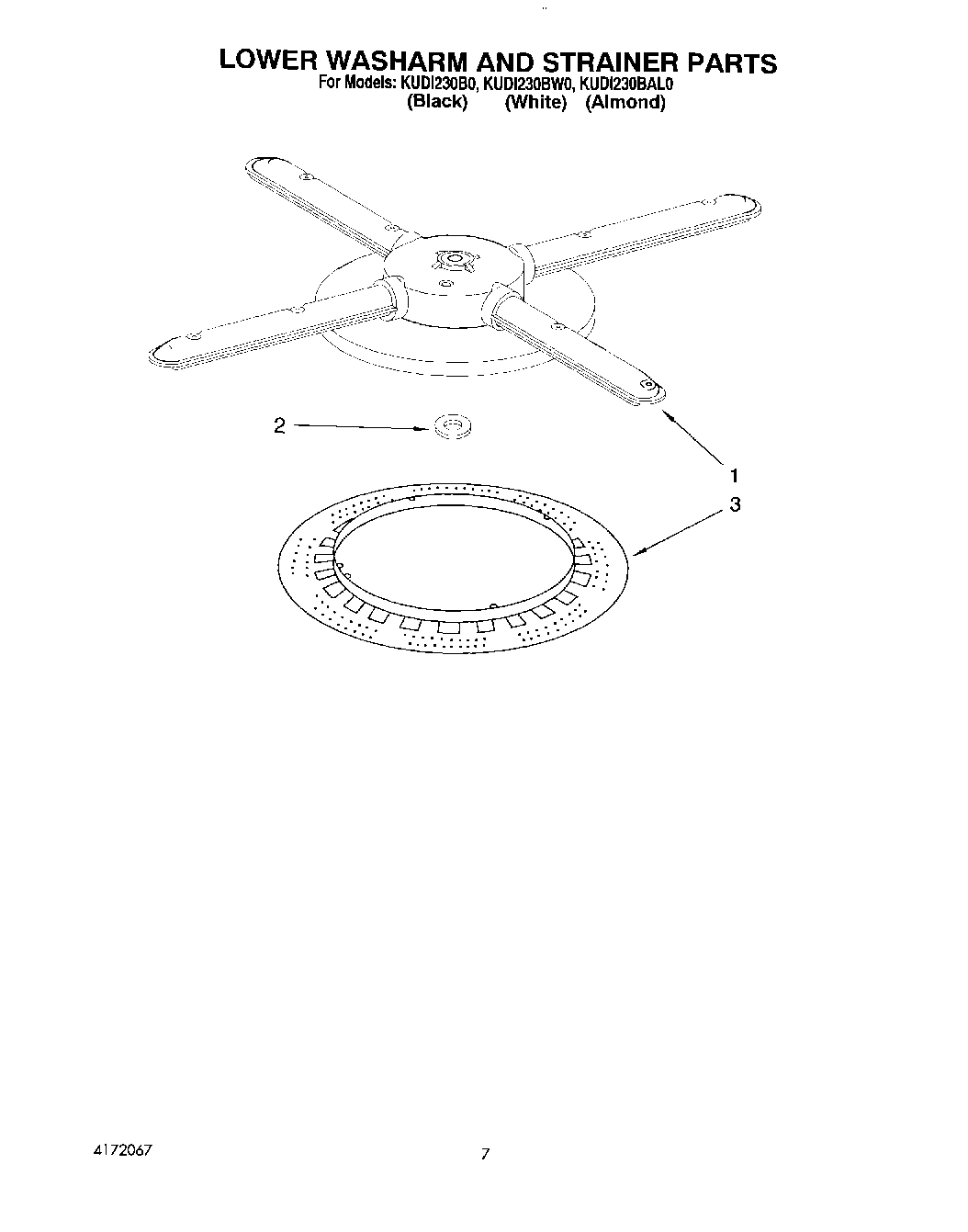

05 - LOWER WASHARM AND STRAINER

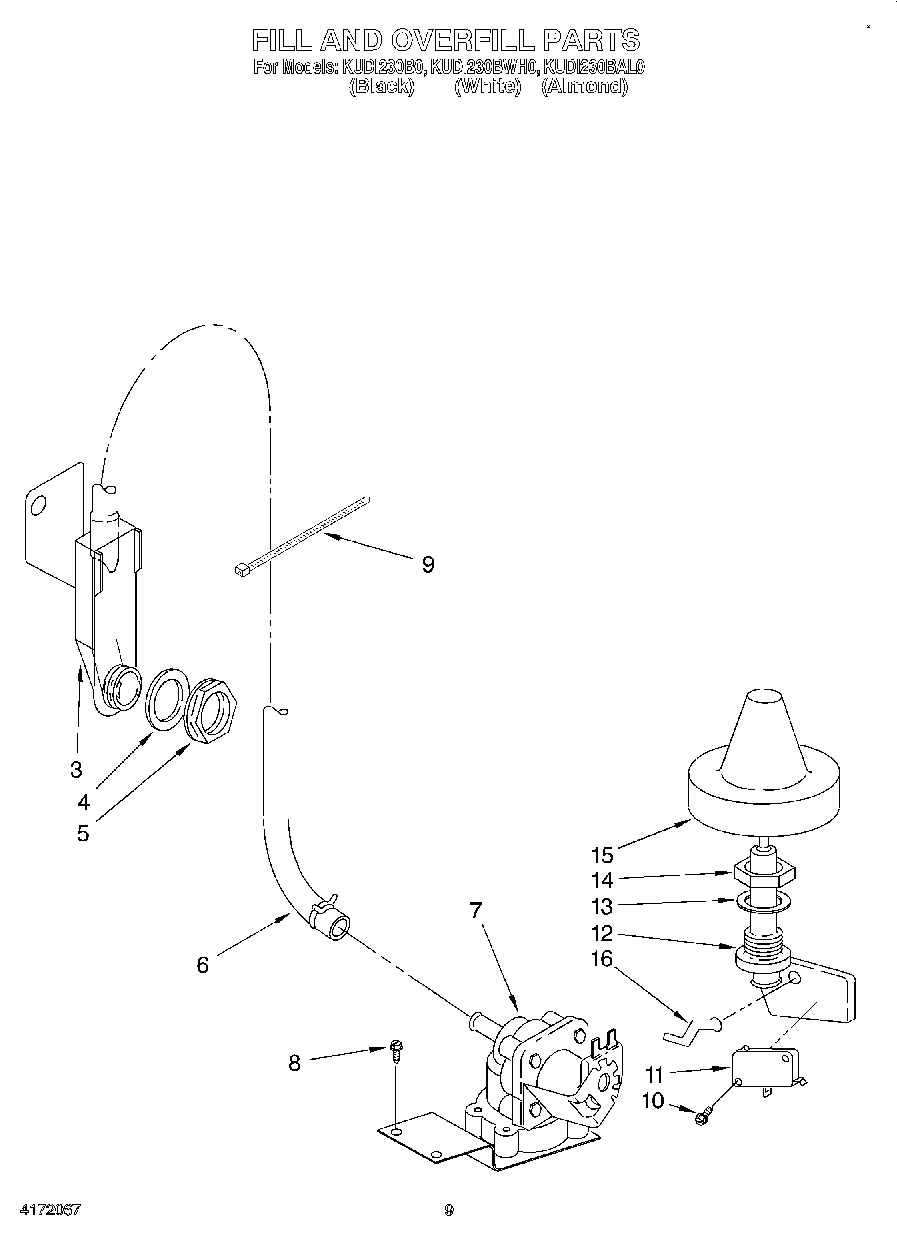

07 - FILL AND OVERFILL

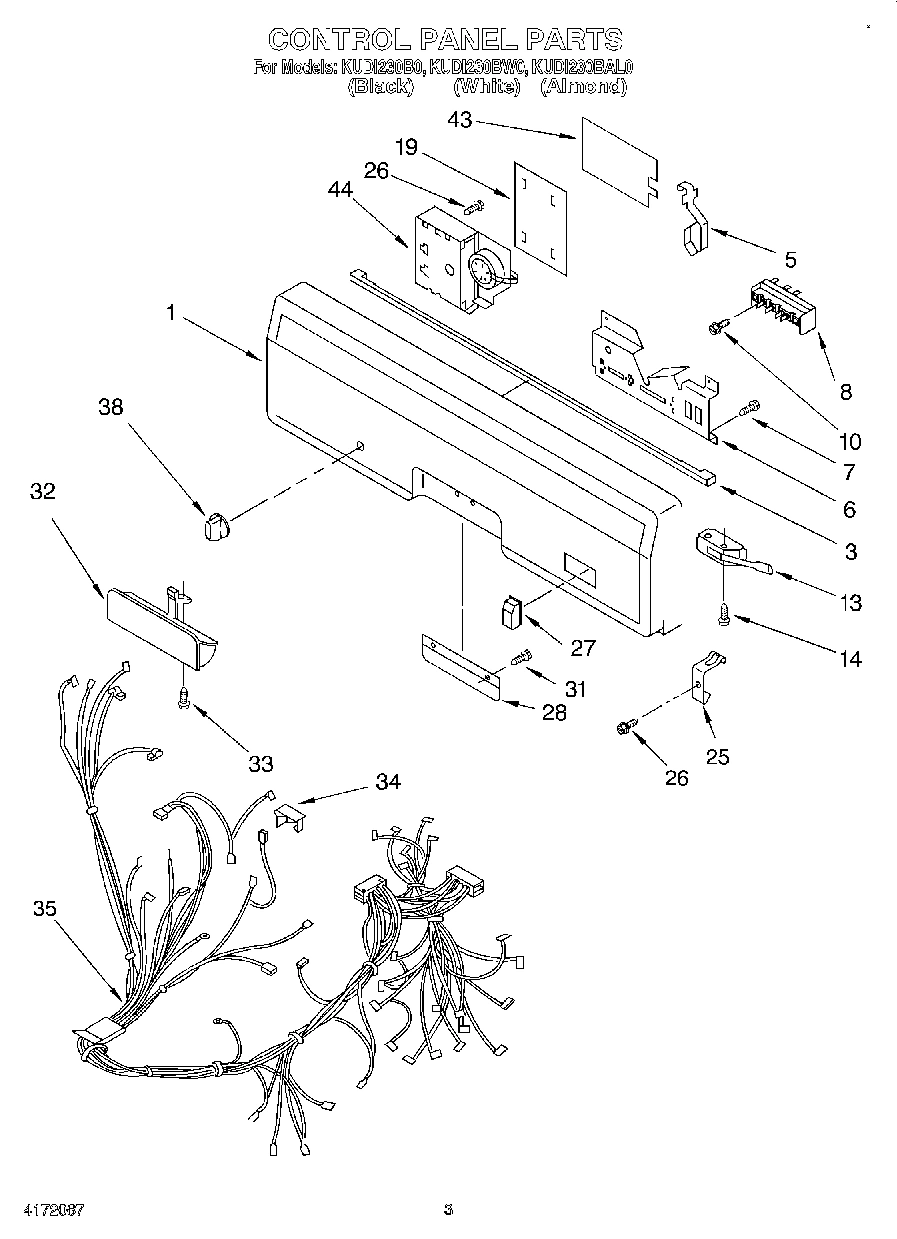

03 - CONTROL PANEL, LIT/OPTIONAL

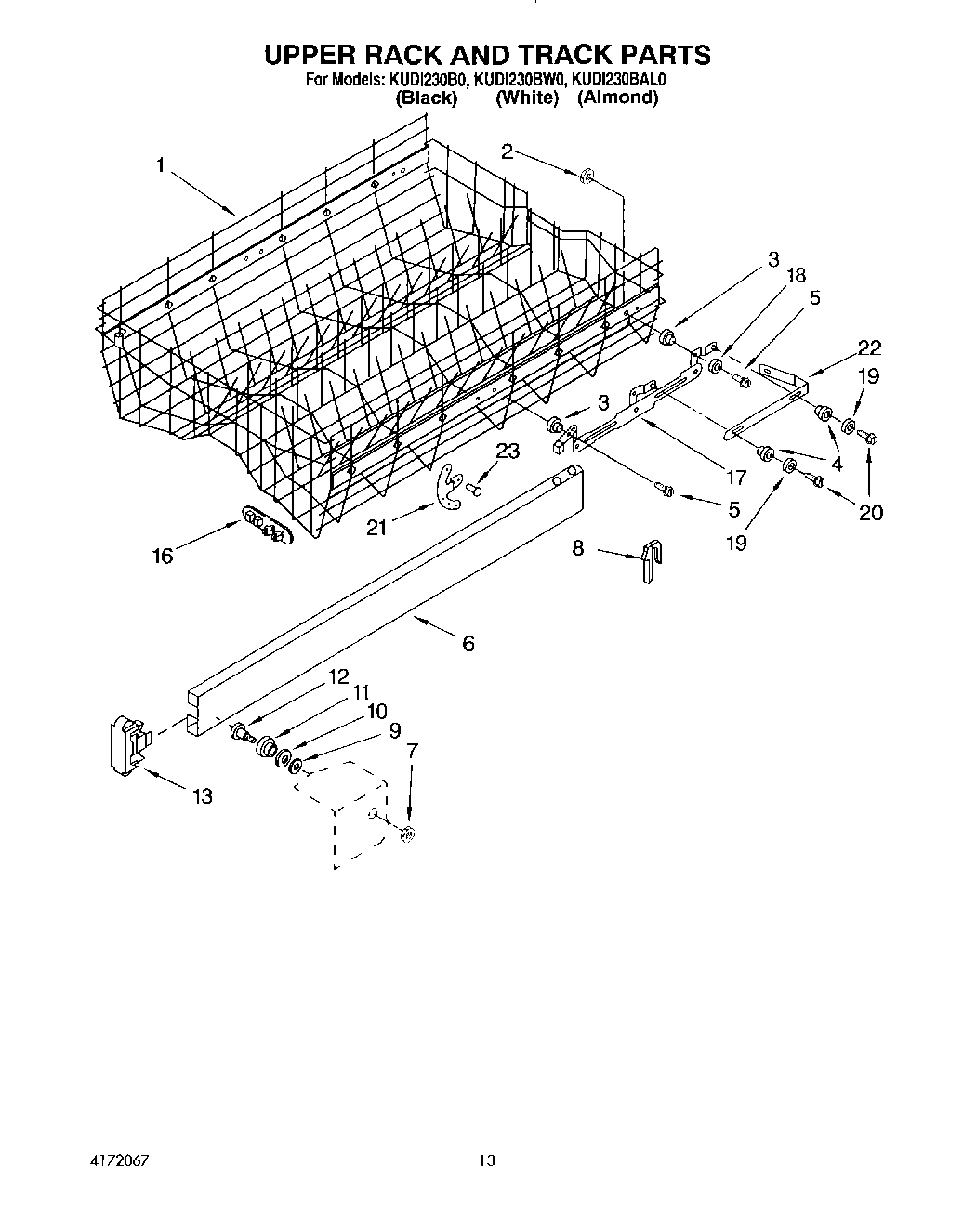

10 - UPPER RACK AND TRACK

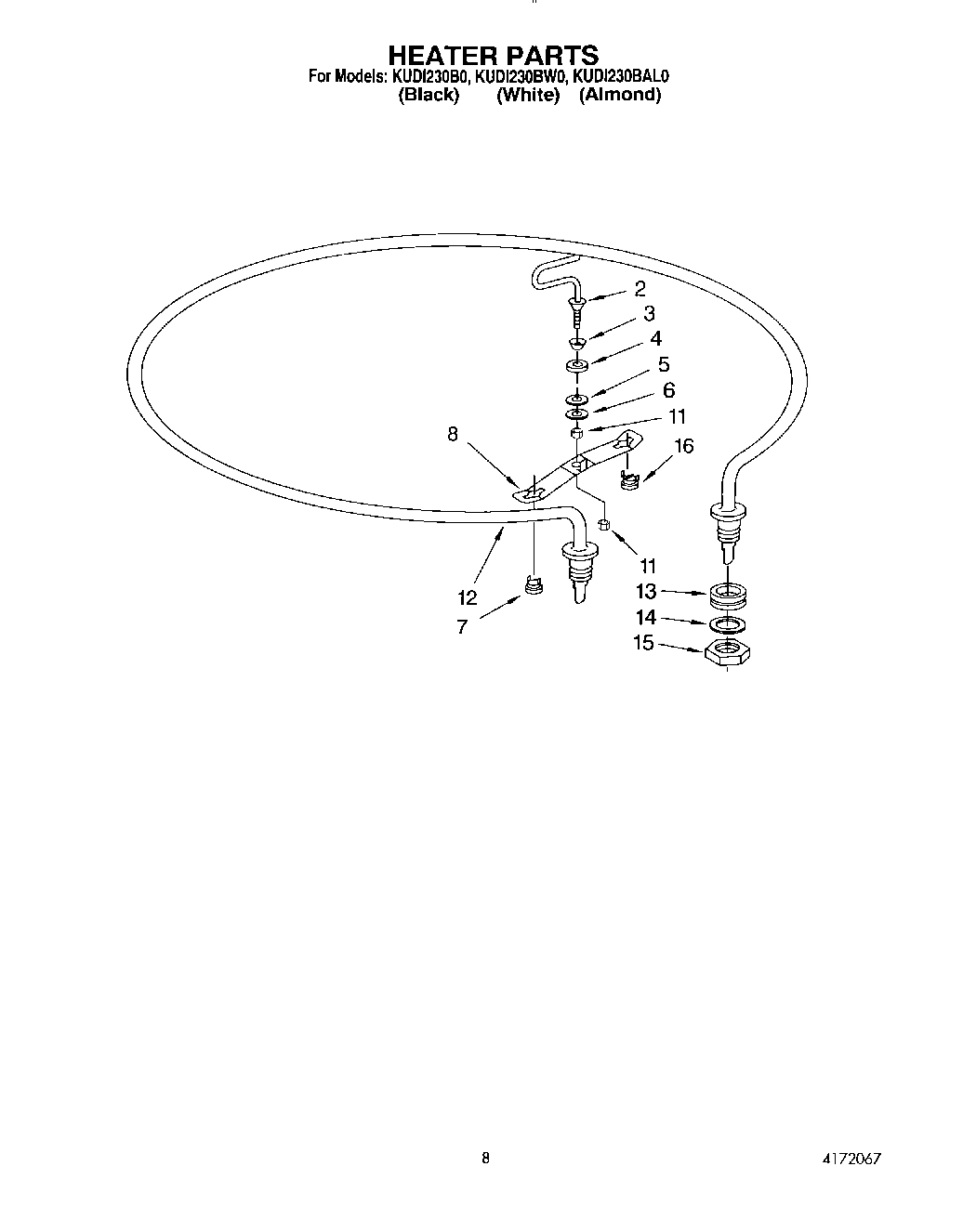

06 - HEATER

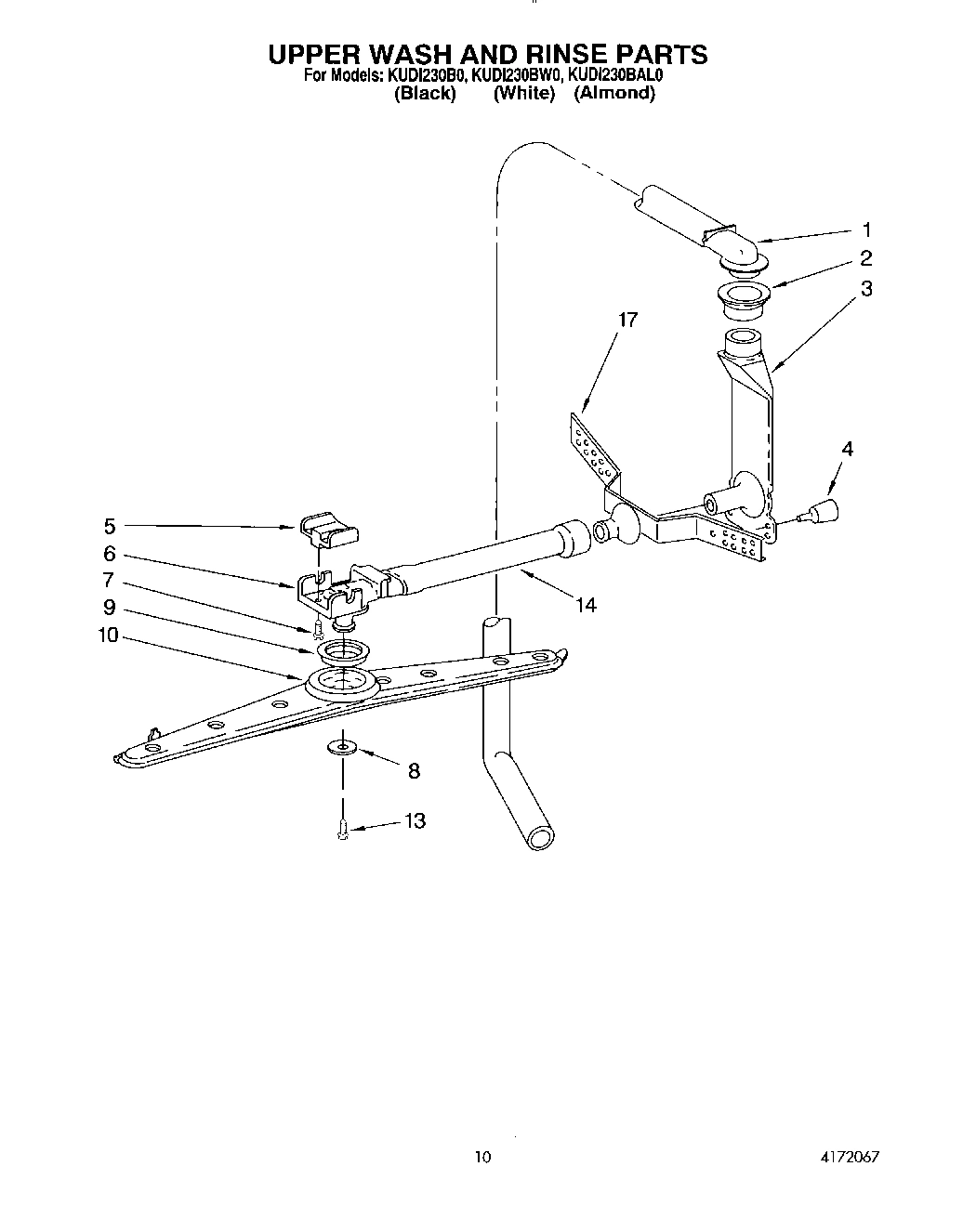

08 - UPPER WASH AND RINSE

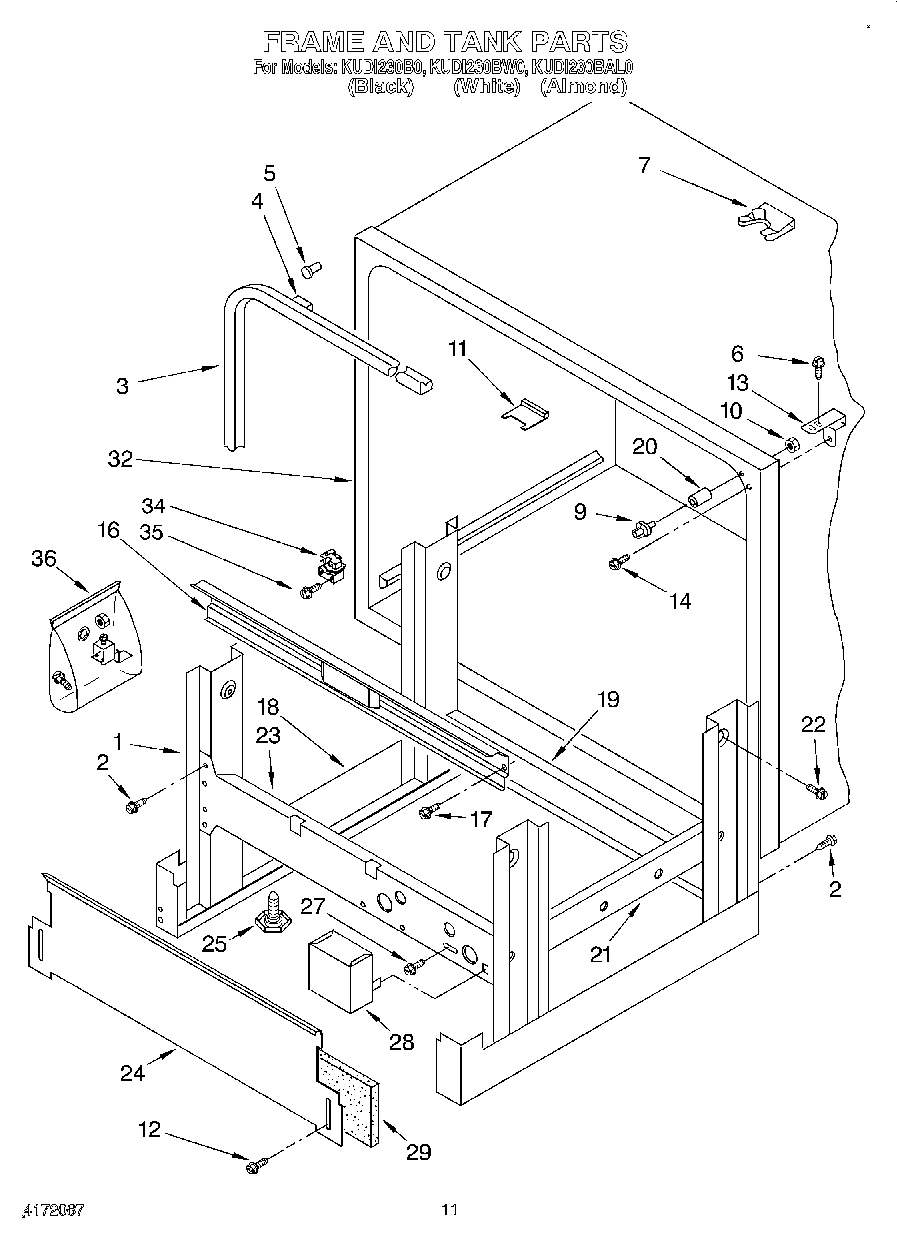

09 - FRAME AND TANK

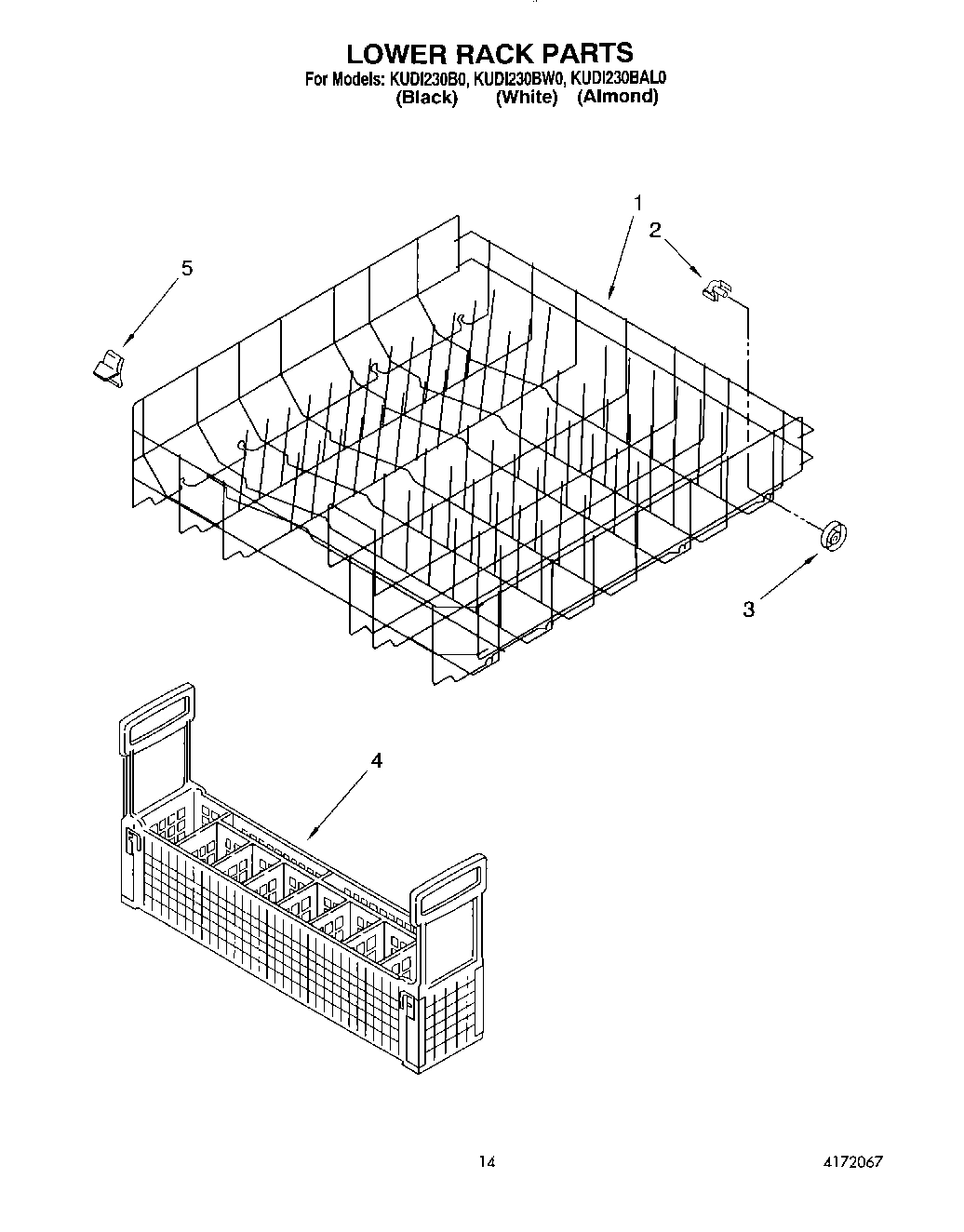

11 - LOWER RACK
Common parts from model Whirlpool KUDI230BWH0
WPL 799344 WPL 799344 Contact Us For Availability
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
Toast WPL 285365 Contact Us For Availability
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
E WPL 285367 Contact Us For Availability
WPL 285368 WPL 285368 Contact Us For Availability
WPL 4162841 WPL 4162841 Contact Us For Availability
WPL 4171179 WPL 4171179 Contact Us For Availability
WPL 4171476 WPL 4171476 Contact Us For Availability
WPL 4171632 WPL 4171632 Contact Us For Availability
WPL 4171633 WPL 4171633 Contact Us For Availability
WPL 4171634 WPL 4171634 Contact Us For Availability
WPL 4171635 WPL 4171635 Contact Us For Availability
WPL 675506 WPL 675506 Contact Us For Availability
WPL 72112 WPL 72112 Contact Us For Availability
WPL 799640 WPL 799640 Contact Us For Availability
WPL 9741358 WPL 9741358 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT9741870 WPL LIT9741870 Contact Us For Availability
WPL LIT9742002 WPL LIT9742002 Contact Us For Availability
WPL LIT9742114 WPL LIT9742114 Contact Us For Availability
WPL LIT9742351 WPL LIT9742351 Contact Us For Availability
1
Screw WPL 4162215 Contact Us For Availability
1
Screw and Washer WPL 9742113 Contact Us For Availability
1
Wash Arm Assembly WPL 9740787 Contact Us For Availability
1
Control Panel (Includes: Insert, No.3 Seal, a WPL 9741939 Contact Us For Availability
1
Control Panel (Includes, Insert, No.3 Seal, a WPL 9741940 Contact Us For Availability
1
Control Panel (Includes, Insert, No.3 Seal, a WPL 9741941 Contact Us For Availability
1
Upper Rack Assembly (Includes Items 2, 3, 5, WPL 9741959 Contact Us For Availability
1
Tube & Connector Assembly WPL 9740307 Contact Us For Availability
1
Short Frame Assembly (Includes Items 2, 18, 1 WPL 4171627 Contact Us For Availability
1
Lower Rack Assembly (Includes Items 2, 3 & 5) WPL 4171638 Contact Us For Availability
2
Axle, Lower Rack (8) WPL 4162321 Contact Us For Availability
2
Upper Mounting Panel Assembly (Includes Upper WPL 9742083 Contact Us For Availability
2
Upper Mounting Panel Assembly (Includes Upper WPL 9742084 Contact Us For Availability
2
Upper Mounting Panel Assembly (Includes Upper WPL 9742085 Contact Us For Availability
2
Washer WPL 4159513 Contact Us For Availability
2
Washer WPL 4162892 Contact Us For Availability
2
Nut, Roller WPL 4161226 Contact Us For Availability
2
Hook, Heater Element WPL 4163549 Contact Us For Availability
2
Connector, Vertical Conduit WPL 9740763 Contact Us For Availability
3
Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability
3
Strainer (Coarse) WPL 9741049 Contact Us For Availability
3
Filler (Upper Panel) WPL 4171421 Contact Us For Availability
3
Water Inlet and Hose Assembly WPL 9741568 Contact Us For Availability
3
Seal, Control Panel WPL 9741864 Contact Us For Availability
3
Bearing & Spacer, Rack Roller WPL 4171288 Contact Us For Availability
3
Washer WPL 4159477 Contact Us For Availability
3
Conduit, Vertical WPL 4162655 Contact Us For Availability
4
Screw (White Model) WPL 4171463 Contact Us For Availability
4
Screw (Black Model) WPL 9740957 Contact Us For Availability
4
Screw (Almond Model) WPL 9741604 Contact Us For Availability
4
Latch Mechanism Assembly WPL 9741590 Contact Us For Availability
4
Gasket, Rubber WPL 4161545 Contact Us For Availability
4
Roller, Upper Rack Track (4) WPL 9741816 Contact Us For Availability
4
Washer, Sealing WPL 4160051 Contact Us For Availability
4
Retainer, Conduit WPL 4162609 Contact Us For Availability
4
Clip, Seal WPL 4161608 Contact Us For Availability
5
Bumper, Lower Rack (2) WPL 4171555 Contact Us For Availability
5
Side Trim (Upper Panel) (White Model) WPL 9742087 Contact Us For Availability
5
Side Trim (Upper Panel) (Almond Model) WPL 9742088 Contact Us For Availability
5
Side Trim (Upper Panel) (Black Model) WPL 9742089 Contact Us For Availability
5
Nut (Fill Air Gap) WPL 4171300 Contact Us For Availability
5
Spring, Switch Cancel WPL 9742256 Contact Us For Availability
5
Screw, 10-16 X 5/8 WPL 4159428 Contact Us For Availability
5
Washer WPL 4159567 Contact Us For Availability
5
Retainer, Manifold WPL 4171540 Contact Us For Availability
5
Bumper, Door WPL 4161626 Contact Us For Availability
6
Side Trim (Lower Panel) (White Model) WPL 4171673 Contact Us For Availability
6
Side Trim (Lower Panel) (Black Model) WPL 4172054 Contact Us For Availability
6
Side Trim (Lower Panel) (Almond Model) WPL 9741628 Contact Us For Availability
6
Inner Door Assembly WPL 4171443 Contact Us For Availability
6
Clamp, Hose WPL 4161505 Contact Us For Availability
6
Bracket, Program Switch WPL 9741861 Contact Us For Availability
6
Track, Rack WPL 3369071 Contact Us For Availability
6
Washer WPL 4159583 Contact Us For Availability
6
Manifold, Upper Arm WPL 4171541 Contact Us For Availability
7
Fill Valve Assembly WPL 9741906 Contact Us For Availability
7
Grommet, Panel WPL 4162735 Contact Us For Availability
7
Insulation, Inner Door WPL 4163577 Contact Us For Availability
7
Thermostat WPL 9741196 Contact Us For Availability
7
Clip, Retainer WPL 9740303 Contact Us For Availability
8
Lower Mounting Panel Assembly (Includes Upper WPL 4171672 Contact Us For Availability
8
Lower Mounting Panel Assembly (Includes Upper WPL 4172053 Contact Us For Availability
8
Lower Mounting Panel Assembly (Includes Upper WPL 9741635 Contact Us For Availability
8
Screw, 10-16 X 3/8 WPL 3369139 Contact Us For Availability
8
Screw & Washer Assembly WPL 9740922 Contact Us For Availability
8
Switch, Program WPL 9741813 Contact Us For Availability
8
Stop, Track (2) WPL 3369046 Contact Us For Availability
8
Bracket, Thermostat WPL 9741192 Contact Us For Availability
8
Washer WPL 4171240 Contact Us For Availability
9
Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability
9
Filler (Lower Panel) WPL 4162734 Contact Us For Availability
9
Washer WPL 9741062 Contact Us For Availability
9
Spacer, Upper Rack WPL 4163187 Contact Us For Availability
9
Actuator, Interlock Switch WPL 4171197 Contact Us For Availability
10
Lock Washer WPL 4159494 Contact Us For Availability
10
Plug Button WPL 9740847 Contact Us For Availability
10
Screw, 4-40 X 3/4 WPL 4159424 Contact Us For Availability
10
Washer, Cup WPL 718817 Contact Us For Availability
10
Wash/Rinse Arm Assembly WPL 9740877 Contact Us For Availability
10
Pushnut WPL 308306 Contact Us For Availability
11
Bearing, Door Stop Insert (2) WPL 4160355 Contact Us For Availability
11
Locknut WPL 718829 Contact Us For Availability
11
Roller, Rack Track WPL 300844 Contact Us For Availability
11
Keeper, Latch WPL 4160092 Contact Us For Availability
12
Trim, Panel (Upper & Lower) (White Model) WPL 4171671 Contact Us For Availability
12
Trim, Panel (Upper & Lower) (Black Model) WPL 4172052 Contact Us For Availability
12
Trim, Panel (Upper & Lower) (Almond Model) WPL 9741620 Contact Us For Availability
12
Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability
12
Screw, Track Roller WPL 9741951 Contact Us For Availability
12
Element, Heater WPL 9740416 Contact Us For Availability
12
Screw, 10-16 X 3/8 WPL 9741435 Contact Us For Availability
13
Endcap (2) WPL 300845 Contact Us For Availability
13
Channel, Evaporation WPL 9740868 Contact Us For Availability
13
Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability
13
Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability
13
Switch, Interlock WPL 4160658 Contact Us For Availability
13
Grommet, Heater Element WPL 4162521 Contact Us For Availability
13
Screw WPL 4161737 Contact Us For Availability
14
Tube (Manifold to Receiver) WPL 4171544 Contact Us For Availability
14
Panel Insert Kits (Stainless Steel) WPL 4171198 Contact Us For Availability
14
Panel Insert Kits (Alm WPL 4171200 Contact Us For Availability
14
WPL 4171201 WPL 4171201 Contact Us For Availability
14
WPL 4171592 WPL 4171592 Contact Us For Availability
14
WPL 4171595 WPL 4171595 Contact Us For Availability
14
WPL 4172092 WPL 4172092 Contact Us For Availability
14
Nut, Standpipe WPL 4161596 Contact Us For Availability
14
Washer, Heater Element WPL 4163554 Contact Us For Availability
14
Screw, 7-19 x 1/2 WPL 9741257 Contact Us For Availability
15
Float & Retainer Assembly WPL 4171216 Contact Us For Availability
15
Nut, Heater Element WPL 718537 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability
16
Lever, Overflow Switch WPL 4171116 Contact Us For Availability
16
Clip, Wash Arm Guard WPL 4171551 Contact Us For Availability
16
Support, Lower Panel WPL 9741276 Contact Us For Availability
17
Track, Adjustable (R.H.) WPL 9741828 Contact Us For Availability
17
Track, Adjustable (L.H.) WPL 9741829 Contact Us For Availability
17
Receiver, Manifold WPL 4171545 Contact Us For Availability
17
Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability
18
Washer WPL 4162452 Contact Us For Availability
18
Frame Assembly (L.H.) WPL 4171620 Contact Us For Availability
19
Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability
19
Barrier, Timer WPL 9741378 Contact Us For Availability
19
Washer WPL 4159593 Contact Us For Availability
19
Cross Frame, Rear WPL 9741173 Contact Us For Availability
20
Screw, 8-32 X 1/4 WPL 9741677 Contact Us For Availability
20
Sleeve, Actuator WPL 9740120 Contact Us For Availability
21
Pin, Hinge WPL 4161563 Contact Us For Availability
21
Rackstop (R.H.) WPL 4171291 Contact Us For Availability
21
Rackstop (L.H.) WPL 4171292 Contact Us For Availability
21
Frame Assembly (R.H.) WPL 4171619 Contact Us For Availability
22
Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability
22
Lift, Receiver (R.H.) WPL 9741974 Contact Us For Availability
22
Lift, Receiver (L.H.) WPL 9741975 Contact Us For Availability
22
Screw, 1/4-20 x 1/2 WPL 9741690 Contact Us For Availability
23
Screw WPL 9740851 Contact Us For Availability
23
Rivet WPL 4159166 Contact Us For Availability
23
Cross Frame, Front WPL 9742264 Contact Us For Availability
24
Kick Board ((Black)) WPL 4171618 Contact Us For Availability
24
Kick Board ((White)) WPL 9742213 Contact Us For Availability
24
Kick Board ((Almond)) WPL 9742214 Contact Us For Availability
25
Clip, Grounding (Front Panel) WPL 9742169 Contact Us For Availability
25
Foot, Leveling (4) WPL 4162911 Contact Us For Availability
26
Screw, 8-18 x 1/2 WPL 9741365 Contact Us For Availability
27
Baffle, Lower WPL 4161295 Contact Us For Availability
27
Button, Program Switch (6) (Black Model) WPL 9742241 Contact Us For Availability
27
Button, Program Switch (6) (White Model) WPL 9742242 Contact Us For Availability
27
Button, Program Switch (6) (Almond Model) WPL 9742243 Contact Us For Availability
27
Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability
28
Bracket, Support WPL 4171364 Contact Us For Availability
28
Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability
29
Shield, Insulation WPL 3382404 Contact Us For Availability
30
Pump Seal Kit (Includes Items 12, 13, 22, 33 WPL 675703 Contact Us For Availability
30
Detergent Dispenser & Gasket Assembly (Includ WPL 9740170 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Barrier, Detergent Cup WPL 9742181 Contact Us For Availability
31
Screw, 8-32 x 1/2 (Black Model) WPL 4172012 Contact Us For Availability
32
Handle, Latch (Black Model) WPL 9741857 Contact Us For Availability
32
Handle, Latch (White Model) WPL 9741858 Contact Us For Availability
32
Handle, Latch (Almond Model) WPL 9741859 Contact Us For Availability
32
Tank (Serviced Complete with Frame) WPL 9741966 Contact Us For Availability
33
Screw & Washer Assembly WPL 9741419 Contact Us For Availability
33
Screw, 10-32 x 5/8 WPL 9741328 Contact Us For Availability
34
Fill Hole Plug WPL 4162490 Contact Us For Availability
34
Clip, Harness Guide WPL 4163372 Contact Us For Availability
34
Relay, Start WPL 304658 Contact Us For Availability
35
Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability
35
Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability
35
Wiring Harness (Main) WPL 9741882 Contact Us For Availability
35
Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability
36
Ground Lug Kit WPL 675708 Contact Us For Availability
38
Knob, Timer (Black Model) WPL 9741853 Contact Us For Availability
38
Rinse Agent Dispensing Valve WPL 9741234 Contact Us For Availability
38
Knob, Timer (White Model) WPL 9741854 Contact Us For Availability
38
Knob, Timer (Almond Model) WPL 9741855 Contact Us For Availability
39
Tube, Drain WPL 9741366 Contact Us For Availability
39
Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability
41
Cap, Drain WPL 9741415 Contact Us For Availability
41
Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability
43
Shield, Timer WPL 9742182 Contact Us For Availability
44
Timer Assembly WPL 9741693 Contact Us For Availability
× ![]()
