Model Whirlpool KUDI22HWWH1 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

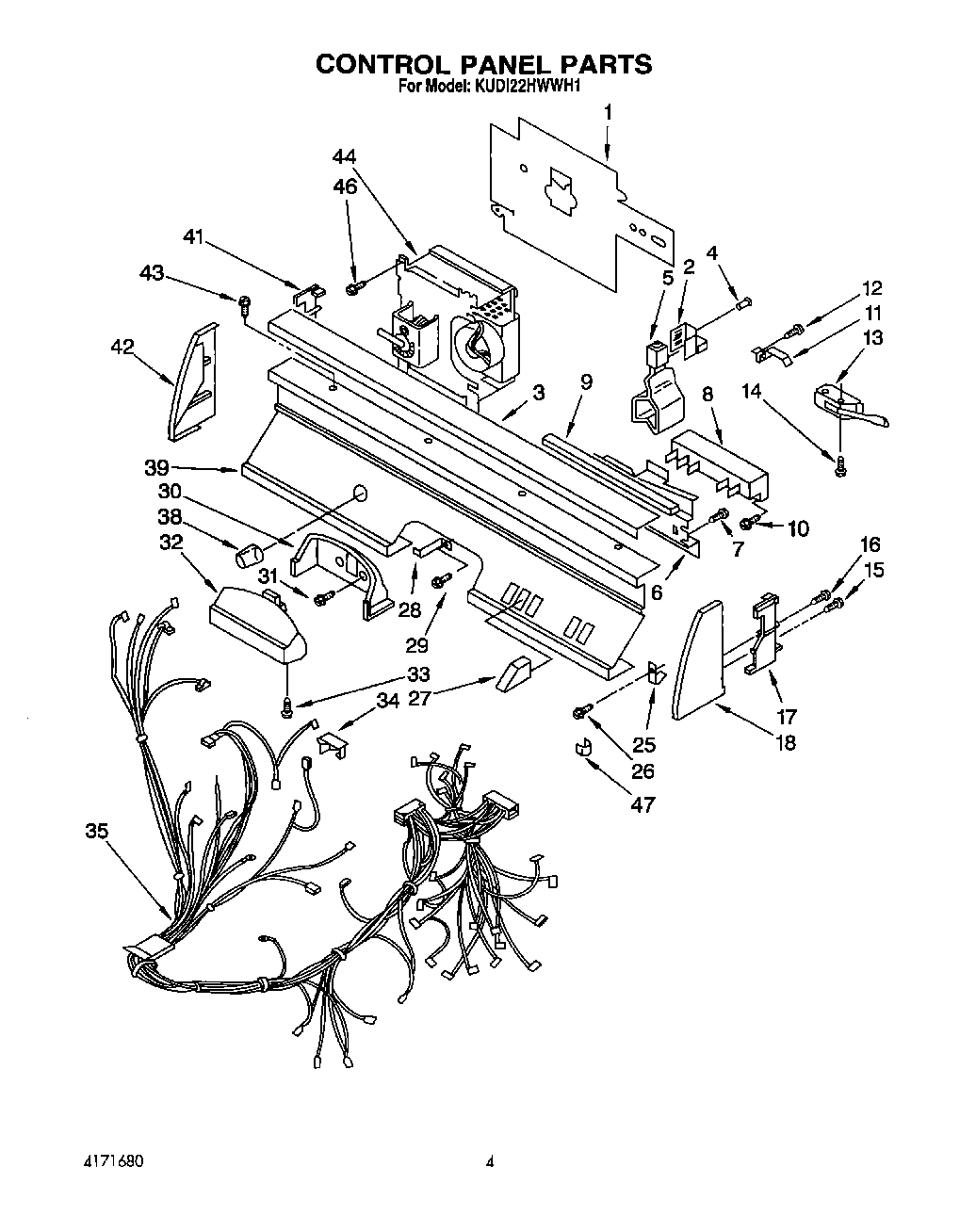

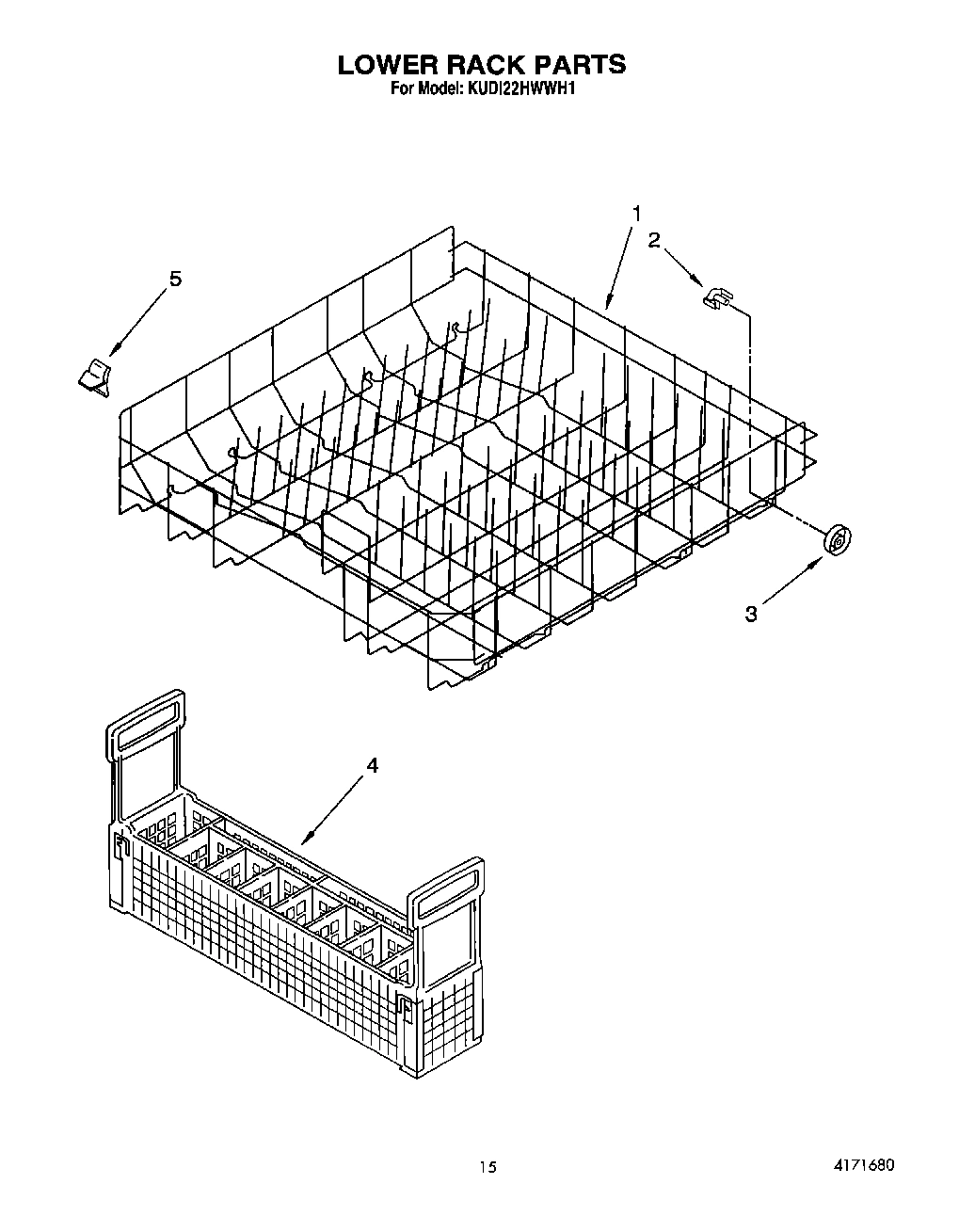

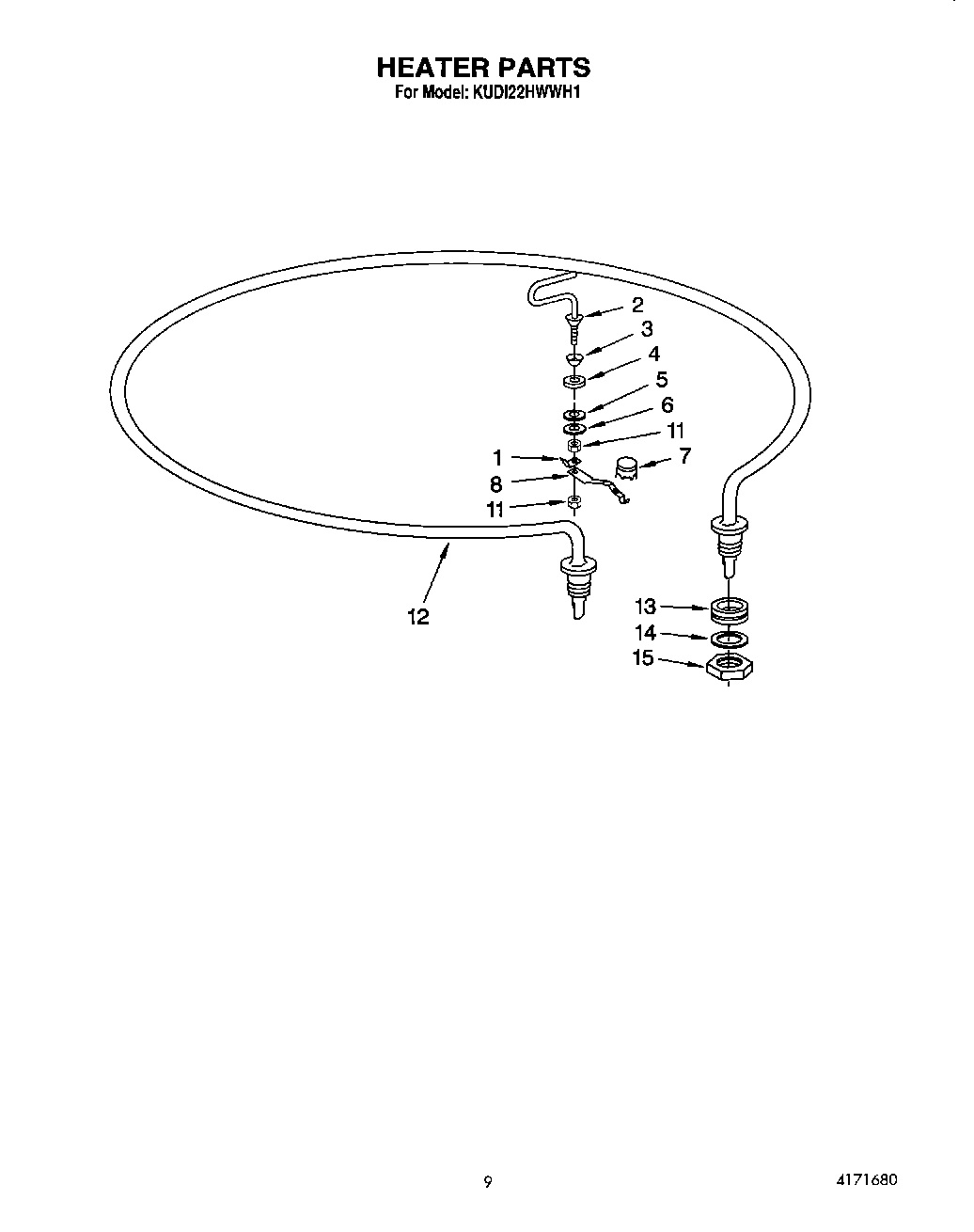

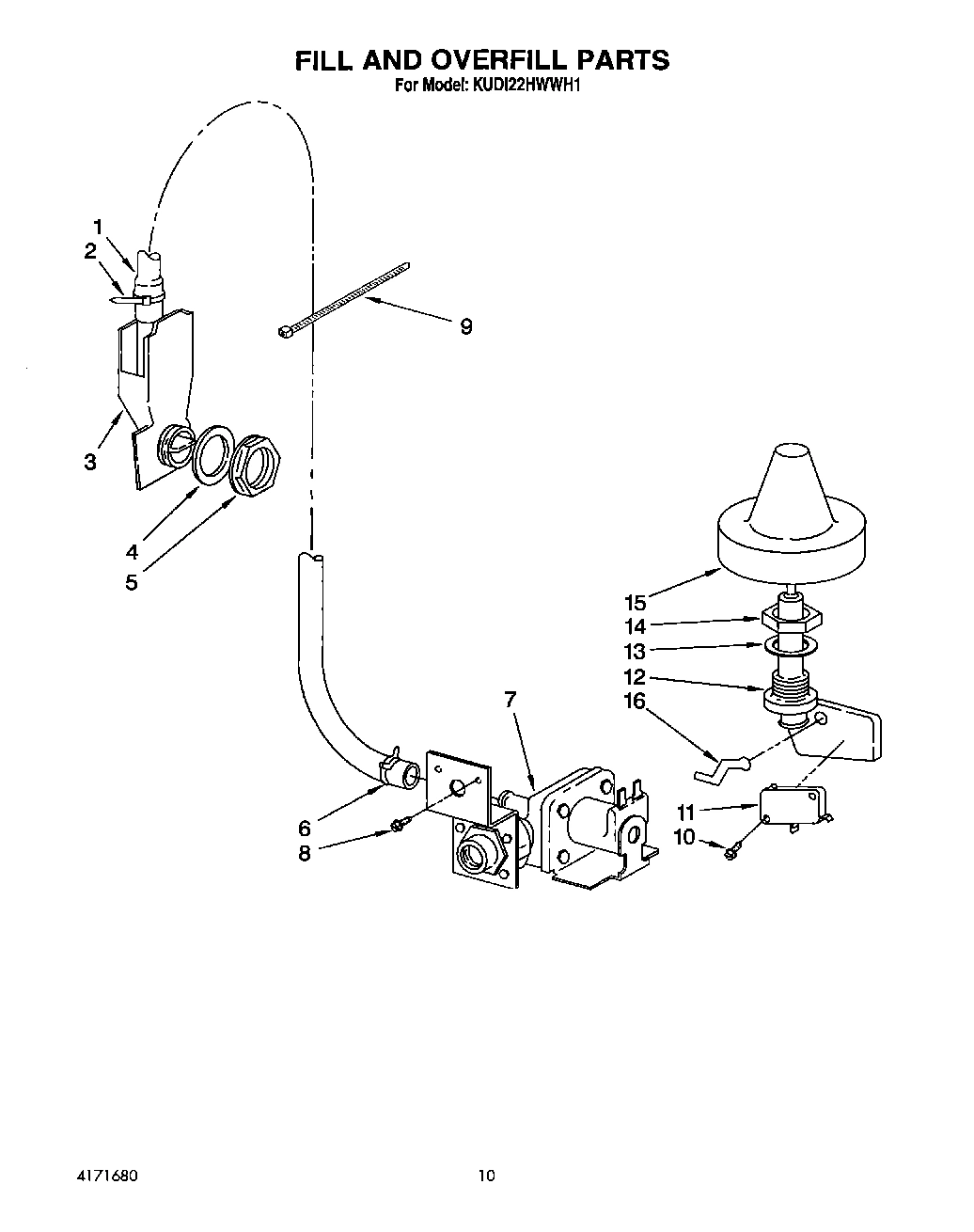

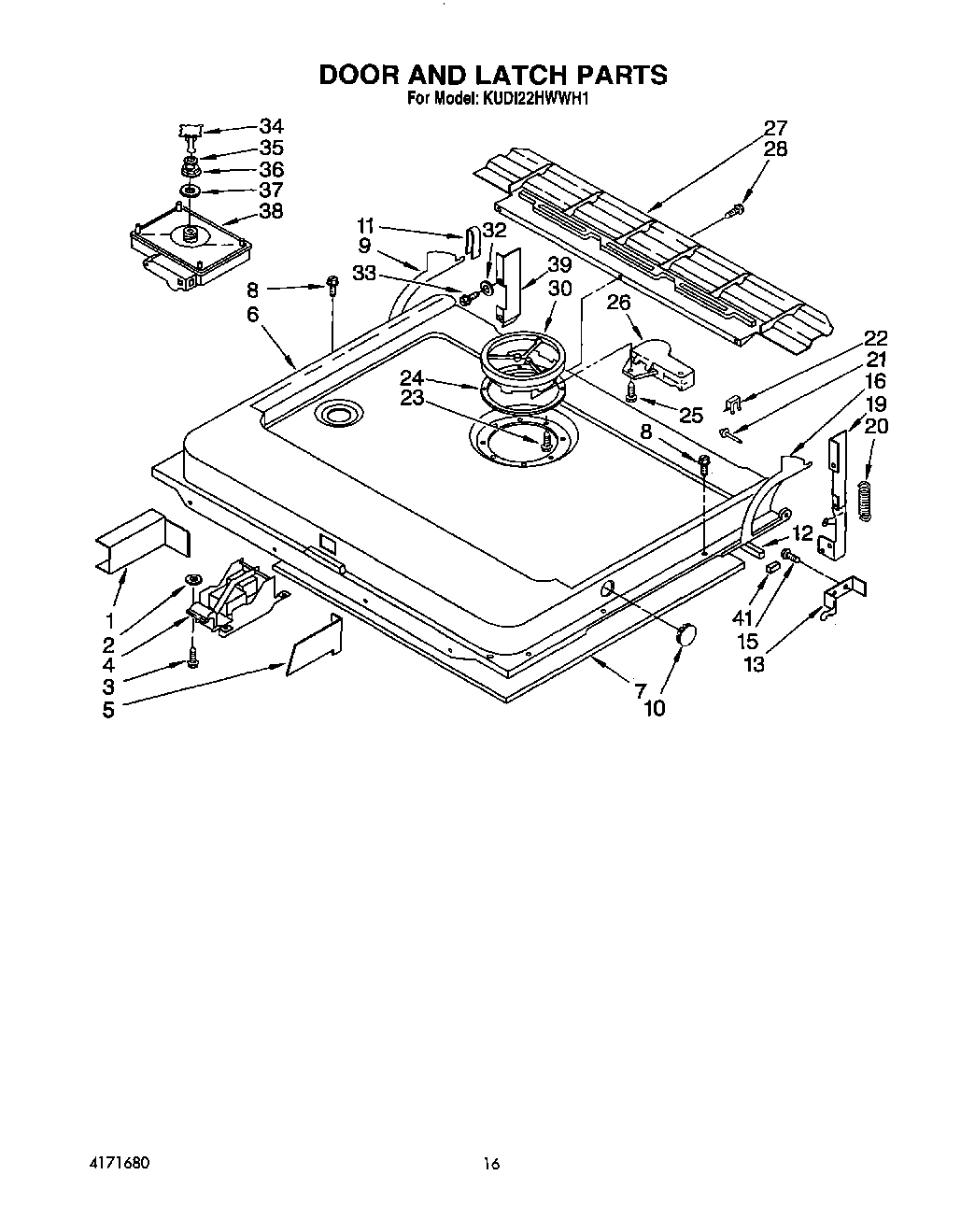

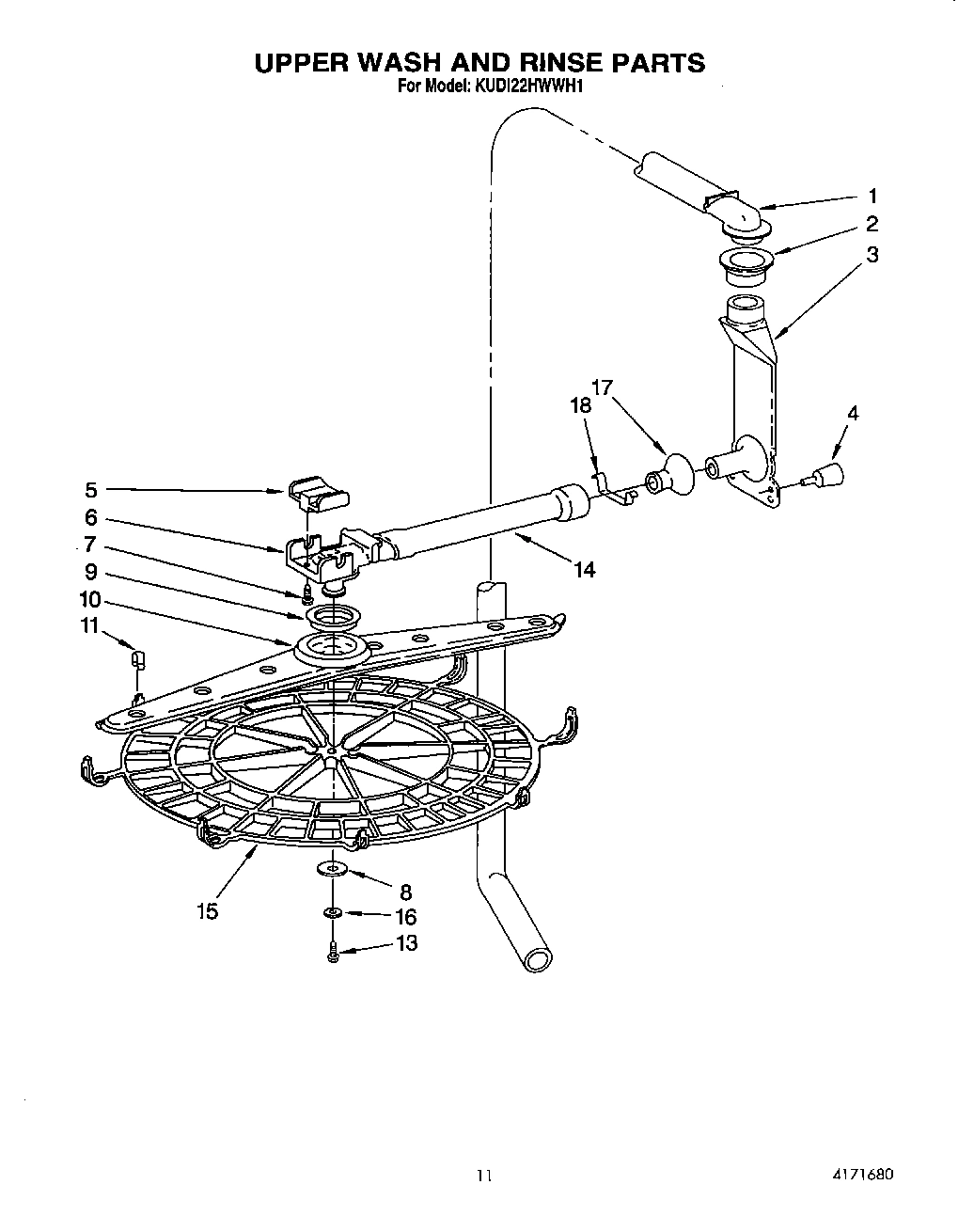

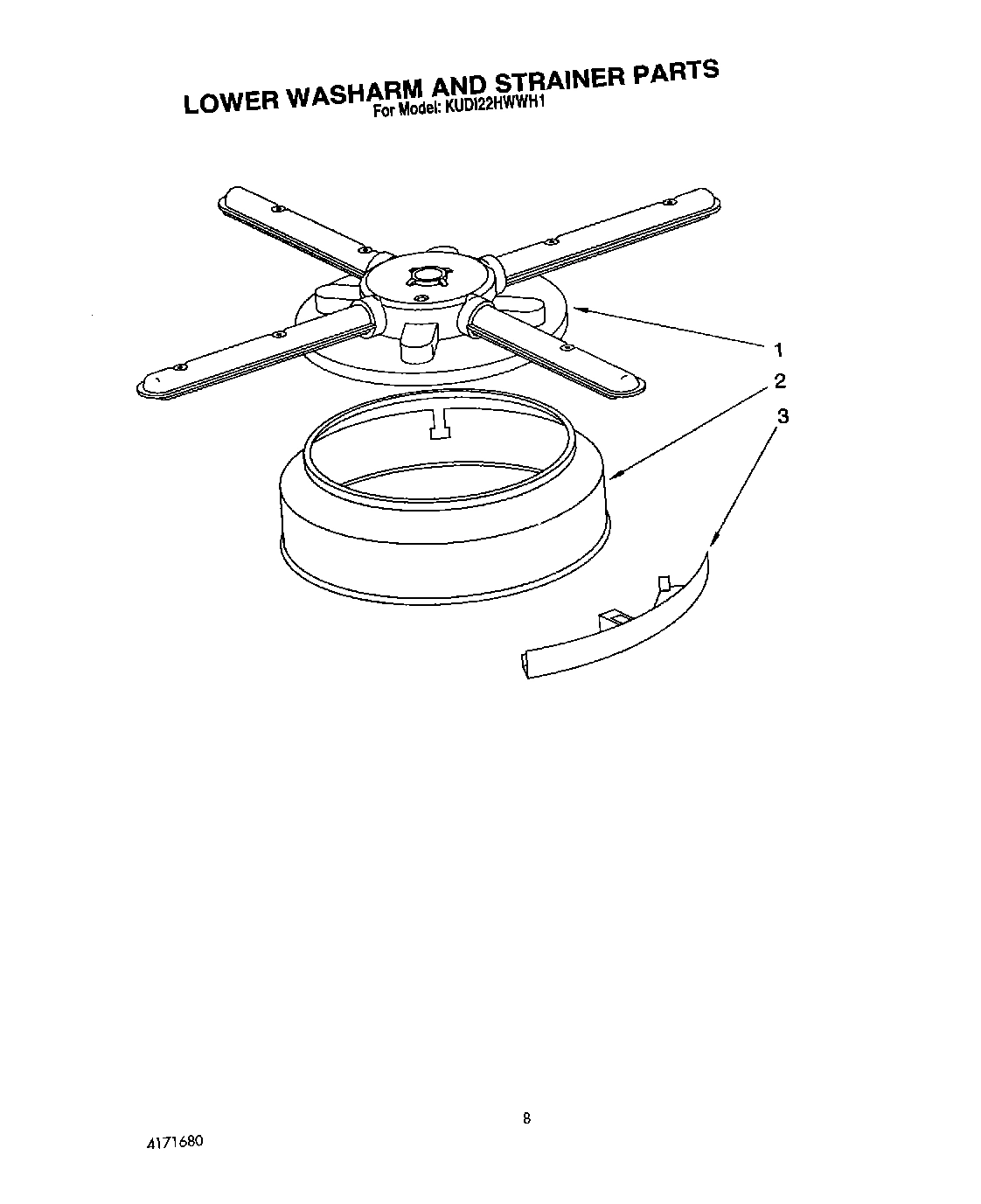

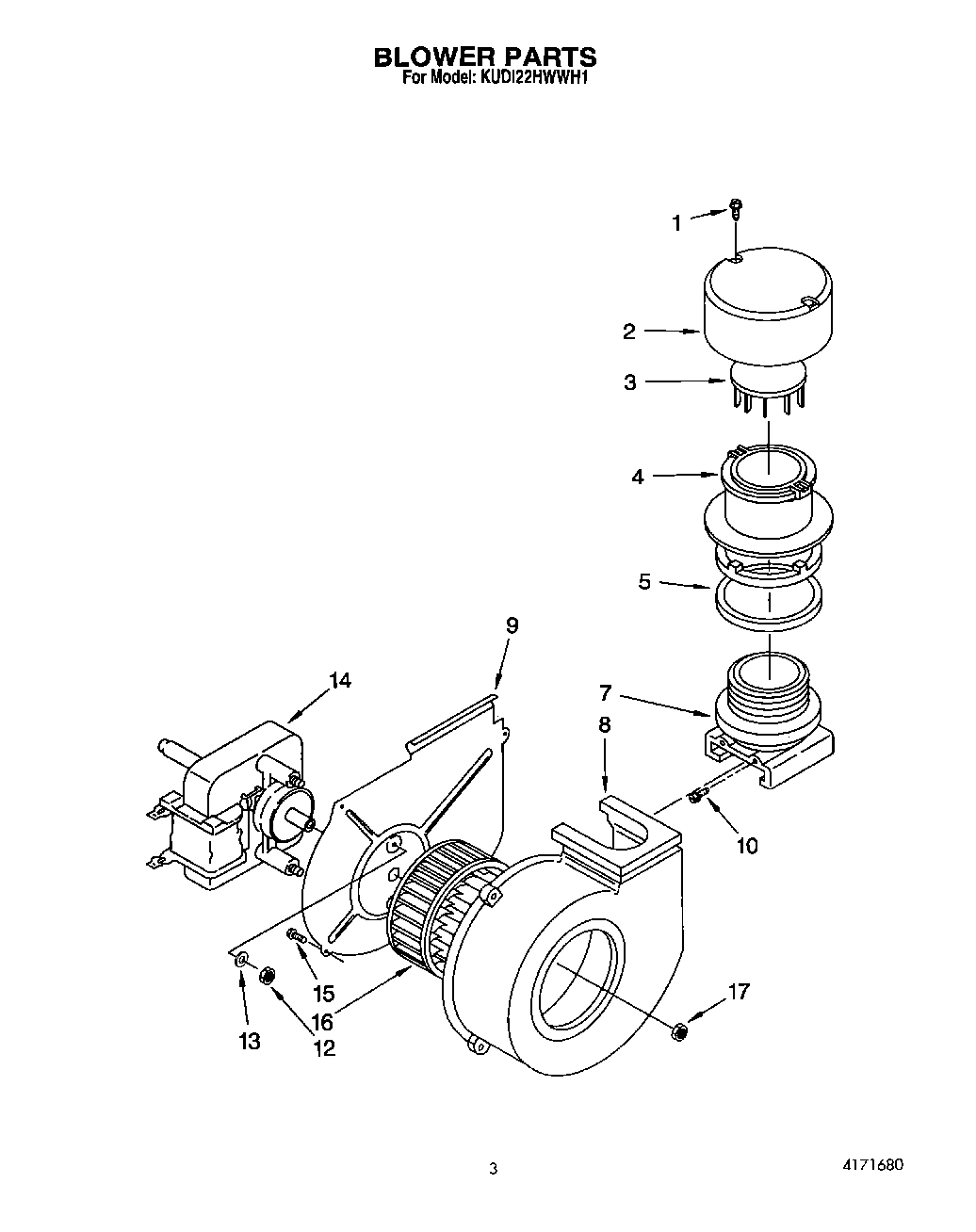

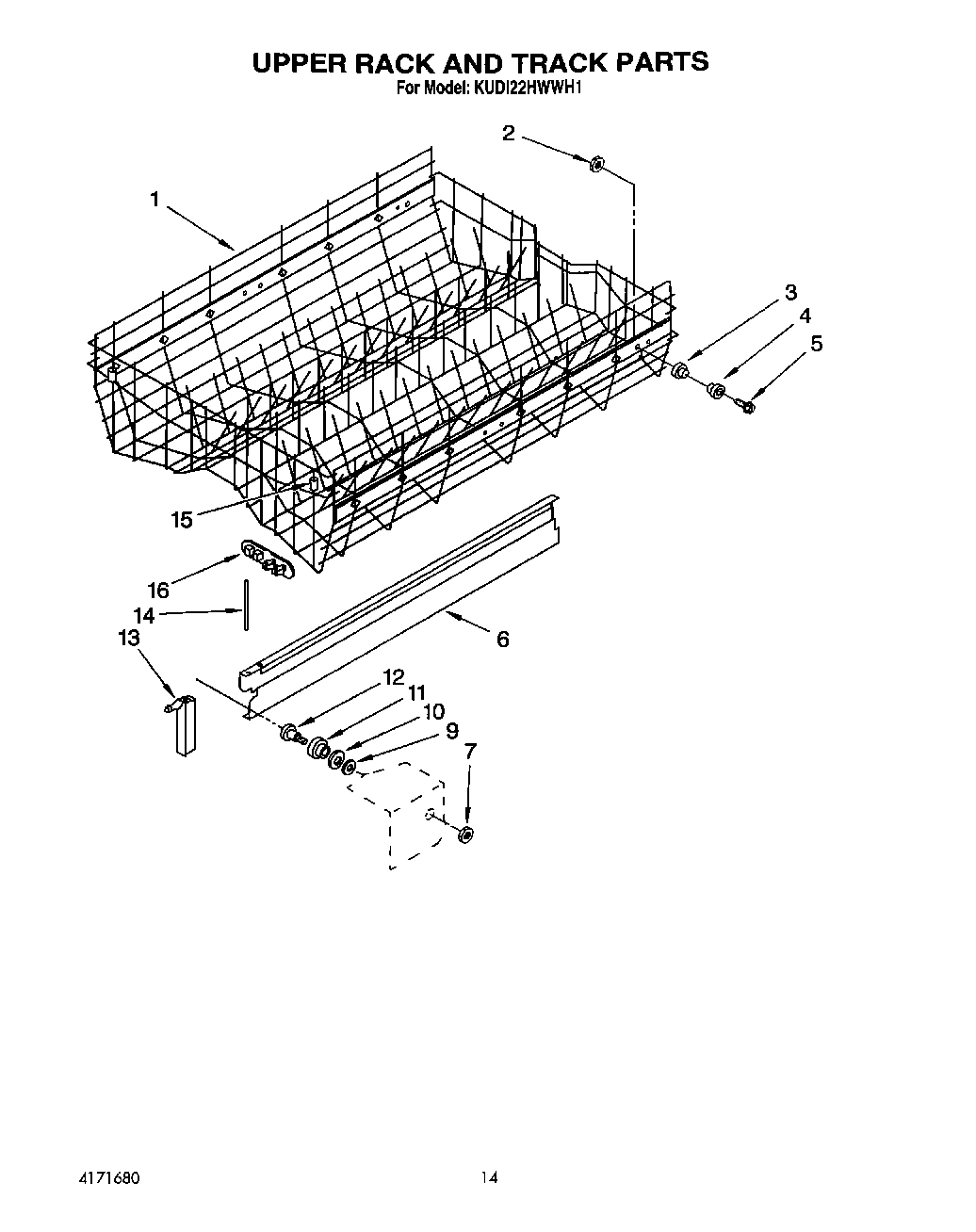

1

Upper Rack Assembly (Includes Items 2, 3, 4, WPL 4171570 Contact Us For Availability

1

Limiter Ground Terminal WPL 9740978 Contact Us For Availability

1

Tube & Connector Assembly WPL 9740307 Contact Us For Availability

1

Screw WPL 4162215 Contact Us For Availability

1

Wash Arm Assembly WPL 4162925 Contact Us For Availability

1

Cover, Wiring Harness WPL 4161659 Contact Us For Availability

1

Hose, Flexible (Fill Valve to Air Gap) WPL 9740392 Contact Us For Availability

1

Short Frame Assembly (Includes Items 2, 18, 1 WPL 4171627 Contact Us For Availability

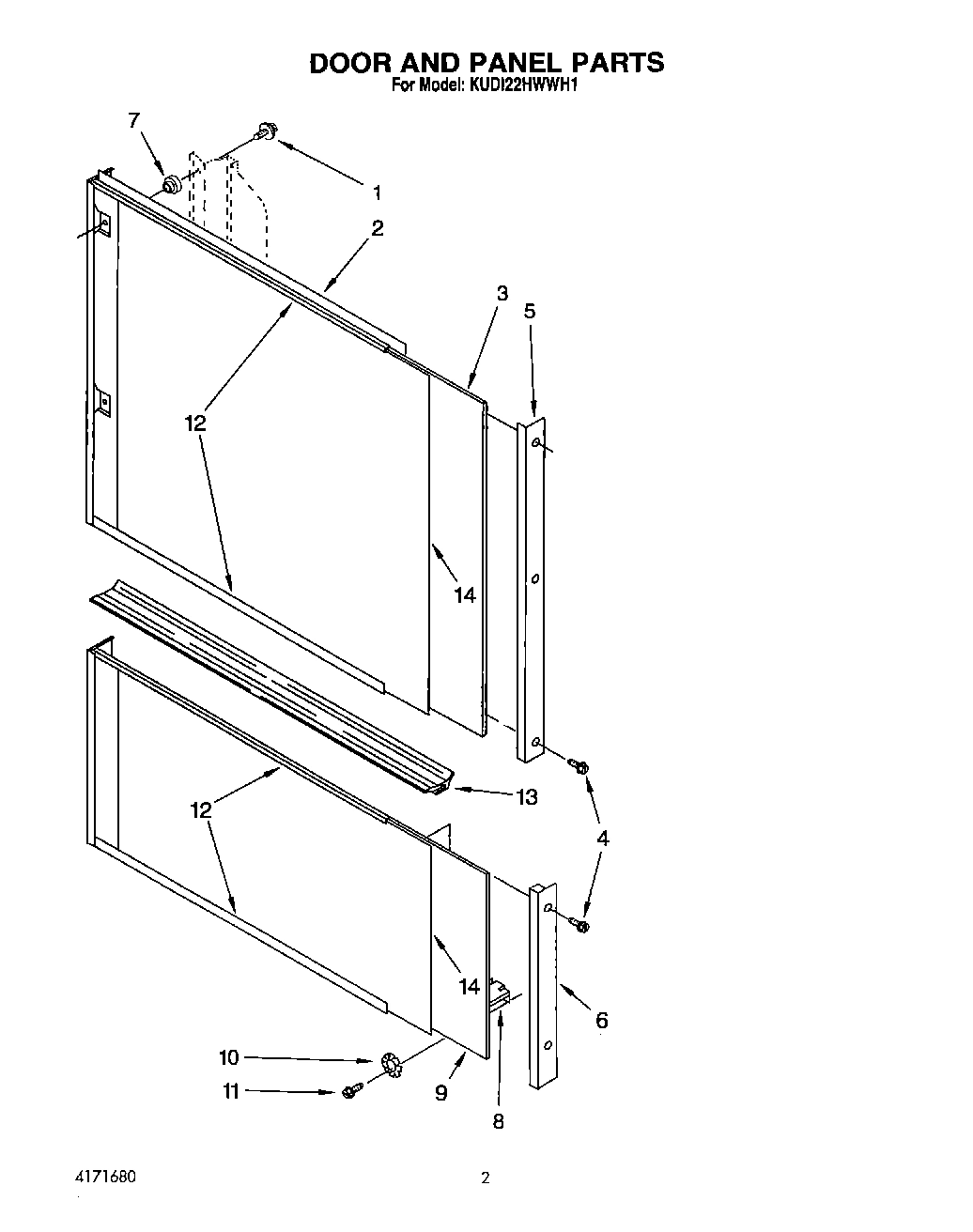

1

Screw, 6-32 X 7/8 WPL 4159436 Contact Us For Availability

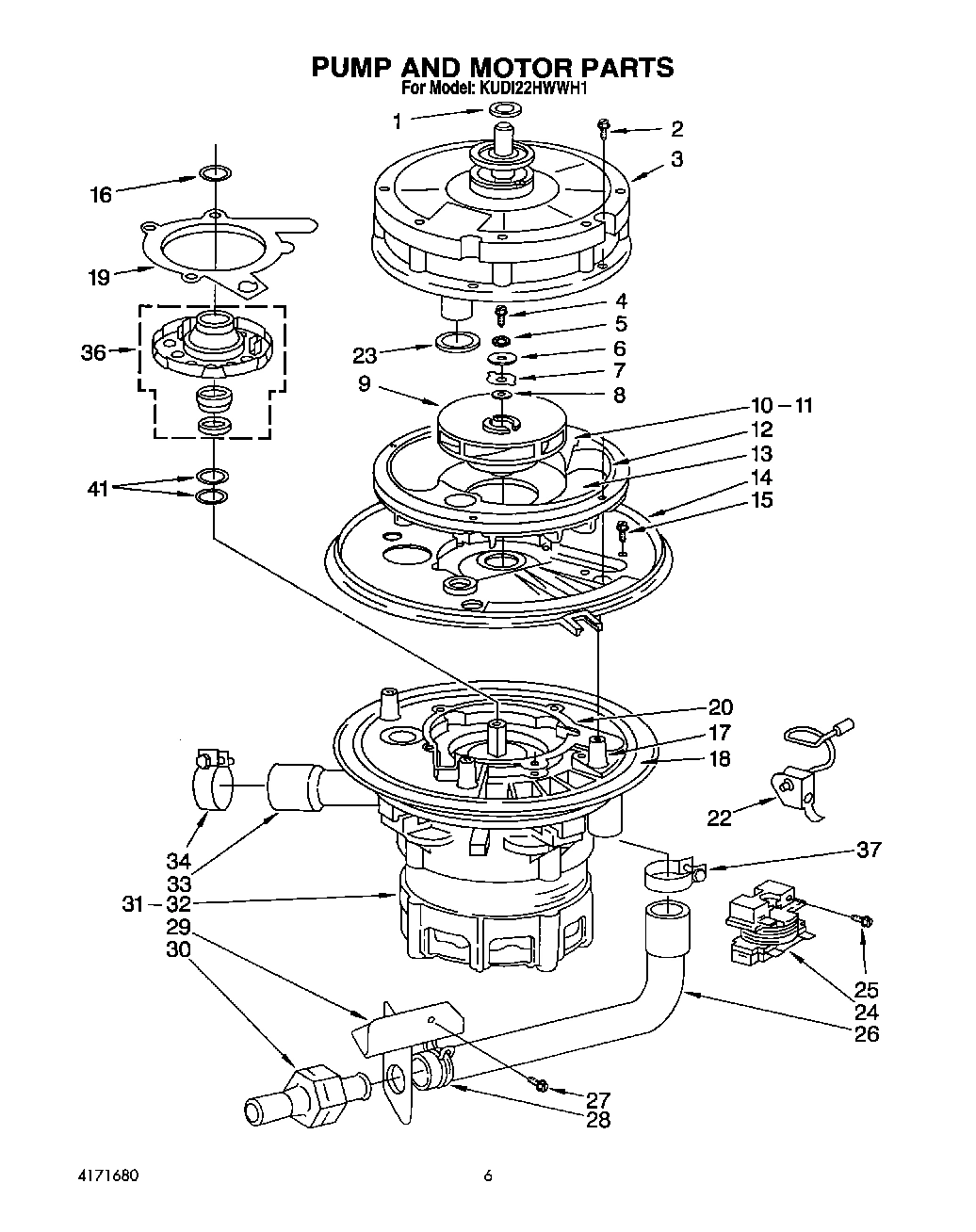

1

Washer WPL 4162892 Contact Us For Availability

2

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

2

Axle, Lower Rack WPL 4162321 Contact Us For Availability

2

Nut, Roller WPL 4161226 Contact Us For Availability

2

Hook, Heater Element WPL 4163549 Contact Us For Availability

2

Connector, Vertical Conduit WPL 9740763 Contact Us For Availability

2

Upper Mounting Panel Assembly (Includes Upper WPL 4171670 Contact Us For Availability

2

Strainer (Fine) WPL 4162930 Contact Us For Availability

2

Washer WPL 4159513 Contact Us For Availability

2

Clamp, Hose WPL 4162103 Contact Us For Availability

2

Screw, 10-16 X 5/8 WPL 4159178 Contact Us For Availability

2

Cap, Air Inlet WPL 4162482 Contact Us For Availability

3

WP4162322 Whirlpool Dishwasher Roller In Stock WPL WP4162322 $2.51

3

Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability

3

Bearing & Spacer, Rack Roller WPL 9740879 Contact Us For Availability

3

Washer WPL 4159477 Contact Us For Availability

3

Conduit, Vertical WPL 4162655 Contact Us For Availability

3

Filler (Upper Panel) WPL 4171462 Contact Us For Availability

3

Strainer (Coarse) WPL 4171195 Contact Us For Availability

3

Screw, 10-16 X 3/8 WPL 3369139 Contact Us For Availability

3

Air Gap, Fill Assembly (Includes Items 1 & 2) WPL 9740394 Contact Us For Availability

3

Damper, Air Inlet WPL 4162485 Contact Us For Availability

3

Wash Pump Top (Includes Items 1 & 23) WPL 4163521 Contact Us For Availability

4

Roller, Upper Rack Track WPL 4161607 Contact Us For Availability

4

Washer, Sealing WPL 4160051 Contact Us For Availability

4

Retainer, Conduit WPL 4162609 Contact Us For Availability

4

Screw (10) WPL 4171463 Contact Us For Availability

4

Latch Mechanism Assembly WPL 4171578 Contact Us For Availability

4

Gasket, Rubber WPL 4161545 Contact Us For Availability

4

Clip, Seal WPL 4161608 Contact Us For Availability

4

Tube, Air Inlet WPL 4162483 Contact Us For Availability

4

Screw, 10-32 WPL 4162918 Contact Us For Availability

5

Bumper, Lower Rack WPL 4171555 Contact Us For Availability

5

Screw, 10-16 X 1 WPL 4159426 Contact Us For Availability

5

Washer WPL 4159567 Contact Us For Availability

5

Retainer, Manifold WPL 4171540 Contact Us For Availability

5

Side Trim (Upper Panel) WPL 9740456 Contact Us For Availability

5

Insulation, Switch WPL 4162145 Contact Us For Availability

5

Nut (Fill Air Gap) WPL 4171300 Contact Us For Availability

5

Bumper, Door WPL 4161626 Contact Us For Availability

5

Seal, Air Inlet WPL 4162481 Contact Us For Availability

5

Lock Washer WPL 4159500 Contact Us For Availability

6

Track, Rack WPL 4162442 Contact Us For Availability

6

Washer WPL 4159583 Contact Us For Availability

6

Manifold, Upper Arm WPL 4171541 Contact Us For Availability

6

Side Trim (Lower Panel) WPL 4171673 Contact Us For Availability

6

Inner Door Assembly WPL 4162508 Contact Us For Availability

6

Clamp, Hose WPL 4161505 Contact Us For Availability

6

Washer, Spring (Impeller) WPL 4160297 Contact Us For Availability

7

WP4171000 Whirlpool Dishwasher Inlet Valve In Stock WPL WP4171000 $81.45

7

Thermostat WPL 4163589 Contact Us For Availability

7

Grommet, Panel WPL 4162735 Contact Us For Availability

7

Insulation, Inner Door WPL 4163577 Contact Us For Availability

7

Clip, Retainer WPL 9740303 Contact Us For Availability

7

Support, Blower WPL 9740989 Contact Us For Availability

7

Washer, Impeller WPL 4162917 Contact Us For Availability

8

Switch, Program WPL 4163547 Contact Us For Availability

8

Bracket, Thermostat WPL 4163552 Contact Us For Availability

8

Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability

8

Lower Mounting Panel Assembly (Includes Upper WPL 4171672 Contact Us For Availability

8

Screw & Washer Assembly WPL 9740922 Contact Us For Availability

8

Housing, Blower WPL 4162487 Contact Us For Availability

8

``O`` Ring WPL 4159826 Contact Us For Availability

9

Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability

9

Seal, Moisture WPL 9740767 Contact Us For Availability

9

Washer WPL 9741062 Contact Us For Availability

9

Bearing, Arm (Top) WPL 4162491 Contact Us For Availability

9

Filler (Lower Panel) WPL 4171464 Contact Us For Availability

9

Strap (Flexible Connector to Tank) WPL 4162935 Contact Us For Availability

9

Actuator, Interlock Switch WPL 4171197 Contact Us For Availability

9

Plate, Motor Mounting WPL 9740961 Contact Us For Availability

9

Wash Impeller Assembly WPL 4162921 Contact Us For Availability

Screw, 6-32 X 3/8 WPL 4159428 Contact Us For Availability

Washer, Cup WPL 718817 Contact Us For Availability

Wash/Rinse Arm Assembly WPL 9740878 Contact Us For Availability

Plug Button WPL 9740847 Contact Us For Availability

Screw, 4-40 X 3/4 WPL 4159424 Contact Us For Availability

Lock Nut WPL 4159115 Contact Us For Availability

Screw WPL 9740973 Contact Us For Availability

Plate, Air Inlet Cover WPL 4162952 Contact Us For Availability

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $13.18

Bearing, Door Stop Insert (2) WPL 4160355 Contact Us For Availability

Spring, Door Interlock WPL 4163571 Contact Us For Availability

Locknut WPL 718829 Contact Us For Availability

Roller, Rack Track WPL 9740963 Contact Us For Availability

Clip, Guard WPL 4171542 Contact Us For Availability

Screw WPL 4169421 Contact Us For Availability

Keeper, Latch WPL 4160092 Contact Us For Availability

Gasket, Cover Plate WPL 4162953 Contact Us For Availability

W10207863 Whirlpool Dishwasher Switch Backorder WPL W10207863 $33.16

Screw. Track Roller WPL 9740964 Contact Us For Availability

Element, Heater WPL 9740416 Contact Us For Availability

Trim, Panel (Upper & Lower) WPL 4171671 Contact Us For Availability

Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability

Screw, 10-16 x 3/8 WPL 4159421 Contact Us For Availability

Nut, 6-32 Hex WPL 4159071 Contact Us For Availability

Lower Pump Housing (Includes Items 13 & 23) WPL 4162929 Contact Us For Availability

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

WP9741251 Whirlpool Mounting Bracket In Stock WPL WP9741251 $3.70

Bumper, Rack Track WPL 4171547 Contact Us For Availability

Switch, Interlock WPL 4160658 Contact Us For Availability

Grommet, Heater Element WPL 4162521 Contact Us For Availability

Screw WPL 4161737 Contact Us For Availability

Channel, Evaporation WPL 9740868 Contact Us For Availability

Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability

Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability

Lockwasher WPL 4159491 Contact Us For Availability

Seal, Wash Pump Ring WPL 4162919 Contact Us For Availability

W11596033 Whirlpool Microwave Screw Backorder WPL W11596033 $9.59

Tube (Manifold to Receiver) WPL 4171544 Contact Us For Availability

Panel Insert Kits (Stainless Steel) WPL 4169400 Contact Us For Availability

Stud, Bumper Retaining WPL 4160423 Contact Us For Availability

Washer, Heater Element WPL 4163554 Contact Us For Availability

Panel Insert Kits (White/Black) WPL 4162833 Contact Us For Availability

Panel Insert Kits (Harvest Gold/Almond) WPL 4162834 Contact Us For Availability

Panel Insert Kits (Fresh Avocado/ Coffee) WPL 4162835 Contact Us For Availability

Panel Insert Kits (Almond/White) WPL 4162836 Contact Us For Availability

Panel Insert Kits (Platinum/Toast) WPL 4169402 Contact Us For Availability

Panel Insert Kits (Sand/Onyx Black) WPL 4169403 Contact Us For Availability

Panel Insert Kits (Silver/Onyx Black) WPL 4169404 Contact Us For Availability

Panel Insert Kits (Harvest Gold/Onyx Black) WPL 4171096 Contact Us For Availability

Panel Insert Kits (Almond/Black) WPL 4171534 Contact Us For Availability

Nut, Standpipe WPL 4161596 Contact Us For Availability

Screw, 7-19 x 1/2 WPL 9741257 Contact Us For Availability

Motor, Blower WPL 9740267 Contact Us For Availability

Fine Strainer WPL 4162933 Contact Us For Availability

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

Screw & Washer Assembly WPL 4163263 Contact Us For Availability

Bumper, Upper Rack WPL 4162048 Contact Us For Availability

Nut, Heater Element WPL 718537 Contact Us For Availability

Guard, Arm WPL 4171543 Contact Us For Availability

Float & Retainer Assembly WPL 4171216 Contact Us For Availability

Screw, 6 X 1/2 WPL 4171131 Contact Us For Availability

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability

Clip, Wash Arm Guard WPL 4171551 Contact Us For Availability

Washer WPL 4162624 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

Support, Lower Panel WPL 9740869 Contact Us For Availability

Blower Wheel Assembly (Includes Item 17) WPL 4162499 Contact Us For Availability

``O`` Ring WPL 4159827 Contact Us For Availability

4171566 Whirlpool Dishwasher Receiver Backorder WPL 4171566 $12.32

Spacer, End Cap (R.H.) WPL 4171124 Contact Us For Availability

Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability

Nut WPL 9740265 Contact Us For Availability

Motor Mounting Plate (Includes Items 18 & 20) WPL 4162932 Contact Us For Availability

End Cap (R.H.) WPL 9740463 Contact Us For Availability

Support, Receiver WPL 4171565 Contact Us For Availability

Frame Assembly (L.H.) WPL 4171620 Contact Us For Availability

Gasket, Motor Mounting Plate WPL 4161497 Contact Us For Availability

Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability

Cross Frame, Rear WPL 4162867 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 4159299 Contact Us For Availability

Drain Pump Top Assembly WPL 4162924 Contact Us For Availability

20

WP4171237 Whirlpool Dishwasher Spring Backorder WPL WP4171237 $11.00

20

Sleeve, Actuator Spacer WPL 9740120 Contact Us For Availability

20

Gasket, Drain Pump WPL 4163050 Contact Us For Availability

21

Pin, Hinge WPL 4161563 Contact Us For Availability

21

Frame Assembly (R.H.) WPL 4171619 Contact Us For Availability

22

Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability

22

Screw, 1/4-20 x 1/2 WPL 4159443 Contact Us For Availability

22

Motor Clamp Assembly WPL 4161986 Contact Us For Availability

23

Screw WPL 9740851 Contact Us For Availability

23

Cross Frame, Front WPL 4161368 Contact Us For Availability

23

Gasket, Venturi WPL 4162916 Contact Us For Availability

24

WP4171447 Whirlpool Dishwasher Seal Backorder WPL WP4171447 $5.03

24

Kick Board WPL 4171618 Contact Us For Availability

24

Start Relay Kit WPL 9740418 Contact Us For Availability

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

Clip, Grounding (Front Panel) WPL 4162043 Contact Us For Availability

Foot, Leveling (4) WPL 4162911 Contact Us For Availability

Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability

26

WP4162568 Whirlpool Bi-metal Thermostat Backorder WPL WP4162568 $32.32

26

Lock Washer WPL 4159494 Contact Us For Availability

26

Tube - Flexible (Drain) WPL 4163151 Contact Us For Availability

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

Baffle, Lower WPL 4161295 Contact Us For Availability

Button, Program Switch (5) WPL 9740462 Contact Us For Availability

Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability

28

Clamp, Hose WPL 371499 Contact Us For Availability

28

Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability

28

Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability

29

Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability

29

Shield, Insulation WPL 4171176 Contact Us For Availability

29

Bracket, Check Valve WPL 4171311 Contact Us For Availability

30

Trim, Handle WPL 9740465 Contact Us For Availability

30

Detergent Dispenser & Gasket Assembly (115 V. WPL 9740170 Contact Us For Availability

30

Check Valve Assembly WPL 4162920 Contact Us For Availability

31

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

31

Motor, Seal & Gasket Kit) (Includes Items 18, WPL 9740949 Contact Us For Availability

Handle, Latch WPL 9740460 Contact Us For Availability

Washer (Rubber) WPL 4159594 Contact Us For Availability

Tank (Serviced Complete with Frame) WPL 9741207 Contact Us For Availability

Screw, 1/4-20 x 1 WPL 4159235 Contact Us For Availability

33

Screw, 10-32 x 5/8 WPL 4159225 Contact Us For Availability

33

Protector, Edge WPL 4171215 Contact Us For Availability

33

Connector WPL 4161605 Contact Us For Availability

34

Fill Hole Plug Assembly (Includes Item 35) WPL 4171221 Contact Us For Availability

34

Clip, Harness Guide WPL 4163372 Contact Us For Availability

34

Clamp, Hose (1.468`` Dia.) WPL 4162031 Contact Us For Availability

35

Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability

35

Wiring Harness (Main) WPL 9740834 Contact Us For Availability

35

Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability

36

Cutter Kit (Includes Shaft Seal Kit) WPL 4163042 Contact Us For Availability

37

3363365 Whirlpool Clamp Backorder WPL 3363365 $4.76

38

Knob, Timer WPL 4171647 Contact Us For Availability

38

Rinse Agent Dispensing Valve WPL 4171217 Contact Us For Availability

39

Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability

39

Control Panel WPL 9741244 Contact Us For Availability

41

Spacer, End Cap (L.H.) WPL 4171125 Contact Us For Availability

41

Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability

41

Shim Washer Kit WPL 4163634 Contact Us For Availability

42

End Cap (L.H.) WPL 9740464 Contact Us For Availability

43

Screw, 6-20 x 3/8 WPL 4159408 Contact Us For Availability

44

Timer Assembly (115 V., 60 Hz.) WPL 4163550 Contact Us For Availability

47

Clip, Endcap (2) WPL 4171127 Contact Us For Availability
